Fig. 19: Identifying Tailgate Upper Trim And Clip
Courtesy of KIA MOTORS AMERICA, INC.

6. Loosen the screw, then remove tailgate side trim (A).

Fig. 20: Identifying Tailgate Side Trim, Clip And Screw
Courtesy of KIA MOTORS AMERICA, INC.

7. Loosen the screws and clips to the lower tailgate trim (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:08 PM

Page 16

© 2006 Mitchell Repair Information Company, LLC.

Fig. 21: Identifying Lower Tailgate Trim, Screws And Clips
Courtesy of KIA MOTORS AMERICA, INC.

8. Installation is the reverse of removal.

TAILGATE WEATHERSTRIP REPLACEMENT

1. Remove the tailgate weatherstrip (A).

Fig. 22: Identifying Tailgate Weatherstrip

NOTE:



Replace and damaged clips.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:08 PM

Page 17

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

LATCH ASSEMBLY REPLACEMENT

1. Remove the tailgate trim. See TAILGATE TRIM REPLACEMENT.

2. Disconnect the outside handle rod (A), connector (B)

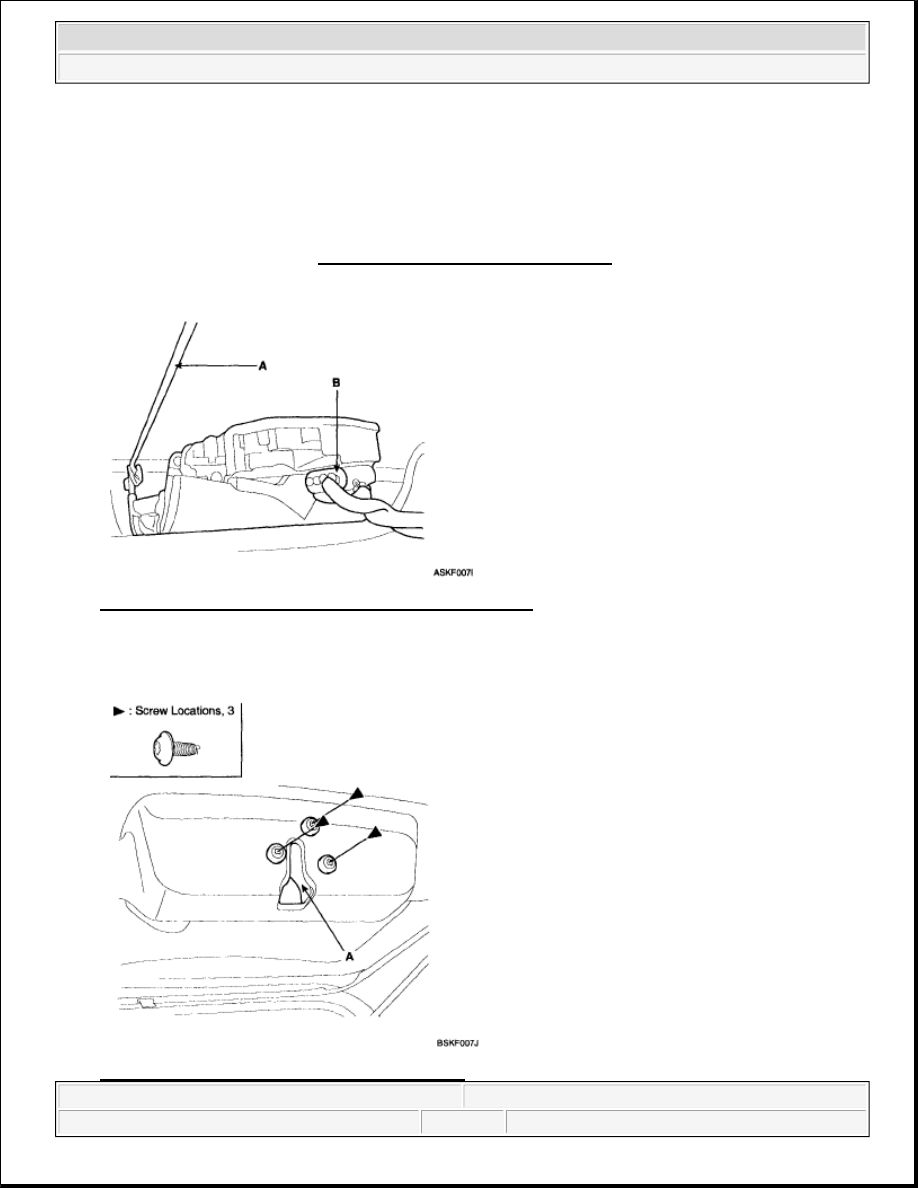

Fig. 23: Identifying Outside Handle Rod And Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. After loosening the mounting screws, then remove the latch assembly (A).

Fig. 24: Identifying Latch Assembly And Screw



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:08 PM

Page 18

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.



Make sure the connector is connected properly and the connecting rod is connected properly.



Make sure the tailgate opens properly and locks securely.

ACTUATOR ASSEMBLY REPLACEMENT

1. Remove the tailgate trim. See TAILGATE TRIM REPLACEMENT.

2. Disconnect the outside handle rod (A), actuator rod (B), key cylinder rod (C) and connector.

3. After loosening the mounting bolt and nuts, then remove the actuator assembly (D).

Fig. 25: Identifying Outside Handle Rod, Actuator Rod, Key Cylinder Rod, Connector, Actuator
Assembly And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

OUTSIDE HANDLE REPLACEMENT

1. Remove the tailgate trim. See TAILGATE TRIM REPLACEMENT.

2. After loosening the mounting bolt and nuts, then remove the tailgate garnish (A).

NOTE:



Make sure the connector is connected properly and the connecting
rod is connected properly.



Make sure the tailgate opens properly and locks securely.
