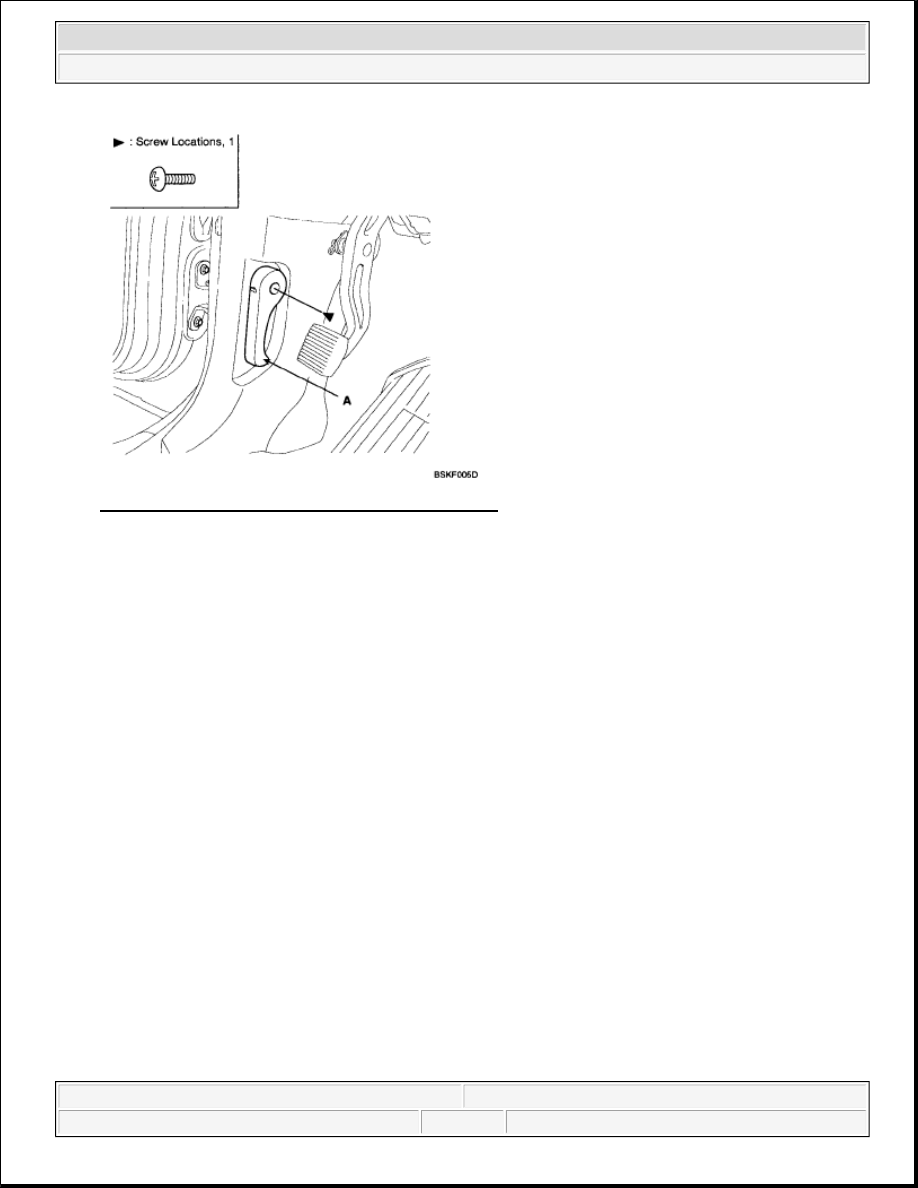

Fig. 7: Identifying Hood Release Handle And Screw
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

COWL TOP COVER REPLACEMENT

1. Remove the wiper (A).

NOTE:



Make sure the hood latch cable is connected properly.



Make sure the hood locks securely.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:08 PM

Page 8

Fig. 8: Identifying Wiper, Nuts And Toque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the hood seal weather strip. See HOOD SEAL WEATHERSTRIP REPLACEMENT.

3. Detach the clips, then remove the cowl top cover (A).

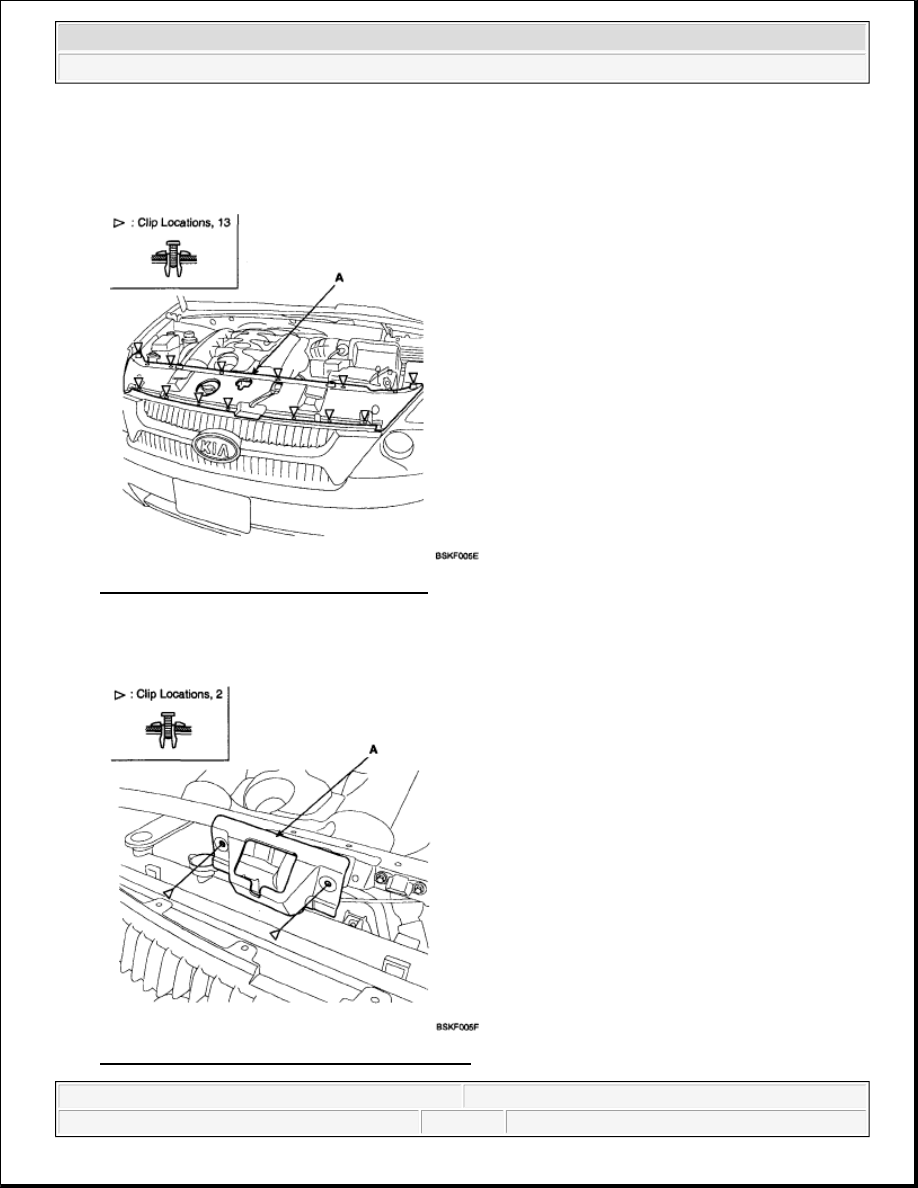

Fig. 9: Identifying Cowl Top Cover And Clip
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:08 PM

Page 9

HOOD LATCH REPLACEMENT

1. Detach the clips, then remove the under cover (A).

Fig. 10: Identifying Under Cover And Clip
Courtesy of KIA MOTORS AMERICA, INC.

2. Detach the clips, then remove the hood latch cover (A).

Fig. 11: Identifying Hood Latch Cover And Clip
Courtesy of KIA MOTORS AMERICA, INC.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:08 PM

Page 10

3. Remove the hood latch (A) mounting bolts.

4. Remove the latch (A).

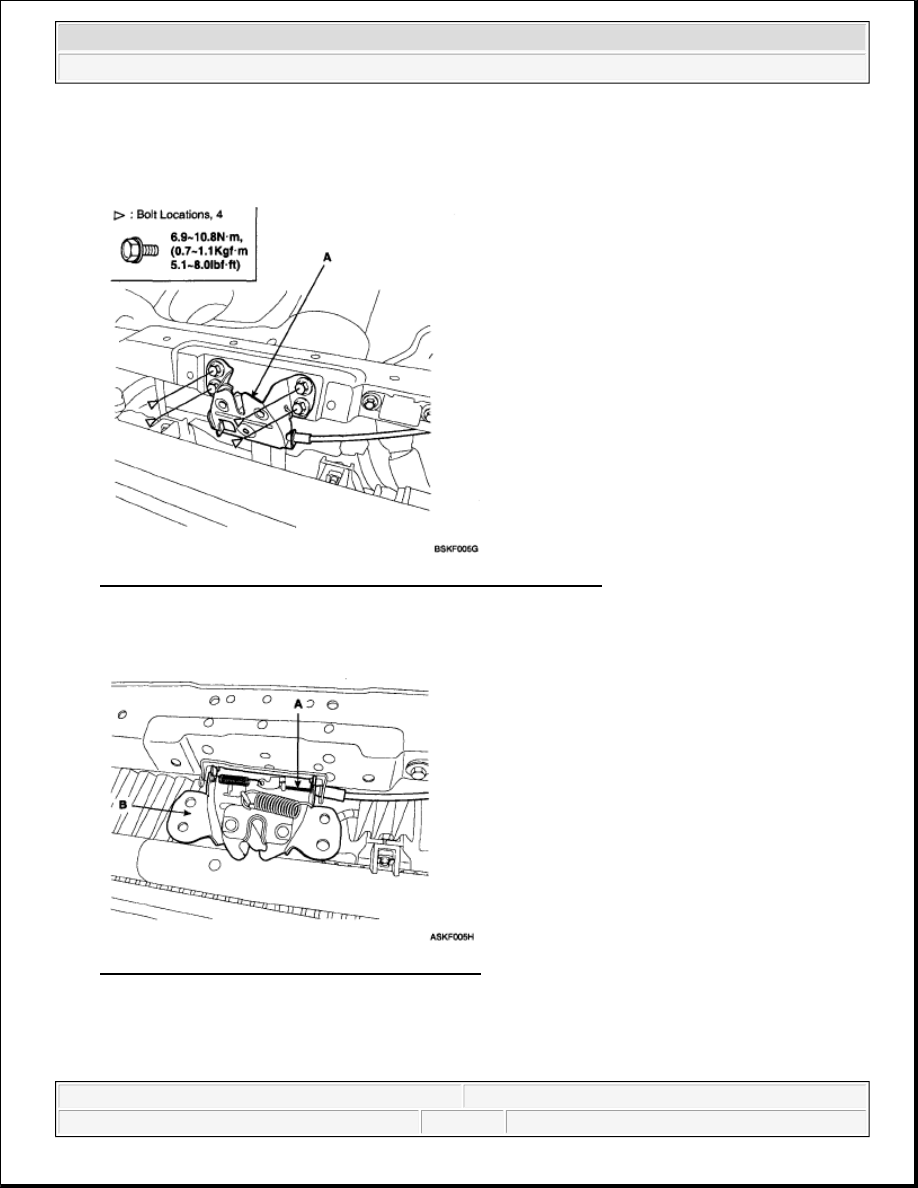

Fig. 12: Identifying Hood Latch, Bolts And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

5. Disconnect the hood latch cable (A) and Remove the latch (B).

Fig. 13: Identifying Hood Latch Cable And Latch
Courtesy of KIA MOTORS AMERICA, INC.

6. Installation is the reverse of removal.

NOTE:
