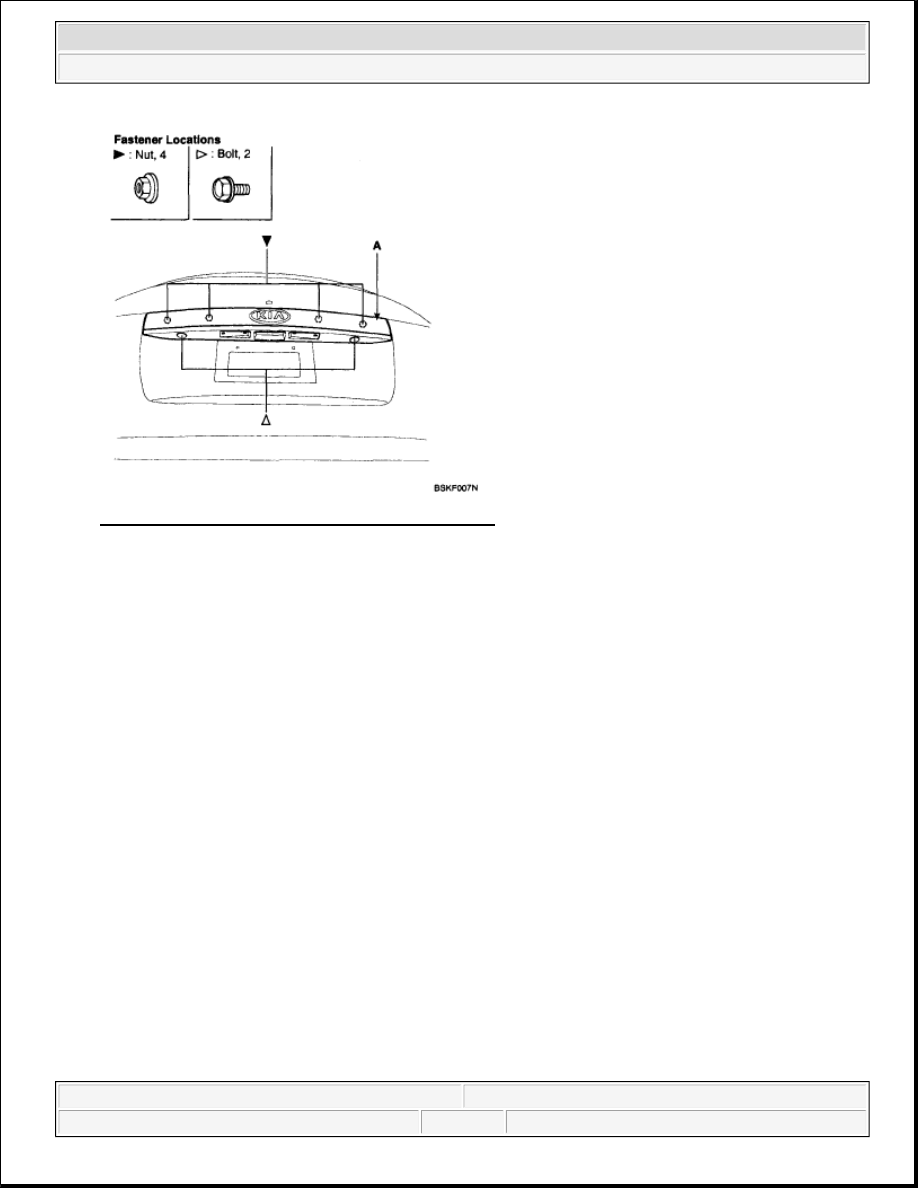

Fig. 26: Identifying Tailgate Garnish, Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the outside handle rod (A).

4. Loosen the outside handle (B) mounting bolts.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:08 PM

Page 20

Fig. 27: Identifying Outside Handle. Outside Handle Rod And Nut
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

LIFTER REPLACEMENT

1. Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then

remove the lifter from the bracket (C).

NOTE:



Make sure the tailgate opens properly and locks securely.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:08 PM

Page 21

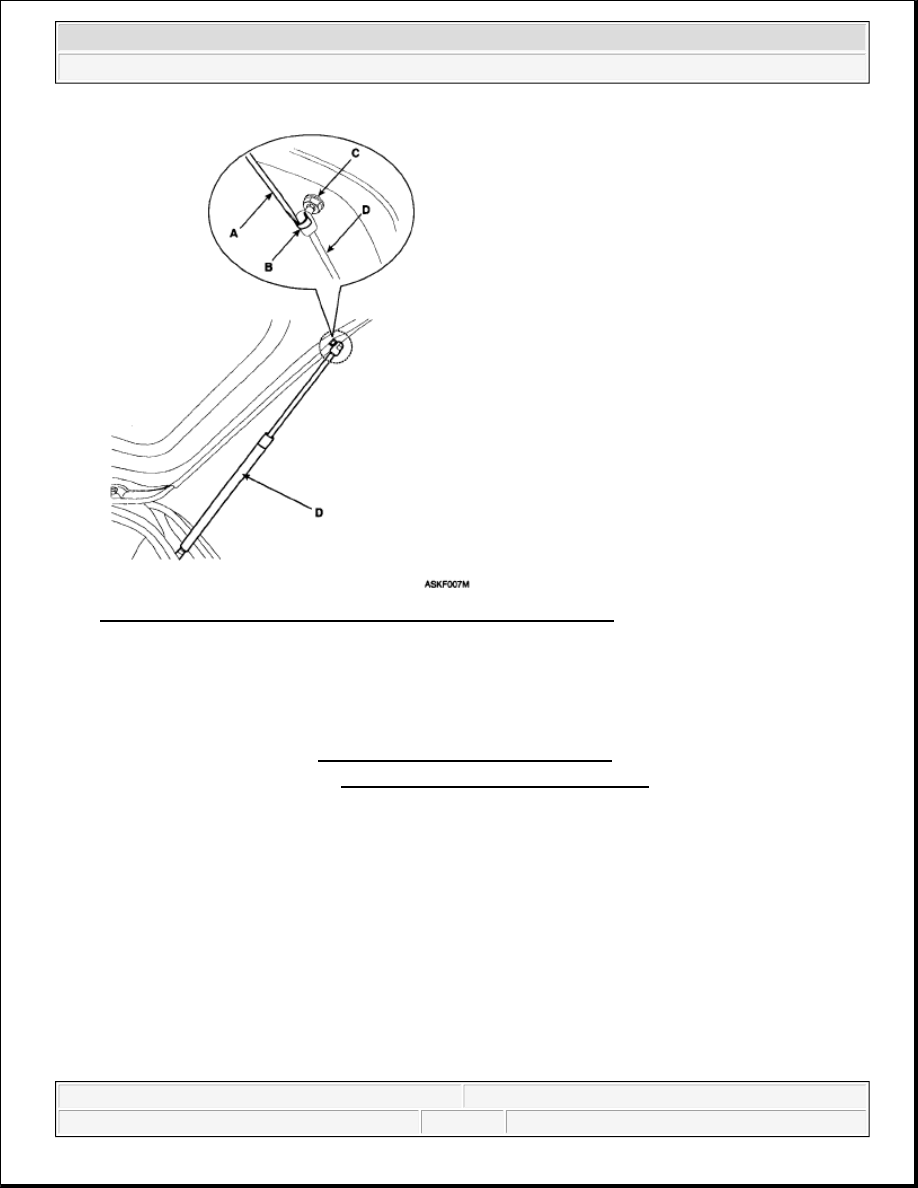

Fig. 28: Identifying Screwdriver, Socket Clips, Lifter, And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

2. Push the socket of the lifter into the bracket for installation.

KEY HOLDER REPLACEMENT

1. Remove the tailgate trim. See TAILGATE TRIM REPLACEMENT.

2. Remove the tailgate garnish. See OUTSIDE HANDLE REPLACEMENT.

3. Disconnect the key rod (B) and connector (A).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:08 PM

Page 22

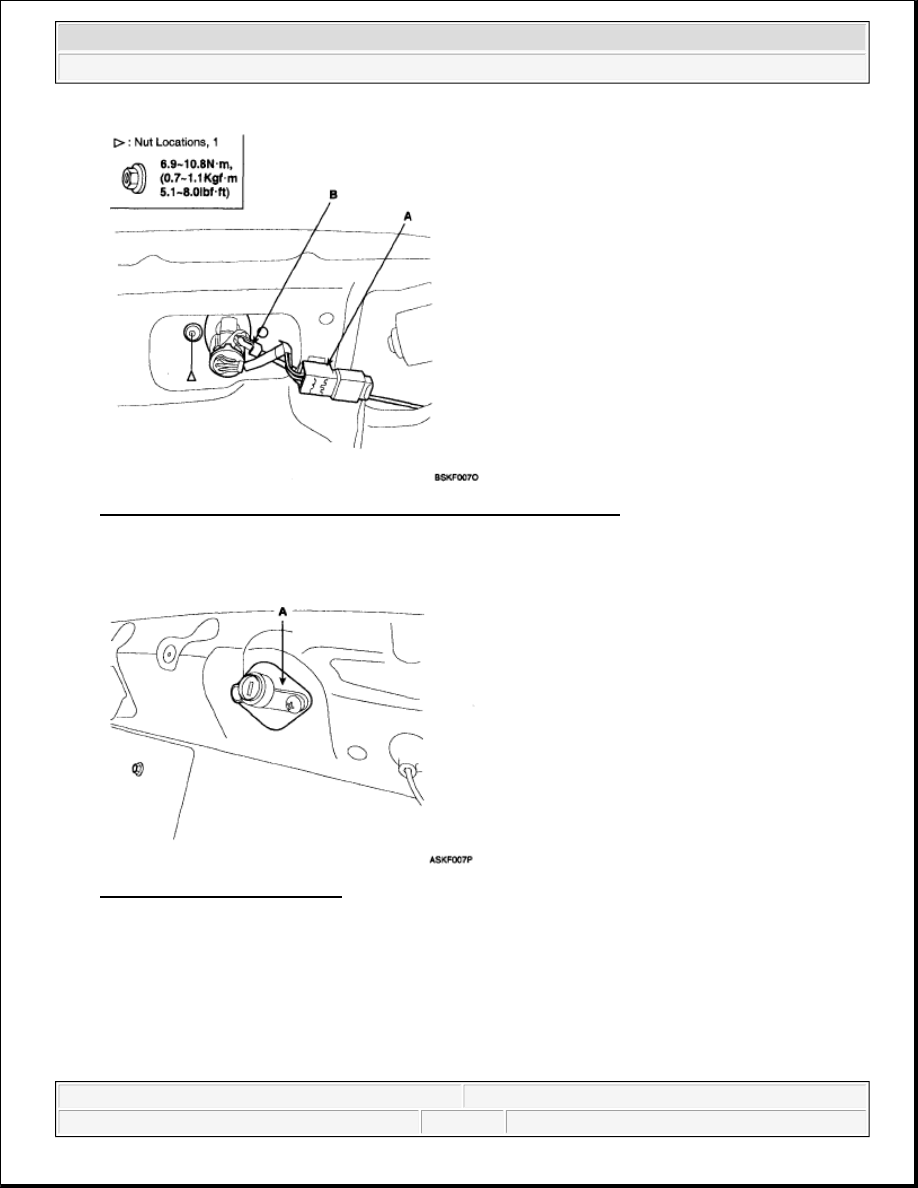

Fig. 29: Identifying Key Rod, Connector And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the key holder (A).

Fig. 30: Identifying Key Holder
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

POWER TAILGATE MOTOR ASSEMBLY REPLACEMENT

NOTE:



Make sure the tailgate opens properly and locks securely.
