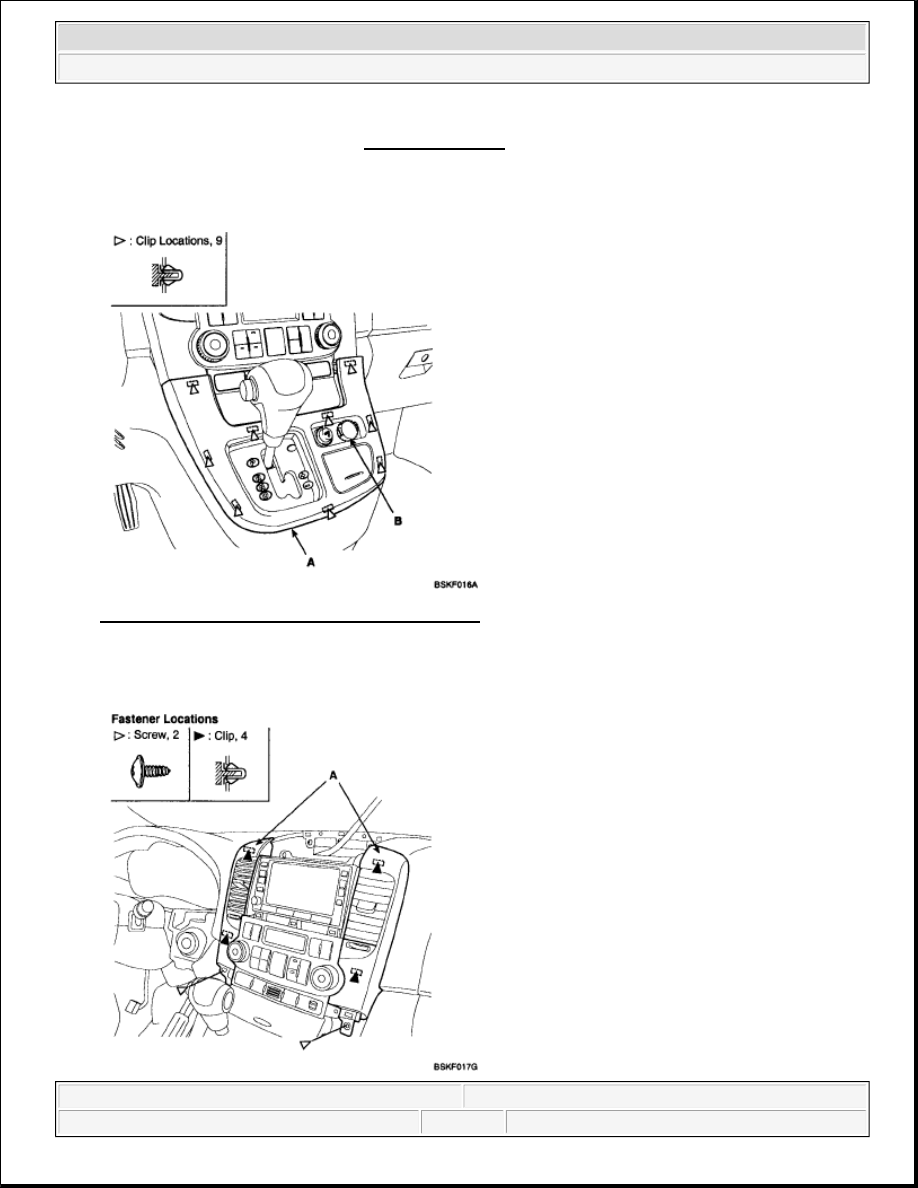

Fig. 9: Identifying Center Fascia Panel And Clip
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse the removal.

LOWER PANEL REPLACEMENT

1. Remove the crash pad side cover. See COVER REPLACEMENT.

2. Remove the fuse box cover (A).

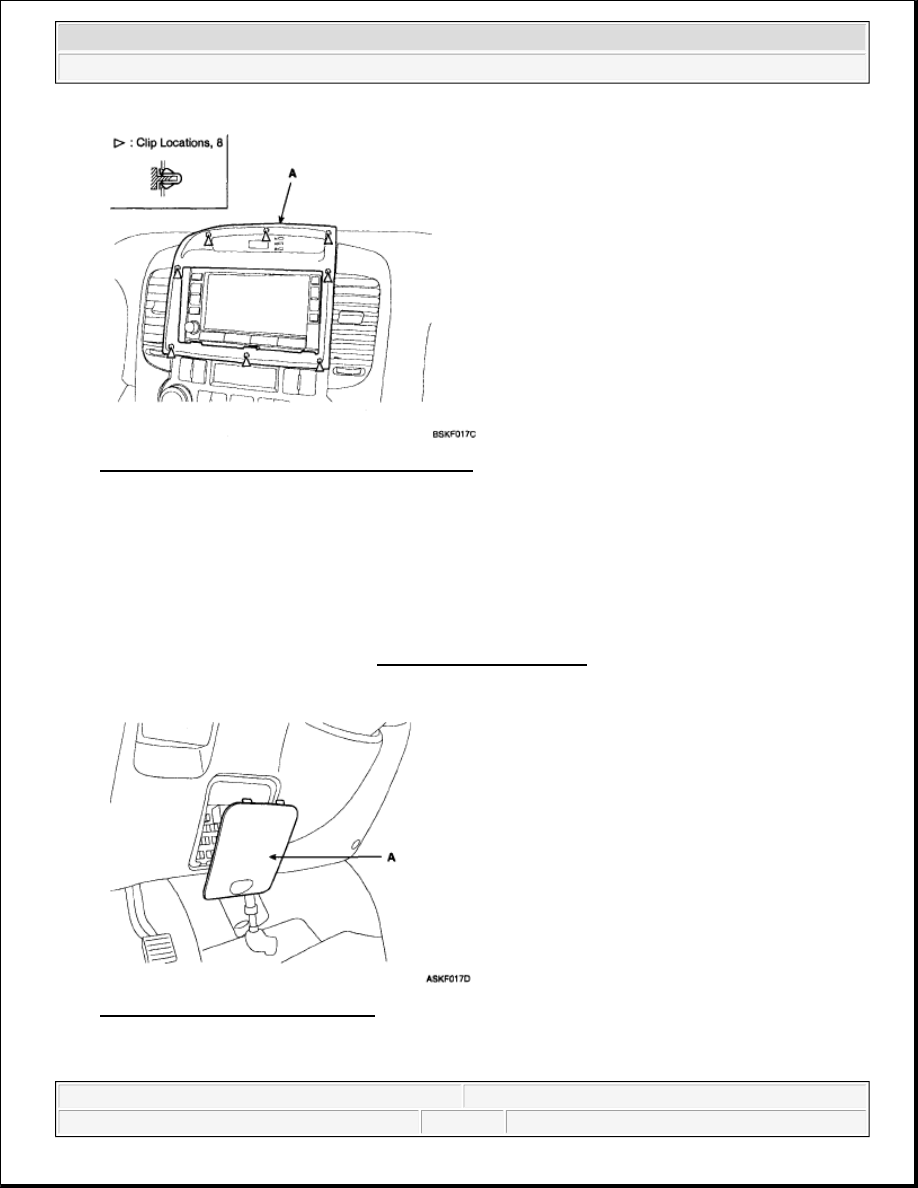

Fig. 10: Identifying Fuse Box Cover
Courtesy of KIA MOTORS AMERICA, INC.

3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (B).

NOTE:



Make sure the connector is plugged in properly.



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Saturday, May 22, 2010 6:56:12 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

4. Remove the parking brake lever (C).

Fig. 11: Identifying Lower Panel, Parking Brake Lever And Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.

5. Disconnect the connector (A).

Fig. 12: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.

6. Installation is the reverse of removal.

HEATER CONTROL UNIT REPLACEMENT



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Saturday, May 22, 2010 6:56:12 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

1. Remove the center fascia panel. See REPLACEMENT.

2. Remove the console upper cover (A).

3. Disconnect the connector (B).

Fig. 13: Identifying Center Cover And Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Loosen the air vent mounting screw, then remove the air vent (A).



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Saturday, May 22, 2010 6:56:12 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

Fig. 14: Identifying Air Vent And Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.

5. After loosening the heater control unit mounting screws, then remove the heater control unit (A).

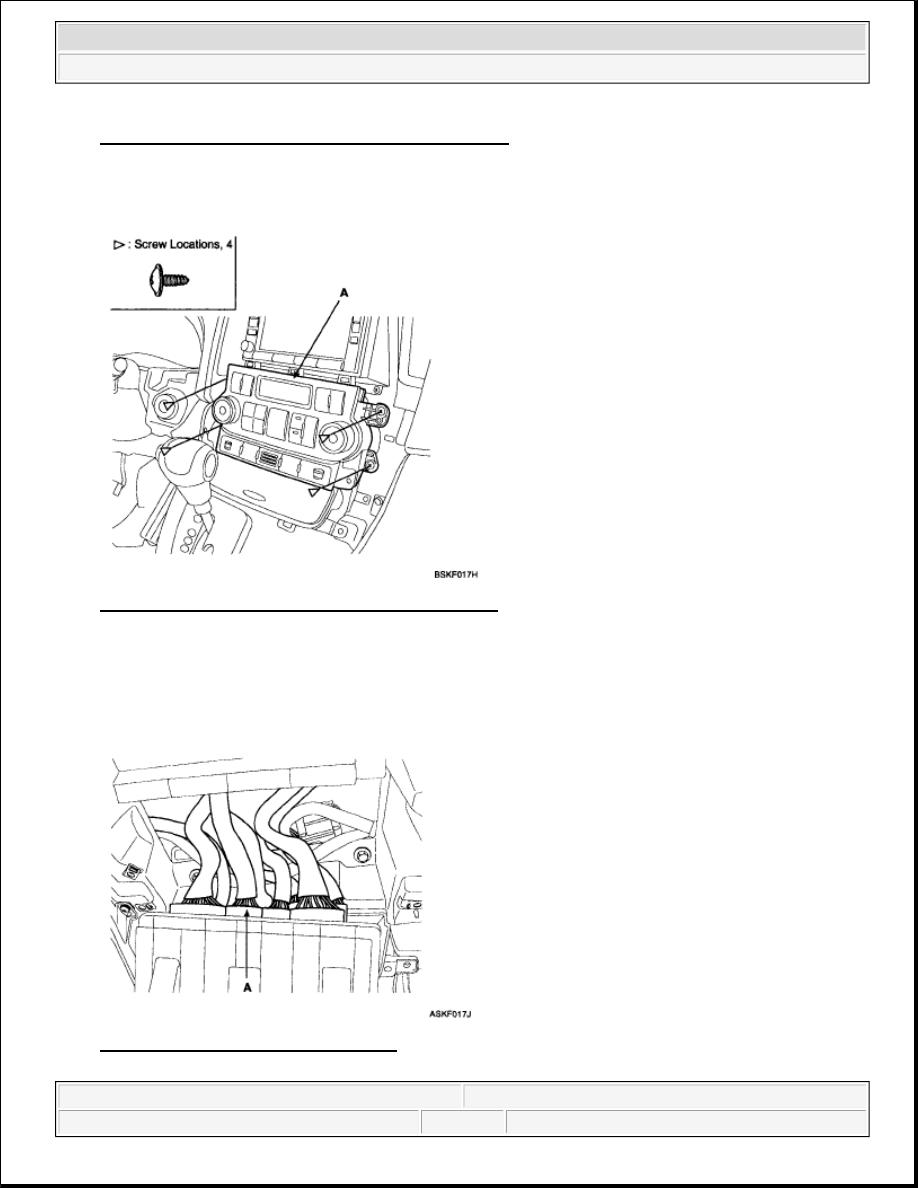

Fig. 15: Identifying Heater Control Unit And Screw
Courtesy of KIA MOTORS AMERICA, INC.

6. Installation is the reverse of removal.

Fig. 16: Identifying Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:



Make sure the connector (A) is plugged in properly.
