Fig. 17: Identifying Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

CLUSTER REPLACEMENT

1. Remove the cluster fascia panel. See REPLACEMENT.

2. Loosen the screws.

Fig. 18: Identifying Cluster Panel And Screw
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the cluster connectors (A), then remove the cluster (B).



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Saturday, May 22, 2010 6:56:12 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Fig. 19: Identifying Cluster Connectors And Cluster
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

AUDIO ASSEMBLY REPLACEMENT

1. Remove the center fascia panel. See REPLACEMENT.

2. Loosen the screws.

Fig. 20: Identifying Center Fascia Panel And Screw
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:



Make sure the connector are plugged in properly.



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Saturday, May 22, 2010 6:56:12 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

3. Disconnect the connector (A), then remove the audio assembly (B).

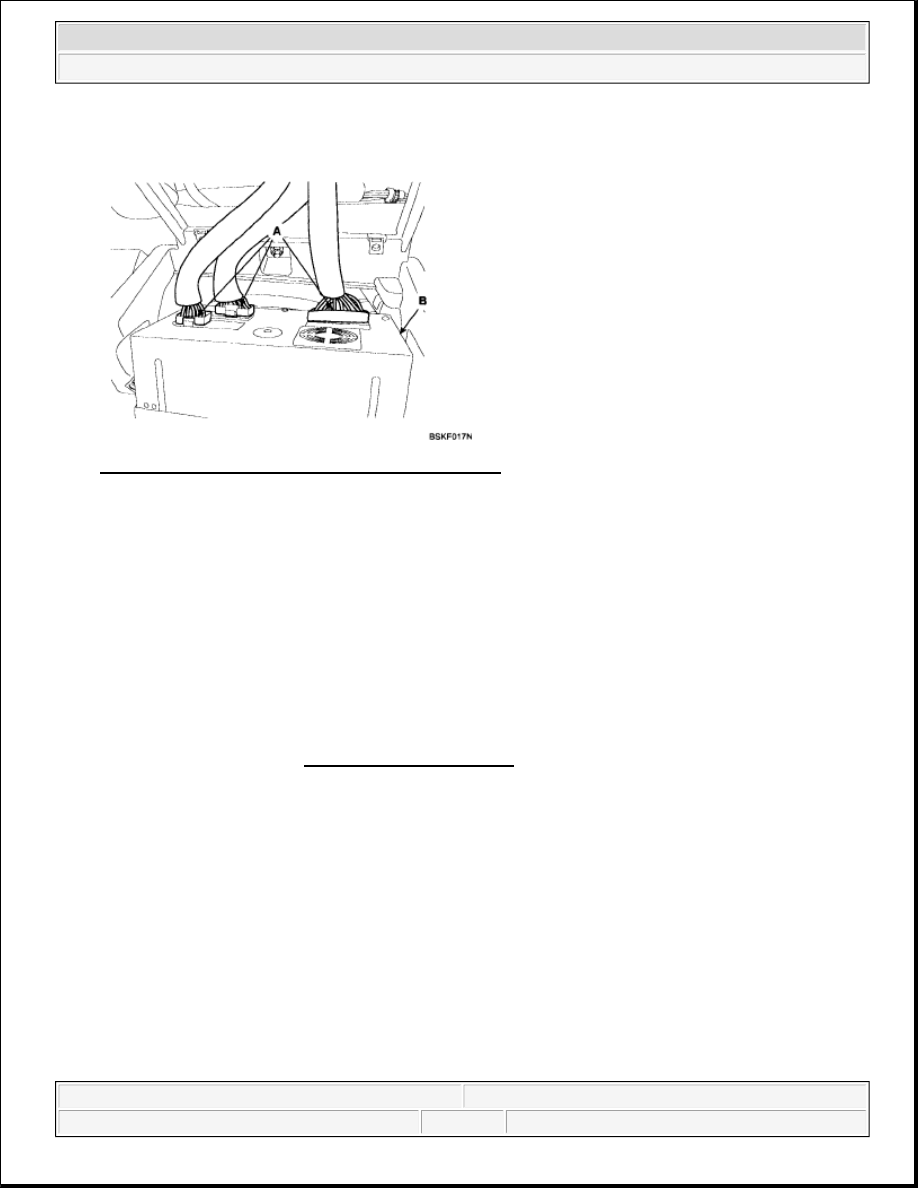

Fig. 21: Identifying Connector And Audio Assembly
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

AIR VENT REPLACEMENT

1. Remove the side cover. See COVER REPLACEMENT.

2. Loosen the mounting screws, then remove the air vent (A).

NOTE:



Make sure the connector are plugged in properly.

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts, to prevent damage.



Put on gloves to protect your hands.



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Saturday, May 22, 2010 6:56:12 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

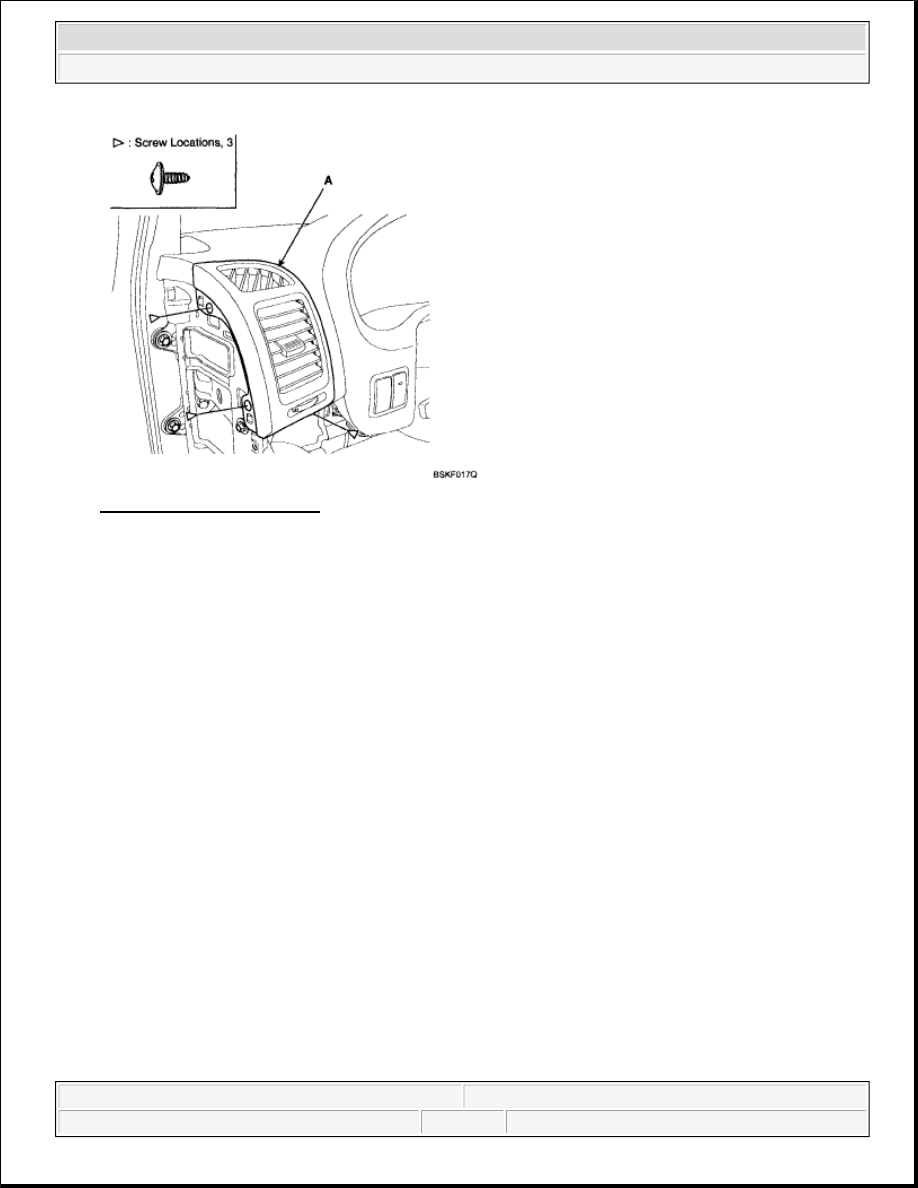

Fig. 22: Identifying Air Vent
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

GLOVE BOX REPLACEMENT

1. Disconnect the damper (B) from the glove box (A).
