Fig. 12: Identifying Bolts
Courtesy of KIA MOTORS AMERICA, INC.

7. Disconnect the rotor (A) and cover (B).

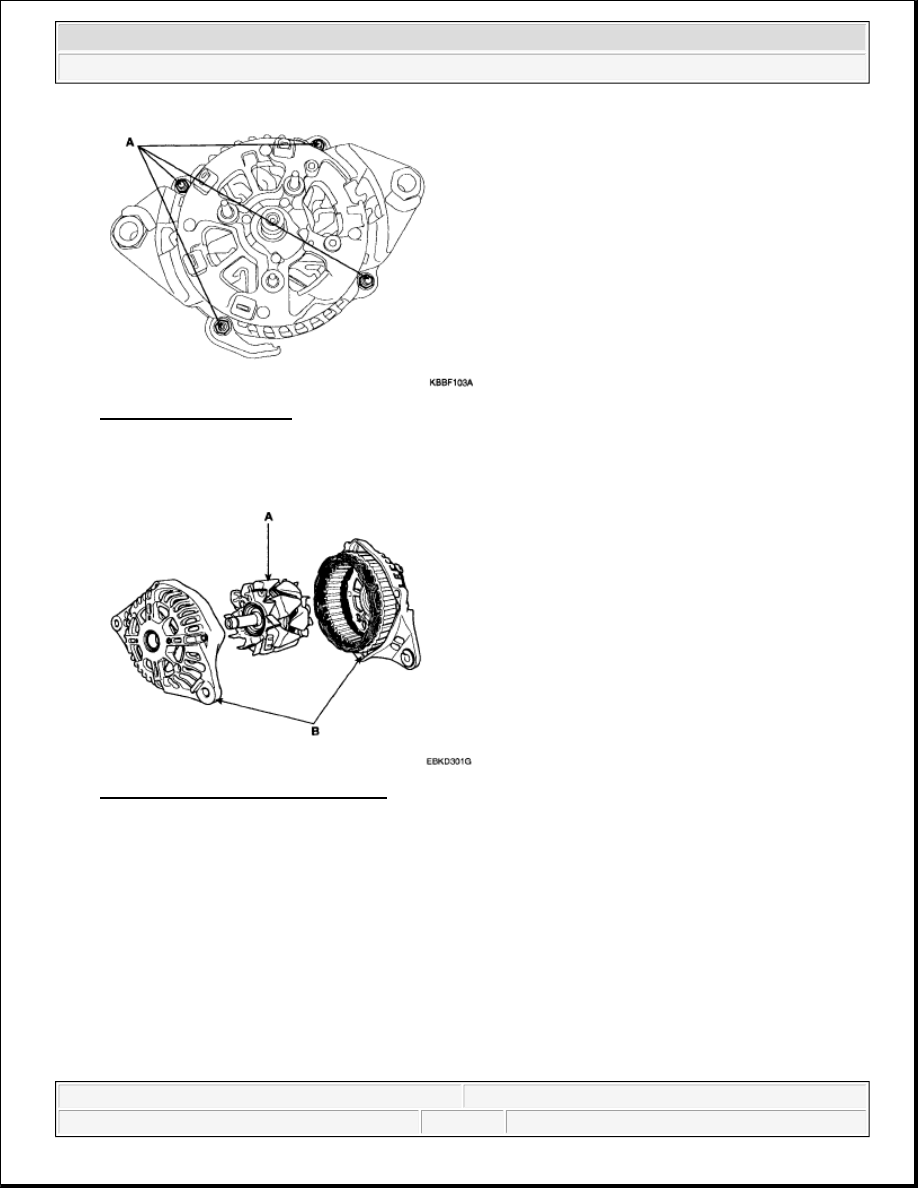

Fig. 13: Identifying Rotor And Cover
Courtesy of KIA MOTORS AMERICA, INC.

8. Reassembly is the reverse order of disassembly.

INSPECTION

INSPECT ROTOR

1. Check that there is continuity between the slip rings (A).



2008 Kia Sedona

2008 ELECTRICAL Charging System - Sedona



Microsoft



Saturday, May 22, 2010 4:06:11 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

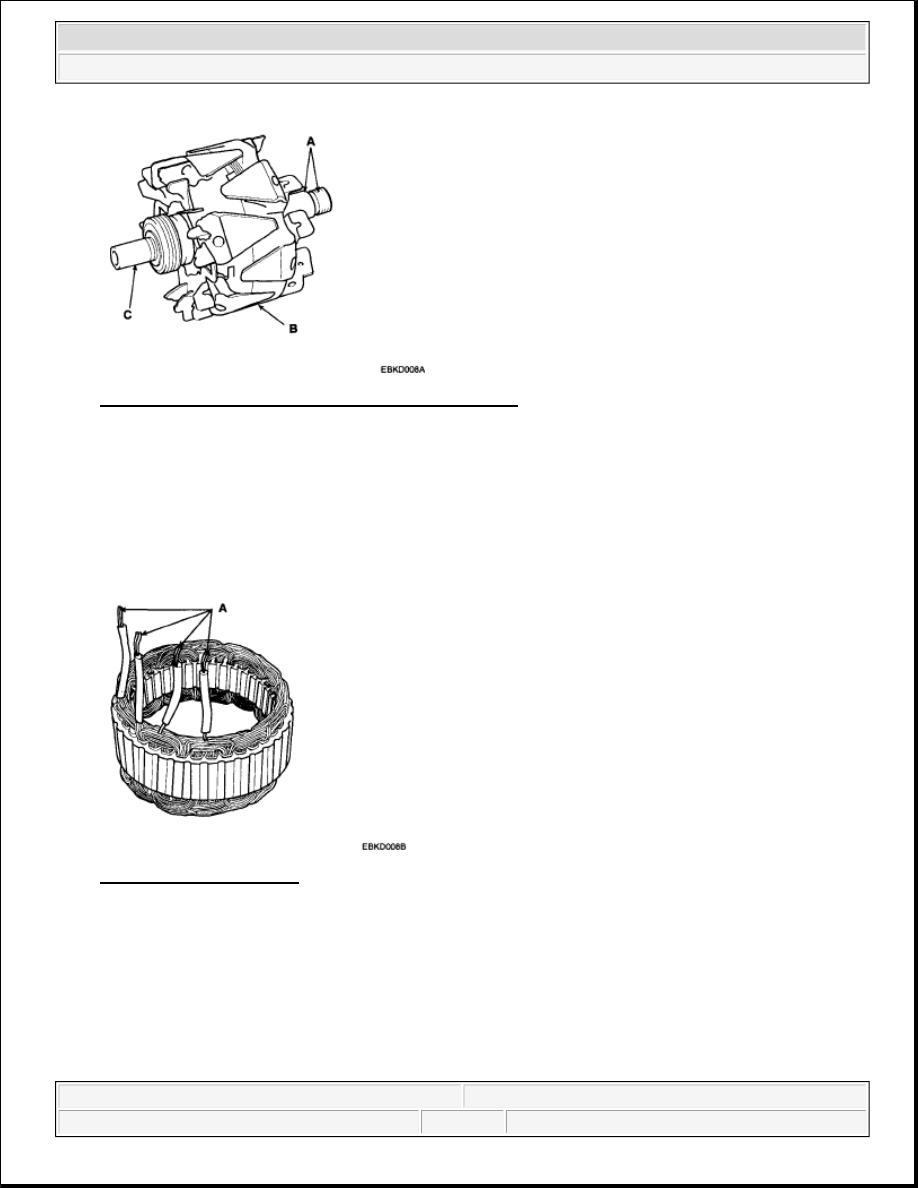

Fig. 14: Identifying Slip Rings, Rotor And Rotor Shaft
Courtesy of KIA MOTORS AMERICA, INC.

2. Check that there is no continuity between the slip rings and the rotor (B) or rotor shaft (C).

3. If the rotor fails either continuity check, replace the generator.

INSPECT STATOR

1. Check that there is continuity between each pair of leads (A).

Fig. 15: Identifying Leads
Courtesy of KIA MOTORS AMERICA, INC.

2. Check that there is no continuity between each lead and the coil core.

3. If the coil fails either continuity check, replace the alternator.

BATTERY

DESCRIPTION



2008 Kia Sedona

2008 ELECTRICAL Charging System - Sedona



Microsoft



Saturday, May 22, 2010 4:06:11 PM

Page 13

© 2006 Mitchell Repair Information Company, LLC.

1. The maintenance-free battery is, as the name implies, totally maintenance free and has no removable

battery cell caps.

2. Water never needs to be added to the maintenance-free battery.

3. The battery is completely sealed, except for small vent holes in the cover.

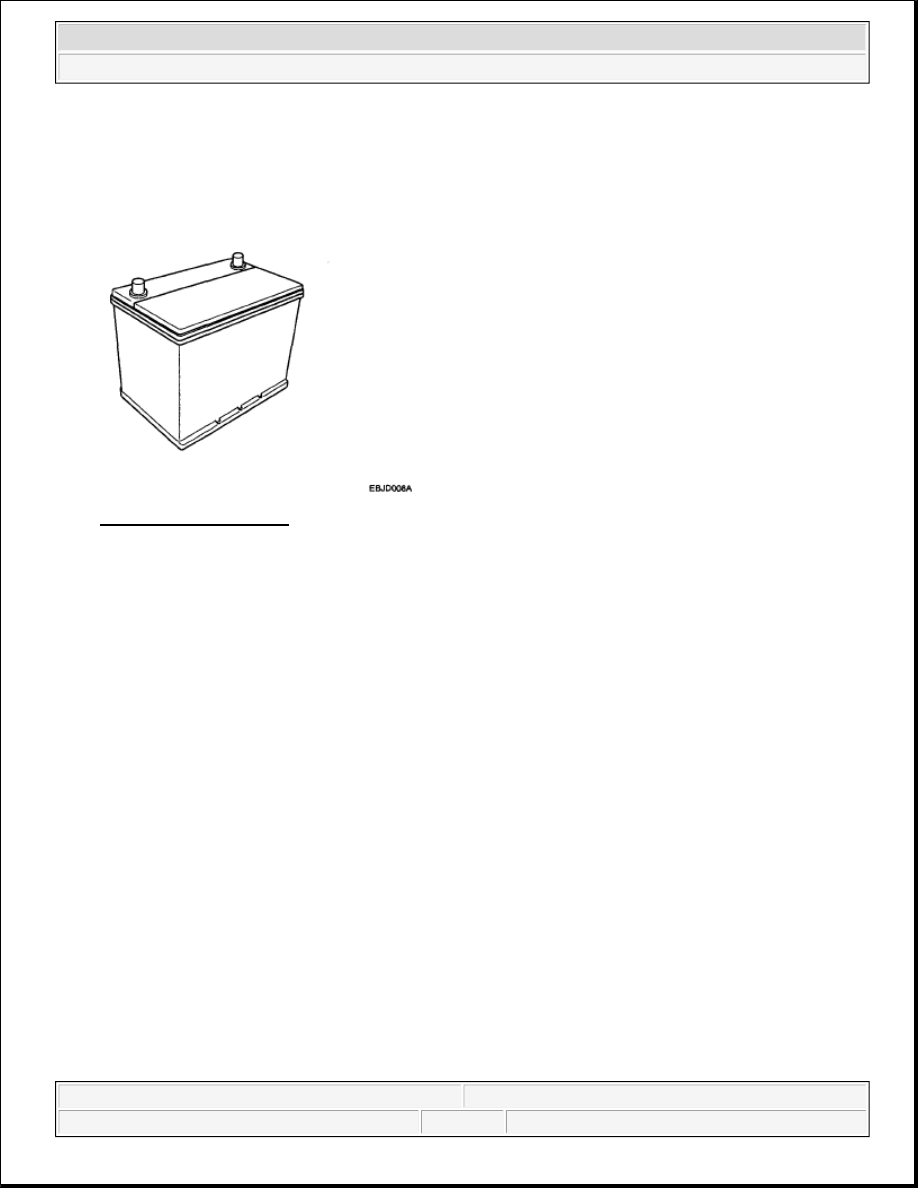

Fig. 16: View Of Battery
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

BATTERY DIAGNOSTIC TEST (1)

CHECKING FLOW



2008 Kia Sedona

2008 ELECTRICAL Charging System - Sedona



Microsoft



Saturday, May 22, 2010 4:06:11 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

Fig. 17: Battery Diagnostic Test Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.

LOAD TEST

1. Perform the following steps to complete the load test procedure for maintenance free batteries.

2. Connect the load tester clamps to the terminals and proceed with the test as follow:

1. If the battery has been on charge, remove the surface charge by connecting a 300 ampere load for

15 seconds.

2. Connect the voltmeter and apply the specified load.

3. Read the voltage after the load has been applied for 15 seconds.

4. Disconnect the load.

5. Compare the voltage reading with the minimum and replace the battery if battery test voltage is

below that shown in BATTERY TEST VOLTAGE.

BATTERY TEST VOLTAGE



2008 Kia Sedona

2008 ELECTRICAL Charging System - Sedona



Microsoft



Saturday, May 22, 2010 4:06:11 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.
