4. Remove the voltmeter and ammeter and the engine tachometer.

5. Connect the generator output wire to the generator "B" terminal.

6. Connect the battery ground cable.

ALTERNATOR

REMOVAL

1. Disconnect the battery negative terminal first, then the positive terminal.

2. Disconnect the alternator connector, and remove the cable from alternator "B" terminal.

3. Remove the drive belt.

4. Pull out the through bolts and then remove the alternator (A).

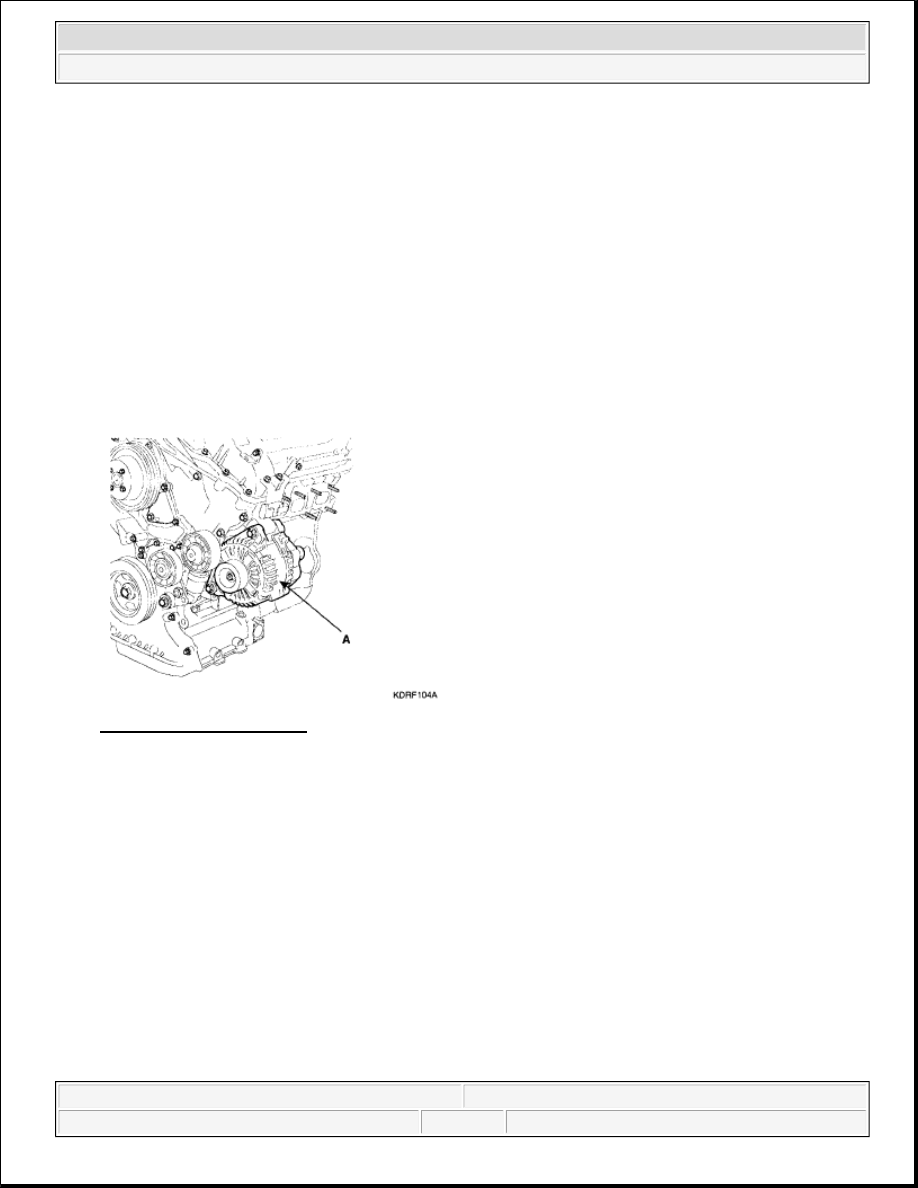

Fig. 6: Locating Generator
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

COMPONENT



2008 Kia Sedona

2008 ELECTRICAL Charging System - Sedona



Microsoft



Saturday, May 22, 2010 4:06:11 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

Fig. 7: Exploded View Of Generator
Courtesy of KIA MOTORS AMERICA, INC.

DISASSEMBLY

1. Remove the generator cover (A) using a screwdriver (B).



2008 Kia Sedona

2008 ELECTRICAL Charging System - Sedona



Microsoft



Saturday, May 22, 2010 4:06:11 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

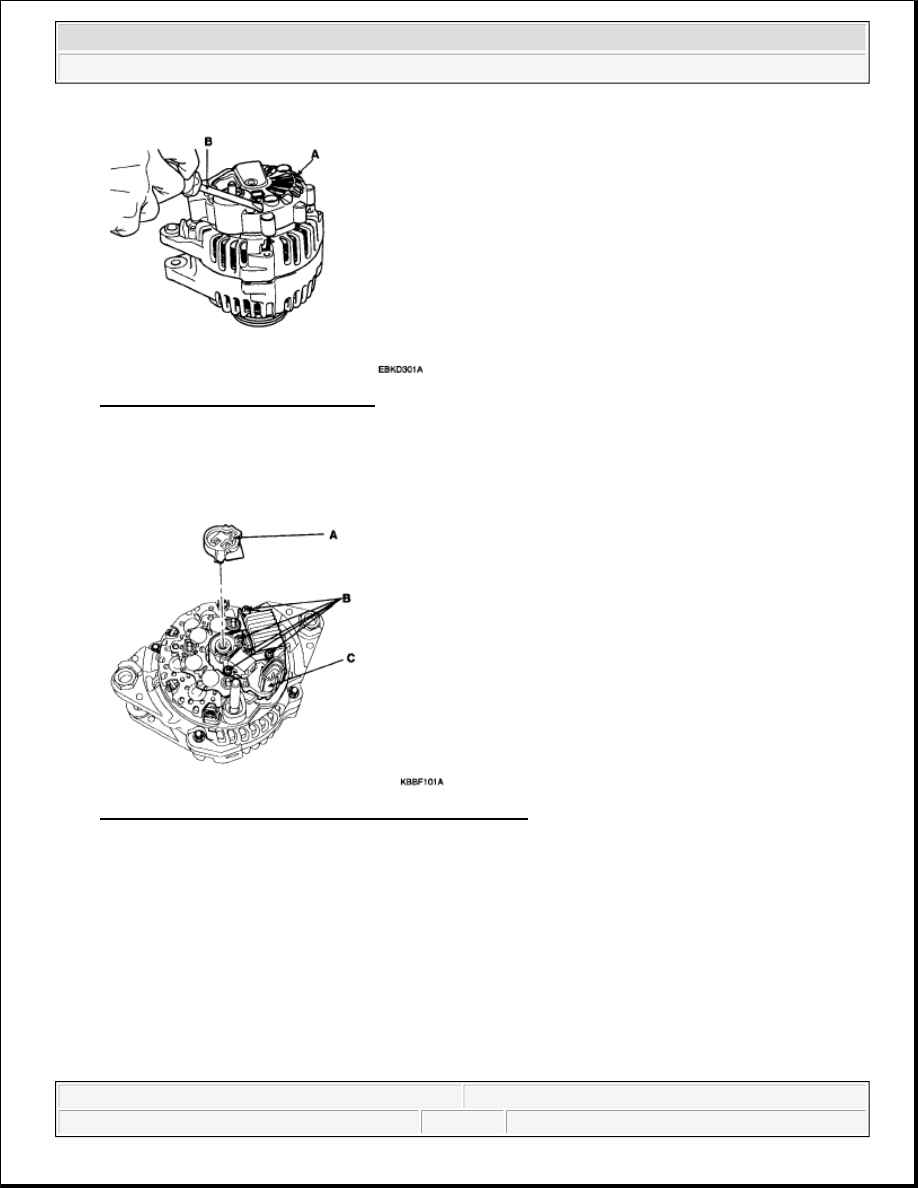

Fig. 8: Identifying Generator Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the slip ring guide (A).

3. Loosen the mounting bolts (B) and disconnect the brush holder assembly (C).

Fig. 9: Identifying Slip Ring Guide And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the rectifier (A) with 4 screw.



2008 Kia Sedona

2008 ELECTRICAL Charging System - Sedona



Microsoft



Saturday, May 22, 2010 4:06:11 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

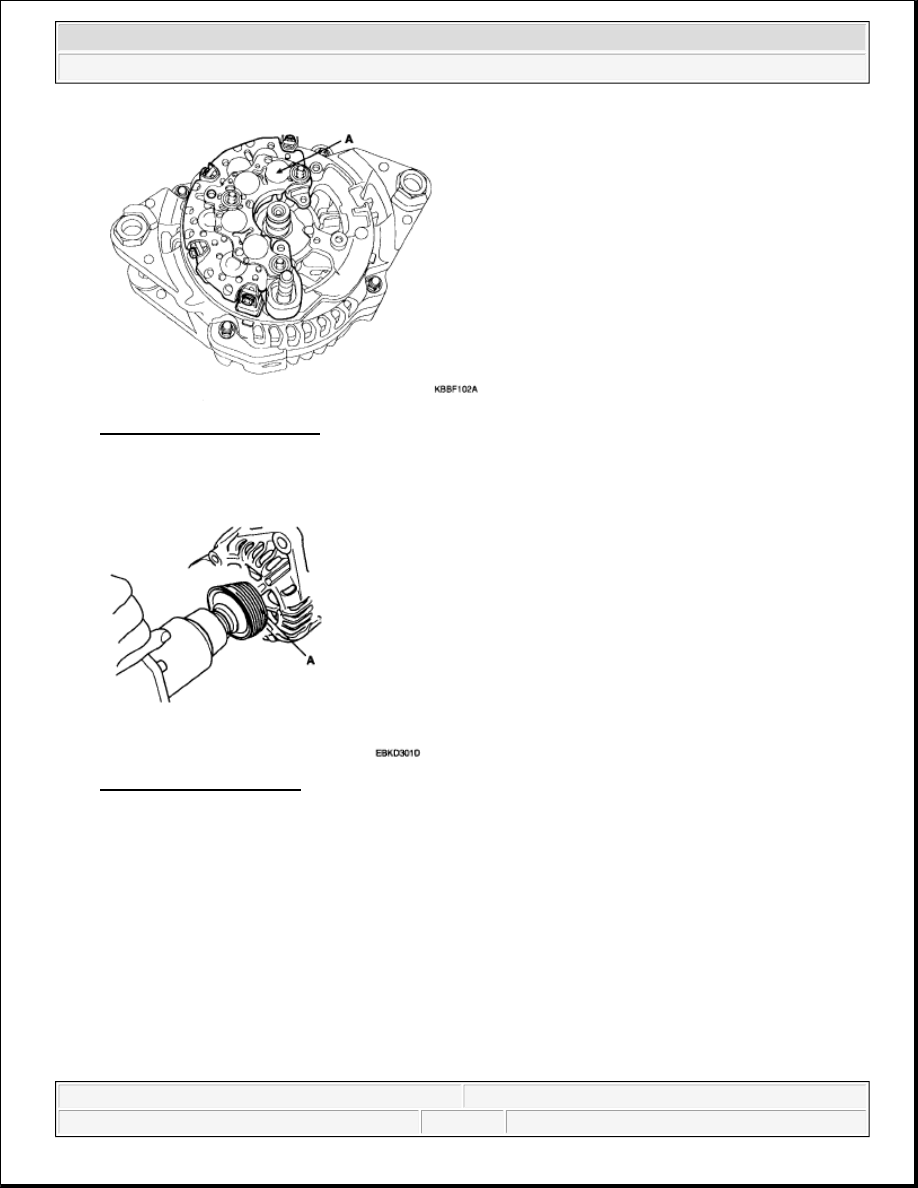

Fig. 10: Identifying Rectifier
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the nut, pulley (A) and spacer.

Fig. 11: Identifying Pulley
Courtesy of KIA MOTORS AMERICA, INC.

6. Loosen the 4 nuts (A).
