Fig. 29: Identifying Brake Pedal Components (Adjustable Pedal)
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Remove the lower crash pad. Refer to CRASH PAD .

2. Remove the brake switch connector.

3. Remove the trans cable (A) in case of the adjustable brake pedal.



2008 Kia Sedona

2008 BRAKES Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:54:27 PM

Page 20

© 2006 Mitchell Repair Information Company, LLC.

Fig. 30: Identifying Trans Cable
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the mounting bolt (A) of the pedal position sensor connector in case of the adjustable brake

pedal.

Fig. 31: Identifying Pedal Position Sensor Connector Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the snap pin connecting the booster.

6. Remove the hinge shaft connecting the pedal tray.

7. Remove the brake pedal.

INSTALLATION

1. Installation is the reverse of removal.

CAUTION: Coat the inner surface of the bushings with the specified grease.



2008 Kia Sedona

2008 BRAKES Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:54:27 PM

Page 21

© 2006 Mitchell Repair Information Company, LLC.

2. Before inserting the pin, apply the specified grease to the clevis pin.

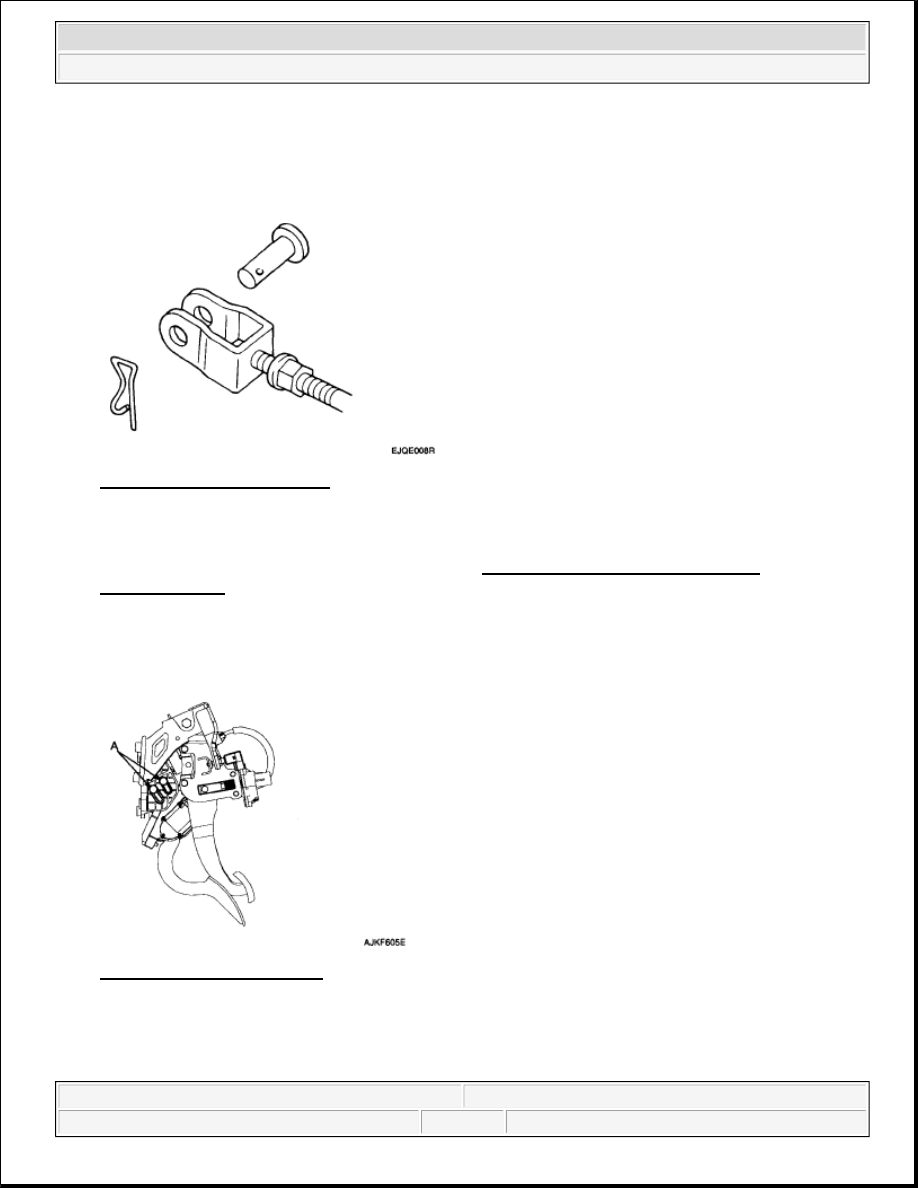

Fig. 32: Identifying Clevis Pin
Courtesy of KIA MOTORS AMERICA, INC.

3. Install the snap pin.

4. Adjust the brake pedal height and free play. Refer to BRAKE PEDAL BRAKE SWITCH

ADJUSTMENT.

Fig. 33: Identifying Pivot Pin
Courtesy of KIA MOTORS AMERICA, INC.

5. Install the stop lamp switch.

INSPECTION

Specified grease: LiG-2

CAUTION: Before connecting trans cable, be sure that position of pivot pin (A)

is initialized.



2008 Kia Sedona

2008 BRAKES Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:54:27 PM

Page 22

© 2006 Mitchell Repair Information Company, LLC.

1. Check the bushing for wear.

2. Check the brake pedal for bending or twisting.

3. Check the brake pedal return spring for damage.

4. Check the stop lamp switch.

1. Connect a circuit tester to the connector of stop lamp switch, and check whether or not there is

continuity when the plunger of the stop lamp switch is pushed in and when it is released.

2. The stop lamp switch is in good condition if there is no continuity when plunger (A) is pushed.

Fig. 34: Checking Stop Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.

FRONT DISC BRAKE

COMPONENTS
