Fig. 35: Identifying Front Disc Brake Components And Torque Specification (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

2008 Kia Sedona

2008 BRAKES Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:54:27 PM

Page 24

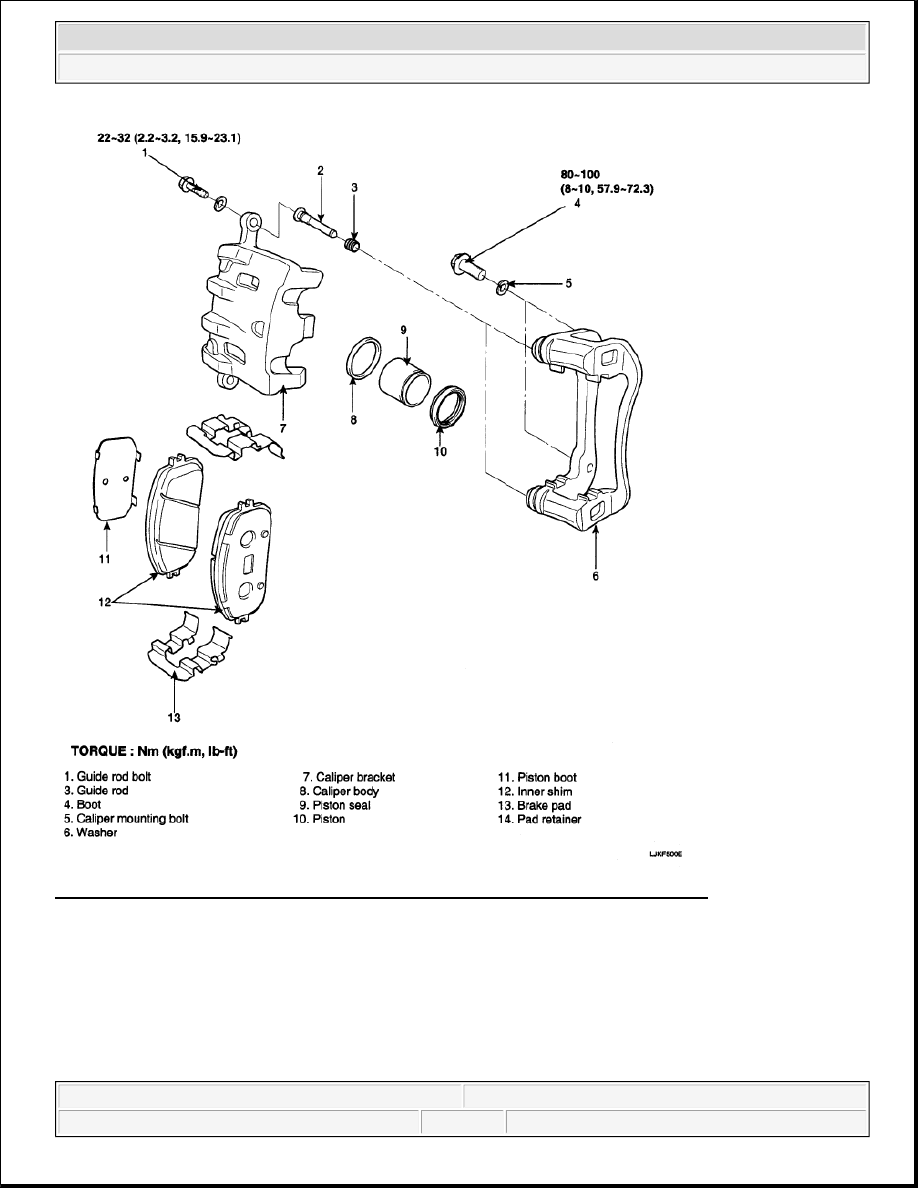

Fig. 36: Identifying Front Disc Brake Components And Torque Specification (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL



Avoid breathing dust particles.

CAUTION: Frequent inhalation of brake pad dust, regardless of material composition,

could be hazardous to your health.

2008 Kia Sedona

2008 BRAKES Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:54:27 PM

Page 25



Never use on air hose or brush to clean brake assemblies.

1. Loosen the front wheel nuts slightly. Raise the front of the vehicle, and make sure it is securely

supported. Remove the front wheels.

2. Remove the guide rod bolt (B), After raise the caliper assembly (A), support it with a wire.

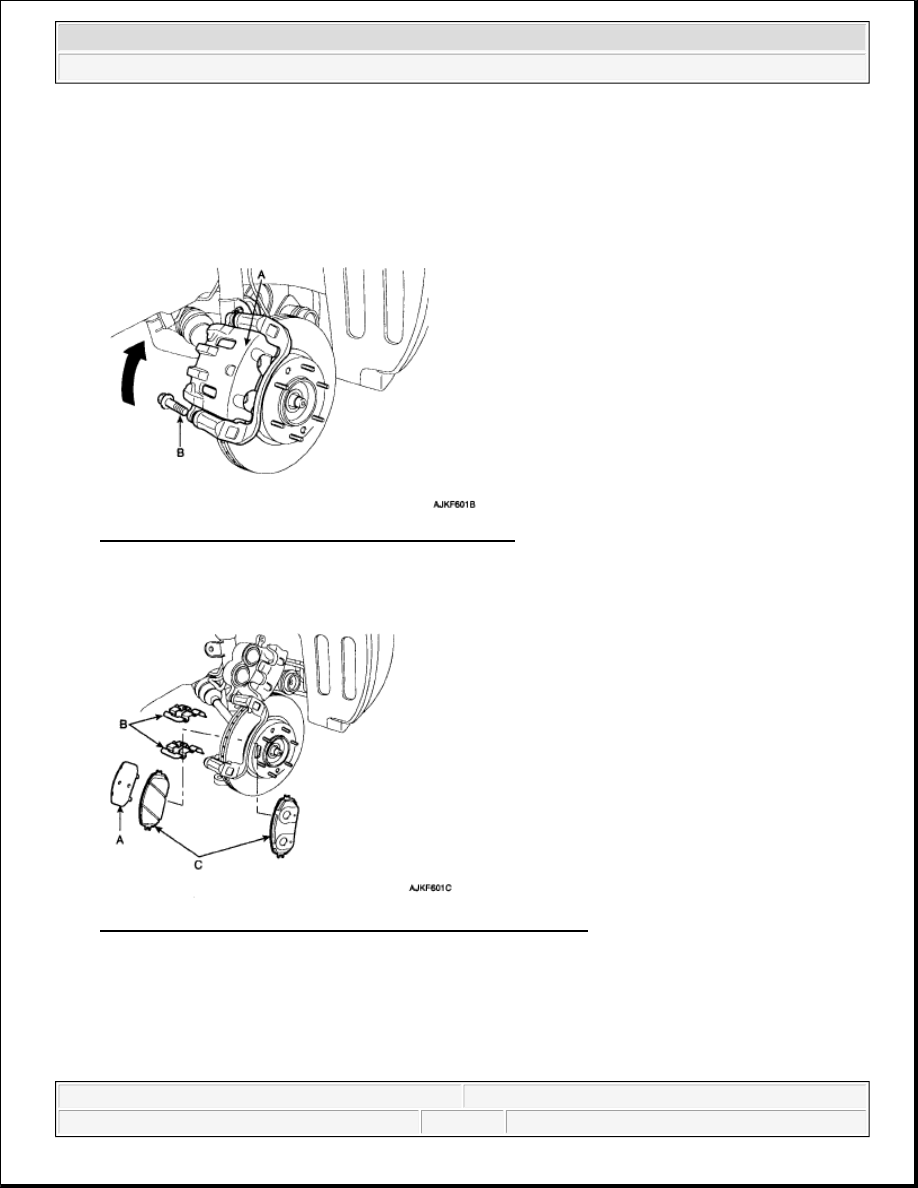

Fig. 37: Identifying Caliper Assembly And Guide Bolt
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove pad shim (A), pad retainer (B) and pad assembly (C) in the caliper bracket.

Fig. 38: Identifying Pad Shim, Pad Retainer And Pad Assembly
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Install the pad retainers (A) on the caliper bracket.

2008 Kia Sedona

2008 BRAKES Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:54:27 PM

Page 26

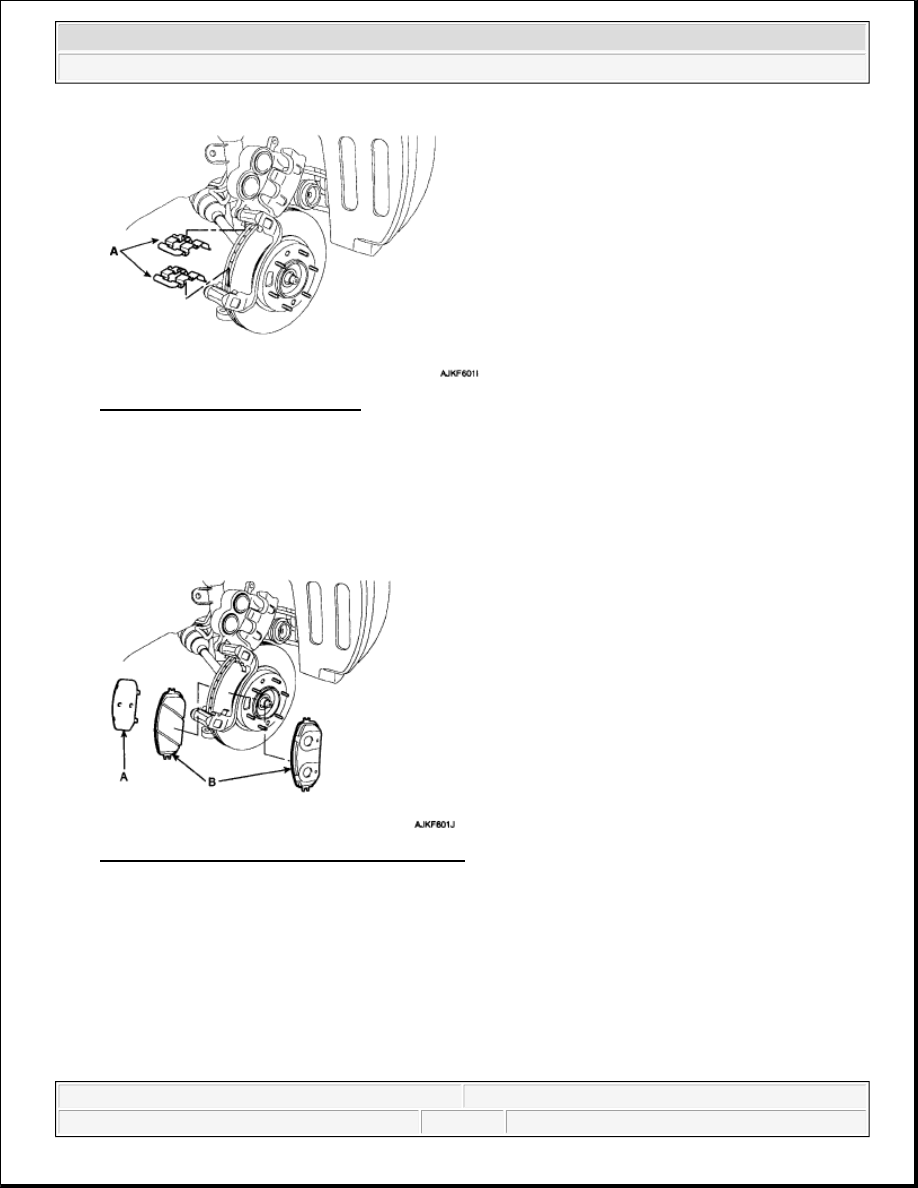

Fig. 39: Identifying Pad Retainers
Courtesy of KIA MOTORS AMERICA, INC.

2. Install pad shims (A) and the brake pads (B) with the wear indicator on the inside.

Fig. 40: Identifying Pad Shims And Brake Pads
Courtesy of KIA MOTORS AMERICA, INC.

3. Insert the piston in the cylinder using the special tool (09581-11000).

CAUTION: If you are reusing the pads, always reinstall the brake pads in their

original positions to prevent a momentary loss of braking efficiency.
