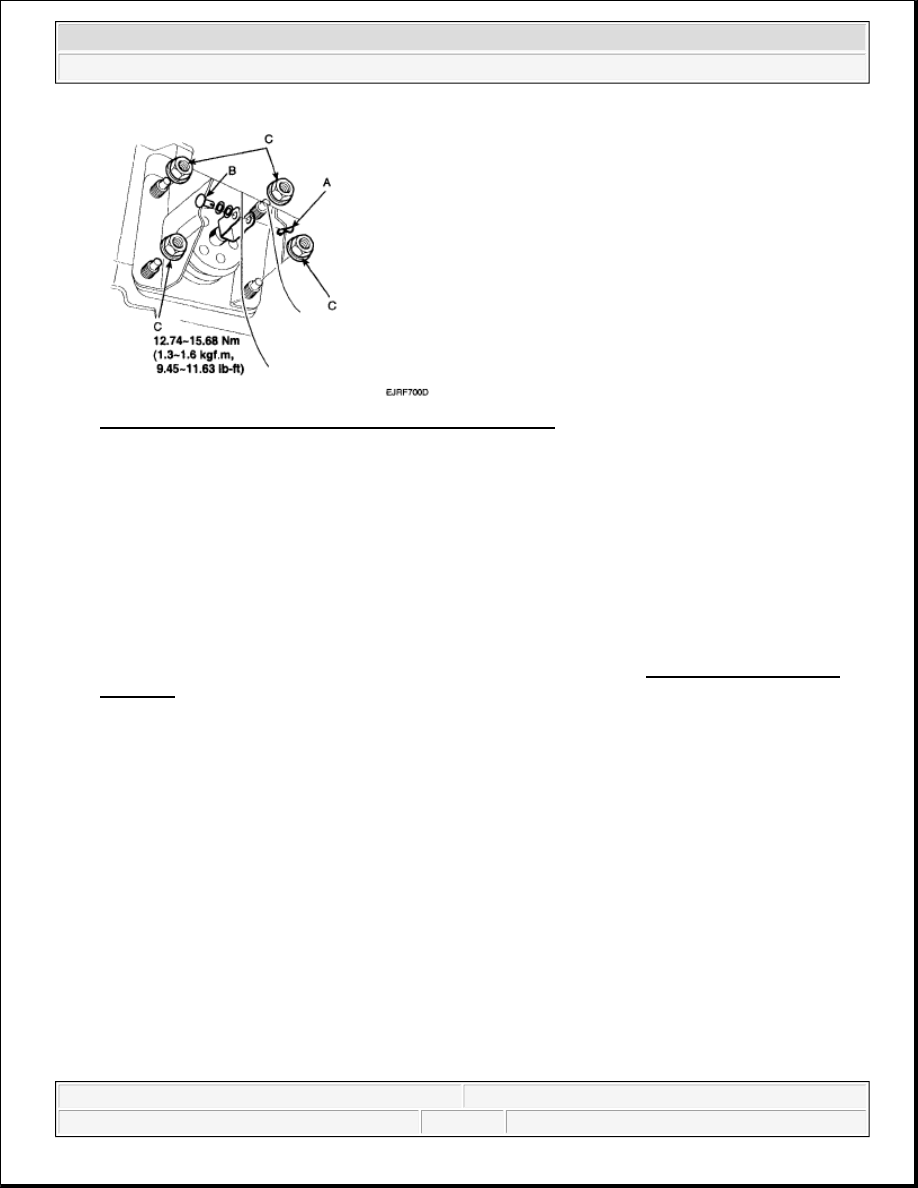

Fig. 17: Identifying Booster Nuts And Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.

3. Connect the booster push rod and brake pedal with a pin (B) and install a snap clevis pin (A) to the clevis

pin (B).

4. Install the master cylinder.

5. Connect the vacuum hose to the brake booster.

6. After filling the brake reservoir with brake fluid, bleed the system. Refer to BLEEDING OF BRAKE

SYSTEM .

7. Check for fluid leakage.

8. Check and adjust the brake pedal for proper operation.

BRAKE LINE

COMPONENT

CAUTION: Grease the pin before installing the snap pin. Always use a new snap

pin.

2008 Kia Sedona

2008 BRAKES Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:54:27 PM

Page 12

Fig. 18: Identifying Brake Lines And Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Remove the brake hose clip (A).

2008 Kia Sedona

2008 BRAKES Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:54:27 PM

Page 13

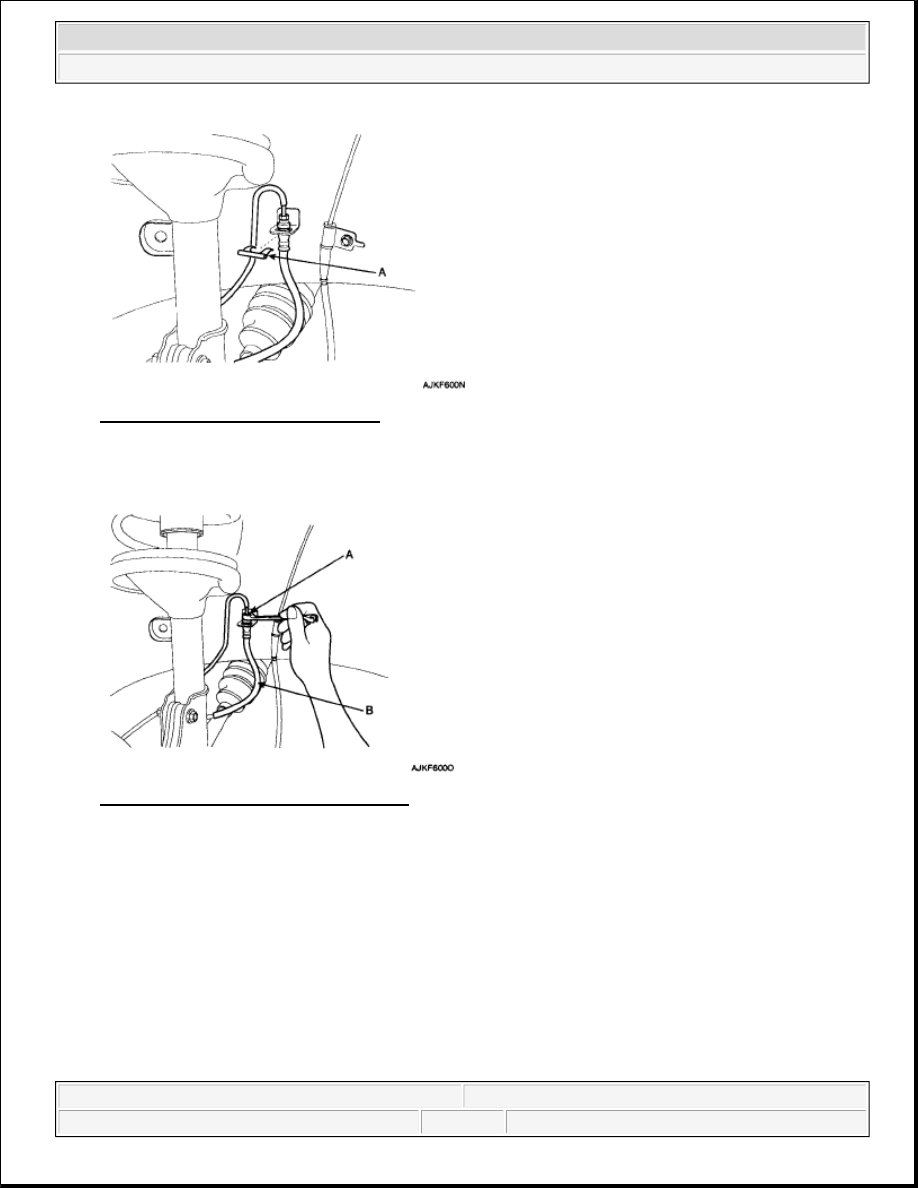

Fig. 19: Identifying Brake Hose Clip
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the brake tube (A) nut holding the brake hose (B) nut with a wrench.

Fig. 20: Loosening Brake Tube And Nut
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the brake hose (B).

4. Remove the brake hose connecting bolt (A) from the caliper assembly.

2008 Kia Sedona

2008 BRAKES Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:54:27 PM

Page 14

Fig. 21: Identifying Brake Hose Connecting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Install the brake hose (A) connecting bolt (B) and washer (C).

Fig. 22: Identifying Brake Hose, Connecting Bolt And Washer
Courtesy of KIA MOTORS AMERICA, INC.

2. Tighten the brake tube (A) nut holding the brake hose (B) nut with a wrench.
