COMPONENT LOCATION

Refer to DTC B1912.

GENERAL DESCRIPTION

Refer to DTC B1912.

DTC DESCRIPTION

The ECM sets DTC B1913 if signal voltage of right outside mirror vertical sensor is out of range.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.

4. Is the DTC B1913 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B1912.

SIGNAL CIRCUIT INSPECTION

Item

Detecting Condition

Possible Cause

DTC Strategy



Check Voltage



short in signal harness



short in power harness



Faulty outside mirror motor



Faulty outside mirror sensor



Faulty ADM

Enable Conditions



IGN `ON' & Engine `OFF'

Threshold value

0.88V < Output voltage < 3.86V

Detecting time



50 ms

FAIL SAFE

-



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 137

© 2006 Mitchell Repair Information Company, LLC.

1. Check for open in harness

1. Ignition "OFF".

2. Disconnect right outside mirror.

3. Measure resistance between terminal "13" of ADM and chassis ground.

Specification :Approx. infinity ohms

Fig. 107: Measuring Resistance Between Terminal 13 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "POWER CIRCUIT INSPECTION" procedure.

NO

Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

POWER SUPPLY CIRCUIT INSPECTION

1. Motor Power circuit Inspection

1. Ignition "OFF"

2. Disconnect right outside mirror.

3. Measure resistance between terminal "10" of ADM and chassis ground.

4. Measure resistance between terminal "11" of ADM and chassis ground.

Specification :Approx. infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 138

© 2006 Mitchell Repair Information Company, LLC.

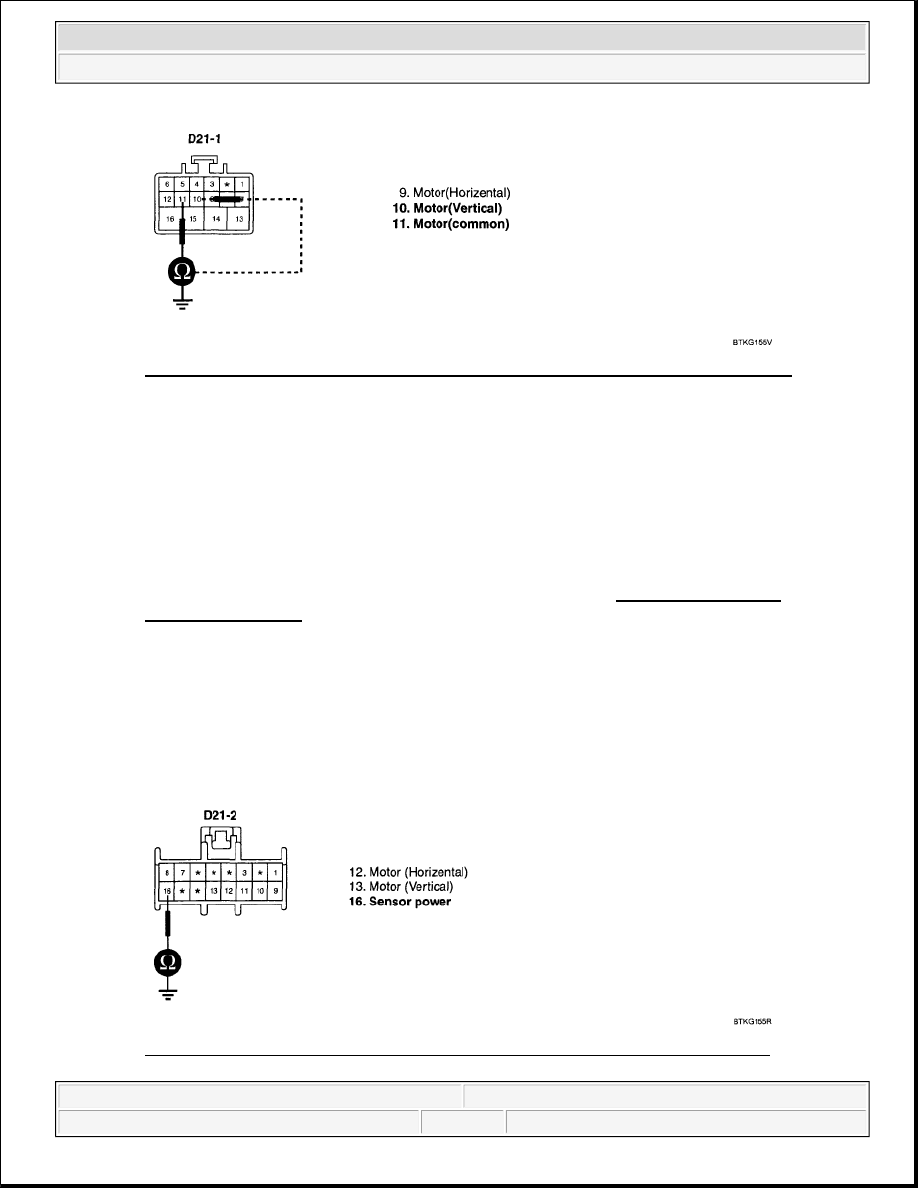

Fig. 108: Measuring Resistance Between Terminal 11 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured resistance within specifications?

YES

Go to step 2.

NO

Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Sensor power circuit inspection

1. Ignition "ON" & Engine "OFF"

2. Disconnect right outside mirror.

3. Measure voltage between terminal "16" of ADM and chassis ground.

Specification: Approx. 5V

Fig. 109: Measuring Voltage Between Terminal 16 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 139

© 2006 Mitchell Repair Information Company, LLC.

4. Is the measured voltage within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open or short in harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check right outside mirror motor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Select `ACTUATION TEST' mode on scan tool and press [F1] to start

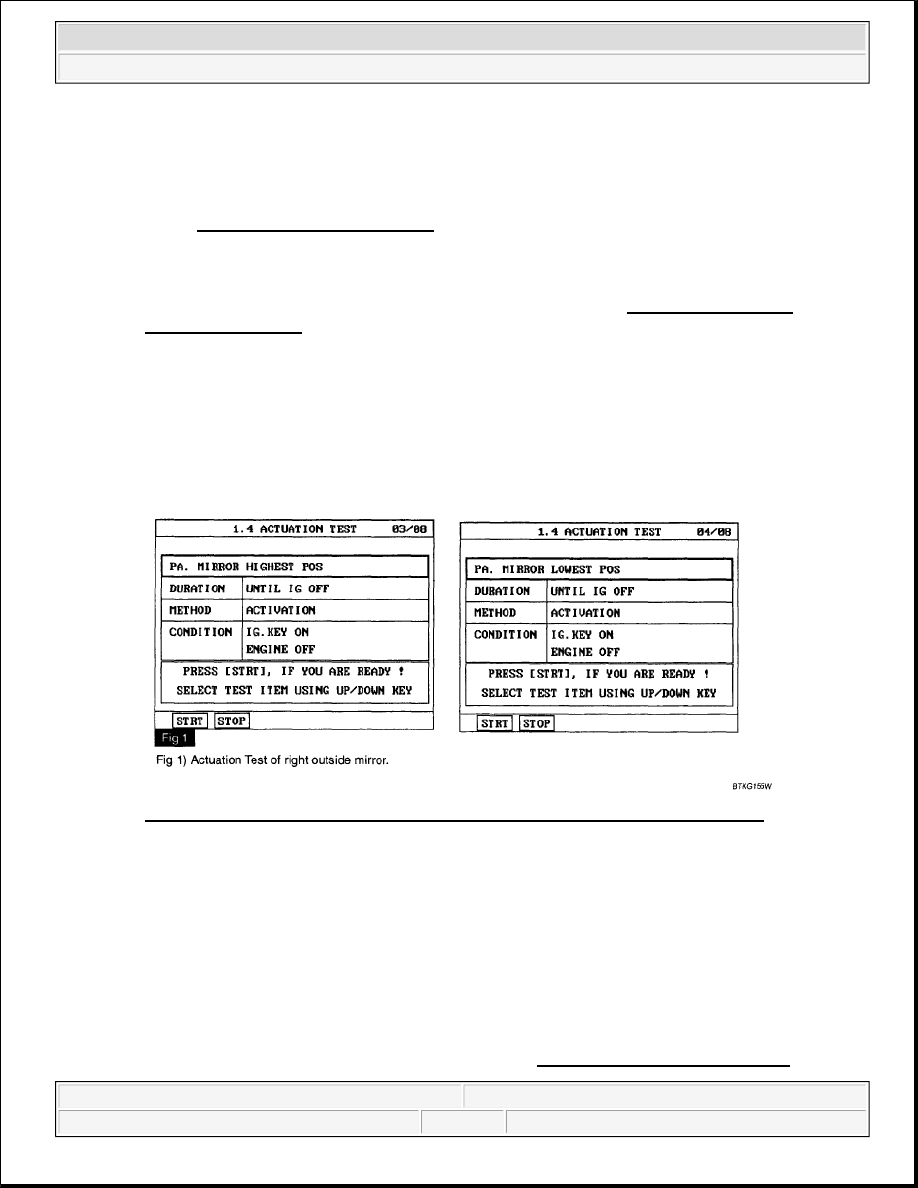

Fig. 110: Identifying Scan Tool Display - Actuation Test Of Right Outside Motor
Courtesy of KIA MOTORS AMERICA, INC.

4. Dose right outside mirror motor work properly?

YES

Go to step 2.

NO

Substitute with a known-good right outside mirror and check for proper operation. If the problem is
corrected, replace right outside mirror and then go to "VERIFICATION OF VEHICLE
