Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

1. Sensor Power circuit Inspection

1. Ignition "ON" & Engine "OFF"

2. Disconnect right outside mirror.

3. Measure voltage between terminal "16" of ADM and chassis ground.

Specification: Approx. 5V

Fig. 103: Measuring Voltage Between Terminal 16 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open or short in harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check right outside mirror motor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Select `ACTUATION TEST' mode on scan tool and press [F1] to start



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 133

© 2006 Mitchell Repair Information Company, LLC.

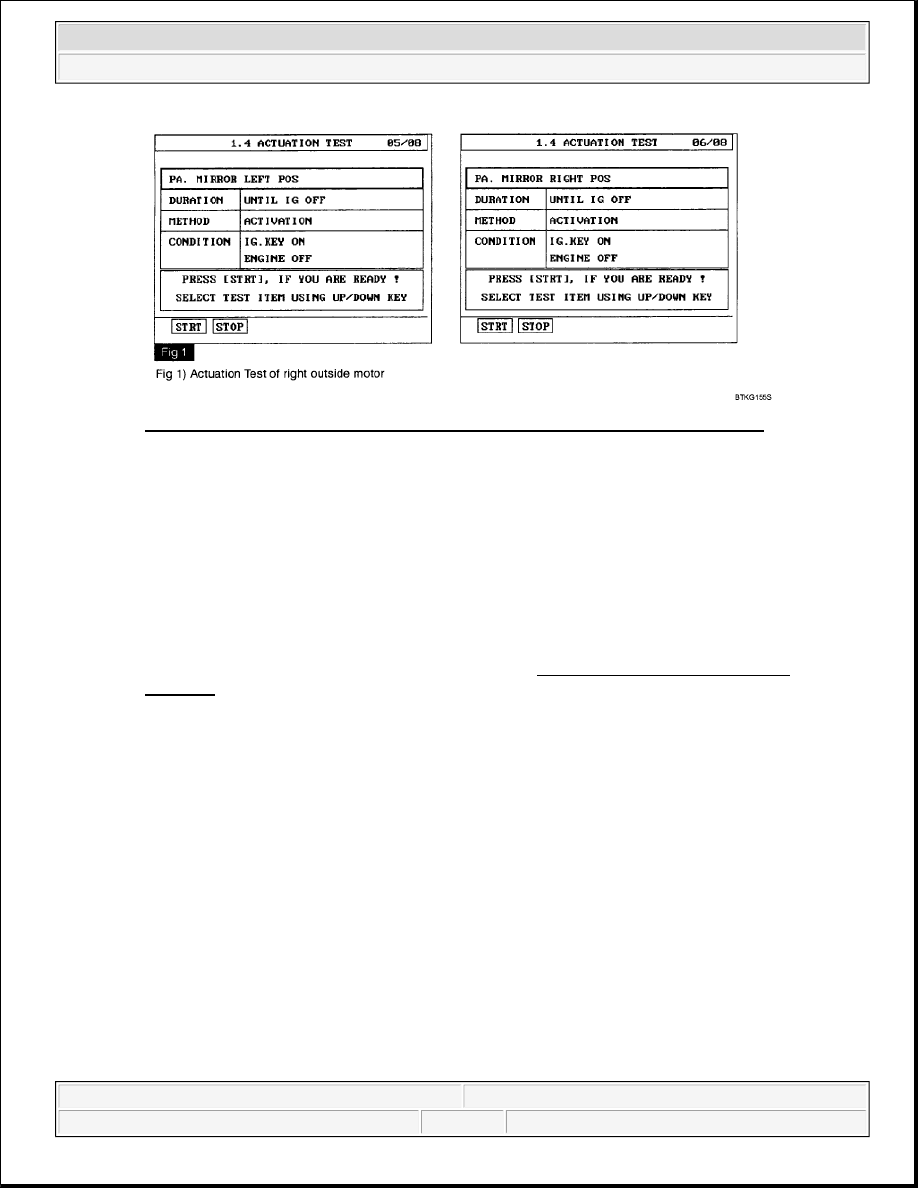

Fig. 104: Identifying Scan Tool Display - Actuation Test Of Right Outside Motor
Courtesy of KIA MOTORS AMERICA, INC.

4. Dose right outside mirror motor work properly?

YES

Go to step 2.

NO

Substitute with a known-good right outside mirror and check for proper operation. If the problem is
corrected, replace right outside mirror and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

2. Check right outside mirror sensor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure voltage value between terminal "12" of outside mirror and chassis ground. While

operating outside mirror switch.

Specification: left end --> approx. 3.88V, right end --> approx. 1.0V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 134

© 2006 Mitchell Repair Information Company, LLC.

Fig. 105: Measuring Voltage Value Between Terminal 12 Of Outside Mirror And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to step 3.

NO

Substitute with a known-good right outside mirror and check for proper operation. If the problem is
corrected, replace right outside mirror and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

3. Check ADM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure voltage value between terminal "9,11" of outside mirror and chassis ground. While

operating outside mirror switch.

Specification: 9-16V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 135

© 2006 Mitchell Repair Information Company, LLC.

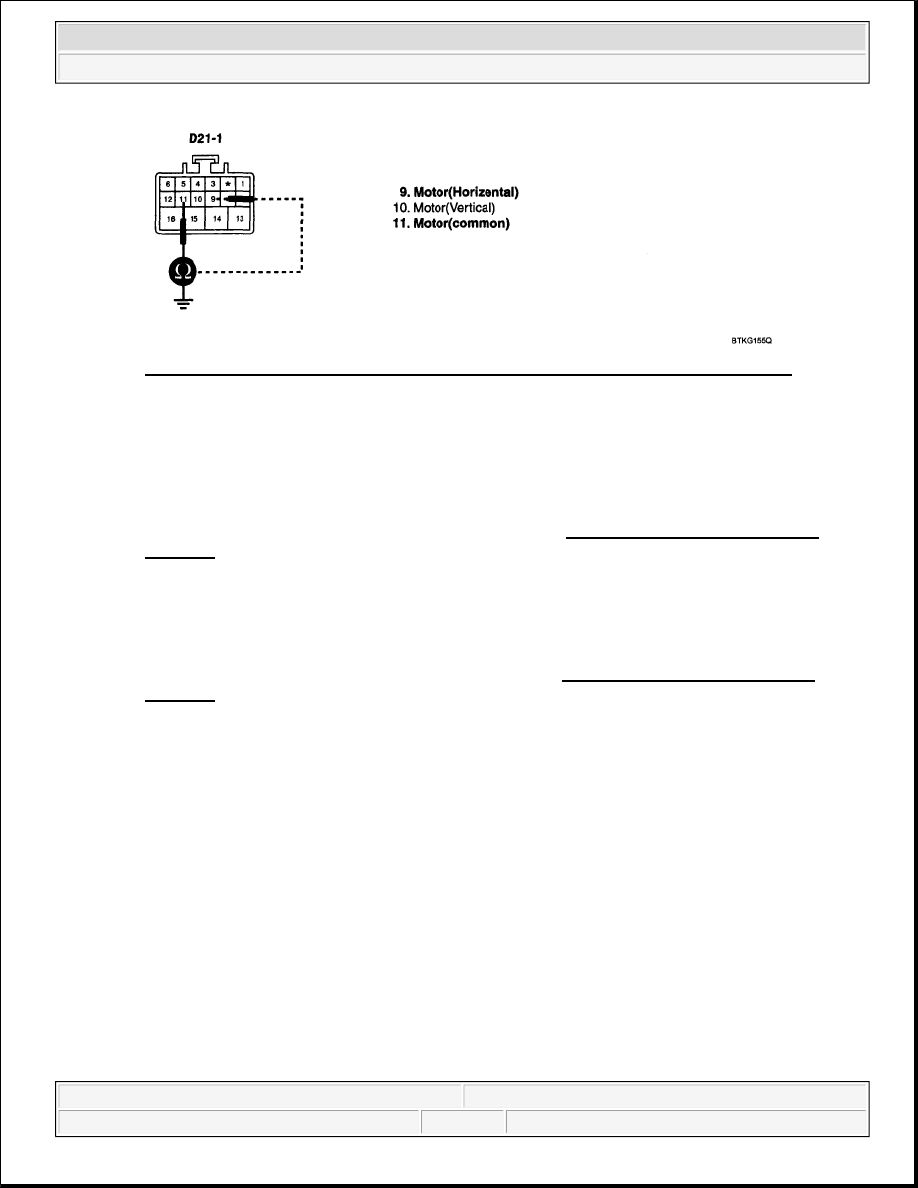

Fig. 106: Measuring Resistance Between Terminal 11 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Substitute with a known-good ADM and check for proper operation.

If the problem is corrected, replace ADM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode and then clear DTC.

2. Operate the vehicle and monitor the DTC on the scan tool.

3. Are any DTCs present?

YES

Go to the applicable troubleshooting procedure.

NO

System is performing to specification at this time.

DTC B1913 RIGHT OSM VERTICAL MOTOR OR SENSOR ERROR
