LIGHT WARNING

The IPM receives the status of the driver door open switch by the CAN network.

The light chime warning is activated when the driver door is open and the park and tail lamps are turned on.

DOORS OPEN WARNING

The RAM receives on digital input the status of the driver/passenger/left sliding/right sliding door open switch
and sends it on the CAN network.

The IPM receives by CAN network the speed of the vehicle.

The doors open warning chime is activated when one or several of the 4 doors is opened and the speed of
vehicle is over 10km/h.

TAILGATE OPEN WARNING

The RAM receives on digital input the status of the tailgate open switch and sends it on the CAN network.

The IPM receives by CAN network the speed of the vehicle.

The tailgate open warning chime is activated when the tailgate is opened and the speed of vehicle is over
10km/h.

SAFETY AND SECURITY FUNCTION

REMOTE KEYLESS ENTRY

1. The aim of this function is to receive the key fob signal and decode it. There are 8 different data included

in the radio frequency frame sent by the RKE to the IPM module:



Central door lock



Central door unlock



Panic function



Driver door window close (long press on RKE lock button)



Driver door window open (long press on RKE unlock button)



Left sliding door open/close



Right sliding door open/close



Power tailgate open/close

2. Each vehicle can have at most 2 associated key fobs. The key fob is physically separated from the key

itself (separate device).

3. Input/Output Definition and Characteristics



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 33

© 2006 Mitchell Repair Information Company, LLC.

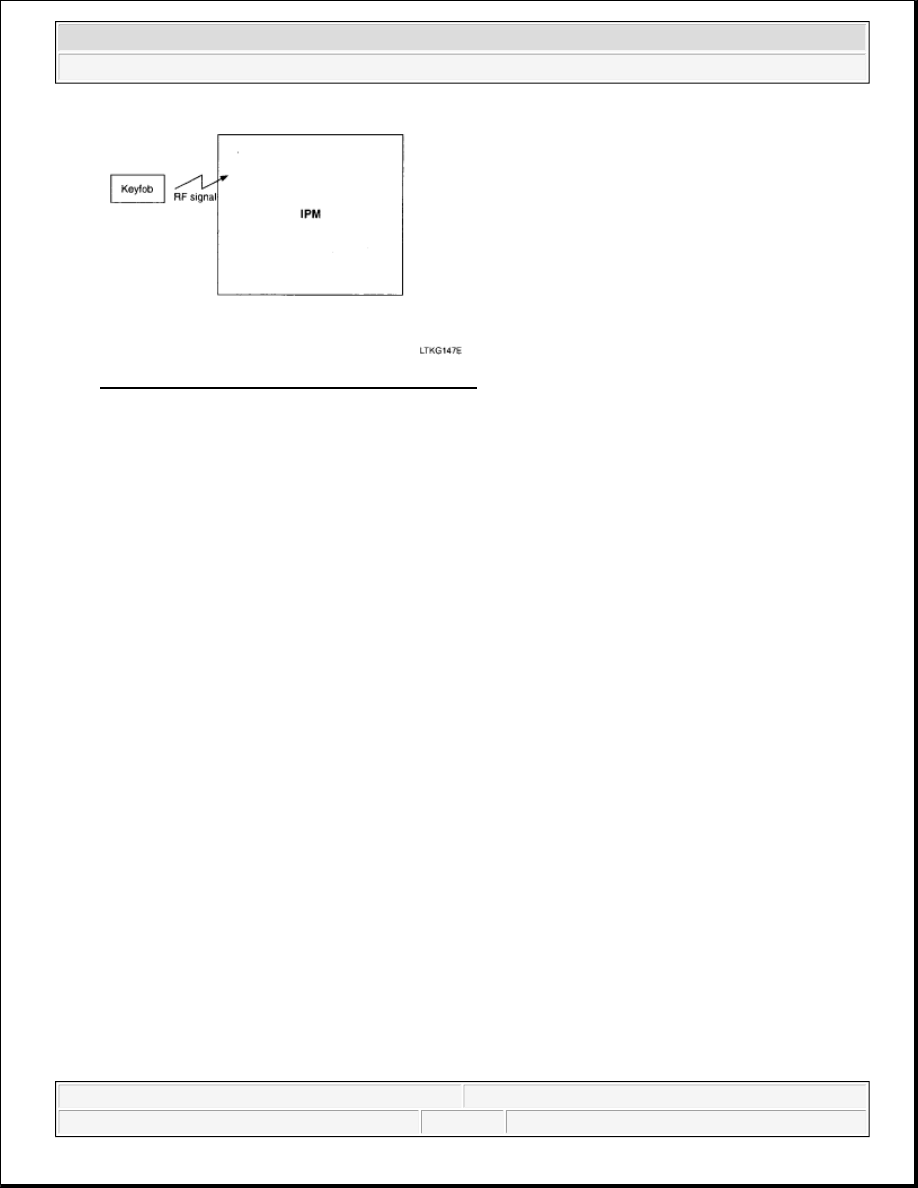

Fig. 35: Safety And Security Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

CENTRAL LOCK/UNLOCK

1. Central locking/unlocking logic is controlled by IPM. Locking/Unlocking inputs are located in ADM,

DDM (Lock/Unlock switch, door knobs, door key cylinder) and in IPM (RKE receiver).

2. Locking/Unlocking actuators are located in ADM for passenger door, DDM for driver door and RAM for

sliding doors and tailgate.

There are 5 ways of operating central lock/unlock:



With Key RKE



With Door Lock/Unlock switches located on ADM/DDM



With Door Lock Monitoring switches located on the passenger/driver door



With Door/Tailgate Key Cylinder Lock/Unlock switches located on the tailgate or passenger/driver
door.

3. Functional Diagram



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 34

© 2006 Mitchell Repair Information Company, LLC.

Fig. 36: Central Locking Lock Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

KEY REMINDER UNLOCK

1. Key reminder door unlock does not take into account the lock/unlock commands from RKE, key cylinder

or door lock switches. It only takes into account the state of the door lock monitoring switch, key
reminder switch and door open status in order to proceed with the unlock sequence or not.

2. Functional Diagram



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 35

© 2006 Mitchell Repair Information Company, LLC.

Fig. 37: Key Reminder Unlock Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

REMOTE KEYLESS ENTRY PANIC

1. Working Conditions

RKE panic function is only active when the key is out of key cylinder.

Once started, panic operation is not stopped when ignition key is inserted, ignition is ACC, RUN or
START, or door is opened or closed.

2. Functional Diagram

Fig. 38: Remote Keyless Entry Panic Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

HORN

1. Working Conditions

Required key positions:



At any position of the key in the cylinder for the horn stalk activation,



At Key out from the key cylinder for the horn lock activation or for panic activation.

2. Functional Diagram
