This Function is available when Ignition key is in RUN position and for 30sec after end of RUN.



Quarter glasses can be controlled by switches situated near driver or switches situated near rear
passengers seat (3rd row of seats).



When the switch is pressed the motor output is ON until the switch is released or after 5+/- 1sec.
The switch has to be released and pressed again, to command the motor output ON again.



If power window lock is activated only driver window is enable by driver side switch and no
switches are enable to open quarter glass.



There is no interaction with the sliding doors. It is not forbidden to open the quarter glasses when
the sliding door on the same side is open.



No switch information (driver or rear passenger) prevails on the other. If the main switch and the
passenger side switch are pressed in opposite direction at the same time, window stops moving.

2. Functional Diagram

Fig. 28: Quarter Glass Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

OPEN FUEL FILLER DOOR

1. Functional Diagram

Fig. 29: Open Fuel Filler Door Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 25

© 2006 Mitchell Repair Information Company, LLC.

SUN ROOF RELAY COIL

This function defines the condition for switching on or off power feed to sun roof relay coil. This function is
available in RUN position and during after run timer ON.

POWER WINDOW TIMER

This function defines the conditions for allowing use of power windows, quarter glass, and feed to sunroof relay
coil.

SLIDING DOORS POWER WINDOWS

1. Working Conditions

This function is available when ignition key is in RUN position and for 30sec after end of RUN. Window
operation will be canceled if the driver or assist door is opened during the 30sec period after the key is
turned from RUN to ACC or OFF position.

2. Functional Diagram

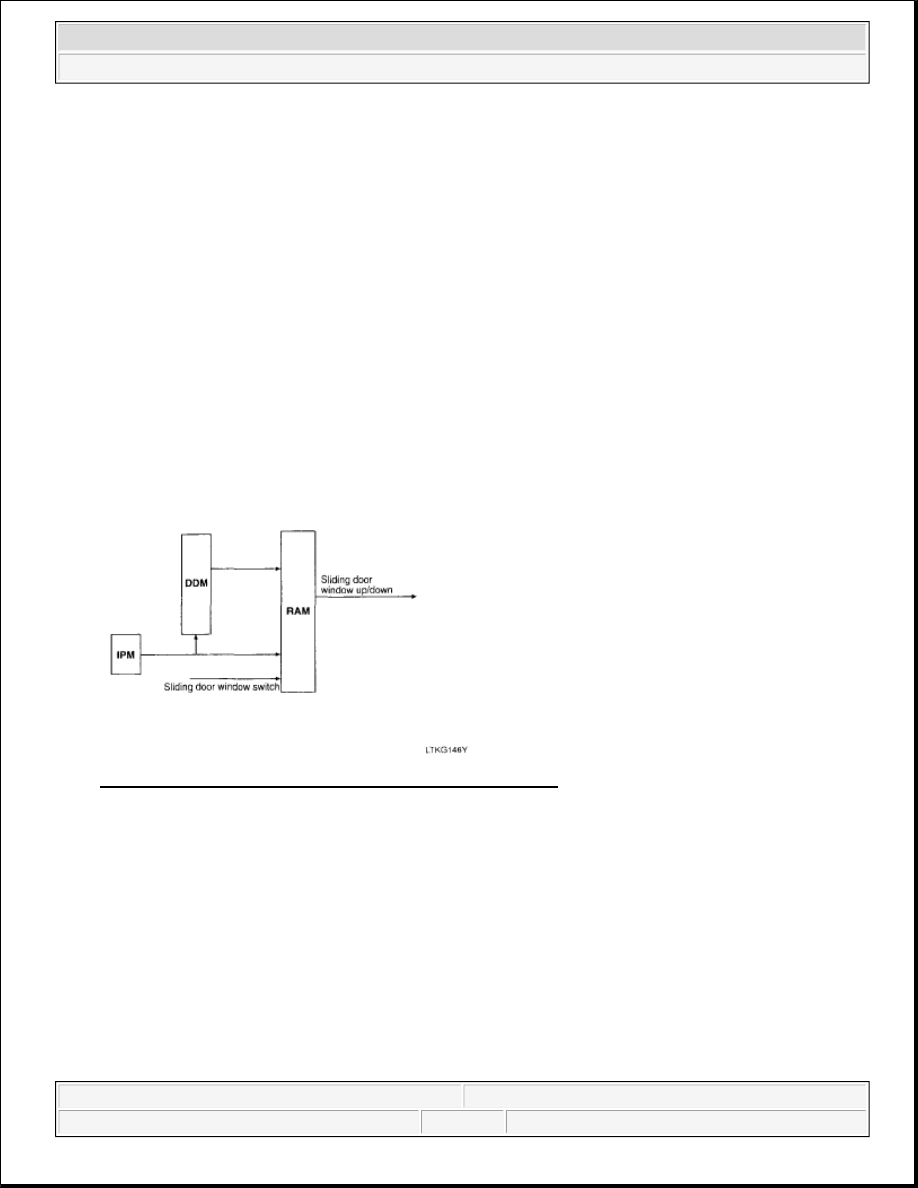

Fig. 30: Sliding Doors Power Windows Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

POWER SLIDING DOOR & POWER TAILGATE

1. Description

There are two sliding doors and one tailgate in the vehicle. A switch is fitted at each B-pillar to permit
Power Sliding Door activation. For the tailgate, there is also one push button switch. These switches are
used to send an signal of 200 ms minimum to the PSD module (or PTG module).

2. Functional Diagram



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 26

© 2006 Mitchell Repair Information Company, LLC.

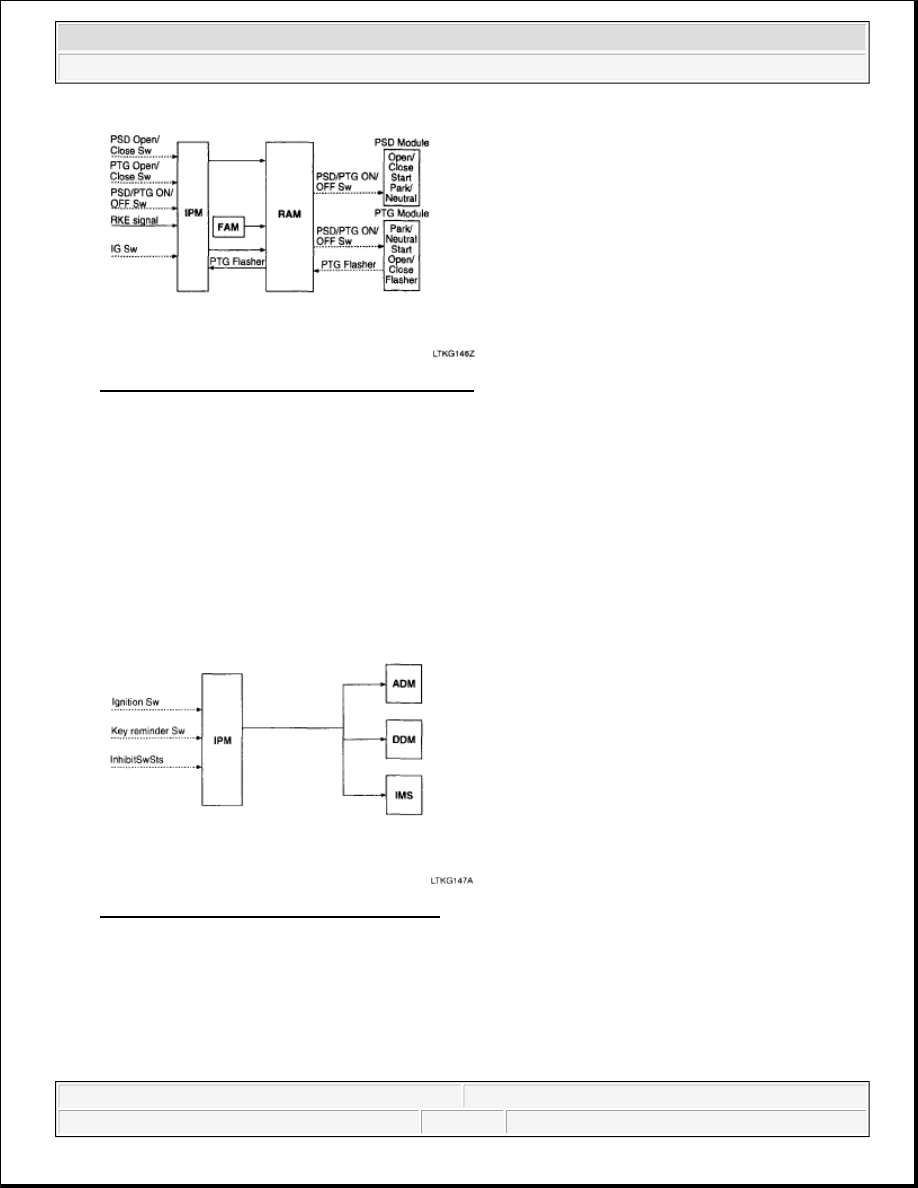

Fig. 31: Power Sliding Door Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

EASY ACCESS

1. Description

The easy access function permits automatic rearward movement of the driver seat when the key is
removed from the cylinder. Automatic forward movement of the driver seat will take place when the key
is inserted into the cylinder. This function will be enabled on IMS equipped vehicles when the AUTO
button is pressed. Inhibit Switch should be in P-Position for the Easy Access operation.

2. Functional Diagram

Fig. 32: Power Tailgate Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

DRIVER INFORMATION

CLUSTER INDICATORS

1. The instrument cluster indicators listed below are controlled by the In-Panel Module (IPM), Front Area

Module (FAM), or Rear Area Module (RAM) as applicable. These indicators are:



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.



Gearbox status



Oil pressure



Sediment fuel filter



Vacuum



Brake fluid



Washer fluid



Seat belt



Park brake



Charging voltage



Turn indicators



High beam



Front fog



Doors open



Tailgate open



Stop lamp failure front and rear

2. Functional Diagram

Fig. 33: Cluster Indicators Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.
