Kia Sedona (2008 year). Manual - part 138

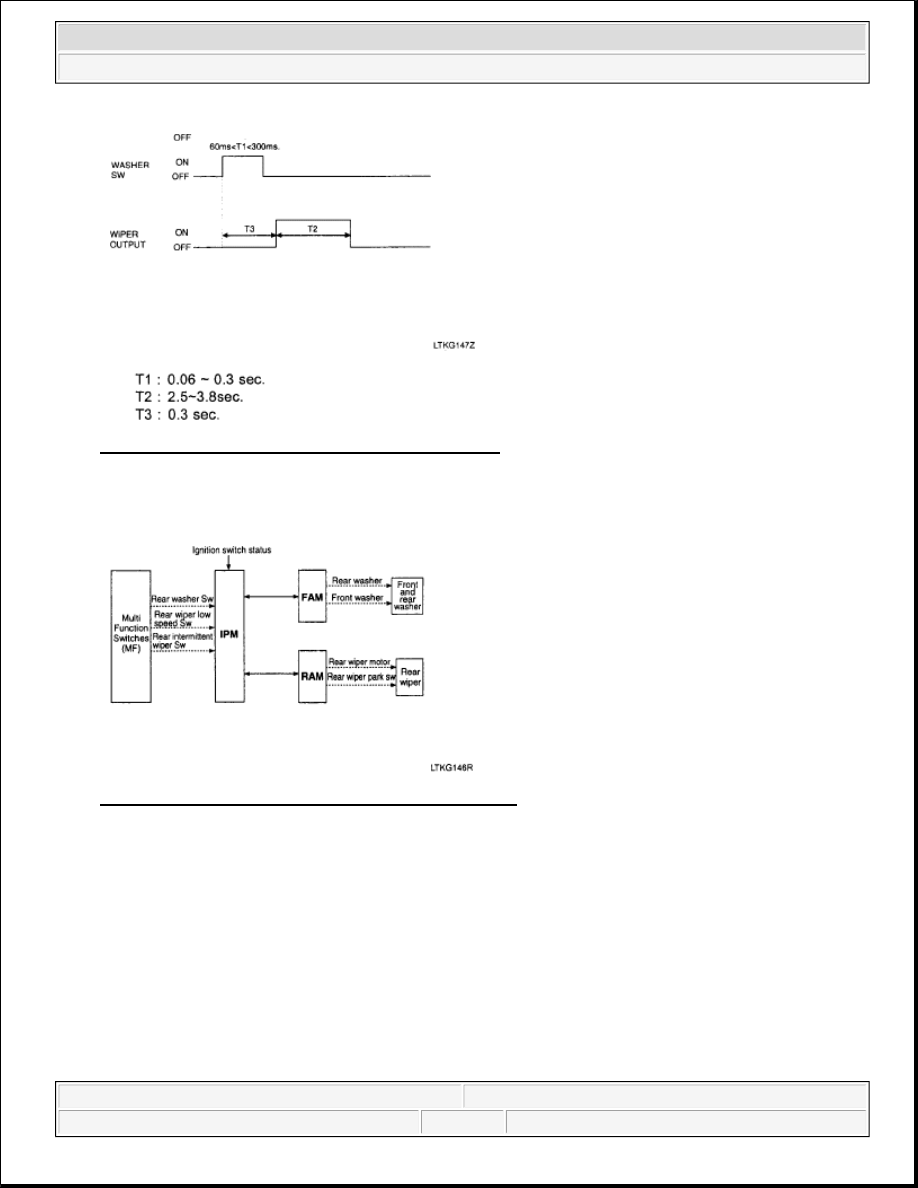

Fig. 22: Rear Wiper And Washer - Flashing Pattern
Courtesy of KIA MOTORS AMERICA, INC.

3. Functional diagram

Fig. 23: Rear Wiper And Washer Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

DEFOG

This function controls the heating defog grids on windshield, rear glass, and rear view mirrors.

1. Working Conditions

The defog function can be activated only when engine is running and ignition key is in RUN position.



When windshield defog switch is pushed, windshield defog is activated for 20 minutes.



While windshield defog is on, the windshield defog button is illuminated



If the switch is pushed again while defog is already active, defog stops.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 21

© 2006 Mitchell Repair Information Company, LLC.



If the engine stops while defog is on, defog stops and it is NOT automatically turned on when the
engine is started again



Rear defog works exactly in the same way as windshield defog using the rear defog switch button
as input.



When rear defog is active, rear defog switch indicator is ON.



Rear defog ctrl output controls rear glass defog as well as rear view mirrors defog.

2. Rear defog pause



When IPM receives Tailgate Flasher CAN message, rear defog is inhibited for 30s



The 20min rear defog timer is frozen during this pause.



If the user turns on rear defog function while this pause is going on, Rear defog Ctrl is set to ON
only at the end of the pause.



This pause has no impact on rear defog switch illumination.



When IPM receives Tailgate open CAN message transition to OPEN value, this 30 s rear defog
pause is also started, it works the same way as described above.

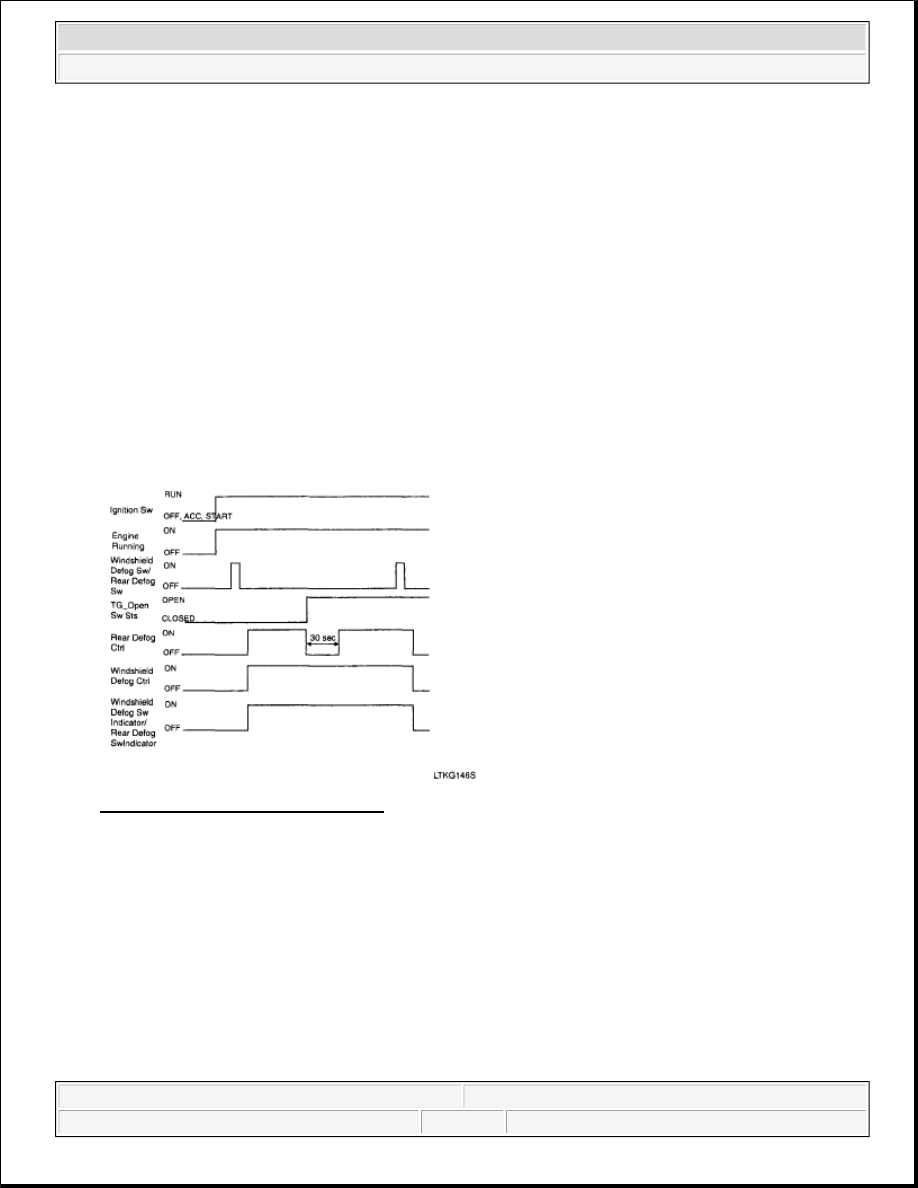

Fig. 24: Rear Defog Flashing Pattern
Courtesy of KIA MOTORS AMERICA, INC.

3. Functional Diagram



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 22

© 2006 Mitchell Repair Information Company, LLC.

Fig. 25: Rear Defog Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

COMFORT FUNCTION

POWER WINDOWS

1. The purpose of the power window function is to manage the driver and assist power window motors. This

function is entirely implemented in the DDM and ADM (door modules) and DMS role for this function is
limited to providing signals through the CAN bus.

POWER SEAT WITH MEMORY INTERFACE

This function manages the power seat and the associated memorized positions. This function is entirely
implemented in the IMS (seat module) and DMS role for this function is limited to providing signals through
the CAN bus.

ADJUSTABLE PEDAL

ADJUSTABLE PEDAL WITH MEMORY INTERFACE (IMS)

1. This function is implemented by the IMS. This function adjusts the pedal position when the pedal

backward/forward switch is pressed.

2. Functional Diagram



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 23

© 2006 Mitchell Repair Information Company, LLC.

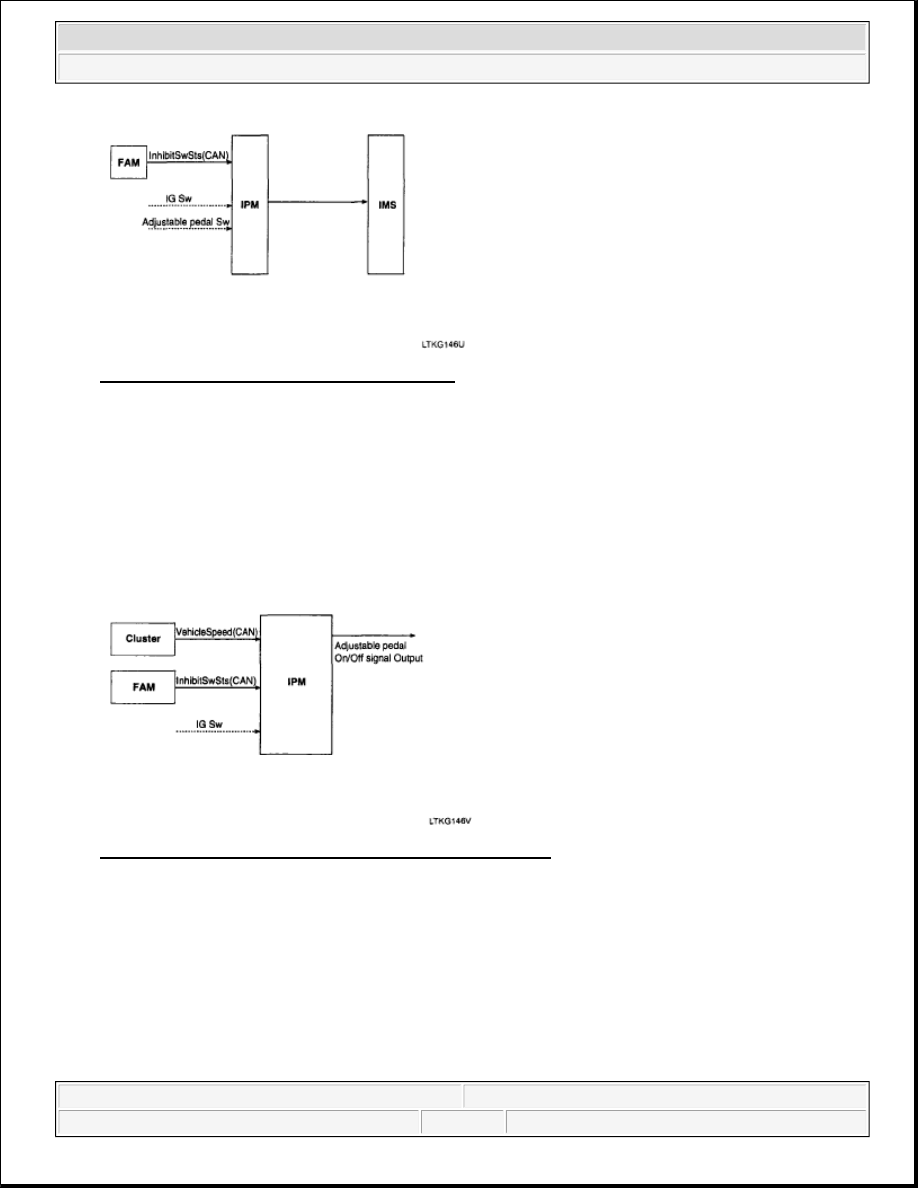

Fig. 26: Adjustable Pedal Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

ADJUSTABLE PEDAL (NON-IMS)

1. Adjust Pedal allows to activate Adjustable Pedal feature for the non-IMS equipped vehicle, IPM needs to

control the power source (by relay coil control) of the adjustable Pedal switch unit.

There is no Adjustable Pedal switch for Non-IMS version.

2. Functional Diagram

Fig. 27: Adjustable Pedal (NON-IMS) Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

REVERSE DRIVE EXTERIOR SIDE MIRROR

This function is implemented by the DDM. This function turns the 2 external reverse mirrors down when gear
box in reverse position.

QUARTER GLASS OPEN/CLOSE

1. Working Conditions



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 24

© 2006 Mitchell Repair Information Company, LLC.
