Kia Carens. Manual - part 164
3. Align marks and install outer and inner rotors.
4. Install oil pump flange.
5. Mount oil pump cover onto oil pump housing.
6. Tighten six bolts evenly and gradually in order shown.
Tightening torque : 72~97.2 lb-in (8.1~10.9 N·m, 82~112 kg-m)
7. Install oil pump shaft and rotate pump rotors to verify smooth oil pump operation.
8. Install four seal rings.

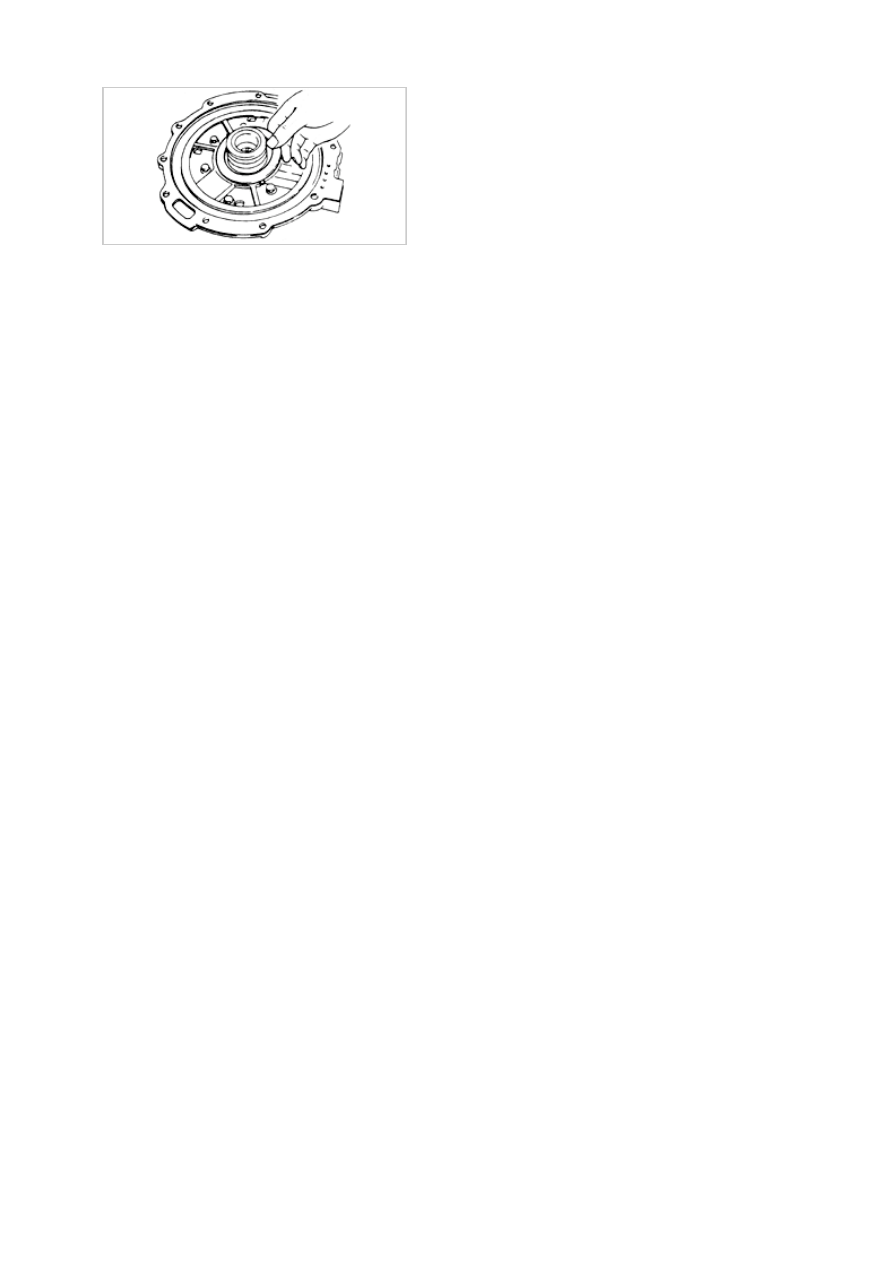

9. Apply petroleum jelly to bearing race and secure it on oil pump cover.
Bearing race outer diameter : 3.46 in (88.0 mm)
