35. Install air cleaner assembly.

36. Connect air temperature sensor connector.

37. Connect MAF sensor connector.

38. Insert diagnosis connector.

39. Connect negative and positive battery cable.

40. Fill transaxle with ATF.

(Refer to automatic transaxle fluid)

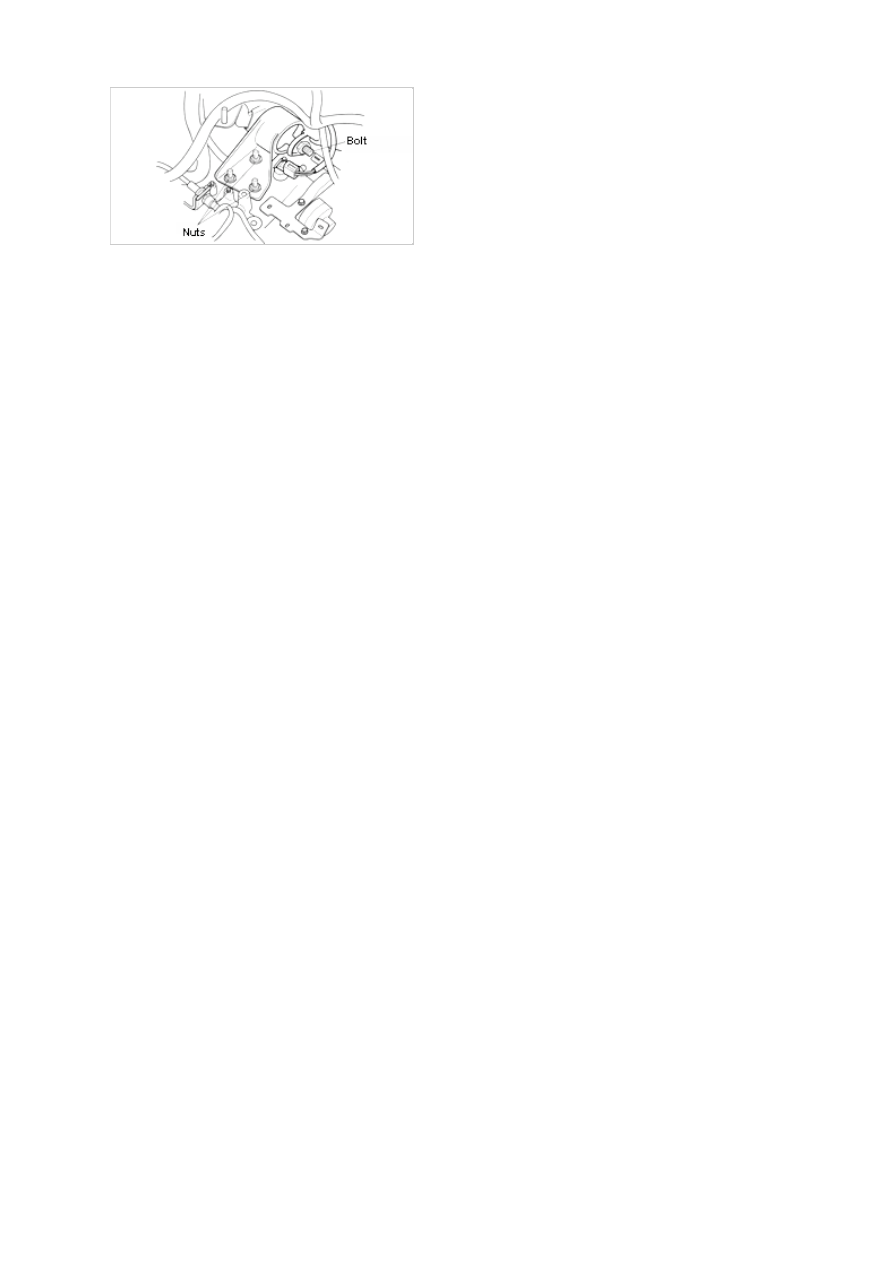

41. Adjust auto transaxle control cable.

(Refer to selector lever)

Automatic Transaxle System

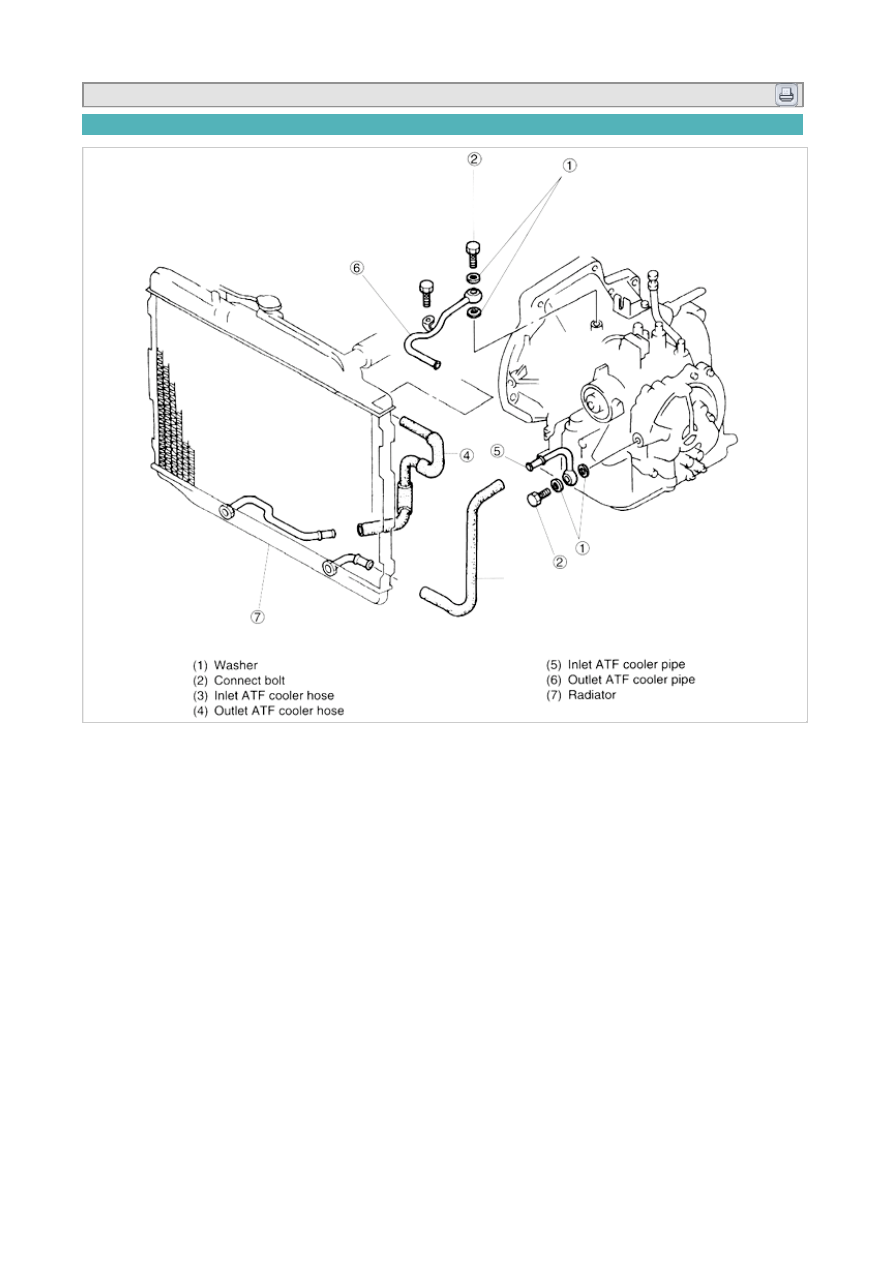

Hydraulic System - Oil Cooler

Automatic Transaxle System

  2001 > 1.8L DOHC >



Component

  2001 > 1.8L DOHC >



Removal

1. Raise vehicle and support it with safety stands.

2. Remove RH side gravel shield (seven bolts) from under engine.

3. Place a drain pan under radiator.

4. Disconnect ATF inlet hose and outlet hose.

5. Remove ATF inlet pipe and outlet pipe.

6. Remove radiator.

Installation

1. Install radiator.

(Refer to cooling system)

2. Install ATF inlet pipe and outlet pipe.

Tightening torque : 24~84 lb-ft (32~47 N·m, 3.3~4.8 kg-m)

3. Slide ATF inlet and outlet hose onto ATF cooler pipe until it is fully seated against the ridge.

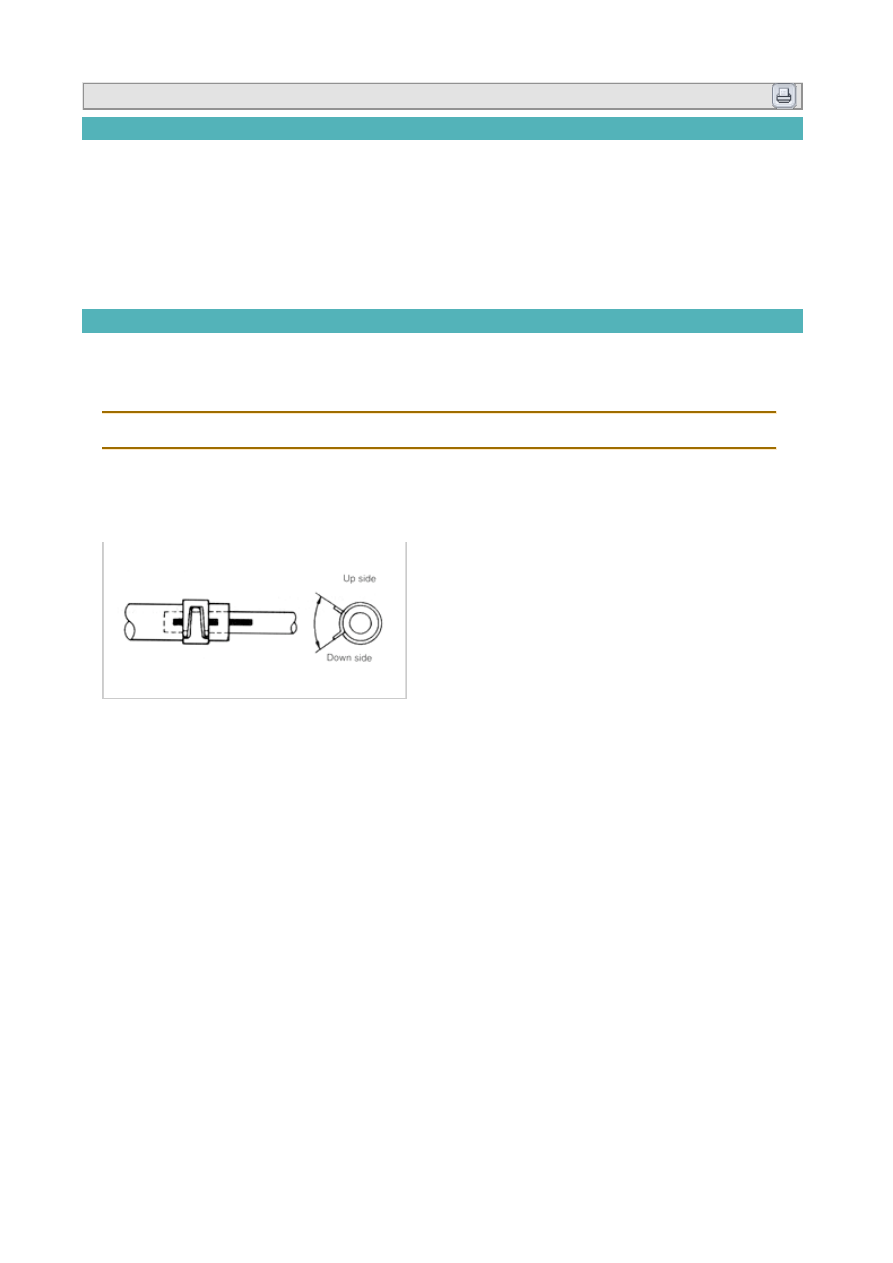

4. Install hose clamp onto hose at center of mark and at angle shown.

5. Verify that the hose clamp does not interfere with any other parts.

6. Install RH side gravel shield under engine.

7. Lower vehicle.

8. Check ATF level.

(Refer to Automatic transaxle fluid)
