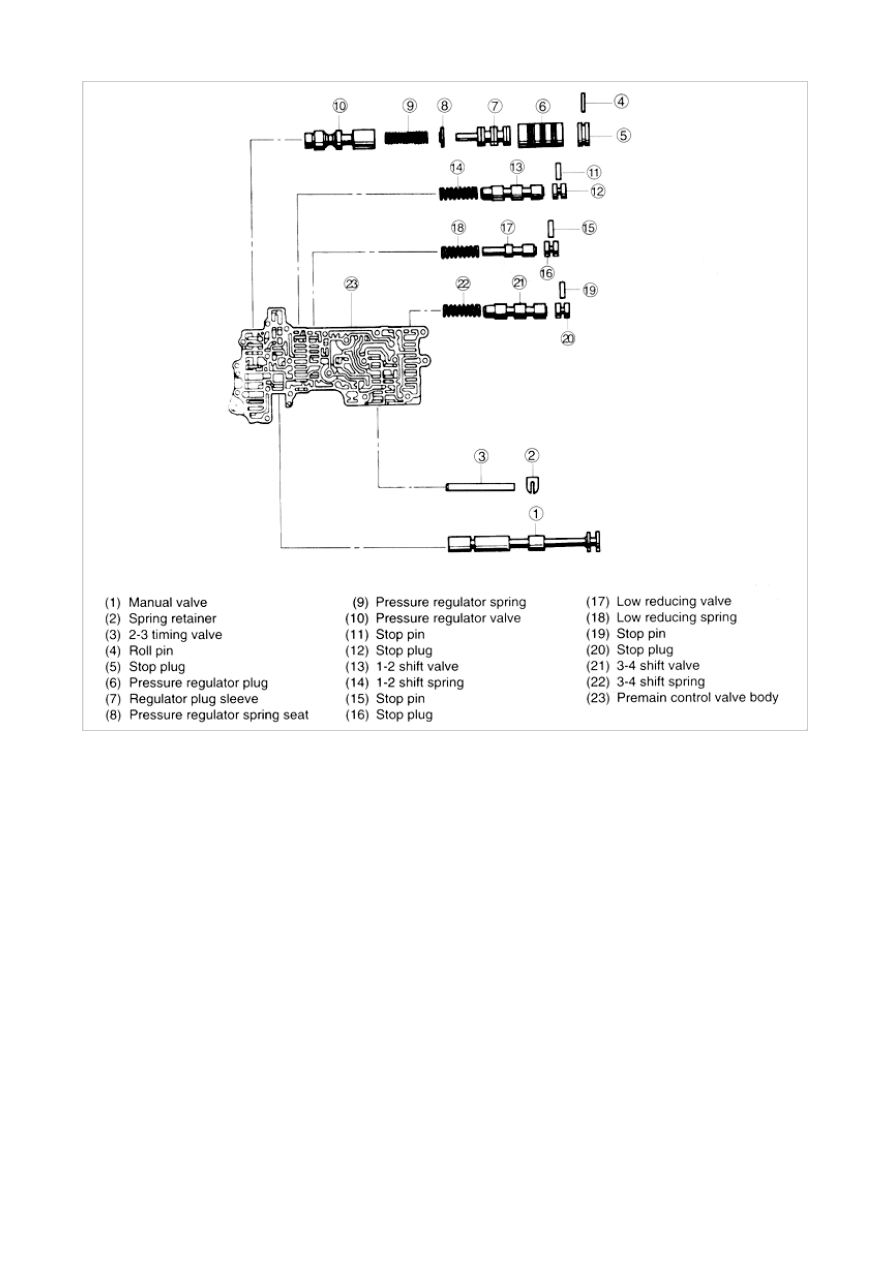

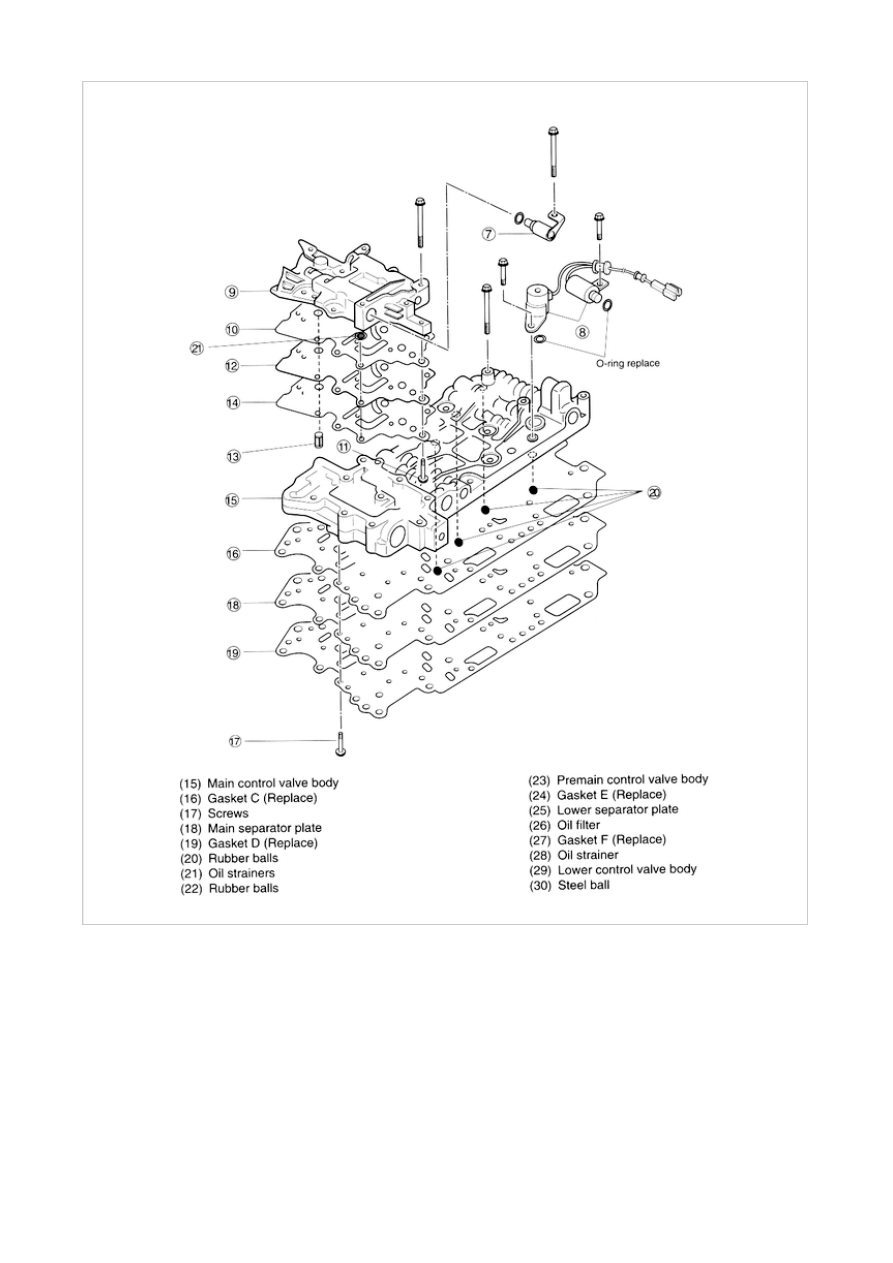

Component (Main control valve body)

  2001 > 1.8L DOHC >



Disassembly

Control valve body

1) Be especially careful when handling control valve because it consists of most precise and delicate parts of

transaxle.

2) Neatly arrange removed parts to avoid confusing similar parts.
3) Clean removed parts with cleaning solvent, and dry them with compressed air. Clean out all holes and passages

with compressed air.

1. Remove oil pipe assembly.

2. Remove O-rings from oil pipe assembly.

3. Remove shift solenod A.

4. Remove torque converter clutch solenoid valve and oil strainer.

5. Remove shift solenoids B and C.

6. Remove linear solenoid valve.

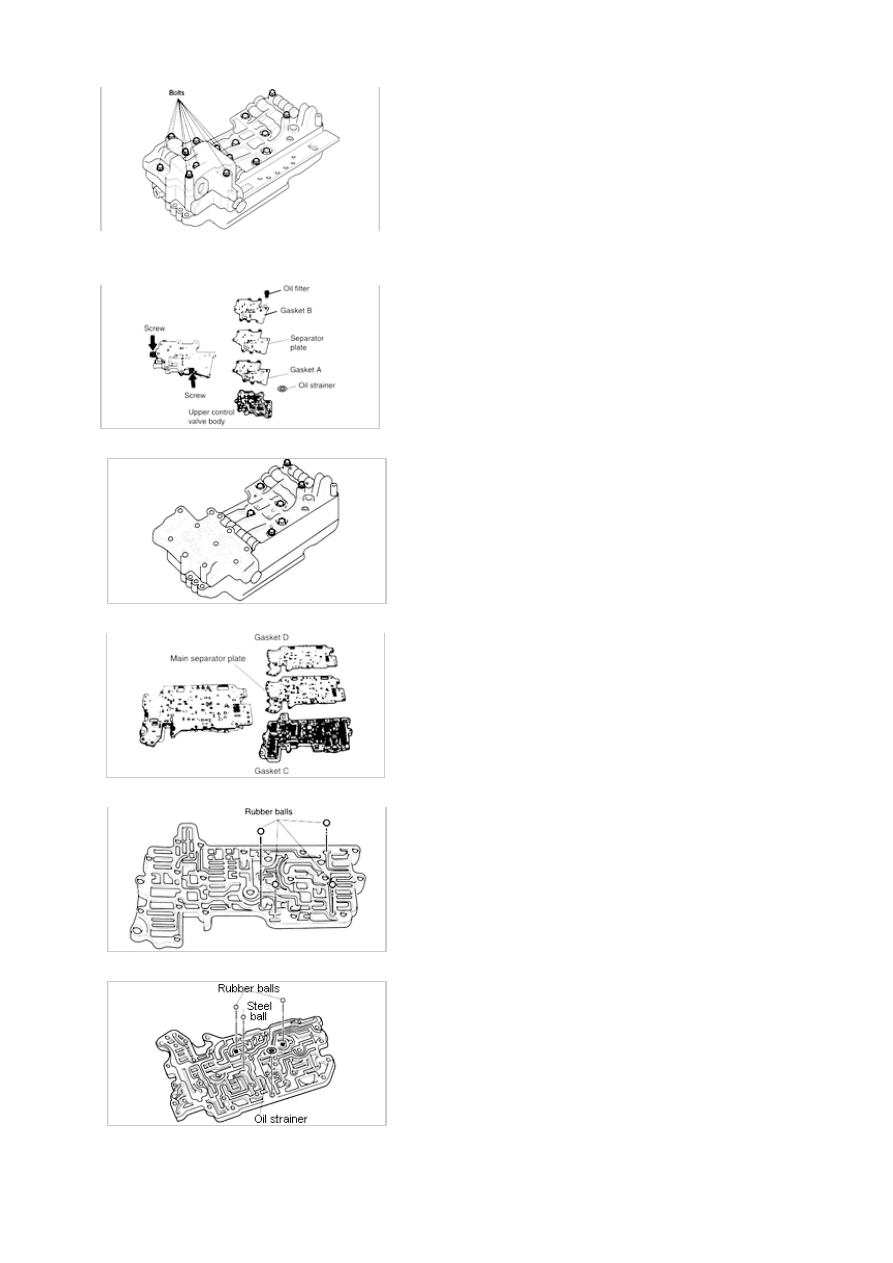

7. Remove nine upper control valve body bolts.

8. Remove two screws from upper control valve body.

9. Remove gasket B, upper separator plate, oil filter, oil strainer and gasket A.

10. Remove seven main control valve body bolts then remove main control valve.

11. Remove gasket D, main separator plate, and gasket C.

12. Remove four rubber balls from main control valve body.

13. Remove oil strainer, steel ball and two rubber balls from premain control valve body.
