8. Remove engine hoist and floor jack.

9. Install three No. 1 engine mount bolts.

Tightening torque : 49.2~68.7lb·ft (66.7~93.2N·m, 6.8~9.5kg-m)

10. Install mounting member.

Tightening torque :
Mounting member bolts and nuts : (A) : 47.0~65.8lb-ft (63.8~89.3N·m, 6.5~9.1kg-m)
No. 2 engine mount-to-mounting member nuts : (B) : 27.5~38.3lb·ft (37.3~51.9N·m, 3.8~5.3)

11. Connect B-terminal connector and S-termoinal connector to starter.

12. Install new clips on driveshaft.

13. Push driveshafts into transaxke with openng of clips pointing upward.

14. Install both right and left ball joint into steering knuckles then install pinch and nut.

Tightening torque : 32~39lb·ft (43~52N·m, 4.4~5.3kg-m)

15. Install both right and left stabilizer control link to bracket attached to shock absorbar.

Tightening torque : 31.8~44.8lb·ft (43.2~60.8N·m, 4.4~6.2kg-m)

16. Install both right and left tie rod ends to steering knuckles then insert cotter pins.

Tightening torque : 27.7~32.5lb·ft (29.4~44.1N·m, 3.0~4.5kg-m)

17. Install front exhasust pipe.

Tightening torque :
(A), (B) : 27.5~38.3lb·ft (37.3~51.9N·m, 3.8~5.3kg-m)
(C) : 31.3~44.8lb·ft (42.2~61.8N·m, 4.3~6.2kg-m)

18. Connect exygen sensor connector.

19. Install both front wheels (four lug nuts each).

Tightening torque : 65.1~86.8lb·ft (88.3~117.7N·m, 9~12kg-m)

20. Connect two ATF cooler hose (A/T).

21. Connect solenoid valve connector (A/T).

22. Connect transaxle range switch connector (A/T).

23. Install clutch release cylinder with two bolts and attach pipe to U-clip.

Tightening torque : 13.7~18.8lb·ft (18.6~25.5N·m, 1.9~2.6kg-m)

24. Install manual transaxle linkage and extension bar (M/T).

25. Install transaxle linkage with washer.

26. Attach selector cable to U-clip (A/T).

27. Connect vehicle speed sensor connector.

28. Connect back-up light switch connector (M/T).

29. Connect input/turbine speed sensor connector (A/T).

30. Connect ground strap to top of transaxle.

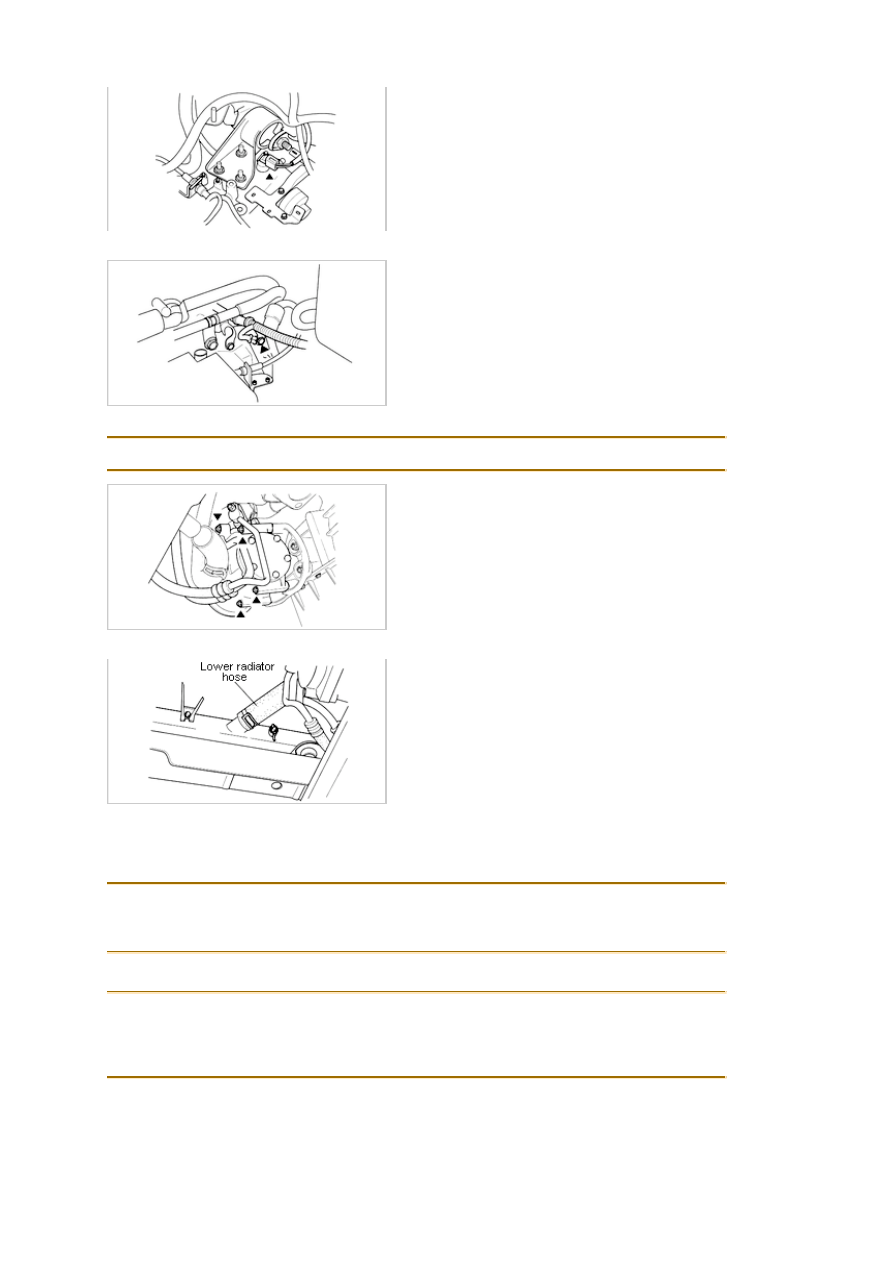

31. Install A/C compressor with four bolts.

Tightening torque : 28.2~38.3lb·ft (38.3~51.9N·m, 3.9~5.3kg-m)

32. Connect lower radiator hose.

33. Install P/S pump.

34. Install P/S pump and/or A/C compressor drive belt.

35. Adjust the belt deflection by turning the adjusting bolt (D).

Belt deflection :
New : 0.32~0.35in (8.0~9.0mm)
Used : 0.35~0.39in (9.0~10.0mm)

36. Tighten the bolt (A), nut (B), nut (C).

Tightening torque :
(A) : 27~40lb·ft (36~54N·m, 3.7~5.5kg-m)
(B) : 14~19lb·ft (19~25N·m, 1.9~2.6kg-m)
(C) : 23~34lb·ft (31~46N·m, 3.2~4.7kg-m)
