48. Remove two nuts from No.2 engine mount-to-mounting member.

49. Remove two and two nuts, then remove mounting member.

50. Remove three No.1 engine mount bolts.

51. support engine with engine hoist and floor jack.

52. Remove one bolt and one nut, then remove dynamic damper.

53. Remove two nuts from No. 3 engine mount.

54. Remove three nuts from No. 4 engine mount.

55. Slowly lower engine/transaxle assembly under the engine room with engine hoist and floor jack.

Be careful not to hurt the any other parts in the engine room.

56. Remove converter housing access cover and remove four drive plate-to-torque converter mounting nuts. Rotate at

crank pulley to gain access to all four nuts. (A/T)

57. Remove starter bolts and transaxle mounting bolts.

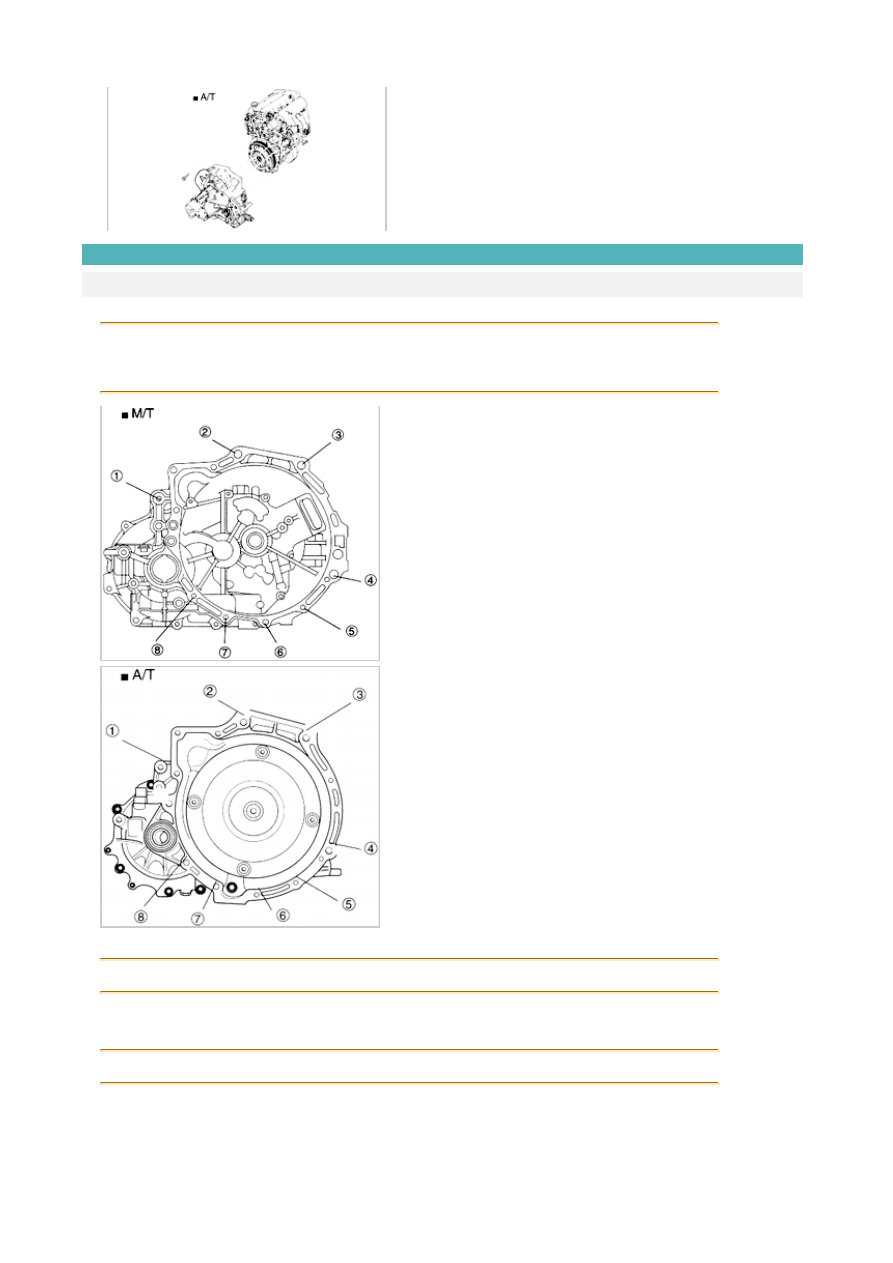

58. Separate transaxle from engine.

INSTALLATION

Engine

1. Install transaxle to engine.

Tightening torque :
4 Upper bolts (1, 2, 3, 4) : 65.8~86.1lb·ft (89~116N·m, 9.1~11.9kg-m)
4 Lower bolts (5, 6, 7, 8) : 27.5~38.3lb·ft (37~52N·m, 3.8~5.3kg-m)

2. Install starter.

Tightening torque : 27~38lb·ft (37~52N·m, 3.7~5.8kg-m)

3. Install four drive plate-to-torque converter mounting nuts then install access cover. Rotate engine at crank pulley to

gain access to all four nuts (A/T).

Tightening torque : 25~36lb·ft (34~49N·m, 3.5~5.0kg-m)

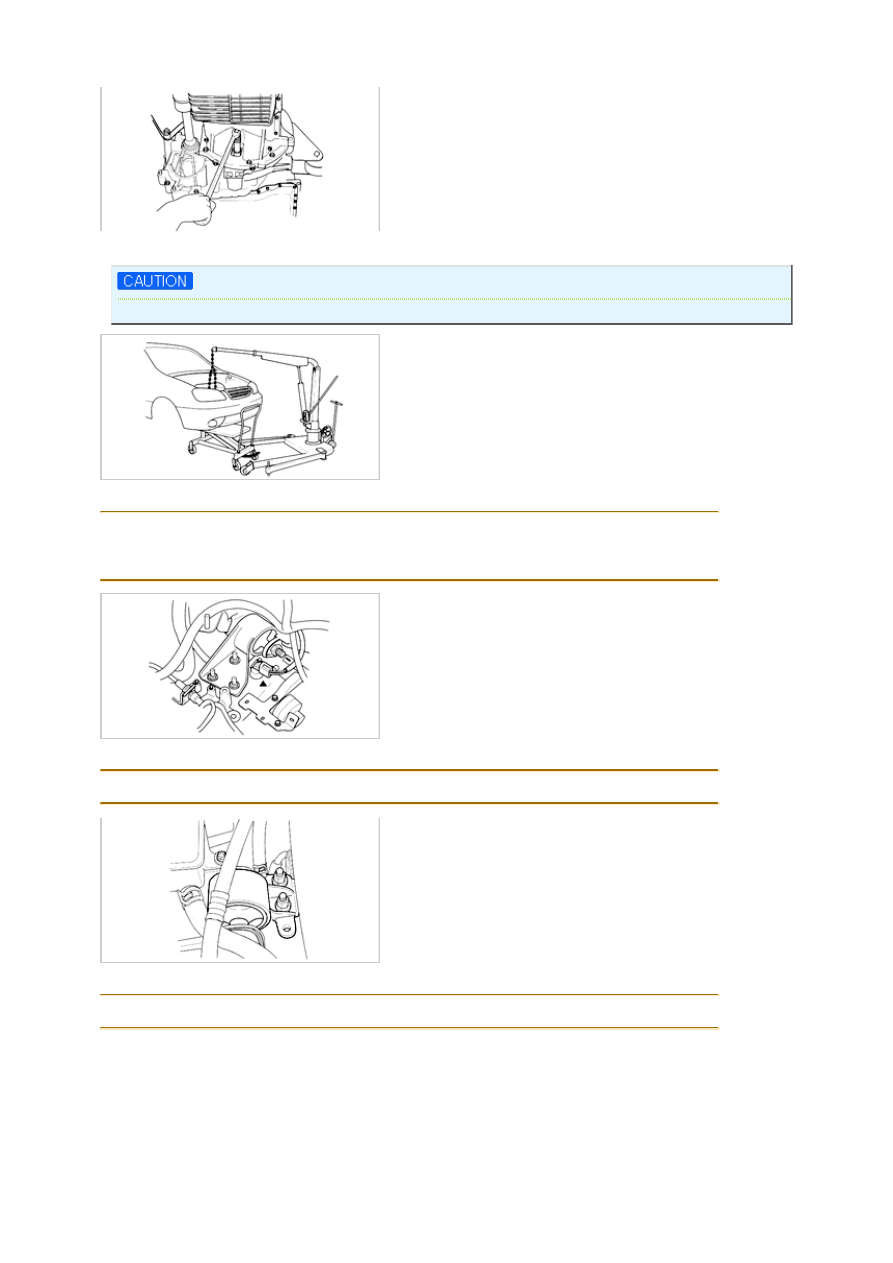

4. Slowly raise engine/transaxle assembly into the engine room with floor jack and engibe hoist.

Be careful not to hurt the any other parts in the engine room.

5. Install three nuts to nut No. 4 engine mount.

Tightening torque :
Nut : 49.2~68.7lb·ft (66.7~93.2N·m, 6.8~9.5kg-m)
Bolt : 47.0~65.8lb·ft (63.8~89.3N·m, 6.5~9.1kg-m)

6. Install two nut to No.3 engine mount.

Tighten torque : 54.2~75.9lb·ft (73.6~103N·m, 7.5~10.5kg-m)

7. Install dynamic damper.

Tightening torque : 40.5~59.3lb·ft (54.9~80.4N·m, 5.6~8.2kg-m)
