195

Driving your vehicle

Trailer towing

vated; the electronic control unit will
then detect the trailer because of the
power consumption by the trailer light

ing and inform the vehicle systems.
When the trailer is disconnected, the
brake pedal shall be pushed again or
turn signal lamps activated for the con

trol unit to be able to detect that there is
no power consumption anymore by trailer
lighting; the assistance systems that
were turned off will automatically turn on
again.

It is the driver's responsibility to ensure
that all electrical connections are work

ing and all trailer lights are operating
before and during towing. You must per

form manual checks.

CAUTION

Use only genuine electrical connections.
Do not attempt to arbitrarily splice or
directly connect the trailer wiring using
any other methods. Doing so may dam

age the vehicle's electrical system,
resulting in malfunctions.

Driving on grades

Reduce the speed and shift to a lower
gear before you start down a long or
steep downgrade. If you don't shift down,
you might have to use your brakes so
much that they would get hot and no
longer operate efficiently.

On a long uphill grade, shift down and
reduce your speed to around 70 km/h
(45 mph) to reduce the possibility of
engine and transmission overheating.

CAUTION

• When towing a trailer on steep grades

(in excess of 6 %) pay close attention
to the engine coolant temperature
gauge to ensure the engine does not

overheat. If the needle of the coolant
temperature gauge moves across the
dial towards "H (HOT) (or 260

°F/130

°C)", pull over and stop as soon as it is
safe to do so, and allow the engine to
idle until it cools down. You may pro

ceed once the engine has cooled suf

ficiently.

• You must decide the driving speed

depending on trailer weight and uphill
grade to reduce the possibility of
engine and transmission overheating.

Parking on hills

Generally, if you have a trailer attached
to your vehicle, you should not park your
vehicle on a hill. People can be seriously
or fatally injured, and both your vehicle
and the trailer can be damaged if unex

pectedly roll down hill.

W ARNING

Parking on a hill
Parking your vehicle on a hill with a
trailer attached could cause serious
injury or death, should the trailer break
loose.

However, if you ever have to park your
trailer on a hill, here's how to do it:

1. Pull the vehicle into the parking space.

Turn the steering wheel in the direc

tion of the curb (right if headed down
hill, left if headed up hill).

2. Set the parking brake and shut off the

vehicle.

3. Place chocks under the trailer wheels

on the down hill side of the wheels.

4. Start the vehicle, hold the brakes, shift

to neutral, release the parking brake
and slowly release the brakes until the
trailer chocks absorb the load.

CarManuals2.com

Driving your vehicle

196

Trailer towing

5. Reapply the brakes, reapply the park

ing brake.

6. Shut off the vehicle and release the

vehicle brakes but leave the parking
brake set.

W ARNING

Parking brake
It can be dangerous to get out of your
vehicle if the parking brake is not firmly
set.

If you have left the engine running, the
vehicle can move suddenly. You or oth

ers could be seriously or fatally injured.

When you are ready to leave
after parking on a hill

1. Apply your brakes and hold the brake

pedal down while you:
• Start your engine;

僅

Shift into gear; and

• Release the parking brake.

2. Slowly remove your foot from the

brake pedal.

3. Drive slowly until the trailer is clear of

the chocks.

4. Stop and have someone pick up and

store the chocks.

Maintenance when trailer towing

Your vehicle will need service more often
when you regularly pull a trailer.
Important items to pay particular atten

tion to include engine oil, axle lubricant
and cooling system fluid. Brake condi

tion is another important item to fre

quently check. Each item is covered in
this manual, and the Index will help you
find them quickly. If you're trailering, it's a
good idea to review these sections
before you start your trip.

Don't forget to also maintain your trailer
and hitch. Follow the maintenance
schedule that accompanied your trailer
and check it periodically. Preferably,
conduct the check at the start of each
day's driving. Most importantly, all hitch
nuts and bolts should be tight.

CAUTION

• Due to higher load during trailer

usage, overheating might occur in hot
days or during uphill driving. If the
coolant gauge indicates overheating,
switch off the A/C and stop the vehi

cle in a safe area to cool down the
engine.

• When towing, check the transmission

fluid more frequently.

• If your vehicle is not equipped with an

air conditioner, you should install a
condenser fan to improve engine per

formance when towing a trailer.

If you do decide to pull a trailer

Here are some important points if you
decide to pull a trailer:
• Consider using a sway control. You

can ask a hitch dealer about sway
control.

• Do not do any towing with your vehi

cle during its first 2,000 km (1,200
miles) in order to allow the engine to
properly break in. Failure to heed this
caution may result in serious engine or
transmission damage.

• When towing a trailer, consult an

authorized Kia dealer on additional
requirements such as a towing kit, etc.

• Always drive your vehicle at a moder

ate speed (less than 100 km/h (60
mph)).

CarManuals2.com

197

Driving your vehicle

Trailer towing

• On a long uphill grade, do not exceed

70 km/h (45 mph) or the posted tow

ing speed limit, whichever is lower.

• The chart contains important consid

erations that have to do with weight:

Weight of the trailer

A: Tongue Load

B: Total Trailer Weight
What is the maximum safe weight of a
trailer? It should never weigh more than
the maximum trailer weight with trailer
brakes. But even that can be too heavy.

It depends on how you plan to use your
trailer. For example, speed, altitude, road
grades, outside temperature and how
often your vehicle is used to pull a trailer
are all important. The ideal trailer weight
can also depend on any special equip

ment that you have on your vehicle.

Weight of the trailer tongue

A: Gross Axle Weight

B: Gross Vehicle Weight
The tongue load of any trailer is an
important weight to measure because it
affects the total gross vehicle weight
(GVW) of your vehicle. This weight
includes the curb weight of the vehicle,
any cargo you may carry in it, and the
people who will be riding in the vehicle.
And if you tow a trailer, you must add the
tongue load to the GVW because your
vehicle will also be carrying that weight.

The trailer tongue should weigh a maxi

mum of 10 % of the total loaded trailer
weight, within the limits of the maximum
trailer tongue load permissible.

After you've loaded your trailer, weigh
the trailer and then the tongue, sepa

Item

Smartstream G2.5 GDi

Smartstream G2.5 T-GDi

Maximum

trailer weight

With brake sys

tem

Standard

907 kg (2,000 lbs.)

Package

1,588 kg (3,500 lbs.)

Without brake system

750 kg (1,653 lbs.)

Maximum tongue weight

100 kg (220 lbs.)

OUM076210L

OUM076211L

CarManuals2.com

Driving your vehicle

198

Vehicle load limit

rately, to see if the weights are proper. If
they aren't, you may be able to correct
them simply by moving some items
around in the trailer.

W ARNING

Trailer
• Never load a trailer with more weight

in the rear than in the front. The front
should be loaded with approximately
60% of the total trailer load; the rear
should be loaded with approximately
40% of the total trailer load.

• Never exceed the maximum weight

limits of the trailer or trailer towing
equipment. Improper loading can result
in damage to your vehicle and/ or
personal injury. Check weights and
loading at a commercial scale or high

way patrol office equipped with
scales.

• An improperly loaded trailer can

cause loss of vehicle control.

Vehicle load limit

The vehicle load limit is displayed on the
tire and loading information label on the
driver's door.

Tire and loading information
label

The label located on the driver's door sill
gives the original tire size, cold tire pres

sures recommended for your vehicle,
the number of people that can be in
your vehicle and vehicle capacity weight.

Example for spare tire

Vehicle capacity weight:

• 6 seats: 468 kg (1,032 lbs.)
• 7 seats: 546 kg (1,204 lbs.)
Vehicle capacity weight is the maximum
combined weight of occupants and
cargo. If your vehicle is equipped with a
trailer, the combined weight includes the
tongue load.

Seating capacity:

Total: 6/7 persons (Front seat: 2 persons,
Rear seat: 4/5 persons)

Seating capacity is the maximum num

ber of occupants including a driver, your
vehicle may carry.

OMQ4A060052

CarManuals2.com

199

Driving your vehicle

Vehicle load limit

However, the seating capacity may be
reduced based upon the weight of all of
the occupants, and the weight of the
cargo being carried or towed.

Do not overload the vehicle as there is a
limit to the total weight, or load limit
including occupants and cargo, the vehi

cle can carry.

Towing capacity:

• Smartstream G2.5 GDi

- Without trailer brakes: 750 kg

(1,653 lbs.)

- With trailer brakes: 907 kg (2,000

lbs.)

• Smartstream G2.5 T-GDi

- Without trailer brakes: 750 kg

(1,653 lbs.)

- With trailer brakes: 907 kg (2,000

lbs.)

- With trailer package: 1,588 kg

(3,500 lbs.)

Towing capacity is the maximum trailer
weight including its cargo weight your
vehicle can tow.

Cargo capacity:

The cargo capacity of your vehicle will
increase or decrease depending on the
weight and the number of occupants.

Steps For Determining Correct
Load Limit -

1. Locate the statement "The combined

weight of occupants and cargo should
never exceed XXX lbs. or XXX kg''
on your vehicle's placard.

2. Determine the combined weight of the

driver and passengers that will be
riding in your vehicle.

3. Subtract the combined weight of the

driver and passengers from XXX lbs.
or XXX kg.

4. The resulting figure equals the avail

able amount of cargo and luggage
load capacity. For example, if the
"XXX" amount equals 635 kg (1400
lbs.) and there will be five 68 kg (150
lbs.) passengers in your vehicle, the
amount of available cargo and lug

gage load capacity is 295 kg (650
lbs.). (635-340 (5x68) = 295 kg or
1400-750 (5x150) = 650 lbs.)

5. Determine the combined weight of

luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.

6. If your vehicle will be towing a trailer,

load from your trailer will be trans

ferred to your vehicle. Consult this
manual to determine how this
reduces the available cargo and lug

gage load capacity of your vehicle.

W ARNING

Loose cargo
Do not travel with unsecured blunt
objects in the passenger compartment of
your vehicle (e.g., suit cases or unse

cured child seats). These items may
strike an occupant during a sudden stop
or crash.

CarManuals2.com

Driving your vehicle

200

Vehicle load limit

Example
1

Example 2

Example 3

Refer to your vehicle's tire and loading
information label for specific information
about your vehicle's capacity weight and
seating positions. The combined weight
of the driver, passengers and cargo
should never exceed your vehicle's
capacity weight.

Certification label

The certification label is located on the
driver's door sill at the center pillar.

Item

Description

Total

Vehicle Capacity

Weight

385 kg

(849 lbs.)

Subtract Occupant

Weight

68 kg (150 lbs.)

×2

136 kg

(300 lbs.)

Available Cargo and

Luggage weight

249 kg

(549 lbs.)

Item

Description

Total

Vehicle Capacity

Weight

385 kg

(849 lbs.)

ODEEV078137NR

ODEEV078138NR

Item

Description

Total

Subtract Occupant

Weight

68 kg (150 lbs.)

×5

340 kg

(750 lbs.)

Available Cargo and

Luggage weight

45 kg

(99 lbs.)

Item

Description

Total

Vehicle Capacity

Weight

385 kg

(849 lbs.)

Subtract Occupant

Weight

73 kg (161 lbs.)

×5

365 kg

(805 lbs.)

Available Cargo and

Luggage weight

20 kg

(44 lbs.)

ODEEV078139NR

CarManuals2.com

201

Driving your vehicle

Vehicle load limit

This label shows the maximum allowable
weight of the fully loaded vehicle. This is
called the GVWR (Gross Vehicle Weight
Rating). The GVWR includes the weight
of the vehicle, all occupants and cargo.

This label also tells you the maximum
weight that can be supported by the
front and rear axles, called Gross Axle
Weight Rating (GAWR).

To find out the actual loads on your front
and rear axles, you need to go to a
weigh station and weigh your vehicle.
Your dealer can help you with this. Be
sure to spread out your load equally on
both sides of the centerline.

W ARNING

Over loading
Never exceed the GVWR for your vehi

cle, the GAWR for either the front or rear
axle and vehicle capacity weight.
Exceeding these ratings can affect your
vehicle's handling and braking ability.

The label will help you decide how much
cargo and installed equipment your
vehicle can carry.

If you carry items inside your vehicle -
like suitcases, tools, packages, or any

thing else - they are moving as fast as
the vehicle. If you have to stop or turn
quickly, or if there is a crash, the items
will keep going and can cause an injury
if they strike the driver or a passenger.

W ARNING

Over loading
Do not overload your vehicle. Overload

ing your vehicle can cause heat buildup
in your vehicle's tires and possible tire
failure, increased stopping distances and
poor vehicle handling--all of which may
result in a crash.

NOTICE

CarManuals2.com

Overloading your vehicle may cause
damage. Repairs would not be covered
by your warranty. Do not overload your
vehicle.

Driving your vehicle

202

Vehicle weight

This section will guide you in the proper
loading of your vehicle, to keep your
loaded vehicle weight within its design
rating capability. Properly loading your
vehicle will provide maximum return of
the vehicle design performance. Before
loading your vehicle, familiarize yourself
with the following terms for determining
your vehicle's weight ratings, from the
vehicle's specifications and the certifica

tion label:

Base curb weight

This is the weight of the vehicle includ

ing a full tank of fuel and all standard
equipment. It does not include passen

gers, cargo, or optional equipment.

Vehicle curb weight

This is the weight of your new vehicle
when you picked it up from your dealer
plus any aftermarket equipment.

Cargo weight

This figure includes all weight added to
the Base Curb Weight, including cargo
and optional equipment.

G AW (Gross axle weight)

This is the total weight placed on each
axle (front and rear) - including vehicle
curb weight and all payload.

GAW R (Gross axle weight rating)

This is the maximum allowable weight
that can be carried by a single axle (front
or rear). These numbers are shown on
the certification label.

The total load on each axle must never
exceed its GAWR.

G V W (Gross vehicle weight)

This is the Base Curb Weight plus actual
Cargo Weight plus passengers.

G VW R (Gross vehicle weight rat

ing)

This is the maximum allowable weight of
the fully loaded vehicle (including all
options, equipment, passengers and
cargo). The GVWR is shown on the
certi

fication label located on the driver's

(or front passenger's) door sill.

Overloading

W ARNING

Vehicle weight
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) for your vehicle are on the certi

fication label attached to the driver's (or
front passenger's) door. Exceeding these
ratings can cause an accident or vehicle
damage. You can calculate the weight of
your load by weighing the items (and
people) before putting them in the vehi

cle. Be careful not to overload your vehi

cle.

Overloading

W ARNING

The Gross Axle Weight Rating (GAWR)
and the Gross Vehicle Weight Rating
(GVWR) for your vehicle are on the Cer

tification Label attached to the driver's
(or front passenger's) door. Exceeding
these ratings can cause an accident or
vehicle damage. You can calculate the
weight of your load by weighing the
items (and people) before putting them in
the vehicle. Be careful not to overload
your vehicle

CarManuals2.com

What to do in an emergency

CarManuals2.com

Road warning................................................................................. 6-3

•

Hazard warning flasher................................................................................. 6-
3

In case of an emergency while driving ....................................... 6-3

•

If the vehicle stalls while driving................................................................ 6-3

僅

If the engine stalls at a crossroad or crossing..................................... 6-3

僅

If you have a flat tire while driving........................................................... 6-3

If the engine will not start ............................................................6-4

•

If engine doesn't turn over or turns over slowly.................................6-4

•

If engine turns over normally but does not start ...............................6-4

Emergency starting .......................................................................6-5

•

Jump-starting.....................................................................................................
6-5

•

Push-starting......................................................................................................
6-6

If the engine overheats................................................................. 6-7

Tire Pressure Monitoring System (TPMS) ..................................6-9

•

Effective use of TPMS ....................................................................................
6-9

•

Low tire pressure telltale ...........................................................................6-
10

•

Tire Pressure Monitoring System (TPMS) malfunction

indicator .............................................................................................................. 6-11

僅

Tire replacement with TPMS......................................................................6-

If you have a flat tire (with spare tire)...................................... 6-13

•

Jack and tools .................................................................................................. 6-
13

•

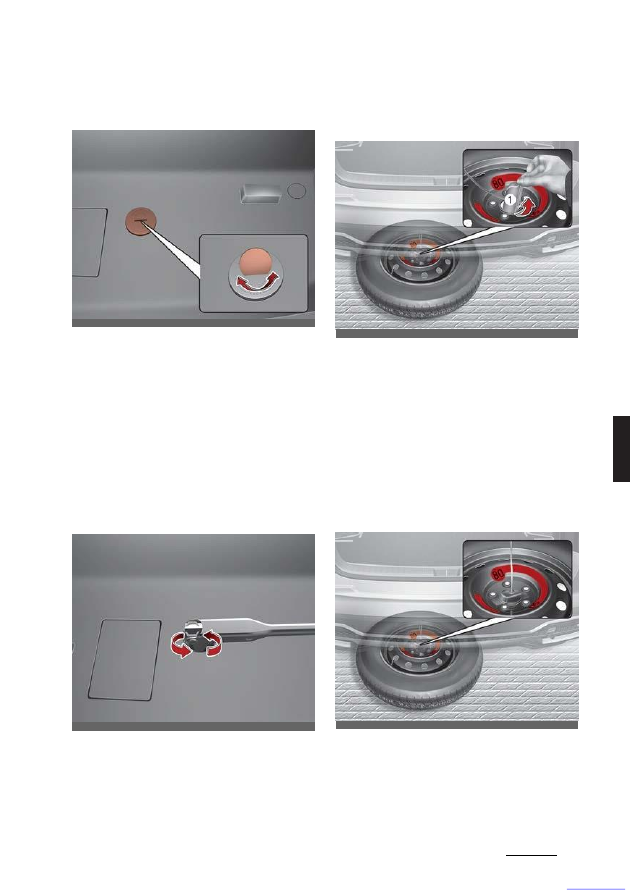

Removing and storing the spare tire..................................................... 6-15

僅

Changing tires ................................................................................................. 6-

•

Important - use of compact spare tire.................................................. 6-19

僅

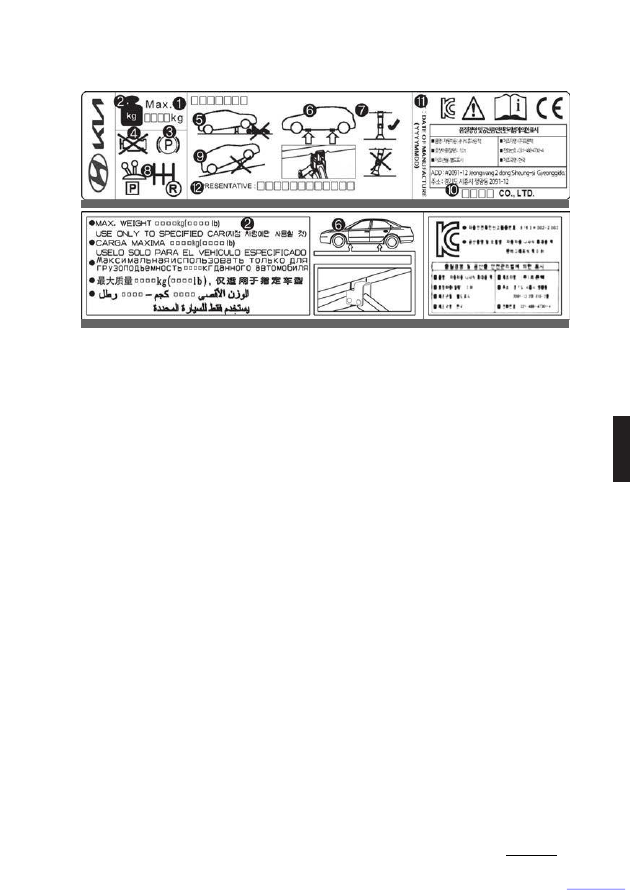

Jack label .......................................................................................................... 6-

If you have a flat tire (with tire mobility kit)............................6-22

•

Introduction ...................................................................................................... 6-
22

•

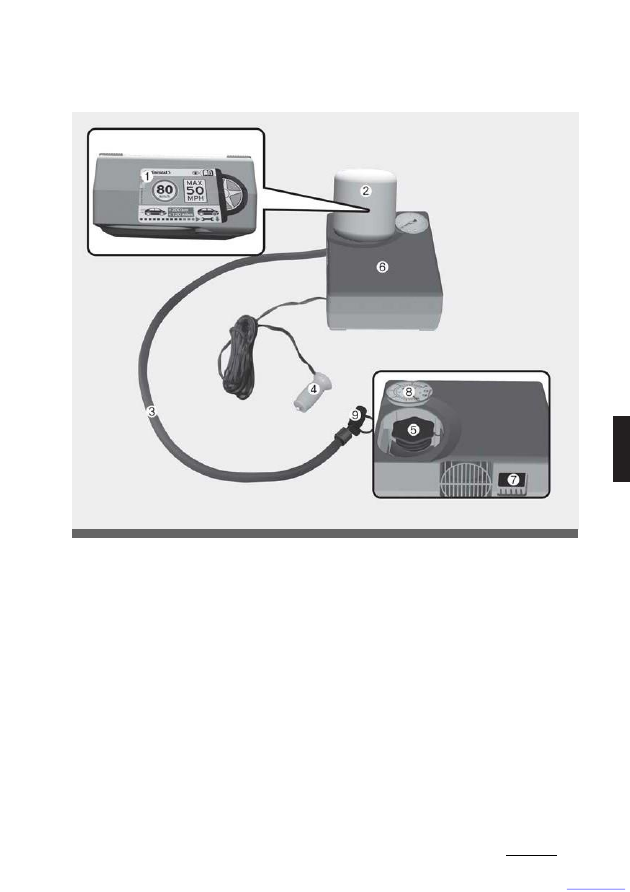

Components of the Tire Mobility Kit......................................................6-23

What to do in an emergency

Road warning

What to do in an emergency

Road warning

When in an emergency situation occurs
while driving or when you park by the
edge of the roadway, you must alert
approaching or passing vehicles to be
careful as they pass. For this, you should
use the hazard warning flasher.

Hazard warning flasher

The hazard warning flasher serves as a
warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.

It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.

Depress the flasher switch with the
ENGINE START/STOP button in any
position. The flasher switch is located in
the center fascia panel. All turn signal
lights will flash simultaneously.
• The hazard warning flasher operates

whether your vehicle is running or not.

• The turn signals do not work when the

hazard flasher is on.

• Care must be taken when using the

hazard warning flasher while the vehi

cle is being towed.

In case of an emergency while
driving

If an emergency situation occurs while
driving, stay calm and take the following
steps.

If the vehicle stalls while driving

1. Reduce your speed gradually, keep

ing a straight line.

2. Move cautiously off the road to a safe

place.

3. Turn on your hazard warning flasher.
4. Try to start the vehicle again. If your

vehicle will not start, contact an
authorized Kia dealer or seek other
qualified assistance.

If the engine stalls at a crossroad
or crossing

• If the engine stalls at a crossroad or

crossing, set the shift lever in the N
(Neutral) position and then push the
vehicle to a safe place.

If you have a flat tire while driv

ing

1. Take your foot off the accelerator

pedal and let the vehicle slow down
while driving straight ahead.

Do not apply the brakes immediately
or attempt to pull off the road as this
may cause a loss of control.

2. When the vehicle has slowed to such

a speed that it is safe to do so, brake
carefully and pull off the road.

3. Drive off the road as far as possible

and park on firm level ground.

If you are on a divided highway, do
not park in the median area between
the two traffic lanes.

4. When the vehicle is stopped, turn on

your emergency hazard flashers, set

OMQ4060001

CarManuals2.com

What to do in an emergency

If the engine will not start

the parking brake and put the trans

mission in P.

5. Have all passengers get out of the

vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.

6. When changing a flat tire, follow the

instruction provided later in this sec

tion.

If the engine will not start

When the engine doesn't start, first
check to see how much fuel there is and
whether the battery is discharged.

If engine doesn't turn over or
turns over slowly

1. Be sure the shift lever is in N (Neutral)

or P (Park) and the emergency brake
is set.

2. Check the battery connections to be

sure they are clean and tight.

3. Turn on the interior light. If the light

dims or goes out when you operate
the starter, the battery is discharged.

4. Check the starter connections to be

sure they are securely tightened.

W ARNING

Do not push or pull the vehicle to start it.
This could cause damage to your vehi

cle. Refer to "Jump-starting" on page 6-
5.

If engine turns over normally but
does not start

1. Check the fuel level and add fuel if

necessary.

2. With the ENGINE START/STOP

button in the OFF position, check all
connec

tors at the ignition coils and

spark plugs. Reconnect any that may
be dis

connected or loose.

3. Check the fuel line in the engine com

partment.

4. If the engine still does not start, call an

authorized Kia dealer or seek other
qualified assistance.

CarManuals2.com

What to do in an emergency

Emergency starting

When the vehicle will not start because
of low battery power, you may need to
jump start the vehicle.

Jump-starting

Connect cables in numerical order and
disconnect in reverse order.

Jump-starting can be dangerous if done
incorrectly. Therefore, to avoid harm to
yourself or damage to your vehicle or
battery, follow these jump-starting pro

cedures. If in doubt, we strongly recom

mend that you have a competent
technician or towing service jump-start
your vehicle.

CAUTION

Use only a 12-volt jumper system. You
can damage a 12-volt starting motor,
ignition system, and other electrical parts
beyond repair by use of a 24- volt power
supply (either two 12-volt batter

ies in

series or a 24-volt motor generator set).

W ARNING

Frozen batteries

Do not attempt to jump start the vehicle if
the discharged battery is frozen, as the
battery may rupture or explode.

W ARNING

Battery
• Never attempt to check the electrolyte

level of the battery, as this may cause
the battery to rupture or explode.

• Keep all flames or sparks away from

the battery. The battery produces
hydrogen gas which may explode if
exposed to flame or sparks.

If these instructions are not followed
exactly, serious personal injury and
damage to the vehicle may occur! If
you are not sure how to follow this
procedure, seek qualified assistance.
Automobile batteries contain sulfuric
acid. This is poisonous and highly cor

rosive. When jump starting, wear pro

tective glasses and be careful not to
get acid on yourself, your clothing or
on the vehicle.

• Do not attempt to jump start the vehi

cle if the discharged battery is frozen
or if the electrolyte level is low; the
battery may rupture or explode.

• Do not allow the (+) and (-) jumper

cables to touch. It may cause sparks.

• The battery may rupture or explode

when you jump start with a low or fro

zen battery.

W ARNING

Battery cables
Do not connect the jumper cable from the
negative terminal of the booster bat

tery

to the negative terminal of the dis

charged battery, directly. This can cause
the discharged battery to overheat and
crack or degrade. Make sure to connect

OMQ4061026

CarManuals2.com

What to do in an emergency

Emergency starting

one end of the jumper cable to the nega

tive terminal of the booster battery, and
the other end to a metallic point, far away
from the battery.

W ARNING

Sulfuric acid risk
Automobile batteries contain sulfuric
acid. When jump starting your vehicle,
be careful not to get sulfuric acid on
yourself, your clothing, or on the vehicle.
This acid is poisonous and highly corro

sive.

Jump-starting

1. Make sure the booster battery is 12-

volt and that its negative terminal is
grounded.

If the booster battery is in another
vehicle, do not allow the vehicles to
come in contact.

2. Turn off all unnecessary electrical

loads.

3. Connect the jumper cables in the

exact sequence shown in the illustra

tion.

1) Connect on end of a jumper cable

to the positive terminal of the dis

charged battery (1).

2) Connect the other end to the posi

tive terminal of the booster battery
(2).

3) Proceed to connect one end of the

other jumper cable to the negative
terminal of the booster battery (3),
then the other end to a solid, sta

tionary, metallic point away from
the battery (4).

Do not allow the jumper cables to
contact anything except the correct
battery terminals or the correct

ground. Do not lean over the bat

tery when making connections.

4. If connected with the other vehicle,

start the vehicle with the booster bat

tery first and let it run at 2,000 rpm for
several minutes.

5. Start the vehicle with the discharged

battery.

6. If the engine starts, disconnect one

end of the negative terminal of the
booster battery (3), then other end of
the positive terminal of the booster
battery (2) and the discharged battery
(1).

If the cause of your battery discharging
is not apparent, have your vehicle
checked by an authorized Kia dealer.

NOTICE

Battery cables
Do not connect the jumper cable from the
negative terminal of the booster bat

tery

to the negative terminal of the dis

charged battery. This can cause the
discharged battery to overheat and
crack, releasing battery acid.

Make sure to connect one end of the
jumper cable to the negative terminal of
the booster battery, and the other end to a
metallic point, far away from the bat

tery.

Push-starting

Vehicles equipped with automatic trans

mission or DCT cannot be push-started,
and only jump starting can be applied.
Follow the directions in this section for
"Jump-starting" on page 6-5.

W ARNING

CarManuals2.com

Tow starting vehicle

Never tow a vehicle to start it.

What to do in an emergency

If the engine overheats

When the engine starts, the vehicle can
suddenly surge forward and could cause
a collision with the tow vehicle.

If the engine overheats

If your temperature gauge indicates
overheating, you experience a loss of
power, or hear a loud pinging or knock

ing, the engine will probably be too hot.

If this happens, you should:
1. Pull off the road and stop as soon as it

is safe to do so.

2. Shift the gear to P (Park) and set the

parking brake.

3. If the air conditioning is on, turn it off.
4. If engine coolant is running out under

the vehicle or steam is coming out
from underneath the hood, stop the
engine. Do not open the hood until the
coolant has stopped running or the
steaming has stopped.

5. If there is no visible loss of engine

coolant and no steam, leave the
engine running and check to be sure
the engine cooling fan is operating.

1) If the fan is not running, turn the

engine off.

6. Check to see if the water pump drive

belt is missing.

1) If it is not missing, check to see that

it is tight.

2) If the drive belt seems to be satis

factory, check for coolant leaking
from the radiator, hoses or under
the vehicle. (If the air conditioning
had been in use, it is normal for
cold water to be draining from it
when you stop).

W ARNING

Under the hood

While the engine is running, keep
hair, hands and clothing away

CarManuals2.com

What to do in an emergency

If the engine overheats

from moving parts, such as the fan and
drive belts, to prevent injury.

7. If the water pump drive belt is broken

or engine coolant is leaking out, stop
the engine immediately and call the
nearest a professional workshop for
assistance. Kia recommends to call an
authorized Kia dealer.

8. If you cannot find the cause of the

overheating, wait until the engine
temperature has returned to normal.
If coolant has been lost, carefully add
coolant to the reservoir to bring the
fluid level in the reservoir up to the
halfway mark.

9. Proceed with caution, keeping alert for

further signs of overheating. If
overheating happens again, call a
professional workshop for assistance.
Kia recommends to call an authorized
Kia dealer.

W ARNING

Coolant reservoir cap

Do not remove the engine cool

ant reservoir cap when the
engine is hot. This may result in
coolant being blown out of the

opening and cause serious burns.

CAUTION

• Serious loss of coolant indicates there

is a leak in the cooling system and this
should be checked as soon as possi

ble. Have your vehicle checked by an
authorized Kia dealer.

• When the engine overheats from low

engine coolant, suddenly adding
engine coolant may cause cracks in
the engine. To prevent damage, add

engine coolant slowly in small quanti

ties.

CarManuals2.com

What to do in an emergency

Tire Pressure Monitoring System (TPMS)

Tire Pressure Monitoring Sys

tem (TPMS)

The Tire Pressure Monitoring System
(TPMS) detects the pressure of vehicle's
tires and displays it on the LCD display.

1. Low tire pressure telltale/TPMS mal

function indicator

2. Low tire pressure position telltale

(Shown on the LCD display)

Tire Pressure Indicator

• You can check the tire pressure in the

assist mode on the cluster.

- Refer to "Driving Assist mode" on

page 4-81.

• Tire pressure is displayed 1 ~ 2 min

utes later after driving.

• If tire pressure is not displayed when

the vehicle is stopped, "Drive to dis

play" message displays. After driving,
check the tire pressure.

• You can change the tire pressure unit

in the user settings mode on the clus

ter.

- psi, kPa (Refer to "User settings

mode" on page 4-82).

NOTICE

• The tire pressure may change due to

factors such as parking condition,
driving style, and altitude above sea
level.

• The tire pressure shown on the dash

board may differ from the tire pres

sure measured by tire pressure
gauge.

• Low tire pressure warning may sound

when a tire's pressure unit is equal or
lower than nearby tires. This is a nor

mal occurrence, which is due to the
change in tire pressure along with tire
temperature.

Effective use of TPMS

W ARNING

Over-inflation or under-inflation can
reduce tire life, adversely affect vehicle
handling, and lead to sudden tire failure
that may cause loss of vehicle control
resulting in an accident

Each tire, including the spare (if pro

vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard or
tire inflation pressure label.

(If your vehicle has tires of a different
size than the size indicated on the vehi

OMQ4061003

OMQ4A060055

CarManuals2.com

What to do in an emergency

Tire Pressure Monitoring System (TPMS)

cle placard or tire inflation pressure
label, you should determine the proper
tire inflation pressure for those tires.)

As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that illumi

nates a low tire pressure telltale when
one or more of your tires is significantly
under-inflated. Accordingly, when the low
tire pressure telltale illuminates, you
should stop and check your tires as soon
as possible, and inflate them to the
proper pressure. Driving on a signifi

cantly under-inflated tire causes the tire
to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi

ciency and tire tread life, and may affect
the vehicle's handling and stopping abil

ity.

Please note that the TPMS is not a sub

stitute for proper tire maintenance, and it
is the driver's responsibility to maintain
correct tire pressure, even if under-infla

tion has not reached the level to trigger
illumination of the TPMS low tire pres

sure telltale.

Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not operat

ing properly. The TPMS malfunction
indicator is combined with the low tire
pressure telltale. When the system
detects a malfunction, the telltale will
flash for approximately one minute and
then remain continuously illuminated.
This sequence will continue upon subse

quent vehicle start-ups as long as the
malfunction exists. When the malfunc

tion indicator is illuminated, the system
may not be able to detect or signal low
tire pressure as intended. TPMS mal

functions may occur for a variety of rea

sons, including the installation of
replacement or alternate tires or wheels

If any of the below happens, have the
system checked by an authorized Kia
dealer.

1. The low tire pressure telltale/TPMS

malfunction indicator does not illumi

nate for 3 seconds when the ENGINE
START/STOP button is turned to the
ON position or engine is running.

2. The TPMS malfunction indicator

remains illuminated after blinking for
approximately 1 minute.

3. The Low tire pressure position telltale

remains illuminated.

Low tire pressure telltale

Low tire pressure position telltale

When the TPMS warning indicators are
illuminated, one or more of your tires is
significantly under-inflated.

on the vehicle that prevent the TPMS
from functioning properly.

Always check the TPMS malfunction tell

tale after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.

NOTICE

OMQ4040126L

CarManuals2.com

What to do in an emergency

Tire Pressure Monitoring System (TPMS)

If the telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping dis

tances. You should stop and check your
tires as soon as possible.

Inflate the tires to the proper pressure as
indicated on the vehicle's placard or tire
inflation pressure label located on the
driver's side center pillar outer panel. If
you cannot reach a service station or if
the tire cannot hold the newly added air,
replace the low pressure tire with the
spare tire.

Then the TPMS malfunction indicator
and the Low Tire Pressure telltale may
turn on and illuminate after restarting
and about 20 minutes of continuous
driving before you have the low pres

sure tire repaired and replaced on the
vehicle.

In winter or cold weather, the low tire
pressure telltale may be illuminated if the
tire pressure was adjusted to the rec

ommended tire inflation pressure in warm
weather. It does not mean your TPMS is
malfunctioning because the decreased
temperature leads to a pro

portional

lowering of tire pressure.

You should check the tire inflation pres

sure and adjust the tires to the recom

mended tire inflation pressure when
driving your vehicle in the following con

ditions.
• from a warm area to a cold area

僅

from a cold area to a warm area

• the outside temperature is extremely

high or low

When filling tires with more air, condi

tions to turn off the low tire pressure tell

tale may not be met. This is because a
tire inflator has a margin of error in per

formance. The low tire pressure telltale
will be turned off if the tire pressure is

above the recommended tire inflation
pressure.

W ARNING

Low pressure damage
Do not drive on low pressure tires. Sig

nificantly low tire pressure can cause the
tires to overheat and fail, making the
vehicle unstable, resulting in increased
braking distances and a loss of vehicle
control.

Tire Pressure Monitoring System

(TPMS) malfunction indicator

The low tire pressure telltale will illumi

nate after it blinks for approximately one
minute when there is a problem with the
TPMS.

If the system is able to correctly detect an
underinflation warning at the same time
as system failure, it will illuminate both
the TPMS malfunction and the low tire
pressure position telltales. For exam

ple,

if the Front Left sensor fails, the TPMS
malfunction indicator illuminates, but if
the Front Right, Rear Left, or Rear Right
tire is underinflated, the low tire pressure
position telltales may illuminate together
with the TPMS malfunction indicator.

Have the system checked by an autho

rized Kia dealer as soon as possible to
determine the cause of the problem.
• The TPMS malfunction indicator may

be illuminated if the vehicle is moving
around electric power supply cables or
radios transmitters such as at police
stations, government and pub

lic

offices, broadcasting stations, mili

tary installations, airports, or
transmitting towers, etc. This can
interfere with normal operation of the
TPMS.

CarManuals2.com

What to do in an emergency

Tire Pressure Monitoring System (TPMS)

• The TPMS malfunction indicator may

illuminate if the vehicle is equipped
with snow chains or some personal
electronic devices (such as a laptop
computer, mobile charger, remote
starter or navigation) are being used
in the vehicle. This can interfere with
normal operation of the TPMS.

Tire replacement with TPMS

If you have a flat tire, the Low Tire Pres

sure telltale will come on. Have the flat
tire repaired by an authorized Kia dealer
as soon as possible or replace the flat tire
with the spare tire.

CAUTION

CarManuals2.com

Repair Agents
Never use a puncture-repairing agent not
approved by Kia to repair and/or inflate a
low pressure tire. Sealant that is
not approved by Kia may damage the
tire pressure sensor.

Each wheel is equipped with a tire pres

sure sensor mounted inside the tire
behind the valve stem. You must use
TPMS specific wheels. Always have
your tires serviced by an authorized Kia
dealer.

Even if you replace the low pressure tire
with the spare tire, the Low Tire Pressure
telltale will remain on until the low pres

sure tire is repaired and placed on the
vehicle.

After you replace the low pressure tire
with the spare tire, the TPMS malfunc

tion indicator may illuminate after a few
minutes. This is because the TPMS sen

sor mounted on the spare wheel is not
yet activated.

Once the low pressure tire is inflated
again to the recommended pressure and
installed on the vehicle or the TPMS sen

sor mounted on the replaced spare wheel
is initiated by a professional work

shop,

the TPMS malfunction indicator and the
low tire pressure telltale will turn off within
a few minutes of driving.

If the indicator has not disappeared after a
few minutes of driving, please visit an
authorized Kia dealer.

If an original mounted tire is replaced with
the spare tire, the TPMS sensor on the
replaced spare wheel should be initi

ated

and the TPMS sensor on the origi

nal

mounted wheel should be deactivated. If
the TPMS sensor on the original mounted
wheel located in the spare tire carrier still
activates, the Tire Pressure Monitoring
System may not operate properly. Have
the tire with TPMS serviced or replaced
by an autho

rized Kia dealer.

You may not be able to identify a low tire
by simply looking at it. Always use a
good quality tire pressure gauge to mea

sure the tire's inflation pressure. Please
note that a tire that is hot (from being
driven) will have a higher pressure mea

surement than a tire that is cold (from
sitting stationary for at least 3 hours and
driven less than 1 mile (1.6 km) during
that 3 hour period).

Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the rec

ommended pressure.

A cold tire means the vehicle has been
sitting for 3 hours and driven for less than
1 mile (1.6 km) in that 3 hour period.

Never use tire sealant if your vehicle is
equipped with a TPMS. The liquid seal

ant can damage the tire pressure sen

sors.
• The TPMS cannot alert you to severe

and sudden tire damage caused by

What to do in an emergency

If you have a flat tire (with spare tire)

external factors such as nails or road
debris.

• If you feel any vehicle instability,

immediately take your foot off the
accelerator, apply the brakes gradu

ally and with light force, and slowly
move to a safe position off the road.

NOTICE

Protecting TPMS
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere with
the system's ability to warn the driver of
low tire pressure conditions and/or TPMS
malfunctions. Tampering with, modifying,
or disabling the Tire Pressure Monitoring
System (TPMS) components may void
the warranty for that portion of the vehicle.

This device complies with Indus

try Canada licence-exempt RSS
standard(s).

Operation is subject to the following
conditions:

1. This device may not cause interfer

ence, and

2. This device must accept any interfer

ence, including interference that may
cause undesired operation of the
device.

3. Changes or modifications not

expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.

If you have a flat tire (with
spare tire) (if equipped)

If you have a flat tire, you can change
the flat tire to a spare tire using tools.

W ARNING

Driving on a flat tire will cause perma

nent damage to the tire. Re-inflating a
tire after it has been driven on while
severely underinflated or flat may cause
a blowout and a serious crash. Never
attempt to re-inflate a tire that has been
driven on while severely underinflated or
flat. In this case, repair or replace the flat
tire as soon as possible.

W ARNING

Changing a tire can be dangerous. Fol

low the instructions in this section when
changing a tire to reduce the risk of seri

ous injury or death.

CAUTION

Be careful as you use the jack handle to
stay clear of the flat end. The flat end
has sharp edges that could cause cuts.

Jack and tools

OMQ4AH060051

CarManuals2.com

What to do in an emergency

If you have a flat tire (with spare tire)

The jack, jack handle, wheel lug nut
wrench are stored in the luggage com

partment.

Pull up the luggage box cover to reach
this equipment.

1. Jack

2. Wheel lug nut wrench

Jacking instructions

The jack is provided for emergency tire
changing only.
• To prevent the jack from "rattling"

while the vehicle is in motion, store it
properly.

• Follow jacking instructions to reduce

the possibility of personal injury.

W ARNING

Changing tires
• Never attempt vehicle repairs in the

traffic lanes of a public road or high

way.

• Always move the vehicle completely

off the road and onto the shoulder
before trying to change a tire. The jack
should be used on firm level ground. If
you cannot find a firm level place off
the road, call a towing ser

vice

company for assistance.

• Be sure to use the correct front and

rear jacking positions on the vehicle;
never use the bumpers or any other
part of the vehicle for jacking support.

• The vehicle can roll off the jack caus

ing serious injury or death.

• Do not go under a vehicle that is sup

ported by a jack.

• Do not start or run the engine while

the vehicle is on the jack.

• Do not allow anyone to remain in the

vehicle while it is on the jack.

• Make sure any children present are in

a secure place, away from the road

and from the vehicle to be raised with
the jack.

W ARNING

Tire jack
Do not place any portion of your body
under a vehicle that is only supported by
a jack since the vehicle can easily roll off
the jack. Use vehicle support stands.

W ARNING

Changing tires
Never attempt vehicle repairs in the traf

fic lanes of a public road or highway.

W ARNING

Running vehicle on jack
Do not start or run the engine of the
vehicle while the vehicle is on the jack as
this may cause the vehicle to fall off the
jack.

To prevent the jack from "rattling" while
the vehicle IS in motion, store it properly.

NOTICE

Retreaded tires
Substantial design variations and the
age of the retreaded tire casing struc

ture can limit service life and have nega

tive impact on road safety.

CarManuals2.com

What to do in an emergency

If you have a flat tire (with spare tire)

Removing and storing the spare
tire

Your spare tire is stored underneath
your vehicle, directly below the cargo
area.

To remove the spare tire:

1. Open the liftgate.
2. Find the spare tire fixing bolt cover

and remove the cover.

If necessary, separate the tool case
only after removing the clamp.

3. Connect the socket and wheel lug nut

wrench.

4. Use the wheel lug nut wrench to

loosen the bolt enough to lower the
spare tire.

Turn the wrench counterclockwise
until the spare tire reaches the
ground.

5. After the spare tire reaches the

ground, continue to turn the wrench
counterclockwise, and draw the spare
tire outside. Never rotate the wrench
excessively, otherwise the spare tire
carrier may be damaged.

6. Remove the retainer (1) from the cen

ter of the spare tire. During tire
removal & installation, try and keep
the retainer cable taunt, to prevent
backlashing/binding.

To store the spare tire:
1. Lay the tire on the ground with the

valve stem facing up.

OMQ4060039L

OMQ4060040L

OMQ4060041L

OMQ4060042L

CarManuals2.com

What to do in an emergency

If you have a flat tire (with spare tire)

2. Place the wheel under the vehicle and

install the retainer (1) through the
wheel center.

3. Turn the wrench clockwise until it

clicks.

W ARNING

Touching surface of the luggage room
floor

Do not touch the metal surface of the
luggage room floor while the engine is
operating or hot. Doing so could result in
serious bodily injury.

Turn the engine off and wait until it cools
down or wear gloves to remove the spare
tire from the luggage room.

Changing tires

W ARNING

A vehicle can slip or roll off of a jack
causing serious injury or death to you or
those nearby. Take the following safety
precautions:
• Never place any portion of your body

under a vehicle that is supported by a
jack.

• NEVER attempt to change a tire in the

lane of traffic. ALWAYS move the
vehicle completely off the road on
level, firm ground away from traffic
before trying to change a tire. If you
cannot find a level, firm place off the
road, call a towing service for assis

tance.

• Be sure to use the jack provided with

the vehicle.

• ALWAYS place the jack on the desig

nated jacking positions on the vehicle
and NEVER on the bumpers or any
other part of the vehicle for jacking
support.

• Do not start or run the engine while

the vehicle is on the jack.

• Do not allow anyone to remain in the

vehicle while it is on the jack.

• Keep children away from the road and

the vehicle.

1. Park on a level surface and apply the

parking brake firmly.

2. Shift the gear to P (Park), apply the

parking brake, and turn the engine
OFF.

3. Activate the hazard warning flasher.
4. Remove the wheel lug nut wrench,

jack, jack handle, and spare tire from
the vehicle.

5. Block both the front and rear of wheel

that is diagonally opposite the jack
position.

OMQ4A062043

OMQ4A061069

CarManuals2.com

What to do in an emergency

If you have a flat tire (with spare tire)

W ARNING

Jack location
To reduce the possibility of injury, be
sure to only use the jack provided with
the vehicle in the correct jack position;
never use any other part of the vehicle
for jack support.

W ARNING

Changing a tire
• To prevent vehicle movement while

changing a tire, always set the park

ing brake fully, and always block the
wheel diagonally, opposite the wheel
being changed.

• We recommend that the wheels of the

vehicle be blocked, and that no per

son remain in a vehicle that is being
jacked.

6. Loosen the wheel lug nuts counter

clockwise one turn each, but do not
remove any nut until the tire has been
raised off the ground.

7. Place the jack at the front (1) or rear

(2) jacking position closest to the tire
you are changing. Place the jack at
the designated locations under the
frame. The jacking positions are
plates welded to the frame with two

tabs and a raised dot to index with the
jack.

8. Insert the jack handle into the jack

and turn it clockwise, raising the vehi

cle until the tire just clears the ground.
This measurement is approximately
1.2 inches (30 mm). Before removing
the wheel lug nuts, make sure the
vehicle is stable and that there is no
chance for movement or slippage.

OMQ4A061034

OMQ4A062036

OMQ4A062035

CarManuals2.com

What to do in an emergency

If you have a flat tire (with spare tire)

Loosen the wheel nuts and remove
them with your fingers. Slide the wheel
off the studs and lay it flat so it cannot
roll away. To put the wheel on the hub,
pick up the spare tire, line up the holes
with the studs and slide the wheel onto
them.

If this is difficult, tip the wheel slightly
and get the top hole in the wheel lined
up with the top stud. Then jiggle the
wheel back and forth until the wheel
can be slid over the other studs.

10.

To reinstall the wheel, hold it on the
studs, put the wheel nuts on the studs
and tighten them finger tight. Jiggle
the tire to be sure it is completely
seated, then tighten the nuts as much
as possible with your fingers again.

11.

Lower the vehicle to the ground by
turning the wheel nut wrench coun

terclockwise.

Then position the wrench as shown in
the drawing and tighten the wheel
nuts. Be sure the socket is seated
completely over the nut. Do not stand
on the wrench handle or use an
extension pipe over the wrench han

dle. Go around the wheel tightening
every other nut until they are all tight.
Then double-check each nut for tight

ness. After changing wheels, have the
system checked by a professional
workshop. Kia recommends to visit an
authorized Kia dealer.

W ARNING

Installing a wheel
• When you install a wheel, always

remove any corrosion, dirt or foreign
materials present on the mounting
surfaces of the wheel or the surface of
the wheel hub, brake drum or brake
disc that contacts the wheel. Make
sure to secure any fasteners that
attach the rotor to the hub so they do
not interfere with the mounting sur

faces of the wheel. Installing wheels
without correct metal-to-metal con

tact at the wheel mounting surfaces
can cause the wheel nuts to loosen
and the wheel to come off while your
vehicle is in motion, resulting in loss of

OMQ4A061037

OMQ4A061038

CarManuals2.com

What to do in an emergency

If you have a flat tire (with spare tire)

vehicle control, personal injury or
death.

• Make sure the wheel makes good

contact with the hub when installed. If
the contact of the mounting surface
between the wheel and hub is not
good, the wheel nuts could come
loose and cause the loss of a wheel.
Loss of a wheel may result in loss of
control of the vehicle.

Wheel nut tightening torque: Steel

wheel & aluminum alloy wheel: 11 ~

13 kgf·m (79 ~ 94 lbf·ft)

If you have a tire gauge, remove the
valve cap and check the air pressure. If
the pressure is lower than recom

mended, drive slowly to the nearest ser

vice station and inflate to the correct
pressure. If it is too high, adjust it until it is
correct. Always reinstall the valve cap
after checking or adjusting tire pressure. If
the cap is not replaced, air may leak from
the tire. If you lose a valve cap, buy
another and install it as soon as possible.

After you have changed wheels, always
secure the flat tire in its place and return
the jack and tools to their proper storage
locations.

CAUTION

Reusing lug nuts
Make certain during wheel removal that
the same nuts that were removed are
reinstalled - or, if replaced, that nuts with
metric threads and the same chamfer
configuration are used. Your vehicle has
metric threads on the wheel studs and
nuts. Installation of a non-metric thread
nut on a metric stud will not secure the
wheel to the hub properly and will dam

age the stud so that it must be replaced.

Note that most lug nuts do not have
metric threads. Be sure to use extreme
care in checking for thread style before
installing aftermarket lug nuts or wheels.
If in doubt, consult an authorized Kia
dealer.

W ARNING

Wheel studs
If the studs are damaged, they may lose
their ability to retain the wheel. This could
lead to the loss of the wheel and a
collision resulting in serious injuries.

W ARNING

Never use oil or grease on bolts or nuts
because the nuts might come loose. The
vehicle's wheel could fall off, causing a
crash.

Important - use of compact spare
tire (if equipped)

Your vehicle is equipped with a compact
spare tire. This compact spare tire takes
up less space than a regular-size tire.
This tire is smaller than a conventional
tire and is designed for temporary use
only.
• You should drive carefully when the

compact spare is in use. The compact
spare should be replaced by the
proper conventional tire and rim at the
first opportunity.

• The operation of this vehicle is not

recommended with more than one
compact spare tire in use at the same
time.

W ARNING

CarManuals2.com

Spare tire
The compact spare tire is for emergency
use only. Do not operate your vehicle on
this compact spare at speeds over 80

What to do in an emergency

If you have a flat tire (with spare tire)

km/h (50 mph). The original tire should
be repaired or replaced as soon as pos

sible to avoid failure of the spare, possi

bly leading to bodily injury or death.

The compact spare tire should be
inflated to 420 kPa (60 psi).

NOTICE

Check the inflation pressure after install

ing the spare tire. Adjust it to the speci

fied pressure, as necessary.

When using a compact spare tire,
observe the following precautions:
• Under no circumstances should you

exceed 80 km/h (50 mph); a higher
speed could damage the tire.

• Ensure that you drive slowly enough

for the road conditions to avoid all
hazards. Any road hazard, such as a
pothole or debris, could seriously
damage the compact spare.

• Any continuous road use of this tire

could result in tire failure, loss of vehi

cle control, and possible personal
injury.

• Do not exceed the vehicle's maximum

load rating or the load-carrying
capacity shown on the sidewall of the
compact spare tire.

Jack label

• Avoid driving over obstacles. The

compact spare tire diameter is smaller
than the diameter of a conventional
tire and reduces the ground clearance
approximately 1 inch (25 mm), which
could result in damage to the vehicle.

• Do not take this vehicle through an

automatic vehicle wash while the
compact spare tire is installed.

• Do not use the compact spare tire on

any other vehicle because this tire has
been designed especially for your
vehicle.

• The compact spare tire's tread life is

shorter than a regular tire. Inspect your
compact spare tire regularly and
replace worn compact spare tires with
the same size and design, mounted
on the same wheel.

• The compact spare tire should not be

used on any other wheels, nor should
standard tires, snow tires, wheel cov

ers or trim rings be used with the
compact spare wheel. If such use is
attempted, damage to these items or
other vehicle components may occur.

• Do not use more than one compact

spare tire at a time.

• Do not tow a trailer while the compact

spare tire is installed.

OHYK060001

CarManuals2.com

What to do in an emergency

If you have a flat tire (with spare tire)

*The actual Jack label in the vehicle may differ from the illustration. For more

detailed specifications, refer to the label attached to the jack.

Model Name

Maximum allowable load

When using the jack, set your parking brake.

When using the jack, stop the engine.

Do not get under a vehicle that is supported by a jack.

The designated locations under the frame

When supporting the vehicle, the base plate of jack must be vertical under the lift

ing point.

Move the shifter position to the P (Park) position on vehicles.

The jack should be used on firm level ground.

10.

Jack manufacturer

11.

Production date

12.

Representative company and address

OHYK060005

OHYK064002

CarManuals2.com

What to do in an emergency

If you have a flat tire (with tire mobility kit)

If you have a flat tire (with tire
mobility kit) (if equipped)

For safe operation, carefully read and
follow the instructions in this manual
before use.

1. Compressor

2. Sealant bottle
The Tire Mobility Kit is a temporary fix to
the tire and We recommend that you
have your vehicle inspected by an
authorized Kia dealer/service partner.

CAUTION

One sealant for one tire
When two or more tires are flat, do not
use the tire mobility kit because the sup

ported one sealant of Tire Mobility Kit is
only used for one flat tire.

W ARNING

Do not use the Tire Mobility Kit to repair
punctures in the tire walls. This can result
in an accident due to tire failure.

W ARNING

Have your tire repaired as soon as possi

ble. The tire may loose air pressure at
any time after inflating with the Tire
Mobility Kit.

Introduction

With the Tire Mobility Kit you stay mobile
even after experiencing a tire puncture.
The system of compressor and sealing
compound effectively and comfortably
seals most punctures in a passenger car
tire caused by nails or similar objects
and reinflates the tire.

After you ensured that the tire is prop

erly sealed you can drive cautiously on
the tire (distance up to 200 km (120
miles)) at a max. speed of 80 km/h (50
mph) in order to reach a service station
or tire dealer to have the tire replaced.

It is possible that some tires, especially
with larger punctures or damage to the
sidewall, cannot be sealed completely.

Air pressure loss in the tire may
adversely affect tire performance.

For this reason, you should avoid abrupt
steering or other driving maneuvers,
especially if the vehicle is heavily loaded
or if a trailer is in use.

The Tire Mobility Kit is not designed or
intended as a permanent tire repair
method and is to be used for one tire
only. This instruction shows you step by
step how to temporarily seal the punc

ture simply and reliably.

Read the section "Notes on the safe use
of the Tire Mobility Kit" on page 6-27.

W ARNING

Do not use the TMK if a tire is severely
damaged by driving run flat or with
insufficient air pressure.

Only punctured areas located within the
tread region of the tire can be sealed
using the TMK.

OMQ4060017

CarManuals2.com

What to do in an emergency

If you have a flat tire (with tire mobility kit)

Components of the Tire Mobility Kit

1. Speed-restriction label

2. Sealant bottle and label with speed restriction

3. Filling hose from sealant bottle to wheel

4. Connectors and cable for the power outlet direct connection

5. Holder for the sealant bottle

6. Compressor

7. ON/OFF switch

8. Pressure gauge for displaying the tire inflation pressure

9. Valve for reducing the tire inflation pressure

Connectors, cable and connection hose are stored in the compressor housing.

Strictly follow the specified sequence, otherwise the sealant may escape under high

pressure.

OMQ4060028

CarManuals2.com

What to do in an emergency

If you have a flat tire (with tire mobility kit)

W ARNING

Expired sealant
Do not use the Tire sealant after the
sealant has expired (i.e. past the expira

tion date on the sealant container). This
can increase the risk of tire failure.

W ARNING

Sealant
• Keep out of reach of children.

僅

Avoid contact with eyes.

• Do not swallow.

Using the Tire Mobility Kit

CAUTION

Detach the speed restriction label from
the sealant bottle, and place it in a highly
visible place inside the vehicle such as
on the steering wheel to remind the driver
not to drive too fast.

1. Shake the sealant bottle.

2. Remove the cap of the sealant bottle

and screw connection hose onto the
connector of the sealant bottle.

3. Ensure that valve on the compressor

is locked.

OMQ4061006

OMQ4060029

OMQ4060030

OMQ4H060015

CarManuals2.com

Kia Sorento (2024 year). Manual in english - page 15
