FANUC Series 0i-MODEL F. For Lathe System OPERATOR'S MANUAL (B-64604EN-1/01)

B-64604EN-1/01

APPENDIX

A.PARAMETERS

- 365 -

#1 LRP

Positioning (G00)

0: Positioning is performed with non-linear type positioning so that the tool moves

along each axis independently at rapid traverse.

1: Positioning is performed with linear interpolation so that the tool moves in a straight

line.

When using 3-dimensional coordinate system conversion, set this parameter to 1.

#4 RF0

When cutting feedrate override is 0% during rapid traverse,

0: The machine tool does not stop moving.
1: The machine tool stops moving.

#7 #6 #5 #4 #3 #2 #1 #0

1403

RTV

ROC

[Input type] Parameter input

[Data type] Bit path

#4 ROC

In the threading cycles G92 and G76, rapid traverse override for retraction after threading

is finished is:
0: Effective
1: Not effective (Override of 100%)

#7 RTV

Rapid traverse override while the tool is retracting in threading

0: Rapid traverse override is effective.
1: Rapid traverse override is not effective.

1420

Rapid traverse rate for each axis

[Input type] Parameter input

[Data type] Real axis

[Unit of data] mm/min, inch/min, degree/min (machine unit)

[Min. unit of data] Depend on the increment system of the applied axis
[Valid data range] Refer to the standard parameter setting table (C)

(When the increment system is IS-B, 0.0 to +999000.0)
Set the rapid traverse rate when the rapid traverse override is 100% for each axis.

1466

Feedrate for retraction in threading cycle G92 or G76

[Input type] Parameter input

[Data type] Real path

[Unit of data] mm/min, inch/min (machine unit)

[Min. unit of data] Depend on the increment system of the reference axis
[Valid data range] Refer to the standard parameter setting table (C)

(When the increment system is IS-B, 0.0 to +999000.0)
When threading cycle G92 or G76 is specified, retraction is performed after threading.
Set a feedrate for this retraction.

WARNING

When the manual handle interruption is valid, set the same value
as the parameter No.1430 to the parameter No.1466.

A.PARAMETERS

APPENDIX

B-64604EN-1/01

- 366 -

NOTE

When this parameter is set to 0 or bit 1 (CFR) of parameter No.
1611 is set to 1, the rapid traverse rate set in parameter No. 1420
is used.

#7 #6 #5 #4 #3 #2 #1 #0

1610

CTBx

CTLx

[Input type] Parameter input

[Data type] Bit axis

#0 CTLx

Acceleration/deceleration in cutting feed or dry run during cutting feed

0: Exponential acceleration/deceleration is applied.
1: Linear acceleration/deceleration after interpolation is applied.

#1 CTBx

Acceleration/deceleration in cutting feed or dry run during cutting feed

0: Exponential acceleration/deceleration or linear acceleration/ deceleration is applied.

(depending on the setting in bit 0 (CTLx) of parameter No. 1610)

1: Bell-shaped acceleration/deceleration is applied.

#7 #6 #5 #4 #3 #2 #1 #0

1611

CFR

[Input type] Parameter input

[Data type] Bit path

#0 CFR

For retraction after threading in the threading cycles G92 and G76:

0: The type of acceleration/deceleration after interpolation for threading is used

together with the threading time constant (parameter No. 1626) and FL rate
(parameter No. 1627).

1: The type of acceleration/deceleration after interpolation for rapid traverse is used

together with the rapid traverse time constant.

NOTE

If this parameter is set to 1, a check is made before a retraction to
see that the specified feedrate has become 0 (the delay in
acceleration/deceleration has become 0). For retraction, the rapid
traverse rate (parameter No. 1420) is used, regardless of the
setting of parameter No. 1466. When this parameter is set to 0,
parameter No. 1466 is used as the feedrate for retraction. As
acceleration/deceleration used for retraction, only
acceleration/deceleration after interpolation is used. Rapid traverse
acceleration/deceleration before interpolation and optimum torque
acceleration/deceleration are disabled.

1626

Acceleration/deceleration time constant in threading cycles for each axis

[Input type] Parameter input

[Data type] Word axis

[Unit of data] msec

[Valid data range] 0 to 4000

Set a time constant for acceleration/deceleration after interpolation in the threading cycles
G92 and G76 for each axis.

B-64604EN-1/01

APPENDIX

A.PARAMETERS

- 367 -

1627

FL rate for acceleration/deceleration in threading cycles for each axis

[Input type] Parameter input

[Data type] Real axis

[Unit of data] mm/min, inch/min, degree/min (machine unit)

[Min. unit of data] Depend on the increment system of the applied axis
[Valid data range] Refer to the standard parameter setting table (C)

(When the increment system is IS-B, 0.0 to +999000.0)
Set an FL rate for acceleration/deceleration after interpolation in the threading cycles G92
and G76 for each axis. Set 0 at all times except in a special case.

3032

Allowable number of digits for the T code

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 1 to 8

Set the allowable numbers of digits for the T code.
When 0 is set, the allowable number of digits is assumed to be 8.

#7 #6 #5 #4 #3 #2 #1 #0

3115

APLx

[Input type] Parameter input

[Data type] Bit axis

#5 APLx

When the active offset value modification mode based on manual feed is selected, the

relative position display is automatically:
0: Not

preset.

1: Preset.
Use this parameter when returning a modified offset value to the original value before
modification in the active offset value modification mode based on manual feed. The
offset value can be returned to the original value by making a movement on the axis by
manual feed so that the relative position display (counter) indicates the position 0.

#7 #6 #5 #4 #3 #2 #1 #0

3290

GO2 GOF

WOF

[Input type] Parameter input

[Data type] Bit path

#0 WOF

Setting the tool offset value (tool wear offset) by MDI key input is:

0: Not

disabled.

1: Disabled. (With parameters Nos. 3294 and 3295, set the offset number range in

which updating the setting is to be disabled.)

NOTE

The tool offset set in the parameter WOF is followed even if
geometric compensation and wear compensation are not specified.

#1 GOF

Setting the tool geometry offset value by MDI key input is:

0: Not

disabled.

1: Disabled. (With parameters Nos. 3294 and 3295, set the offset number range in

which updating the setting is to be disabled.)

A.PARAMETERS

APPENDIX

B-64604EN-1/01

- 368 -

#5 GO2

Setting the second geometric tool offset value by MDI key input is:

0: Disabled.
1: Not

disabled.

3294

Start number of tool offset values whose input by MDI is disabled

3295

Number of tool offset values (from the start number) whose input by MDI is disabled

[Input type] Parameter input

[Data type] Word path

[Valid data range] 0 to 999

When the modification of tool offset values by MDI key input is to be disabled using bits
0 (WOF) and 1 (GOF) of parameter No. 3290, parameters Nos. 3294 and 3295 are used to
set the range where such modification is disabled. In parameter No. 3294, set the offset
number of the start of tool offset values whose modification is disabled. In parameter No.
3295, set the number of such values. In the following cases, however, none of the tool
offset values may be modified:
-

When 0 or a negative value is set in parameter No. 3294

When 0 or a negative value is set in parameter No. 3295

When a value greater than the maximum tool offset number is set in parameter No.
3294

In the following case, a modification to the values ranging from the value set in parameter
No. 3294 to the maximum tool offset number is disabled:
-

When the value of parameter No. 3294 added to the value of parameter No. 3295
exceeds the maximum tool offset number

When the offset value of a prohibited number is input through the MDI unit, the warning
"WRITE PROTECT" is issued.

[Example] When the following parameter settings are made, modifications to both of the tool

geometry offset values and tool wear offset values corresponding to offset numbers 51 to
60 are disabled:

Bit 1 (GOF) of parameter No. 3290 = 1 (to disable tool geometry offset value
modification)

Bit 0 (WOF) of parameter No. 3290 = 1 (to disable tool wear offset value
modification)

Parameter No. 3294 = 51

Parameter No. 3295 = 10

If the setting of bit 0 (WOF) of parameter No. 3290 is set to 0 without modifying the
other parameter settings above, tool geometry offset value modification only is
disabled, and tool wear offset value modification is enabled.

#7 #6 #5 #4 #3 #2 #1 #0

3401

GSC

GSB

DPI

[Input type] Parameter input

[Data type] Bit path

#0 DPI

When a decimal point is omitted in an address that can include a decimal point

0: The least input increment is assumed. (Normal decimal point input)
1: The unit of mm, inches, degree, or second is assumed. (Pocket calculator type

decimal point input)

B-64604EN-1/01

APPENDIX

A.PARAMETERS

- 369 -

#6 GSB

The G code system is set.

#7 GSC

GSC GSB

code

G code system A

G code system B

G code system C

#7 #6 #5 #4 #3 #2 #1 #0

3402

G23

CLR G91 G01

[Input type] Parameter input

[Data type] Bit path

#0 G01

G01 Mode entered when the power is turned on or when the control is cleared

0: G00 mode (positioning)
1: G01 mode (linear interpolation)

#3 G91

When the power is turned on or when the control is cleared

0: G90 mode (absolute programming)
1: G91 mode (incremental programming)

#6 CLR

Reset button on the MDI unit, external reset signal, reset and rewind signal, and

emergency stop signal
0: Cause reset state.
1: Cause clear state.
For the reset and clear states, refer to Appendix, "SETTINGS AT POWER-ON, IN THE
CLEAR STATE, OR IN THE RESET STATE" in the OPERATOR’S MANUAL
(Common to Lathe System/Machining Center System).

#7 G23

When the power is turned on

0: G22 mode (stored stroke check on)
1: G23 mode (stored stroke check off)

#7 #6 #5 #4 #3 #2 #1 #0

3405

DDP CCR G36

[Input type] Parameter input

[Data type] Bit path

#3 G36

As a G code to be used with the automatic tool offset function is:

0: G36/G37 is used.
1: G37.1/G37.2/G37.3 is used.

NOTE

If it is necessary to perform circular threading (counterclockwise),
set this parameter to 1.

#4 CCR

Addresses used for chamfering

0: Address is “I”, “J”, or “K”.

In direct drawing dimension programming, addresses “,C”, “,R”, and “,A” (with
comma) are used in stead of “C”, “R”, and “A”.

1: Address is “C”.

Addresses used for direct drawing dimension programming are “C”, “R”, and “A”
without comma.

A.PARAMETERS

APPENDIX

B-64604EN-1/01

- 370 -

NOTE

If this bit (CCR) is set to 0, the function for changing the
compensation direction by specifying I, J, or K in a G01 block in the
cutter compensation/ tool nose radius compensation mode cannot
be used.

If this bit (CCR) is set to 1 when address C is used as an axis
name, the chamfer function cannot be used.

#5 DDP

Angle commands by direct drawing dimension programming

0: Normal

specification

1: A supplementary angle is given.

#7 #6 #5 #4 #3 #2 #1 #0

3453

CRD

[Input type] Setting input

[Data type] Bit path

#0 CRD

If the functions of chamfering or corner R and direct drawing dimension programming

are both enabled,
0: Chamfering or corner R is enabled.
1: Direct drawing dimension programming is enabled.
Specify which function is used when both the chamfering/corner R function and the
drawing dimension programming function are enabled.

#7 #6 #5 #4 #3 #2 #1 #0

3458

CRC

[Input type] Setting input

[Data type] Bit path

#7 CRC

In Direct drawing dimension programming function, when a minus value is commanded

as a chamfering value / corner R value:
0: Alarm PS0055, “MISSING MOVE VALUE IN CHF/CNR” is issued.
1: Alarm is not issued. A minus value is converted to a plus value.

#7 #6 #5 #4 #3 #2 #1 #0

5001

EVO

[Input type] Parameter input

[Data type] Bit path

#6 EVO

If a tool compensation value modification is made for tool length compensation A or tool

length compensation B in the offset mode (G43 or G44):
0: The new value becomes valid in a block where G43, G44, or an H code is specified

next.

1: The new value becomes valid in a block where buffering is performed next.

#7 #6 #5 #4 #3 #2 #1 #0

5002 WNP LWM LGC LGT ETC LWT LGN

[Input type] Parameter input

[Data type] Bit path

B-64604EN-1/01

APPENDIX

A.PARAMETERS

- 371 -

#1 LGN

Geometry offset number of tool offset

0: Is the same as wear offset number
1: Specifies the geometry offset number by the tool selection number

NOTE

This parameter is valid when the tool geometry/wear compensation
is enabled (bit 6 (NGW) of parameter No.8136 is 0).

#2 LWT

Tool wear compensation is performed by:

0: Moving the tool.
1: Shifting the coordinate system.

NOTE

This parameter is valid when the tool geometry/wear compensation
is enabled (bit 6 (NGW) of parameter No.8136 is 0).

#3 ETC

When a T-code command is two digits or shorter, the T code is:

0: Not

extended.

1: Extended.
When this parameter is 1, two-digit or shorter T-code commands are extended.
(Three-digit or longer T-code commands are not extended.) The value after extension is
determined by the setting of the number of digits in the offset number in T-code
commands (parameter No. 5028).

Parameter No.

5028

Number of digits after

extension

Sample extension

Extended to two digits

Before extension: T1

→

After extension: T11

Extended to four digits

Before extension: T1

→

After extension: T0101

3 or greater

Not extended

[Example]

•

Parameter No. 5028 : 2

•

Parameter No. 3032 : 4 (Allowable number of digits in T code)

Before extension

→

After extension

→

T0101 (1-digit command is extended to 4 digits.)

T12

→

T1212 (2-digit command is extended to 4 digits.)

T112

→

T112 (Not extended)

T1122

→

T1122 (Not extended)

A.PARAMETERS

APPENDIX

B-64604EN-1/01

- 372 -

NOTE

1 The setting of the allowable number of digits in T code (parameter

No. 3032) indicates the number of digits in a specified command
(before being extended). If the number of digits in the command
exceeds the allowable number of digits in T code, the alarm
PS0003, "TOO MANY DIGIT" is issued.

2 This parameter is dedicated to the lathe system. Tool change is

available with the turret type setting (bit 3 (TCT) of parameter No.
5040 = 0).

3 If the number of digits in the offset number in a T-code command

(parameter No. 5028) is set to 0, the value after extension is
determined by the number of digits in the number of tool
compensation values (parameter No. 5024).

4 Common variable #149 for calling a T-code macro is set to the

pre-extension value.

#4 LGT

Tool geometry compensation

0: Compensated by the shift of the coordinate system
1: Compensated by the tool movement

NOTE

This parameter is valid when the tool geometry/wear compensation
is enabled (bit 6 (NGW) of parameter No.8136 is 0).

#5 LGC

When tool geometry compensation is based on coordinate shifting, the tool geometry

offset is:
0: Not canceled by a command with offset number 0.
1: Canceled by a command with offset number 0.

NOTE

This parameter is valid when the tool geometry/wear compensation
is enabled (bit 6 (NGW) of parameter No.8136 is 0).

#6 LWM

Tool offset operation based on tool movement is performed:

0: In a block where a T code is specified.
1: Together with a command for movement along an axis.

#7 WNP

Imaginary tool tip number used for tool nose radius compensation, when the tool

geometry/wear compensation function is equipped, is the number specified by:
0: Geometry offset number
1: Wear offset number

#7 #6 #5 #4 #3 #2 #1 #0

5003

TGC

SUV

SUP

[Input type] Parameter input

[Data type] Bit path

B-64604EN-1/01

APPENDIX

A.PARAMETERS

- 373 -

#0 SUP

#1 SUV

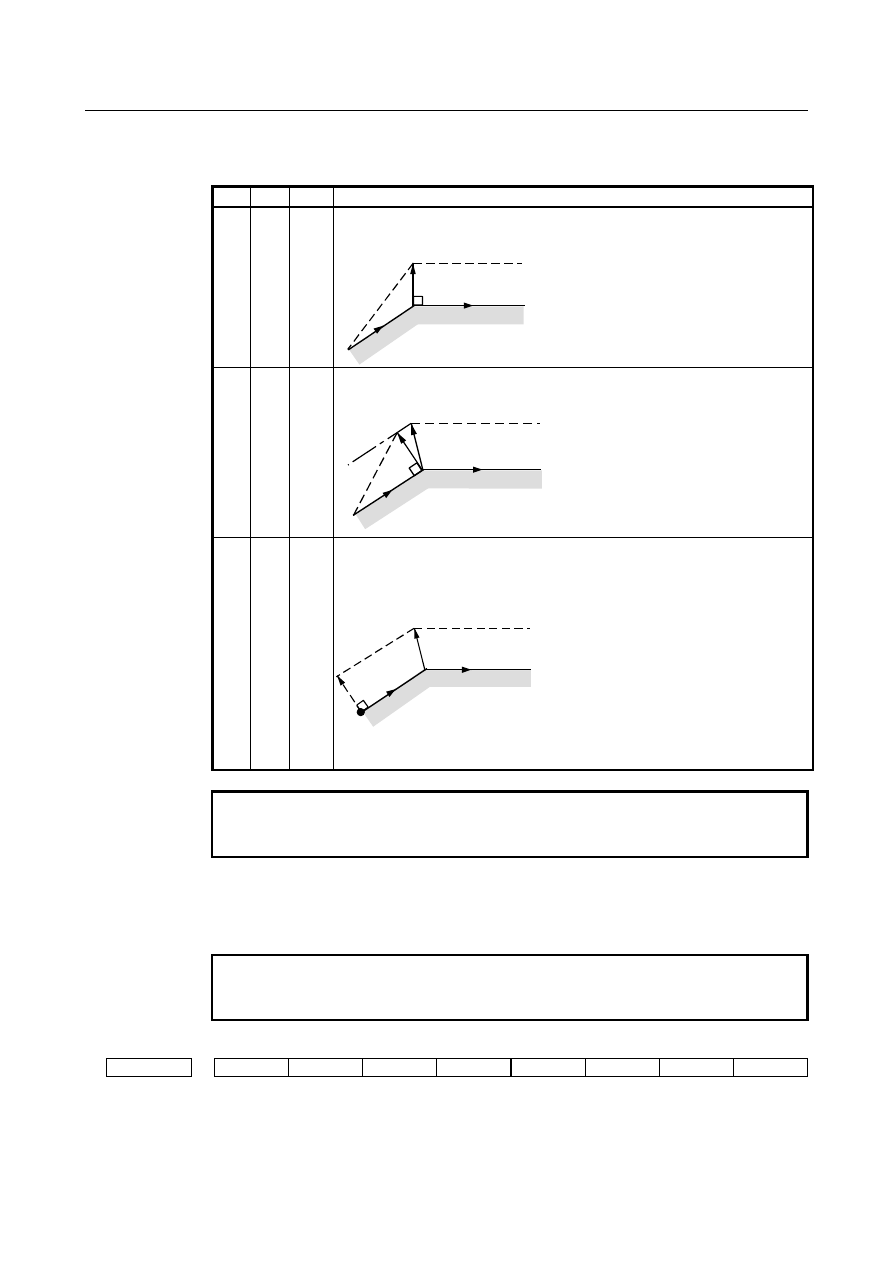

These bits are used to specify the type of startup/cancellation of tool radius - tool nose

radius compensation.

SUV SUP Type

Operation

0 0

Type

A compensation vector perpendicular to the block next to the startup block or
the block preceding the cancellation block is output.

0 1

Type

A compensation vector perpendicular to the startup block or cancellation block
and an intersection vector are output.

1 0

Type

When the startup block or cancellation block specifies no movement operation,
the tool is shifted by the cutter compensation amount in a direction
perpendicular to the block next to the startup or the block before cancellation
block.

When the block specifies movement operation, the type is set according to the
SUP setting; if SUP is 0, type A is set, and if SUP is 1, type B is set.

NOTE

When SUV,SUP = 0,1 (type B), an operation equivalent to that of
FS16

-T is performed.

#7 TGC

A tool geometry offset based on a coordinate shift is:

0: Not canceled by reset.
1: Canceled by reset.

NOTE

This parameter is valid when the tool geometry/wear compensation
is enabled (bit 6 (NGW) of parameter No.8136 is 0).

#7 #6 #5 #4 #3 #2 #1 #0

5004

TS1

[Input type] Parameter input

[Data type] Bit path

Tool nose radius center path /
Tool center path

Programmed path

G41

Intersection point

Shift

G41

Tool nose radius center path /
Tool center path

Intersection point

G41

Programmed path

Tool nose radius center path /
Tool center path

A.PARAMETERS

APPENDIX

B-64604EN-1/01

- 374 -

#3 TS1

For touch sensor contact detection with the function for direct input of offset value

measured B:
0: Four-contact input is used.
1: One-contact input is used.

NOTE

For the machining center system, set TS1 to 1.

#7 #6 #5 #4 #3 #2 #1 #0

5005

QNI PRC

[Input type] Parameter input

[Data type] Bit path

#2 PRC

For direct input of a tool offset value or workpiece coordinate system shift amount:

0: The position record signal PRC <Gn040.6> is not used.
1: The position record signal PRC <Gn040.6> is used.

#5 QNI

With the tool length measurement function or the function for direct input of offset value

measured B, a tool compensation number is selected by:
0: Operation through the MDI unit by the operator (selection based on cursor

operation).

1: Signal input from the PMC.

#7 #6 #5 #4 #3 #2 #1 #0

5006

LVC

[Input type] Parameter input

[Data

type]

Bit

#3 LVC

A tool offset (geometry/wear) based on a tool movement and wear offset based on a

coordinate shift are:
0: Not canceled by reset.
1: Canceled by reset.

#7 #6 #5 #4 #3 #2 #1 #0

5008

CNV

CNC

[Input type] Parameter input

[Data type] Bit path

#1 CNC

#3 CNV

These bits are used to select an interference check method in the tool radius - tool nose

radius compensation mode.

CNV CNC

Operation

Interference check is enabled. The direction and the angle of an arc are checked.

Interference check is enabled. Only the angle of an arc is checked.

Interference check is disabled.

For the operation taken when the interference check shows the occurrence of an reference
(overcutting) , see the description of bit 5 (CAV) of parameter No. 19607.

NOTE

Checking of only the direction cannot be set.

B-64604EN-1/01

APPENDIX

A.PARAMETERS

- 375 -

5010

Limit for ignoring the small movement resulting from tool radius - tool nose radius compensation

[Input type] Setting input

[Data type] Real path

[Unit of data] mm, inch (input unit)

[Min. unit of data] Depend on the increment system of the reference axis
[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting table (A))

(When the increment system is IS-B, -999999.999 to +999999.999)

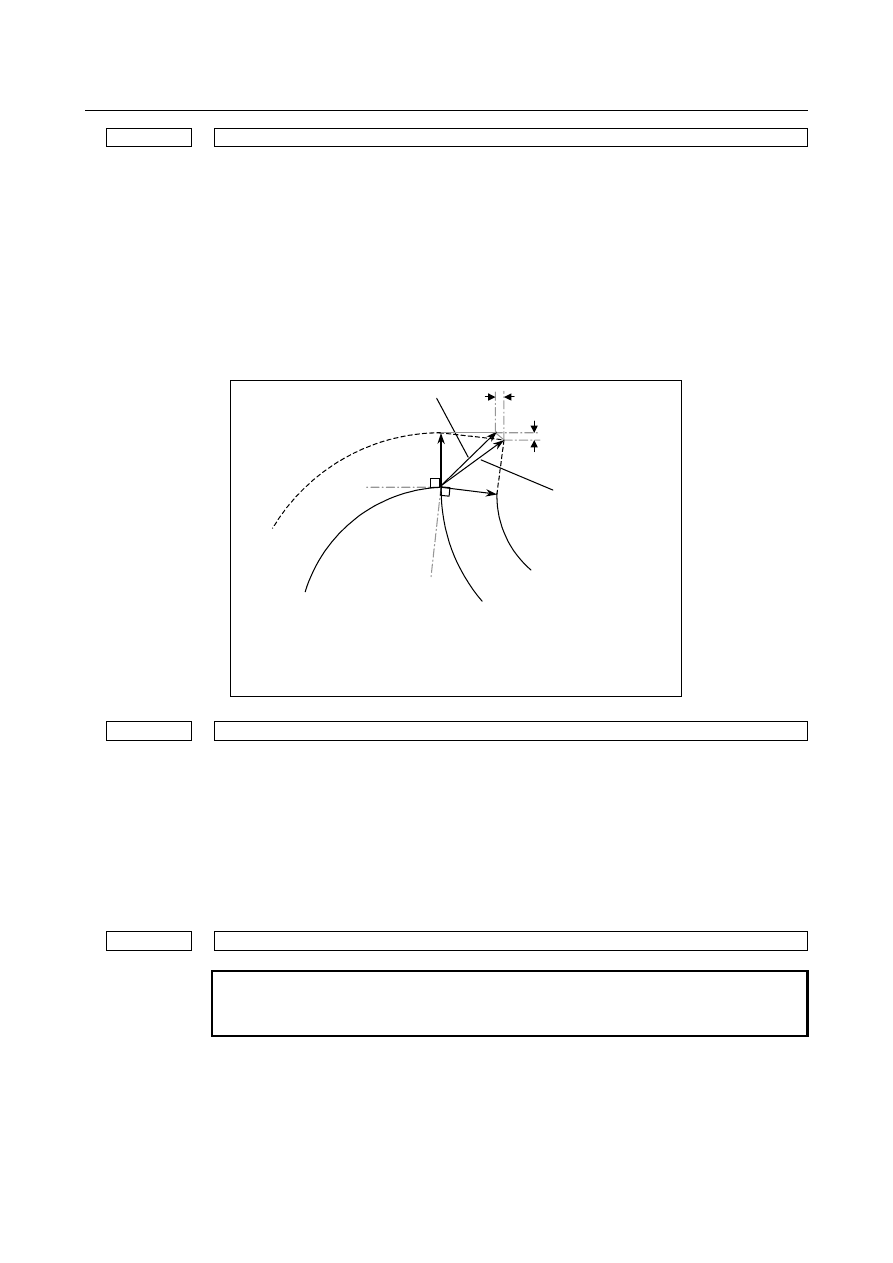

When the tool moves around a corner in cutter compensation or tool nose radius
compensation mode, the limit for ignoring the small travel amount resulting from
compensation is set. This limit eliminates the interruption of buffering caused by the
small travel amount generated at the corner and any change in feedrate due to the
interruption.

Even if

≤

limit

and

≤

limit

, vector to

single-block stop point
remains.

Tool center path

Programmed path

≤

limit

and

≤

limit

this vector is ignored.

limit

is determined depending on the setting in parameter No. 5010.

5020

Tool offset number used with the function for direct input of offset value measured B

[Input type] Parameter input

[Data type] Word path

[Valid data range] 0 to number of tool compensation values

Set a tool offset number used with the function for direct input of offset value measured B
(when a workpiece coordinate system shift amount is set). (Set the tool offset number
corresponding to a tool under measurement beforehand.) This parameter is valid when
automatic tool offset number selection is not performed (when bit 5 (QNI) of parameter
No. 5005 is set to 0).

5024

Number of tool compensation values

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

[Input type] Parameter input

[Data type] Word path

[Valid data range] 0 to 999

Set the maximum allowable number of tool compensation values used for each path.

A.PARAMETERS

APPENDIX

B-64604EN-1/01

- 376 -

Ensure that the total number of values set in parameter No. 5024 for the individual paths
is within the number of compensation values usable in the entire system. The number of
compensation values usable in the entire system depends on the option configuration.
If the total number of values set in parameter No. 5024 for the individual paths exceeds
the number of compensation values usable in the entire system, or 0 is set in parameter
No. 5024 for all paths, the number of compensation values usable for each path is a value
obtained by dividing the number of compensation values usable in the entire system by
the number of paths.
Tool compensation values as many as the number of compensation values used for each
path are displayed on the screen. If tool compensation numbers more than the number of
compensation values usable for each path are specified, an alarm is issued.
For example, 200 tool compensation sets are used, 120 sets may be allocated to path 1, 80
sets to path 2. All of 200 sets need not be used.

5028

Number of digits of an offset number used with a T code command

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 0 to 4

Specify the number of digits of a T code portion that is used for a tool offset number
(wear offset number when the tool geometry/wear compensation function is used).
When 0 is set, the number of digits is determined by the number of tool compensation
values.
When the number of tool compensation values is 1 to 9: Lower 1 digit
When the number of tool compensation values is 10 to 99: Lower 2 digits
When the number of tool compensation values is 100 to 999: Lower 3 digits

[Example] When an offset number is specified using the lower 2 digits of a T code, set 2 in

parameter No. 5028.
Txxxxxx yy
xxxxxx : Tool selection
yy : Tool offset number

In tool management function, set 4 in this parameter to set 4-digit number in parameter
No.13265.

NOTE

A value longer than the setting of parameter No. 3032 (allowable
number of digits of a T code) cannot be set.

#7 #6 #5 #4 #3 #2 #1 #0

5040

NO4

TLG

TCT

[Input type] Parameter input

[Data type] Bit path

#3 TCT

The tool change method is based on:

0: Turret rotation. (Tool change operation is performed with a T command only.)

With a T command, an auxiliary function and tool offset operation are performed.

1: Automatic tool changer (ATC).

(Tool change operation is performed with an M command (such as M06)).
With a T command, an auxiliary function only is performed.

This parameter is valid with a lathe system only.

B-64604EN-1/01

APPENDIX

A.PARAMETERS

- 377 -

WARNING

Before changing the setting of this parameter, cancel the offset. If
the setting is changed while the offset is applied, the subsequent
offset operation may not be performed correctly or an alarm
PS0368, “OFFSET REMAIN AT OFFSET COMMAND” occurs.

#4 TLG

When tool change operation is performed with the automatic tool changer (when bit 3

(TCT) of parameter No. 5040 is set to 1), tool offset operation is specified by:
0: G43.7.

At this time, G43 and G44 function as G codes for tool length compensation.

1: G43.

At this time, G43.7 and G44.7 function as G codes for tool length compensation.

#7 NO4

4th axis offset function is:

0: Used.
1: Not

used.

#7 #6 #5 #4 #3 #2 #1 #0

5042

OFE

OFD

OFC

OFA

[Input type] Parameter input

[Data type] Bit path

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

#0 OFA

#1 OFC

#2 OFD

#3 OFE

These bits are used to specify the increment system and valid data range of a tool offset

value.

For metric input

OFE OFD OFC

OFA Unit

Valid data range

0 0 0 1

0.01mm

9999.99mm

0 0 0 0

0.001mm

9999.999mm

0 0 1 0

0.0001mm

9999.9999mm

0 1 0 0

0.00001mm

9999.99999mm

1 0 0

0 0.000001mm

999.999999mm

For inch input

OFE OFD OFC

OFA Unit

Valid data range

0 0 0 1

0.001inch

999.999inch

0 0 0 0

0.0001inch

999.9999inch

0 0 1 0

0.00001inch

999.99999inch

0 1 0 0

0.000001inch

999.999999inch

1 0 0

0 0.0000001inch

99.9999999inch

5044

Axis number for which 4th-axis offset is used

A.PARAMETERS

APPENDIX

B-64604EN-1/01

- 378 -

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 0, 1 to number of controlled axes

Set the number of an axis for which the 4th-axis offset is used.
When a value ranging from 1 to the number of controlled axes is set in this parameter, the
4th-axis offset is applied to the set axis number. If 0 or a value beyond the valid data
range is set, the 4th-axis offset is not used. For the basic two axes X and Z, the standard
tool offsets are used, so the 4th-axis offset cannot be used. When the axis set for the
Y-axis offset function is set in this parameter, the Y-axis offset is used for the axis, and
the 4th-axis offset is not used.

5045

Axis number for which 5th-axis offset is used

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 0, 1 to number of controlled axes

Set the number of an axis for which the 5th-axis offset is used.
When a value ranging from 1 to the number of controlled axes is set in this parameter, the
5th-axis offset is applied to the set axis number. If 0 or a value beyond the valid data
range is set, the 5th-axis offset is not used. For the basic two axes X and Z, the standard
tool offsets are used, so the 5th-axis offset cannot be used. When the axis set for the
Y-axis offset function is set in this parameter, the Y-axis offset is used for the axis, and
the 5th-axis offset is not used.
When settings are made so that both the 5th-axis offset and 4th-axis offset apply to the
same axis, only the 4th-axis offset is used, and the 5th-axis offset is not used.

#7 #6 #5 #4 #3 #2 #1 #0

5101

RTR

FXY

[Input type] Parameter input

[Data type] Bit path

#0 FXY

The drilling axis in the drilling canned cycle is:

0: In case of the Drilling canned cycle:

Z-axis at all times.

1: Axis selected by the program

NOTE

This parameter is valid only for the drilling canned cycle in the
Series 10/11 format.

#2 RTR

G83 and G87

0: Specify a high-speed peck drilling cycle
1: Specify a peck drilling cycle

B-64604EN-1/01

APPENDIX

A.PARAMETERS

- 379 -

#7 #6 #5 #4 #3 #2 #1 #0

5102 RDI RAB

F16 QSR

[Input type] Parameter input

[Data type] Bit path

#2 QSR

Before a multiple repetitive canned cycle (G70 to G73) is started, a check to see if the

program contains a block that has the sequence number specified in address Q is:
0: Not

made.

1: Made.
When 1 is set in this parameter and the sequence number specified in address Q is not
found, the alarm PS0063, “THE BLOCK OF A SPECIFIED SEQUENCE NUMBER IS
NOT FOUND” is issued and the canned cycle is not executed.

#3 F16

When the Series 10/11 format is used (with bit 1 (FCV) of parameter No.0001 set to 1), a

canned drilling cycle is specified using :
0: Series 15 format
1: Series 16 format. However, the number of repetitions is specified using address L.

#6 RAB

When a canned drilling cycle using the Series 10/11 format is specified (with bit 1 (FCV)

of parameter No. 0001 set to 1 and bit 3 (F16) of parameter No. 5102 set to 0), address R
specifies:
0: Increment

command.

1: Absolute command with G code system A. With G code system B or C, G90 and

G91 are followed.

#7 RDI

When a canned drilling cycle using the Series 10/11 format is specified (with bit 1 (FCV)

of parameter No. 0001 set to 1 and bit 3 (F16) of parameter No. 5102 set to 0), address R
is based on:
0: Radius

specification.

1: Diameter/radius specification of the drilling axis.

#7 #6 #5 #4 #3 #2 #1 #0

5104

PCT

FCK

[Input type] Parameter input

[Data type] Bit path

#2 FCK

In a multiple repetitive canned cycle (G71, G72), the machining profile is:

0: Not

checked.

1: Checked.
The target figure specified by G71 or G72 is checked for the following before machining
operation:

-

If the start point of the canned cycle is less than the maximum value of the
machining profile even when the plus sign is specified for a finishing allowance, the
alarm PS0322, “FINISHING SHAPE WHICH OVER OF STARTING POINT” is
issued.

If the start point of the canned cycle is greater than the minimum value of the
machining profile even when the minus sign is specified for a finishing allowance,
the alarm PS0322 is issued.

If an unmonotonous command of type I is specified for the axis in the cutting
direction, the alarm PS0064, “THE FINISHING SHAPE IS NOT A
MONOTONOUS CHANGE(FIRST AXES)” or PS0329, “THE FINISHING
SHAPE IS NOTA MONOTONOUS CHANGE(SECOND AXES)” is issued.

A.PARAMETERS

APPENDIX

B-64604EN-1/01

- 380 -

If an unmonotonous command is specified for the axis in the roughing direction, the
alarm PS0064 or PS0329 is issued.

If the program does not include a block that has a sequence number specified by
address Q, the alarm PS0063, “THE BLOCK OF A SPECIFIED SEQUENCE
NUMBER IS NOT FOUND” is issued. This check is made, regardless of bit 2
(QSR) of parameter No. 5102.

If a command (G41/G42) on the blank side in tool nose radius compensation is
inadequate, the alarm PS0328, “ILLEGAL WORK POSITION IS IN THE TOOL
NOSE RADIUS COMPENSATION” is issued.

#6 PCT

A Q command in a tapping cycle is:

0: Disabled.
1: Enabled.((High-speed) peck tapping cycle is assumed.)

When this parameter is set and the depth of cut for each time is specified with address Q
in a tapping cycle command, a peck tapping cycle is assumed.
In a peck tapping cycle, either a high-speed peck tapping cycle or a peck tapping cycle
can be selected by bit 5 (PCP) of parameter No. 5200.
Even when this parameter is set to 1, if Q is not specified or Q0 is specified, normal
tapping is performed.

NOTE

1 Set also parameter No. 5213.
2 In rigid tapping, the Q command is valid regardless of the setting of

this parameter.

#7 #6 #5 #4 #3 #2 #1 #0

5105

M5T

RF2

RF1

SBC

[Input type] Parameter input

[Data type] Bit path

#0 SBC

In a drilling canned cycle, chamfer cycle, or corner rounding cycle:

0: A single block stop is not performed.
1: A single block stop is performed.

#1 RF1

In a multiple repetitive canned cycle (G71, G72) of type I, roughing is:

0: Performed.
1: Not

performed.

NOTE

When a roughing allowance (

k) is specified using the Series

10/11 program format, roughing is performed, regardless of the
setting of this parameter.

#2 RF2

In a multiple repetitive canned cycle (G71, G72) of type II, roughing is:

0: Performed.
1: Not

performed.

FANUC Series 0i-MODEL F. For Lathe System OPERATOR'S MANUAL (B-64604EN-1/01) - page 24
