FANUC Series 0i-MODEL D, FANUC Series 0i Mate-MODEL D. MAINTENANCE MANUAL - page 8

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.1

WHAT IS PMC?

The programmable machine controller (PMC) is a programmable controller (PC) built into a CNC to

perform sequence control for a machine tool (spindle rotation, tool change, machine operator's panel

control, and so on).

Sequence control is to perform control steps successively in a predetermined sequence or according to the

logic operation.

Programs for performing sequence control for machine tools are called sequence programs. Generally,

sequence programs coded in the Ladder language are used.

6.1.1

Basic Configuration of PMC

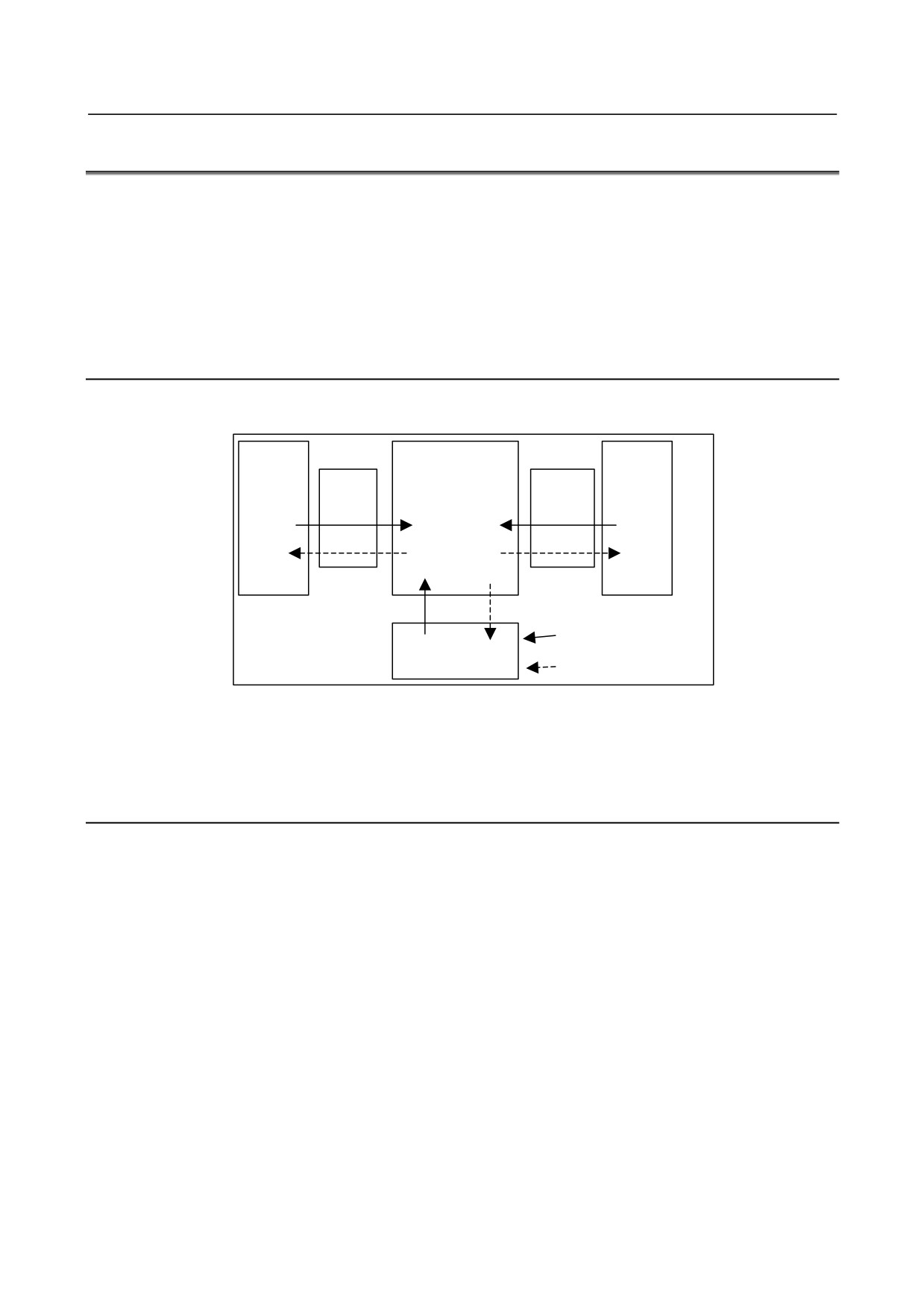

The following is the basic configuration of the PMC:

CNC

PMC

Machine

Internal

External

I/O

Sequence

I/O

program

Signal input to PMC

Internal relay

Signal output from PMC

Fig. 6.1.1 Basic configuration of PMC

The sequence program reads input signals, performs operations, and outputs results in a predetermined

sequence.

6.1.2

I/O Signals of PMC

Input signals of the PMC include signals input from the CNC (such as M and T function signals) and

signals input from the machine (such as the cycle start button and feed hold signal button). Output

signals of the PMC include signals output to the CNC (such as the cycle start command and feed hold

signal command) and signals output to the machine (such as turret rotation and spindle stop). The PMC

controls these I/O signals by executing a sequence program to control the machine tool.

- 195 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.1.3

PMC Signal Addresses

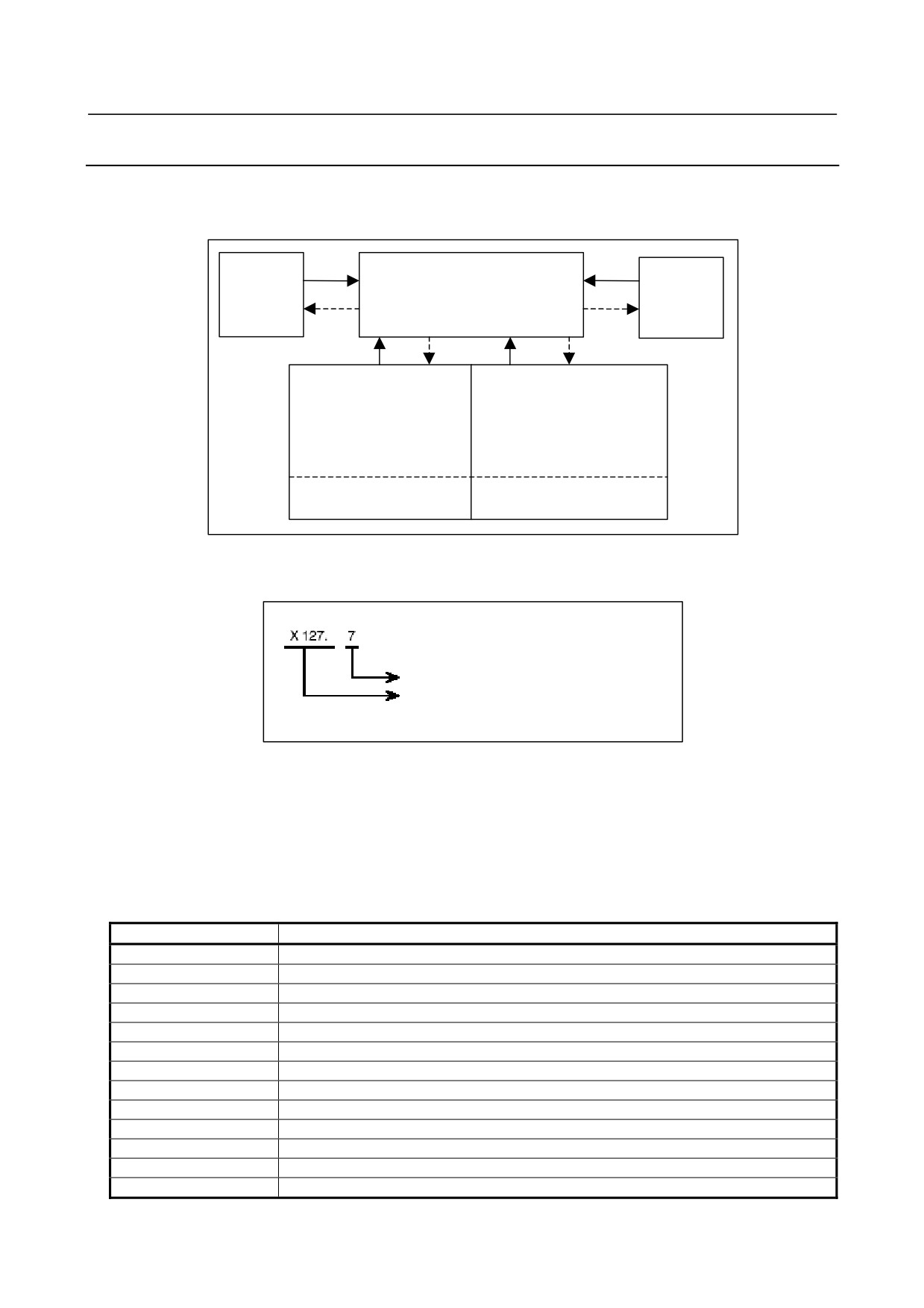

PMC signal addresses indicate the locations of I/O signals exchanged with the machine, I/O signals

exchanged with the CNC, and signals for internal relays and data (PMC parameters) in nonvolatile

memory. PMC addresses are roughly classified as shown in Fig. 6.1.3 (a).

F

X

Signals

Signals

to/from

PMC

to/from CNC

machine

(MT)

G

Y

Nonvolatile memory

(1) Variable timer (T)

Internal relay (R)

(2) Counter (C)

(3) Keep relay (K)

(4) Data table (D)

Extra relay (E)

Fig. 6.1.3 (a) PMC-related addresses

The PMC signal address format consists of an address number and bit number (0 to 7) as follows:

Bit number (0 to 7)

Address number (letter followed by decimal

number)

Fig. 6.1.3 (b) PMC address format

The first letter of an address number represents the type of the signal.

In sequence programs, an address of a byte may be specified. In the above example, specify X127

to specify a byte address. In this case, the period "." and bit number are unnecessary.

Table 6.1.3 lists the address symbols and corresponding signals.

Table 6.1.3 Address Symbols and signal types

Symbol

Signal type

F

Input signal from CNC to PMC (CNC → PMC)

G

Output signal from PMC to CNC (PMC → CNC)

X

Input signal from machine to PMC (MT → PMC)

Y

Output signal from PMC to machine (PMC → MT)

R

Internal relay

E

Extra relay

A

Message display

T

Variable timer

C

Counter

K

Keep relay

D

Data table

L

Label number

P

Subprogram number

- 196 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.1.4

System Relay Addresses (R9000)

The System Relay is used to control a sequence program by PMC System software. And, some addresses

such as 'Operation results of functional instructions' are used to condition of a sequence program.

Table 6.1.4 (a) Address of System Relay

System Relay

R9000 to R9499

Operation results of functional instructions

This area holds information necessary for individual ladder levels, such as the operation results of

functional instructions. This information is saved/restored when the task is switched.

(1) R9000 (operation output register for the ADDB, SUBB, MULB, DIVB, and COMPB functional

instructions)

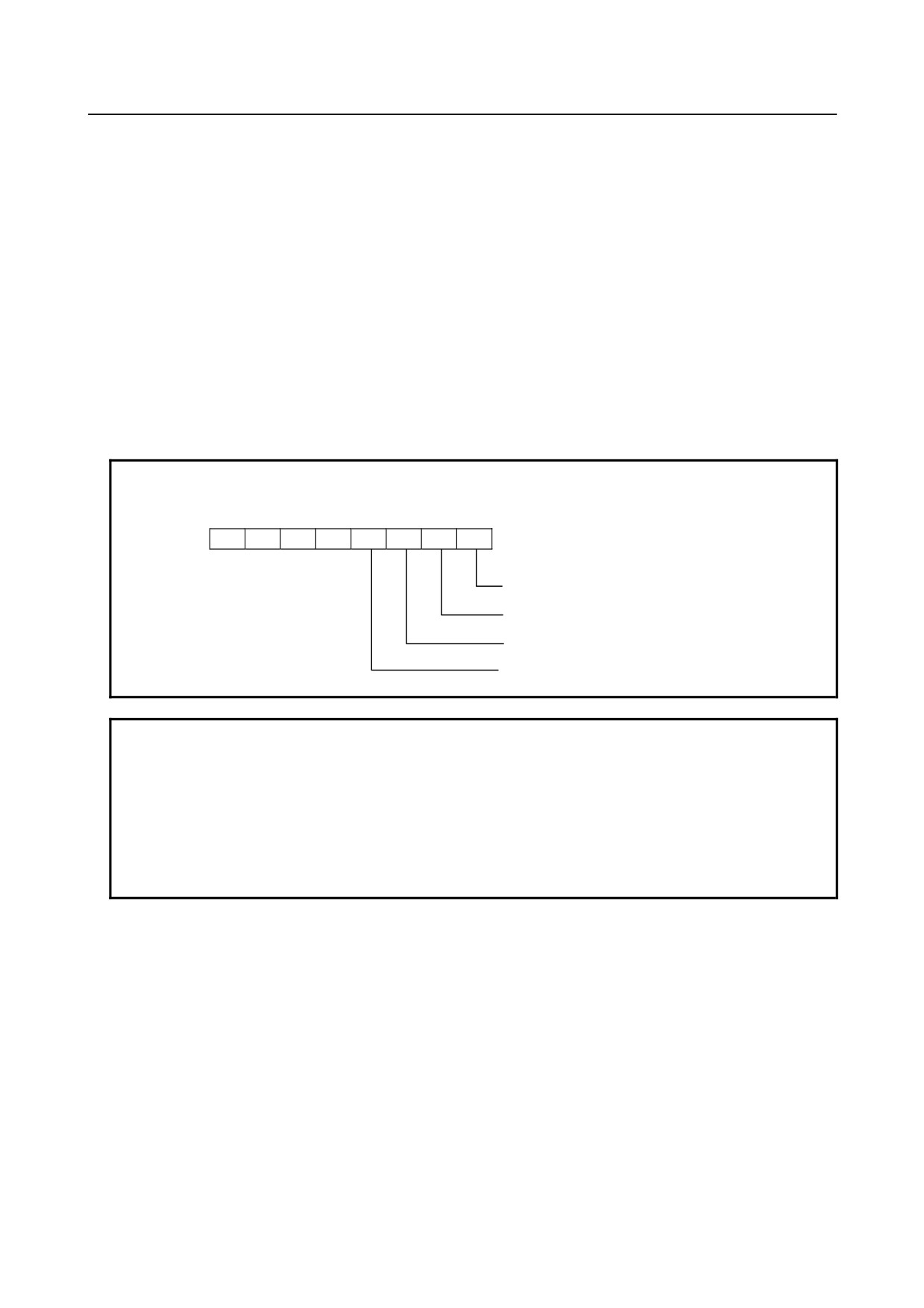

7

6

5

4

3

2

1

0

R9000

The result is 0.

The result is negative.

The result has overflowed.

(2) R9000 (error output for the EXIN, WINDR, and WINDW functional instructions)

7

6

5

4

3

2

1

0

R9000

The result is erroneous.

(3) R9002 to R9005 (operation output registers for the DIVB functional instruction)

The remainder of a division performed with the DIVB functional instruction is output to these

addresses.

System timers

Four signals can be used as system timers.

Their specifications are as follows.

7

6

5

4

3

2

1

0

R9000

Constantly OFF signal

Constantly ON signal

200 msec cyclic signal

(104 msec ON and 96 msec OFF)

1 sec cyclic signal

(504 msec ON and 496 msec OFF)

- 198 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

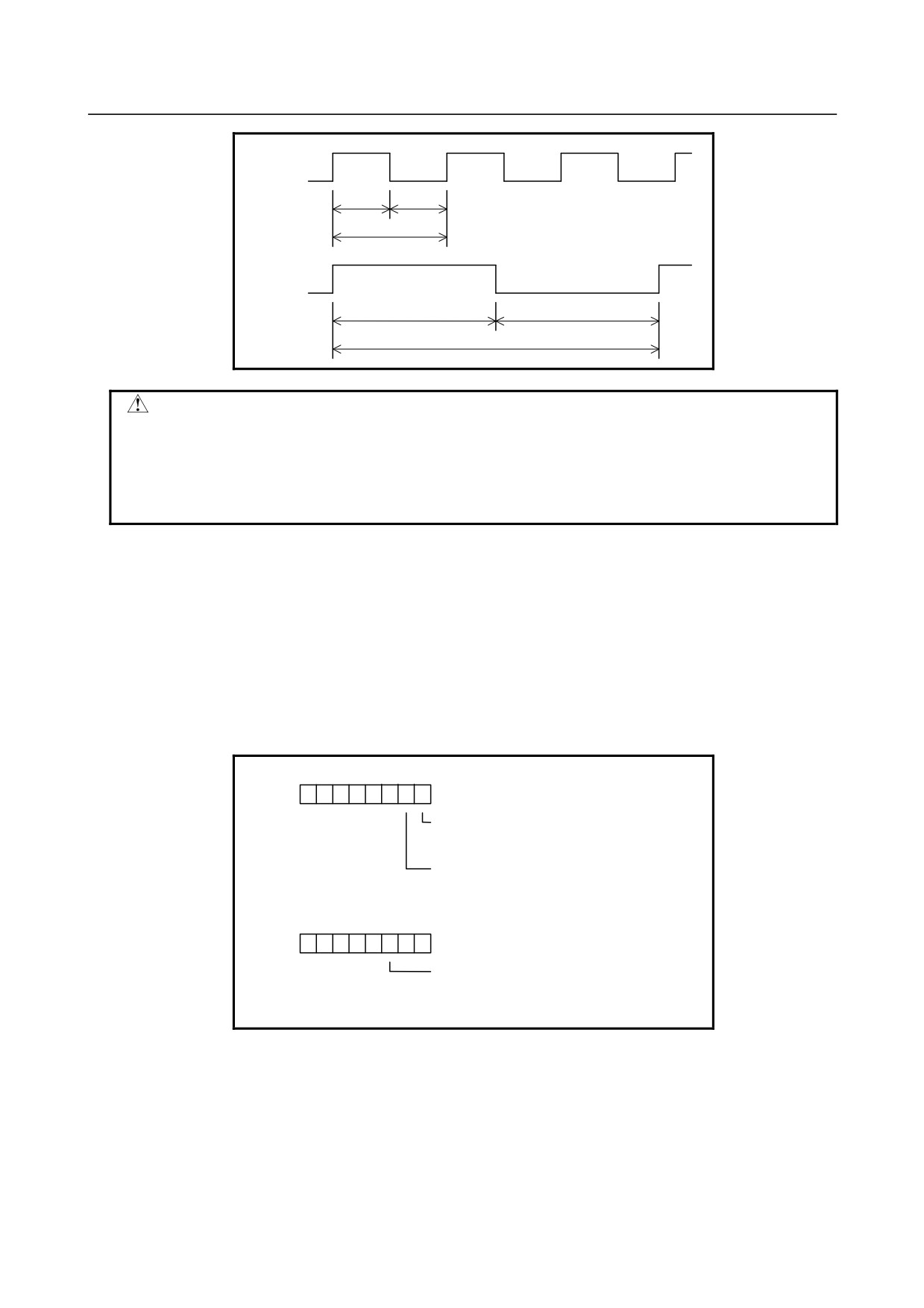

R9091.5

104 msec

96 msec

200 msec

R9091.6

504 msec

496 msec

1 sec

CAUTION

1 Each signal is initially OFF.

2 The signals R9091.0, R9091.1 are set at the beginning of the first ladder level on

every cycle.

3 Each pulse signal (ON-OFF signal) has an error of ±8 msec (ladder execution

period).

Ladder execution start signal

Ladder stop signal

Ladder execution status signal

Using the ladder execution start and stop signals in a ladder program can detect when the ladder program

starts and stops.

Referencing the ladder execution status signal from an external system or program, such as the network

board, C Language executor program, FOCAS2 Ethernet, or HSSB library, can detect the execution status

of the ladder program.

7

6

5

4

3

2

1

0

R9015

Ladder execution start signal

(can be referenced only from the Ladder

program)

Ladder stop signal

(can be referenced only from the Ladder

program)

7

6

5

4

3

2

1

0

R9091

1st Ladder execution status signal

0 : Ladder at a stop

1 : Ladder being executed

- 199 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

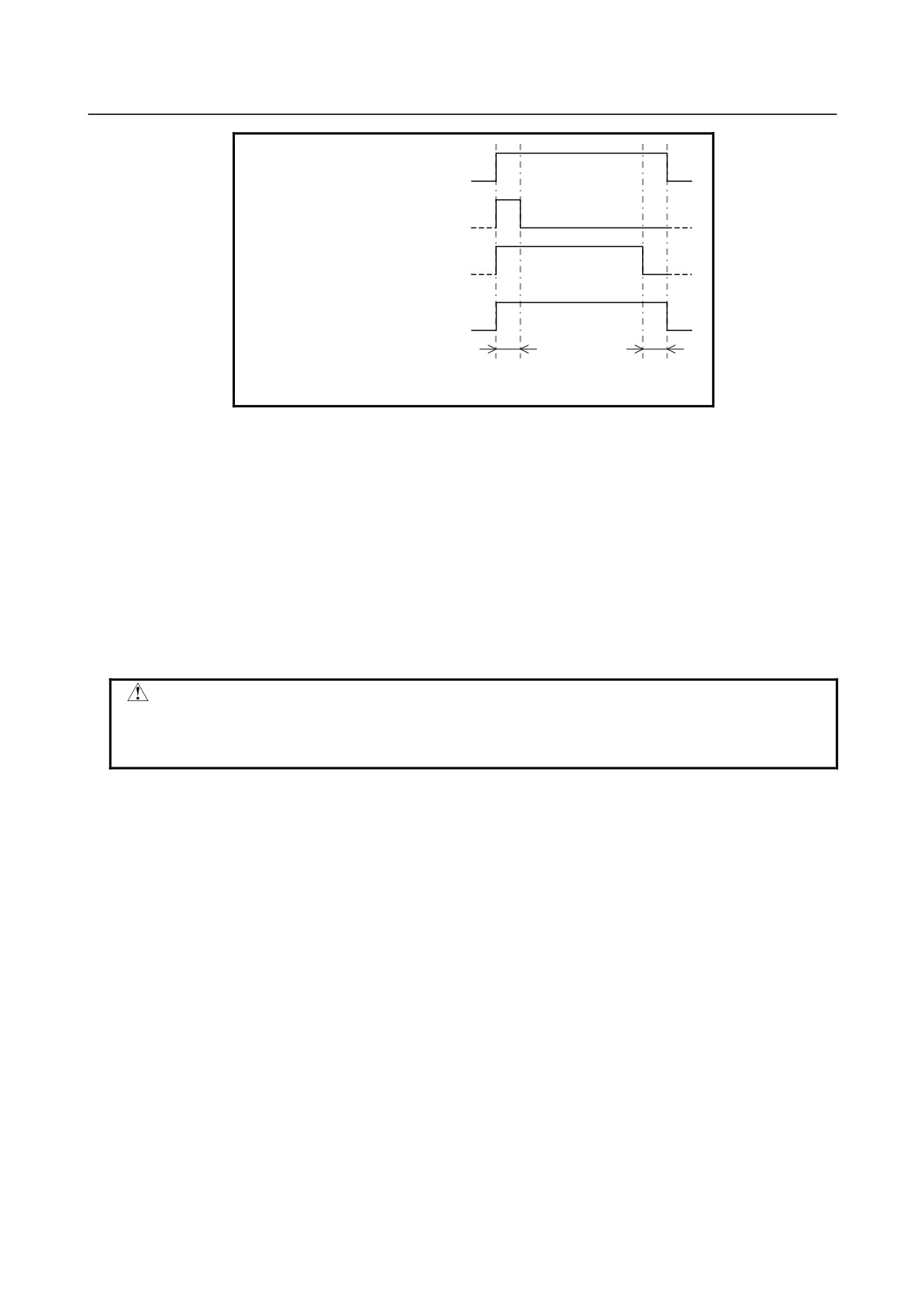

RUN

Execution status of Ladder

STOP

Ladder execution start signal

1

(R9015.0)

0

Ladder stop signal

1

(R9015.1)

0

Ladder execution status signal

1

(R9091.2)

0

One ladder

One ladder

scan cycle

scan cycle

(1)

Ladder execution start signal (R9015.0)

When directed to start ladder program execution, the system software starts executing the ladder

program, turns on this signal, and keeps it on for the first one scan cycle. Like R9000, this signal

indicates the status of ladder execution corresponding to each ladder execution level. For this

reason, this signal is securely turned on for the first one scan cycle after the start of execution no

matter on what execution level the signal is referenced. This signal is turned on when:

(a) Ladder execution begins at power turn-on.

(b) The [RUN] soft key on the PMC screen is pressed.

(c) FANUC LADDER-III or a ladder editing package directs the ladder to start.

Referencing this signal in a ladder program can detect when ladder execution has begun, making it

possible to program preprocessing related to ladder execution.

CAUTION

Reference this signal only within a ladder program. Do not reference it from an

external system or program as it indicates the status of ladder execution

separately for each ladder execution level.

(2)

Ladder stop signal (R9015.1)

When directed to stop ladder program execution, the system software turns off this signal and keeps

it off for the last one scan before stopping ladder program execution. Like R9000, this signal

indicates the status of ladder execution corresponding to each ladder execution level. For this

reason, this signal is securely turned off for the last one scan before the stop of execution no matter

on what execution level the signal is referenced. This signal is turned off when:

(a) The [STOP] soft key on the PMC screen is pressed.

(b) FANUC LADDER-III or a ladder editing package directs the ladder to stop.

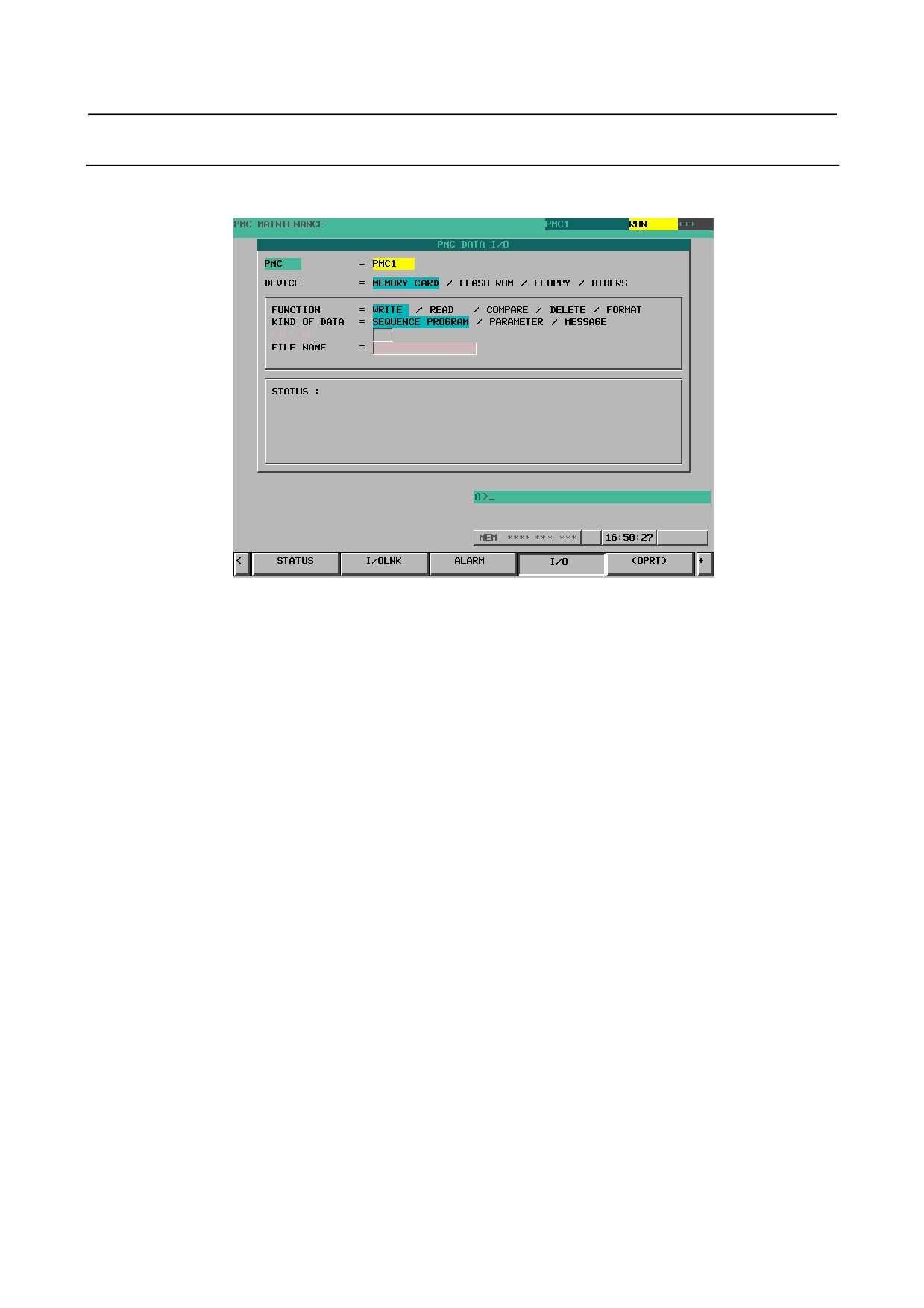

(c) On the PMC DATA I/O screen, the ladder program is loaded to the PMC.

(d) FANUC LADDER-III or a ladder editing package stores the ladder program to the PMC.

Referencing this signal in a ladder program can detect when ladder execution stops, making it

possible to program post processing related to ladder execution (that is, preprocessing for ladder

execution stop). Before the ladder is stopped, for example, it is possible to put signals in a proper

state for safety purposes.

- 200 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

CAUTION

1 Reference this signal only within the ladder program. Do not reference it from

an external system or program as it indicates the status of ladder execution

separately for each ladder execution level.

2 If the power is turned off or a CNC system alarm occurs, ladder execution and

I/O signal transfer are immediately stopped for safety purposes. In this case,

therefore, this signal cannot be used.

(3) Ladder execution status signal (R9091.2)

Referencing this signal from an external system or program, such as the network board, C language

executor program, FOCAS2 Ethernet, or HSSB library, can detect the execution status of the ladder

program.

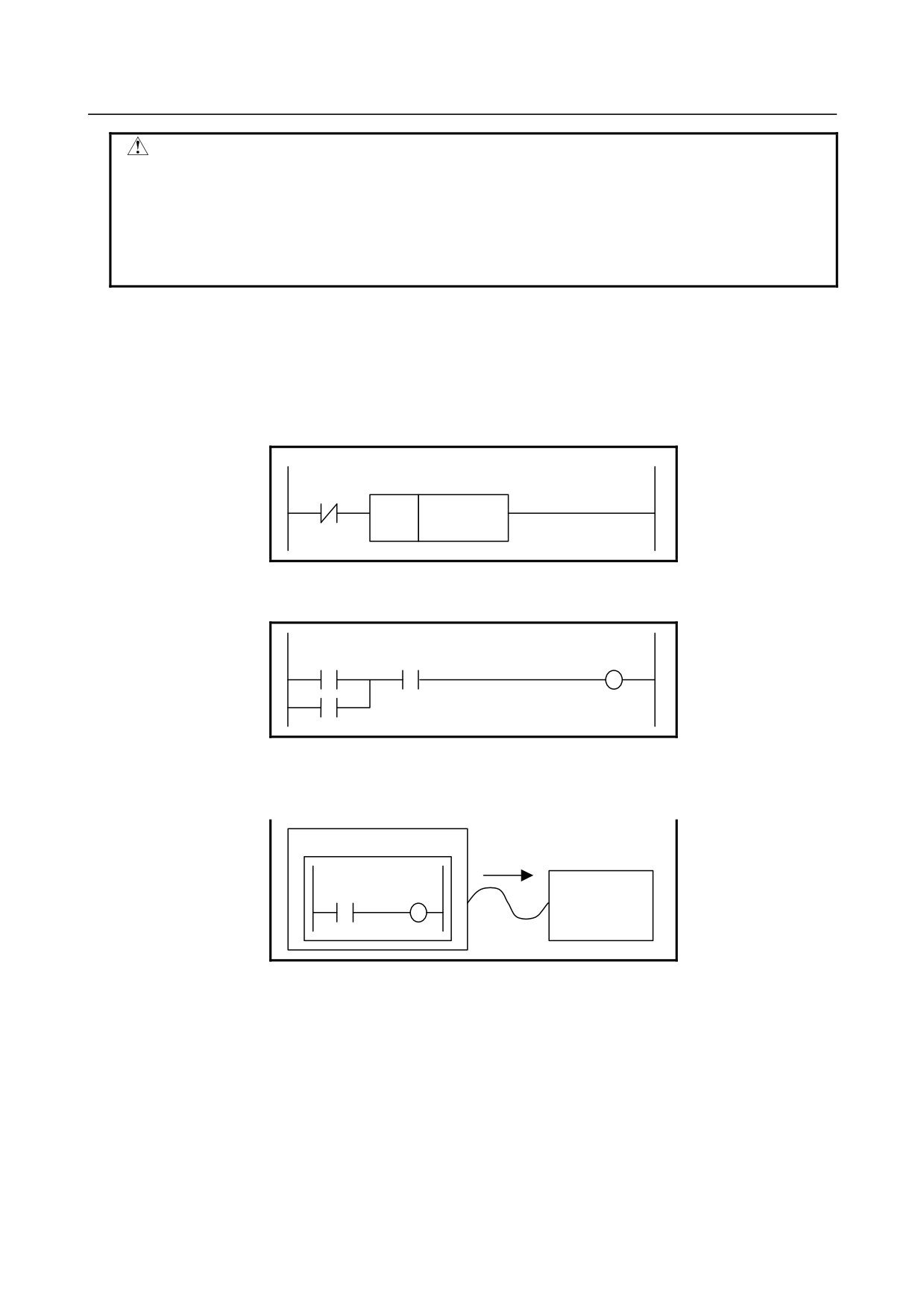

(4) Example of using the signals

(a) Example of calling a subprogram just before the ladder stops

R9015.1

SUB65

Pxxxx

CALL

(b) Example of forcibly turning off an output signal programmed on the first ladder level just

before the ladder stops

R9015.1

Input

Output

(c) Example of sending an execution-in-progress signal to the outside

Outputting the status of this signal as the DO signal (output address from the PMC) assigned to

the I/O Link causes the CNC unit to be interlocked with an external system.

CNC Unit

Y0.0

R9015.1

I/O Link slave

Y0.0

I/O Link

- 201 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.2

PMC SPECIFICATIONS

6.2.1

Basic Specifications

Table 6.2.1 (a) Basic specifications of each PMC path

0i-D / 0i Mate-D

0i-D

Function

0i-D PMC

PMC/L

DCSPMC (Note 9)

Programming language

Ladder

Ladder

Ladder

Function block (Note4)

Function block (Note4)

Function block (Note4)

Number of ladder levels

3

2 (Note1)

2 (Note1)

Level 1 execution period

8 msec

8 msec

8 msec

Processing power

• Basic instruction processing

25 nsec/step

1 μsec/step

1 μsec/step

speed

Program capacity (Note2)

• Ladder

Up to about 32,000 steps

Up to about 8,000 steps

Up to about 3,000 steps

• Symbol & Comment

At least 1KB

At least 1KB

At least 1KB

• Message

At least 8KB

At least 8KB

At least 8KB

Instructions

• Basic instructions

14

14

14

• Functional instructions (Note3)

93 (105)

92 (105)

85 (105)

Instructions(option)

• Basic instructions

24

24

24

• Functional instructions (Note3)

218 (230)

217 (230)

210 (230)

CNC interface

• Inputs (F)

768 bytes × 2

768 bytes

768 bytes

• Outputs (G)

768 bytes × 2

768 bytes

768 bytes

DI/DO

• I/O Link

• Inputs (X)

Up to 2,048 points

Up to 1,024

Up to 64 points

points(Note8)

• Outputs (Y)

Up to 2,048 points

Up to 1,024

Up to 64 points

points(Note8)

Symbol & Comment(Note5)

• Number of symbol characters

40

40

40

• Number of comment

255

255

255

characters (Note6)

Program storage area (Flash

Up to 384KB

128KB

128KB

ROM) (Note7)

- 202 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

NOTE

1

A program can be created on level 3 for the compatibility with programs for other

models, but it is not executed.

2

The maximum overall program size (including the maximum number of ladder

steps, symbols/ comments, and messages) varies depending on option settings.

See PMC PROGRAMMING MANUAL (B-64393EN) .

3

For the number of functional instructions, each parenthesized number indicates

the number of all functional instructions, and each non-parenthesized number,

the number of valid functional instructions.

4

To use the Function Block function, its option is necessary for each CNC. When

specifying this option, the Extended PMC Ladder Instruction Function can also

be used. Because the Extended PMC Ladder Instruction Function is included in

the Function Block function, it is not necessary to order the option of the

Extended PMC Ladder Instruction Function separately.

5

These are the number for extended symbol and comment character. The

number of basic symbol character is 16 and the number of comment character is

30. Refer to PMC PROGRAMMING MANUAL (B-64393EN) for details

6

This number is the number of single-byte characters. When you use double-byte

characters as a comment, the number becomes half.

7

The capacity of the program storage area varies depending on option settings.

See PMC PROGRAMMING MANUAL (B-64393EN).

8

Maximum input/output number of I/O link for 0i Mate-D is 256points/256points.

9

This PMC is used for Dual Check Safety function (option) and handles the safety

related signals. See “FANUC Series 0i-D Dual Check Safety Connection Manual

(B-64303EN-4)” for details.

- 203 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

Table 6.2.1 (b) Basic specifications of each PMC Memory Type

0i-D / 0i Mate-D

0i-D

Function

0i-D PMC

PMC/L

DCSPMC (Note 2)

PMC Memory

• Internal relay (R)

8,000 bytes

1,500 bytes

1,500 bytes

• System Relay

500 bytes

500 bytes

500 bytes

(R9000)

• Extra relay (E)

10,000 bytes

10,000 bytes

(Note 3)

• Message display (A)

⋅ Display requests

2,000 points

2,000 points

(Note 4)

⋅ Status displays

2,000 points

2,000 points

(Note 4)

Nonvolatile memory

• Timer (T)

⋅ Variable timer

500 bytes

80 bytes

80 bytes

(250 pieces)

(40 pieces)

(40 pieces)

⋅ Variable timer precision (Note 1)

500 bytes

80 bytes

80 bytes

(250 pieces)

(40 pieces)

(40 pieces)

• Counter (C)

⋅ Variable counter

400 bytes

80 bytes

80 bytes

(100 pieces)

(20 pieces)

(20 pieces)

⋅ Fixed counter

200 bytes

40 bytes

40 bytes

(100 pieces)

(20 pieces)

(20 pieces)

• Keep relay (K)

⋅ User area

100 bytes

20 bytes

20 bytes

⋅ System area

100 bytes

100 bytes

100 bytes

• Data table (D)

10,000 bytes

3,000 bytes

3,000 bytes

Functional instructions

• Variable timers (TMR)

250 pieces

40 pieces

40 pieces

• Fixed timers (TMRB/TMRBF)

500 pieces

100 pieces

100 pieces

• Variable counters (CTR)

100 pieces

20 pieces

20 pieces

• Fixed counters (CTRB)

100 pieces

20 pieces

20 pieces

• Rising/Falling edge detection (DIFU/DIFD)

1,000 pieces

256 pieces

256 pieces

• Labels (LBL)

9,999 pieces

9,999 pieces

9,999 pieces

• Subprograms (SP)

5,000 pieces

512 pieces

512 pieces

NOTE

1 This area is used to specify the precision of the variable timer.

Do not use this

area in user programs.

2 This PMC is used for Dual Check Safety function (option). See “FANUC Series

0i-D Dual Check Safety Connection Manual (B-64303EN-4)” for details.

3 There are no extra relays in Dual Check Safety PMC.

4 The message display relay can not be used in Dual Check Safety PMC because

of invalid function.

- 204 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

Table 6.2.1 (c) PMC Address list

0i-D / 0i Mate-D

0i-D

Signals

Symbol

0i-D PMC

PMC/L

DCSPMC (Note 4)

Input signal to the PMC

X

X0~X127

X0~X127

X0~X127

from the machine

X200~X327

X400~X527 (Note1)

X600~X727 (Note1)

X1000~X1127(Note1)

Output signal from the

Y

Y0 ~ Y127

Y0 ~ Y127

Y0 ~ Y127

PMC to the machine

Y200 ~ Y327

Y400 ~ Y527(Note1)

Y600 ~ Y727(Note1)

Y1000 ~ Y1127 (Note1)

Input signal to the PMC

F

F0 ~ F767

F0 ~ F767

F0 ~ F767

from the CNC

F1000 ~ F1767

F1000 ~ F1767 (Note2)

F2000 ~ F2767(Note2)

F3000 ~ F3767(Note2)

F4000 ~ F4767(Note2)

F5000 ~ F5767(Note2)

F6000 ~ F6767(Note2)

F7000 ~ F7767(Note2)

F8000 ~ F8767(Note2)

F9000 ~ F9767(Note2)

Output signal from the

G

G0 ~ G767

G0 ~ G767

G0 ~ G767

G1000 ~ G1767

G1000 ~ G1767 (Note2)

PMC to the CNC

G2000 ~ G2767(Note2)

G3000 ~ G3767(Note2)

G4000 ~ G4767(Note2)

G5000 ~ G5767(Note2)

G6000 ~ G6767(Note2)

G7000 ~ G7767(Note2)

G8000 ~ G8767(Note2)

G9000 ~ G9767(Note2)

Internal relay

R

R0 ~ R7999

R0 ~ R1499

R0 ~ R1499

System relay

R

R9000 ~ R9499

R9000 ~ R9499

R9000 ~ R9499

Extra relay

E

E0 ~ E9999

E0 ~ E9999

(Note 5)

Message display

A

-Display request

A0 ~ A249

A0 ~ A249

(Note 6)

-Display status

A9000 ~ A9249

A9000 ~ A9249

(Note 6)

Timer

T

-Variable timer

T0 ~ T499

T0 ~ T79

T0 ~ T79

-Variable timer

T9000 ~ T9499

T9000 ~ T9079

T9000 ~ T9079

precision

(Note3)

Counter

C

-Variable counter

C0 ~ C399

C0 ~ C79

C0 ~ C79

-Fixed counter

C5000 ~ C5199

C5000 ~ C5039

C5000 ~ C5039

Keep relay

K

-User area

K0 ~ K99

K0 ~ K19

K0 ~ K19

-System area

K900 ~ K999

K900 ~ K999

K900 ~ K999

Data table

D

D0 ~ D9999

D0 ~ D2999

D0 ~ D2999

Label

L

L1 ~ L9999

L1 ~ L9999

L1 ~ L9999

Subprogram

P

P1 ~ P5000

P1 ~ P512

P1 ~ P512

- 205 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

NOTE

1

This area is reserved for PMC management software. No I/O can be allocated

in this area. Do not use it in user programs.

2

This area is reserved for PMC management software. Do not use it in user

programs.

3

This area is used to specify the precision of a variable timer.

- Don't modify the value of timer and precision except for writing same value

when working the timer.

- Don't set the value other than the following range.

- If above rules are violated, the working of the timer is not guaranteed.

- Other than the range from T9000 to T9999 are reserved.

The value of precision

0: Default (8msec or 48msec)

1: 1msec

2: 10msec

3: 100msec

4: 1sec

5: 1min

4

This PMC is used for Dual Check Safety function (option). See “FANUC Series

0i-D Dual Check Safety Connection Manual (B-64303EN-4)” for details.

5

No extra relay is available for the Dual Check Safety PMC.

6

No message display relay can not be used in Dual Check Safety PMC because

of invalid function.

- 206 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.3

OPERATING THE PMC SCREEN

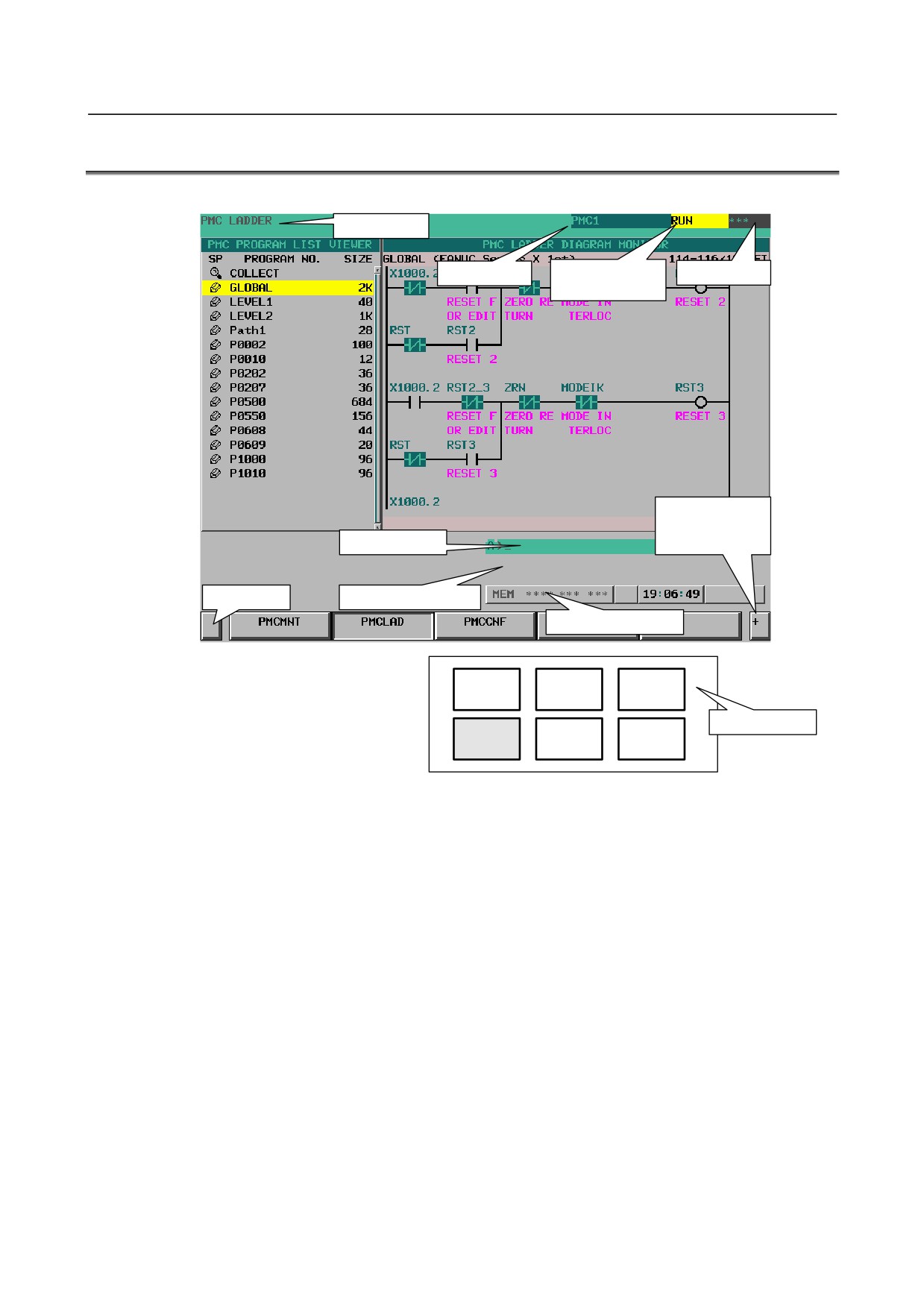

The basic configuration of the PMC screen is described below.

Screen title

PMC path

Ladder

PMC alarm

execution status

[+]

Soft key page

turning key

Key entry line

Return key

Message display line

NC status indication

POS

PROG

OFFSET

SETTING

Function keys

SYSTEM

MESSAGE

GRAPH

• Screen title

: Displays the name of a specific submenu of the PMC.

• Ladder execution status

: Displays the execution status of the ladder program.

• PMC alarm

: Indicates whether any PMC alarm is occurring.

• PMC path

: Displays the currently selected PMC.

• Key entry line

: Line for entering a numerical value or character key string.

• Message display line

: Displays an error or warning message.

• NC status indication

: Displays the NC mode, the execution status of the NC program, the

currently selected NC path number.

• Return key

: Used to switch from the PMC operation menu to a specific PMC

submenu or from a specific PMC submenu to the main menu of the

PMC.

• Soft key page turning key : Used to turn soft key pages.

- 207 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

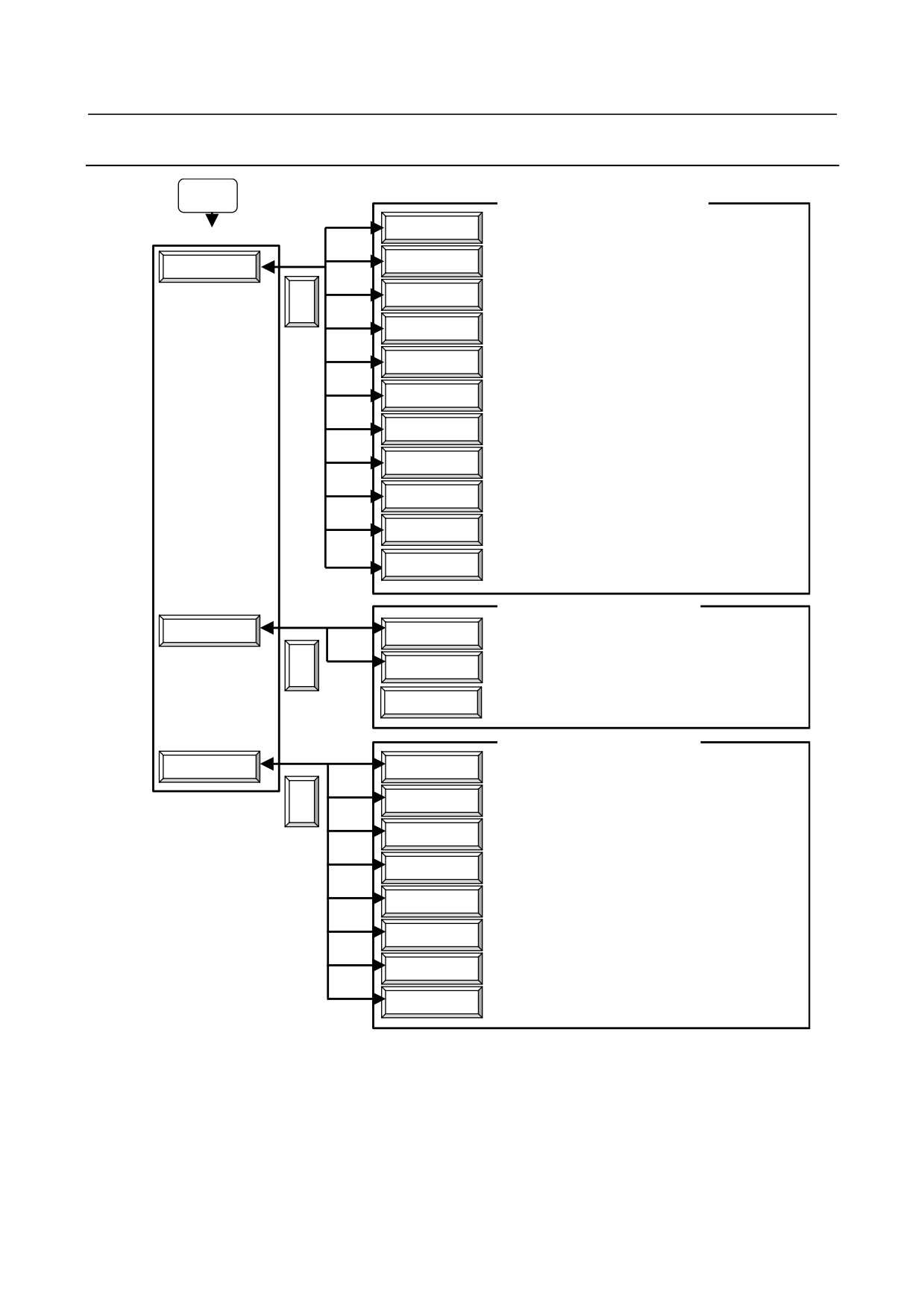

6.3.1

Transition of the PMC Screens

SYSTEM

PMC maintenance submenu

STATUS

Signal status screen

(See Subsection 6.4.1.)

PMC main menu

I/OLNK

I/O link connection status screen

(See Subsection 6.4.8.)

PMCMNT

ALARM

PMC alarm screen

(See Subsection 6.4.2.)

<

I/O

Data I/O screen

(See Subsection 6.4.7.)

TIMER

PMC parameter (timer) screen

(See Subsection 6.4.3.)

COUNTR

PMC parameter (counter) screen

(See Subsection 6.4.4.)

PMC parameter (keep relay)

KEEPRL

(See Subsection 6.4.5.)

screen

DATA

PMC parameter (data table) screen

(See Subsection 6.4.6.)

TRACE

Signal trace screen

(See Subsection 6.4.9.)

Signal trace (parameter setting)

TRCPRM

(See Subsection 6.4.10.)

screen

I/ODGN

II/O DIAGNOSIS screen

(See Subsection 6.4.12.)

PMC ladder submenu

Program list screen

(See Subsection 6.5.1.)

PMCLAD

LIST

Ladder display/editing screen

(See Subsection 6.5.2.)

<

LADDER

D. COIL

Duplicate coil check screen

PMC configuration submenu

PMCCNF

TITLE

Title display/editing screen

Setting screens (general, message shift,

<

SETING

I/O link assignment data selection,

override)

PMCST.

PMC status screen (multi-PMC switch)

System parameter display/editing

SYSPRM

screen

MODULE

I/O module display/editing screen

Symbol and comment display/editing

SYMBOL

screen

MESAGE

Message display/editing screen

Online monitoring parameter setting

ONLINE

screen

- 209 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.4

PMC DIAGNOSIS AND MAINTENANCE SCREENS

([PMCMNT])

6.4.1

Monitoring PMC Signal Status ([STATUS] Screen)

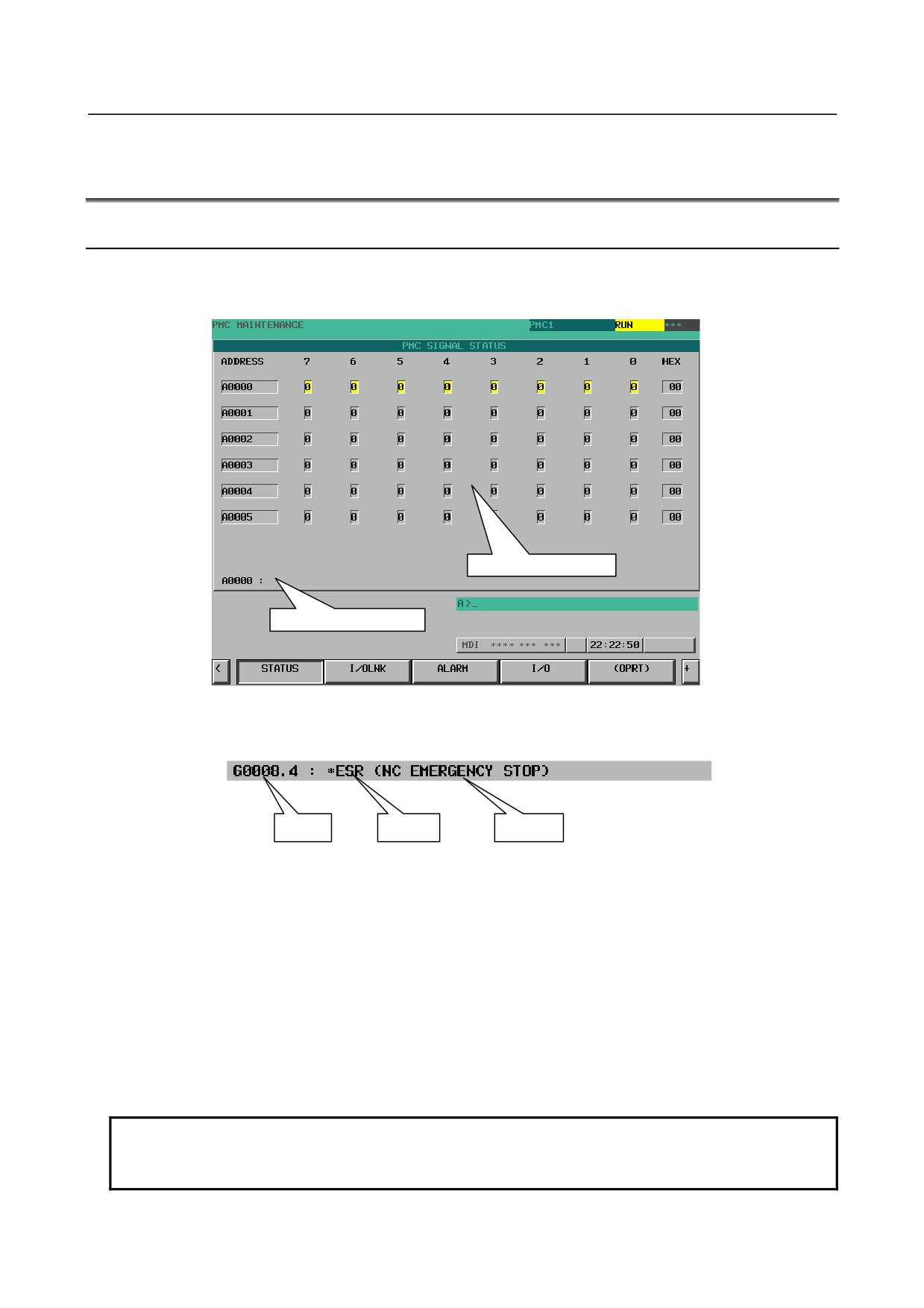

The SIGNAL STATUS screen displays the data at all addresses specified in the program. The data of

each address consists of a bit pattern (“0”s and/or “1”s) and a hexadecimal or decimal number at the

rightmost position on a byte-by-byte basis.

Signal status display area

Additional information line

The additional information line at the bottom of the screen displays the symbol and comment of the

address on which the cursor is placed. When the cursor is placed on a byte, the byte symbol and

comment are displayed.

Address

Symbol

Comment

Table contents

• ADDRESS: Address referenced by a sequence program

•

0 to 7:

Data at each bit position

•

HEX:

Display of each byte in hexadecimal

•

DEC:

Display of each byte in decimal

Operation procedure

(1) Press the [STATUS] soft key. The screen shown above appears.

(2) Key in an address whose data to be displayed, then press the [SEARCH] soft key.

(3) The data starting at the input address is displayed as a bit pattern.

(4) To display the data at another address, press the cursor keys, page keys, or [SEARCH] soft key.

(5) To modify the status of a signal, switch to the forced I/O screen by pressing the [FORCE] soft key.

NOTE

The [FORCE] soft key is displayed and usable when the forced I/O function is

enabled. For details, see PMC PROGRAMMING MANUAL (B-64393EN).

- 210 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

(6) On the forced I/O screen, an overridden X signal or Y signal is prefixed by a greater-than sign (>) to

indicate the setting of override.

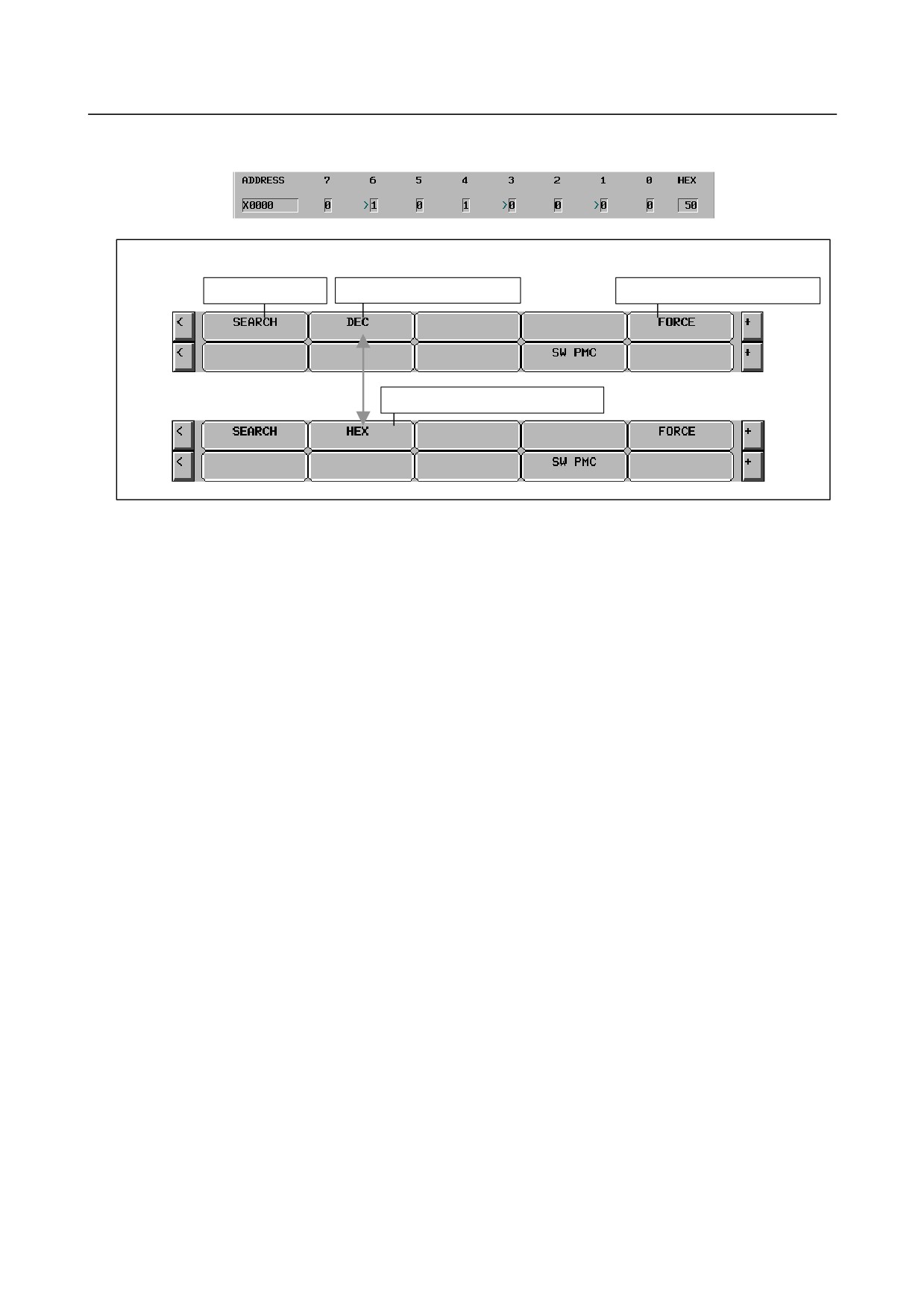

Soft keys on the Signal Status screen

Address search

Switching to display in decimal

Switching to the forced I/O screen

Switching to display in hexadecimal

Fig. 6.4.1 (a) Soft keys on the SIGNAL STATUS screen

- 211 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.4.2

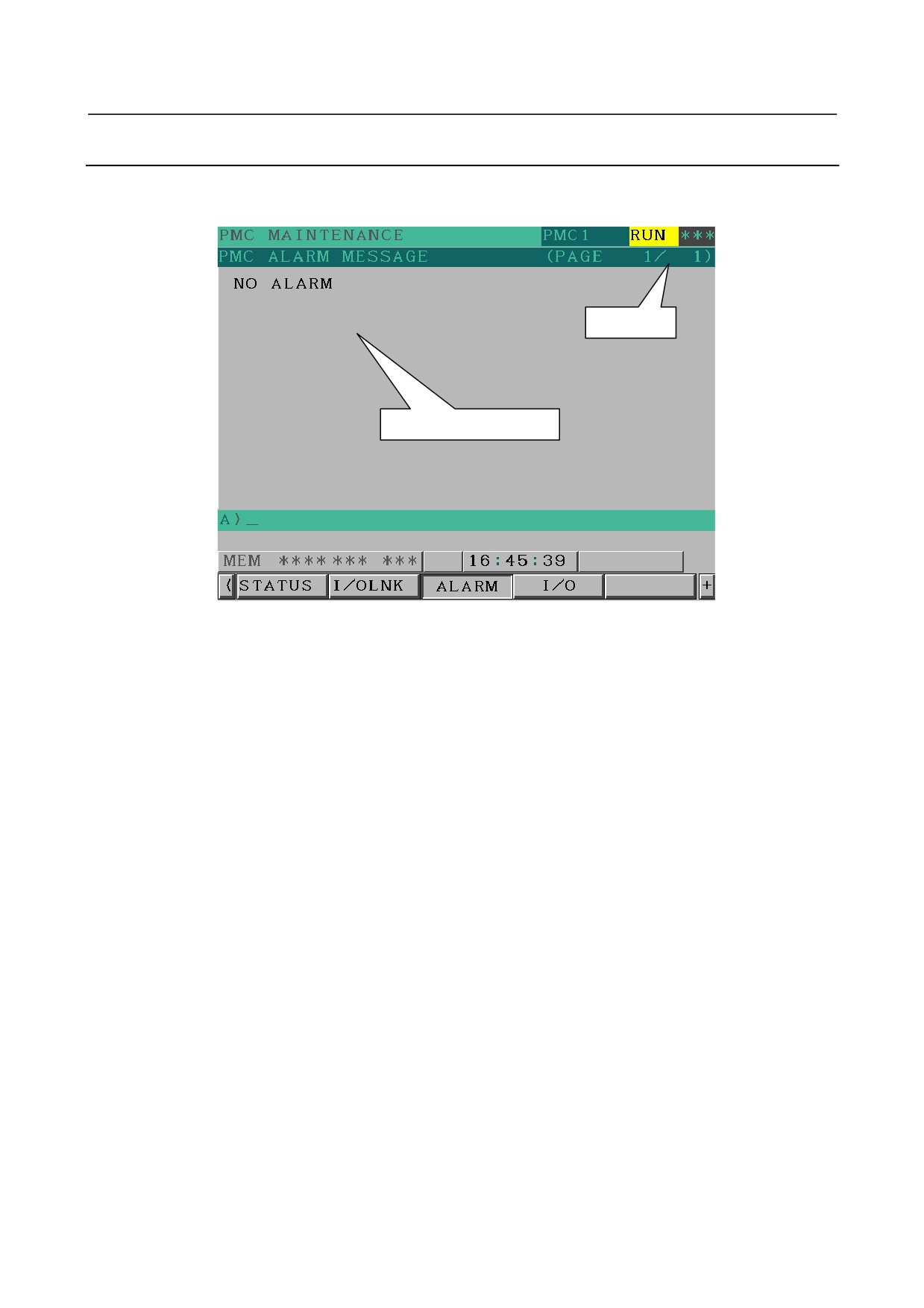

Checking PMC Alarms ([ALARM] Screen)

On this screen, an alarm message output from the PMC is displayed. To move to the PMC alarm screen,

press the [ALARM] soft key.

Page display

Alarm message display area

In the alarm message display area, an alarm message output from the PMC is displayed. When many

alarm messages are output to two or more pages, the page keys can be used to switch from one page to

another.

In the page display area to the right of the title, the number of the page currently displaying messages is

indicated.

For information about messages displayed, see Appendix A “Alarm List.”

- 212 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.4.3

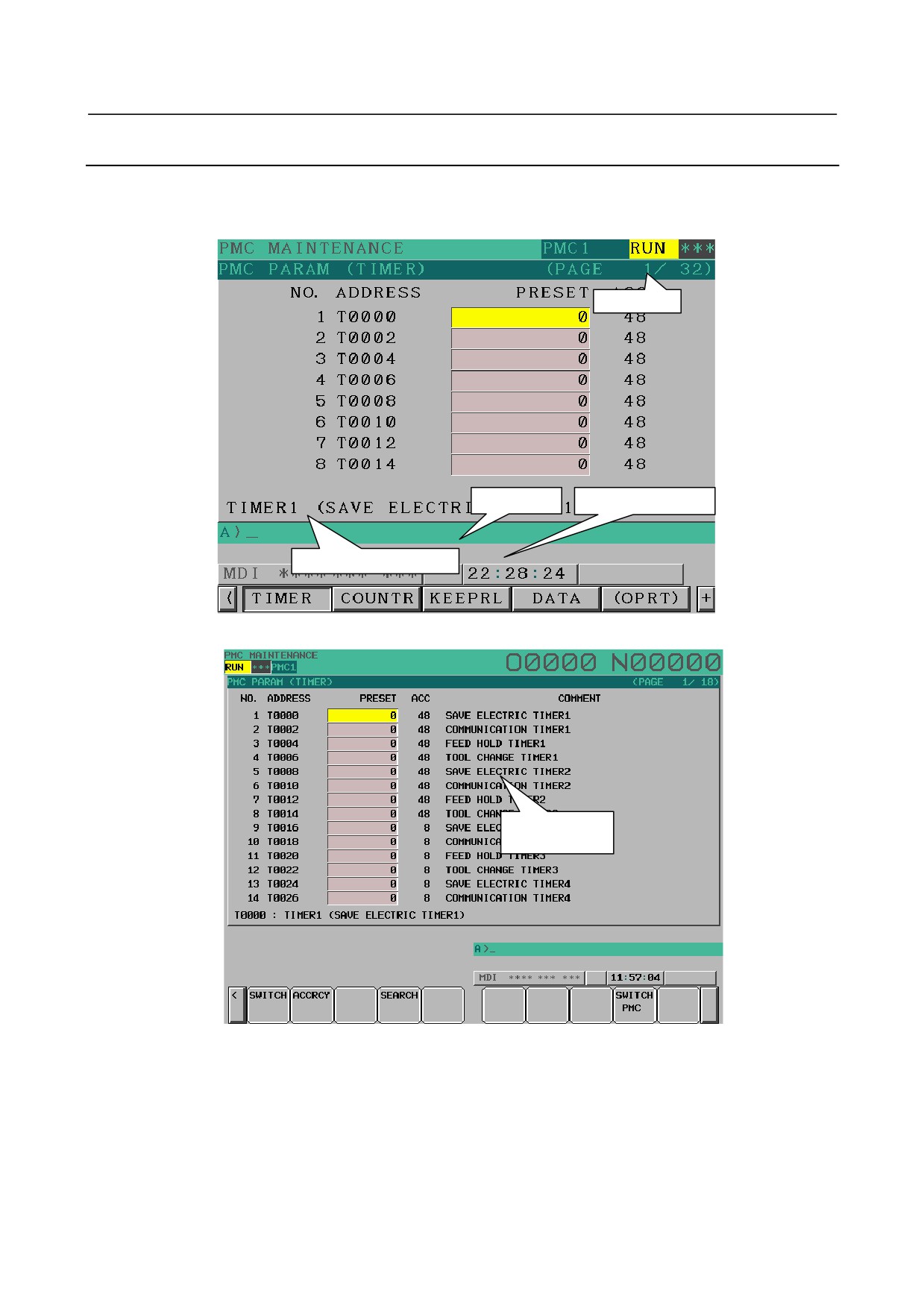

Setting and Displaying Variable Timers ([TIMER] Screen)

This screen is used to set and display timer values for functional instruction variable timers (TMR:SUB 3).

This screen can be used in one of two modes: the simple display mode and the comment display mode.

To move to the TIMER screen, press the [TIMER] soft key.

Page display

Key input line

Message display line

Additional information line

Simple display mode

Comment display

area

Comment display mode (12-soft key display unit)

- 213 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

Table contents

• NO.

: Timer number specified for a functional instruction timer.

• ADDRESS

: Address referenced by a sequence program

• PRESET

: Timer setting value

• ACC

: Timer accuracy

• COMMENT : T address comment

In the PRESET column, timer setting values are displayed. When the timer accuracy is 8, 48, 1, 10, or

100 msec, only a numeric value is displayed. When the timer accuracy is the second or minute, a time

value is displayed using H, M, and S with the separator "_" used to delimit one unit from another as

follows:

aaH_bbM_ccS

In the ACC column, timer accuracy values are displayed. The table below indicates the time setting

values and notation of each accuracy value.

Timer No.

Accuracy notation

Minimum time setting

Maximum time setting

1 to 8

48 (initial value)

48 msec

1572.8 seconds

9 to 250

8 (initial value)

8 msec

262.1 seconds

1 to 250

1

1 msec

32.7 seconds

1 to 250

10

10 msec

327.7 seconds

1 to 250

100

100 msec

54.6 minutes

1 to 250

S

1 second

546 minutes

1 to 250

M

1 minute

546 hours

The additional information line at the bottom of the screen displays the symbol and comment of the

address on which the cursor is placed.

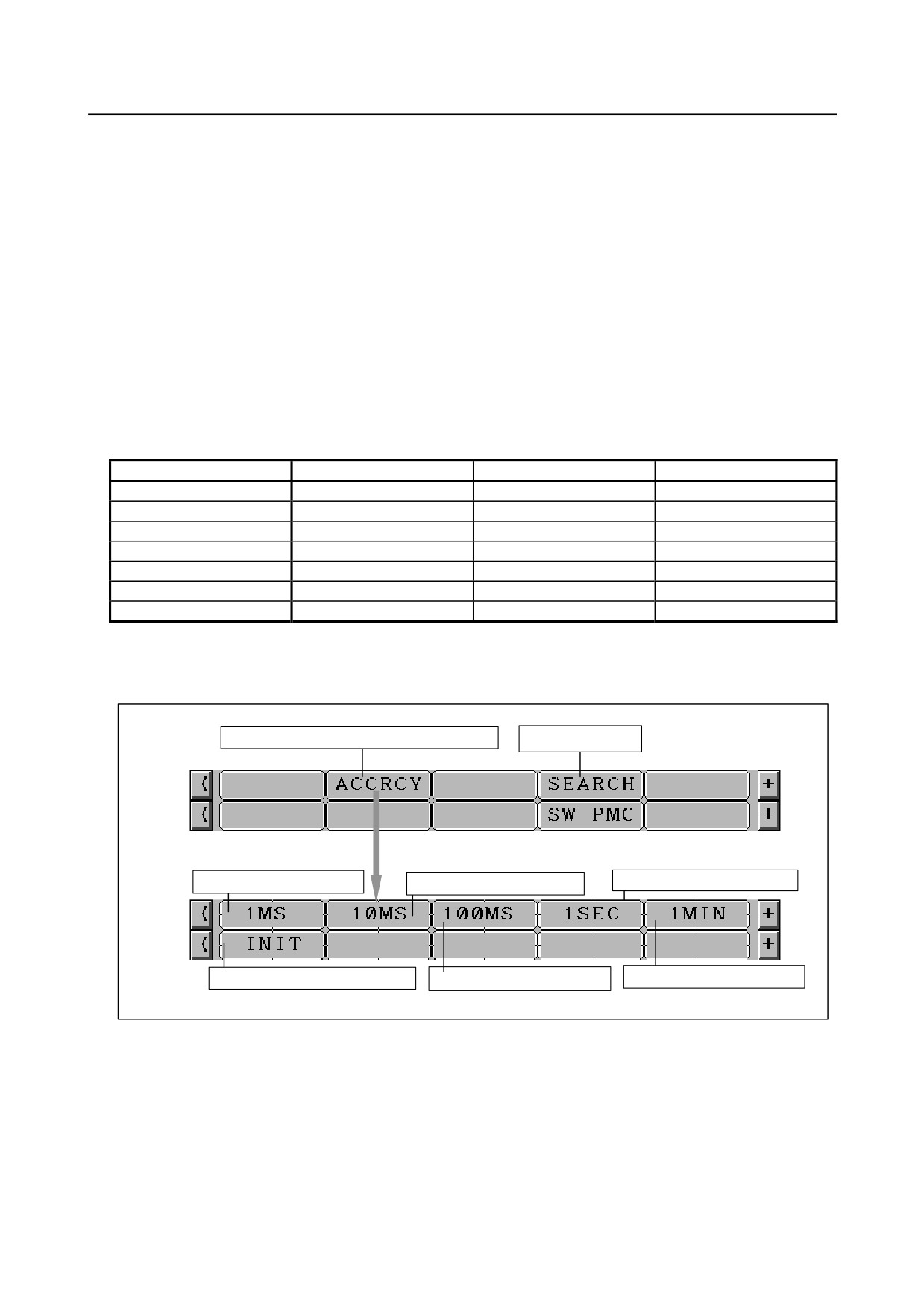

Soft key s on the TIMER screen

Switching to the soft key for accuracy setting

T address search

Setting accuracy to 1 msec

Setting accuracy to 10 msec

Setting accuracy to 1 second

Setting accuracy to an initial value

Setting accuracy to 100 msec

Setting accuracy to 1 minute

- 214 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.4.4

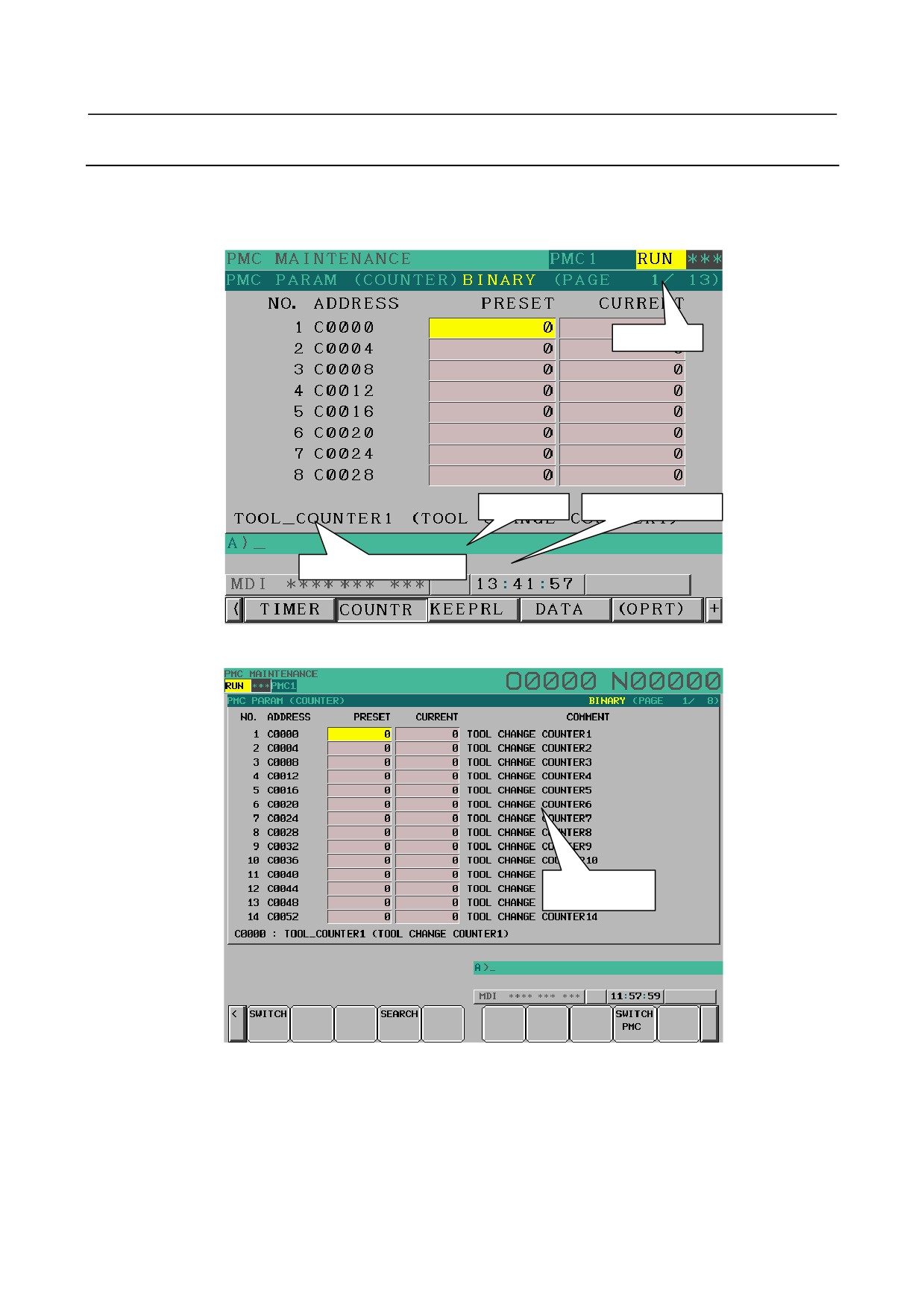

Setting and Displaying Counter Values ([COUNTR] Screen)

This screen is used to set and display the maximum and minimum counter values for functional

instruction counters (CTR: SUB 5). This screen can be used in one of two modes: the simple display

mode and the comment display mode. To move to the COUNTER screen, press the [COUNTR] soft key.

Page display

Key input line

Message display line

Additional information line

Simple display mode

Comment display

area

Comment display mode (12-soft key display unit)

- 215 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

Table contents

• NO.

: Counter number specified for a functional instruction counter

• ADDRESS

: Address referenced by a sequence program

• PRESET

: Maximum counter value (a minimum counter value is specified by a counter

instruction)

• CURRENT

: Current counter value

• COMMENT : Comment on the C address of a setting value

The additional information line at the bottom of the screen displays the symbol and comment of the

address on which the cursor is placed. If the cursor is placed on a PRESET value, the symbol and

comment of the address of the PRESET value are displayed. If the cursor is placed on a CURRENT value,

the symbol and comment of the address of the CURRENT value are displayed.

Counter types and maximum values

Counter type

PRESET maximum value

CURRENT maximum value

BINARY

32767

32767

BCD

9999

9999

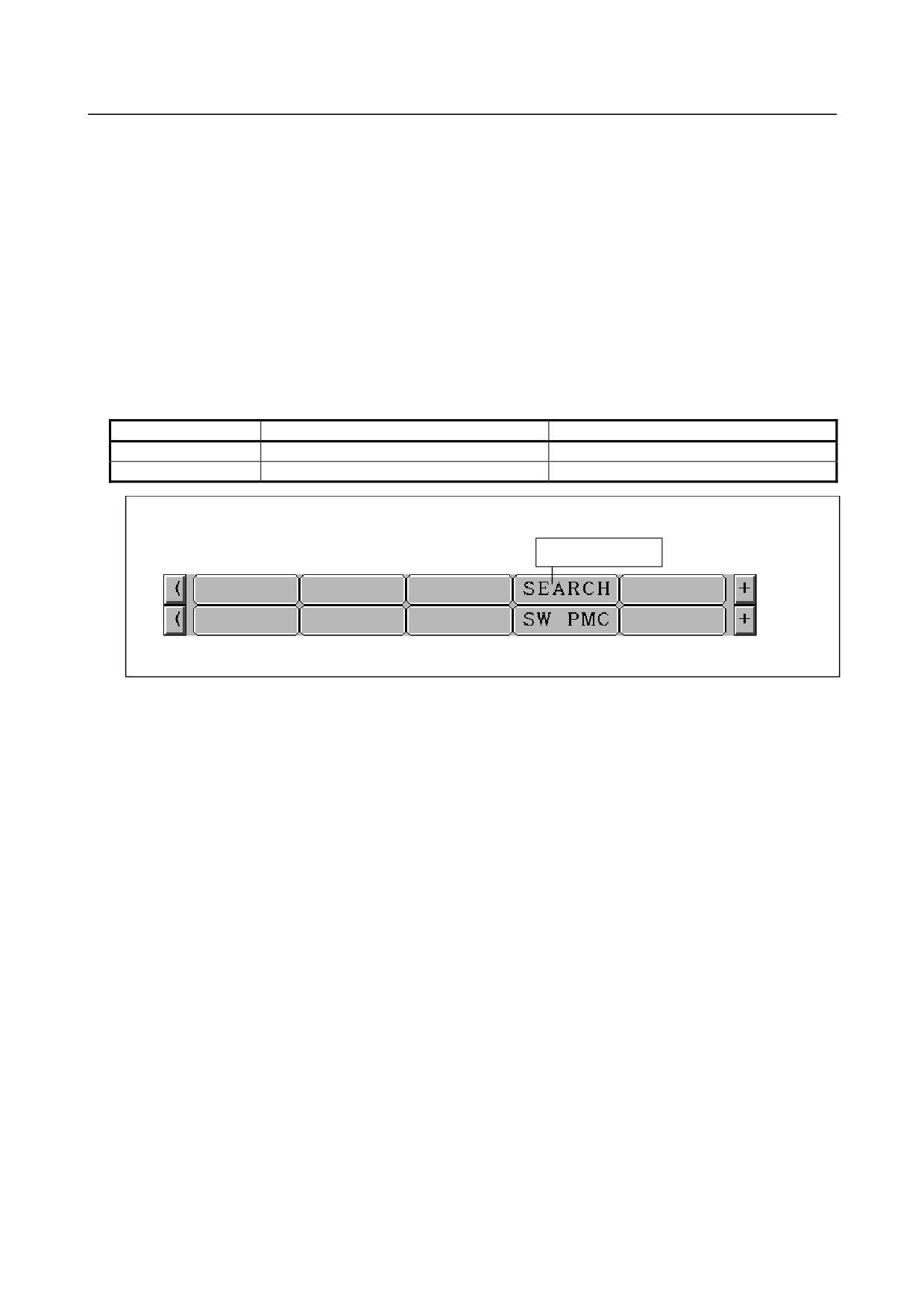

Soft keys on the COUNTER screen

C address search

- 216 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.4.5

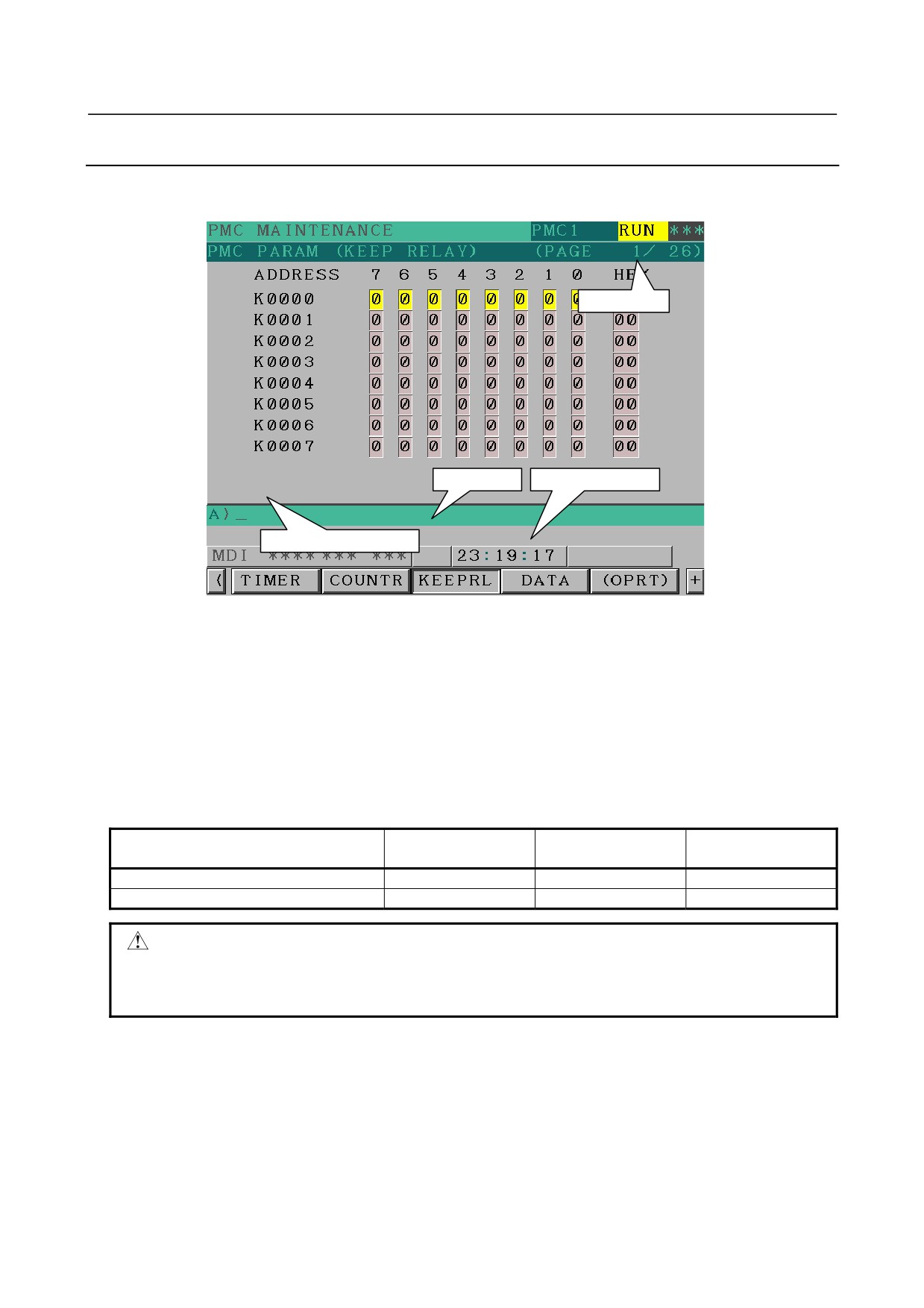

Setting and Displaying Keep Relays ([KEEPRL] Screen)

This screen is used for setting and displaying the Keep Relays. To move to the KEEP RELAY screen,

press the [KEEPRL] soft key.

Page display

Key input line

Message display line

Additional information line

Contents of the table

• ADDRESS : Address referred by sequence Program

•

0 to 7

: Contents of each bit

•

HEX

: Value of the byte data in hexadecimal notation

The additional information line at the bottom of the screen displays the symbol and comment of the

address on which the cursor is placed. When the cursor is placed on a byte, the byte symbol and

comment are displayed.

Since Keep Relay is nonvolatile memory, the contents are not lost even if you turn off the power.

The Keep Relay area consists of parts as follows.

0i-D /0i Mate-D

0i-D

0i-D PMC

PMC/L

DCSPMC

User area

K0 to K99

K0 to K19

K0 to K19

Area for management software

K900 to K999

K900 to K999

K900 to K999

CAUTION

If the area for the PMC management software is protected by the programmer

protection function, the area is not displayed on the KEEP RELAY screen. For

details, see PMC PROGRAMMING MANUAL (B-64393EN).

- 217 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.4.6

Setting and Displaying Data Tables ([DATA] Screen)

There are two data table types (DATA TABLE CONTROL and DATA TABLE). To move to the data

screen, press the [DATA] soft key.

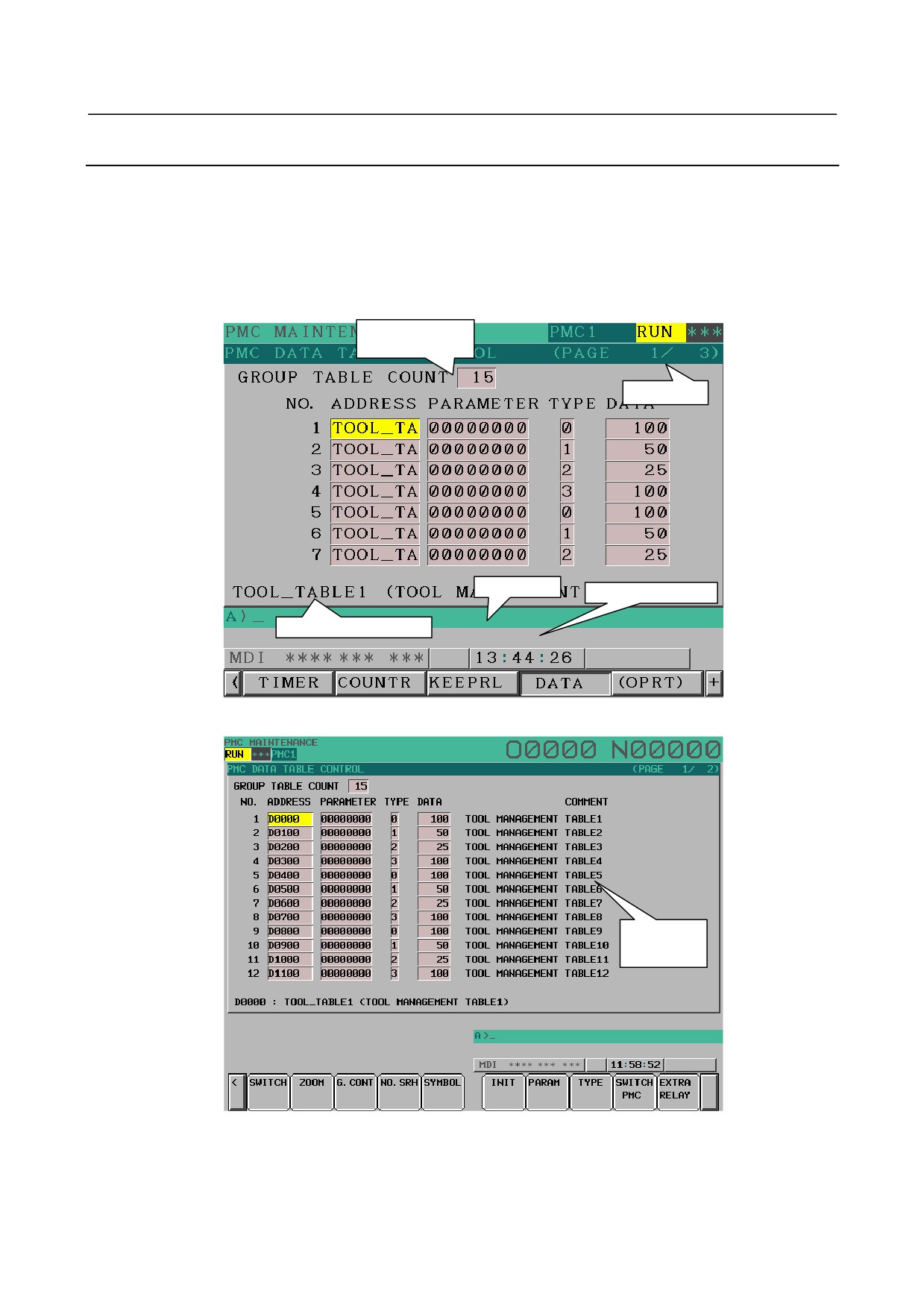

DATA TABLE CONTROL screen ([List] screen)

Pressing the [DATA] soft key displays the DATA TABLE CONTROL screen for data table management.

This screen can be used in one of two modes: the simple display mode and the comment display mode.

Display of the

number of groups

Page display

Key input line

Message display line

Additional information line

Simple display mode

Comment

display area

Comment display mode (12-soft key display unit)

- 218 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

- Table contents

• GROUP TABLE COUNT

: Number of data items in the data table

• NO.

: Group number

• ADDRESS

: Data table start address

• PARAMETER

: Data table control parameter

• TYPE

: Data length (0 = 1 byte, 1 = 2 bytes, 2 = 4 bytes, 3 = bit)

• DATA

: Number of data items in each data table

• COMMENT

: Comment on the start D address of each group

The additional information line at the bottom of the screen displays the symbol and comment of the

address on which the cursor is placed. When the cursor is placed on the PARAMETER, TYPE, or DATA

column, the current setting is displayed.

The ADDRESS column displays the start address of a data table. Multiple groups may share an address.

When the [SYMBOL] soft key is pressed, the symbol of the start address is displayed.

NOTE

The data table control parameters have the following meanings:

#7

#6

#5

#4

#3

#2

#1

#0

0: Binary format

1: BCD format (Bits 2 and 3 are invalid.)

0: Without input protection

1: With input protection

0: Binary or BCD format (Bit 0 is valid.)

1: Hexadecimal format (Bits 0 and 3 are invalid.)

0: Signed (valid only when bits 0 and 2 are set to 0)

1: Unsigned (valid only when bits 0 and 2 are set to 0)

NOTE

1 When data table control data is protected by the programmer protection function,

the data table control data screen is not displayed. For details, see PMC

PROGRAMMING MANUAL (B-64393EN).

2 When PMC parameters are output using the I/O screen (see Subsection 6.4.7,

“Data Input/Output ([I/O] Screen)”), only the data of an address D area set in the

data table control data is output from the data table screen. The data of an

address D area not set in the data table control data is not output.

- 219 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

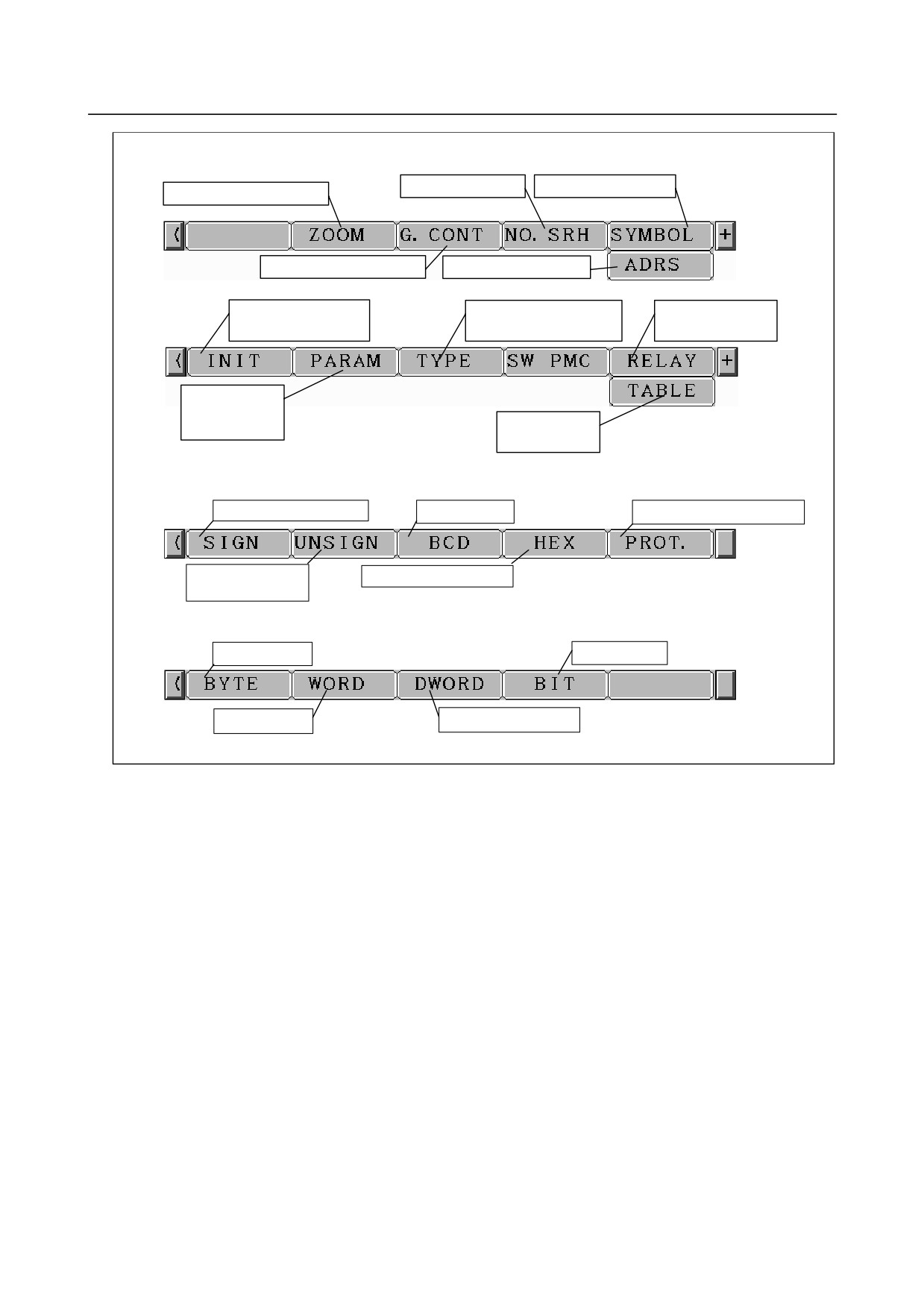

Soft keys on the DATA TABLE CONTROL screen

Group number search

Symbol display switching

Switching to the zoom screen

Input of the number of groups

Address display switching

Data table control data

Switching to the soft keys for

Switching to Extra

initialization

data size setting

relay screen

Switching to the

soft keys for

parameter setting

Switching to Data

table screen

Soft keys for parameter setting

Setting for signed decimal

Setting for BCD

Protection state modification

Setting for unsigned

Setting for hexadecimal

decimal

Soft keys for data size setting

Setting for byte

Setting for bit

Setting for word

Setting for double word

- 220 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

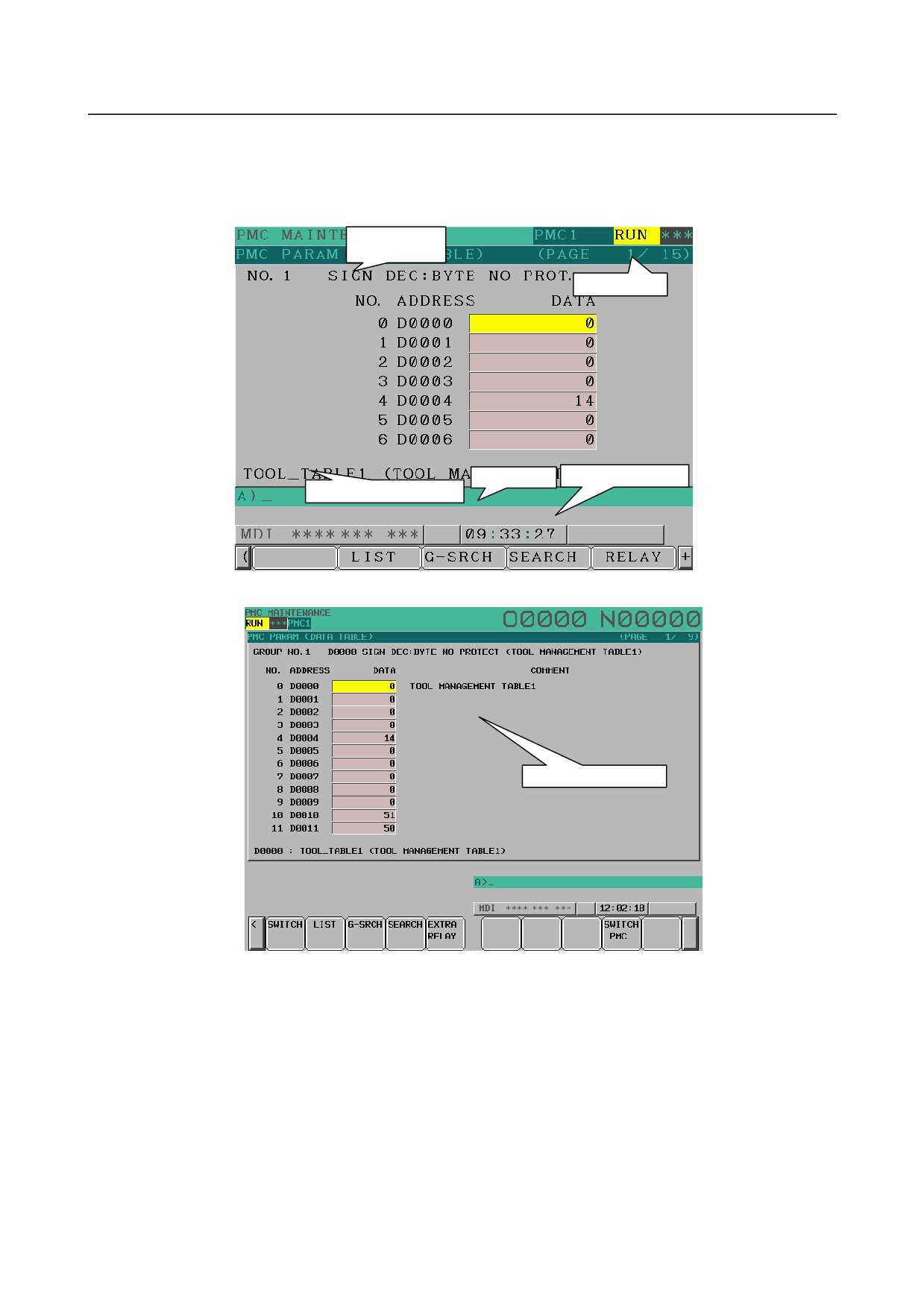

DATA TABLE screen ([ZOOM] screen)

If the data table control data is specified, pressing the [ZOOM] soft key on the data table control data

screen displays the data table setting screen. This screen can be used in one of three modes: the simple

display mode, the comment display mode, and the bit display mode.

Group

information line

Page display

Key input line

Message display line

Additional information line

Simple display mode

Comment display area

Comment display mode (12-soft key display unit)

- 221 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

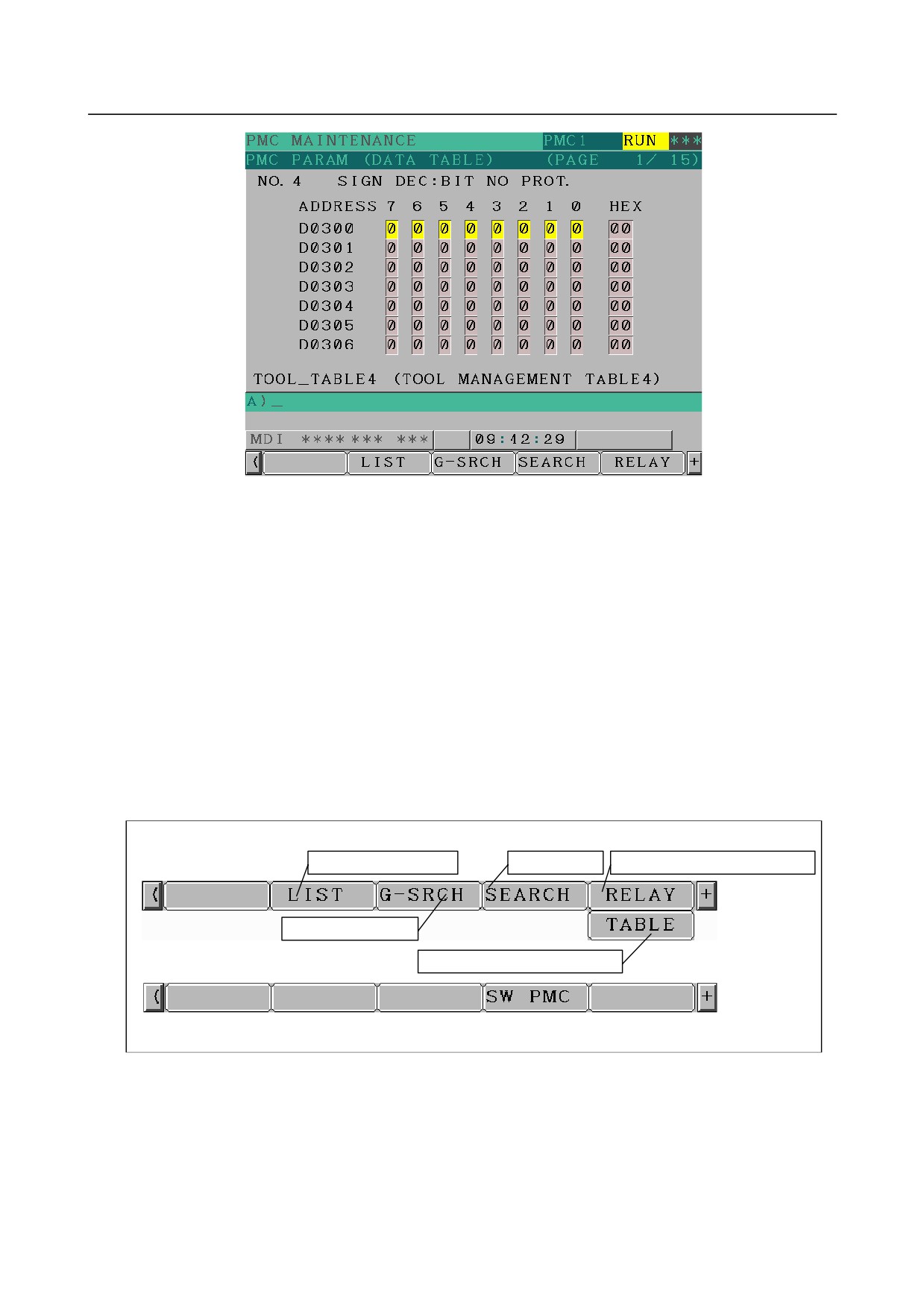

Bit display mode

- Table contents

• NO.

• ADDRESS

: Address used by the sequence program

• DATA

: Data value of data table

• COMMENT : Comment on the D address

•

0 to 7

: Data of each bit

•

HEX

: Display of each byte in hexadecimal

The group information line at the top of the screen displays a group number, group start address, settings,

and comment on the start address.

The additional information line at the bottom of the screen displays the symbol and comment of the

address on which the cursor is placed. In the bit display mode, a bit symbol and comment, or a byte

symbol and comment are displayed, depending on the cursor position.

Soft keys on the DATA TABLE screen

Switching to the list screen

Address search

Switching to the Extra relay screen

Group number search

Switching to the Data table screen

- 222 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.4.7

Data Input/Output ([I/O] Screen)

To move to the I/O screen, press the [I/O] soft key.

On this screen, sequence programs, PMC parameters and PMC message data for multi-language display

can be written to the specified device, read from the device, and compared. The query selection cursor,

which moves vertically from one question to another, is displayed, as is the option selection cursor, which

moves horizontally from one option to another.

The following types of devices can be used for input/output. The desired device type can be selected by

positioning the query selection cursor to "DEVICE" and moving the option selection cursor to that type.

• MEMORY CARD : Data can be output to and input from a memory card.

• FLASH ROM

: Data can be output to and input from flash ROM.

• FLOPPY

: Data can be output to and input from handy files or floppy cassettes.

• OTHERS

: Data can be output to and input from other general-purpose RS-232C

input/output devices.

In STATUS in the lower part of the screen, a detailed explanation of execution and the execution status

are displayed. During write, read, and comparison, the size of the data already transferred is indicated as

the execution (intermediate) result.

- 223 -

Content      ..     6      7      8      9     ..
