FANUC Robotics SYSTEM R-30iA and R-30iB Controller. KAREL Reference Manual

MARRC75KR07091E Rev D

2. LANGUAGE ELEMENTS

--from an original POSITION and puts them down

--at a destination POSITION.

original : POSITION

--POSITION of objects

destination : POSITION

--Destination of objects

count

: INTEGER

--Number of objects moved

A comment is marked by a pair of consecutive hyphens (- -). On a program line, anything to the

right of these hyphens is treated as a comment.

Comments can be inserted on lines by themselves or at the ends of lines containing any program

statement. They are ignored by the translator and have absolutely no effect on a running program.

2.2

TRANSLATOR DIRECTIVES

Translator directives provide a mechanism for directing the translation of a KAREL program.

Translator directives are special statements used within a KAREL program to

• Include other files into a program at translation time

• Specify program and task attributes

All directives except %INCLUDE must be after the program statement but before any other

statements. Table 2-9 lists and briefly describes each translator directive. Refer to Appendix A for a

complete description of each translator directive.

Table 2-9. Translator Directives

Directive

Description

%ALPHABETIZE

Specifies that variables will be created in alphabetical order when p-code is

loaded.

%CMOSVARS

Specifies the default storage for KAREL variables is CMOS RAM.

%CMOS2SHADOW

Instructs the translator to put all CMOS variables in SHADOW memory.

%COMMENT = ’comment’

Specifies a comment of up to 16 characters. During load time, the comment is

stored as a program attribute and can be displayed on the SELECT screen of

the teach pendant or CRT/KB.

%CRTDEVICE

Specifies that the CRT/KB user window will be the default in the READ and

WRITE statements instead of the TPDISPLAY window.

%DEFGROUP = n

Specifies the default motion group to be used by the translator.

%DELAY

Specifies the amount of time the program will be delayed out of every 250

milliseconds.

2-11

2. LANGUAGE ELEMENTS

MARRC75KR07091E Rev D

Table 2-9. Translator Directives (Cont’d)

Directive

Description

%ENVIRONMENT filename

Used by the off-line translator to specify that a particular environment file should

be loaded.

%INCLUDE filename

Specifies files to insert into a program at translation time.

%LOCKGROUP =n,n

Specifies the motion group(s) locked by this task.

%NOABORT = option

Specifies a set of conditions which will be prevented from aborting the program.

%NOBUSYLAMP

Specifies that the busy lamp will be OFF during execution.

%NOLOCKGROUP

Specifies that no motion groups will be locked by this task.

%NOPAUSE = option

Specifies a set of conditions which will be prevented from pausing the program.

%NOPAUSESHFT

Specifies that the task is not paused if the teach pendant shift key is released.

%PRIORITY = n

Specifies the task priority.

%SHADOWVARS

Specifies that all variables by default are created in SHADOW.

%STACKSIZE = n

Specifies the stack size in long words.

%TIMESLICE = n

Supports round-robin type time slicing for tasks with the same priority.

%TPMOTION

Specifies that task motion is enabled only when the teach pendant is enabled.

%UNINITVARS

Specifies that all variables are by default uninitialized.

%INCLUDE Directive in a KAREL Program illustrates the %INCLUDE directive. Include File

mover_decs for a KAREL Program shows the included file.

%INCLUDE Directive in a KAREL Program

PROGRAM mover

-- This program, called mover, picks up 10 objects

-- from an original position and puts them down

-- at a destination position.

%INCLUDE mover_decs

-- Uses %INCLUDE directive to include the file

-- called mover_decs containing declarations

BEGIN

OPEN HAND gripper

-- Loop to move total number of objects

FOR count = 1 TO num_of_parts DO

-- Put position in Position Register 1

SET_POS_REG(1,original,status)

-- Call TP program to move to Position Register

move_to_pr

CLOSE HAND gripper

2-12

MARRC75KR07091E Rev D

2. LANGUAGE ELEMENTS

SET_POS_REG(1,destination,status)

move_to_pr

OPEN HAND gripper

ENDFOR

-- End of loop

END mover

The TP program move_to_pr is a one line program

to do the move:

1:J PR[1] 100% FINE

Include File mover_decs for a KAREL Program

-- Declarations for program mover in file mover_decs

VAR

original

: XYZWPR

--POSITION of objects

destination : XYZWPR

--Destination of objects

count

: INTEGER

--Number of objects moved

CONST

gripper = 1

-- Hand number 1

num_of_parts = 10

-- Number of objects to move

2.3

DATA TYPES

Three forms of data types are provided by KAREL to define data items in a program:

• Simple type data items

— Can be assigned constants or variables in a KAREL program

— Can be assigned actual (literal) values in a KAREL program

— Can assume only single values

• Structured type data items

— Are defined as data items that permit or require more than a single value

— Are composites of simple data and structured data

• User-defined type data items

— Are defined in terms of existing data types including other user-defined types

— Can be defined as structures consisting of several KAREL variable data types

— Cannot include itself

Table 2-10 lists the simple and structured data types available in KAREL. User-defined data types

are described in Section 2.4 .

2-13

2. LANGUAGE ELEMENTS

MARRC75KR07091E Rev D

Table 2-10. Simple and Structured Data Types

Simple

Structured

BOOLEAN

ARRAY OF BYTE

JOINTPOS8

FILE

CAM_SETUP

JOINTPOS9

INTEGER

CONFIG

MODEL

REAL

JOINTPOS

PATH

STRING

JOINTPOS1

POSITION

JOINTPOS2

QUEUE_TYPE

JOINTPOS3

ARRAY OF SHORT

JOINTPOS4

VECTOR

JOINTPOS5

VIS_PROCESS

JOINTPOS6

XYZWPR

JOINTPOS7

XYZWPREXT

See Also: Appendix A for a detailed description of each data type.

2.4

USER-DEFINED DATA TYPES AND STRUCTURES

User-defined data types are data types you define in terms of existing data types. User-defined data

structures are data structures in which you define a new data type as a structure consisting of several

KAREL variable data types, including previously defined user data types.

2.4.1

User-Defined Data Types

User-defined data types are data types you define in terms of existing data types. With user-defined

data types, you

• Include their declarations in the TYPE sections of a KAREL program.

• Define a KAREL name to represent a new data type, described in terms of other data types.

• Can use predefined data types required for specific applications.

User-defined data types can be defined as structures, consisting of several KAREL variable data types.

The continuation character, "&", can be used to continue a declaration on a new line.

User-Defined Data Type Example shows an example of user-defined data type usage and continuation

character usage.

2-14

MARRC75KR07091E Rev D

2. LANGUAGE ELEMENTS

User-Defined Data Type Example

CONST

n_pages = 20

n_lines = 40

std_str_lng = 8

TYPE

std_string_t = STRING [std_str_lng]

std_table_t = ARRAY [n_pages]&

--continuation character

OF ARRAY [n_lines] OF std_string_t

path_hdr_t FROM main_prog = STRUCTURE

--user defined data type

ph_uframe: POSITION

ph_utool: POSITION

ENDSTRUCTURE

node_data_t FROM main_prog = STRUCTURE

gun_on: BOOLEAN

air_flow: INTEGER

ENDSTRUCTURE

std_path_t FROM main_prog =

PATH PATHDATA = path_hdr_t NODEDATA = node_data_t

VAR

msg_table_1: std_table_t

msg_table_2: std_table_t

temp_string: std_string_t

seam_1_path: std_path_t

Usage

User-defined type data can be

• Assigned to other variables of the same type

• Passed as a parameter

• Returned as a function

Assignment between variables of different user-defined data types, even if identically declared, is not

permitted. In addition, the system provides the ability to load and save variables of user-defined data

types, checking consistency during the load with the current declaration of the data type.

Restrictions

A user-defined data type cannot

• Include itself

• Include any type that includes it, either directly or indirectly

• Be declared within a routine

2-15

2. LANGUAGE ELEMENTS

MARRC75KR07091E Rev D

2.4.2

User-Defined Data Structures

A structure is used to store a collection of information that is generally used together. User-defined

data structures are data structures in which you define a new data type as a structure consisting of

several KAREL variable data types.

When a program containing variables of user-defined data types is loaded, the definitions of these

types are checked against a previously created definition. If a previously created definition does not

exist, a new one is created.

With user-defined data structures, you

• Define a data type as a structure consisting of a list of component fields, each of which can be a

standard data type or another, previously defined, user data type. See Defining a Data Type as

a User-Defined Structure .

Defining a Data Type as a User-Defined Structure

new_type_name = STRUCTURE

field_name_1: type_name_1

field_name_2: type_name_2

ENDSTRUCTURE

• Access elements of a data type defined as a structure in a KAREL program. The continuation

character, "&", can be used to continue access of the structure elements. See Accessing Elements

of a User-Defined Structure in a KAREL Program .

Accessing Elements of a User-Defined Structure in a KAREL Program

var_name = new_type_name.field_nam_1

new_type_name.field_name_2 = expression

outer_struct_name.inner_struct_name&

.field_name = expression

• Access elements of a data type defined as a structure from the CRT/KB and at the teach pendant.

• Define a range of executable statements in which fields of a STRUCTURE type variable can

be accessed without repeating the name of the variable. See Defining a Range of Executable

Statements .

2-16

MARRC75KR07091E Rev D

2. LANGUAGE ELEMENTS

Defining a Range of Executable Statements

USING struct_var, struct_var2 DO

statements

ENDUSING

In the above example, struct_var and struct_var2 are the names of structure type variables.

Note If the same name is both a field name and a variable name, the field name is assumed. If the same

field name appears in more than one variable, the right-most variable in the USING statement is used.

Restrictions

User-defined data structures have the following restrictions:

• The following data types are not valid as part of a data structure:

— STRUCTURE definitions; types that are declared structures are permitted. See Valid

STRUCTURE Definitions .

Valid STRUCTURE Definitions

The following is valid:

TYPE

sub_struct = STRUCTURE

subs_field_1: INTEGER

subs_field_2: BOOLEAN

ENDSTRUCTURE

big_struct = STRUCTURE

bigs_field_1: INTEGER

bigs_field_2: sub_struct

ENDSTRUCTURE

The following is not valid:

big_struct = STRUCTURE

bigs_field_1: INTEGER

bigs_field_2: STRUCTURE

subs_field_1: INTEGER

subs_field_2: BOOLEAN

ENDSTRUCTURE

— PATH types

2-17

2. LANGUAGE ELEMENTS

MARRC75KR07091E Rev D

— FILE types

— VISION types

— Variable length arrays

— The data structure itself, or any type that includes it, either directly or indirectly

— Any structure not previously defined.

• A variable can not be defined as a structure, but can be defined as a data type previously defined

as a structure. See Defining a Variable as a Type Previously Defined as a Structure .

Defining a Variable as a Type Previously Defined as a Structure

The following is valid:

TYPE

struct_t = STRUCTURE

st_1: BOOLEAN

st_2: REAL

ENDSTRUCTURE

VAR

var_name: struct_t

The following is not valid:

VAR

var_name: STRUCTURE

vn_1: BOOLEAN

vn_2: REAL

ENDSTRUCTURE

2.5

ARRAYS

You can declare arrays of any data type except PATH.

You can access elements of these arrays in a KAREL program, from the CRT/KB, and from the

teach pendant.

In addition, you can define two types of arrays:

• Multi-dimensional arrays

• Variable-sized arrays

2-18

MARRC75KR07091E Rev D

2. LANGUAGE ELEMENTS

2.5.1

Multi-Dimensional Arrays

Multi-dimensional arrays are arrays of elements with two or three dimensions. These arrays allow you

to identify an element using two or three subscripts.

Multi-dimensional arrays allow you to

• Declare variables as arrays with two or three (but not more) dimensions. See Declaring Variables

as Arrays with Two or Three Dimensions .

Declaring Variables as Arrays with Two or Three Dimensions

VAR

name: ARRAY [size_1] OF ARRAY [size_2] .., OF element_type

VAR

name: ARRAY [size_1, size_2,...] OF element_type

• Access elements of these arrays in KAREL statements. See Accessing Elements of

Multi-Dimensional Arrays in KAREL Statements .

Accessing Elements of Multi-Dimensional Arrays in KAREL Statements

name [subscript_1, subscript_2,...] = value

value = name [subscript_1, subscript_2,...]

• Declare routine parameters as multi-dimensional arrays. See Declaring Routine Parameters as

Multi-Dimensional Arrays .

Declaring Routine Parameters as Multi-Dimensional Arrays

Routine expects 2-dimensional array of INTEGER.

ROUTINE array_user (array_param:ARRAY [*,*] OF INTEGER)

The following are equivalent:

ROUTINE rtn_name(array_param: ARRAY[*] OF INTEGER)

and

ROUTINE rtn_name(array_param: ARRAY OF INTEGER)

2-19

2. LANGUAGE ELEMENTS

MARRC75KR07091E Rev D

• Access elements with KCL commands and the teach pendant.

• Save and load multi-dimensional arrays to and from variable files.

Restrictions

The following restrictions apply to multi-dimensional arrays:

• A subarray can be passed as a parameter or assigned to another array by omitting one or more of

the right-most subscripts only if it was defined as a separate type. See Using a Subarray .

Using a Subarray

TYPE

array_30 = ARRAY[30] OF INTEGER

array_20_30 = ARRAY[20] OF array_30

VAR

array_1: array_30

array_2: array_20_30

array_3: ARRAY[10] OF array_20_30

ROUTINE array_user(array_data: ARRAY OF INTEGER

FROM other-prog

BEGIN

array_2 = array_3[10]

-- assigns elements array_3[10,1,1]

-- through array_3[10,20,30] to

array_2

array_2[2] = array_1

-- assigns elements array_1[1] through

-- array_1 [30] to elements array_2[2,1]

-- through array_2[2,30]

array_user(array_3[5,3])

-- passes elements array_3[5,3,1]

-- through array_3[5,3,30] to array_user

• The element type cannot be any of the following:

— Array (but it can be a user-defined type that is an array)

— Path

2.5.2

Variable-Sized Arrays

Variable-sized arrays are arrays whose actual size is not known, and that differ from one use of the

program to another. Variable-sized arrays allow you to write KAREL programs without establishing

dimensions of the array variables. In all cases, the dimension of the variable must be established

before the .PC file is loaded.

2-20

MARRC75KR07091E Rev D

2. LANGUAGE ELEMENTS

Variable-sized arrays allow you to

• Declare an array size as ‘‘to-be-determined ’’ (*). See Indicates that the Size of an Array is

"To-Be-Determined" .

Indicates that the Size of an Array is "To-Be-Determined"

VAR

one_d_array: ARRAY[*] OF type

two_d_array: ARRAY[*,*] OF type

• Determine an array size from that in a variable file or from a KCL CREATE VAR command

rather than from the KAREL source code.

The actual size of a variable-sized array will be determined by the actual size of the array if it already

exists, the size of the array in a variable file if it is loaded first, or the size specified in a KCL CREATE

VAR command executed before the program is loaded. Dimensions explicitly specified in a program

must agree with those specified from the .VR file or specified in the KCL CREATE VAR command.

Restrictions

Variable-sized arrays have the following restrictions:

• The variable must be loaded or created in memory (in a .VR file or using KCL), with a known

length, before it can be used.

• When the .PC file is loaded, it uses the established dimension, otherwise it uses 0.

• Variable-sized arrays are only allowed in the VAR section and not the TYPE section of a program.

• Variable-sized arrays are only allowed for static variables.

2-21

3. USE OF OPERATORS

MARRC75KR07091E Rev D

This chapter describes how operators are used with other language elements to perform operations

within a KAREL application program. Expressions and assignments, which are program statements

that include operators and operands, are explained first. Next, the kinds of operations that can be

performed using each available KAREL operator are discussed.

3.1

EXPRESSIONS AND ASSIGNMENTS

Expressions are values defined by a series of operands, connected by operators and cause desired

computations to be made. For example, 4 + 8 is an expression in which 4 and 8 are the operands and

the plus symbol (+) is the operator .

Assignments are statements that set the value of variables to the result of an evaluated expression.

3.1.1

Rule for Expressions and Assignments

The following rules apply to expressions and assignments:

• Each operand of an expression has a data type determined by the nature of the operator.

• Each KAREL operator requires a particular operand type and causes a computation that produces

a particular result type.

• Both operands in an expression must be of the same data type. For example, the AND operator

requires that both its operands are INTEGER values or that both are BOOLEAN values. The

expression i AND b , where i is an INTEGER and b is a BOOLEAN, is invalid.

• Five special cases in which the operands can be mixed provide an exception to this rule. These

five cases include the following:

— INTEGER and REAL operands to produce a REAL result

— INTEGER and REAL operands to produce a BOOLEAN result

— INTEGER and VECTOR operands to produce a VECTOR

— REAL and VECTOR operands to produce a VECTOR

— POSITION and VECTOR operands to produce a VECTOR

• Any positional data type can be substituted for the POSITION data type.

3.1.2

Evaluation of Expressions and Assignments

Table 3-1 summarizes the data types of the values that result from the evaluation of expressions

containing KAREL operators and operands.

3-2

MARRC75KR07091E Rev D

3. USE OF OPERATORS

Table 3-1. Summary of Operation Result Types

Operator

DIV MOD

< >,>= <=,

> =<

AND OR

<, >, =

NOT

Types of Operators

INTEGER

REAL

Mixed**

INTEGER-

REAL

BOOLEAN

STRING

Mixed**

INTEGER-

VECTOR

Mixed** REAL-

VECTOR

B***

POSITION

Mixed**

POSITION-

VECTOR

**Mixed means one operand of each type

***VECTOR values can be compared using = < > only

íOperation not allowed

I INTEGER

R REAL

B BOOLEAN

V VECTOR

P POSITION

3-3

3. USE OF OPERATORS

MARRC75KR07091E Rev D

3.1.3

Variables and Expressions

Assignment statements contain variables and expressions. The variables can be any user-defined

variable, a system variable with write access, or an output port array with write access. The expression

can be any valid KAREL expression. The following examples are acceptable assignments:

$SPEED = 200.00 -- assigns a REAL value to a system variable

count = count + 1 -- assigns an INTEGER value to an INTEGER variable

The data types of variable and expression must match with three exceptions:

• INTEGER variables can be assigned to REAL variables. In this case, the INTEGER is treated

as a REAL number during evaluation of the expression. However, a REAL number cannot be

used where an INTEGER value is expected.

• If required, a REAL number can be converted to an INTEGER using the ROUND or TRUNC

built-in functions.

• INTEGER, BYTE, and SHORT types can be assigned to each other, although a run-time error

will occur if the assigned value is out of range.

• Any positional type can be assigned to any other positional type. A run-time error will result if a

JOINTPOS from a group without kinematics is assigned to an XYZWPR.

See Also: Relational Operations, ROUND and TRUNC built-in functions, Appendix A, ‘‘KAREL

Language Alphabetical Description’’

3.2

OPERATIONS

Operations include the manipulation of variables, constants, and literals to compute values using the

available KAREL operators. The following operations are discussed:

• Arithmetic Operations

• Relational Operations

• Boolean Operations

• Special Operations

Table 3-2 lists all of the operators available for use with KAREL.

3-4

MARRC75KR07091E Rev D

3. USE OF OPERATORS

Table 3-2. KAREL Operators

Operation

Operator

Arithmetic

DIV

MOD

Relational

Boolean

AND

NOT

Special

>=<

3.2.1

Arithmetic Operations

The addition (+), subtraction (-), and multiplication (*) operators, along with the DIV and MOD

operators, can be used to compute values within arithmetic expressions. Refer to Table 3-3 .

Table 3-3. Arithmetic Operations Using +, -, and * Operators

EXPRESSION

RESULT

3 + 2

3 - 2

3 * 2

• The DIV and MOD operators are used to perform INTEGER division. Refer to Table 3-4 .

Table 3-4. Arithmetic Operations Examples

EXPRESSION

RESULT

11 DIV 2

11 MOD 2

— The DIV operator truncates the result of an equation if it is not a whole number.

— The MOD operator returns the remainder of an equation that results from dividing the

left-side operand by the right-side operand.

— If the right-side operand of a MOD equation is a negative number, the result is also negative.

— If the divisor in a DIV equation or the right-side operand of a MOD equation is zero, the

KAREL program is aborted with the ‘‘Divide by zero’’ error.

• The INTEGER bitwise operators, AND, OR, and NOT, produce the result of a binary AND, OR,

or NOT operation on two INTEGER values. Refer to Table 3-5 .

3-5

3. USE OF OPERATORS

MARRC75KR07091E Rev D

Table 3-5. Arithmetic Operations Using Bitwise Operands

EXPRESSION

BINARY EQUIVALENT

RESULT

5 AND 8

0101 AND 1000

0000 = 0

5 OR 8

0101 OR 1000

1101 = 13

-4 AND 8

1100 AND 1000

1000 = 8

-4 OR 8

1100 OR 1000

1100 = -4

NOT 5

NOT 0101

1010 = -6*

NOT -15

NOT 110001

1110 = 14*

*Because negative INTEGER values are represented in the two’s complement form, NOT i is not the

same as -i.

• If an INTEGER or REAL equation results in a value exceeding the limit for INTEGER or REAL

variables, the program is aborted with an error. If the result is too small to represent, it is set to

zero.

Table 3-6 lists the precedence levels for the KAREL operators.

Table 3-6. KAREL Operator Precedence

OPERATOR

PRECEDENCE LEVEL

NOT

High

:, @, #

*, /, AND, DIV, MOD

Unary + and -, OR, +, -

<, >, =, < >, < =, > =, > = <

Low

3.2.2

Relational Operations

Relational operators (< >, =, >, <, <=, >=) produce a BOOLEAN (TRUE/FALSE) result corresponding

to whether or not the values of the operands are in the relation specified. In a relational expression,

both operands must be of the same simple data type. Two exceptions to this rule exist:

• REAL and INTEGER expressions can be mixed where the INTEGER operand is converted

to a REAL number.

For example, in the expression 1 > .56 , the number 1 is converted to 1.0 and the result is TRUE.

• VECTOR operands, which are a structured data type, can be compared in a relational expression

but only by using the equality (=) or inequality (<>) operators.

3-6

MARRC75KR07091E Rev D

3. USE OF OPERATORS

The relational operators function with INTEGER and REAL operands to evaluate standard

mathematical equations. Refer to Table 3-7 .

Note Performing equality (=) or inequality (<>) tests between REAL values might not yield the

results you expect. Because of the way REAL values are stored and manipulated, two values that

would appear to be equal might not be exactly equal. This is also true of VECTOR values which are

composed of REAL values. Use >= or <= where appropriate instead of =.

Relational operators can also have STRING values as operands. STRING values are compared

lexically character by character from left to right until one of the following occurs. Refer to Table 3-7

• The character code for a character in one STRING is greater than the character code for the

corresponding character in the other STRING. The result in this case is that the first string is

greater. For example, the ASCII code for A is 65 and for a is 97. Therefore, a > A = TRUE.

• One STRING is exhausted while characters remain in the other STRING. The result is that the

first STRING is less than the other STRING.

• Both STRING expressions are exhausted without finding a mismatch. The result is that the

STRINGs are equal.

Table 3-7. Relational Operation Examples

EXPRESSION

RESULT

’A’ < ’AA’

TRUE

’A’ = ’a’

FALSE

4 > 2

TRUE

17.3< > 5.6

TRUE

(3 *4) < > (4* 3)

FALSE

With BOOLEAN operands, TRUE > FALSE is defined as a true statement. Thus the expression

FALSE >= TRUE is a false statement. The statements FALSE >= FALSE and TRUE >= FALSE are

also true statements.

3.2.3

Boolean Operations

The Boolean operators AND, OR, and NOT, with BOOLEAN operands, can be used to perform

standard mathematical evaluations. Table 3-8 summarizes the results of evaluating Boolean

expressions, and some examples are listed in Table 3-9 .

3-7

3. USE OF OPERATORS

MARRC75KR07091E Rev D

Table 3-8. BOOLEAN Operation Summary

OPERATOR

OPERAND 1

OPERAND 2

RESULT

NOT

TRUE

FALSE

TRUE

FALSE

TRUE

FALSE

AND

TRUE

FALSE

TRUE

FALSE

Table 3-9. BOOLEAN Operations Using AND, OR, and NOT Operators

EXPRESSION

RESULT

DIN[1] AND DIN[2]

TRUE if DIN[1] and DIN[2] are both TRUE; otherwise FALSE

DIN[1] AND NOT DIN[2]

TRUE if DIN[1] is TRUE and DIN[2] is FALSE; otherwise FALSE

(x < y) OR (y > z)

TRUE if x < y or if y > z; otherwise FALSE

(i = 2) OR (i = 753)

TRUE if i = 2 or if i = 753; otherwise FALSE

3.2.4

Special Operations

The KAREL language provides special operators to perform functions such as testing the value of

approximately equal POSITION variables, relative POSITION variables, VECTOR variables, and

STRING variables. This section describes their operations and gives examples of their usage.

The following rules apply to approximately equal operations:

• The relational operator (>=<) determines if two POSITION operands are approximately equal

and produces a BOOLEAN result. The comparison is similar to the equality (=) relation except

that the operands compared need not be identical. Extended axis values are not considered.

• Approximately equal operations must be used in conjunction with the system variables,

$LOCTOL, $ORIENTTOL, and $CHECKCONFIG to determine how close two positions must

be. Refer to the FANUC Robotics Software Reference Manual for a description of these variables.

3-8

MARRC75KR07091E Rev D

3. USE OF OPERATORS

• The relational operator (>=<) is allowed only in normal program use and cannot be used as a

condition in a condition handler statement.

In the following example the relational operator (>=<) is used to determine if the current robot

position (determined by using the CURPOS built-in procedure) is near the designated perch position:

Relational Operator

IF perch >=< CURPOS (0,0) THEN

—— Call move to perch program

move_to_perch

ELSE

ABORT

ENDIF

Relative Position Operations

To locate a position in space, you must reference it to a specific coordinate frame. In KAREL,

reference frames have the POSITION data type. The relative position operator (:) allows you to

reference a position or vector with respect to the coordinate frame of another position (that is, the

coordinate frame that has the other position as its origin point).

The relative position operator (:) is used to transform a position from one reference frame to another

frame.

In the example shown in Figure 3-1 , a vision system is used to locate a target on a car such as a bolt

head on a bumper. The relative position operator is used to calculate the position of the door handle

based on data from the car drawings. The equation shown in Figure 3-1 is used to calculate the

position of w_handle in the WORLD frame.

3-9

3. USE OF OPERATORS

MARRC75KR07091E Rev D

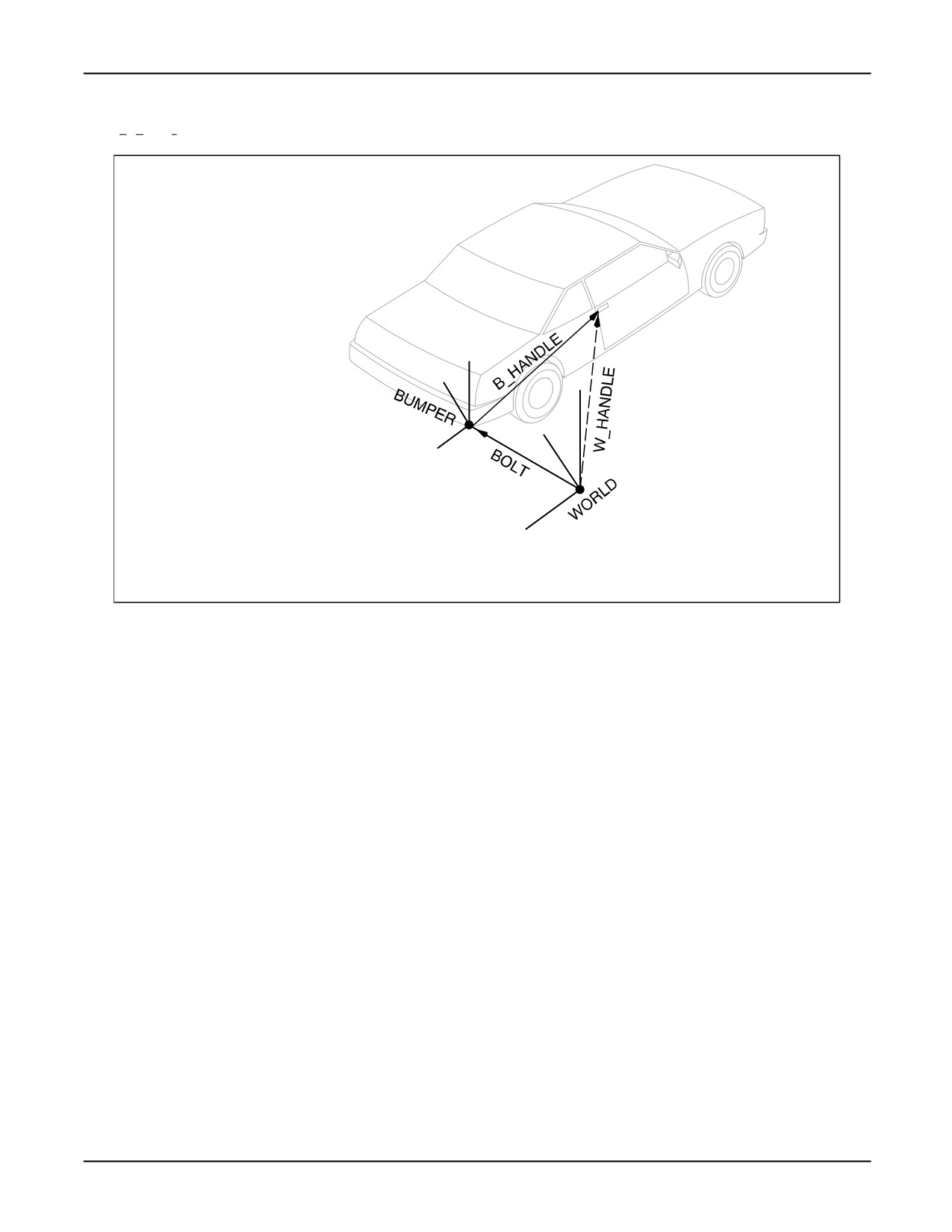

Figure 3-1. Determining w_handle Relative to WORLD Frame

w_handle = bolt : b_handle

(world

(bumper

frame)

where:

bolt is the position of the BUMPER frame origin referenced in the WORLD frame.

w_handle is the handle position referenced in the WORLD frame.

b_handle is the handle position referenced in the BUMPER frame.

The KAREL INV Built-In Function reverses the direction of the reference.

For example, to determine the position of the door handle target (b_handle) relative to the position of

the bolt , use the equation shown in Figure 3-2 .

3-10

MARRC75KR07091E Rev D

3. USE OF OPERATORS

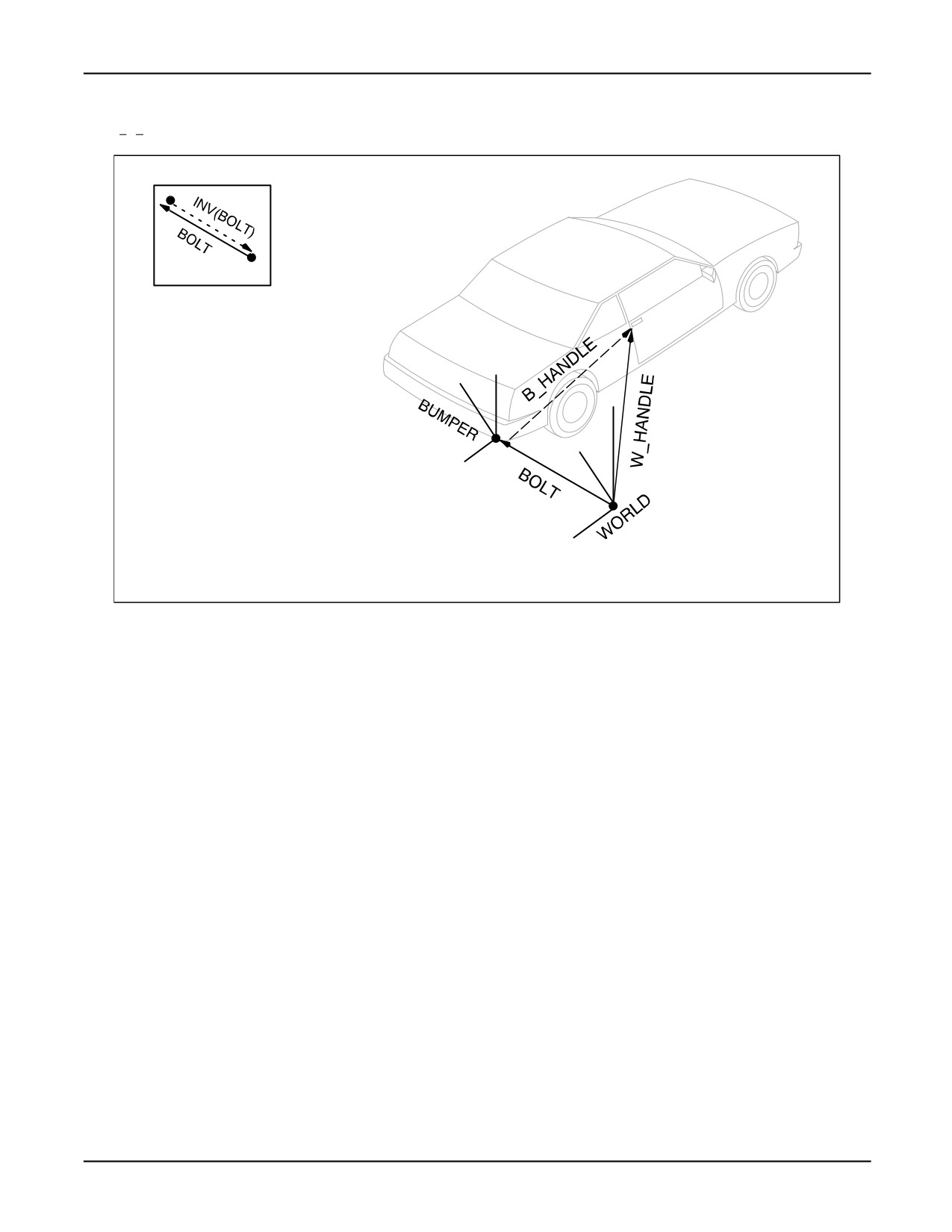

Figure 3-2. Determining b_handle Relative to BUMPER Frame

b_handle = INV(bolt) : w_handle

(bumper

(world

frame) frame) frame)

where:

INV(bolt)

is the position of the WORLD frame origin referenced in the BUMPER frame.

w_handle is the handle position referenced in the WORLD frame.

b_handle is the handle position referenced in the BUMPER frame.

Note The order of the relative operator (:) is important.where:b_handle = bolt : w_handle is NOT the

same as b_handle = w_handle : bolt

See Also: Chapter 8 POSITION DATA , INV Built-In Function, Appendix A .

Vector Operations

The following rules apply to VECTOR operations:

• A VECTOR expression can perform addition (+) and subtraction (-) equations on VECTOR

operands. The result is a VECTOR whose components are the sum or difference of the

corresponding components of the operands. For example, the components of the VECTOR vect_3

will equal (5, 10, 9) as a result of the following program statements:

Vector Operations

vect_1.x = 4; vect_1.y = 8; vect_1.z = 5

vect_2.x = 1; vect_2.y = 2; vect_2.z = 4

vect_3 = vect_1 + vect_2

• The multiplication (*) and division (/) operators can be used with either

3-11

3. USE OF OPERATORS

MARRC75KR07091E Rev D

— A VECTOR and an INTEGER operand

— A VECTOR and a REAL operand

The product of a VECTOR and an INTEGER or a VECTOR and a REAL is a scaled version

of the VECTOR. Each component of the VECTOR is multiplied by the INTEGER (treated as

a REAL number) or the REAL.

For example, the VECTOR (8, 16, 10) is produced as a result of the following operation:

(4, 8, 5) * 2

VECTOR components can be on the left or right side of the operator.

•

A VECTOR divided by an INTEGER or a REAL causes each component of the VECTOR to

be divided by the INTEGER (treated as a REAL number) or REAL. For example, (4, 8, 5) / 2

results in (2, 4, 2.5).

If the divisor is zero, the program is aborted with the ‘‘Divide by zero’’ error.

•

An INTEGER or REAL divided by a VECTOR causes the INTEGER (treated as a REAL

number) or REAL to be multiplied by the reciprocal of each element of the VECTOR, thus

producing a new VECTOR. For example, 3.5 / VEC(7.0,8.0,9.0) results in (0.5,0.4375,0.38889).

If any of the elements of the VECTOR are zero, the program is aborted with the ‘‘Divide by

zero’’ error.

•

The cross product operator (#) produces a VECTOR that is normal to the two operands in the

direction indicated by the right hand rule and with a magnitude equal to the product of the

magnitudes of the two vectors and SIN(Ĭ), whereĬis the angle between the two vectors. For

example, VEC(3.0,4.0,5.0) # VEC(6.0,7.0,8.0) results in (-3.0, 6.0, -3.0).

If either vector is zero, or the vectors are exactly parallel, an error occurs.

•

The inner product operator (@) results in a REAL number that is the sum of the products of the

corresponding elements of the two vectors. For example, VEC(3.0,4.0,5.0) @ VEC(6.0,7.0,8.0)

results in 86.0.

•

If the result of any of the above operations is a component of a VECTOR with a magnitude too

large for a KAREL REAL number, the program is aborted with the ‘‘Real overflow’’ error.

Table 3-10 lists additional examples of vector operations.

3-12

MARRC75KR07091E Rev D

3. USE OF OPERATORS

Table 3-10. Examples of Vector Operations

EXPRESSION

RESULT

VEC(3.0,7.0,6.0) + VEC(12.6,3.2,7.5)

(15.6,10.2,13.5)

VEC(7.6,9.0,7.0) - VEC(14.0,3.5,17.0)

(-6.4,5.5,-10)

4.5 * VEC(3.2,7.6,4.0)

(14.4,34.2,18.0)

VEC(12.7,2.0,8.3) * 7.6

(96.52,15.2,63.08)

VEC(17.3,1.5,0.23) /2

(8.65,0.75,0.115)

String Operations

The following rules apply to STRING operations:

• You can specify that a KAREL routine returns a STRING as its value. See Specifying a KAREL

Routine to Return a STRING Value .

Specifying a KAREL Routine to Return a STRING Value

ROUTINE name(parameter_list): STRING

declares name as returning a STRING value

• An operator can be used between strings to indicate the concatenation of the strings. See Using an

Operator to Concatenate Strings .

Using an Operator to Concatenate Strings

string_1 = string_2 + string_3 + ’ABC’ + ’DEF’

• STRING expressions can be used in WRITE statements. See Using a STRING Expression in a

WRITE Statement .

Using a STRING Expression in a WRITE Statement

WRITE(CHR(13) + string_1 + string_2)

writes a single string consisting of a return

character followed by string_1 and string_2

3-13

3. USE OF OPERATORS

MARRC75KR07091E Rev D

• During STRING assignment, the string will be truncated if the target string is not large enough to

hold the same string.

• You can compare or extract a character from a string. For example if string_1 = ‘ABCDE’ . Your

output would be ‘D’ . See String Comparison .

String Comparison

IF SUB_STR(string_1, 4, 1) = ’D’ THEN

• You can build a string from another string. See Building a String from Another String .

Building a String from Another String

ROUTINE toupper(p_char: INTEGER): STRING

BEGIN

IF (p_char > 96) AND (p_char < 123) THEN

p_char = p_char - 32

ENDIF

RETURN (CHR(p_char))

END toupper

BEGIN

WRITE OUTPUT (’Enter string: ’)

READ INPUT (string_1)

string_2 = ’’

FOR idx = 1 TO STR_LEN(string_1) DO

string_2 = string_2 + toupper(ORD(string_1, idx))

ENDFOR

3-14

4. PROGRAM CONTROL

MARRC75KR07091E Rev D

4.1 OVERVIEW

Program control structures define the flow of execution within a program or routine and include

alternation, looping, and unconditional branching as well as execution control.

4.2

PROGRAM CONTROL STRUCTURES

Program control structures can be used to define the flow of execution within a program or routine.

By default, execution starts with the first statement following the BEGIN statement and proceeds

sequentially until the END statement (or a RETURN statement) is encountered. The following control

structures are available in KAREL:

• Alternation

• Looping

• Unconditional Branching

• Execution Control

• Condition Handlers

For detailed information on each type of control structure, refer to Appendix A, ‘‘KAREL Language

Alphabetical Description.’’

4.2.1

Alternation Control Structures

An alternation control structure allows you to include alternative sequences of statements in a program

or routine. Each alternative can consist of several statements.

During program execution, an alternative is selected based on the value of one or more data items.

Program execution then proceeds through the selected sequence of statements.

Two types of alternation control structures can be used:

• IF Statement - provides a means of specifying one of two alternatives based on the value of

a BOOLEAN expression.

• SELECT Statement - used when a choice is to be made between several alternatives. An

alternative is chosen depending on the value of the specified INTEGER expression.

See Also: IF...THEN Statement, Appendix A , SELECT Statement, Appendix A .

4-2

MARRC75KR07091E Rev D

4. PROGRAM CONTROL

4.2.2

Looping Control Statements

A looping control structure allows you to specify that a set of statements be repeated an arbitrary

number of times, based on the value of data items in the program. KAREL supports three looping

control structures:

• The FOR statement - used when a set of statements is to be executed a specified number of

times. The number of times is determined by INTEGER data items in the FOR statement. At

the beginning of the FOR loop, the initial value in the range is assigned to an INTEGER counter

variable. Each time the cycle is repeated, the counter is reevaluated.

• The REPEAT statement - allows execution of a sequence of statements to continue as long as

some BOOLEAN expression remains FALSE. The sequence of executable statements within the

REPEAT statement will always be executed once.

• The WHILE statement - used when an action is to be executed as long as a BOOLEAN

expression remains TRUE. The boolean expression is tested at the start of each iteration, so it is

possible for the action to be executed zero times.

See Also: FOR Statement, Appendix A , REPEAT Statement, Appendix A , WHILE Statement,

Appendix A

4.2.3

Unconditional Branch Statement

Unconditional branching allows you to use a GO TO Statement to transfer control from one place

in a program to a specified label in another area of the program, without being dependent upon a

condition or BOOLEAN expression.

Warning

Never include a GO TO Statement into or out of a FOR loop. The program

might be aborted with a "Run time stack overflow" error.

FANUC Robotics SYSTEM R-30iA and R-30iB Controller. KAREL Reference Manual - page 3
