FANUC Series Series 16i-TB, Series 18i-TB, Series 160i-TB, Series 180i-TB. OPERATOR’S MANUAL

12. GRAPHICS FUNCTION

OPERATION

B-63524EN/01

It is possible to draw the programmed tool path on the screen, which

12.1

makes it possible to check the progress of machining, while observing the

GRAPHICS DISPLAY

path on the screen.

In addition, it is also possible to enlarge/reduce the screen.

The drawing coordinates (parameter) and graphic parameters must be set

before a tool path can be displayed.

With two-path control, the tool paths of two tool posts are displayed on

the same screen, one on the right and the other on the left.

Graphics display procedure

Procedure

Set the drawing coordinates with parameter No. 6510 before starting

drawing. See

“Drawing Coordinate System” for the settings and

corresponding coordinates.

For the two-path control, parameter GRL (bit 0 of No. 6500) specifies

which tool post is displayed on which side (tool post 1 on the right or tool

post 2 on the right).

CUSTOM

Press function key

GRAPH

. Press

for a small MDI unit.

GRAPH

The graphic parameter screen shown below appears. (If this screen

does not appear, press soft key [G.PRM].)

GRAPHIC PARAMETER

O0001 N00020

WORK LENGTH

130000

WORK DIAMETER

130000

PROGRAM STOP

AUTO ERASE

LIMIT

GRAPHIC CENTER

61655

90711

SCALE

GRAPHIC MODE

0 T0000

MEM STRT **** FIN

12:12:24

HEAD1

[ G.PRM ][

][ GRAPH ][ ZOOM ][ (OPRT) ]

For the two-path control, determine for which tool post the data is

specified, using a tool post select signal.

Specify the PROGRAM STOP (N), AUTO ERASE (A), and

GRAPHIC CENTER (X,Y) parameters separately for each tool post.

The other parameters are common to both tool posts. It does not

matter for which tool post they are specified first.

Move the cursor with the cursor keys to a parameter to set.

Enter data, then press the

INPUT

key.

Repeat steps 3 and 4 until all required parameters are specified.

Press soft key [GRAPH].

Automatic or manual operation is started and machine movement is

drawn on the screen.

790

12. GRAPHICS FUNCTION

OPERATION

B-63524EN/01

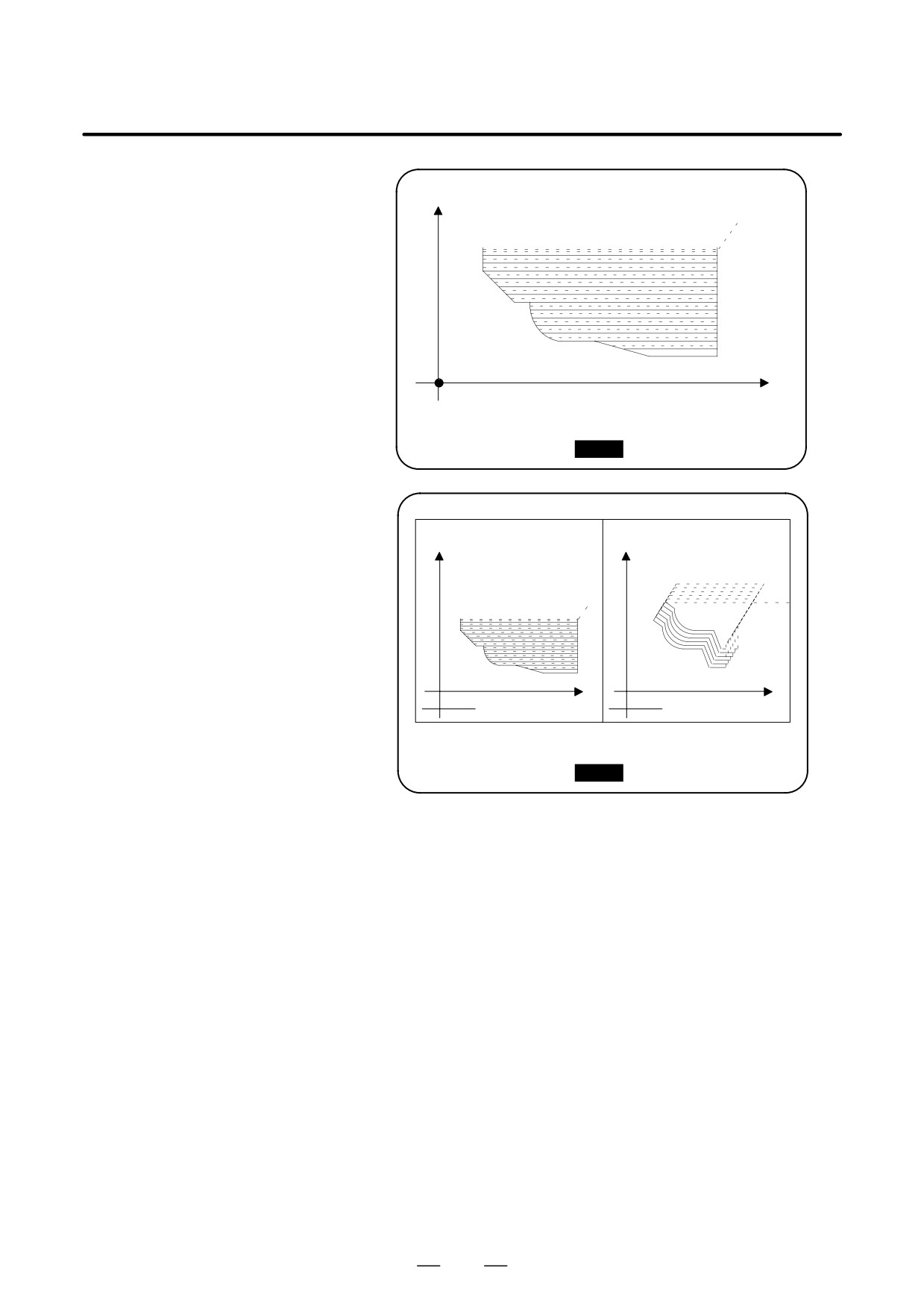

D Magnifying drawings

Part of a drawing on the screen can be magnified.

Press the

GRAPH

function key, then the [ZOOM] soft key to display a

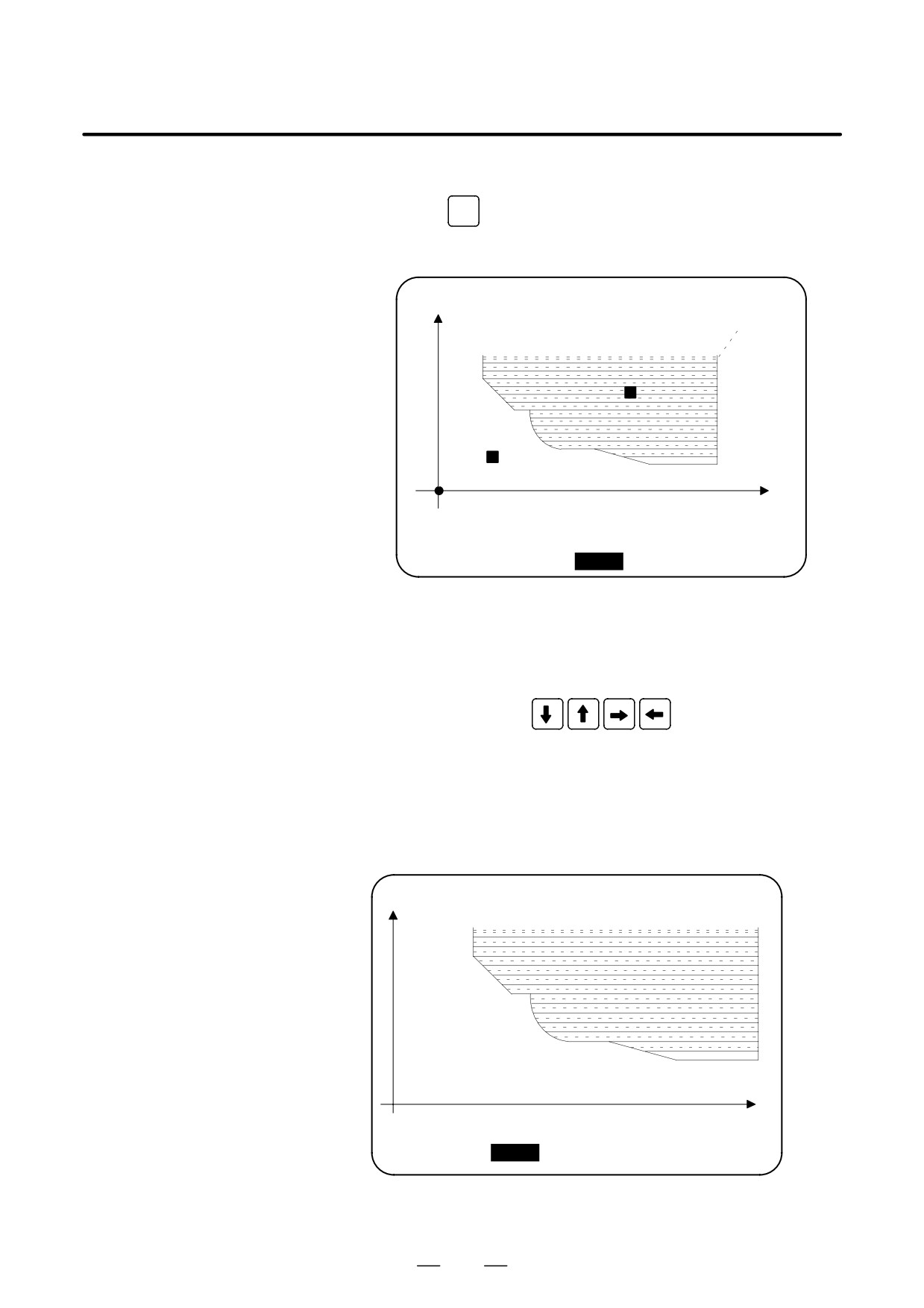

magnified drawing. The magnified-drawing screen contains two

zoom cursors (J)

0.55

0001

00021

W150000

X 200.000

Z 200.000

D 150000

MEM STRT **** FIN

12:12:24

[ G.PRM ][

][ GRAPH ][ ZOOM ][ (OPRT) ]

A rectangle that has one of its diagonals defined by the two zoom

cursors is magnified to the full size of the screen.

For the two-path control, the zoom cursors are indicated for the

selected tool post. Use the tool post select switch to select the tool

post corresponding to the drawing to be magnified.

Using the cursor keys

, move the zoom cursors

to specify a diagonal for the new screen. Pressing the [HI / LO] soft

key toggles the zoom cursor to be moved.

To make the original drawing disappear, press [EXEC].

Resume the previous operation. The part of the drawing specified

with the zoom cursors will be magnified.

0.81

0001

00012

X 200.000

Z 200.000

MEM STRT **** FIN

12:12:24

[ G.PRM ][ GRAPH ][

][

]

To display the original drawing, press the [NORMAL] soft key, then

start automatic operation.

792

B-63524EN/01

OPERATION

12. GRAPHICS FUNCTION

Explanation

D Setting drawing

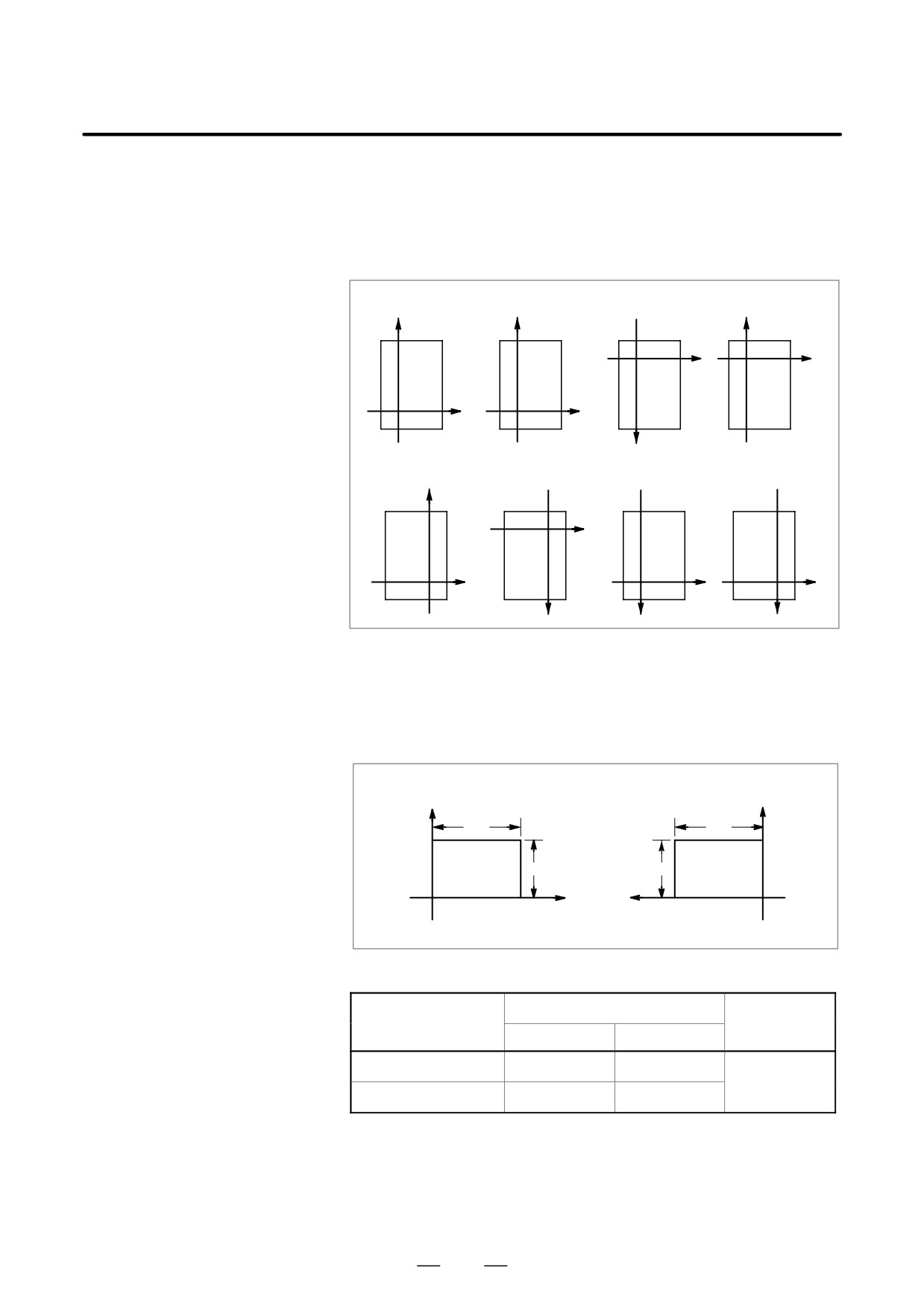

Parameter No. 6510 is used to set a drawing coordinate system for using

coordinate systems

the graphic function. The relationships between setting values and

drawing coordinate systems are indicated below. With two-path control,

a different drawing coordinate system can be selected for each tool post.

Setting value=0

Setting value=1

Setting value=2

Setting value=3

Setting value=4

Setting value=5

Setting value=6

Setting value=7

D Graphics parameter

WORK LENGTH (W), WORK DIAMETER (D)

Specify work length and work diameter. The table below lists the input

unit and valid data range.

Table 12.1 Unit and Range of Drawing Data

Unit

Increment system

Valid range

mm input

Inch input

IS-B

0.001 mm

0.0001 inch

0 to 99999999

IS-C

0.0001 mm

0,00001 inch

793

12. GRAPHICS FUNCTION

OPERATION

B-63524EN/01

GRAPHIC CENTER (X, Z), SCALE (S)

A screen center coordinate and drawing scale are displayed. A scale

screen center coordinate are automatically calculated so that a figure

set in WORK LENGTH (a) and WORK DIAMETER (b) can be fully

displayed on the screen. So, the user need not set these parameters

usually.

A screen center coordinate is defined in the workpiece coordinate

system. Table 12. 3. 2 indicates the unit and range. The unit of SCALE

is 0.001%.

PROGRAM STOP (N)

Set the sequence number of an end block when part of the program is

to be drawn. A value set in this parameter is automatically cancelled

(cleared to -1) once a drawing is provided.

AUTO ERASE (A)

1 is set, the previous drawing is automatically erased when

automatic operation is stated from the reset state. Then, drawing is

started.

LIMIT (L)

1 is set, the area of stored stroke limit l is drawn with

double-dot-and-dash lines.

DRAWING MODE (M)

Drawing mode is used for dynamic graphic display (supported for the

Super CAPi T). Usually, it does not need to be set.

NOTE

The parameter values for drawing are preserved even if

power is turned off.

D Executing drawing only

Since the graphic drawing is done when coordinate value is renewed

during automatic operation, etc., it is necessary to start the program by

automatic operation. To execute drawing without moving the machine,

therefore, enter the machine lock state.

D Deleting the previous

Pressing the [REVIEW] soft key on the graphic screen deletes tool paths

drawing

on it. Setting the graphic parameter as AUTO ERASE (A) = 1 specifies

that when automatic operation is started at reset, program execution

begins after the previous drawing is erased automatically (AUTO ERASE

= 1).

D Drawing a part of a

When necessary to display a part of a program, search the starting block

program

to be drawn by the sequence number search, and set the sequence number

of the end block to the PROGRAM STOP N= of the graphic parameter

before starting the program under cycle operation mode.

D Drawing using dashed

The tool path is shown with a dashed line (

) for rapid traverse and

lines and solid lines

with a solid line (

) for cutting feed.

D Displaying coordinates

The displayed drawing is indicated with coordinates in a work coordinate

system.

D Displaying the machine

The machine zero point is indicated with

mark.

zero point

794

B-63524EN/01

OPERATION

12. GRAPHICS FUNCTION

D Switching from a

Even if the screen is switched to a non-drawing screen, drawing

drawing screen to

continues. When the drawing screen is displayed again, the entire

another screen

drawing appears (no parts are missing).

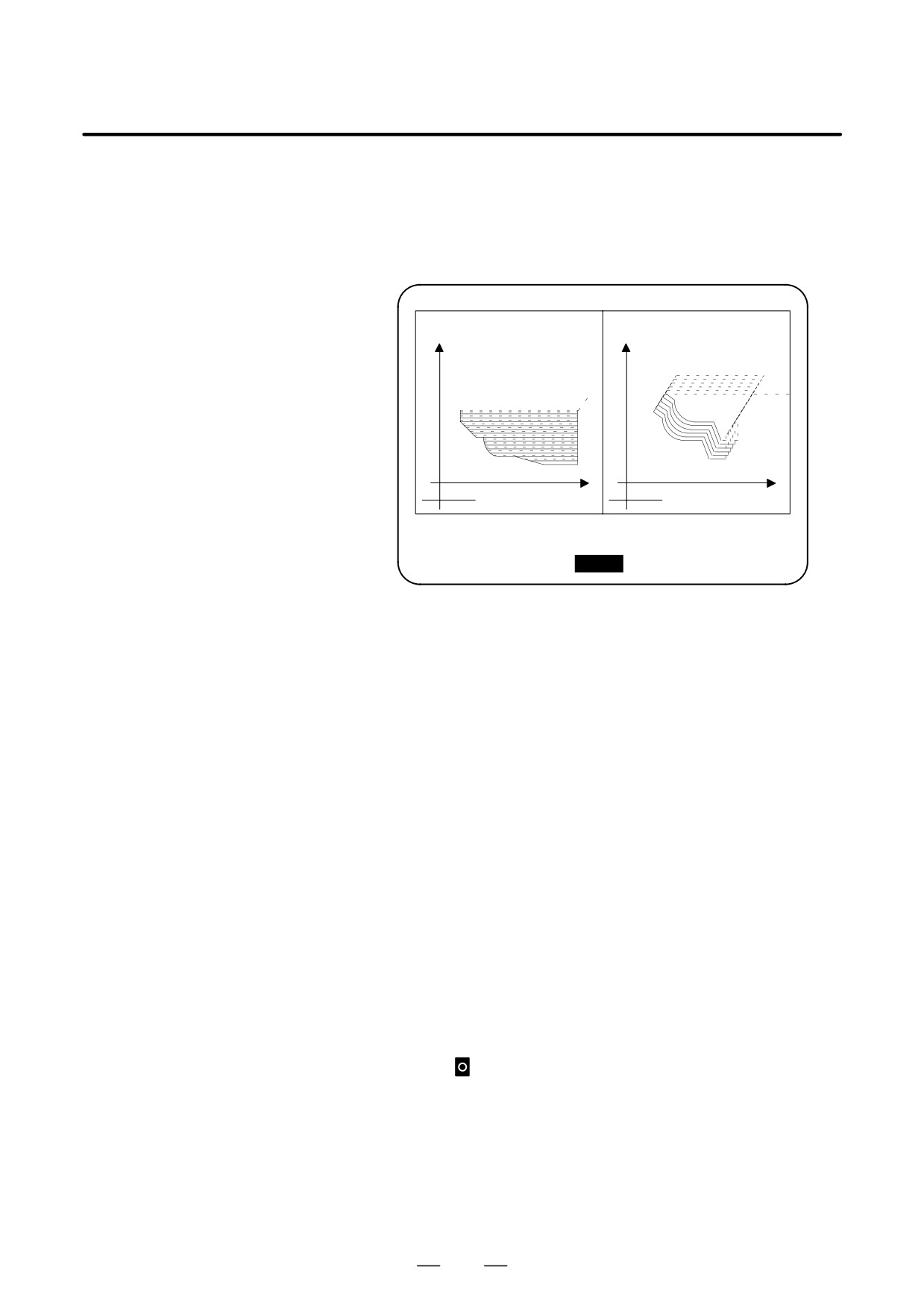

D Drawing for tool posts 1

For the two-path lathe control, the screen is split vertically, and each half

and 2 (two-path lathe

screen displays the tool path for either tool post.

control)

HEAD1 O0001

N00021

HEAD2 O0020

N00020

200.000

220.000

200.000

160.000

62.5

MEM STRT **** FIN

12:12:24

HEAD1

[ G.PRM ][

][ GRAPH ][ ZOOM ][ (OPRT) ]

Parameter GRL (bit 0 of No. 6500) specifies which tool post is to be

displayed on which side.

GRL = 0 : Tool post 1 is displayed on the left half, and tool post 2 on

the right half.

GRL = 1 ; Tool post 1 is displayed on the right half, and tool post 2 on

the left half.

Restrictions

D Feedrate

In case the feed rate is considerably high, drawing may not be executed

correctly, decrease the speed by dry-run, etc. to execute drawing.

D Changing the graphic

After a graphic parameter is changed, the [REVIEW] soft key must be

parameters during

pressed to initialize the graphic screen. Otherwise, the change to the

automatic operation

graphic parameter is not reflected correctly.

D Coordinate axis names

The coordinate axis names are fixed to X or Z. For the two-path control,

the first and second axes for tool post 1 are named X1 and Z1, respectively,

and the first and second axes for tool post 2 are named X2 and Z2,

respectively.

D Zooming drawings

If the WORK and DIAMETER graphic parameters are not set correctly,

the drawing cannot be magnified. To reduce a drawing, specify a negative

value for the SCALE graphic parameter. The machine zero point is

indicated with

mark.

795

13. HELP FUNCTION

OPERATION

B-63524EN/01

HELP FUNCTION

The help function displays on the screen detailed information about

alarms issued in the CNC and about CNC operations. The following

information is displayed.

D Detailed information of

When the CNC is operated incorrectly or an erroneous machining

alarms

program is executed, the CNC enters the alarm state. The help screen

displays detailed information about the alarm that has been issued and

how to reset it. The detailed information is displayed only for a limited

number of P/S alarms. These alarms are often misunderstood and are

rather difficult to understand.

D Operation method

If you are not sure about a CNC operation, refer to the help screen for

information about each operation.

D Parameter table

When setting or referring to a system parameter, if you are not sure of the

number of the parameter, the help screen displays a list of parameter Nos.

for each function.

Help Function Procedure

Procedure

Press the

HELP

key on the MDI. HELP (INITIAL MENU) screen is

displayed.

HELP (INITIAL MENU)

O1234

N00001

***** HELP *****

1. ALARM DETAIL

2. OPERATION METHOD

3. PARAMETER TABLE

0 T0000

MEM **** *** ***

10:12:25

[ ALM

][ OPR

][ PARA

][

]

Fig. 13 (a) HELP (INITIAL MENU) Screen

The user cannot switch the screen display from the PMC screen or

CUSTOM screen to the help screen. The user can return to the normal

CNC screen by pressing the

HELP

key or another function key.

796

B-63524EN/01

OPERATION

13. HELP FUNCTION

ALARM DETAIL screen

Press soft key [ALM] on the HELP (INITIAL MENU) screen to display

detailed information about an alarm currently being raised.

HELP (ALARM DETAIL)

O0010 N00001

NUMBER : 027

Alarm No.

M‘SAGE

: NO AXES COMMANDED IN G43/G44

Normal explana-

FUNCTION

: TOOL LENGTH COMPENSATION C

tion on alarm

ALARM

Function

IN TOOL LENGTH COMPENSATION TYPE C,

classification

NO AXIS IS DESIGNATED IN G43 & G44

BLOCKS. IN TOOL LENGTH COMPENSATION

Alarm details

TYPE C, IT TRIES TO LATCH ON TO

ANOTHER AXIS WITHOUT OFFSET CANCE-

LING.

>100

0 T0000

MEM **** *** ***

10:12:25

[ ALM

][ OPR

][ PARA

][

]

Fig. 13 (b) ALARM DETAIL Screen when P/S Alarm No. 27 is issued

Note that only details of the alarm identified at the top of the screen

are displayed on the screen.

If the alarms are all reset while the help screen is displayed, the alarm

displayed on the ALARM DETAIL screen is deleted, indicating that no

alarm is issued.

HELP

(ALARM DETAIL)

O1234 N00001

NUMBER

M‘SAGE

FUNCTION

ALARM

<<ALARM IS NOT GENERATED>>

ENTER THE DETAIL-REQUIRED ALARM NUMBER,

AND PRESS [SELECT] KEY

>100

0 T0000

MEM **** *** ***

10:12:25

[ ALM

][ OPR

][ PARA

][

]

Fig. 13 (c) ALARM DETAIL Screen when No Alarm is issued

797

13. HELP FUNCTION

OPERATION

B-63524EN/01

To get details on another alarm number, first enter the alarm number,

then press soft key

[SELECT]. This operation is useful for

investigating alarms not currently being raised.

>100

0 T0000

MEM **** *** ***

10:12:25

[

][

][ SELECT ]

Fig. 13 (d) How to select each ALARM DETAILS

HELP (ALARM DETAIL)

O1234 N00001

NUMBER

: 100

M‘SAGE

: PARAMETER WRITE ENABLE

FUNCTION

ALARM

<<ALARM IS NOT GENERATED>>

>100

0 T0000

MEM **** *** ***

10:12:25

[

][

][ SELECT ]

Fig. 13 (e) ALARM DETAIL Screen when P/S alarm No. 100 is selected

OPERATION METHOD

To determine an operating procedure for the CNC, press the soft key

screen

[OPR] key on the HELP (INITIAL MENU) screen. The OPERATION

METHOD menu screen is then displayed. (See Fig. 13 (f).)

HELP (OPERATION METHOD)

O1234

N00001

1. PROGRAM EDIT

2. SEARCH

3. RESET

4. DATA INPUT WITH MDI

5. DATA INPUT WITH TAPE

6. OUTPUT

7. INPUT WITH FANUC CASSETTE

8. OUTPUT WITH FANUC CASSETTE

9. MEMORY CLEAR

0 T0000

MEM **** *** ***

10:12:25

[ ALM

][ OPR

][ PARA

][

]

Fig. 13 (f) OPERATION METHOD Menu Screen

To select an operating procedure, enter an item No. from the keyboard

then press the [SELECT] key.

798

B-63524EN/01

OPERATION

13. HELP FUNCTION

0 T0000

MEM **** *** ***

10:12:25

[

][

][ SELECT ]

Fig. 13 (g) How to select each OPERATION METHOD screen

When “1. PROGRAM EDIT” is selected, for example, the screen in

Figure 13 (g) is displayed.

On each OPERATION METHOD screen, it is possible to change the

displayed page by pressing the PAGE key. The current page No. is

shown at the upper right corner on the screen.

Each item

HELP (OPERATION METHOD)

01234 N00001

Page/maximum

<< 1. PROGRAM EDIT >>

1/4

page

*DELETE ALL PROGRAMS

Operation

Set mode

MODE

: EDIT

SCREEN

: PROGRAM

Operation location

OPR

: (O-9999) - <DELETE>

Operating

procedure

*DELETE ONE PROGRAM

MODE

: EDIT

SCREEN

: PROGRAM

OPR

: (O+PROGRAM NUMBER) - <DELETE>

0 T0000

MEM **** *** ***

10:12:25

[ ALM

][ OPR

][ PARA

][

]

Fig. 13 (h) Selected OPERATION METHOD screen

To return to the OPERATION METHOD menu screen, press the

RETURN MENU key to display “[OPR]” again, and then press the

[OPR] key again.

To directly select another OPERATION METHOD screen on the

RETURN MENU key

screen shown in Figure 13 (h), enter an item No. from the keyboard

and press the [SELECT] key.

0 T0000

MEM **** *** ***

10:12:25

[

][

][ SELECT ]

Fig. 13 (i) How to select another OPERATION METHOD screen

PARAMETER TABLE screen

If you are not sure of the No. of a system parameter to be set, or to refer

to a system parameter, press the [PARA] key on the HELP (INITIAL

MENU) screen. A list of parameter Nos. for each function is

displayed.

(See Figure 13 (j).)

It is possible to change the displayed page on the parameter screen.

The current page No. is shown at the upper right corner on the screen.

799

13. HELP FUNCTION

OPERATION

B-63524EN/01

HELP (PARAMETER TABLE)

01234 N00001

1/4

* SETTEING

(No. 0000∼)

* READER/PUNCHER INTERFACE

(No. 0100∼)

* AXIS CONTROL

/SETTING UNIT

(No. 1000∼)

* COORDINATE SYSTEM

(No. 1200∼)

* STROKE LIMIT

(No. 1300∼)

* FEED RATE

(No. 1400∼)

* ACCEL/DECELERATION CTRL

(No. 1600∼)

* SERVORELATED

(No. 1800∼)

* DI/DO

(No. 3000∼)

0 T0000

MEM **** *** ***

10:12:25

[ ALM

][ OPR

][ PARA

][

]

Fig. 13 (j) PARAMETER TABLE screen

To exit from the help screen, press the

HELP

key or another function

key.

Explanation

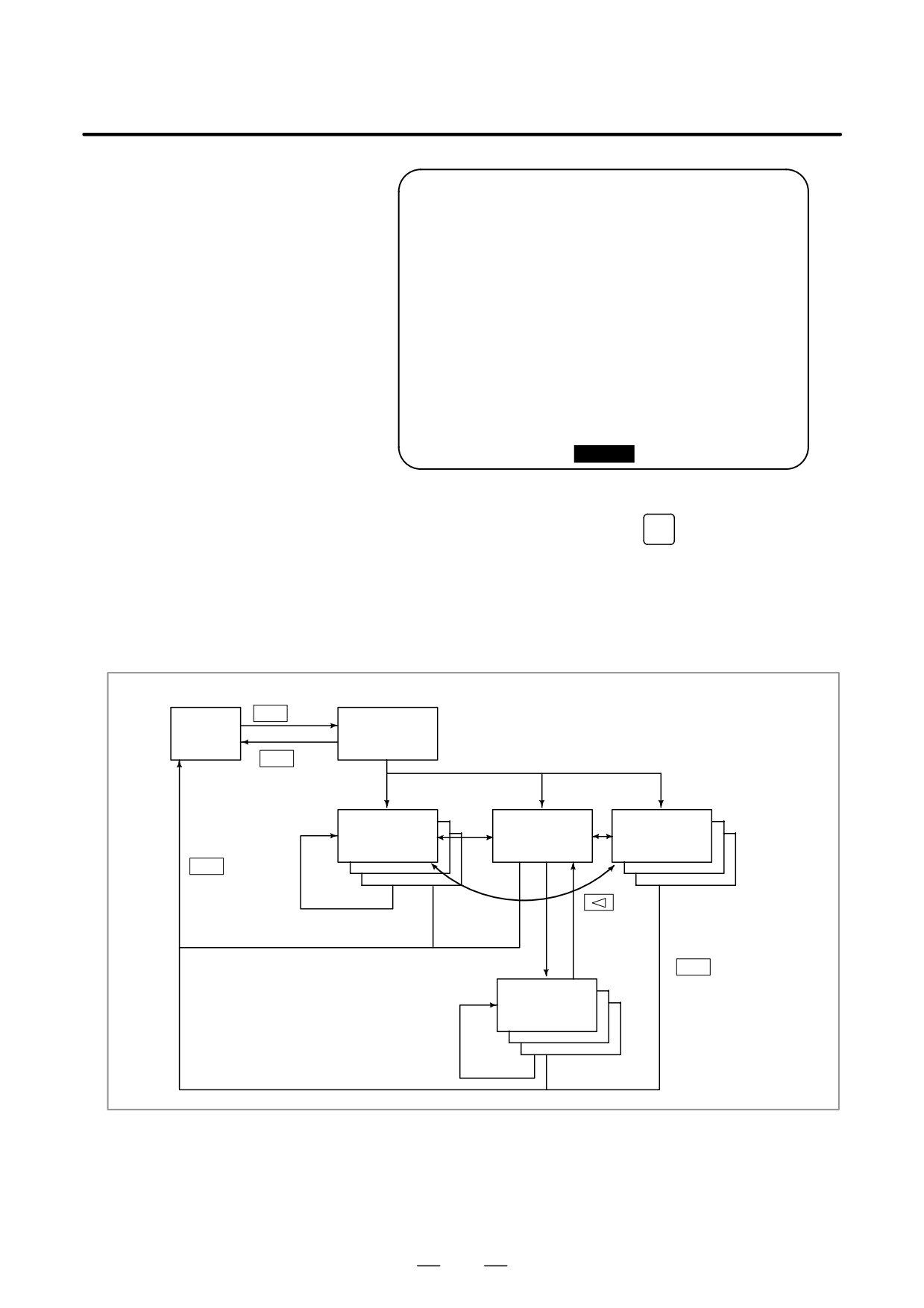

D Configuration of the Help Screen

HELP

key

HELP

CNC

INITIAL MENU

screen

HELP

key

[ALAM]

[OPR]

[PARA]

function key

ALARM

OPERATION

PARAME-

DETAIL

METHOD

TER TABLE

screen

PAGE key

HELP

key

function key

(NO.)+[SELECT]

[OPR]

(NO.)+[SELECT]

HELP

key

Each opera-

tion instruc-

function key

tion screen

(NO.)+[SELECT]

800

B-63524EN/01

OPERATION

14. SCREEN HARDCOPY

SCREEN HARDCOPY

The screen hardcopy function outputs the information displayed on the

CNC screen as 640*480-dot bitmap data. This function makes it possible

to produce a hard copy of a still image displayed on the CNC.

The created bitmap data can be displayed on a PC.

Screen Hardcopy Procedure

Check the parameter settings. To use the screen hardcopy function,

set bit 7 of parameter 3301 to 1 and parameter 20 (I/O channel

selection) to 4 (memory card I/F). Set other relative parameters (bits

0, 2, and 3 of parameter 3301) as needed. In a multipath system, set

the parameters for each path.

Insert a memory card.

To start the function, set hardcopy start signal HDREQ (G67#7) to 1.

Alternatively, hold down the [SHIFT] key for five seconds.

To end the function, press the [CAN] key. Alternatively, set hard

copy stop signal HDABT (G67#6) to 1.

While the screen hardcopy operation is in progress, the hardcopy in

progress signal (F061#3) is tied to 1. For several tens of seconds (or

several seconds, for a monochrome LCD) before the hardcopy

operation ends, the screen image stands still.

When the screen hardcopy operation is completed, the hardcopy in

progress signal (F061#3) goes 0.

Supplementary

While the screen hardcopy operation is in progress, the screen image

explanation

keeps still. This means that the clock displayed on the screen indicates

the beginning and end of the operation. When the clock stops counting

seconds, the hard copy operation starts. The clock resumes counting

seconds when the screen hard copy operation ends.

801

14. SCREEN HARDCOPY

OPERATION

B-63524EN/01

NOTE

During the screen hardcopy operation, key input is disabled

for several tens of seconds. Until the screen hardcopy

operation ends, the screen image lies still. During this

period, the hardcopy in progress signal (F061#3) is tied to

1. No other signal is output. Avoid turning off the power

indiscriminately during that period.

If the [SHIFT] or [CAN] key is customized by C executor, for

instance, the screen hardcopy operation may disable the

[SHIFT] or [CAN] key.

A normal hard copy may not be produced while the screen

image is moving.

Limitations

A hard copy of the following screens cannot be produced.

Screen of the FS-160i/180i/210i (CNC with personal computer

function)

System alarm screen

Screen while RS-232-C is being used

Screen during automatic or manual operation (A hard copy can be

produced in a rest of the operation.)

File name

The bitmap files created by the screen hardcopy function are named as

follows, in order in which they are created after power-up:

‘HDCPY000.BMP’ (Name of the first hardcopy file created after

power-up)

‘HDCPY001.BMP’ (Name of the second hardcopy file created after

power-up)

‘HDCPY099.BMP’

NOTE

A screen hardcopy file produced after the file HDCPY099.

BMP is output will be named as HDCPY000.BMP.

If a BMP file output by the screen hardcopy function has the

same name as a file present on a memory card, the file on

the memory card is overwritten unconditionally.

When the hardcopy function is carried out after power is

turned off and on again, the first output file is named as

HDCPY000.BMP again. If the inserted memory card has a

file having the same name, the file is unconditionally

overwritten. Note this when continuously producing hard

copies of various screens.

802

B-63524EN/01

OPERATION

14. SCREEN HARDCOPY

Colors of data

The number of colors used in created bitmap data depend on the display

control card, the LCD hardware, and the display mode of the CNC screen.

Table 14 (a) indicates the relationships.

Table 14 (a) Colors of BMP data created by the screen hardcopy function

LCD

CNC screen

Colors

Colors used in created

Remarks

hardware

display

displayed

BMP data

mode

on CNC

Monochrome

—

2 colors

Shades of gray are not supported.

LCD

Color LCD

VGA-comp

Character:

When bit 0 of parameter

Most CNC screens use this mode. Note

atible mode

16 colors

3301 is set to 0: 256 colors

that colors may not be normally displayed

Graphic:

When bit 0 of parameter

in the 16-color mode.

16 colors

3301 is set to 1: 16 colors

VGA mode

256 colors

A special screen can be prepared by C

executor, for instance.

Data size

Table 14 (b) indicates the sizes of bitmap data created by the screen

hardcopy function.

Table 14 (b) Sizes of bitmap data created by the screen hardcopy

function

Bitmap colors

File size (bytes)

Monochrome (2 colors)

38,462

Color (16 colors)

153,718

Color (256 colors)

308,278

Alarm message

If bit 2 of parameter 3301 is set to 1, an alarm message can be output when

the hardcopy operation ends in failure.

(P/S alarm Nos. 5212 to 5214)

803

B-63524EN/01

MAINTENANCE

1. METHOD OF REPLACING BATTERY

METHOD OF REPLACING BATTERY

This chapter describes how to replace the CNC backup battery and

absolute pulse coder battery. This chapter consists of the following

sections:

1.1 REPLACING BATTERY FOR LCD-MOUNTED TYPE i

SERIES

1.2 REPLACING THE BATTERY FOR STAND-ALONE TYPE i

SERIES

1.3 BATTERY IN THE PANEL i (3 VDC)

1.4 BATTERY FOR SEPARATE ABSOLUTE PULSE CODERS

(6 VDC)

1.5 BATTERY FOR ABSOLUTE PULSE CODER BUILT INTO

THE MOTOR (6 VDC)

Battery for memory

Part programs, offset data, and system parameters are stored in CMOS

backup

memory in the control unit. The power to the CMOS memory is backed

up by a lithium battery mounted on the front panel of the control unit.

Therefore, the above data is not lost even if the main battery fails. The

backup battery is installed in the control unit prior to being shipped from

the factory. This battery can provide backup for the memory contents for

about a year.

When the battery voltage falls, alarm message “BAT” blinks on the LCD

display and the battery alarm signal is output to the PMC. When this

alarm is displayed, replace the battery as soon as possible. In general, the

battery can be replaced within one or two weeks of the alarm first being

issued. This, however, depends on the system configuration.

If the battery voltage subsequently drops further, backup of memory can

no longer be provided. Turning on the power to the control unit in this

state causes system alarm 910 (SRAM parity alarm) to be issued because

the contents of memory are lost. Replace the battery, clear the entire

memory, then reenter the data.

Replace the memory backup battery within a few minutes while the

control unit is brought off.

The following two kinds of batteries can be used.

D Lithium battery, incorporated into the CNC control unit.

D Two alkaline dry cells (size D) in an external battery case.

NOTE

A lithium battery is installed as standard at the factory.

807

1. METHOD OF REPLACING BATTERY

MAINTENANCE

B-63524EN/01

1.1

REPLACING

BATTERY FOR

LCD-MOUNTED

TYPE i SERIES

D Replacement procedure

When a lithium battery is used

Prepare a new lithium battery

(ordering code: A02B-0200-K102

(FANUC specification: A98L-0031-0012)).

1) Turn on the power to the CNC. After about 30 seconds, turn off the

power.

2) Remove the old battery from the top of the CNC control unit.

First, unplug the battery connector, then take the battery out of its

case.

The battery case of a control unit without option slots is located at the

top end of the unit as shown in the figure of the previous page. The

battery case of a control unit with 2 slots or 4 slots is located in the

central area of the top of the unit (between fans).

3) Insert a new battery and reconnect the connector.

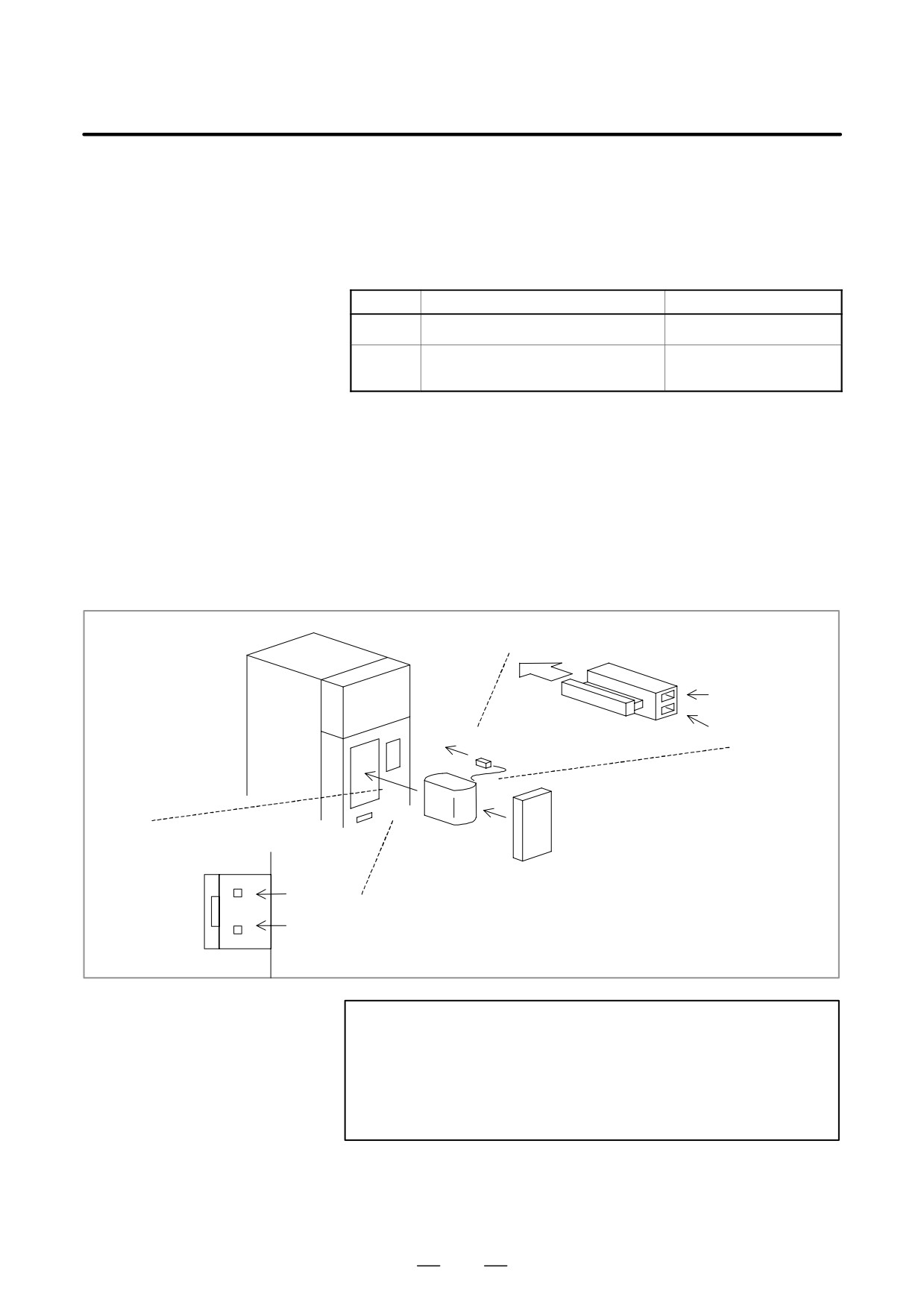

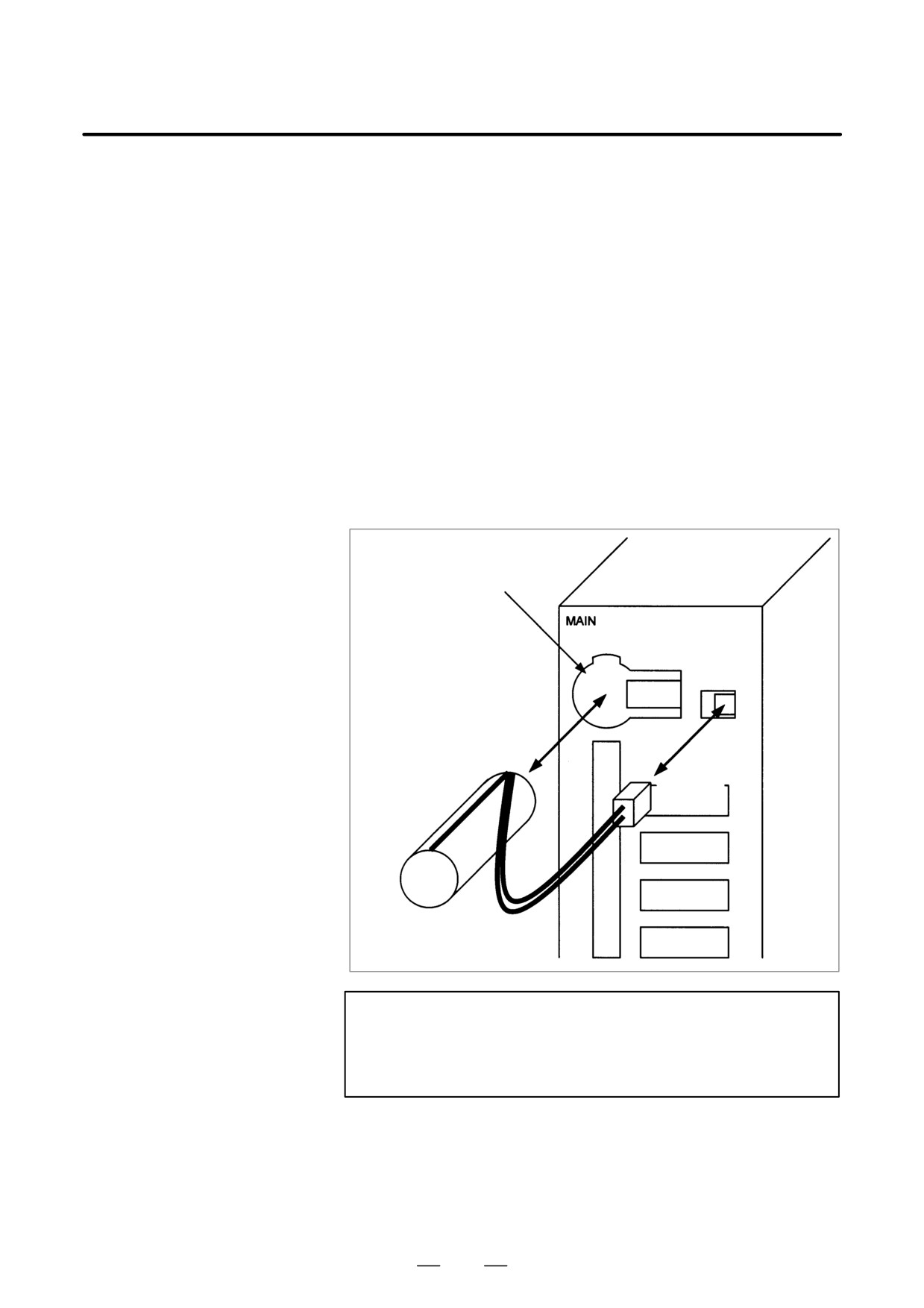

Battery case

Connector

Lithium battery

A02B-0200-K102

WARNING

Using other than the recommended battery may result in the

battery exploding. Replace the battery only with the

specified battery (A02B-0200-K102).

808

B-63524EN/01

MAINTENANCE

1. METHOD OF REPLACING BATTERY

CAUTION

Steps 1) to 3) should be completed within 30 minutes (or

within 5 minutes for the 160i/180i with the PC function). Do

not leave the control unit without a battery for any longer

than the specified period. Otherwise, the contents of

memory may be lost.

If steps 1) to 3) may not be completed within 30 minutes,

save all contents of the CMOS memory to the memory card

beforehand. Thus, if the contents of the CMOS memory are

lost, the contents can be restored easily.

For the method of operation, refer to Maintenance manual

(B-63005EN).

When discarding a battery, observe the applicable ordinances or other

rules of your local government. Also, cover the terminals of the battery

with vinyl tape or the like to prevent a short-circuit.

809

1. METHOD OF REPLACING BATTERY

MAINTENANCE

B-63524EN/01

Replacing

1) Prepare two alkaline dry cells (size D) commercially available.

commercial alkaline dry

2) Turn on the power to the Series 16i/18i/160i/180i.

cells (size D)

3) Remove the battery case cover.

4) Replace the cells, paying careful attention to their orientation.

5) Reinstall the cover onto the battery case.

CAUTION

When replacing the alkaline dry cells while the power is off,

use the same procedure as that for lithium battery

replacement described above.

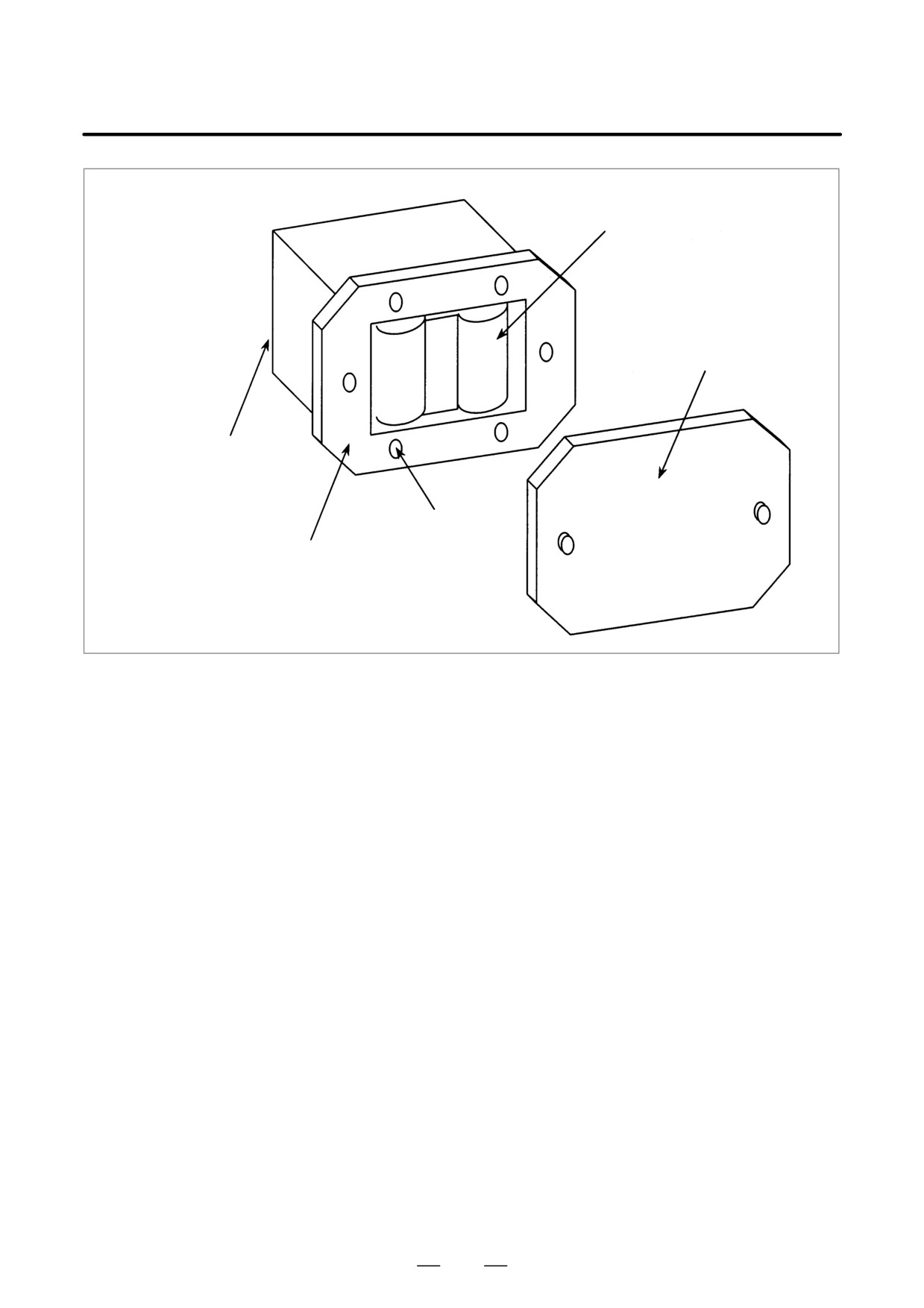

Alkaline dry cell

Cover

Connection terminal on the rear

Mounting hole

Battery case

810

B-63524EN/01

MAINTENANCE

1. METHOD OF REPLACING BATTERY

1.2

REPLACING THE

BATTERY FOR

STAND-ALONE TYPE

i SERIES

D Replacing the battery

If a lithium battery is used, have A02B-0200-K102 (FANUC internal

code: A98L-0031-0012) handy.

(1) Turn the CNC on. About 30 seconds later, turn the CNC off.

(2) Remove the battery from the top area of the CNC unit.

Disconnect the connector first. Then, remove the battery from the

battery case.

The battery case is provided in the top area of the face plate of the main

CPU board.

(3) Replace the battery, then connect the connector.

Battery case

Lithium battery

A02B-0200-K102

Connector

WARNING

The incorrect mounting of the battery may cause an

explosion. Avoid using any battery other than the one

specified here (A02B-0200-K102).

811

1. METHOD OF REPLACING BATTERY

MAINTENANCE

B-63524EN/01

NOTE

Complete steps (1) to (3) within 30 minutes.

If the battery is left removed for a long time, the memory

would lose the contents.

If there is a danger that the replacement cannot be

completed within 30 minutes, save the whole contents of the

CMOS memory to a memory card. The contents of the

memory can be easily restored with the memory card in

case the memory loses the contents.

Discard the dead battery, observing appropriate municipal rules and

regulations. When discarding the battery, insulate the terminal with a tape

so that no short-circuit would occur.

When using commercial

D-size alkaline dry cells

D Replacing the battery

(1) Have commercial D-size alkaline dry cells handy.

(2) Turn the CNC on.

(3) Remove the lid from the battery case.

(4) Replace the old dry cells with new ones. Mount the dry cells in a

correct orientation.

(5) Replace the lid on the battery case.

NOTE

In the power-off state, the battery should be replaced as in

the case of the lithium battery, which is descried above.

812

1. METHOD OF REPLACING BATTERY

MAINTENANCE

B-63524EN/01

A lithium battery is used to back up BIOS data in the PANEL i. This

1.3

battery is factory-set in the PANEL i. This battery has sufficient capacity

BATTERY IN THE

to retain BIOS data for one year.

PANEL i (3 VDC)

When the battery voltage becomes low, the LCD screen blinks. (The LCD

screen also blinks if a fan alarm is issued.) If the screen blinks, replace

the battery as soon as possible (within one week). FANUC recommends

that the battery be replaced once per year regardless of whether a battery

alarm is issued.

Replacing the battery

(1) To guard against the possible loss or destruction of BIOS parameters,

write down the BIOS parameter values.

(2) Obtain a new lithium battery (A02B-0200-K102).

(3) After power has been supplied for at least five seconds, turn off the

power to PANEL i. Remove the intelligent terminal from the panel so

that replacement work can be done from the rear of the intelligent

terminal.

(4) Detach the connector of the lithium battery, and remove the battery

from the battery holder.

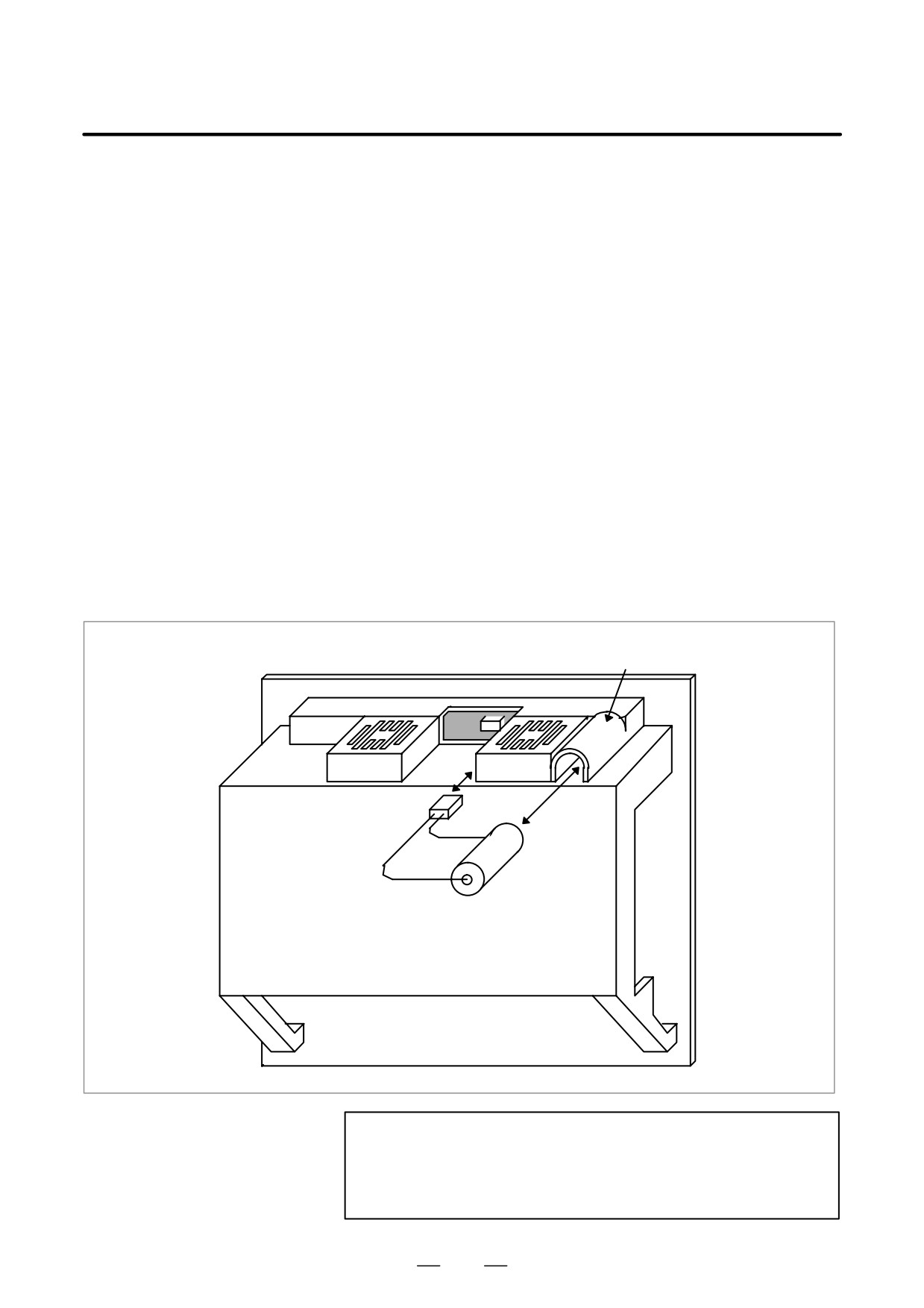

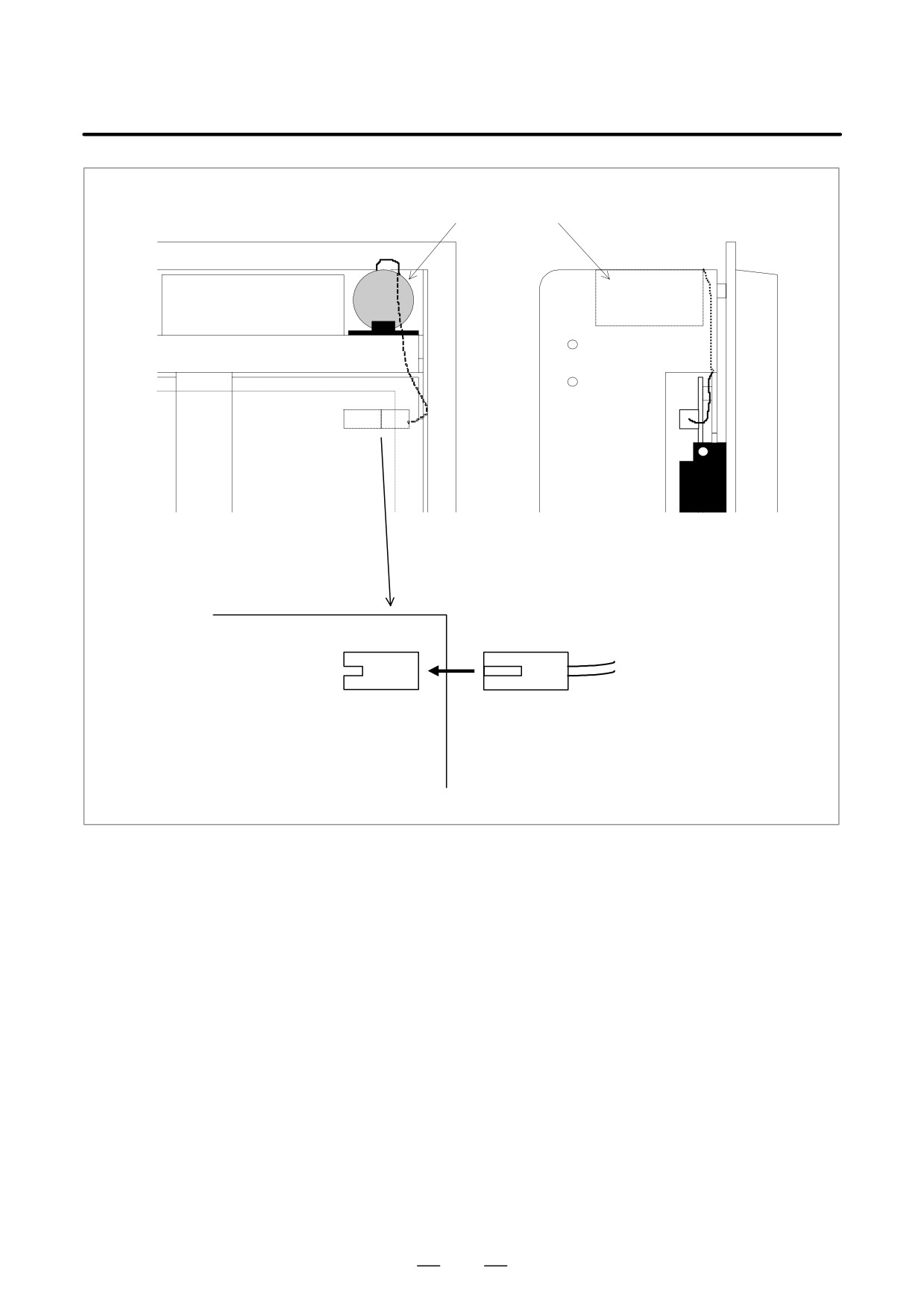

(5) Run the cable for the new lithium battery as shown in the Fig. 1.3.

(6) Attach the connector, and place the battery in the battery holder.

(7) Install PANEL i again.

(8) Turn on the power, and check that the BIOS parameters are maintained

(BIOS setup is not activated forcibly).

Between removing an old battery and inserting new battery, no more than

five minutes must be allowed to elapse.

814

1. METHOD OF REPLACING BATTERY

MAINTENANCE

B-63524EN/01

One battery unit can maintain current position data for six absolute pulse

1.4

coders for a year.

BATTERY FOR

When the voltage of the battery becomes low, APC alarms 306 to 308 (+

SEPARATE

axis name) are displayed on the CRT display. When APC alarm 3n7 is

ABSOLUTE PULSE

displayed, replace the battery as soon as possible. In general, the battery

should be replaced within two or three weeks, however, this depends on

CODERS (6 VDC)

the number of pulse coders used.

If the voltage of the battery becomes any lower, the current positions for

the pulse coders can no longer be maintained. Turning on the power to

the control unit in this state causes APC alarm 300 (reference position

return request alarm) to occur. Return the tool to the reference position

after replacing the battery.

See Section 7.1.3 for details of connecting the battery to separate absolute

pulse coders. The battery for the built-in absolute pulse coder is installed

in the servo amplifier. For an explanation of the replacement procedure,

refer to the FANUC SERVO MOTOR a Series Maintenance Manual.

Replacing batteries

Obtain four commercially available alkaline batteries (size D).

(1) Turn on the power to the machine (i Series CNC).

(2) Loosen the screws on the battery case connected to the interface unit

of the detector separately installed, and remove the cover.

(3) Replace the dry batteries in the case.

Note the polarity of the batteries as shown in the figure below (orient

two batteries one way and the other two in the opposite direction).

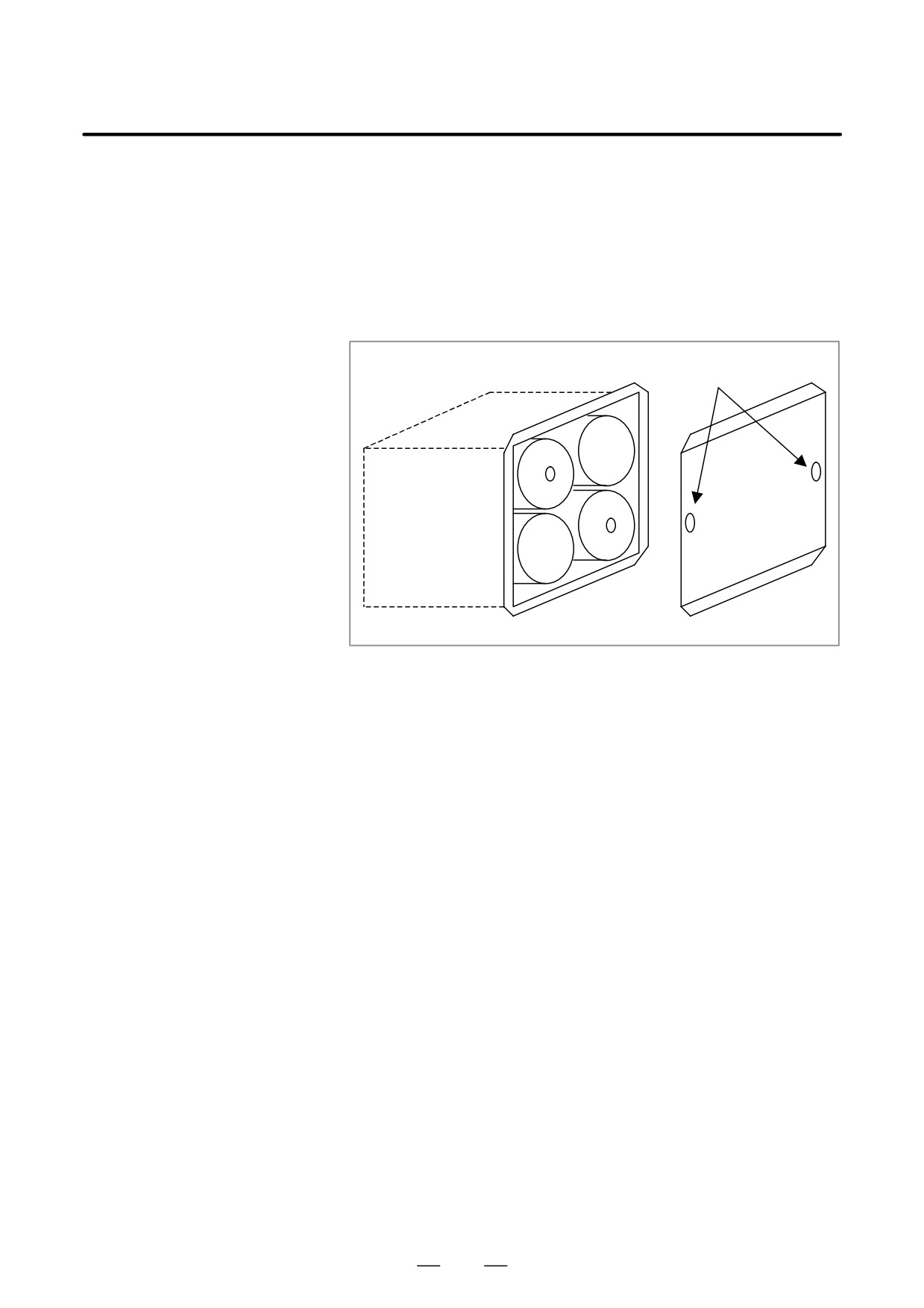

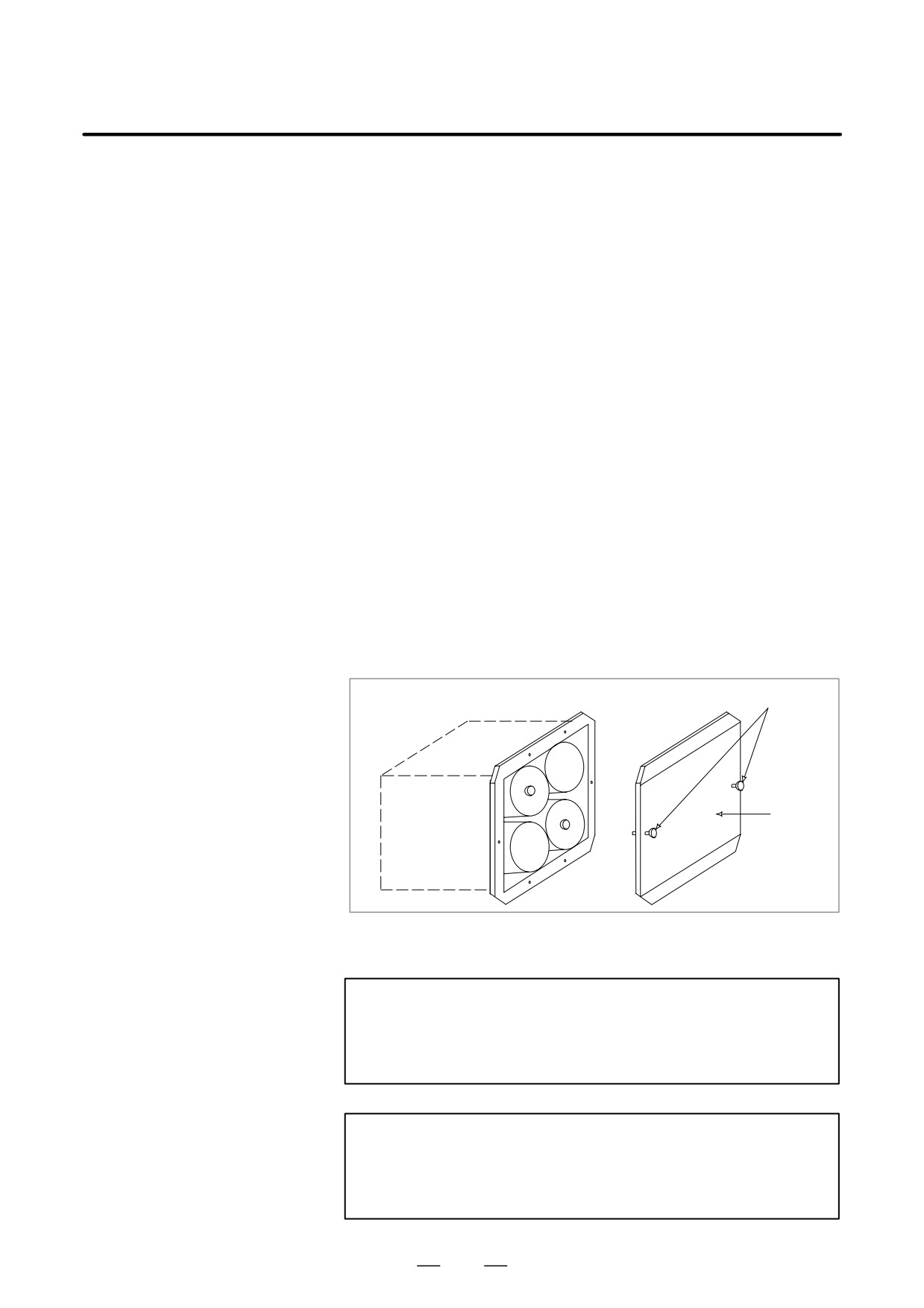

Screws

ÇÅ

ÇÇ

Cover

ÅÅ

(4) After installing the new batteries, replace the cover.

(5) Turn off the power to the machine (i Series CNC).

WARNING

If the batteries are installed incorrectly, an explosion may

occur. Never use batteries other than the specified type

(Size D alkaline batteries).

CAUTION

Replace batteries while the power to the i Series CNC is on.

Note that, if batteries are replaced while no power is

supplied to the CNC, the recorded absolute position is lost.

816

B-63524EN/01

MAINTENANCE

1. METHOD OF REPLACING BATTERY

When the battery voltage falls, APC alarms 306 to 308 are displayed on

1.5

the screen. When APC alarm 307 is displayed, replace the battery as soon

BATTERY FOR

as possible. In general, the battery should be replaced within one or two

BUILT-IN ABSOLUTE

weeks of the alarm first appearing. This, however, depends on the number

PULSE CODERS

of pulse coders being used.

If the battery voltage drops any further, the current positions for the pulse

(DC6V)

coders will be lost. Turning on the power to the control unit in this state

results in APC alarm 300 (reference position return request alarm) being

issued. Return the tool to the reference position after replacing the battery.

So, FANUC recommends replacing the battery every year concerning

without the alarm occurring.

The battery for the built-in absolute pulse coder is connected with the

servo amplifier.

Note that the attachment methods of the battery and ordering

specifications of battery are different from SERVO AMPLIFIER a series

(SVM) to SERVO AMPLIFIER b series.

Replacement procedure

Replace the battery only while the power to the servo unit is on. If the

battery is replaced while the power is off, all of the absolute position

settings will be lost.

Replacement procedure is as follows.

1. Turn the servo unit (machine) on.

2. Place the machine in the emergency stop state.

3. Confirm that the servo motors are not active.

4. In case of SERVO AMPLIFIER a series, confirm that the LED that

indicates DC link charging status is not light.

5. Remove the battery and replace the battery.

6. The replacement is complete. Turn the servo unit (machine) off.

WARNING

D The power magnetic cabinet in which the servo units are

mounted has a high-voltage section. Don’t touch this

section that presents a severe risk of the electric shock.

D In case of SERVO AMPLIFIER a series, replace the battery

after confirm that the LED that indicates DC link charging

status is not light. Charged DC link has a high-voltage.

D Ensure that the replacement battery is of the correct type.

Otherwise, heat, explosion or ignition will occur. Always use

the specified battery.

D Pay careful attention to the polarity of the battery. Fault

polarity may be the cause of heat, explosion or ignition.

Also, it may be the cause of lost of the absolute position in

the pulse coder.

D Attach the socket to unused connector of CX5X or CX5Y.

These sockets that protect the connectors are attached to

these connectors in shipping from FANUC. If connector pins

of CX5X or CX5Y will short, heat, explosion or ignition will

occur. Also, it may be the cause of lost of the absolute

position in the pulse coder.

817

1. METHOD OF REPLACING BATTERY

MAINTENANCE

B-63524EN/01

SERVO AMPLIFIER a

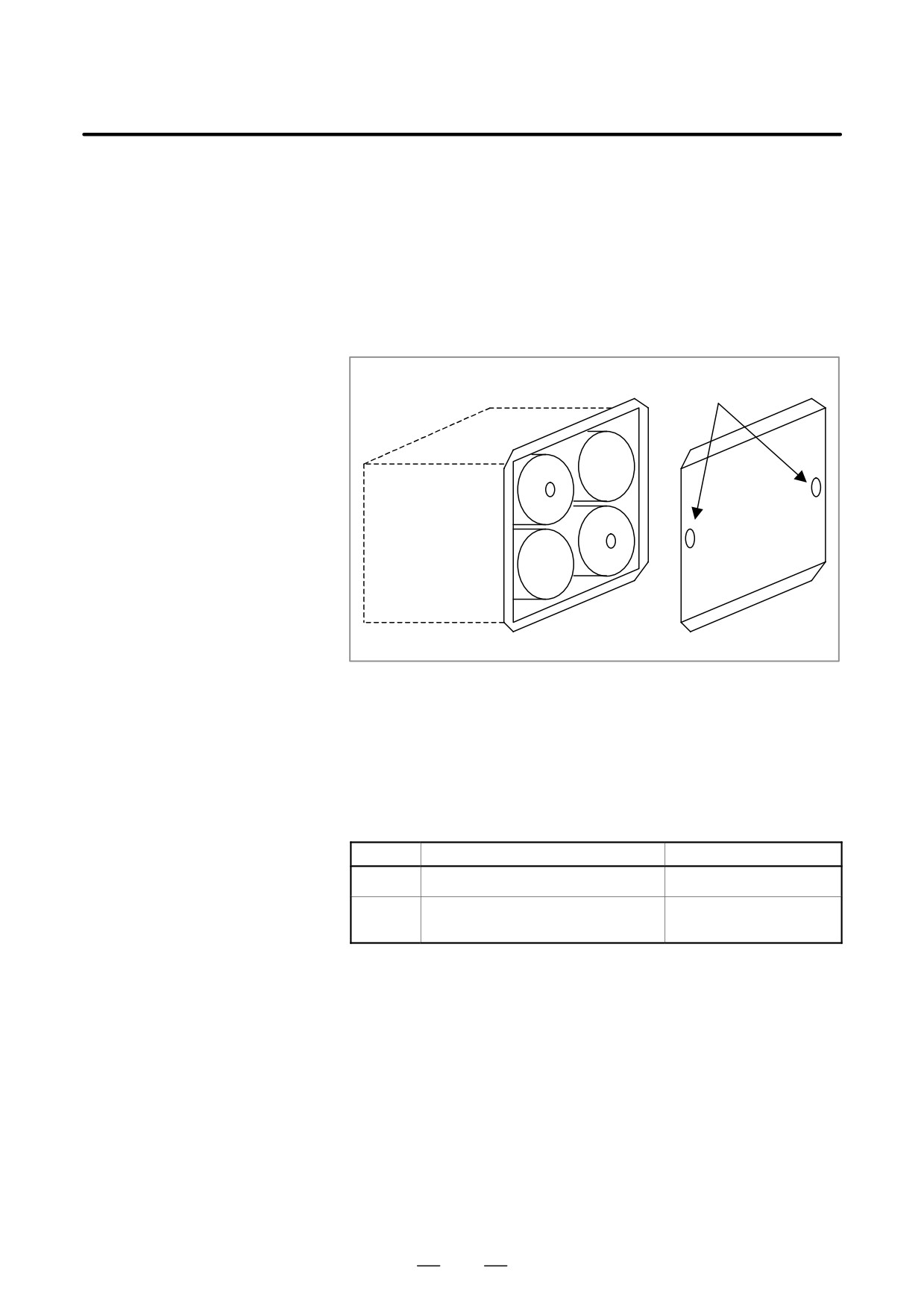

The battery is connected in either of 2 ways as follows.

series (SVM)

Method 1: Attach the lithium battery to the SVM.

Use the battery: A06B-6073-K001.

Method 2: Use the battery case (A06B-6050-K060).

Use the battery: A06B-6050-K061 or D-size alkaline battery.

Method

Item

Ordering specification

Method 1

Battery (Lithium battery)

A06B-6073-K001

Method 2

Battery (4 pieces of D-size alkaline

A06B-6050-K061

battery)

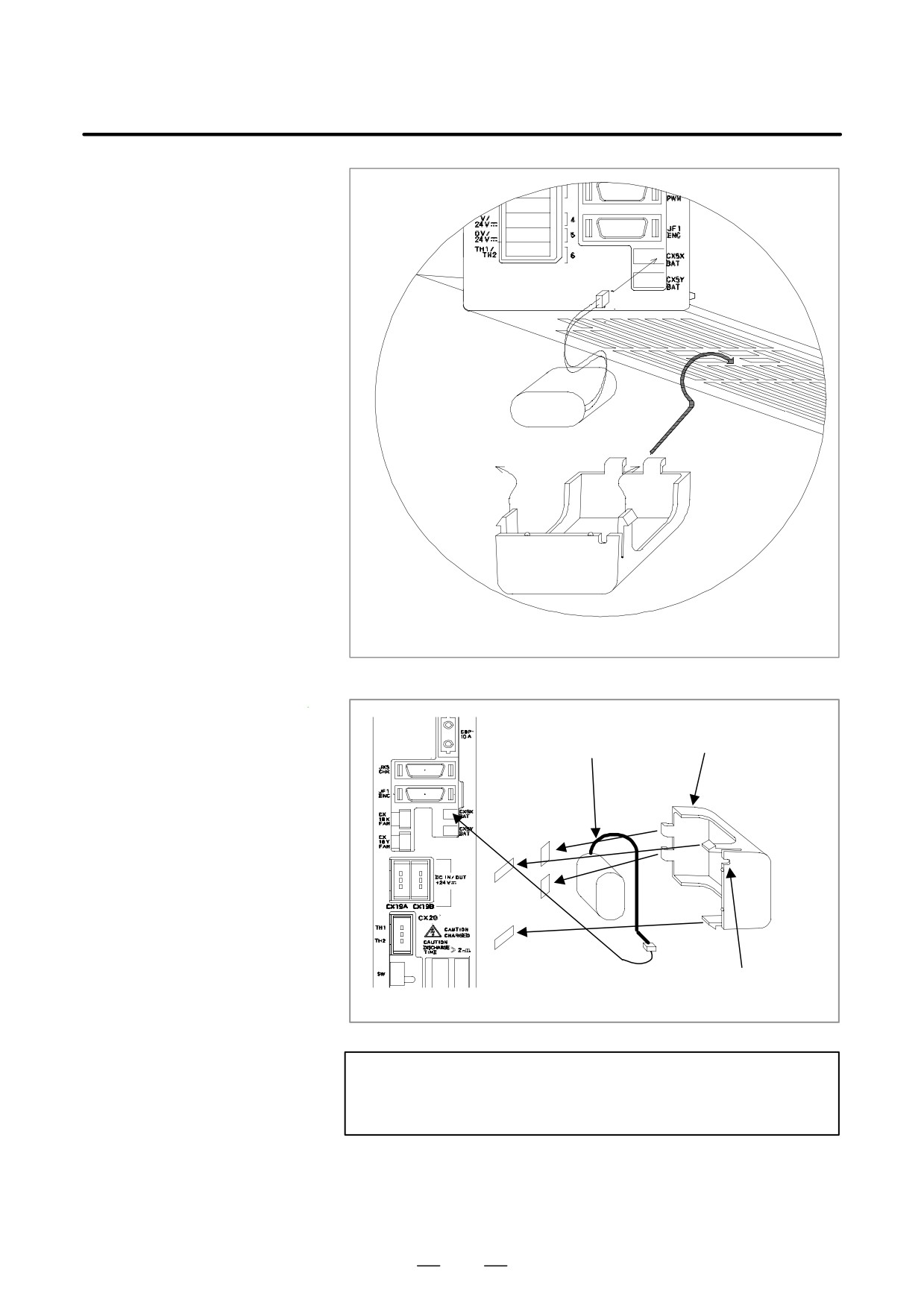

D Attach the lithium battery to the SVM. (Method 1)

Built the lithium (A06B-6073-K001) battery in the SVM.

[Attachment procedure]

(1) Check the item 1 to 4 of ”Replacement procedure”.

(2) Remove a battery cover from SVM.

(3) Attach the battery as shown below.

(4) Re-attach the cover.

(5) Connect the connector of battery with CX5X or CX5Y of SVM.

SVM

Inserting way

Cable side

Red: +6V

Connector

Black: 0V

Battery

CX5X, CX5Y

Battery cover

+6V

CAUTIONS

D The connector of the battery can be connected with either

of CX5X and CX5Y.

D Pay attention that the battery cable doesn’t have a stretch

condition. If this cable is connected on a stretch condition,

a bad conductivity may be occurred.

D Replacement of batteries in the battery case. (Method 2)

Replace four D-size alkaline batteries in the battery case installed in

the machine.

818

B-63524EN/01

MAINTENANCE

1. METHOD OF REPLACING BATTERY

[Attachment procedure]

(1) Check the item 1 to 4 of ”Replacement procedure”.

(2) Have four D-size alkaline batteries on hand.

(3) Loosen the screws on the battery case. Remove the cover.

(4) Replace the alkaline batteries in the case. Pay careful attention

to the polarity of the alkaline batteries.

(5) Attach the cover.

Screws

Cover

SERVO AMPLIFIER b

The battery is connected in either of 2 ways as follows.

series

Method 1: Attach the lithium battery to the SVM.

Use the battery: A06B-6093-K001.

Method 2: Use the battery case (A06B-6050-K060).

Use the battery: A06B-6050-K061 or D-size alkaline battery.

Method

Item

Ordering specification

Method 1

Battery (Lithium battery)

A06B-6093-K001

Method 2

Battery (4 pieces of D-size alkaline

A06B-6050-K061

battery)

D Attach the lithium battery to the amplifier. (Method 1)

Attach the lithium (A06B-6093-K001) battery to the amplifier.

[Attachment procedure]

(1) Check the item 1 to 3 of ”Replacement procedure”.

(2) In case of SVU-12 or SVU-20, remove the battery cover under

the servo unit grasping its left and right sides. In case of

SVU-40 or SVU-80, remove the cover attached on right side

of the servo unit grasping its upper and lower sides.

(3) Remove the battery from the servo unit.

(4) Replace the battery and connect the battery cable with the

connector CX5X or CX5Y of the servo unit.

(5) Mount the battery cover.

819

B-63524EN/01

MAINTENANCE

1. METHOD OF REPLACING BATTERY

[Attachment procedure]

(1) Check the item 1 to 3 of ”Replacement procedure”.

(2) Have four D-size alkaline batteries on hand.

(3) Loosen the screws on the battery case. Remove the cover.

(4) Replace the alkaline batteries in the case. Pay careful attention

to the polarity of the alkaline batteries.

(5) Attach the cover.

Screws

Cover

Used batteries

Old batteries should be disposed as

”INDUSTRIAL WASTES”

according to the regulations of the country or autonomy where your

machine has been installed.

821

FANUC Series Series 16i-TB, Series 18i-TB, Series 160i-TB, Series 180i-TB. OPERATOR’S MANUAL - page 28
