12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1804 -

Explanation
  - Setting parameters with external input/output devices

See III-8 for setting parameters with external input/output devices
such as the memory card.


  - Parameters that require turning off the power

Some parameters are not effective until the power is turned off and on
again after they are set. Setting such parameters causes alarm PW0000.
In this case, turn off the power, then turn it on again.


 - Parameter list

Refer to the Parameter Manual (B-63950EN) for the parameter list.


 - Setting data

Some parameters can be set on the setting screen if the parameter list
indicates "Setting entry is acceptable". Setting 1 for PARAMETER
WRITE is not necessary when three parameters are set on the setting
screen.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1805 -

12.4.17

Displaying and Setting Pitch Error Compensation Data

(15-inch Display Unit)


If pitch error compensation data is specified, pitch errors of each axis
can be compensated in detection unit per axis.
Pitch error compensation data is set for each compensation point at the
intervals specified for each axis. The origin of compensation is the
reference position to which the tool is returned.
The pitch error compensation data is set according to the
characteristics of the machine connected to the NC. The content of
this data varies according to the    machine model. If it is changed, the
machine accuracy is reduced.
In principle, the end user must not alter this data.
Pitch error compensation data can be set with external devices such as
the memory card (see Chapter III-8). Compensation data can also be
written directly with the MDI panel.
The following parameters must be set for pitch error compensation.
Set the pitch error compensation value for each pitch error
compensation point number set by these parameters.

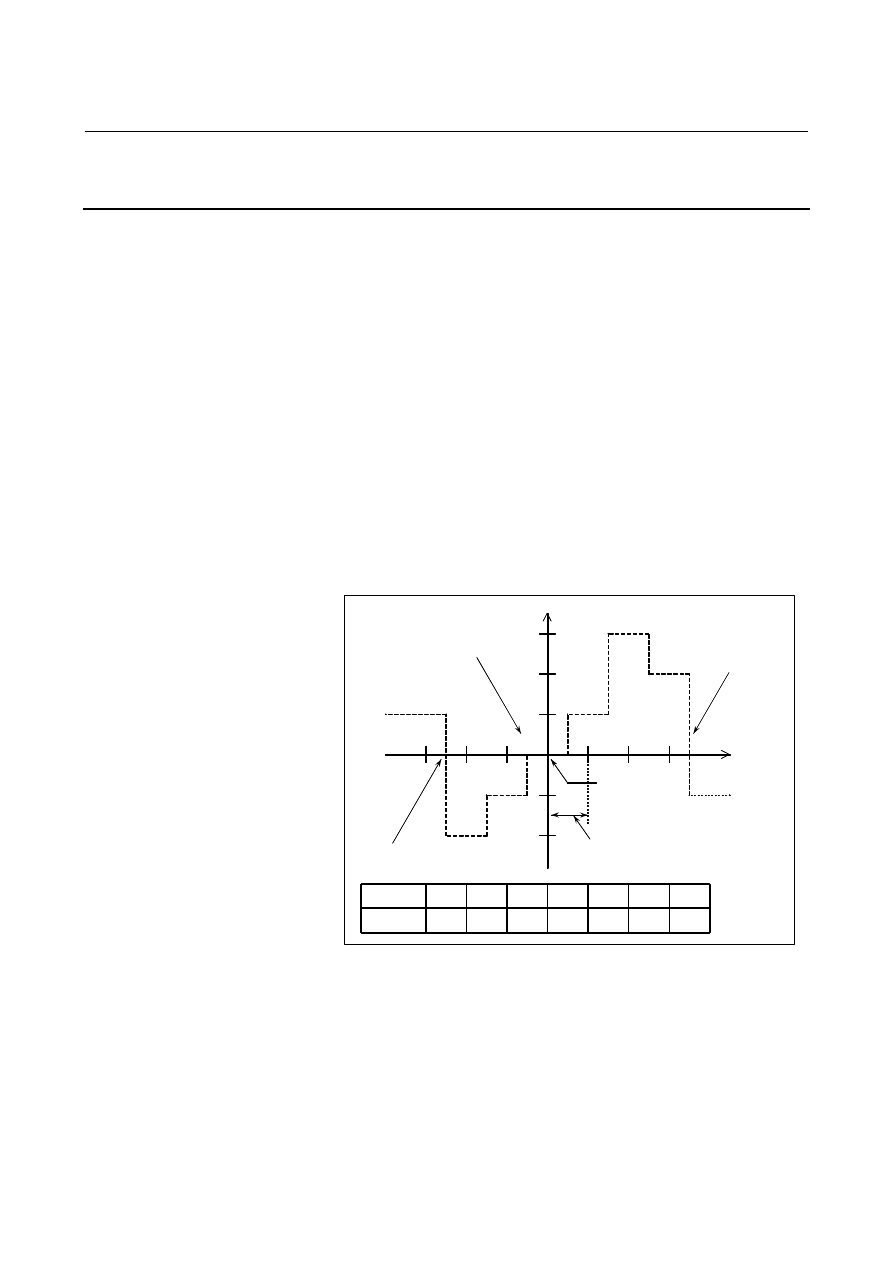

In the following example, 33 is set for the pitch error compensation
point at the reference position.



1

2

3

33

32

31

34

35

36 37

Compensation number
parameter for the reference
position (No. 3620)

Compensation number
parameter for the
compensation point having
the largest value (No.
3622)

-1

-2

Compensation number parameter for
the compensation point having the
smallest value (No. 3621)

Compensation
position number

Compensation
value to be set

3

3

3

3

31

3

3

-3

+1

+1

+1

+2

-1 -3

Reference position

Compensation
interval parameter
(No. 3624)

Compensation magnification
parameter (No. 3623)

Pitch error compensation value (absolute value)





•



Number of the pitch error compensation point at the reference
position (for each axis): Parameter No. 3620

•

  Number of the pitch error compensation point having the

smallest value (for each axis): Parameter No. 3621

•



Number of the pitch error compensation point having the largest
value (for each axis): Parameter No. 3622

•

  Pitch error compensation magnification (for each axis):

Parameter No. 3623

•



Interval of the pitch error compensation points (for each axis):
Parameter No. 3624

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1806 -

•



Travel distance per revolution of pitch error compensation of the
rotary axis type (for each axis): Parameter No. 3625



  - Bi-directional pitch error compensation

The bi-directional pitch error compensation function allows
independent pitch error compensation in different travel directions.
(When the movement is reversed, compensation is automatically
carried out as in a backlash.)
To use this function, specify pitch error compensation for each travel
direction, that is, separately for the positive and negative directions of
a movement.
When using bi-directional pitch error compensation (setting bit 0
(BDPx) of parameter No. 3605 to 1), specify the following parameters
in addition to the pitch error compensation parameter.

•



Number of the pitch error compensation point at the negative end
(for travel in the positive direction, for each axis): Parameter No.
3621

•



Number of the pitch error compensation point at the positive end
(for travel in the positive direction, for each axis): Parameter No.
3622

•



Number of the pitch error compensation point at the negative end
(for travel in the negative direction, for each axis): Parameter No.
3626

•



Pitch error compensation in the reference position when moving
to the reference position from opposite to the reference position
return direction (for each axis): Parameter No. 3627



Procedure for displaying and setting the pitch error compensation data



Procedure

1

Set the following parameters:

•

  Number of the pitch error compensation point at the

reference position (for each axis): Parameter No. 3620

•



Number of the pitch error compensation point having the
smallest value (for each axis): Parameter No. 3621

•



Number of the pitch error compensation point having the
largest value (for each axis): Parameter No. 3622

•

  Pitch error compensation magnification (for each axis):

Parameter No. 3623

•



Interval of the pitch error compensation points (for each
axis): Parameter No. 3624

•



Travel distance per revolution of pitch error compensation
of the rotary axis type (for each axis): Parameter No. 3625



When using bi-directional pitch error compensation (setting bit 0
(BDPx) of parameter No. 3605 to 1), specify the following
parameters in addition to the pitch error compensation parameter.

•

  Number of the pitch error compensation point at the

negative end (for travel in the positive direction, for each
axis): Parameter No. 3621

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1807 -

•

  Number of the pitch error compensation point at the

positive end (for travel in the positive direction, for each
axis): Parameter No. 3622

•

  Number of the pitch error compensation point at the

negative end (for travel in the negative direction, for each
axis): Parameter No. 3626

•

  Pitch error compensation in the reference position when

moving to the reference position from opposite to the
reference position return direction (for each axis): Parameter
No. 3627


2

Press function key

.

3

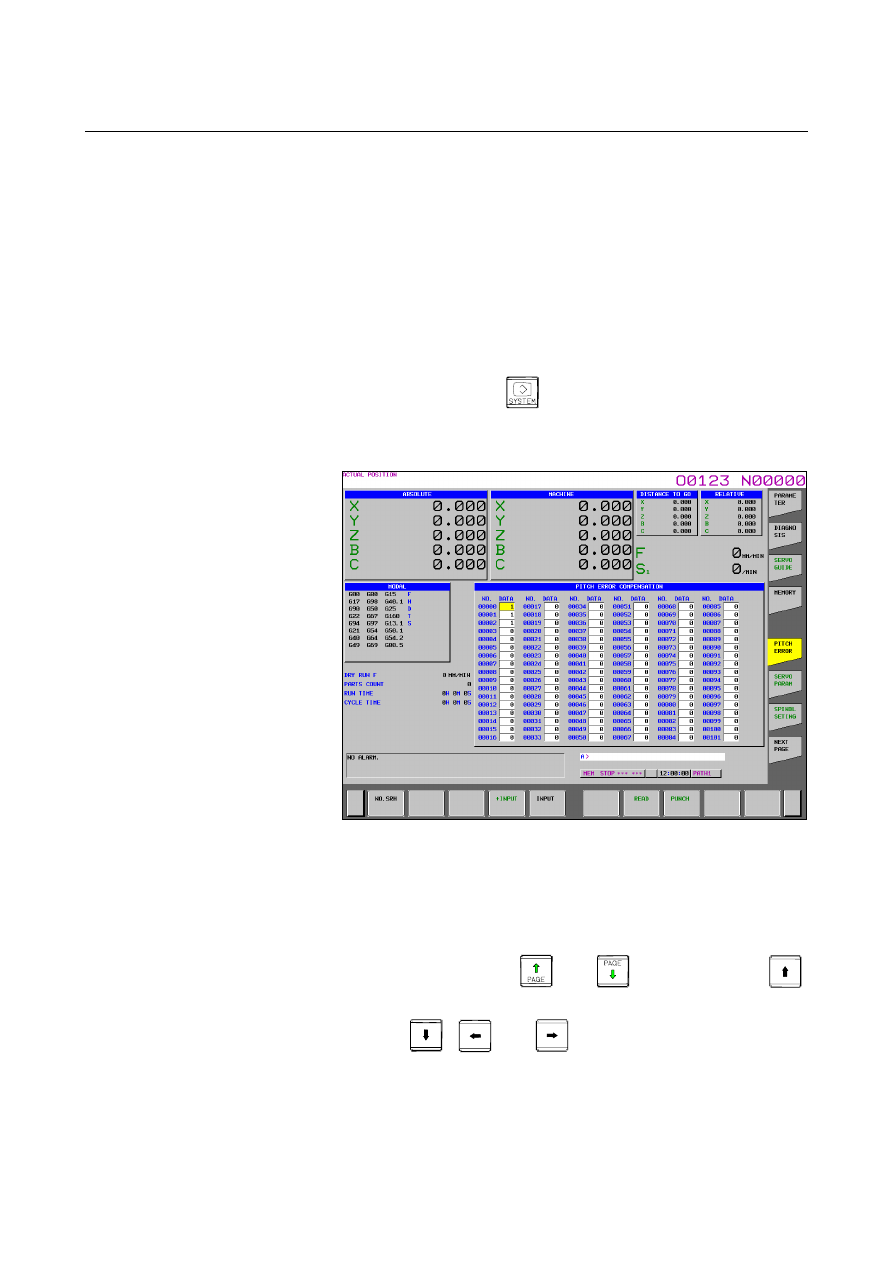

Press vertical soft key [PITCH ERROR]. The following screen is
displayed:



Fig. 12.4.17 (a) PITCH ERROR COMPENSATION screen (15-inch)



4

Move the cursor to the compensation point number to be set in
either of the following ways:

•

  Enter the compensation point number and press the

horizontal soft key [NO.SRH].

•



Move the cursor to the compensation point number using

the page keys,

 and

, and cursor keys,

,

,

, and

.

5

Enter a value with numeric keys and press horizontal soft key
[INPUT].



‚

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1808 -

12.4.18

Displaying and Setting Three-Dimensional Error

Compensation Data (15-inch Display Unit)


In ordinary pitch error compensation, compensation is applied to a
specified compensation axis (single axis) by using its position
information. For example, pitch error compensation is applied to
X-axis by using the position information of X-axis.
Three-dimensional error compensation is a function that adjusts the
current position by calculating compensation data (for three axes)
from the compensation amounts at surrounding compensation points
(eight points) on the basis of the interior division ratio in the
compensation area (rectangular parallelepiped) containing the current
position on up to three compensation axes.


  - Calculation of compensation

Three-dimensional error compensation is calculated as follows.































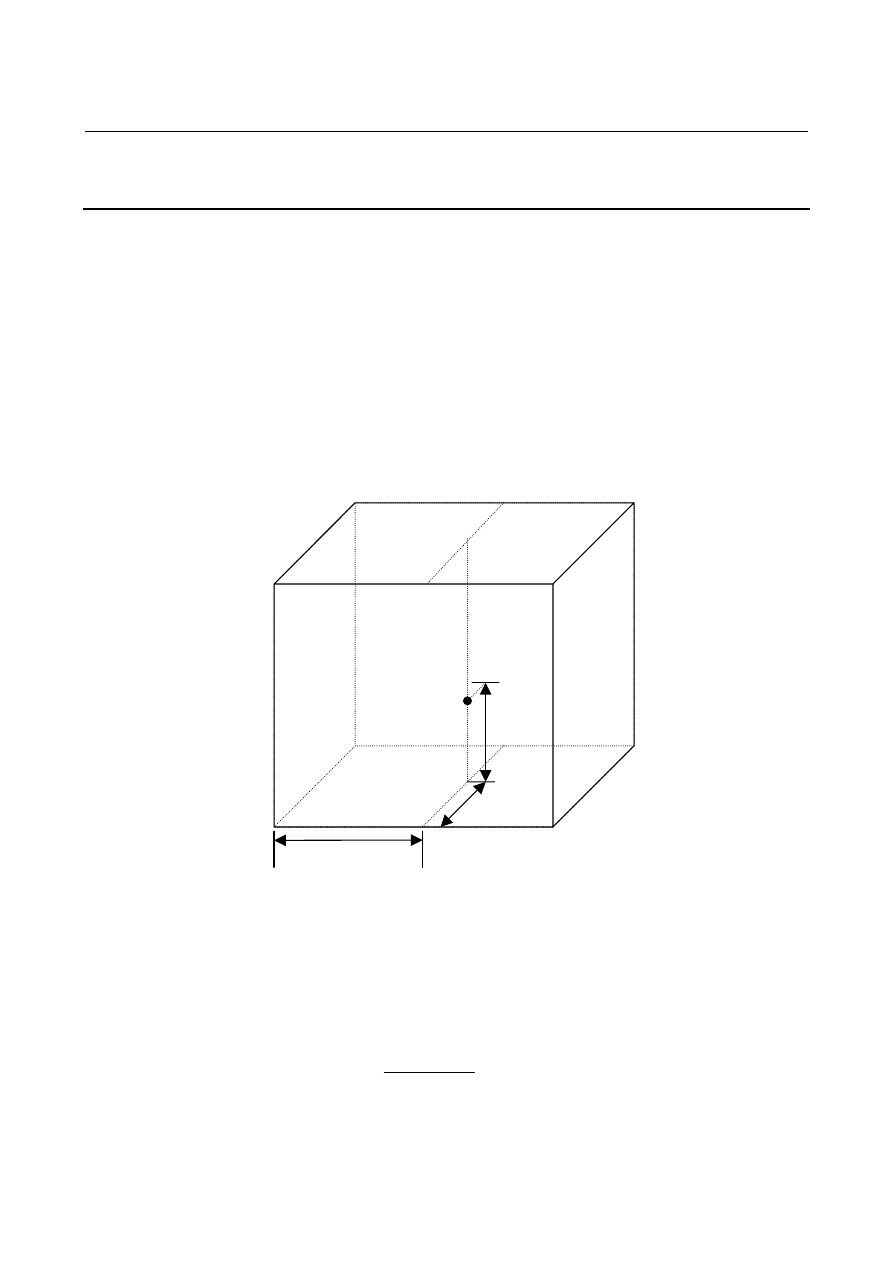

Let three compensation axes be X, Y, and Z (three basic axes) and the
coordinates of the current position be P (Px, Py, Pz). consider a
compensation space (rectangular parallelepiped) containing P. Let its
vertexes be P1, P2, …, and P8 and the compensation values for the
individual axes at the individual vertexes be Cnx, Cny, and Cnz
(where n is a number between 1 and 8).
Let the interior division ratio on X-axis at P be x. Here, x is
standardized in the range of 0 to 1 as follows:

P1x and P2x are the X coordinates of P1 and P2. The interior division
ratios on Y and Z-axes are determined in the same way.

|

1

2

|

|

1

|

x

P

x

P

x

P

Px

x

−

−

=

P4 [

C4x, C4y, C4z

]

P (

Px, Py, Pz)

P5 [

C5x, C5y, C5z

]

P6 [

C6x, C6y, C6z

]

P1 [

C1x, C1y, C1z

]

P2 [

C2x, C2y, C2z

]

P3 [

C3x, C3y, C3z

]

P8 [

C8x, C8y, C8z

]

P7 [

C7x, C7y, C7z

]

x



y

z

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1809 -

The compensation amount Cx for X-axis at P is determined as
follows:


The compensation amount Cy and Cz on Y and Z-axes are determined
in the same way.

The actual compensation amounts are the calculated compensation
amounts multiplied by the compensation magnifications (Parameter
No.10809 to 10811).


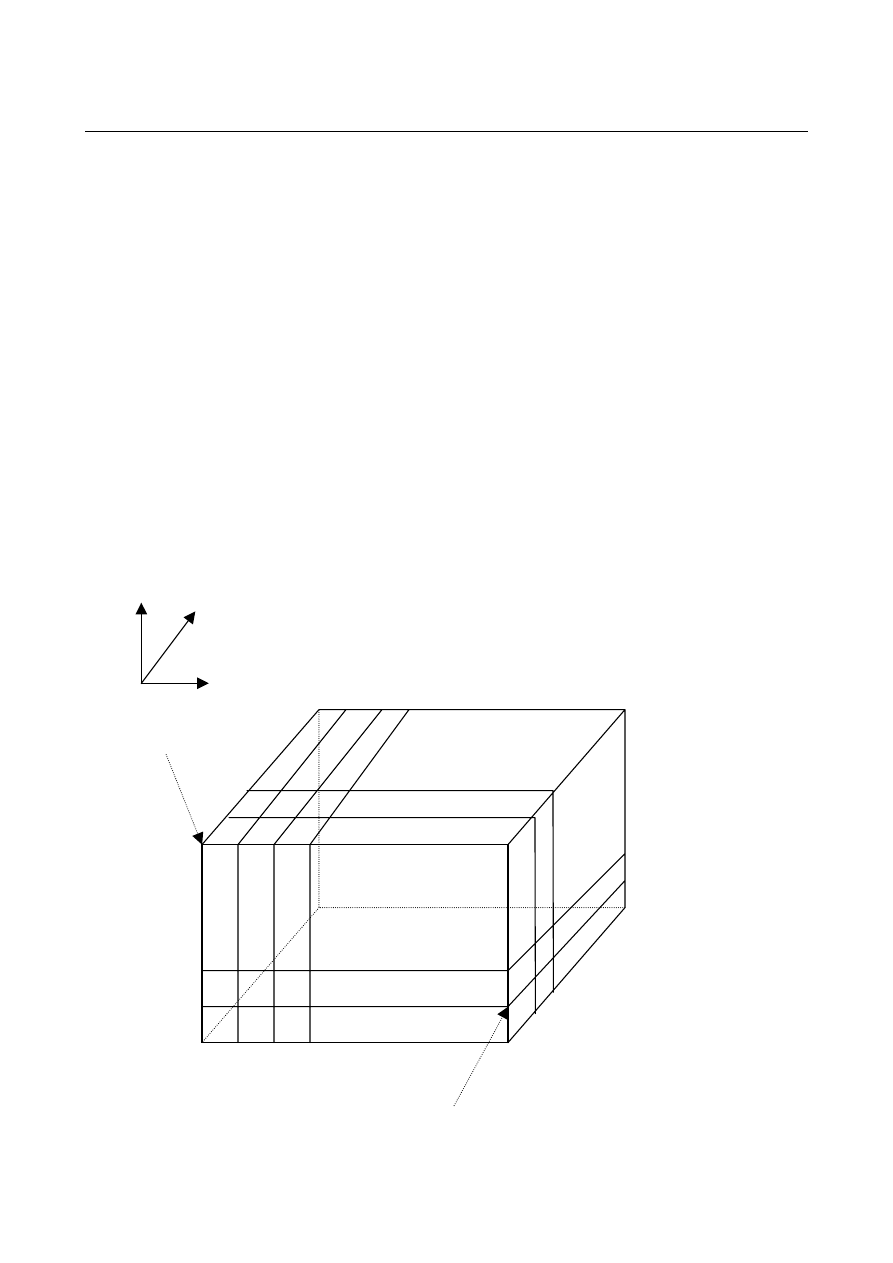

  - Number of compensation points

Up to 15625 compensation points (up to 25 points per axis) can be set.
The numbers of compensation points on the individual axes are set for
parameters No.10803 to 10805. The ordering of the compensation
point numbers in the compensation space is as follows.










Max1

×

Max2

×

Max3



Max1

×

Max2

×

(Max3-1

）

+1



…
…

Max1

×

Max2

×

3

Max1

×

Max2

×

2





Max1

×

Max2

…

…

Max1

×

Max2+1





Max1

×

3



Max1

×

2

 1   2   3

…………………           Max1



Max1

×

Max2+Max1






z

y

x

x

C

z

y

x

x

C

z

y

x

x

C

z

y

x

x

C

z

y

x

x

C

z

y

x

x

C

z

y

x

x

C

z

y

x

x

C

Cx

×

×

−

×

+

×

×

×

+

×

−

×

×

+

×

−

×

−

×

+

−

×

×

−

×

+

−

×

×

×

+

−

×

−

×

×

+

−

×

−

×

−

×

=

)

1

(

8

7

)

1

(

6

)

1

(

)

1

(

5

)

1

(

)

1

(

4

)

1

(

3

)

1

(

)

1

(

2

)

1

(

)

1

(

)

1

(

1

Max1 : Number of compensation points on the first axis (up to 25)
Max2 : Second axis (up to 25)
Max3 : Third axis (up to 25)

(Third compensation axis)

(Second compensation axis)

(First compensation axis)

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1810 -

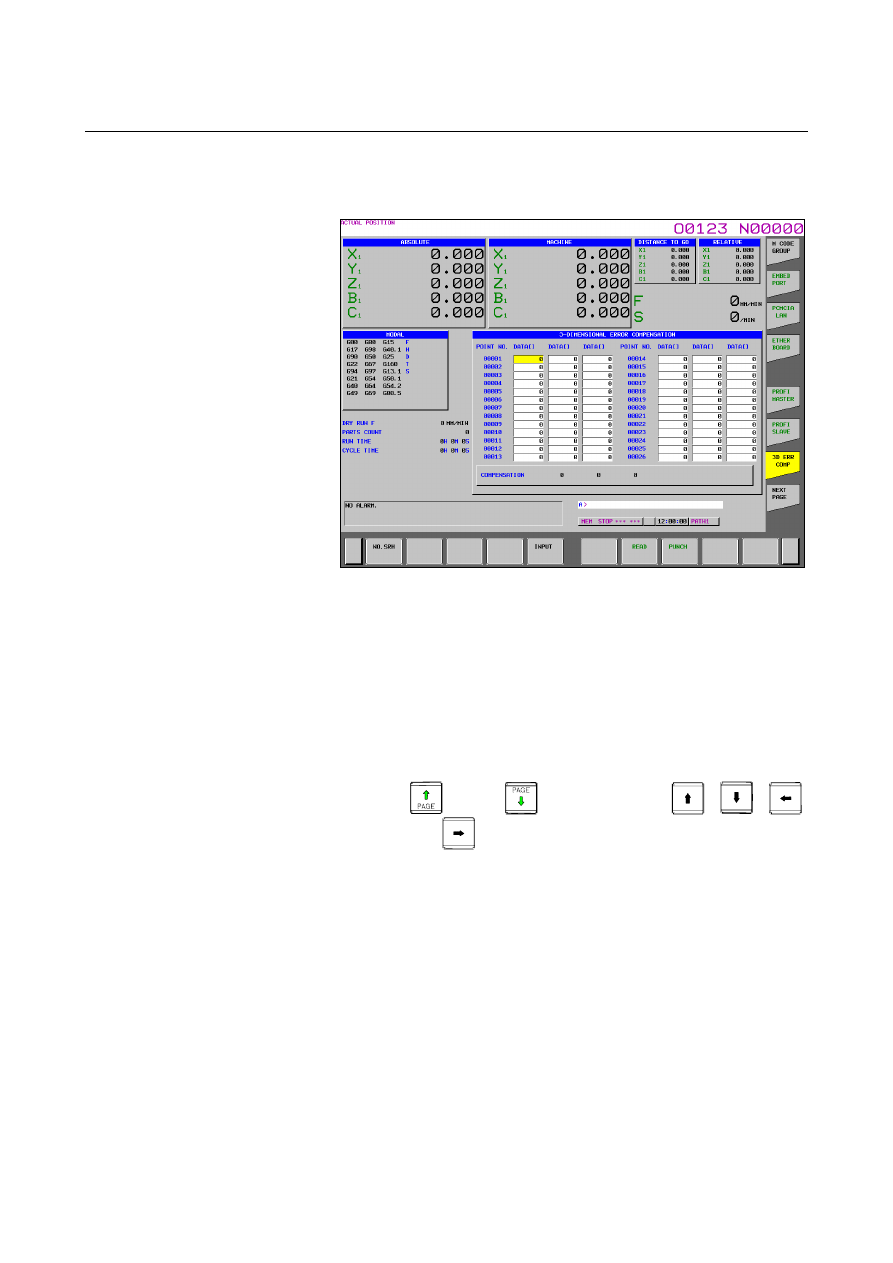

Displaying and setting three-dimensional error compensation data

Procedure

1

Set the following parameters:

•

  First compensation axis for three-dimensional error

compensation : Parameter No. 10800

•

  Second compensation axis for three-dimensional error

compensation : Parameter No. 10801

•

  Third compensation axis for three-dimensional error

compensation : Parameter No. 10802

•



Number of compensation points for three-dimensional error
compensation (first compensation axis)
Parameter No. 10803

•



Number of compensation points for three-dimensional error
compensation (second compensation axis)
Parameter No. 10804

•



Number of compensation points for three-dimensional error
compensation (third compensation axis)
Parameter No. 10805

•



Compensation point number of the reference position for
three-dimensional error compensation (first compensation
axis) : Parameter No. 10806

•



Compensation point number of the reference position for
three-dimensional error compensation (second
compensation axis) : Parameter No. 10807

•



Compensation point number of the reference position for
three-dimensional error compensation (third compensation
axis) : Parameter No. 10808

•

  Magnification for three-dimensional error compensation

(first compensation axis) : Parameter No. 10809

•

  Magnification for three-dimensional error compensation

(second compensation axis) : Parameter No. 10810

•

  Magnification for three-dimensional error compensation

(third compensation axis) : Parameter No. 10811

•

  Compensation interval for three-dimensional error

compensation (first compensation axis)
Parameter No. 10812

•

  Compensation interval for three-dimensional error

compensation (second compensation axis)
Parameter No. 10813

•

  Compensation interval for three-dimensional error

compensation (third compensation axis)
Parameter No. 10814





2

Press function key

.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1811 -

3

Press vertical soft key [NEXT PAGE] several times, then press
vertical soft key [3D ERR COMP]. The following screen
appears:



Fig. 12.4.18 (a) 3-DIMENSIONAL ERROR COMPENSATION screen

(15-inch)


4  Move the cursor to the position of the compensation point

number you want to set using either of the following methods:

•



Select the MDI mode.

•



Set bit 0 (PWE) of parameter No. 8900 to 1.

•



Enter a compensation point number and press horizontal
soft key [NO. SRH].

•

  Move the cursor to the compensation point number or

compensation axis you want to set by pressing page keys

 and/or

, and cursor keys

,

,

,

and

.

5  Enter compensation data in detection units.  The valid data

range is from -128 to 127.
