12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1756 -

5  Press soft key [INIT]. The standard value (recommended by

FANUC) for the item selected by the cursor is displayed in the
key input buffer. Pressing soft key [EXEC] in this state initializes
the item to the standard value.

6

Press soft key [G_INIT]. A message asking whether to set the
group standard values is displayed on the screen. Pressing soft
key [EXEC] in this state inputs all of the standard values of the
group.



NOTE

1  If the cursor is placed on a parameter that has no

standard value assigned, no standard value is input
even when [INIT] is pressed.

2  When the cursor is placed on multiple bits for bit

parameters, the multiple bits can be input
simultaneously. When [INIT] is pressed in this
state, the key input buffer displays the standard
values for the bits where the cursor is placed. If a
bit has no standard value assigned, "*" is displayed
for the bit, and no value is input for the bit.

3  When [G_INIT] is pressed, those parameters that

have no standard values assigned are not
initialized.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1757 -

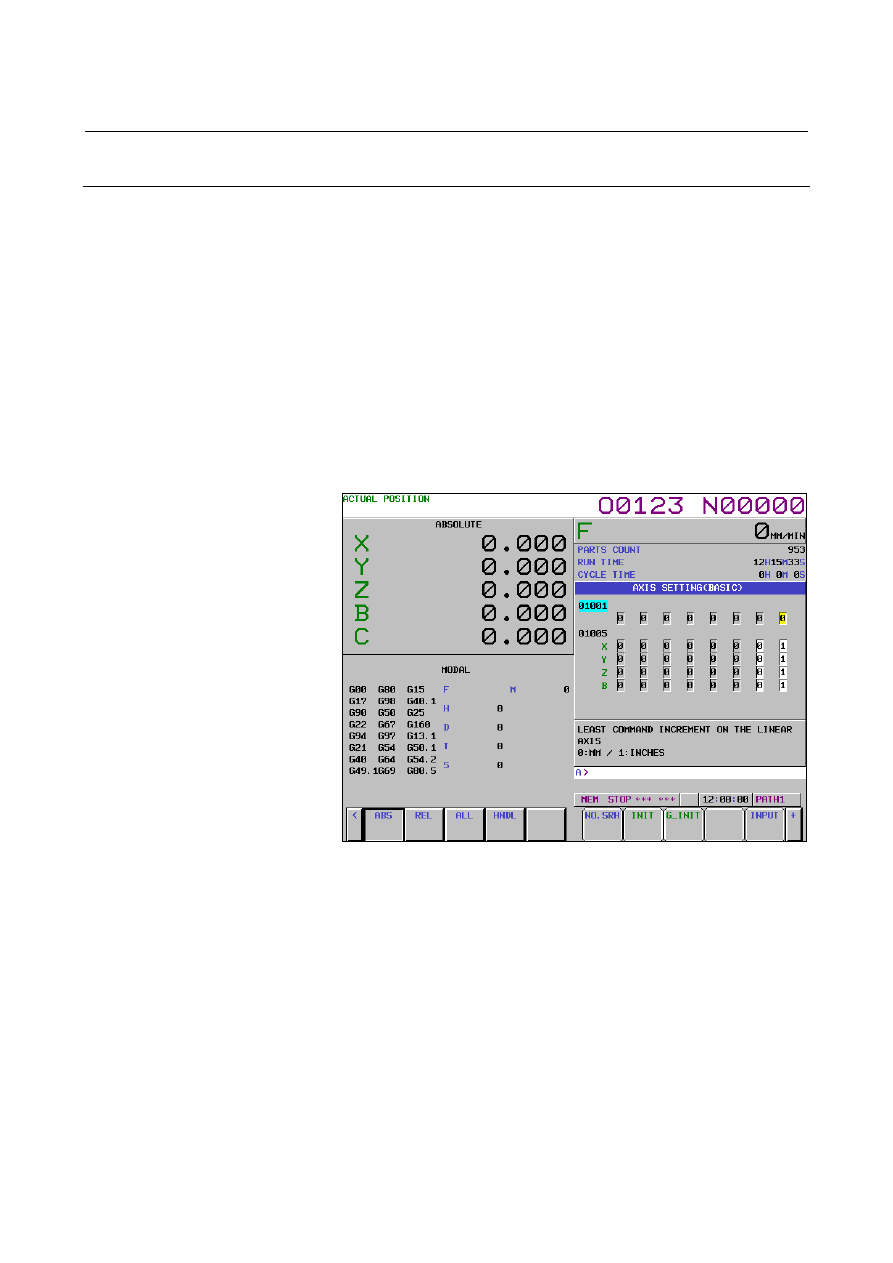

12.4.12.3

Parameter tuning screen (axis setting)


This screen enables the CNC parameters related to axes, coordinates,
feedrate, and acceleration/deceleration to be displayed and set. The
parameters displayed can be divided into four groups:
(Basic) group :


The parameters related to basic settings are displayed.

(Coordinate) group :


  The parameters related to coordinates are displayed.

(Feedrate) group :


The parameters related to feedrate are displayed.

(Acceleration/deceleration) group:


The parameters related to acceleration/deceleration are displayed.

The parameters can be initialized to the standard values
(recommended by FANUC). For the display and setting procedure, see
the description of the parameter tuning screen (system setting) in
Subsection III-12.4.12.2.



Fig. 12.4.12.3 (a) Parameter tuning screen (axis setting) (10.4-inch)



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1758 -

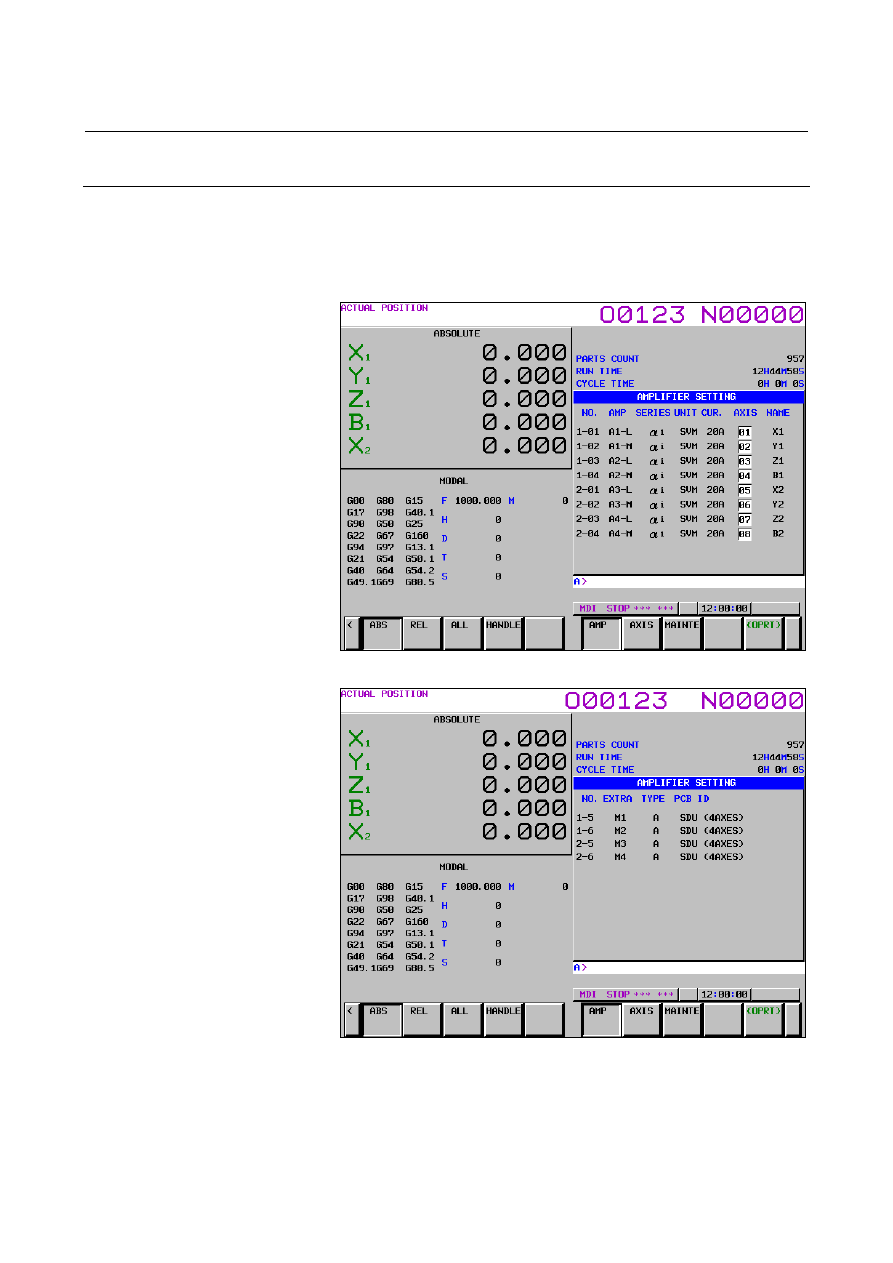

12.4.12.4

Displaying and setting the FSSB amplifier setting screen


From the parameter tuning screen, the FSSB amplifier setting screen
can be displayed. For details of the FSSB amplifier setting screen, see
the description of the FSSB amplifier setting screen in Subsection
1.4.4 in the Connection Manual (Function) (B-63943EN-1).




Fig. 12.4.12.4 (a) FSSB amplifier setting screen (10.4-inch)





Fig. 12.4.12.4 (b) FSSB amplifier setting screen 2 (10.4-inch)



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1759 -

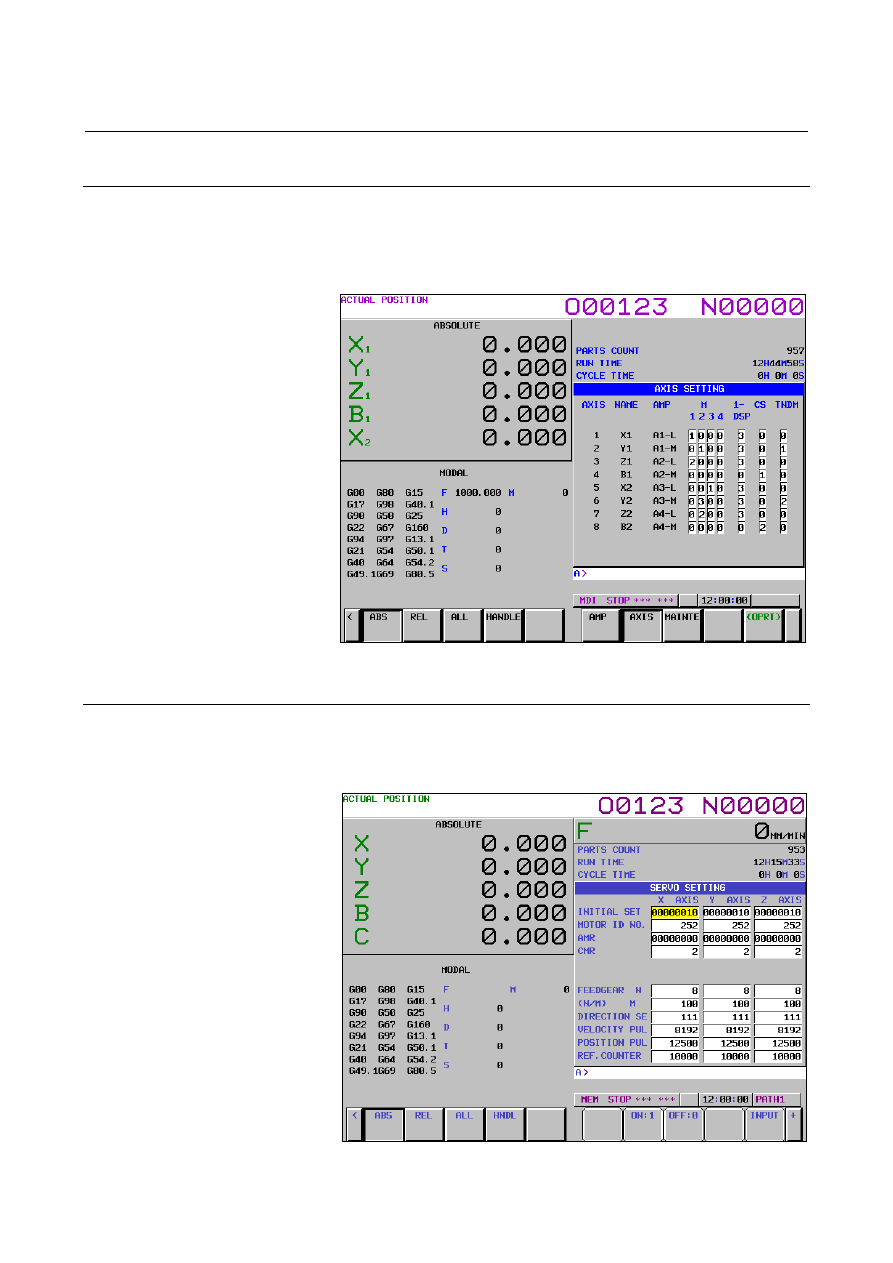

12.4.12.5

Displaying and setting the FSSB axis setting screen


From the parameter tuning screen, the FSSB axis setting screen can be
displayed. For details of the FSSB axis setting screen, see the
description of the FSSB axis setting screen Subsection 1.4.4 in the
Connection Manual (Function) (B-63943EN-1).





Fig. 12.4.12.5 (a) FSSB axis setting screen (10.4-inch)



12.4.12.6

Displaying and setting the servo setting screen


From the parameter tuning screen, the servo setting screen can be
displayed. For details of the servo setting screen, see the description of
the servo setting screen in Subsection III-12.4.4.





Fig. 12.4.12.6 (a) Servo setting screen (10.4-inch)

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1760 -

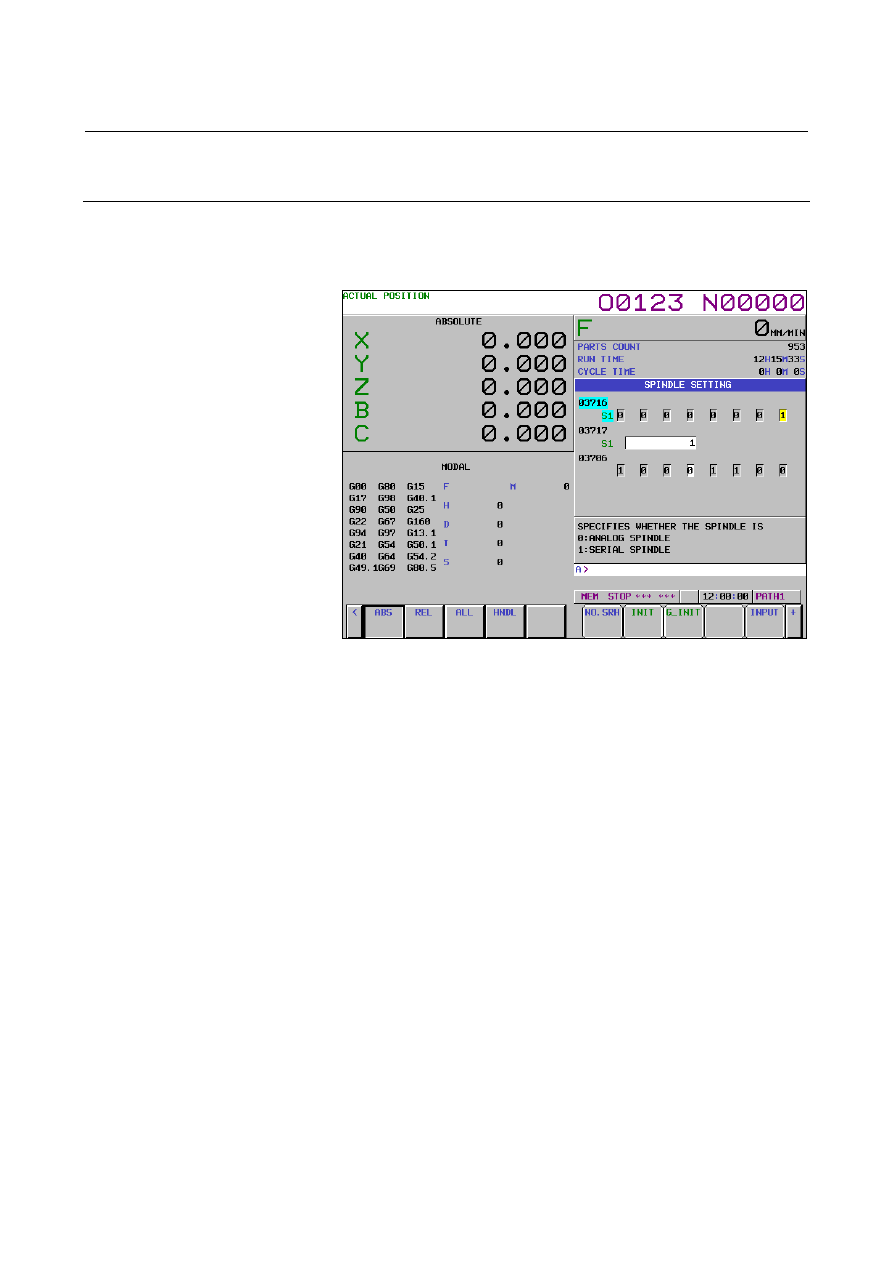

12.4.12.7

Parameter tuning screen (spindle setting)



The spindle-related parameters can be displayed and modified.
For the display and setting procedure, see the description of the
parameter tuning screen (system setting) in Subsection III-12.4.12.2.





Fig. 12.4.12.7 (a) Parameter tuning screen (spindle setting) (10.4-inch)



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1761 -

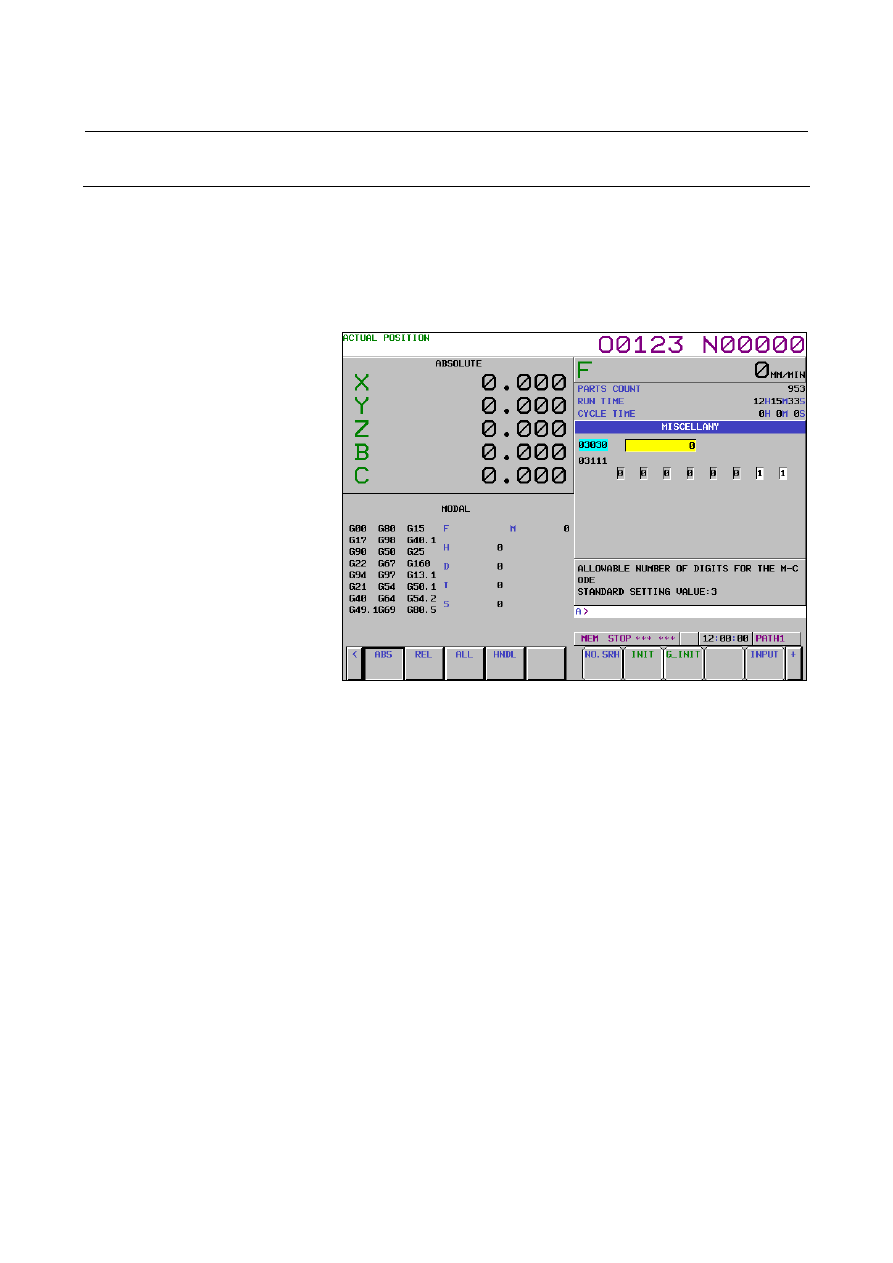

12.4.12.8

Parameter tuning screen (miscellaneous settings)



The parameters related to the allowable number of M code digits and
whether to display the servo setting and spindle tuning screens can be
displayed and modified. Moreover, the parameters can be initialized to
the standard values (recommended by FANUC).
For the display and setting procedure, see the description of the
parameter tuning screen (system setting) in Subsection III-12.4.12.2.





Fig. 12.4.12.8 (a) Parameter tuning screen (Miscellaneous setting)

(10.4-inch)



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1762 -

12.4.12.9

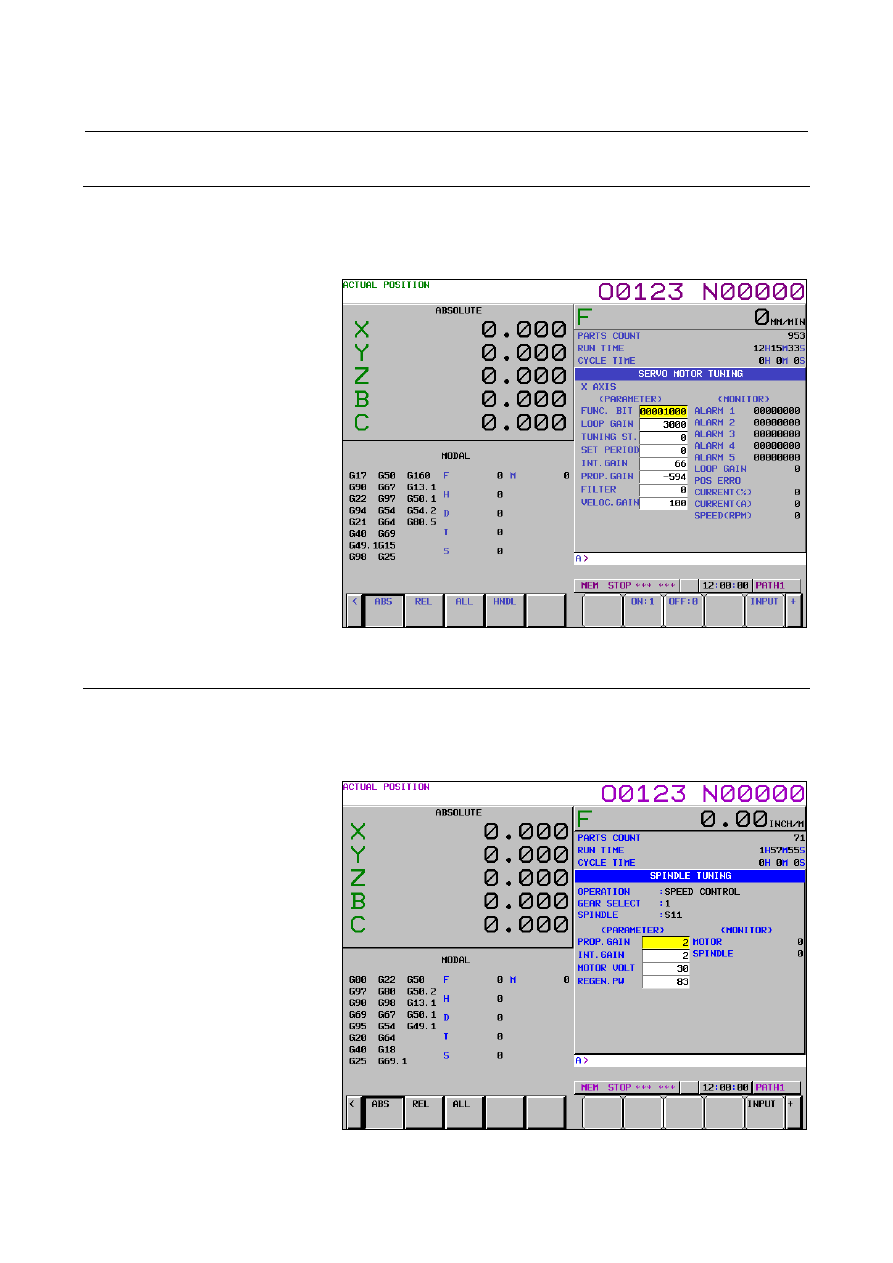

Displaying and setting the servo tuning screen


From the parameter tuning screen, the servo tuning screen can be
displayed. For details of the servo tuning screen, see the description of
the servo tuning screen in Subsection III-12.4.5.





Fig. 12.4.12.9 (a) Servo tuning screen (10.4-inch)



12.4.12.10

Displaying and setting the spindle tuning screen


From the parameter tuning screen, the spindle tuning screen can be
displayed. For details of the spindle tuning screen, see the description
of the spindle tuning screen in Subsection III-12.4.7.





Fig. 12.4.12.10 (a) Spindle tuning screen (10.4-inch)



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1763 -

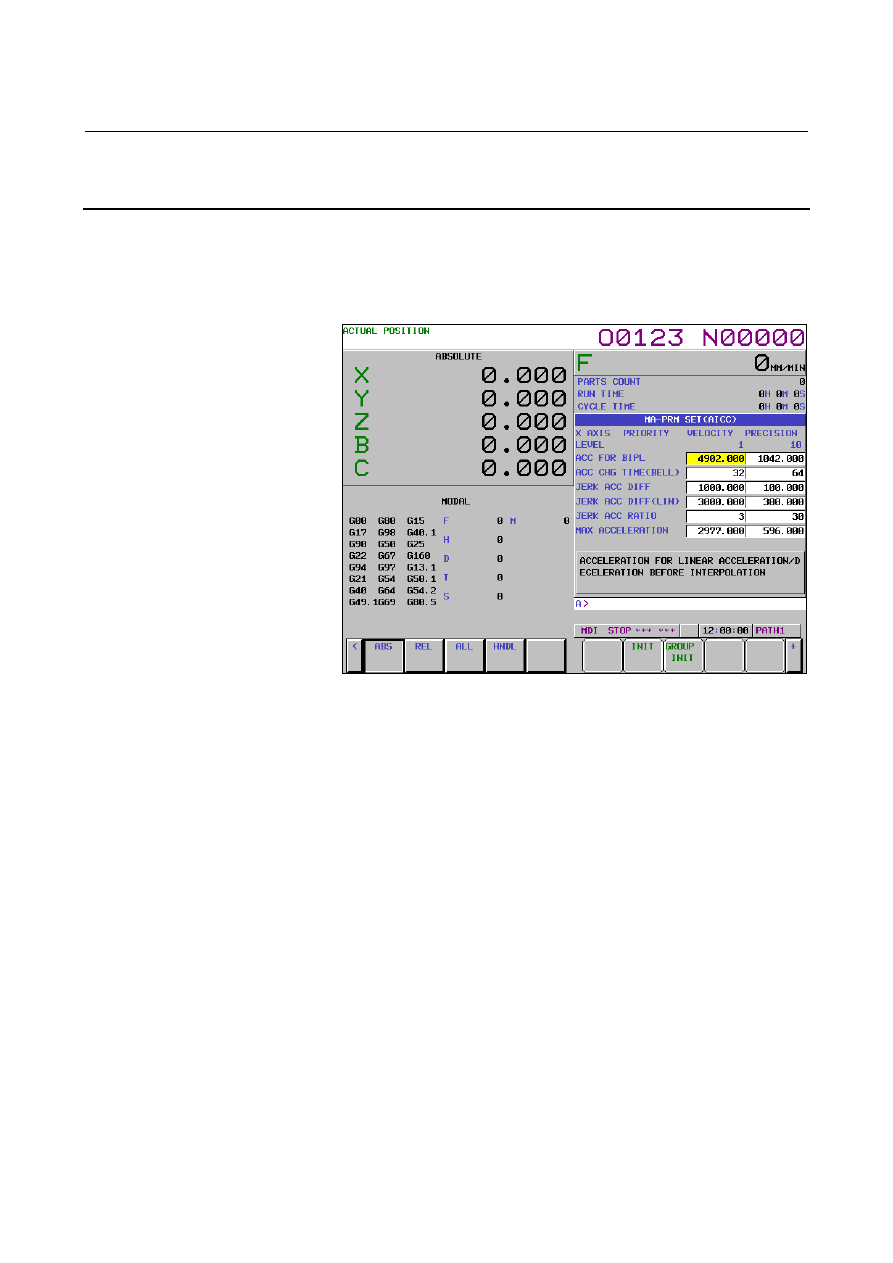

12.4.12.11

Displaying and setting the machining parameter tuning

screen


From the parameter tuning screen, the machining parameter tuning
screen can be displayed.  For details of the machining parameter
tuning screen, see the description of the machining parameter tuning
screen in Subsection III-12.4.10.




Fig. 12.4.12.11 (a) Machining parameter tuning screen (10.4-inch)
