FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 208

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1620 -



NOTE

1  For some types of data, the output function is not provided.
2  When the protection level of data is higher than the current operation level, the

protection level cannot be changed.

3  The protection level of data cannot be changed to a level higher than the current

operation level.

4  Settable types of data increase or decrease, depending on the option configuration.
5  For details on the protection level of PMC data, refer to “PMC Programming Manual

(B-63983EN)”.

6  Data related to tool information on the EACH TOOL DATA screen for the tool

management function is protected by protecting tool offset data.

7  The type of tool offset data put in effect varies depending on the tool compensation

value memory used.

8  To change the protection level for each part program, do so on the PROGRAM

FOLDERscreen rather than on the PROTECT LEVEL screen.

9  Part program editing includes program editing for the MDI mode.
10 Presetting absolute coordinates causes preset workpiece coordinate system values

to be protected.

11 During tool offset data input/output, if any tool offset data type is not allowed to be

changed or output to the outside, it is processed as follows:

- Input  : Any data type other than those whose change is not allowed is changed.
- Output  : Any data type other than those whose change is not allowed is output.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1621 -

12.3.11.4

Setting the change protection level and output protection

level of a program


The display/operations indicated below can be performed from the
directory screen.
The change protection level and output protection level of each part
program are displayed.
The change protection level and output protection level of each part
program can be changed.


Setting the change protection level and output protection level of a program

Procedure

1

Press function key

.

2

Press soft key [FOLDER].
The program directory screen shown below is displayed.



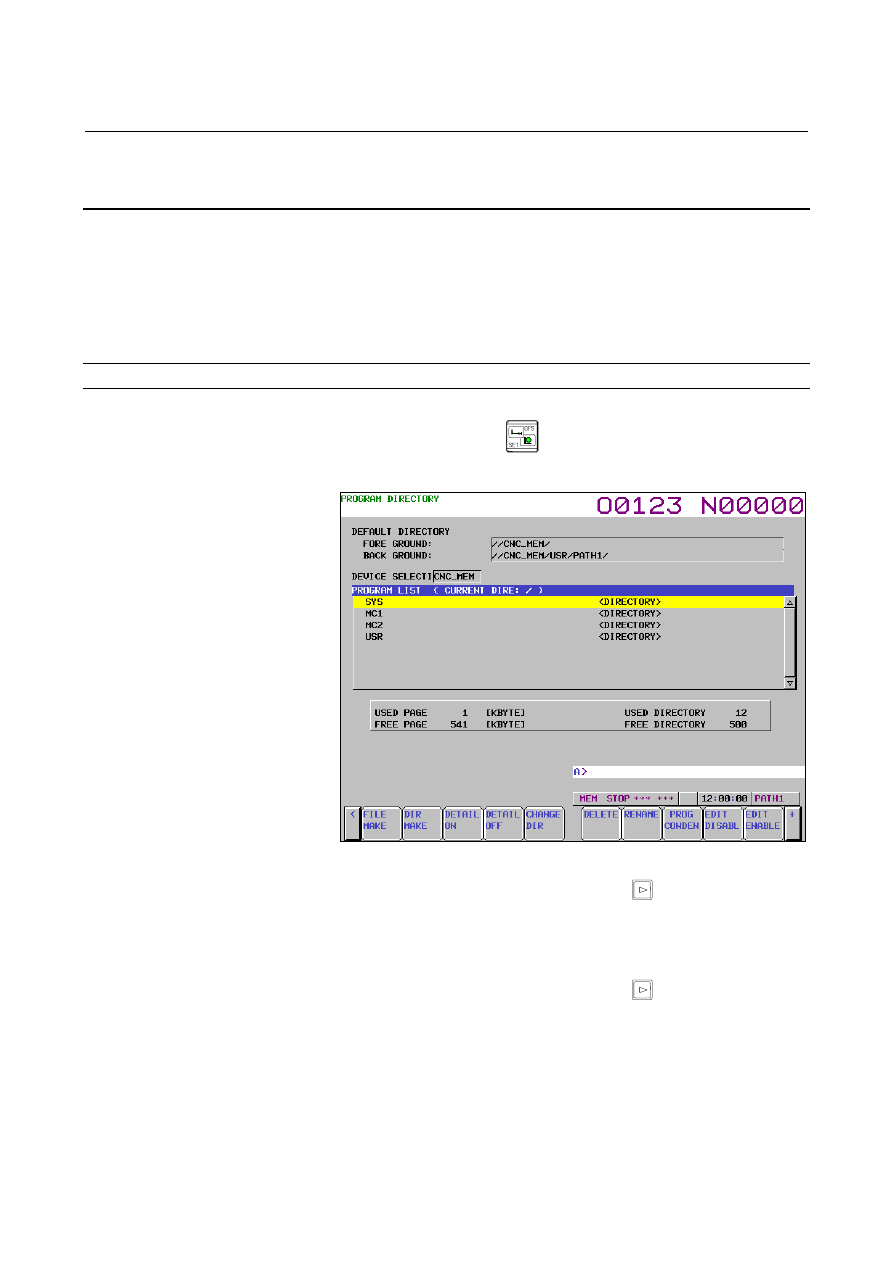

Fig. 12.3.11.4 (a) Program directory screen (10.4-inch)


3  Press the continuous menu key

 several times until

[DETAIL ON] is displayed.

4

Press soft key [DETAIL ON]. The screen display switches to the
detail display screen.

5

Move the cursor to a desired program.

6  Press the continuous menu key

 several times until

[CHANGE LEVEL] is displayed.

7  Key in a new desired level, then press soft key [CHANGE

LEVEL].

8

To change the output protection level, key in a new desired level,
then press soft key [OUT LEVEL].



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1622 -

Explanation

The change protection level (0 to 7) and output protection level (0 to
7) are displayed as “CHANGE PROTECTION LEVEL
VALUE/OUTPUT PROTECTION LEVEL”.


NOTE

1  When the protection level of data is higher than the

current operation level, the protection level cannot
be changed.

2  The protection level of data cannot be changed to a

level higher than the current operation level.

3  A protection level can be set only for those part

programs that are held on the “CNC_MEM” device.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1623 -

12.3.12

Precision Level Selection


An intermediate precision level between the parameters for emphasis
on velocity (precision level 1) and the parameters for emphasis on
precision (precision level 10) set on the machining parameter tuning
screen can be selected. As shown in the figure below, the levels are
proportionally linear, and an intermediate level can be selected so that
optimal parameters can be automatically calculated to perform
machining.


Value



RMS value







  1                                                    10      Precision level

(RMS value: Root-Mean-Square value)





Fig. 12.3.12 (a) Image of “level”



Procedure for precision level selection

1

Select the MDI mode.

2

Press function key

.

3

Press soft key [PR-LEV].



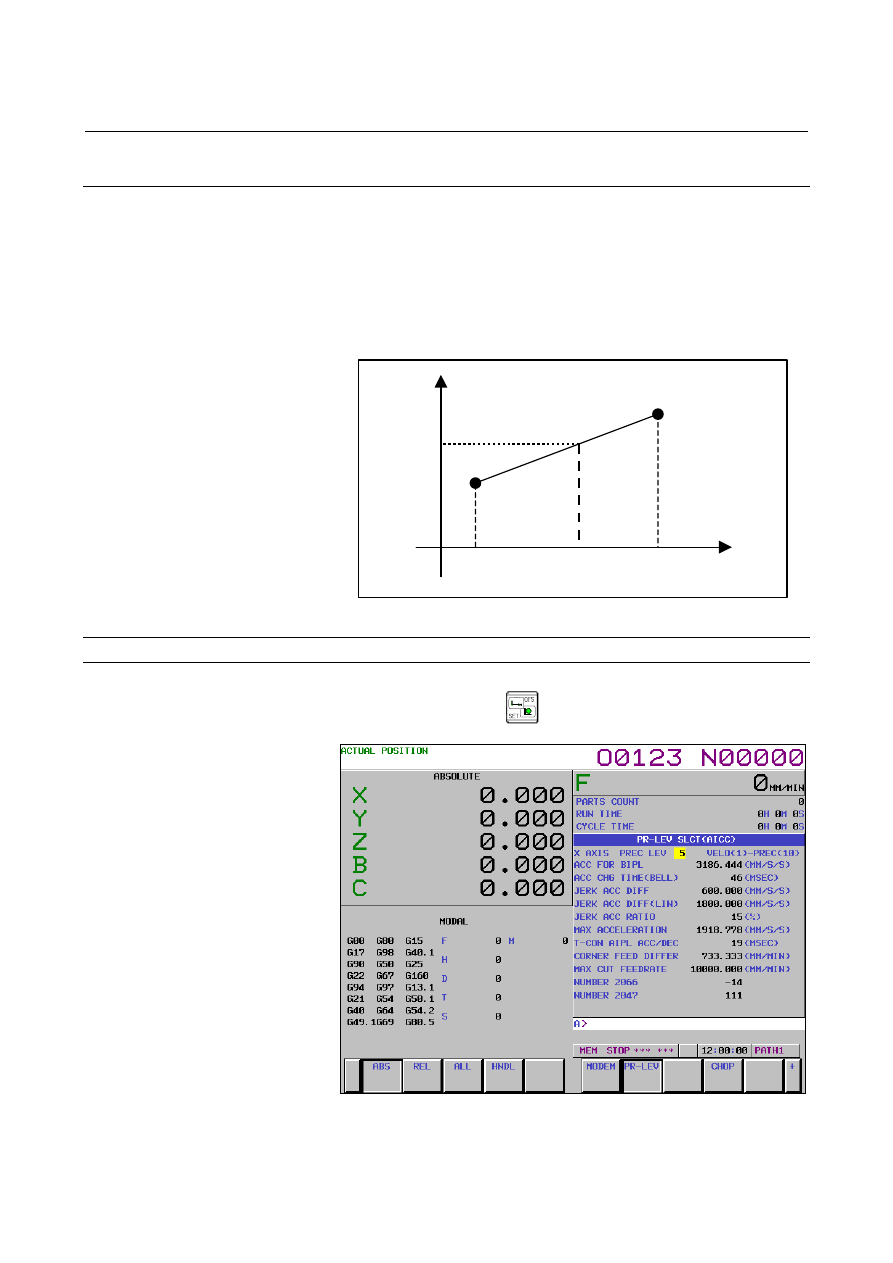

Fig. 12.3.12 (b) Precision level selection screen (10.4-inch)



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1624 -

4

To change the precision level, key in a desired precision level (1
to 10), then press the

  key on the MDI panel.

5

When the precision level is changed, a RMS value is obtained
from the velocity-emphasized parameter set and
precision-emphasized parameter set for parameter modification.
For the modified parameters, see the description of the
machining parameter tuning.

6

If there is an axis in addition to the currently displayed axes,
press page key

 or

 several times to display the

screen for the axis.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1625 -

12.3.13

Displaying and Setting Tool Life Management Data


Displaying tool life management data on a screen enables the current
status of tool life management to be grasped.  Also on the screen,
tool life management data can be edited.    The screen is either:
•

Tool life management (list screen) or

•

Tool life management (group editing screen)



Overview







EDIT



END









List screen

Tool life management (list screen)
Displayed items:
- NEXT GROUP
- SELECTED GROUP
- GROUP NO.
- LIFE
- TOOL MANAGEMENT STATUS
- GROUP TO BE CHANGE
Functions:
- Searching for groups
- Clearing execution data
- Setting the tool life counter

Tool life management (group editing screen)
Displayed items:
- NEXT GROUP

- SELECTED GROUP

- MAX.TOOL PIECES  - LIFE
- T-CODE

- H-CODE and D-CODE

Functions:
- Setting tool data

- Setting a tool status

- Selecting too skip
- Setting a life count type, life value, and tool life



counter

Pressing horizontal soft key [EDIT] or [END]
switches from the list screen to the group editing
screen or vice versa.

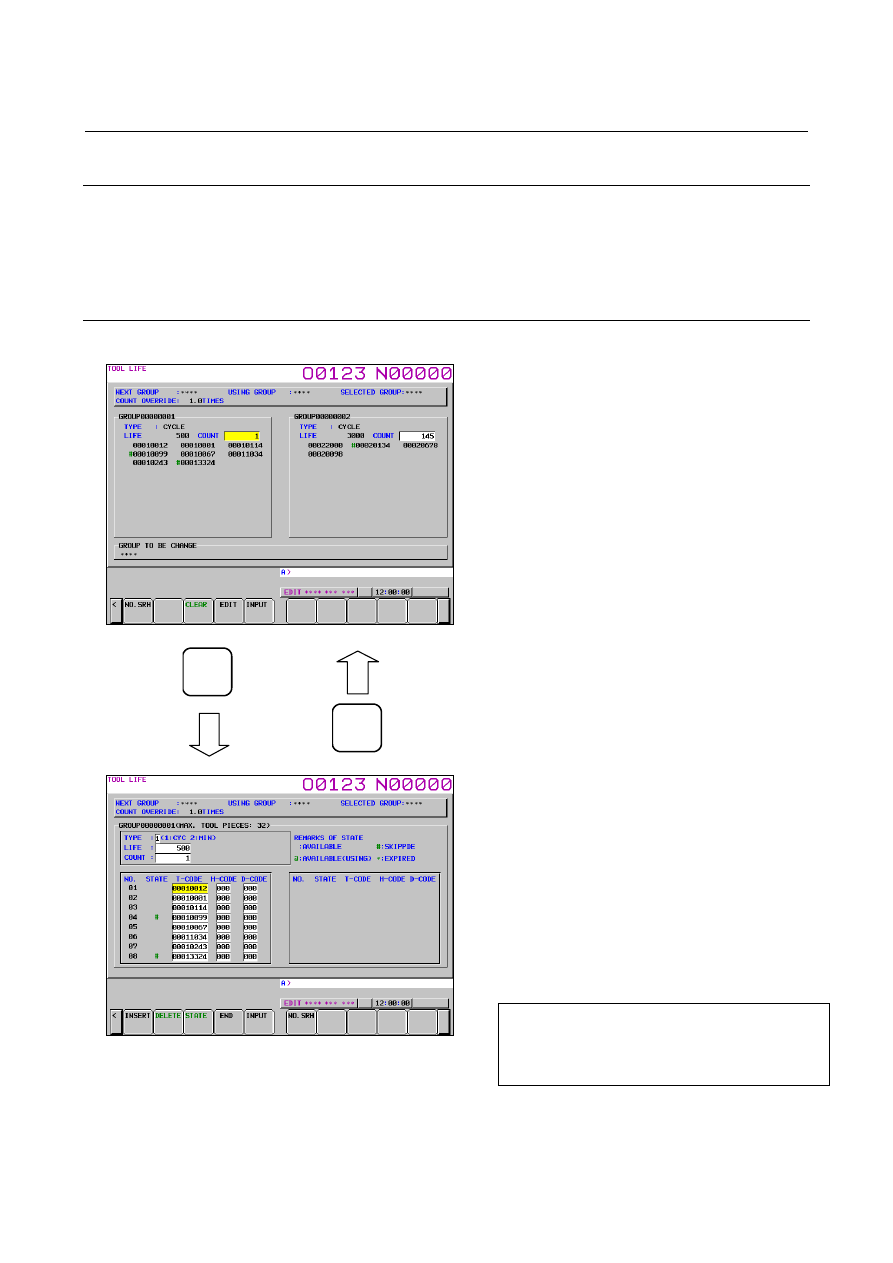

Group editing screen

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1626 -





M



If the tool life management B function is enabled (bit 4 (LFB) of
parameter No. 6805 = 1), the following parameters can be used to
display arbitrary groups and remaining set values.
•

If bit 5 (TGN) of parameter No. 6802 = 1

An arbitrary group is displayed on the list and group editing

screens.

•

If bit 3 (GRP) of parameter No. 6802 = 1

Remaining set values are displayed on the group editing screen.

The group editing screen always displays H and D codes.



T



The T series is provided with two tool change types, turret type and
ATC type.    For the T series, displays vary depending on which tool
change type is in use.
If the turret type is in use (bit 3 (TCT) of parameter No. 5040 = 0)
•

Neither the H code nor the D code is used; neither is displayed.

•

No arbitrary group can be used; no arbitrary group is displayed.

If the ATC type is in use (bit 3 (TCT) of parameter No. 5040 = 1)
•

The D code is displayed on the group editing screen.

•

If the tool life management B function is enabled (bit 4 (LFB) of
parameter No. 6805 = 1) and bit 5 (TGN) of parameter No. 6802
= 1, arbitrary groups are displayed on the list and group editing
screens.

If the tool life management B function is enabled (bit 4 (LFB) of
parameter No.6805 = 1) and bit 3 (GRP) or parameter No. 6802 = 1,
remaining set values are displayed on the group editing screen.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1627 -

12.3.13.1

Tool life management (list screen)


This screen can display the life management status of all tools in tool
groups and whether the life of the tool groups has expired.  It also
enables you to set tool life counters and clear execution data.


Displays on the list screen

Procedure

1

Press function key

.

2

Press the continuous menu key

  several times to display soft

key [TOOL LIFE].

3

Press soft key [TOOL LIFE].



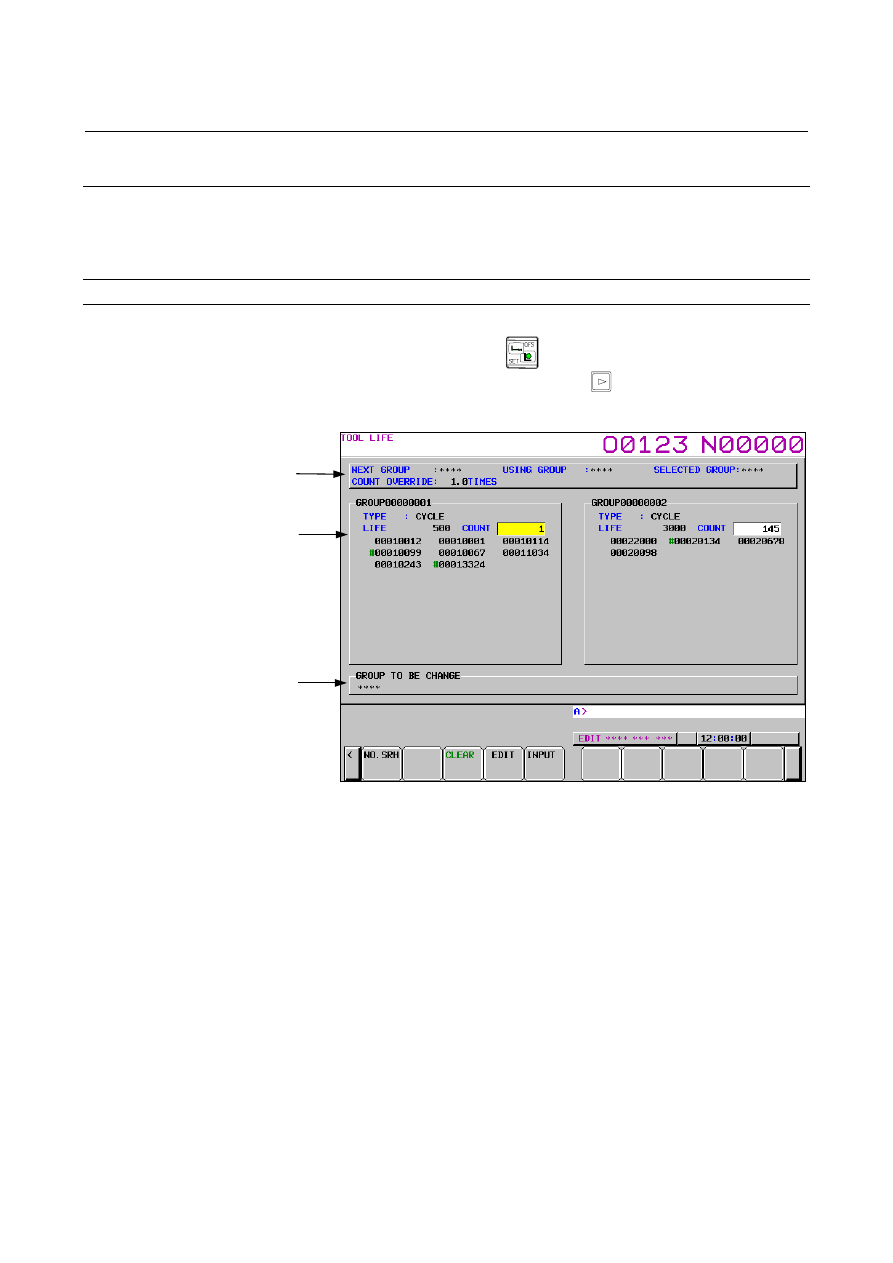

Fig. 12.3.13.1 (a) Displaying tool life management (list screen) (10.4-inch)



  - Contents of (A)

(A) displays tool group numbers and an override value.    If there is no
tool group to display, ****, instead of tool group numbers, is
displayed.
NEXT GROUP:


Tool group number for which life counting is started by the next
M06 command.

USING GROUP:


Tool group number for which life counting is currently under
way.

SELECTED GROUP:


Tool group number for which life counting is currently under
way or life counting has been performed most recently.

COUNT OVERRIDE:


“1.0TIMES” is displayed if the tool life counter override signal is
disabled (bit 2 (LFV) of parameter No. 6801 = 0).



(

A

)

(

B

)

(

C

)
