12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1604 -

Key operations
  - MDI key operations

  Displays the previous page. The cursor moves to the last data

item on that page.

  Displays the next page. The cursor moves to the first data item

on that page.

  Moves the cursor up on the screen.

  Moves the cursor down on the screen.

 Disabled.

 Disabled.



  - Soft key operations

Soft key [DETAIL]


Displays the detailed life data screen.

Soft key [UPDATE]


Updates data displayed on the total life data screen.

Soft key [CHANGE]


Switch the display between the count and time types.

Soft key [T-TYPENO. SRH]


Moves the cursor to a tool type number when pressed after the
number is entered.

Soft key [T-ASCE -SORT]


Sorts data in ascending order of tool type numbers.

Soft key [T-DESC -SORT]


Sorts data in descending order of tool type numbers.

Soft key [R-ASCE -SORT]


Sorts data in ascending order of remaining life values.

Soft key [R-DESC -SORT]


Sorts data in descending order of remaining life values.

NOTE

1  After soft key [T-ASCE -SORT], [T-DESC -SORT],

[R-ASCE -SORT], or [R-DESC -SORT] is pressed,
the cursor is positioned at the top of page 1 of the
total life data screen.

2  When the power is turned on, data of the count

counting type is displayed in ascending order of tool
type numbers. When the display type is changed or
data is sorted in a different order, the status is kept.

3  If soft key [DETAIL] is pressed when no data is

displayed on the total life data screen, the warning
message “NO DETAILED LIFE DATA SCREEN” is
output.

4  If an unregistered tool type is specified and soft key

[T-TYPENO. SRH] is pressed, the warning message
“UNREGISTERED NUMBER” is output.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1605 -

Detailed life data screen

Procedure

1

Press function key

.

2

Press chapter selection soft key [TOOL MANAGER].
Alternatively, press

 several times until the tool

management screen appears.

3

Press soft key [TOTAL LIFE]. The total life data screen appears.

4

Press soft key [(OPRT)], then soft key [DETAIL]. The detailed
life data screen appears.



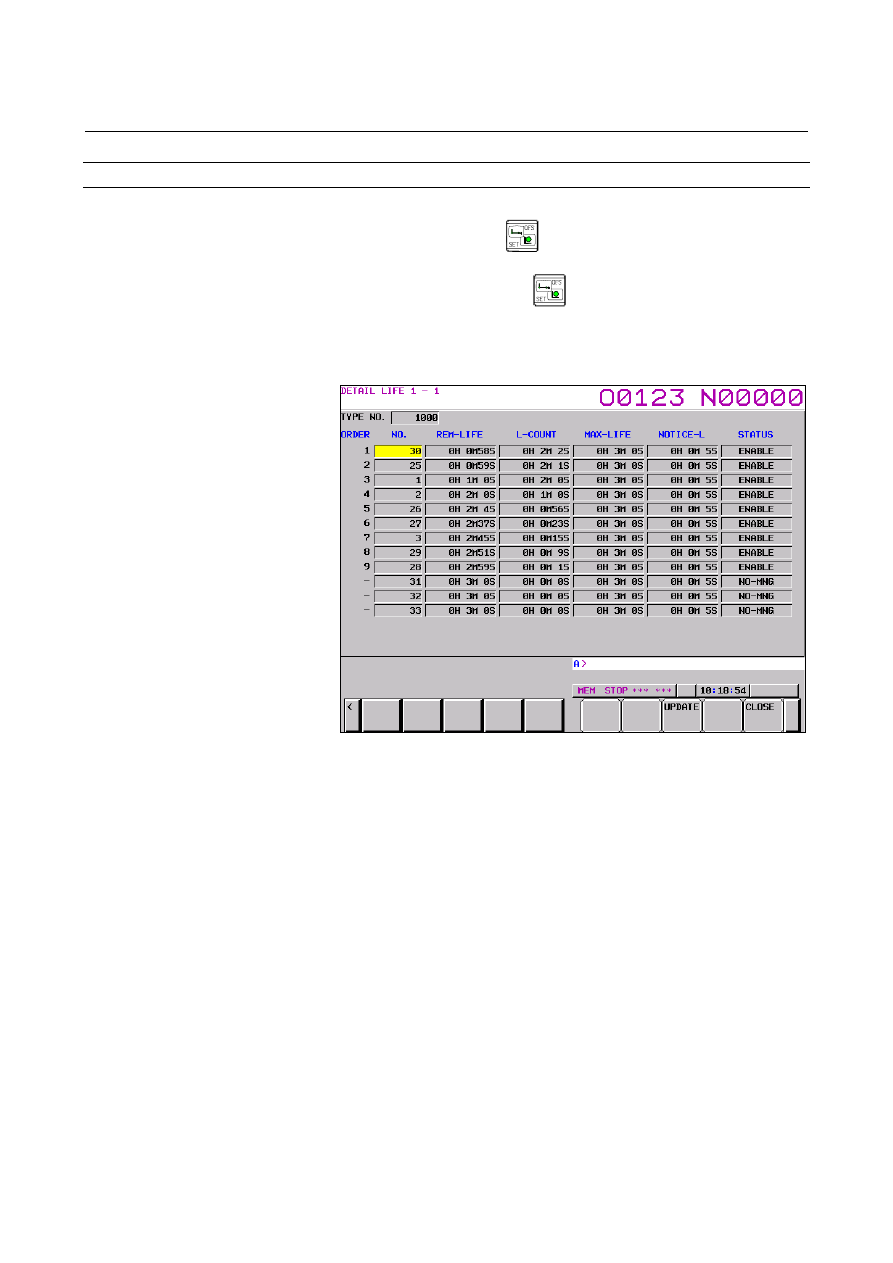

Fig. 12.3.9.4 (c) Detailed life data screen (10.4-inch)

 - Displayed information

TYPE NO.  :  Tool type number
ORDER

: Sequential number in ascending order of remaining life

times or the order in which the customize data is set.

NO.

:  Tool management data number

REM-LIFE : Remaining life value obtained by subtracting the life

count value from the maximum life value

L-COUNT  :  Total used count or time of the tool
MAX-LIFE  :  Maximum life value of the tool
NOTICE-L  :  Notice life value of the tool
STATUS

:  Life status of the tool



  One of the four states (NO-MNG (0), ENABLE (1, 2),

NONE (3), and DAMAGED (4)) is displayed.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1606 -

Key operations
  - MDI key operations

  Displays the previous page.

  Displays the next page.

  Moves the cursor up on the screen. The cursor moves to the

last data item on that page.

  Moves the cursor down on the screen. The cursor moves to the

first data item on that page.

 Disabled.

 Disabled.



  - Soft key operations

Soft key [UPDATA]


Updates data displayed on the detailed life data screen.



The cursor is positioned at the beginning of page 1 after this soft
key is pressed.

Soft key [CLOSE]


Closes the detailed life data screen and returns to the total life
data screen.

NOTE

1  When soft key [CLOSE] is pressed and the total life

data screen is displayed again, the cursor on the
total life screen data is positioned as follows.

2  When the tools with the tool type number displayed

when the detailed data screen is closed are
registered as tool management data, the cursor on
the total life screen is positioned at that tool type
number.

3  When the tools with the tool type number displayed

when the detailed data screen is closed are not
registered as tool management data, the cursor on
the total life data screen is positioned at the first
total life data.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1607 -

12.3.9.5

Tool geometry data screen



Tool geometry data screen

Procedure

1

Press function key

.

2

Press chapter selection soft key [TOOL MANAGER].
Alternatively, press

 several times until the tool

management screen appears.

3

Press continuous menu key

, then soft key [TOOL-GEOM].

The tool geometry data screen appears.



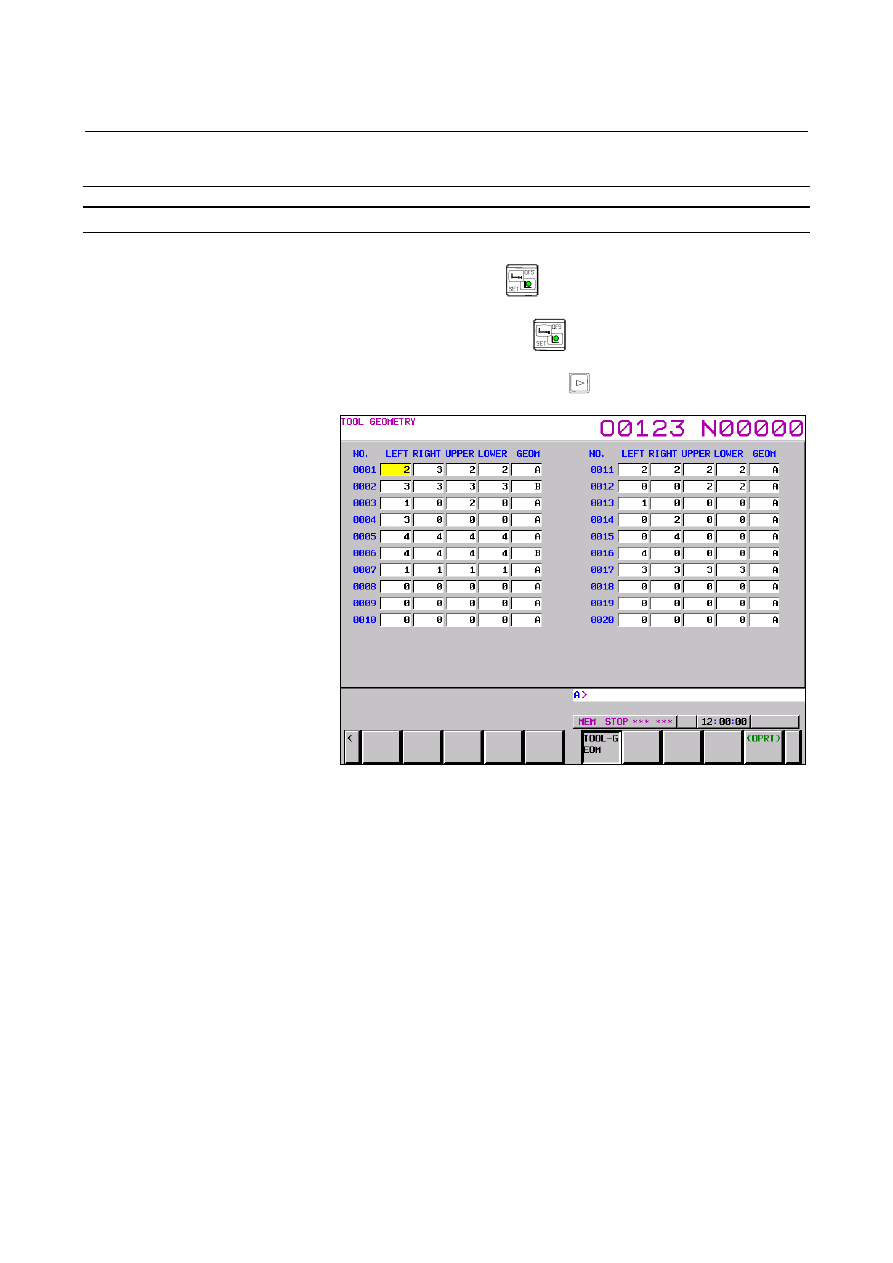

Fig. 12.3.9.5 (a) Tool geometry data screen (10.4-inch)



 - Displayed item

NO.

:  Tool geometry number



  Up to 20 numbers can be displayed.

LEFT

: Sets the number of pots on the left of the reference pot that

are to be occupied.



  A value between 0 and 4 can be set.

RIGHT  : Sets the number of pots on the right of the reference pot

that are to be occupied.



  A value between 0 and 4 can be set.

UPPER  : Sets the number of pots above the reference pot that are to

be occupied.



  A value between 0 and 4 can be set. (Use this item when

the magazine is of the matrix type.)

LOWER : Sets the number of pots under the reference pot that are to

be occupied.



  A value between 0 and 4 can be set. (Use this item when

the magazine is of the matrix type.)

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1608 -

Key operations

  - Operations in the standard mode

    MDI key operations

Numeral keys  Inputs a numeric value.



Moves the cursor up on the screen.



Moves the cursor down on the screen.



Moves the cursor left on the screen.



Moves the cursor right on the screen.



    Soft key operations

Soft key [NO.SRH]


Moves the cursor on a tool geometry number when pressed after
the number is entered.

Soft key [EDIT]


Enters the data edit mode.

Soft key [READ]


Reads data related to the tool management functions.



This key is available only in the standard mode.



Put the NC in the EDIT mode.

Soft key [PUNCH]


Punches data related to the tool management functions.



This key is available only in the standard mode.

Put the NC in the EDIT mode.


In the management data edit mode, the following key operations



are available in addition to the above key operations.



  - Operations in the edit mode

To edit data, press soft key [EDIT] to enter the edit mode. In the edit
mode, “EDITING” is displayed at the lower right of the screen.


    MDI key operation

  Actually writes a value entered using numeric keys.



    Soft key operation

Soft key [END]
Ends the data edit mode.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1609 -

Example

Set the edit mode. When the tool geometry with tool geometry number
1 occupies 1 pot in the left direction, 0.5 pots in the right direction,
and 1.5 pots in the down direction, set data as shown in the figure
below:



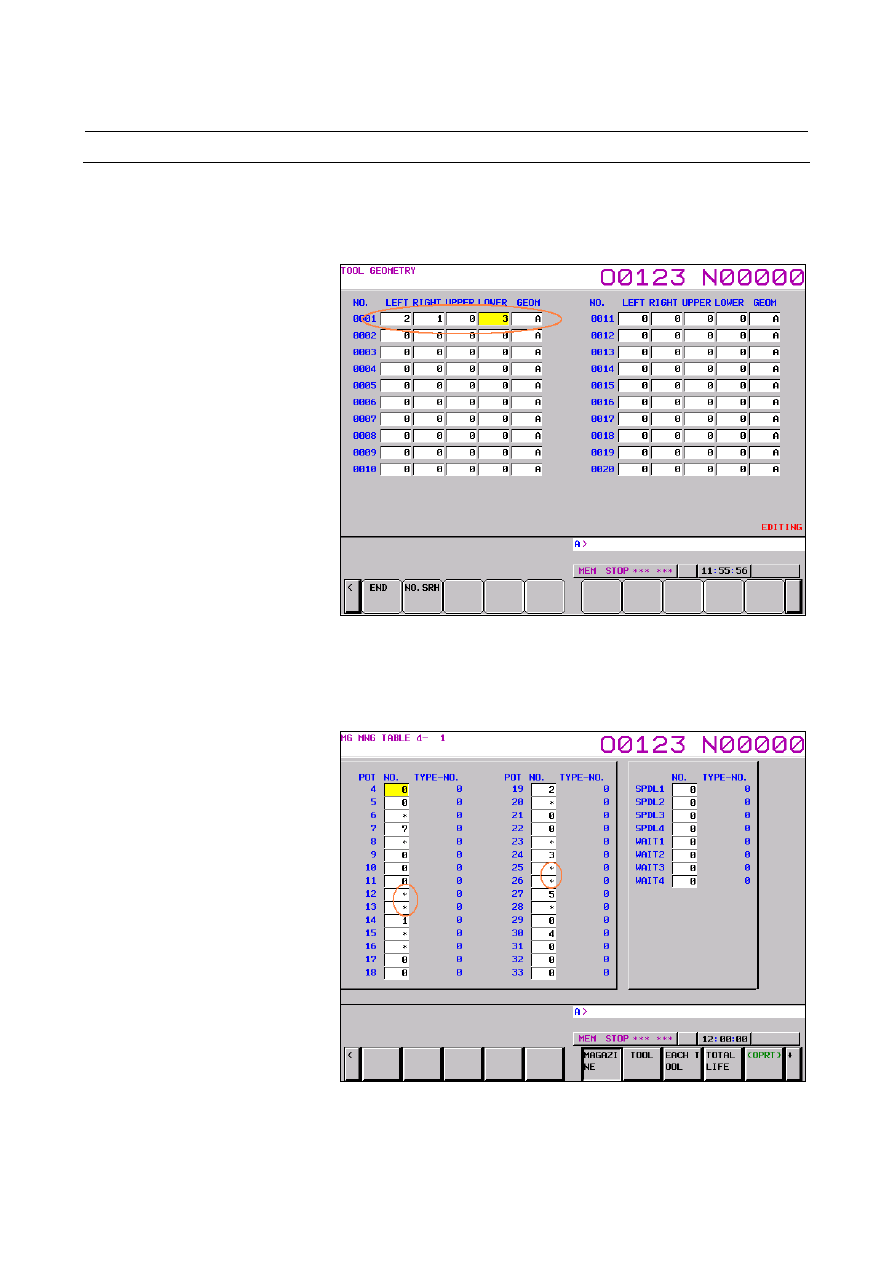

Fig. 12.3.9.5 (b) Example of setting data on the tool geometry data

screen (10.4-inch)



  - Display of occupied pots in the magazine management table

Each pot occupied by a tool stored in another pot is indicated with an
asterisk (*).



Fig. 12.3.9.5 © Magazine management table (10.4-inch)

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1610 -

If a tool to be registered for a magazine is determined to interfere with
another tool, the warning message “TOOL INTERFERENCE CHECK
ERROR:xxxx,xxxx” is displayed.    xxxx indicates the tool number of
each of the two tools.  If a tool is determined to interfere with
multiple tools, only the first tool detected by the NC interference
check is displayed.
If a tool is determined to interfere with the frame of a magazine, the
tool number of the tool to be stored and “FRAME” are displayed.


  - Search for an empty pot for a oversize tool

In the management data edit mode, pressing soft key [(OPRT)], then
continuous menu key

  displays the soft keys for searching for an

empty pot for a oversize tool.



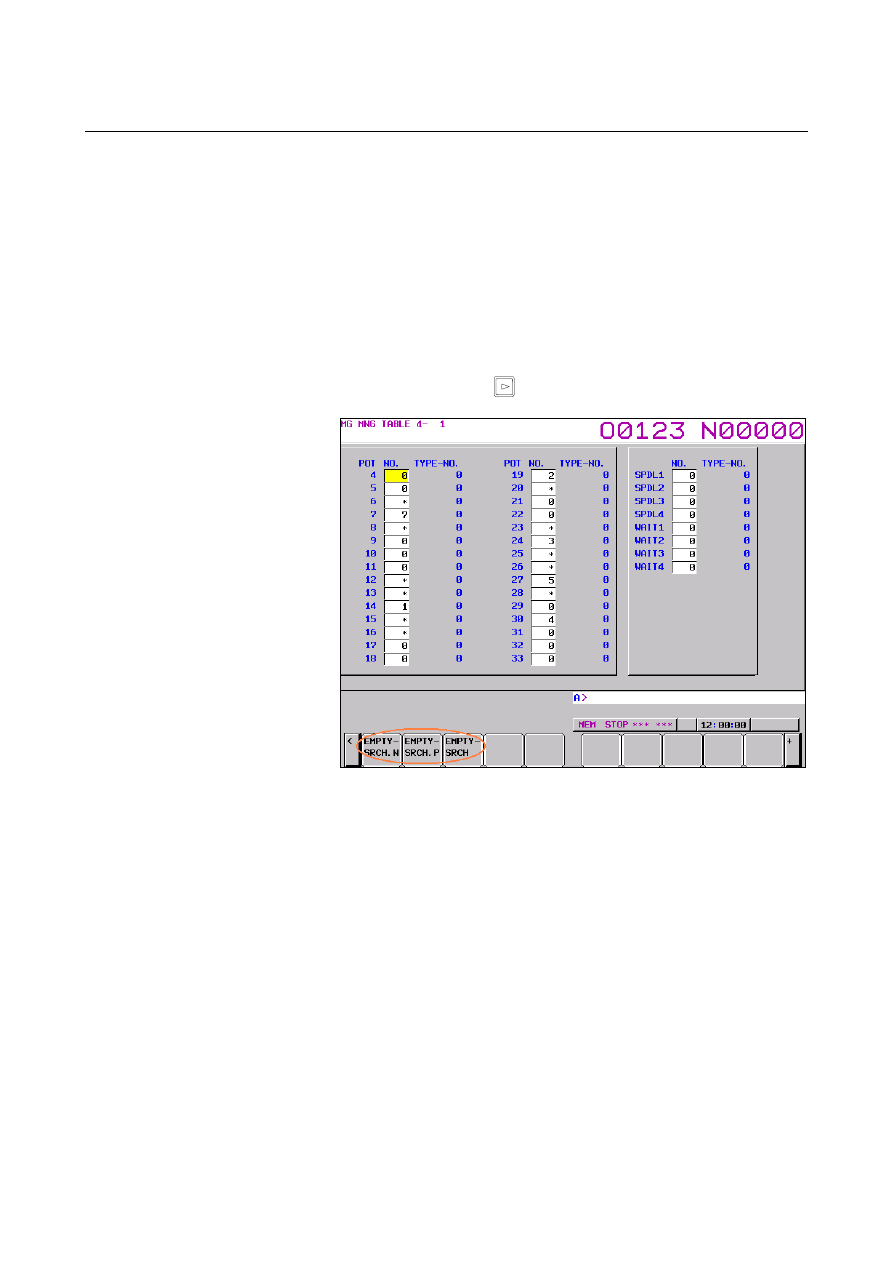

Fig. 12.3.9.5 (c) Searching for an empty pot for a oversize tool (10.4-inch)


Enter the tool geometry number in the key-in buffer and press a search
soft key. The cursor moves to an empty pot fit for the geometry.
EMPTY-SRCH.N  :  Searches for an empty pot forward.
EMPTY-SRCH.P  :  Searches for an empty pot backward.
EMPTY-SRCH  : Searches for the pot nearest to the current

position.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1611 -

  - Tool management screen

You can use bit 2 of tool information to switch between a oversize
tool and normal tool. For a oversize tool, set a tool geometry number
fit for the tool.



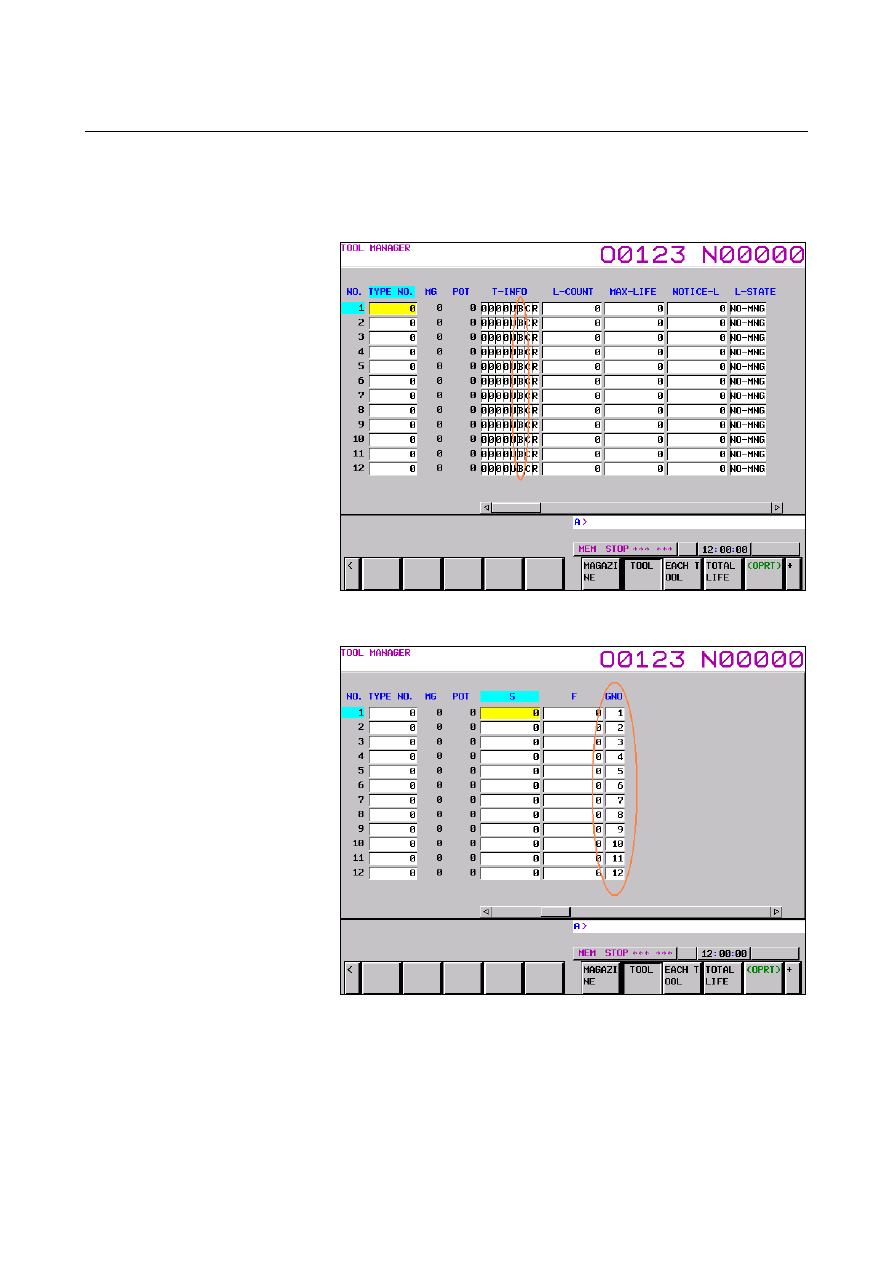

Fig. 12.3.9.5 (d) Bit for switching between a normal tool and oversize

tool (10.4-inch)





Fig. 12.3.9.5 (e) Tool geometry number (10.4-inch)
