12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1460 -

12.1.15

Operating Monitor Display (15-inch Display Unit)

The load meter for each servo axis can be displayed. Also, the load
meter and speed meter for a serial spindle can be displayed.
To enable this function, bit 5 (OPM) of parameter No. 3111 must be
set to 1.

Procedure for displaying the operating monitor

Procedure

Press function key

Press vertical soft key [MONITOR].

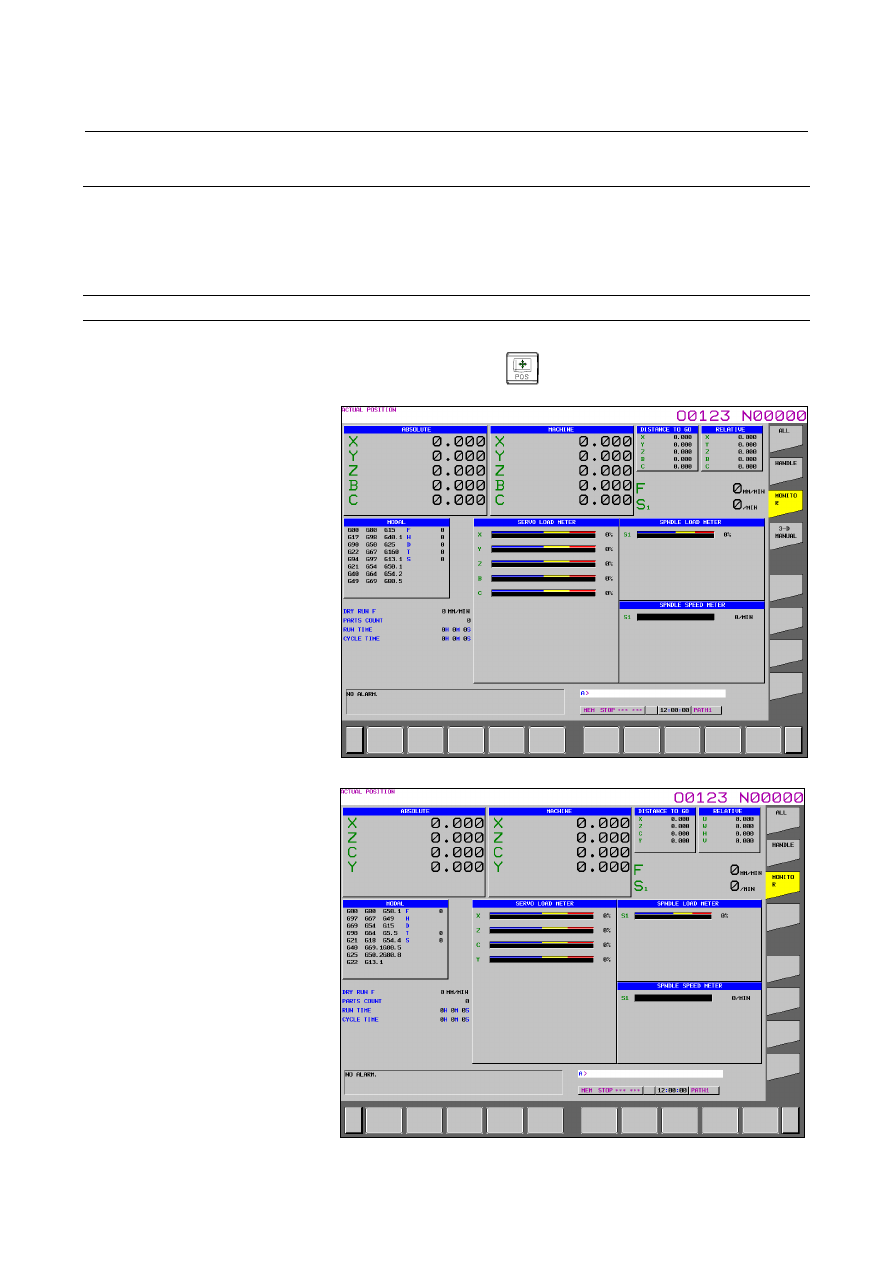

Fig. 12.1.15 (a) Operating monitor (M series) (15-inch)

Fig. 12.1.15 (b) Operating monitor (T series) (15-inch)

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1461 -

Explanation
- Display of the servo axes

Servo axis load meters as many as the maximum number of controlled
axes of the path can be displayed. One screen displays load meters for
up to five axes at a time. By pressing the vertical soft key
[MONITOR], load meters for the 6th axis and up are displayed.

- Display of the spindle axes

When serial spindles are used, the reading on the load meter and
speedometer can be displayed only for the main serial spindle.

- Unit of graph

The bar graph for the load meter shows load up to 200% (only a value
is displayed for load exceeding 200%).
The bar graph for the speedometer shows the ratio of the current
spindle speed to the maximum spindle speed (100%).

- Load meter

The reading on the load meter depends on servo parameter No. 2086
and spindle parameter No. 4127.

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1462 -

- Speedometer

Although the speedometer normally indicates the speed of the spindle
motor, it can also be used to indicate the speed of the spindle by setting
bit 6 (OPS) of parameter No. 3111 to 1.
The spindle speed to be displayed during operation monitoring is
calculated from the speed of the spindle motor (see the formula below).
The spindle speed can therefore be displayed, during operation
monitoring, even when no position coder is used.
To display the correct spindle speed, however, the maximum spindle
speed for each gear (spindle speed at each gear ratio when the spindle
motor rotates at the maximum speed) must be set in parameters No.
3741 to No.3744.
The input of the clutch and gear signals for the first serial spindle is
used to determine the gear which is currently selected. Control the
input of the CTH1A and CTH2A signals according to the gear
selection, by referring to the table below.
(Formula for calculating the spindle speed to be displayed)

Maximum spindle speed
with the gear being used

Maximum speed of
spindle motor

Speed of spindle motor

Spindle speed displayed
during operation monitoring =

The following table lists the correspondence between clutch and gear
selection signals CTH1A and CTH2A, used to determine the gear
being used, and parameters:

CTH1A CTH2A

Parameter

Serial spindle

specification

0 0

=No.3741 (Maximum spindle speed
with gear 1)

HIGH

0 1

=No.3742 (Maximum spindle speed
with gear 2)

MEDIUM HIGH

1 0

=No.3743 (Maximum spindle speed
with gear 3)

MEDIUM LOW

1 1

=No.3744 (Maximum spindle speed
with gear 4)

LOW

The speed of the spindle motor and spindle can be displayed, during
operation monitoring, only for the first serial spindle and the spindle
switching axis for the first serial spindle. It cannot be displayed for the
second spindle.

- Color of graph

If the value of a load meter exceeds 100%, the bar graph turns red.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1463 -

12.1.16

Display of Three-dimensional Manual Feed (Tool Tip

Coordinates, Number of Pulses, Machine Axis Move Amount)

(15-inch Display Unit)

The absolute coordinates of the tool tip, the number of pulses, and a
machine axis move amount based on three-dimensional manual feed
are displayed.

Displaying the screen for three-dimensional manual feed

Procedure

1 Press function key

2 Press the vertical soft key [3-D MANUAL] to display the screen

of three-dimensional manual feed.

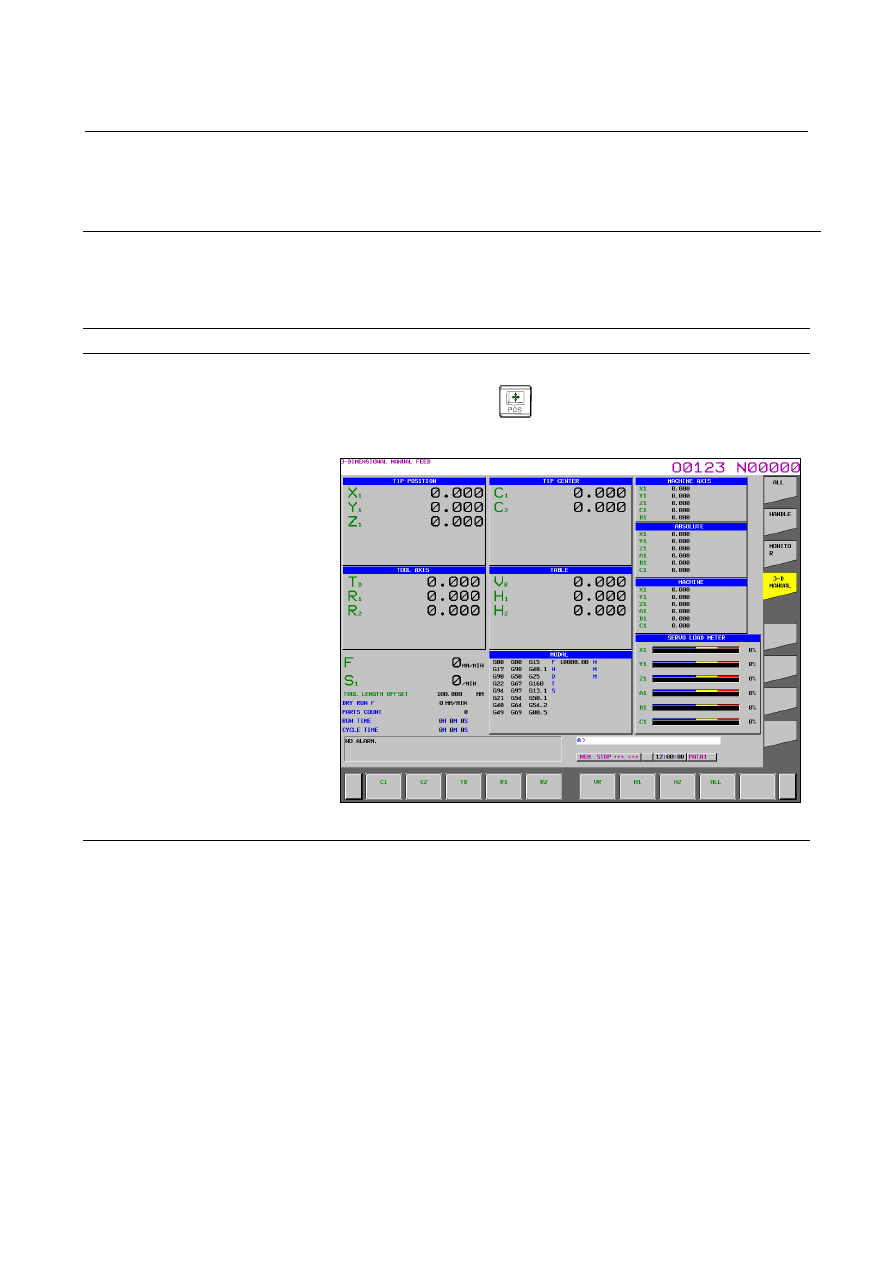

Fig. 12.1.16 (a) Three-dimensional manual feed screen(15-inch)

Explanation
- Tool tip position

The addresses of the three basic machine configuration axes for
performing three-dimensional manual feed and the current position of
the tool tip are displayed.

- Tool axis reference (number of pulses)

The amount of travel in the tool axis direction in tool axis
direction handle feed, tool axis direction jog feed, or tool axis
direction incremental feed is displayed.
The unit is the least input increment of the axis in the direction
specified by parameter No. 19697.

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1464 -

The amount of travel in the first axis direction in tool axis
right-angle direction handle feed, tool axis right-angle direction
jog feed, or tool axis right-angle direction incremental feed is
displayed.

The unit is the least input increment of the axis in the first axis
direction normal to the direction specified by parameter No.
19697.

The amount of travel in the second axis direction in tool axis
right-angle direction handle feed, tool axis right-angle direction
jog feed, or tool axis normal direction incremental feed is
displayed.

The unit is the least input increment of the axis in the second axis
direction normal to the direction specified by parameter No.
19697.

- Tool tip center (number of pulses)

The angular displacement in tool tip center rotation handle feed,
tool tip center rotation jog feed, or tool tip center rotation
incremental feed for rotation of the first rotary axis is displayed.
The unit is the least input increment of the first rotary axis. For
the definition of the first rotary axis, see the description of
parameter No. 19680.

The angular displacement in tool tip center rotation handle feed,
tool tip center rotation jog feed, or tool tip center rotation
incremental feed for rotation of the second rotary axis is
displayed. The unit is the least input increment of the second
rotary axis. For the definition of the second rotary axis, see the
description of parameter No. 19680.

- Table reference (number of pulses)

The amount of travel in the table reference vertical direction in
table reference vertical direction handle feed, table reference
vertical direction jog feed, or table reference vertical direction
incremental feed is displayed.

The unit is the least input increment of the axis in the direction
specified by parameter No. 19697.

The amount of travel in the first axis direction in table reference
horizontal direction handle feed, table reference horizontal
direction jog feed, or table reference horizontal direction
incremental feed is displayed.

The unit is the least input increment of the axis in the first axis
direction normal to the direction specified by parameter No.
19697.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1465 -

The amount of travel in the second axis direction in table
reference horizontal direction handle feed, table reference
horizontal direction jog feed, or table reference horizontal
direction incremental feed is displayed.

The unit is the least input increment of the axis in the second axis
direction normal to the direction specified by parameter No.
19697.

- Amounts of machine axis travel

The addresses of machine configuration axes used for
three-dimensional manual feed and the sum of the amount of travel of
each axis used for three-dimensional manual feed are displayed.
The values of the basic three axes (X-axis, Y-axis, and Z-axis), the
first rotary axis, and the second rotary axis are displayed in this order.
For the definition of the first rotary axis and second rotary axis, see
the description of parameter No. 19680.
When bit 0 (CLR) of parameter No. 13113 is set to 1, the displayed
data is cleared by a reset.

- Absolute coordinates, machine coordinates

The absolute coordinates and machine coordinates of all axes are
displayed. If too many axes are involved for display on one screen, the
remaining axes can be displayed by pressing the vertical soft key [3-D
MANUAL] for page feed.

- F (feedrate)

•

When bit 3 (CFD) of parameter No. 13113 is set to 0

The composite feedrate at a control point on a linear axis or
rotary axis is displayed.

•

When bit 3 (CFD) of parameter No. 13113 is set to 1

The feedrate of the tool tip is displayed.

Operation

The display of the number of pulses can be cleared to 0 with
horizontal soft keys.

1 Select the horizontal soft key corresponding to a function for

which the display of the amount of travel is to be cleared.

2 Press horizontal soft key [ERASE] to clear the display of the

amount of travel of the specified function, or press horizontal soft
key [CAN] to cancel the operation.

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1466 -

12.2

SCREENS DISPLAYED BY FUNCTION KEY

Section 12.2, "SCREENS DISPLAYED BY FUNCTION KEY

", consists of the following subsections:

―――――

Screens of a 7.2/8.4/10.4-inch display unit

12.2.1  Program Contents Display .................................................1467
12.2.2  Editing a Program ..............................................................1470
12.2.3  Program Screen for MDI Operation...................................1472
12.2.4  Program Folder Screen.......................................................1473
12.2.5  Next Block Display Screen ................................................1481
12.2.6  Program Check Screen.......................................................1482
12.2.7 Background Editing ...........................................................1483
12.2.8  Stamping the Machining Time...........................................1489
12.2.9  Screen for Assistance in Entering Tilted Working Plane

Command ...........................................................................1499

―――――

Screens of a 15-inch display unit

12.2.10 Program Contents Display (15-inch Display Unit)............1521
12.2.11 Editing a Program (15-inch Display Unit).........................1522
12.2.12 Program Screen for MDI Operation (15-Inch Display

Unit) ...................................................................................1524

12.2.13 Program Folder Screen (15-inch Display Unit) .................1525
12.2.14 Next Block Display Screen (15-inch Display Unit)...........1532
12.2.15 Program Check Screen (15-inch Display Unit) .................1533
12.2.16 Background Editing (15-inch Display Unit)......................1534
12.2.17 Stamping the Machining Time (15-inch Display Unit) .....1540
12.2.18 Screen for Assistance in Entering Tilted Working Plane

Command (15-inch Display Unit)......................................1550

Screens of a 7.2/8.4/10.4-inch display unit

This section describes the screens displayed by pressing function key

. The screens include a program editing screen, program folder

list display screen, and screens for displaying the command states of
the program currently being executed.
1. Program

screen

2.  Program folder screen
3.  Next block display screen
4.  Program check screen

On the program screen, you edit the program that is currently selected,
and display the block that is currently executed during program
operation. In MDI mode, you also edit an MDI operation program,
and display the block that is currently executed.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1467 -

12.2.1

Program Contents Display

Displays the program currently being executed in MEMORY mode.

Displaying the program being executed

Procedure

Press function key

to display the program screen.

Press chapter selection soft key [PROGRAM].
The cursor is positioned at the block currently being executed.

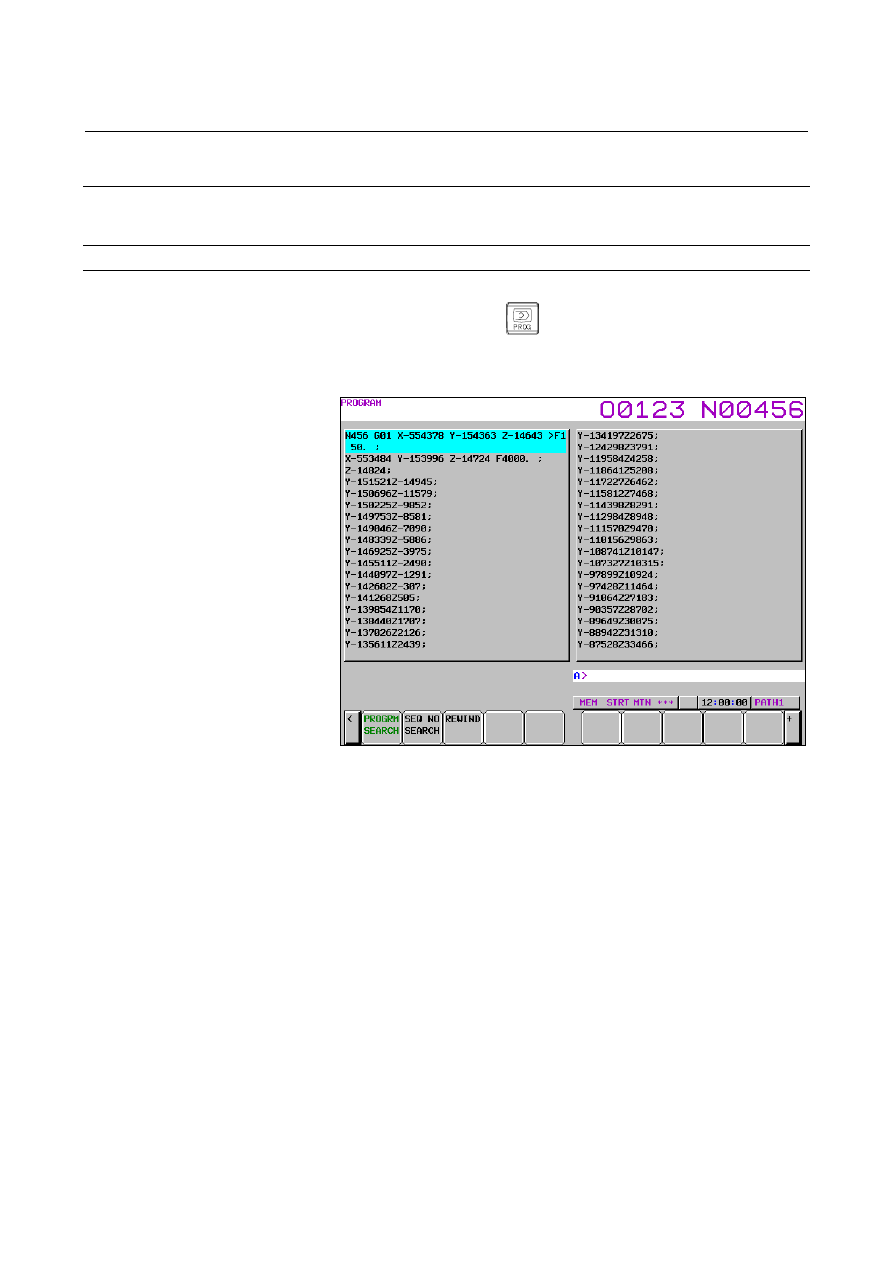

Fig. 12.2.1 (a) Screen for displaying the program being executed

(10.4-inch)

Content .. 186 187 188 189 ..
