10.EDITING PROGRAMS

 OPERATION

B-63944EN/03





- 1364 -

10.7

EDITING OF CUSTOM MACROS


Unlike ordinary programs, custom macro programs are modified,
inserted, or deleted based on editing units.
Custom macro words can be entered in abbreviated form.
Comments can be entered in a program.
Refer to the III-9.1 for the comments of a program.


Explanation
 - Editing unit

When editing a custom macro already entered, the user can move the
cursor to each editing unit that starts with any of the following
characters and symbols:
(a) Address
(b)  # located at the start of the left side of a substitution statement
(c)  /, (,=, and ;
(d)  First character of IF, WHILE, GOTO, END, DO, POPEN,

BPRNT, DPRNT and PCLOS

On the screen, a blank is placed before each of the above characters
and symbols.
Example) Head positions where the cursor is placed


N001 X-#100 ;



#1 =123 ;



N002 /2 X[12/#3] ;



N003 X-SQRT[#3/3*[#4+1]] ;



N004 X-#2 Z#1 ;



N005 #5 =1+2-#10 ;



IF[#1NE0] GOTO10 ;



WHILE[#2LE5] DO1 ;



#[200+#2] =#2*10 ;



#2 =#2+1 ;

 END1

;



  - Abbreviations of custom macro word

When a custom macro word is altered or inserted, the first two
characters or more can replace the entire word.
Namely,
WHILE

→

 WH

GOTO

→

 GO    XOR

→

 XO

AND

→

 AN

SIN

→

 SI

ASIN

→

 AS

COS

→

 CO

ACOS

→

 AC

TAN

→

 TA

ATAN

→

 AT

SQRT

→

 SQ

ABS

→

 AB

BCD

→

 BC

BIN

→

 BI

FIX

→

 FI

FUP

→

 FU

ROUND

→

 RO  END

→

 EN

POPEN

→

 PO  BPRNT

→

 BP

DPRNT

→

 DP

PCLOS

→

 PC  EXP

→

 EX

THEN

→

 TH

Example) Keying in


WH [AB [#2 ] LE RO [#3 ] ] has the same effect as



WHILE    [ABS    [#2 ] LE ROUND [#3 ] ]



The program is also displayed in this way.



B-63944EN/03

 OPERATION

10.EDITING PROGRAMS





- 1365 -

10.8

CURSOR MOVEMENT LIMITATIONS ON PROGRAM
EDITING


If a program is to be edited while it is stopped or halted, limitations
are imposed so that already executed blocks and buffered blocks
cannot be edited. Modifiable blocks are those at and below the cursor
position at the time the system switches to the edit mode (EDIT). In
the remainder of this manual, the area of editable blocks is called the
edit-enabled area, while the area of executed blocks and buffered
blocks is called the edit-disabled area.
These limitations are applied when the automatic operation status
signal <F0000.7> is ON and when a single block execution of MDI
operation is edited, and are also applied to TEACH IN HNDL or
TEACH IN JOG mode when the playback option is enabled.
This function is enabled when bit 3 (FPD) of parameter No. 11308 is
1.


Explanation
  - States where cursor movement limitations are imposed

•



EDIT mode while automatic operation is stopped or halted

•



MDI mode and when a single block is set

•



TEACH IN HNDL or TEACH IN JOG mode (only when the
playback function is enabled)



 - Cursor movement

Operations that cause the cursor to move to blocks above the edit
mode start position are ignored.

•



↑



•



←



•

 PAGE

UP

•

 CAN

(

character editing

)





  - Search and replacement

Operations that cause the cursor to move to the edit-disabled area are
disabled.

•

  Top line search: Results in a search of the top line of the

edit-enabled block.

•

  Specified-line search (character editing): Made through the

edit-enabled area.
If, however, an attempt is made to search through the
edit-disabled area, warning "PROGRAM IN OPERATION" is
issued, and the operation is disabled.

•



Upward search: Made through the edit-enabled area.
If attempted at the beginning of the edit-enabled block, this
operation is ignored.

•

  Upward search (replacement): Made through the edit-enabled

area.
If attempted at the beginning of the edit-enabled block, this
operation is ignored.

10.EDITING PROGRAMS

 OPERATION

B-63944EN/03





- 1366 -

•



Upward candidate search: Made through the edit-enabled area.
If attempted at the beginning of the edit-enabled block, this
operation is ignored.

•

  Character string +

↑

 (search): Typing the character string to

search for and pressing the

↑

 key searches for the character string.

This search is made through the edit-enabled area. If attempted at
the beginning of the edit-enabled block, this operation is ignored.

•



Replace all: This operation is disabled.



 - Reset

The program execution status is canceled, and the cursor movement
limitations are also canceled.


 - Program search

If an attempt is made to search for the program currently used for
operation, warning "PROGRAM IN OPERATION" is issued, and the
operation is disabled.


 - Time insertion

When the machining time stamp function is enabled, soft key
[INSERT TIME] does not appear in the state in which the cursor
movement limitations are imposed.


B-63944EN/03

 OPERATION

10.EDITING PROGRAMS





- 1367 -

10.9

PASSWORD FUNCTION


The password function locks bit 4 (NE9) of parameter No. 3202,
which protects programs with program Nos. O9000 to O9999 and
programs and folders having the edit/display disable attribute,
according to the settings in two parameters, PASSWORD (parameter
No. 3210) and KEYWD (parameter No. 3211). In the locked state,
parameter NE9 cannot be set to 0.  In this case, the protection of
programs with program Nos. O9000 to O9999 and programs and
folders having the edit/display disable attribute cannot be released
unless a correct keyword is set.
A locked state means that the value set in the parameter PASSWD
differs from the value set in the parameter KEYWD. The values set in
these parameters are not displayed. The locked state is released when
the value already set in the parameter PASSWD is also set in
parameter KEYWD. When 0 is displayed in parameter PASSWD,
parameter PASSWD is not set.


Procedure for locking and unlocking



Locking

1

Set the MDI mode.

2

Enable parameter writing (III-12.3.1). At this time, alarm PS0100
is issued on the CNC.

3

Set parameter No. 3210 (PASSWD).  At this time, the locked
state is set.

4

Disable parameter writing.

5 Press

the

  key to release the alarm state.



Unlocking

1

Set the MDI mode.

2  Enable parameter writing (III-12.3.1). At this time, alarm

SW0100 is issued on the CNC.

3

In parameter No. 3211 (KEYWD), set the same value as set in
parameter No. 3210 (PASSWD) for locking.    At this time, the
locked state is released.

4

Set bit 4 (NE9) of parameter No.3202 to 0.

5

Disable parameter writing.

6 Press

the

  key to release the alarm state.

7  Subprograms from program Nos. 9000 to 9999 can now be

edited.



10.EDITING PROGRAMS

 OPERATION

B-63944EN/03





- 1368 -

Explanation
  - Setting parameter PASSWD

The locked state is set when a value is set in the parameter PASSWD.
However, note that parameter PASSWD can be set only when the
locked state is not set (when PASSWD = 0, or PASSWD = KEYWD).
If an attempt is made to set parameter PASSWD in other cases, a
warning is given to indicate that writing is disabled. When the locked
state is set (when PASSWD

≠

 0 and PASSWD

≠

 KEYWD), parameter

NE9 is automatically set to 1. If an attempt is made to set NE9 to 0, a
warning is given to indicate that writing is disabled.


  - Changing parameter PASSWD

Parameter PASSWD can be changed when the locked state is released
(when PASSWD = 0, or PASSWD = KEYWD).    After step 3 in the
procedure for unlocking, a new value can be set in the parameter
PASSWD. From that time on, this new value must be set in parameter
KEYWD to release the locked state.


  - Setting 0 in parameter PASSWD

When 0 is set in the parameter PASSWD, the number 0 is displayed,
and the password function is disabled.    In other words, the password
function can be disabled by either not setting parameter PASSWD at
all, or by setting 0 in parameter PASSWD after step 3 of the procedure
for unlocking.  To ensure that the locked state is not entered, care
must be taken not to set a value other than 0 in parameter PASSWD.


 - Re-locking

After the locked state has been released, it can be set again by setting a
different value in parameter PASSWD, or by turning the power to the
NC off then on again to reset parameter KEYWD.


 CAUTION

1  Once the locked state is set, parameter NE9

cannot be set to 0 and parameter PASSWD cannot
be changed until the locked state is released or the
memory all-clear operation is performed. Special
care must be taken in setting parameter PASSWD.

2  The edit/display disable attribute cannot be set

unless parameter PASSWD is set.

3  In the locked state, programs with the edit/display

disable attribute are treated as follows:

•

  The presence of the programs is hidden.    This

means that these programs are not displayed on
screens such as the program folder screen.
These programs cannot be edited either.

•

  These programs cannot be selected as a main

program.    They can be called as subprograms.

B-63944EN/03

 OPERATION

10.EDITING PROGRAMS





- 1369 -

 CAUTION

4  In the unlocked state, programs with the

edit/display disable attribute are treated in the
same manner as ordinary programs.

5  The programs in a folder having the edit/display

disable attribute are also treated as described in
Caution 3 and 4 above.

6  In the locked state, the folders in a folder having

the edit/display disable attribute are treated as
follows:

•

  The presence of the folders is hidden.    This

means that these folders are not displayed on
screens such as the program folder screen.

7  In the unlocked state, the folders in a folder having

the edit/display disable attribute are treated in the
same manner as ordinary folders.



10.EDITING PROGRAMS

 OPERATION

B-63944EN/03





- 1370 -

10.10

EDITING PROGRAM CHARACTERS


This section describes how to edit programs registered in the CNC.
Editing operations include character insertion, modification, deletion,
and replacement.
While program word editing is performed by recognizing program
words, program character editing is performed on a
character-by-character basis.



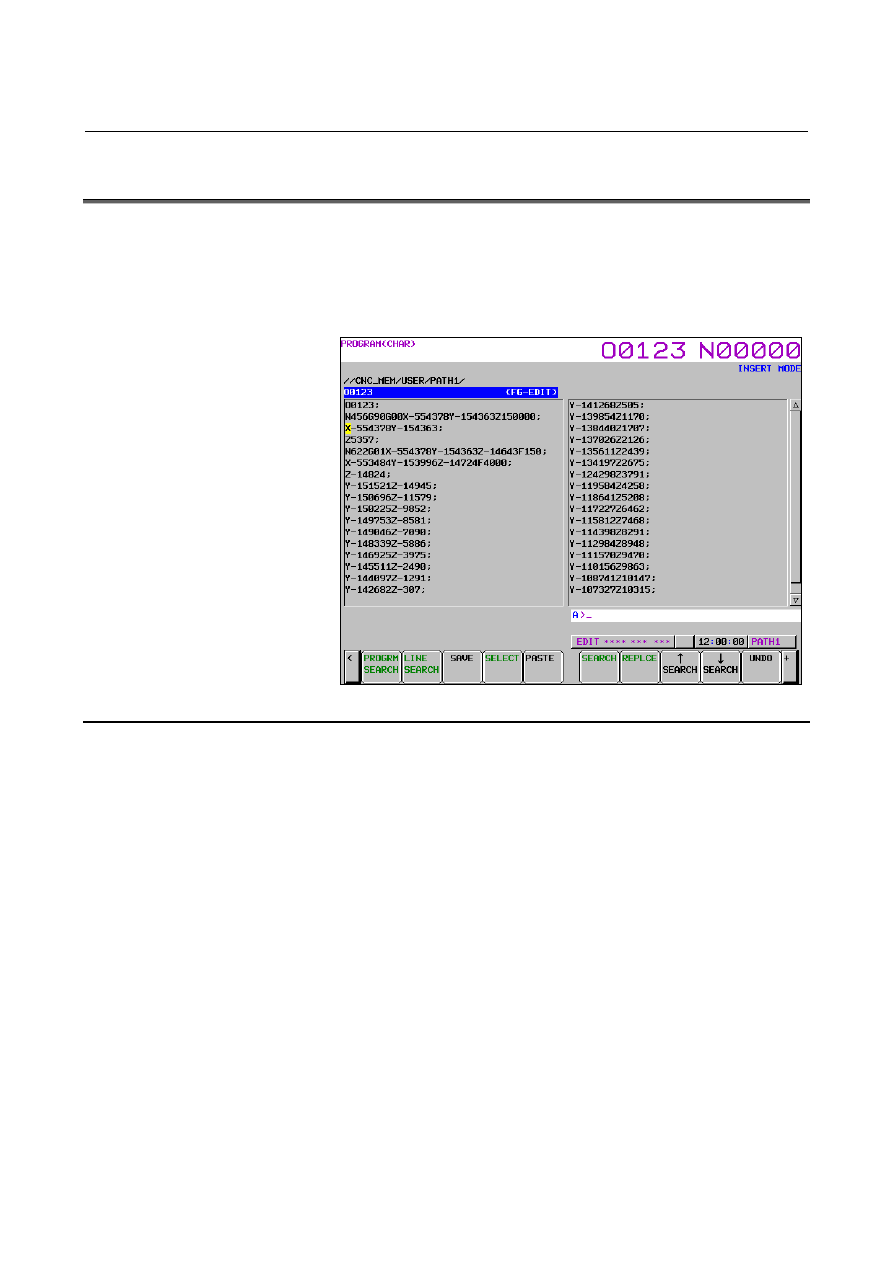

Fig. 10.10 (a)    Character editing



Explanation
 - Edit unit

Character editing is performed on a character-by-character basis.
Select between character editing and word editing according to what
to edit.


 - Line

A range delimited by an EOB is specified as a line.
In character editing, edited data is saved on a line-by-line basis.
When one program line contains many characters, it extends over
multiple lines on the screen, but these lines are counted as one
program line.


B-63944EN/03

 OPERATION

10.EDITING PROGRAMS





- 1371 -

 - Line splitting

When the cursor is on a line during line editing, pressing edit key

  causes the line to be split into two, one before the cursor and

the other after the cursor.
Pressing edit key

  immediately after the line is split causes the

lines to return to a single one.
Alternatively, moving the cursor to the EOB of the first line resulting
from the split and pressing edit key

  causes the lines to return to

a single one.


 - Line merging

If the EOB of a line is deleted, the line is combined with the next line
to form a single line.


  - Maximum number of characters in one line

One line can consist of up to 140 characters.


 - Line number

The number of lines are counted starting with the starting line of a
program, which is counted as the first line.    Even when a line wraps
around to the next and subsequent lines, these lines are counted as a
single line.


 - Clipboard

The clipboard is an area to store characters when a cut or copy
operation is performed.  The area has a capacity for holding
approximately 4000 characters.
The characters that are cut or copied by one cut or copy operation are
stored.    The most recently stored character string can be used by the
paste function.
The information stored by the paste operation is kept unchanged until
another cut or copy operation is performed.
The characters stored in the clipboard are maintained until the power
to the CNC is turned off unless the clipboard is updated again.
