7.COORDINATE SYSTEM

 PROGRAMMING

B-63944EN/03





- 188 -

Limitation
  - Cancel of the compensation function

When the G53 command is specified, cancel the compensation
functions such as the cutter compensation, tool length compensation,
tool nose radius compensation, and tool offset.


  - G53 specification immediately after power-on

Since the machine coordinate system must be set before the G53
command is specified, at least one manual reference position return or
automatic reference position return by the G28 command must be
performed after the power is turned on.    This is not necessary when
an absolute-position detector is attached.


  - Blocks in which the high-speed G53 function is usable

The high-speed G53 function is usable in the following combinations
of commands:

•

 G53

→

 G00

•

 G53

→

 G53

The high-speed G53 function is unusable in the following
combination of commands:

•

 G00

→

 G53



  - Specification in the same block



M



Commands G50/G51, G50.1/G51.1, and G68/G69 cannot be specified
in the same block where the G53 command is specified.


T



Commands G50/G51 (except for G code system A), G50.1/G51.1, and
G68.1/G69.1 cannot be specified in the same block where the G53
command is specified.


Note

NOTE



G53 is a G code for disabling buffering.



Reference
  - Setting a machine coordinate system

When manual reference position return is performed after power-on, a
machine coordinate system is set so that the reference position is at the
coordinate values of (

α

,

β

) set using parameter No.1240.



B-63944EN/03

 PROGRAMMING

7.COORDINATE SYSTEM





- 189 -

β

Reference position

Machine coordinate system

Machine zero point

α





7.COORDINATE SYSTEM

 PROGRAMMING

B-63944EN/03





- 190 -

7.2

WORKPIECE COORDINATE SYSTEM



Overview

A coordinate system used for machining a workpiece is referred to as
a workpiece coordinate system.    A workpiece coordinate system is to
be set with the CNC beforehand (setting a workpiece coordinate
system).
A machining program sets a workpiece coordinate system (selecting a
workpiece coordinate system).
A set workpiece coordinate system can be changed by shifting its
origin (changing a workpiece coordinate system).


7.2.1

Setting a Workpiece Coordinate System


A workpiece coordinate system can be set using one of three methods:

(1)  Method using a workpiece coordinate system setting G code


A workpiece coordinate system is set by specifying a value in the
program after a workpiece coordinate system setting G code.

(2) Automatic

setting



If bit 0 of parameter ZPR No. 1201 is set to 1, a workpiece
coordinate system is automatically set when manual reference
position return is performed (see III-3.1.).



This function is, however, disabled when the workpiece
coordinate system option is being used.

(3)  Method using a workpiece coordinate system selection G code


Six workpiece coordinate systems can be set beforehand using
the MDI panel.    Program commands G54 to G59 can be used to
select the workpiece axis to be used.    (see III-12.3.4.)


When using an absolute command, establish the workpiece coordinate
system in any of the above ways.


Format
  - Setting a workpiece coordinate system



M



(G90) G92

IP

_



T



G50

IP

_



B-63944EN/03

 PROGRAMMING

7.COORDINATE SYSTEM





- 191 -

Explanation

A workpiece coordinate system is set so that a point on the tool, such
as the tool tip, is at specified coordinates.


M



If a coordinate system is set using G92 during tool length offset, a
coordinate system in which the position before offset matches the
position specified in G92 is set.  Cutter compensation is cancelled
temporarily with G92.


T



If IP_ is an incremental command value, the workpiece coordinate
system is defined so that the current tool position coincides with the
result of adding the specified incremental value to the coordinates of
the previous tool position.  If a coordinate system is set using G50
during offset, a coordinate system in which the position before offset
matches the position specified in G50 is set.


Example



M





25.2

X

Z

23.0

0

X

Z

600.0

IIf an absolute command is issued, the
base point moves to the commanded
position. In order to move the tool tip to
the commanded position, the    difference
from the tool tip to the base point is
compensated by tool length offset (see II-
14.1).

(Example 2)
Setting the coordinate system by the G92X600.0Z1200.0; command (The
base point on the tool holder is the start point for the program.)

0

Base point

1200.0

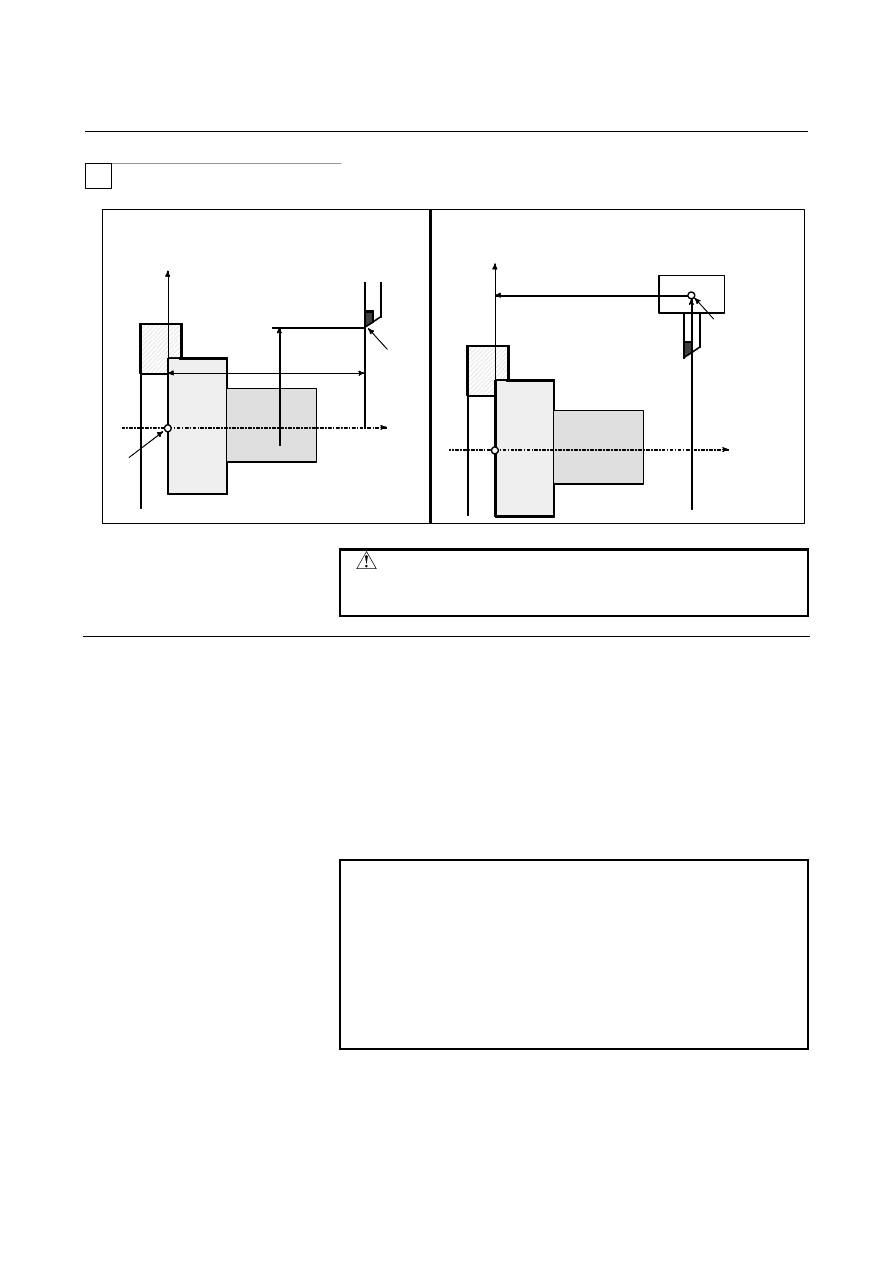

(Example 1)
Setting the coordinate system by the
G92X25.2Z23.0; command (The tool tip is the start
point for the program.)





7.COORDINATE SYSTEM

 PROGRAMMING

B-63944EN/03





- 192 -

T





(Example 1)
Setting the coordinate system by the G50X128.7Z375.1;
command (Diameter designation) (The tool nose is the

start point for the program.)

(Example 2)
Setting the coordinate system by the G50X1200.0Z700.0;
command (Diameter designation) (The base point on the turret is

the start point for the program.)

Z

X

Origin

375.1

Start point

φ

12

8.

7

Z

X

700.0

Start point

(base point)

φ

1200.0





 CAUTION



The set workpiece coordinate system depends on
diameter programming or radius programming.



Notes
  - Command for setting a workpiece coordinate system in the tool length

compensation mode

Executing a workpiece coordinate system setting G code command
(G92 or, for G code system A in the lathe system, G50) presets a
coordinate system in such a way that the specified position will be a
pre-compensation position.
However, this G code cannot be used together with a block where tool
length compensation vectors vary.  For example, it cannot be used
together with the following blocks.


EXAMPLE

1  Block in which G43/G44 is issued
2  Block which is in the G43 or G44 mode and in

which an H code is issued

3  Block which is in the G43 or G44 mode and in

which G49 is issued

4  Block in which, in the G43 or G44 mode,

compensation vectors are canceled using a G code
such as G28 or G53 and then resumed again


When presetting a workpiece coordinate system, using the workpiece
coordinate system setting G code, do not stop in the previous block to
change a tool length compensation offset selected, for example, with
the MDI.


B-63944EN/03

 PROGRAMMING

7.COORDINATE SYSTEM





- 193 -

7.2.2

Selecting a Workpiece Coordinate System


The user can choose from set workpiece coordinate systems as
described below.    (For information about the methods of setting, see
II-7.2.1.)

(1)  Once a workpiece coordinate system is set by a workpiece

coordinate system setting G code or by automatic workpiece
coordinate system setting, absolute commands indicate positions
in the workpiece coordinate system.

(2)  Choosing from six workpiece coordinate systems set using the

MDI panel



By specifying a G code from G54 to G59, one of the workpiece
coordinate systems 1 to 6 can be selected.
G54 :  Workpiece coordinate system 1
G55 :  Workpiece coordinate system 2
G56 :  Workpiece coordinate system 3
G57 :  Workpiece coordinate system 4
G58 :  Workpiece coordinate system 5
G59 :  Workpiece coordinate system 6



Workpiece coordinate system 1 to 6 are established after
reference position return after the power is turned on. When the
power is turned on, G54 coordinate system is selected.


When bit 2 (G92) of parameter No. 1202 is set to 1, executing the
workpiece coordinate system setting G92 code command results in the
issue of an alarm PS0010.    This is designed to prevent the user from
confusing coordinate systems.


 CAUTION



The set workpiece origin offset value depends on
diameter programming or radius programming.



Example

X

Y

100.0

40.

Workpiece coordinate system 2 (G55)

In this example, positioning is made to
positions (X=40.0, Y=100.0) in workpiece
coordinate system 2.

G90 G55 G00 X40.0 Y100.0 ;



Fig. 7.2.2 (a)



7.COORDINATE SYSTEM

 PROGRAMMING

B-63944EN/03





- 194 -

7.2.3

Changing Workpiece Coordinate System


The six workpiece coordinate systems specified with G54 to G59 can
be changed by changing an external workpiece origin offset value or
workpiece origin offset value.
Three methods are available to change an external workpiece origin
offset value or workpiece origin offset value.
(1)  Inputting from the MDI panel (see III-12.3.4)
(2)  Programming (using a programmable data input G code or a

workpiece coordinate system setting G code)

(3)  Using the external data input function


An external workpiece origin offset value can be changed by
input signal to CNC. Refer to machine tool builder's manual for
details.





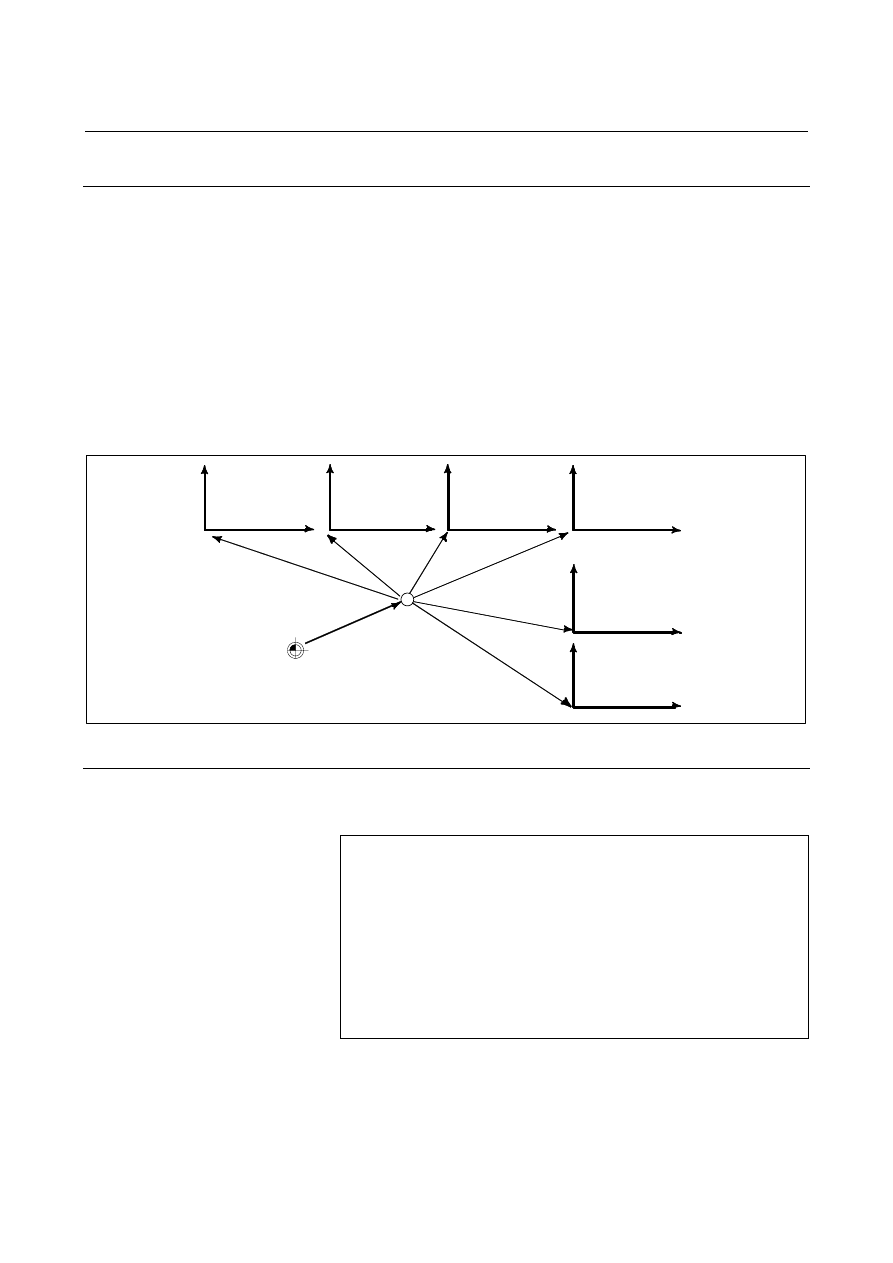

Workpiece
coordinate system 1
(G54)

Workpiece
coordinate system 2
(G55)

Workpiece
coordinate system 3
(G56)

Workpiece
coordinate system 4
(G57)

Workpiece coordinate
system 5    (G58)

Workpiece coordinate
system 6    (G59)

ZOFS2

ZOFS3

ZOFS4

ZOFS5

ZOFS1

ZOFS6

Machine zero point

EXOFS : External workpiece origin offset value
ZOFS1 to ZOFS6 : Workpiece origin offset value

EXOFS



Fig. 7.2.3 (a)    Changing an external workpiece origin offset value or workpiece origin offset value



Format
  - Changing by inputting programmable data



G10 L2 Pp

IP

_;

p=0

: External workpiece origin offset value

p=1 to 6  : Workpiece origin offset value correspond to

workpiece coordinate system 1 to 6

IP

_  : For an absolute command, workpiece origin offset for

each axis.



  For an incremental command, value to be added to

the set workpiece origin offset for each axis (the result
of addition becomes the new workpiece origin offset).



B-63944EN/03

 PROGRAMMING

7.COORDINATE SYSTEM





- 195 -

  - Changing by setting a workpiece coordinate system



M



G92

IP

_ ;



T



G50

IP

_ ;



Explanation
  - Changing by inputting programmable data

By specifying a programmable data input G code, the workpiece
origin offset value can be changed for each workpiece coordinate
system.


  - Changing by setting a workpiece coordinate system

By specifying a workpiece coordinate system setting G code, the
workpiece coordinate system (selected with a code from G54 to G59)
is shifted to set a new workpiece coordinate system so that the current
tool position matches the specified coordinates (IP_).
Then, the amount of coordinate system shift is added to all the
workpiece origin offset values.  This means that all the workpiece
coordinate systems are shifted by the same amount.


 CAUTION



When a coordinate system is set with workpiece
coordinate system setting G92 code command
after an external workpiece origin offset value is
set, the coordinate system is not affected by the
external workpiece origin offset value.    When
G92X100.0Z80.0; is specified, for example, the
coordinate system having its current tool reference
position at X = 100.0 and Z = 80.0 is set.



T



If IP is an incremental command value, the workpiece coordinate
system is defined so that the current tool position coincides with the
result of adding the specified incremental value to the coordinates of
the previous tool position.    (Coordinate system shift)
















Content      ..     27      28      29      30     ..
