19. MAINTENANCE FUNCTION

B-64693EN-1/01

- 2834 -

(2)  Multi-Sensor Unit Data
The Multi-Sensor Unit data is output as follows. In the case of the plural Multi-Sensor Units, all
Multi-Sensor Unit data are output.

MULTI SENSOR UNIT DATA :
  <MULTI SENSOR UNIT NO.1>
  SHOCK1 X(X00000) : 0.0 [G]
  SHOCK1 Y(X00002) : 0.0 [G]
  SHOCK1 Z(X00004) :      29.9 [G]
  SHOCK2 X(X00006) : 1.9 [G]
  SHOCK2 Y(X00008) : 0.0 [G]
  SHOCK2 Z(X00010) : 0.0 [G]
  COMMON1 (X00012) : 0 [-]
  COMMON2 (X00014) : 0 [-]
  TEMP1 (X00016) : 0.0 [C]
  TEMP2 (X00018) : 0.0 [C]
  TEMP3 (X00020) : 0.0 [C]
  TEMP4 (X00022) : 0.0 [C]
  TEMP5 (X00024) : 0.0 [C]
  TEMP6 (X00026) : 0.0 [C]
  TEMP7 (X00028) : 0.0 [C]
  TEMP8 (X00030) : 0.0 [C]
  (Y00000) : -30656
  (Y00002) : 0
  (Y00004) : 0
  (Y00006) : 0
  (Y00008) : 16
  (Y00010) : 0
  (Y00012) : 0
  (Y00014) : 0
  (Y00016) : 0
    (Y00018) : 0
  (Y00020) : 0
  (Y00022) : 0
  (Y00024) : 0
  (Y00026) : 0
  (Y00028) : 0
  (Y00030) : 0

(3)  PMC Signal
The PMC signal is output as follows.

Single PMC System
PMC SIGNAL DATA :
  X00000 0x3F
  X00001 0x04
  Y00000 0x00
  Y00008 0xF0
Multi PMC System:
PMC SIGNAL DATA :
  1:X00000 0x3F
  1:X00001 0x04
  1:Y00000 0x00
  1:Y00008 0xF0

B-64693EN-1/01

19. MAINTENANCE FUNCTION

- 2835 -

(4)  CNC Data
The CNC data is output as follows. In the case of multi path system all path data are output.

CNC DATA :
  <<MACHINE>>
  X 0.000
  Y 0.000
  Z 0.000
  <<ABSOLUTE>>
  X 0.000
  Y 0.000
  Z 0.000
  <<FEED RATE>>
  F 0
  <<SPINDLE SPEED>>
  S 0
  <<PROGRAM>>
  //CNC_MEM/USER/PATH1/O123
  <<BLOCK>>
  0
  <<MODE>>
  MEM
  <<MODAL>>
    M 0
  S 0
  T 0
  B 0

(5)  Operation History
The operation history is output as follows.

OPERATION HISTORY :
MDI 01_[RIGHT F] 12:02:13
MDI 01_[RIGHT F] 12:02:14
MDI 01_[RIGHT F] 12:02:15
MDI 01_[RIGHT F] 12:02:15
MDI 01_[SOFT HF7] 12:02:16
MDI 01_<Cursor Down> 12:02:26
MDI 01_<Cursor Down> 12:02:26

：

(6) Auxiliary Information
The auxiliary information is output. This information is for maintenance.

AUX INFO :
0-0

19. MAINTENANCE FUNCTION

B-64693EN-1/01

- 2836 -

Reading of CNC information by FOCAS2/C language executor

Information saved in CNC can be read by the following functions of the FOCAS2 library and the C
language library of C language executor.

Table 19.1.8.4 (a)

Function Name

Function

cnc_upstart4

Beginning of NC data read (4)

cnc_upload4

NC data read (4)

cnc_upend4

End of NC data read (4)

When cnc_upstart4 is called specifying 78 for argument type, CNC information can be read.
A basic procedure of reading CNC information by cnc_upstart4, cnc_upload4, and cnc_upend4 function

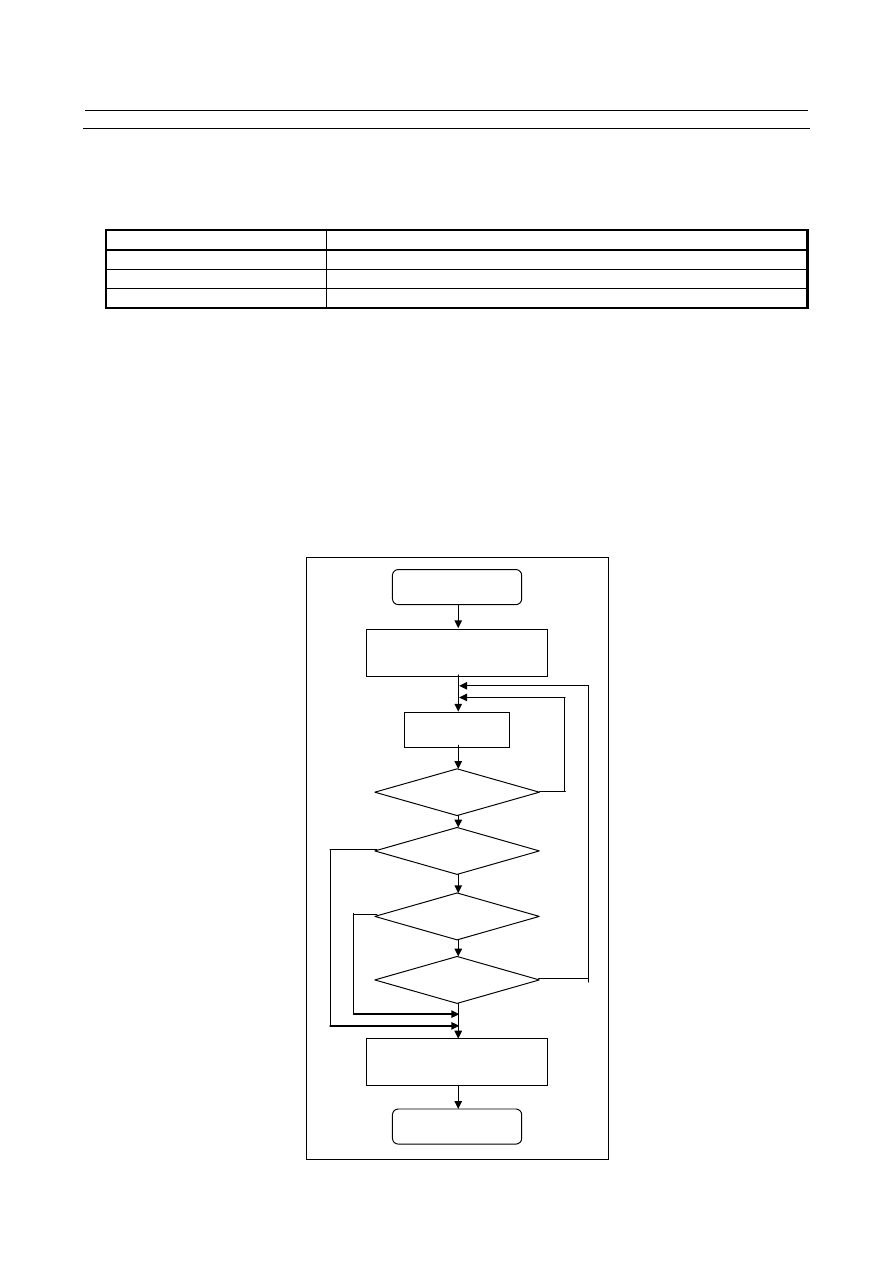

is as shown in fig.19.1.8.4 (b).

Please refer to “10.The function specification”  of  FANUC FOCAS1/2 library specifications
(FWLIB32.HTM)  included in  “FOCAS1/2 library disk” for  details of cnc_upstart4, cnc_upload4, and
cnc_upend4 function of the FOCAS2 library.

Please refer to “the CNC/PMC window library”  of  C language Executor  programming manual
(B-63943EN-3) for details of cnc_upstart4, the cnc_upload4, and cnc_upend4 function of the C language
library of C language executor.

start

end

start reading NC data

cnc_upstart4(type=78)

end reading NC data

cnc_upend4

read NC data
cnc_upload4

EW_OK?

last data=’%’?

EW_RESET?

EW_BUFFER?

YES

Fig. 19.1.8.4 (b) Reading data

B-64693EN-1/01

19. MAINTENANCE FUNCTION

- 2837 -

19.1.9

Caution

To save CNC information for eight or more days, so number of saving information each day is restricted.
The history can be saved only up to the potential saving number. (Refer to “Restriction of saving”)
So, in the ladder program, please judge trouble as accurately as possible.

Do not save CNC information at the time when trouble does not occur in order to decrease the load of
CNC.

At shipment of CNC, Potential Saving Number is 30.

CNC information might not be able to be saved correctly immediately before the power failure. So in the
system that can detect power failure, don’t save the CNC information when the power failure occurs.

19.2

SERVO/SPINDLE WAVEFORM DATA OUTPUT FUNCTION

19.2.1

Outline

When something trouble occurs with machine, servos and spindles waveform data before and after the
trouble is automatically output to Data Server, which is sampled by Trouble diagnosis function.
Since long-termed data is automatically saved, it is easier to detect the cause of the trouble.

CNC always samples waveform data.
If something trouble occurs with machine, CNC detects the trouble through alarms or signals and output
waveform data before and after the trouble to Data Server automatically (Fig.19.2.1(a)).

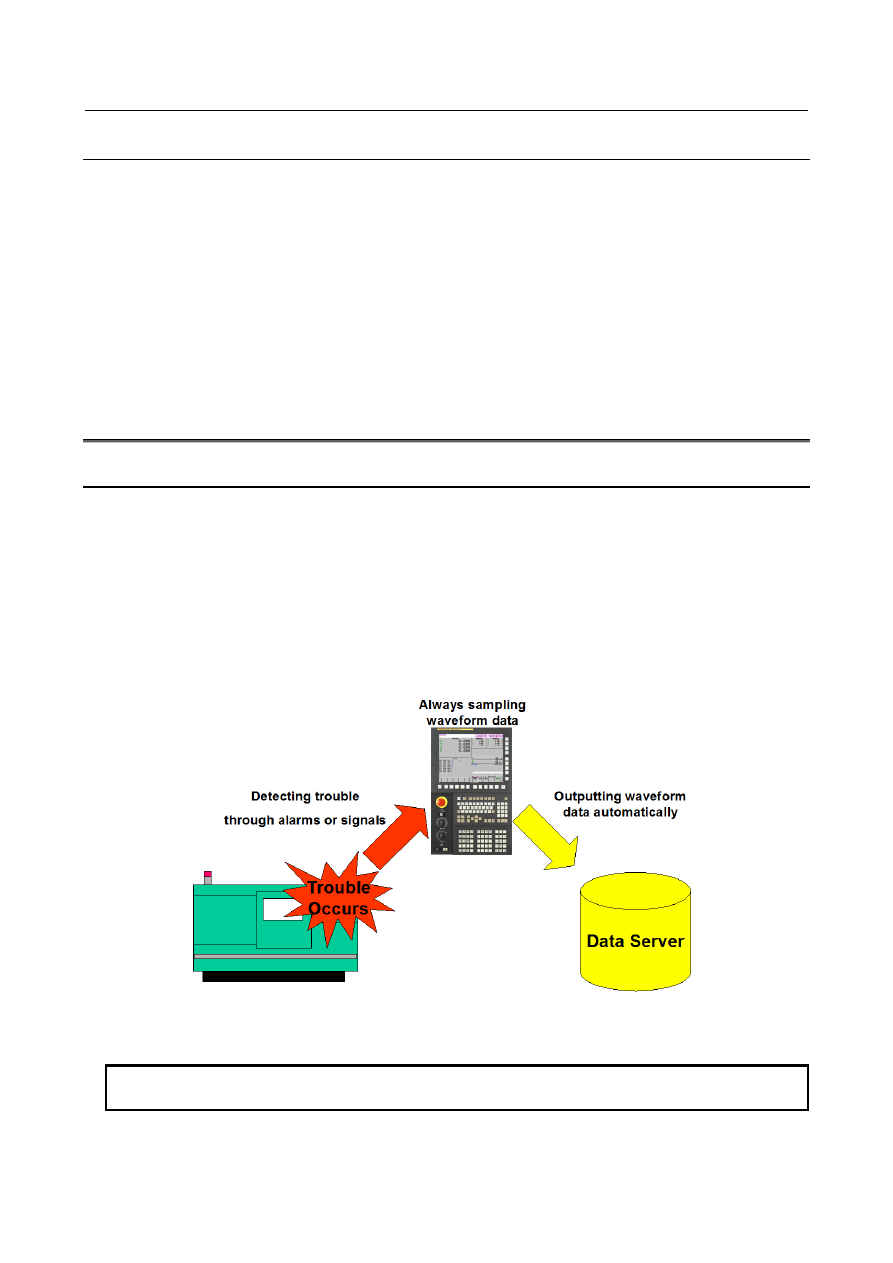

Fig. 19.2.1 (a) Outline of Servo / spindle waveform data output function

NOTE

This function requires Data Server function.

19. MAINTENANCE FUNCTION

B-64693EN-1/01

- 2838 -

19.2.2

Waveform Data

This function can output several kinds of data listed in tables below.
Each data can be sampled for up to 40 seconds summing up before and after trouble.

Table 19.2.2 (a) Data list for servo motors

Data (Unit)

Accumulated command pulse (pulse)
Accumulated feedback pulse

(pulse)

Position error

(pulse)

Reference counter

(pulse)

Actual speed

(1/min)

Torque command

(%)

Head simulation

(%)

Motor current

(A)

Disturbance level

(%)

Arbitrary data
Effective current

(%)

AMR data
Arbitrary data 2

Table 19.2.2 (b) Data list for spindle motors

Data (Unit)

Actual motor speed

(1/min)

Load meter

(%)

Position error

(pulse)

Torque command

(%)

Motor current

(A)

Whole data of all axes can be output, though output data can be selected by parameters.

NOTE

The upper limit of sampling time cannot be extended even if output data is
reduced.

19.2.3

Sampling

It is necessary to always sample waveform data in order to use this function.
Trouble diagnosis data monitoring signal TDDM<G0589.0> starts the sampling.
Trouble diagnosis data monitoring signal clears latched data of Trouble diagnosis function and changes
the state of the function from “LATCHED” to “SAMPLING”.

Output of waveform data to Data Server starts when sampling after trouble finishes, which is specified by
parameter No.24320.
It is necessary to start sampling again by trouble diagnosis data monitoring signal after outputting of
waveform data.
Weather the output finishes or not is indicated by Waveform data transfer signal WVTRNS<F0578.0>.

Restriction

When this function is effective, the state of Trouble diagnosis function, “SAMPLING” or “LATCHED”,
is common for all paths, though the state can be different for each path in ordinary Trouble diagnosis
function. Therefore, Trouble diagnosis data monitoring signal starts sampling of all paths simultaneously
and trouble in some path stops sampling of all paths.

B-64693EN-1/01

19. MAINTENANCE FUNCTION

- 2839 -

NOTE

1 Latched data of Trouble diagnosis function and waveform data sampled by this

function is cleared when sampling restarts after trouble.

2 Though Trouble diagnosis data monitoring signal is for each path, this function

uses only the signal of 1st path.

3 Trouble diagnosis data monitoring signal is ignored when SV or SP alarm occurs

in some path. Start sampling by Trouble diagnosis data monitoring signal after
confirming that no SV or SP alarm occurs in all paths.

4 The state of sampling (the state of Trouble diagnosis function) does not change

even if power is turned off and on. Therefore, it is necessary to start sampling
after power is turned on if sampling was stopped (the state of Trouble diagnosis
function was “LATCHED”) before power was turned off. Oppositely, sampling is
started automatically after power is turned on if sampling was active (the state of
Trouble diagnosis function was “SAMPLING”) before power was turned off.

19.2.4

Detect Trouble

SV or SP alarm changes the state of Trouble diagnosis function into “LATCHED” when the state is
“SAMPLING”. At the same time, CNC regards that something trouble occurs with machine and the
sequence of outputting waveform data of servos and spindles to Data Server is started.

This function makes it possible to detect trouble by changing Trouble diagnosis data latching signal
TDDL<G0589.1> from “0” to “1” as well as SV and SP alarms. Weather trouble is detected by Trouble
diagnosis data latching signal or not is specified by bit 1 (SPT) of parameter No.24318.

NOTE

1 Though Trouble diagnosis data latching signal is for each path, this function uses

the signal of 1st path.

2 Data of Trouble diagnosis function is latched and the state changes from

“SAMPLING” to “LATCHED” when trouble is detected by Trouble diagnosis data
latching signal.

3 Sampling continues for a while after trouble is detected, which can be specified

by parameter No.24320.

4 Trouble is not detected and this function is not active when the state of Trouble

diagnosis function is “LATCHED”.

19.2.5

Sequence when Trouble Occurs

Servos and spindles waveform data is sampled with constant period and, if trouble occurs, data before and

after the trouble specified by parameter Nos.24319 and 24320 is output to Data Server. The output is
started automatically if sampling after the trouble finishes, which is specified by parameter No.24320.

Waveform data transfer signal WVTRNS<F0578.0> is “1” between the occurrence of the trouble and the
end of the output.
Sequence when trouble occurs is shown in Fig. 19.2.5 (a) and Fig. 19.2.5 (b) below.

19. MAINTENANCE FUNCTION

B-64693EN-1/01

- 2840 -

Detect trouble

Trouble diagnosis

data monitoring

signal

TDDM<G0589.0>

Start the output

（

alarm occurs

）

Restart sampling

Time

Output data before and after trouble

to Data Server

Sampling

data

Waveform data

transfer signal

WVTRNS

<F0578.0>

Trouble diagnosis

data latching signal

TDDL<G0589.1>

32ms or more

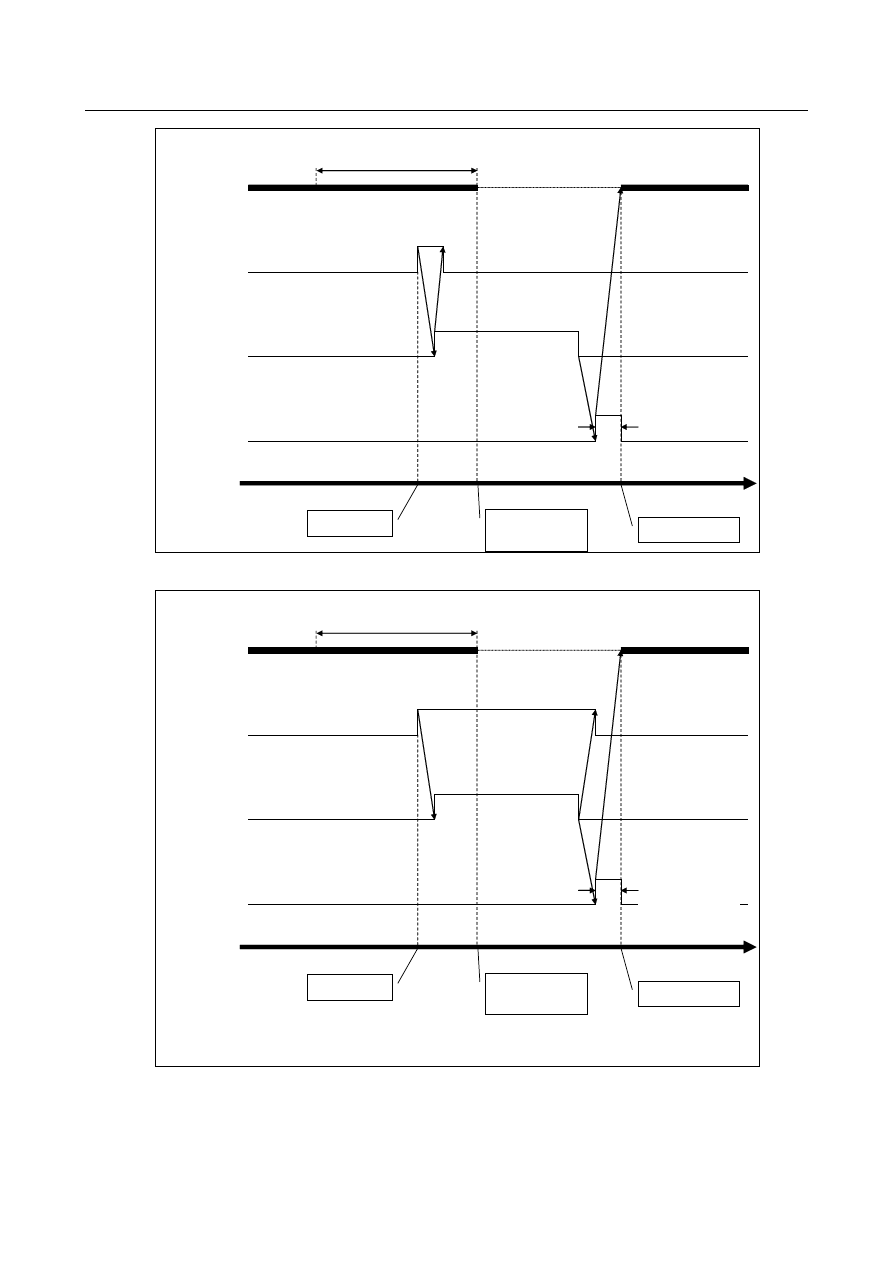

Fig. 19.2.5 (a) Sequence when trouble occurs (when the trouble is detected by the signal)

Detect trouble

Trouble diagnosis

data monitoring

signal

TDDM<G0589.0>

Start the output

（

alarm occurs

）

Restart sampling

Time

Output data before and after trouble

to Data Server

Sampling

data

Waveform data

transfer signal

WVTRNS

<F0578.0>

SV or SP alarm

32ms or more

NOTE: SV or SP alarms does not release even if Waveform data transfer signal changes into “1”.

Fig. 19.2.5 (b) Sequence when trouble occurs (when the trouble is detected by SV or SP alarm)

B-64693EN-1/01

19. MAINTENANCE FUNCTION

- 2841 -

NOTE

1 Make it impossible to turn off power during Waveform data transfer signal is “1”

in order to output data normally.

2 Sampling cannot be started when Waveform data transfer signal is “1” or SV/SP

alarm occurs. In addition, Trouble diagnosis function and this function are not
effective in such cases.

19.2.6

Data Output

Output of waveform data to Data Server is started automatically if trouble is detected and sampling after
the trouble finishes, which is specified by parameter No.24320.
“OUTPUT” is blinking at Status bar during the output.
The data is output to “SVSPWAVE” folder below Data Folder on Data Server regardless of I/O devices
specified in parameter Nos.20-23.
Make all paths in alarm states before the output, which is required to start the output to Data Server (See 0
in NOTE below).

Waveform data transfer failure signal WVTF<F0578.1> is “1” if the output fails because of, for examples,
no data Folder existing on Data Server, memory shortage, not in alarm states, and so on. After the cause
of failure is resolved

while

WVTF<F0578.1> is “1”, setting Waveform data re-output signal

WVROP<G0589.2> from “0” to “1” restarts the output in such cases.
Waveform data transfer failure signal is “0” in the following cases:
1)

When the re-output finishes normally.

When the next sampling is started.

When power is turned off.

Sequence of normal output is shown in Fig. 19.2.6 (a) and Fig. 19.2.6 (b), and that of output failure is
shown in Fig. 19.2.6 (c) and Fig. 19.2.6 (d).

Detect trouble

Waveform data output

failure signal

WVTF<F0578.1>

Finish output

Time

Waveform data

transfer signal

WVTRNS

<F0578.0>

Trouble diagnosis

data latching signal

TDDL<G589.1>

Waveform data

re-output signal

WVROP<G0589.2>

(remained 0)

Fig. 19.2.6 (a) Sequence of normal output (when the trouble is detected by the signal)
