16. PMC CONTROL FUNCTION





B-64693EN-1/01



- 2666 -

Large

classification

Small

classification

Content

34H

C Language Executor application screen 3



35H

C Language Executor application screen 4



36H

C Language Executor application screen 5

01H

Conversational macro 1 screen



02H

Conversational macro 2 screen



03H

Conversational macro 3 screen



08H

PMC C Language board application screen



32H

C Language Executor application screen 1



33H

C Language Executor application screen 2



34H

C Language Executor application screen 3



35H

C Language Executor application screen 4



36H

C Language Executor application screen 5

32H

C Language Executor application screen 1



33H

C Language Executor application screen 2



34H

C Language Executor application screen 3



35H

C Language Executor application screen 4



36H

C Language Executor application screen 5

01H

Main Menu Running screen



02H

Main Menu Edit screen



03H

Main Menu Setup screen



04H

Main Menu Maintenance screen



05H

Main Menu History screen



32H

C Language Executor application screen 1



33H

C Language Executor application screen 2



34H

C Language Executor application screen 3



35H

C Language Executor application screen 4



36H

C Language Executor application screen 5



Signal address







#7

#6

#5

#4

#3

#2

#1

#0

F523



SCRNL7

SCRNL6

SCRNL5

SCRNL4

SCRNL3

SCRNL2

SCRNL1

SCRNL0





















F524



SCRNS7

SCRNS6

SCRNS5

SCRNS4

SCRNS3

SCRNS2

SCRNS1

SCRNS0



B-64693EN-1/01





17. EMBEDDED ETHERNET FUNCTION



- 2667 -

17

EMBEDDED ETHERNET FUNCTION

17.1

EMBEDDED ETHERNET PORT AND PCMCIA ETHERNET
CARD

The embedded Ethernet function can be used by selecting one of two types of devices: the embedded
Ethernet port and PCMCIA Ethernet card.
A selection can also be made to stop the embedded Ethernet function.
The PCMCIA Ethernet card is to be inserted into the memory card slot for temporary communication.


  CAUTION

1  When using the embedded Ethernet function for the first time, set an IP address

and other items carefully as instructed by the network administrator, then
perform a sufficient communication test.



Note that an incorrect IP address or other setting may cause a communication
failure on the entire network or system error in the CNC.

2  A unit such as a PC situated in the same network can increase the

communication processing load on the CNC even if the unit is not
communicating with the CNC.
Avoid connecting the CNC to a factory-wide network. Use a router or the like to
separate the network including the CNC from the other networks.

3  The PCMCIA Ethernet card is inserted into a memory card slot, with a part of the

card left uninserted. When using the PCMCIA Ethernet card, take great care not
to damage the card by hitting the protruding part of the card.



When the card becomes unnecessary, remove the card immediately, in order to
prevent any damage to the card.



NOTE

1  Use the PCMCIA Ethernet card designated by FANUC. General Ethernet cards

available on the market cannot be used.

2  The PCMCIA Ethernet card is used for FANUC LADDER-III or a SERVO GUIDE.
3  Use the PCMCIA Ethernet card just for temporary communication as described

above. Avoid using the card for continuous communication.



Related parameters





#7

#6

#5

#4

#3

#2

#1

#0

14880

















ETH





[Input type]  Parameter input



[Data type]  Bit





#0  ETH

  The embedded Ethernet function (a built-in port or PCMCIA LAN card) is:

0:

Used.

1:

Not used.



17. EMBEDDED ETHERNET FUNCTION





B-64693EN-1/01



- 2668 -

17.2

SETTING UP THE EMBEDDED ETHERNET FUNCTION

This section describes the setting of parameters for the embedded Ethernet function.


17.2.1

Setting of the FOCAS2/Ethernet Function

This subsection describes the settings required to operate the FOCAS2/Ethernet function.


  WARNING



When using the FOCAS2/Ethernet function, thoroughly confirm the content of
“GENERAL WARNINGS FOR CNC APPLICATION DEVELOPMENT” in
“SAFETY PRECAUTIONS” at the beginning of this manual.
If the machine is operated without confirmation of above explanation, the
machine may behave unexpectedly, possibly damaging the tool, the machine
itself, the workpiece, or causing injury to the user.



Notes on using the FOCAS2/Ethernet function for the first time

NOTE

1  When running user's original application software created by using the

FOCAS2/Ethernet function, use the embedded Ethernet port.

2  The FOCAS2/Ethernet function allows up to five FOCAS2/Ethernet clients to be

connected to one CNC.

3  Concurrent access by multiple applications or personal computers may overload

the CNC, reducing the communication speed.

4  For the FOCAS2/Ethernet functions, the machine tool builder or end user can

create desired software operated on each personal computer using the FOCAS2
library software.



Communication timing and other factors may vary depending on the personal
computer environment. Before starting communication, completely confirm that
there is no problem with the entire system including communication with the
personal computer.



Notes on using the CNC Screen Display function for the first time

NOTE



With the CNC screen display functions, up to 1 CNC screen display function
client can be connected to one CNC.



17.2.1.1

Operation on the FOCAS2/Ethernet setting screen

On the Ethernet parameter setting screen, set the parameters for operating the FOCAS2/Ethernet function.


Procedure

Press the function key



Soft keys [EMBED] and [PCMCIA LAN] appear.



(When there is no soft keys, press the continue key.)

To display the Ethernet Setting screen for the embedded Ethernet port or the PCMCIA Ethernet card,

press soft key [EMBED] or [PCMCIA LAN], respectively.

Press soft keys [COMMON] and [FOCAS2] and then enter parameters for the items that appear.

B-64693EN-1/01





17. EMBEDDED ETHERNET FUNCTION



- 2669 -

NOTE

1  The parameters for the embedded Ethernet port and the parameters for the

PCMCIA Ethernet card are independent of each other.

2  The settings of the FOCAS2/Ethernet function for the PCMCIA Ethernet card are

made when a connection to the SERVO GUIDE and FANUC LADDER-III is
established.



COMMON screen (BASIC)

Press soft key [COMMON]. The COMMON screen (BASIC) (Fig. 17.2.1.1 (a)) is displayed.




Fig. 17.2.1.1 (a) COMMON screen (BASIC)



Setting items

Item

Description

IP ADDRESS

Specify the IP address of the embedded Ethernet.
(Example of specification format: "192.168.0.100")

SUBNET MASK

Specify a mask address for the IP addresses of the network.
(Example of specification format: "255.255.255.0")

ROUTER IP ADDRESS

Specify the IP address of the router.
Specify this item when the network contains a router.
(Example of specification format: "192.168.0.253")

DHCP CLIENT

The value of parameter No.14880#6(DHC) related to the DHCP client function is
displayed, and the setting is also possible. For details, see Subsection, “Setting Up
the DNS/DHCP Function”.



Display items

Item

Description

MAC ADDRESS

Embedded Ethernet MAC address

AVAILABLE DEVICE

Enabled device of the embedded Ethernet.
Either the embedded Ethernet port or the PCMCIA Ethernet card is displayed.



17. EMBEDDED ETHERNET FUNCTION





B-64693EN-1/01



- 2670 -

FOCAS2 screen

Press soft key [FOCAS2]. The FOCAS2 screen (Fig. 17.2.1.1(b)) is displayed.




Fig. 17.2.1.1 (b) FOCAS2 screen



Setting items

Item

Description

PORT NUMBER (TCP)

Specify a port number to be used with the FOCAS2/Ethernet function. The valid
input range is 5001 to 65535.

PORT NUMBER (UDP)

Set this item to 0.

TIME INTERVAL

Set this item to 0.



Initial setting of the PCMCIA Ethernet card

The PCMCIA Ethernet card is factory-set to the following standard setting values, for ease of connection
with a SERVO GUIDE or FANUC LADDER-III.

IP ADDRESS

: 192.168.1.1

SUBNET MASK

: 255.255.255.0

ROUTER IP ADDRESS

: None

PORT NUMBER (TCP)

: 8193

PORT NUMBER (UDP)

: 0

TIME INTERVAL

: 0

If a specified IP address is changed to a blank (space), the specified setting is reset to the standard setting
value.
The embedded Ethernet port does not have a standard setting value.


B-64693EN-1/01





17. EMBEDDED ETHERNET FUNCTION



- 2671 -

17.2.1.2

Example of setting the FOCAS2/Ethernet function

The following shows a setting example required for the FOCAS2/Ethernet function to operate.
(when Windows 10 is used as the OS for the personal computer).

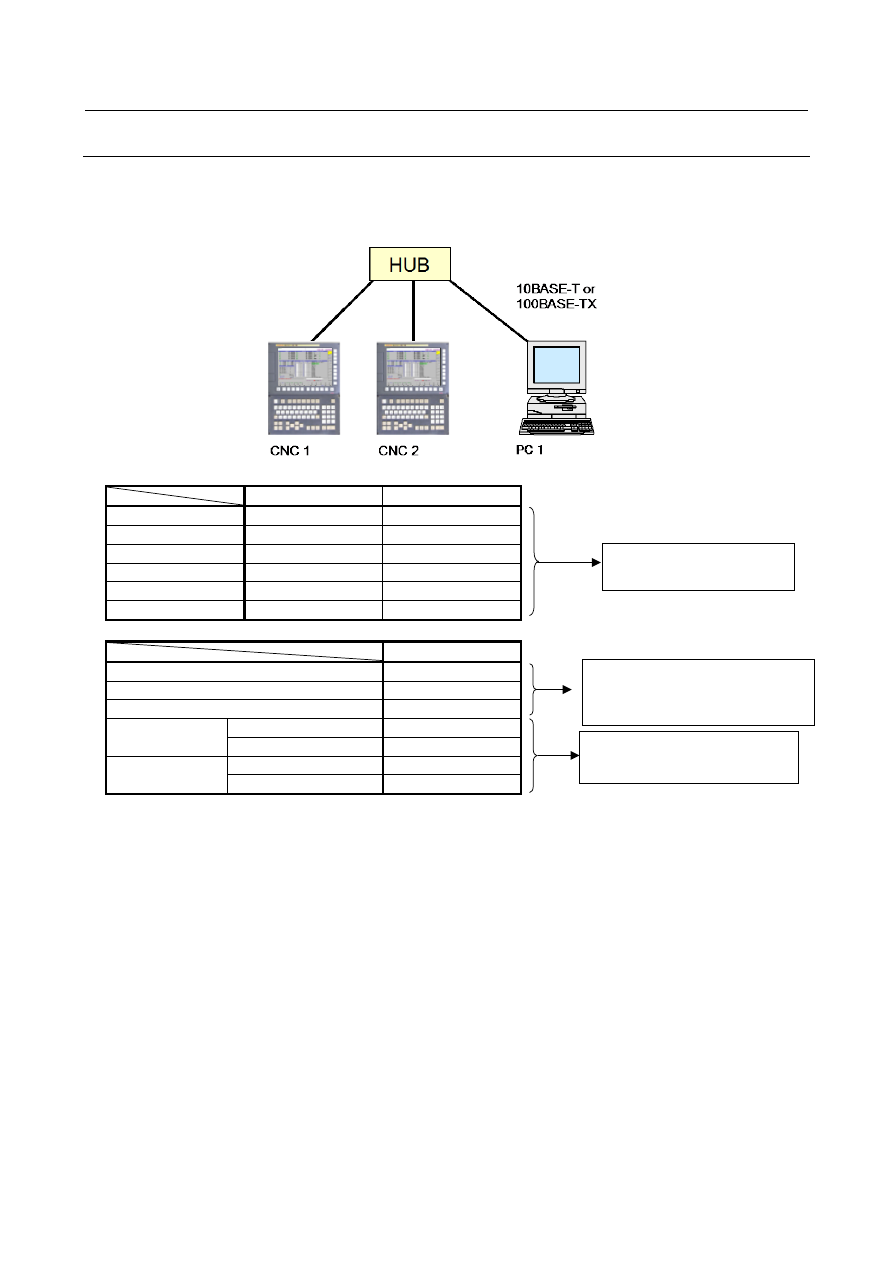

In this example, one personal computer is connected to two CNCs through FOCAS2/Ethernet.








CNC 1

CNC 2

IP address

192.168.0.100

192.168.0.101

Subnet mask

255.255.255.0

255.255.255.0

Router IP address

None

None

TCP port number

8193

8193

UDP port number

Time interval







PC 1

IP address

192.168.0.200

Subnet mask

255.255.255.0

Default gateway

None

CNC 1

NC IP address

192.168.0.100

NC TCP port number

8193

CNC 2

NC IP address

192.168.0.101

NC TCP port number

8193



The Ethernet parameter screen
is used for setting.

"Internet Protocol Version 4
(TCP/IPv4) Properties" of the personal
computer (Windows 10) is used for
setting.

The arguments of the data window
library function cnc_allclibhndl3 are
used for setting.

17. EMBEDDED ETHERNET FUNCTION





B-64693EN-1/01



- 2672 -

17.2.2

Setting of the FTP File Transfer Function

This section describes the settings required for the FTP file transfer function to operate using the
embedded Ethernet function.


Notes on using the FTP file transfer function for the first time

NOTE

1  When using the FTP file transfer function, use the embedded Ethernet port.
2  The number of FTP communications to which one CNC can be connected using

the FTP file transfer function is one.

3  Before communicating with the host computer using the FTP file transfer

function, completely confirm that there is no problem with the entire system
including communication with the personal computer because the personal
computer environment may affect communication operation.

4  To operate the host computer as the FTP server, FTP server software must be

operated on the host computer.

5  When a lot of files are registered in the host computer, the display processing of

host file list display might become slow. In this case, divide the folder that
registers the files.



17.2.2.1

Operation on the FTP file transfer setting screen

On the Ethernet setting screen, set the parameters for operating the FTP file transfer function.


Procedure

Press the function key



Soft keys [EMBED] appear.



(When there is no soft keys, press the continue key.)

By pressing the [EMBED] soft key, the Ethernet Setting screen for the embedded  Ethernet  port is
displayed.

Press soft keys [COMMON] and [FTP TRANS] and then enter parameters for the items that appear.



NOTE



The parameters for the embedded Ethernet port and the parameters for the
PCMCIA Ethernet card are independent of each other.



If the [PCMCIA LAN] soft key is pressed, the PCMCIA Ethernet card can be set
up. However, the card setup is carried out for maintenance and is not necessary
usually.



B-64693EN-1/01





17. EMBEDDED ETHERNET FUNCTION



- 2673 -

COMMON screen (BASIC)

Press soft key [COMMON]. The COMMON screen (BASIC) (Fig. 17.2.2.1(a)) is displayed.




Fig. 17.2.2.1 (a) COMMON screen (BASIC)



Setting items

Item

Description

IP ADDRESS

Specify the IP address of the embedded Ethernet.
(Example of specification format: "192.168.0.100")

SUBNET MASK

Specify a mask address for the IP addresses of the network.
(Example of specification format: "255.255.255.0")

ROUTER IP ADDRESS

Specify the IP address of the router.
Specify this item when the network contains a router.
(Example of specification format: "192.168.0.253")

DHCP CLIENT

The value of parameter No.14880#6(DHC) related to the DHCP client function is
displayed, and the setting is also possible. For details, see Subsection, “Setting Up
the DNS/DHCP Function”.



Display items

Item

Description

MAC ADDRESS

Embedded Ethernet MAC address

AVAILABLE DEVICE

Enabled device of the embedded Ethernet.
Either the embedded Ethernet port or the PCMCIA Ethernet card is displayed.

















Content      ..     337      338      339      340     ..
