PGEV and PGE Locomotive Governors. Manual - part 31

Manual 36703

PGEV and PGE Locomotive Governors

Woodward

113

[This page intentionally left blank]

PGEV and PGE Locomotive Governors

Manual 36703

114

Woodward

Parts List For Figure 7-16

Ref. No.

Part Name .................................. Quantity

36703-1101 Nut,

3/4-32 ............................................... 5

36703-1102 Solenoid

plunger stop .............................. 5

36703-1103 Solenoid

case

........................................... 5

36703-1104 Solenoid load spring ................................. 5
36703-1105 Paper

insulator ......................................... 5

36703-1106 Solenoid coil ............................................. 5
36703-1107 Solenoid plunger ...................................... 5
36703-1108 Snap ring .................................................. 5
36703-1109 Solenoid

plunger pushrod ........................ 5

36703-1110 Washer,

Beryllium copper ........................ 5

36703-1111 Insulator

bushing (Teflon)....................... 10

36703-1112 Solenoid guide ......................................... 5
36703-1113 Guide

bushing; press fit ......................... 10

36703-1114 Screw, rd. hd., 8 x 1-1/4, type 2 ............... 3
36703-1115 Plain

washer,

13/16, 7/16 x 1/32 .............. 3

36703-1116 Screw, soc., hd., 10-32 x 2-1/4 ................. 2
36703-1117 Washer,

splitlock, #10 .............................. 2

36703-1118 Solenoid bracket ...................................... 1
36703-1119 Setscrew, soc. hd., cup pt., 10-32 x 1/4 ... 5
36703-1120 Speed

nut,

#11, type J ............................. 3

36703-1121 Wiring

shield

............................................. 1

Ref. No.

Part Name .................................. Quantity

36703-1122 Jam nuts (Lube oil signal switch) ............. 1
36703-1123 Switch

mounting bracket .......................... 1

36703-1124 Switch

bracket clamp plate ...................... 1

36703-1125 Connector plate (used with item 1134) .... 1
36703-1126 Electrical

connector (Amphenol) .............. 1

36703-1127 Screw,

fil. 6-32 x 3/8 ................................ 4

36703-1128 Connector

plate

gasket (sq. hole) ............ 1

36703-1129 Lockwasher,

int. tooth, #6 ........................ 4

36703-1130 Screw,

flat hd., 10-32 x 3/8 ...................... 4

36703-1131 Connector plate (used with item 1134) .... 1
36703-1132 Screw,

flat hd., 10-32 x 3/8 ...................... 4

36703-1133 Connector

plate gasket (rd. hole) ............. 1

36703-1134 Electrical

connector (Pyle National) ......... 1

36703-1135 Soldering

Shield Washer ....................... 10

36703-1136 Solenoid

Plunger Assy. ............................ 5

36703-1137 Snap

Ring ................................................ 5

36703-1138 Insulator

bushing, (Teflon) ..................... 10

36703-1139 Guide

bushing, press fit ........................... 5

36703-1140 Lube Oil Signal Switch ............................. 1
36703-1141 Solenoid guide ......................................... 1
36703-1142 through 1150 Not Used

Manual 36703

PGEV and PGE Locomotive Governors

Woodward

115

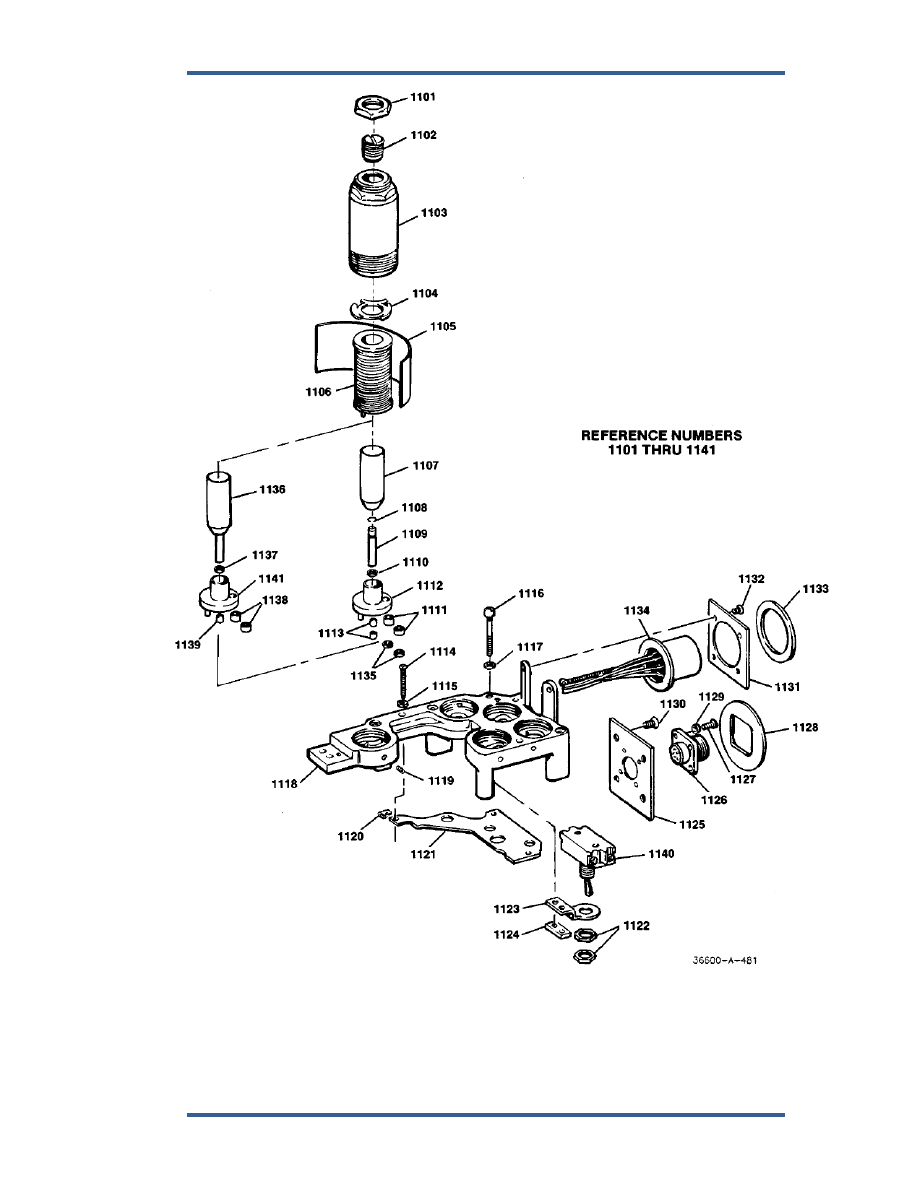

Figure 7-16. Exploded View of Electrical Receiver Assembly

PGEV and PGE Locomotive Governors

Manual 36703

116

Woodward

Parts List For Figure 7-17

Ref. No.

Part Name .................................. Quantity

36703-1151 Stainless

Steel Tubing Assy. .................... 1

36703-1152 Stainless

Steel Tubing Assy ..................... 1

36703-1153 Screw, Soc. Hd. Cap, 1/4 20 x 3.00 (SST)2
36703-1154 Split Lockwasher, ID 1/4, OD .365 max., x

078. .......................................................... 2

36703-1155 Screw Soc., Cap, 10-32 x 7/8 .................. 2
36703-1156 Split

Lockwasher #10 ............................... 2

36703-1157 Switch Cover ............................................ 1
36703-1158 Preformed

Packing ID 2.55 x .103 ........... 1

36703-1159 Toggle

Switch/Plate Mounting Nut ........... 1

36703-1160 Switch

Mounting Plate .............................. 1

36703-1161 Screw,

Soc.,

Hd., Cap, 6-32 x 3/8 ............ 2

36703-1162 Split

Lockwasher #6 ................................. 2

36703-1163 Plain

washer

.141, OD .37, x .031 ....... 1

36703-1164 Water Shutdown Case Assy. .................... 1
36703-1165 Sleeve ...................................................... 1
36703-1166 Buffer Spring ............................................ 1
36703-1167 Preformed

Packing, .364 ID x .070 ......... 1

36703-1168 Wiring Tube .............................................. 1
36703-1169 Preformed

Packing ID .364 x .070 ........... 1

36703-1170 Wires ..................................................... AR
36703-1171 Preformed

Packing ID .364 x .070 ........... 1

36703-1172 Not Used .................................................. 1
36703-1173 Not Used ....................................................
36703-1174 Shutdown Plunger .................................... 1
36703-1175 Failure

Piston Spring ................................ 1

36703-1176 Failure Piston ........................................... 1
36703-1177 Bushing Gasket ........................................ 1
36703-1178  Retainer plate (bushing assy.) .................. 1
36703-1179  Plain Washer, ID .25, OD .485, x .031 ..... 1
36703-1180  Screw, Soc. Hd., Cap, 1/4-28 x 3/8 .......... 1

Ref. No.

Part Name .................................. Quantity

36703-1181 Failure Plunger......................................... 1
36703-1182 Diaphragm ............................................... 1
36703-1183 Diaphragm Washer .................................. 1
36703-1184 Plunger End ............................................. 1
36703-1185 Straight

for Plunger End .................... 1

36703-1186 Needle Bearing ........................................ 2
36703-1187 Diaphragm Plate ...................................... 1
36703-1188 Screw,

fil.

hd., 1/4-20 x 3/4 ...................... 4

36703-1189 Lock washer, split, ID 1/4, OD. 365 Max.,

x .078 ....................................................... 4

36703-1190 Ratio Lever .............................................. 1
36703-1191 Plain Washer #8 ....................................... 2
36703-1192 Ratio

Lever Block ..................................... 1

36703-1193 Straight Pin .............................................. 1
36703-1194 Strap Clamp ............................................. 2
36703-1195 Screw, Hex Hd., 1/4-28 x 1-1/8 ................ 4
36703-1196 Split

Lockwasher 1/4 ................................ 4

36703-1197  Water Box Diaphragm .............................. 1
36703-1198  Water Box Diaphragm Washer ................ 1
36703-1199  Nut, Lock 10-32 ........................................ 1
36703-1200 Load

Spring ............................................. 1

36703-1201 Load

Spring Retainer ............................... 1

36703-1202 Adjustment Screw .................................... 1
36703-1203 Roll

1/16 x 7/16 .................................. 1

36703-1204 Preformed

Packing 3/8 OD ...................... 1

36703-1205 Water Box ................................................ 1
36703-1206 Screw, Soc. Hd. Cap, 10-32 x 5/8 ............ 4
36703-1207 Split

Lockwasher #10 ............................... 4

36703-1208 Nut, Hex Drilled 1/4-28 ............................. 1
36703-1209 Plain washer ID 11/64, x OD 1/2, x .064 .. 1
