Seat Exeo ST. Service Manual - part 17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

262

If and when

Note

• Do not use the compressor for longer than 6 minutes. Otherwise, it might

overheat. When the compressor has cooled down, you can use it again.

• If tyre sealant should leak out, leave it to dry and then pull it off like foil.

• After carrying out a tyre repair remember to buy a new tyre sealant can at

a qualified workshop. This will ensure that the Tyre Mobility System is opera-

tive again.

• Please observe legal requirements when doing so.

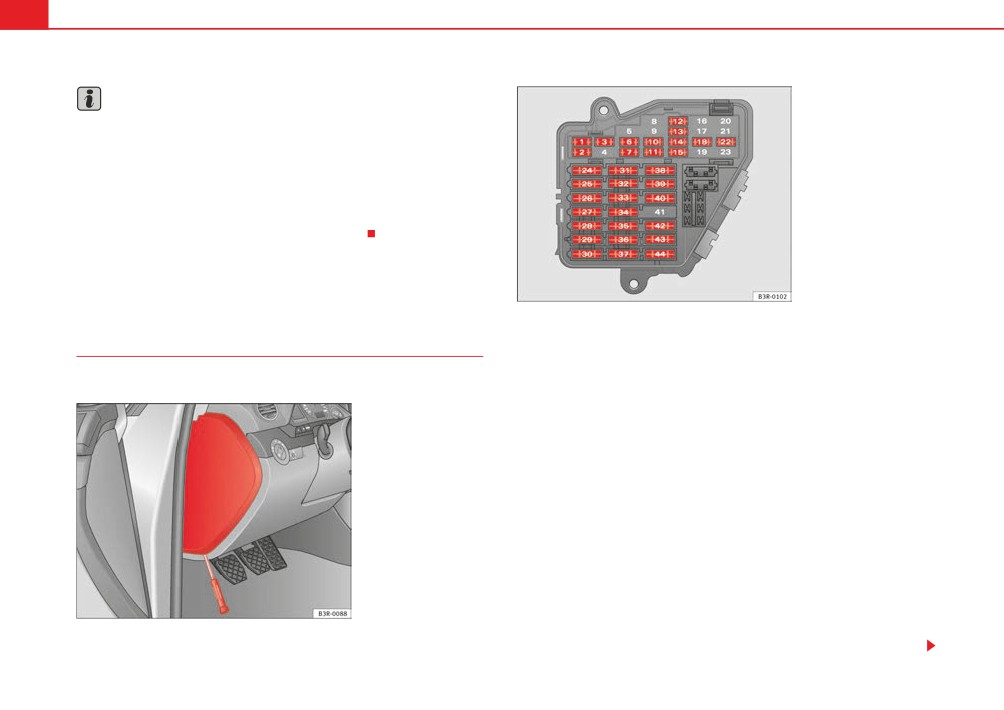

Fig. 203 Schematic

drawing of fuse box at the

left-hand end of instru-

ment panel: Fuses

(without fuse cover)

Fuses

-

Switch off the ignition and its failed electrical component.

Changing fuses

-

Remove the fuse cover using a screwdriver ⇒ fig. 202.

If a fuse has blown, it must be replaced.

–

Identify the fuse for the failed component ⇒ page 263, “Fuse

assignment”.

-

Take the plastic clip from inside the fuse cover, fit it onto the

blown fuse, and pull the fuse out.

-

Replace the blown fuse (which will have a melted metal strip)

with a new fuse of the same amp rating.

-

Fit the fuse cover back on.

The individual electrical circuits are protected by fuses. The fuses are located

behind a cover at the left-hand end of the instrument panel.

Fig. 202 Left side of dash

panel: Fuse box cover

Two spare fuses and a sticker identifying the fuses are provided on the inside

of the fuse cover. There is also a crank handle for operating the sun roof* by

hand (if the electrical system fails).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

263

No.

Consumer

Amps

Caution

Never “repair” damaged fuses and never replace them with fuses with a

Airbag and disconnection of the front passenger air-

11

5

higher rating. Failure to comply could result in fire. It could also cause

bag

damage to other parts of the electrical system.

12

Diagnostic socket

10

13

Steering column unit

10

Note

14

Brake lights

10

If a newly replaced fuse blows again after a short time, the electrical system

15

Instrument panel

10

must be checked by a qualified workshop as soon as possible.

16

Vacant

17

Tyre pressure control, rain/light sensor

10

Fuse assignment

18

Self-directing headlights (adaptive light) left

5

19

Vacant

This list shows the fuses which can be replaced relatively

20

Vacant

easily by the owner.

21

Vacant

No.

Consumer

Amps

22

Driver's door / front passenger's door

15

1

Climate control

10

23

Rear doors

15

2

Footwell lamps

5

24

Central electrics unit for convenience equipment

20

3

Heated washer jets

5

25

Heater blower

30

4

Radiator fan

5

26

Rear window heater

30

5

Parking aid, automatic gearbox

10

27

Electrical socket for trailer (control unit)

30

6

Air conditioner (air purity sensor), pressure sensor

5

28

Fuel pump, auxiliary pump for diesel

20

Electronic Stabilisation Program (ESP), brake light

29

Vacant

7

10

switch, clutch pedal switch, steering angle sensor

30

Sliding/tilting sunroof

20

8

Telephone

5

Diagnosis connection, automatic anti-dazzle interior

31

15

9

Vacant

mirror, reverse light, automatic gearbox

10

Self-directing headlights (adaptive light) right

5

32

Towing socket

15

Safety First

Controls and equipment

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

264

If and when

No.

Consumer

Amps

Bulbs

33

Lighter

20

34

Diesel lambda-probe

5

General notes

35

Luggage compartment power point*

20

You can change the following bulbs for exterior lights yourself:

36

Wiper system

30

• Main headlights: all (except for xenon headlights)

Pump for windscreen washer and headlight washer

37

30

• Rear lights: All bulbs

system

• Side indicator bulb

38

Luggage compartment illumination, alarm

15

The following bulbs can only be changed by a qualified workshop:

39

Radio, Amplifier

20

40

Horn

25

• Main headlights: Xenon* bulb ⇒ page 271

• Front fog lights: Bulb

41

Vacant

30

As a rule, you require a certain degree of practical skill to change defective

42

Electronic stabilisation programme (ESP)

25

bulbs. This applies in particular to those bulbs which are only accessible from

43

Engine management

15

the engine compartment.

44

Seat heating

35

If in doubt, we recommend that you have defective bulbs changed by a qual-

ified workshop or qualified mechanic.

Some of the electrical items listed in the table are only fitted on certain

models or are optional extras.

If you do decide to change bulbs in the engine compartment yourself, be

aware of the safety risks involved ⇒ page 227 ⇒

in “Types of bulbs”.

The electric windows and electric seat adjusters are protected by circuit

breakers. These reset automatically after a few seconds when the overload

(caused for example by frozen windows) has been corrected.

Changing bulbs Halogen headlights

Note

Please note that the above list contains all data at the time of going to press,

Types of bulbs

so it is subject to modifications. If discrepancies should occur, please refer to

the sticker on the inside of the fuse cover for the correct information for your

You must only replace a bulb with a bulb of the same type. The name can be

model.

found on the base of the bulb.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

265

not affect the useful life of the lighting system. By switching on the lights, the

Bulb

Type

area through which the beam of light is projected will quickly be demisted.

Dipped-beam headlights (halogen)

12 V/55 W (H7 LL)

However, the edges may continue to be misted.

Main beam headlights

12 V/55 W (H1)

• Please check at regular intervals that all lighting (especially the exterior

lighting) on your vehicle is functioning properly. This is not only in the interest

Indicator light

12 V/21 W (PY21W)

of your own safety, but also in that of all other road users.

Side lights

12 V/5 W (W5W LL)

• Before changing a bulb, make sure you have the correct new bulb.

• Do not touch the glass part of the bulb with your bare hands, use a cloth

WARNING

or paper towel instead. Otherwise, the fingerprints left on the glass will

vaporise as a result of the heat generated by the bulb, be deposited on the

• Take particular care when working on components in the engine

reflector and impair its surface.

compartment if the engine is warm - risk of burns!

• Bulbs are highly sensitive to pressure. The glass can break when you

touch the bulb, causing injury.

Removing the air duct

• The high voltage element of gas discharge lamps* (xenon light) must

be handled correctly. Otherwise, there is a risk of death.

The air duct has to be removed to gain access to the bulbs for

• When changing bulbs, please take care not to injure yourself on sharp

the right-side headlight.

parts in the headlight housing.

Caution

• Remove the ignition key before working on the electric system. If not, a

short circuit could occur.

• Switch off the lights or parking lights before you change a bulb.

For the sake of the environment

Please ask your specialist retailer how to dispose of used bulbs in the proper

manner.

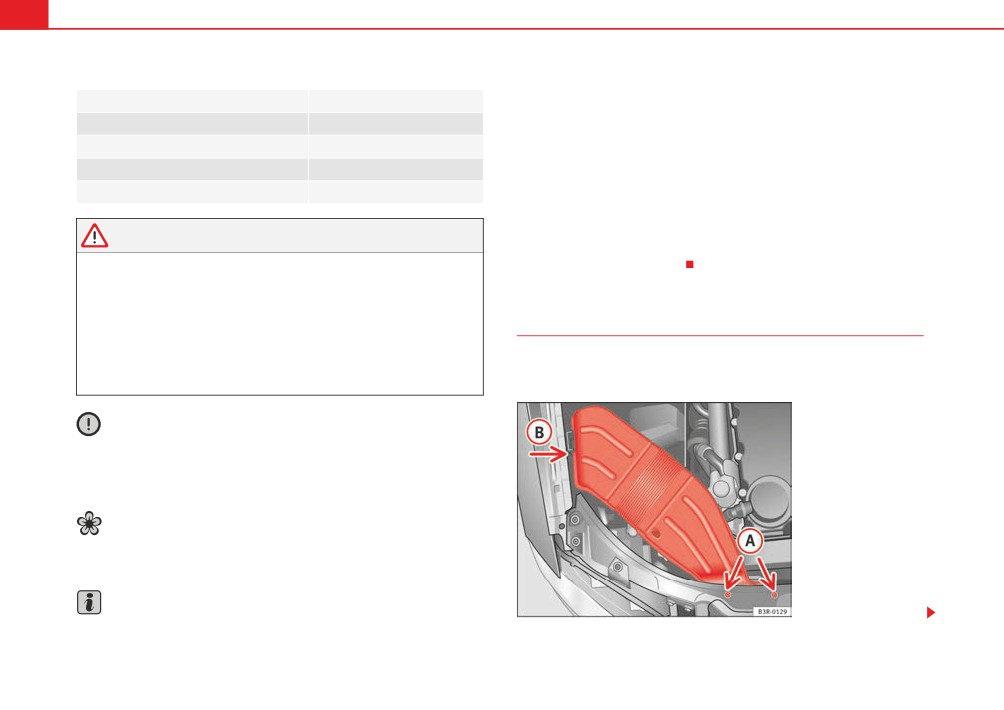

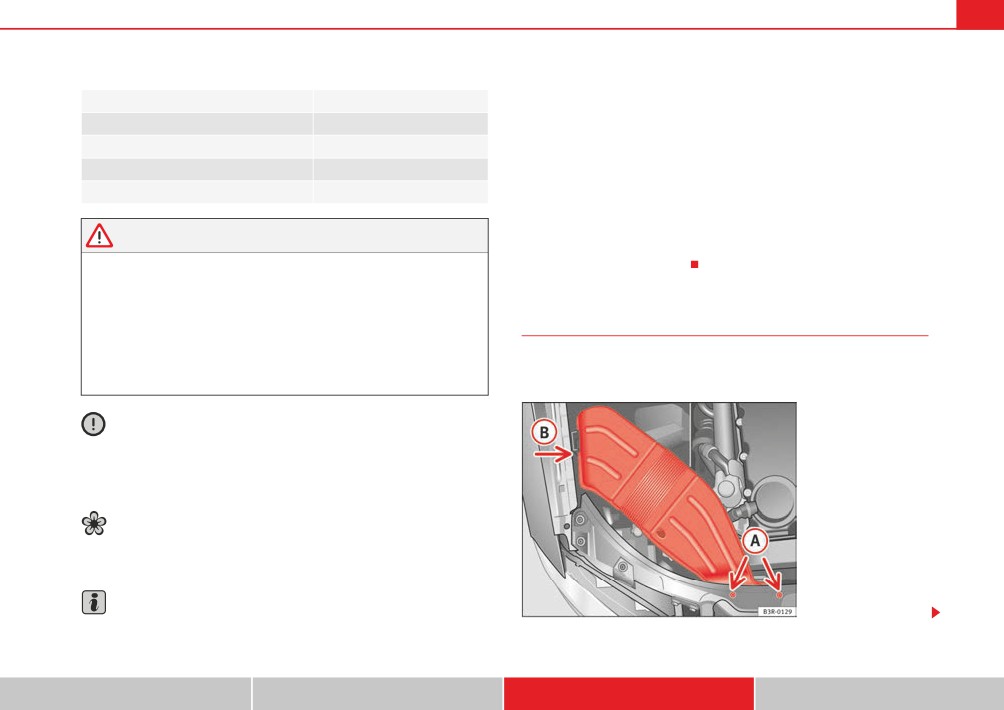

Fig. 204 Air duct on right

Note

side of vehicle

• Depending on weather conditions (cold or wet), the front lights, the fog

lights, the rear lights and the indicators may be temporarily misted. This does

Safety First

Controls and equipment

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

266

If and when

– Unscrew bolts

A

⇒ page 265, fig. 204.

Halogen headlight bulbs

– Detach air duct from guide

B

and take it out.

Fitting the air duct

Once the bulb(s) for the right-side headlight have been

changed, the air duct must be re-installed.

Fig. 206 Halogen bulbs

A

Main beam headlights

B

Side lights

C

Dipped headlights

D

Side lights

E

Turn signal light

Fig. 205 Air duct on right

side of vehicle

- Place the air duct in the correct position.

- First turn the two screws

A

in lightly, then tighten both screws.

- Push air duct into guide

B

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

267

Changing the turn signal bulb

Note

The procedure for changing the bulbs on the front

Although it is not necessary, previously remove the rigid cover ⇒ page 269,

passenger's side is the same as on the driver's side.

fig. 210 for easier turn signal bulb changes.

Fig. 207 Indicator bulb

- Switch off the ignition and the lights.

- Raise the bonnet.

- Turn the bulb holder anti-clockwise, pulling it by the grip

⇒ fig. 207 and removing the bulb holder and the bulb.

- Replace the blown bulb in the bulb holder (press and turn anti-

clockwise to remove) with a new bulb (press and turn clockwise

to insert).

- Installation is in the reverse order.

– Check whether the new bulb is working.

Safety First

Controls and equipment

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

268

If and when

Changing the main headlight bulb

- Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

- Raise the bonnet.

passenger's side is the same as on the driver's side.

- Pull up on the rubber cover

A

⇒ fig. 208 to remove it.

– Remove the connector ⇒ fig. 209 from the bulb.

1

- Press the spring ⇒ fig. 209

2

inwards and to the right.

– Remove the bulb. pulling it from the connection terminal and

fitting fit the replacement so that it sits correctly in the cut-out on

the reflector. To ensure correct lighting, the filament must be

vertical. When changing the bulb, you can check the position of

the bulb through the headlight glass.

- Installation is in reverse order, ensuring that the rubber cover is

well fitted to the housing.

Fig. 208 Main beam

headlights

- Check whether the new bulb is working.

- Have the headlight settings checked as soon as possible.

Fig. 209 Main beam

headlights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

269

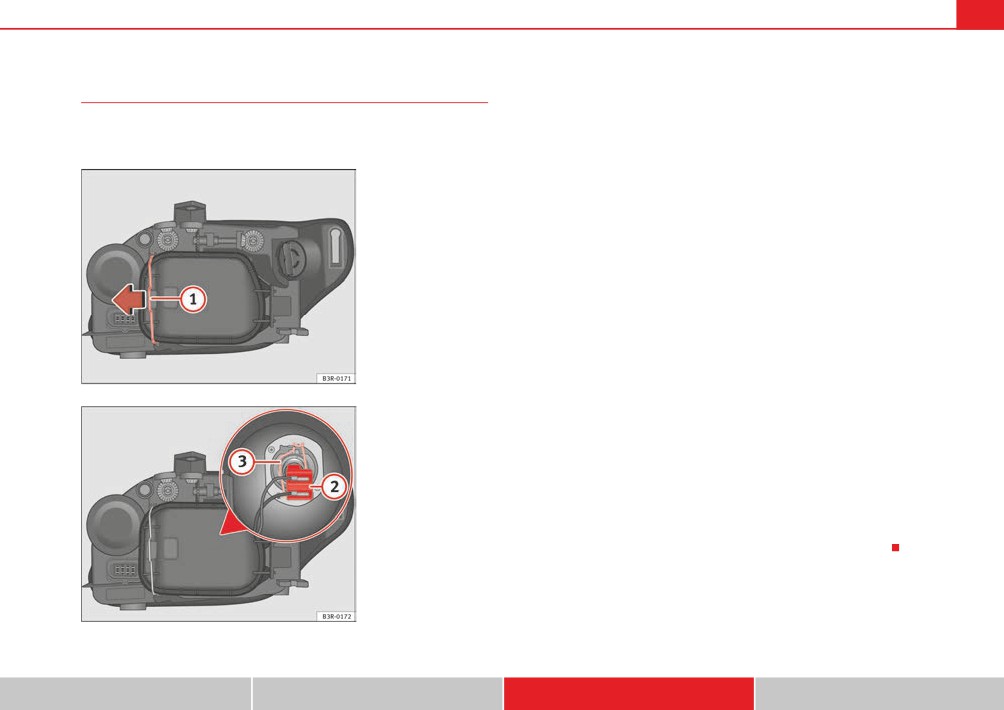

Changing the dipped beam headlight bulb

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Move the brace ⇒ fig. 210 in the direction of the arrow and

1

remove the rigid cover, separating the brace side and then

removing the two tabs from the other end of the cover.

-

Pull the connector ⇒ fig. 211

2

from the bulb.

–

Unclip the retainer spring ⇒ fig. 211

3

pressing inwards to the

right.

-

Remove the bulb and fit the new one in the headlight casing with

the tab upwards, starting to position it from below.

-

Clip on the spring, raising it and pressing it slightly while turning

it anti-clockwise. To ensure correct lighting, the filament must be

Fig. 210

Dipped head-

lights

vertical. When changing the bulb, you can check the position of

the bulb through the headlight glass.

-

Connect the connector to the bulb.

–

Fit the cover, first inserting the side tabs and then closing the

cover and the brace. Make sure that the gasket sits well on the

casing cover during the operation.

-

Check whether the new bulb is working.

-

Have the headlight settings checked as soon as possible.

Fig. 211 Dipped head-

lights

Safety First

Controls and equipment

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

270

If and when

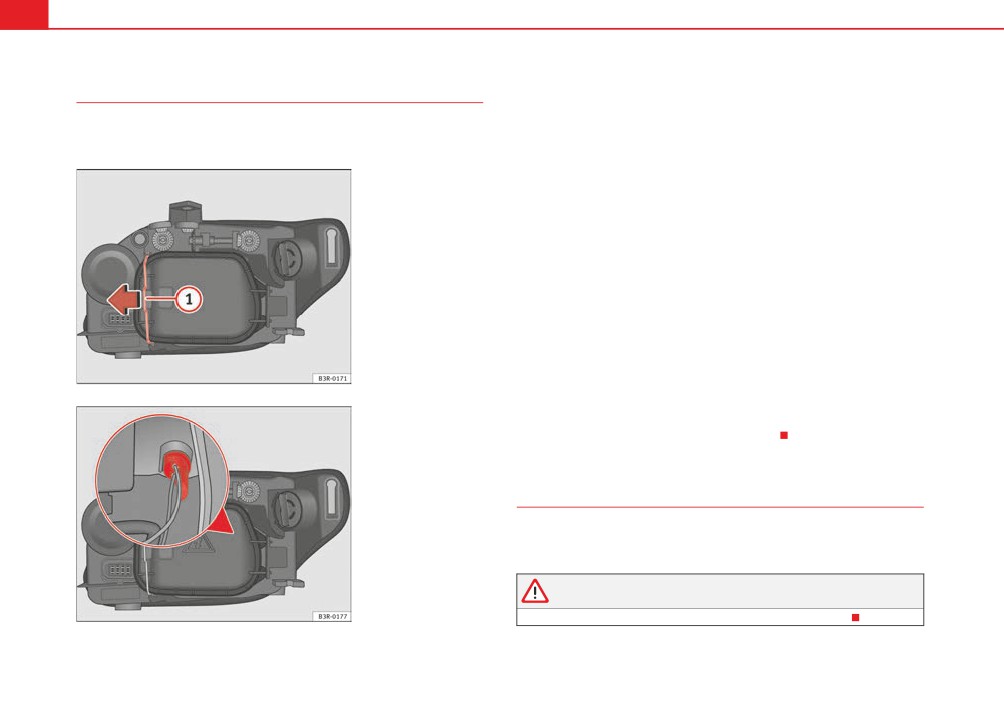

Changing side light bulb (outside of vehicle)

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Move the brace ⇒ fig. 212 in the direction of the arrow and

1

remove the rigid cover, separating the brace side and then

removing the two tabs from the other end of the cover.

-

Gently press on the bulb holder tabs ⇒ fig. 213 and pull the

cover upwards (it can also be removed by pulling on the bulb

holder wires).

-

Separate the bulb from the bulb holder by pulling both pieces

anti-clockwise.

-

Fit the new bulb by pressing on the bulb holder.

–

Insert the bulb into the socket and press on the bulb holder. Fit

Fig. 212 Side light bulb

(outside of vehicle)

the cover, first inserting the side tabs and then closing the cover

and the brace. Make sure that the gasket sits well on the casing

cover during the operation.

-

Check whether the new bulb is working.

Fig. 213 Side light bulb

(outside of vehicle)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

271

Changing the side light bulb (inside of vehicle)

-

Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

–

Raise the bonnet.

passenger's side is the same as on the driver's side.

-

Move the brace ⇒ fig. 214 in the direction of the arrow and

1

remove the rigid cover, separating the brace side and then

removing the two tabs from the other end of the cover.

-

Remove the bulb and the bulb holder by pulling on the bulb

holder wiring.

-

Separate the bulb from the bulb holder by pulling both pieces

anti-clockwise.

-

Fit the new bulb by pressing on the bulb holder.

–

Insert the bulb into the socket so that the side of the bulb holder

grip is vertical ⇒ fig. 215 and press on it.

Fig. 214 Side light bulb

(inside of vehicle)

-

Fit the cover, first inserting the side tabs and then closing the

cover and the brace. Make sure that the gasket sits well on the

casing cover during the operation.

-

Check whether the new bulb is working.

Changing bulbs. Bi-Xenon AFS headlights

Types of bulbs

Fig. 215 Side lights. Bulb

holder grip in vertical

You must only replace a bulb with a bulb of the same type. The name can be

position

found on the base of the bulb.

Safety First

Controls and equipment

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

272

If and when

not affect the useful life of the lighting system. By switching on the lights, the

Bulb

Type

area through which the beam of light is projected will quickly be demisted.

Xenon bulbs

12 V/35 W (D1S)

However, the edges may continue to be misted.

DRL (day light)

12 V/21 W (P21W SLL)

• Please check at regular intervals that all lighting (especially the exterior

lighting) on your vehicle is functioning properly. This is not only in the interest

Indicator light

12 V/21 W (PY21W)

of your own safety, but also in that of all other road users.

Side lights

12 V/5 W (W5W blue LL)

• Before changing a bulb, make sure you have the correct new bulb.

• Do not touch the glass part of the bulb with your bare hands, use a cloth

WARNING

or paper towel instead. Otherwise, the fingerprints left on the glass will

vaporise as a result of the heat generated by the bulb, be deposited on the

• Take particular care when working on components in the engine

reflector and impair its surface.

compartment if the engine is warm - risk of burns!

• Bulbs are highly sensitive to pressure. The glass can break when you

touch the bulb, causing injury.

Removing the air duct

• The high voltage element of gas discharge lamps* (xenon light) must

be handled correctly. Otherwise, there is a risk of death.

The air duct has to be removed to gain access to the bulbs for

• When changing bulbs, please take care not to injure yourself on sharp

the right-side headlight.

parts in the headlight housing.

Caution

• Remove the ignition key before working on the electric system. If not, a

short circuit could occur.

• Switch off the lights or parking lights before you change a bulb.

For the sake of the environment

Please ask your specialist retailer how to dispose of used bulbs in the proper

manner.

Fig. 216 Air duct on right

Note

side of vehicle

• Depending on weather conditions (cold or wet), the front lights, the fog

lights, the rear lights and the indicators may be temporarily misted. This does

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

273

– Unscrew bolts

A

⇒ page 272, fig. 216.

Bi-Xenon AFS headlight bulbs

– Detach air duct from guide

B

and take it out.

Fitting the air duct

Once the bulb(s) for the right-side headlight have been

changed, the air duct must be re-installed.

Fig. 218 Bi-Xenon AFS

headlight bulbs

A

Indicator light

B

Xenon headlight (dipped-beam/main beam)

C

Side lights

D

DRL light (day light)

Fig. 217 Air duct on right

side of vehicle

- Place the air duct in the correct position.

- First turn the two screws

A

in lightly, then tighten both screws.

- Push air duct into guide

B

Safety First

Controls and equipment

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

274

If and when

Changing the DRL light bulb (day light)

Note

The procedure for changing the bulbs on the front

Although it is not necessary, previously remove the rigid cover ⇒ page 276,

passenger's side is the same as on the driver's side.

fig. 222 for easier day light bulb changes.

Fig. 219 DRL light (day

light)

- Switch off the ignition and the lights.

- Raise the bonnet.

- Turn the bulb holder anti-clockwise, pulling it by the grip

⇒ fig. 219 and removing the bulb holder and the bulb.

- Replace the blown bulb in the bulb holder (press and turn anti-

clockwise to remove) with a new bulb (press and turn clockwise

to insert).

– Installation is in the reverse order.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

275

Changing the turn signal bulb

- Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

- Raise the bonnet.

passenger's side is the same as on the driver's side.

- Pull the rubber cap ⇒ fig. 220 to remove it.

- Remove the bulb holder by pulling on the grip and turning it anti-

clockwise ⇒ fig. 221.

- Replace the blown bulb in the bulb holder (press and turn anti-

clockwise to remove) with a new bulb (press and turn clockwise

to insert).

- Insert the bulb holder into the socket with the tab facing upwards

and the grip horizontal. Press it against the socket and turn

clockwise. When changing the bulb, you can check the position

of the bulb through the headlight glass.

Fig. 220 Indicator bulb

- Fit the rubber cap and tighten, making sure it fit properly into the

headlight casing.

– Check whether the new bulb is working.

Fig. 221 Indicator bulb

Safety First

Controls and equipment

Practical tips

Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

276

If and when

Changing the side light bulb

- Switch off the ignition and the lights.

The procedure for changing the bulbs on the front

- Raise the bonnet.

passenger's side is the same as on the driver's side.

- Move the brace ⇒ fig. 222 in the direction of the arrow and

1

remove the rigid cover, separating the brace side and then

removing the two tabs from the other end of the cover.

- Remove the bulb holder by pulling on the grip ⇒ fig. 223 (it can

also be removed by pulling on the bulb holder wires).

- Separate the bulb from the bulb holder by pulling both pieces

anti-clockwise.

- Fit the new bulb by pressing on the bulb holder.

- Insert the bulb into the socket and press on the bulb holder grip.

- Fit the cover, first inserting the side tabs and then closing the

Fig. 222 Side light

cover and the brace. Make sure that the gasket sits well on the

casing cover during the operation.

- Check whether the new bulb is working.

Changing the xenon bulb

The procedure for changing the bulbs on the front passenger's side is the

same as on the driver's side.

WARNING

Fig. 223 Side light

This type of bulb should be changed at a qualified workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If and when

277

Changing bulbs for rear lights (in side panel)

Removing rear light

To change the bulbs you must remove the rear light assembly.

Overview of rear lights

Removing the light requires a certain degree of practical skill.

Fig. 225 Luggage

compartment: Location of

Fig. 224 Overview of rear

the bolt securing the rear

lights

light

Rear lights in side panel

• Brake lights and rear lights

• Indicator light

Fig. 226 Removing rear

light from side panel

Safety First

Controls and equipment

Practical tips

Technical Data

Content      ..     15      16      17      18     ..
