General notes on the technical data
Weights
Drawbar load
The maximum permitted weight exerted by the trailer drawbar on the ball joint
Kerb weight refers to the basic model with a fuel tank filled to 90% capacity
of the towing bracket must not exceed 75 kg.
and without optional extras. The figure quoted includes 75 kg to allow for the
In the interest of road safety, we recommend that you always tow
weight of the driver.
approaching the maximum drawbar load. The response of the trailer on the
For special versions and optional equipment fittings or for the addition of
road will be poor if the drawbar load is too small.
accessories, the weight of the vehicle will increase ⇒
If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with an axle
base of less than 1 metre), at least 4% of the actual trailer weight is a legal
WARNING
stipulation for a drawbar load.
• Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehicle's handling and lead to an acci-
dent. Always adjust your speed and driving style to suit road conditions
WARNING
and requirements.
• For safety reasons, you should not drive at speeds above 80 km/h when
• Never exceed the gross axle weight rating or the gross vehicle weight
towing a trailer. This also applies to countries where higher speeds are
rating. If the allowed axle load or the allowed total weight is exceeded, the
permitted.
driving characteristics of the vehicle may change, leading to accidents,
• Never exceed the maximum trailer weights or the draw bar loading. If
injuries and damage to the vehicle.
the permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
Towing a trailer
Trailer weights
Trailer weights
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (in certain
circumstances up to 100 km/h). The figures may be different in other coun-
tries. All data in the official vehicle documents take precedence over these
data ⇒

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
279
Technical data
Overview
Checking fluid levels
Further explanations, instructions and restrictions on the technical data are
From time to time, the levels of the different fluids in the
contained as of ⇒ page 275.
vehicle must be checked. Never fill with incorrect fluids, to do
so may cause serious damage to the engine.

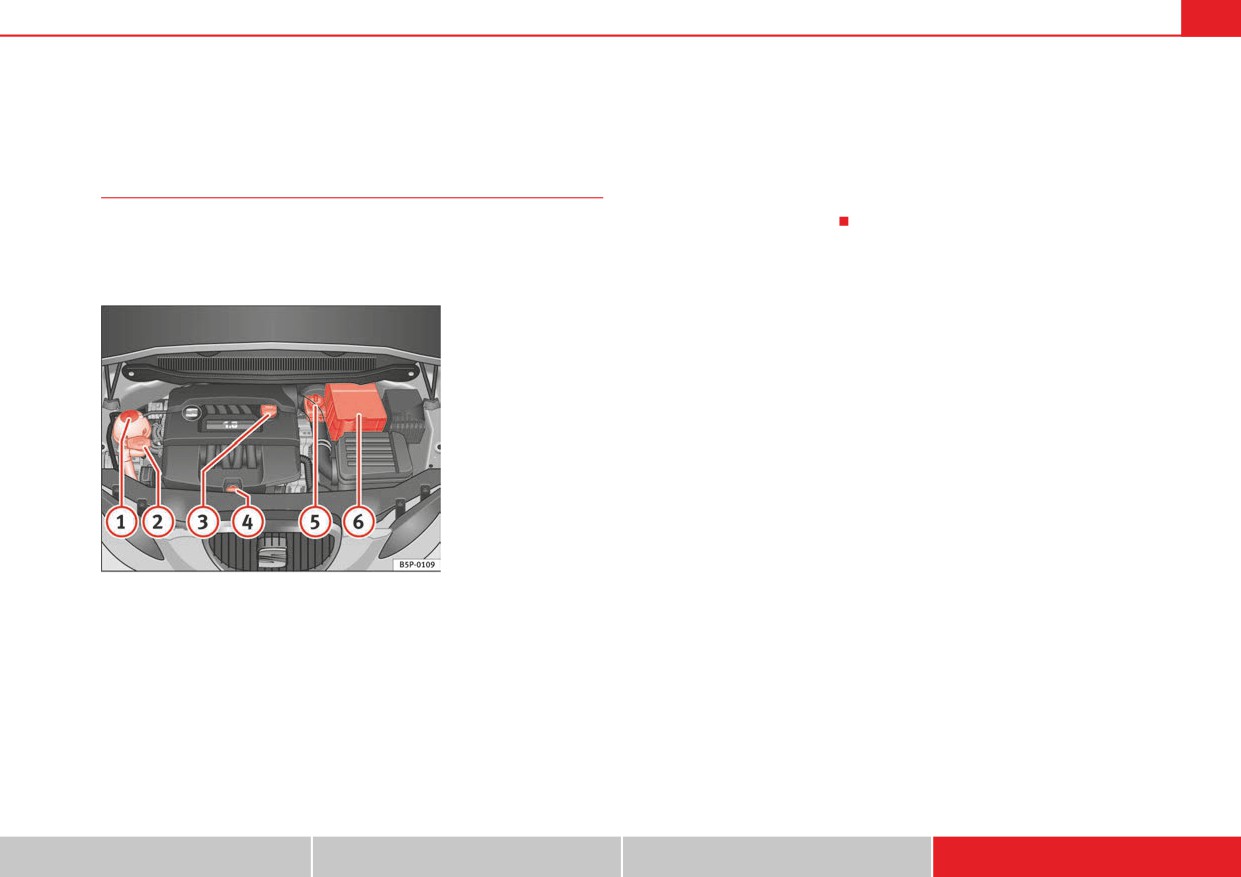

Fig. 210 Diagram for the
location of the various
elements
1
Radiator expansion tank
2
Windscreen washer fluid reservoir
3
Engine oil filler cap
4
Engine oil dipstick
5
Brake fluid reservoir
6
Vehicle battery (underneath the cover)
The checking and replenishment of the service fluids are carried out on the
components mentioned above. These operations are described in the
⇒ page 215.
Safety First
Operating instructions
Tips and Maintenance
Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

280
Technical data
Petrol engine 1.4 63 kW (86 bhp)
General engine data
Power output in kW (bhp)
rpm
63 (86)/ 5000
Maximum torque
in Nm at rpm
132/ 3800
No. of cylinders, capacity
in cm 3
4/ 1390
Compression ratio
10,5 ± 0,3
Fuel
Premium unleaded 95 RON or regular unleaded 91 RONa)
a) With a slight power loss
Performance figures
Maximum speed
in km/h
169
Acceleration from 0-80 km/h
in sec.
9,9
Acceleration from 0-100 km/h
in sec.
15,1
Weights
Gross vehicle weight
in kg
1950
Weight in working order (with driver)
in kg
1405
Gross axle weight, front
in kg
934
Gross axle weight, rear
in kg
1033
Permitted roof load
in kg
75
Trailer weights
With no brakes, gradients up to 12%
700
With brakes, gradients up to 12%
1000

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
281
Engine oil capacity
Approximate engine oil capacity with oil filter change
2.8 litres
Petrol engine 1.4 92 kW (125 bhp)
General engine data
Power output in kW (bhp)
rpm
92 (125)/ 5600
Maximum torque
in Nm at rpm
200/ 1750-4000
No. of cylinders, capacity
in cm 3
4/ 1390
Compression ratio
9,7 -0,4
Fuel
Premium unleaded 95 RON or regular unleaded 91 RONa)
a) With a slight power loss
Performance figures
Maximum speed
in km/h
194
Acceleration from 0-80 km/h
in sec.
7,0
Acceleration from 0-100 km/h
in sec.
10,5
Weights
Gross vehicle weight
in kg
2023
Weight in working order (with driver)
in kg
1478
Gross axle weight, front
in kg
1004
Gross axle weight, rear
in kg
1036
Permitted roof load
in kg
75
Safety First
Operating instructions
Tips and Maintenance
Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

282
Technical data
Trailer weights
With no brakes, gradients up to 12%
730
With brakes, gradients up to 12%
1200
Engine oil capacity
Approximate engine oil capacity with oil filter change
3.3 litres
Petrol engine 1.6l 75 kW (102 bhp)
General engine data
Power output in kW (bhp)
rpm
75 (102)/ 5600
Maximum torque
in Nm at rpm
148/ 3800
No. of cylinders, capacity
in cm 3
4/ 1595
Compression ratio
10,5 ± 0,5
Fuel
Premium unleaded 95 RON or regular unleaded 91 RONa)
a) With a slight power loss
Performance figures
Maximum speed
in km/h
181
Acceleration from 0-80 km/h
in sec.
8,7
Acceleration from 0-100 km/h
in sec.
13,0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
283
Weights
Gross vehicle weight
in kg
1979
Weight in working order (with driver)
in kg
1434
Gross axle weight, front
in kg
971
Gross axle weight, rear
in kg
1025
Permitted roof load
in kg
75
Trailer weights
With no brakes, gradients up to 12%
710
With brakes, gradients up to 12%
1200
Engine oil capacity
Engine oil capacity with oil filter change.
4.1 litres
Petrol engine 1.8 118 kW (160 bhp)
General engine data
Power output in kW (bhp)
rpm
118 (160)/ 5000-6200
Maximum torque
in Nm at rpm
250/ 1500-4200
No. of cylinders, capacity
in cm 3
4/ 1798
Compression ratio
9,8-0,5
Fuel
Premium unleaded 95 RON or regular unleaded 91 RONa)
a) With a slight power loss
Safety First
Operating instructions
Tips and Maintenance
Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

284
Technical data
Performance figures
Maximum speed
in km/h
210
Acceleration from 0-80 km/h
in sec.
6,0
Acceleration from 0-100 km/h
in sec.
8,6
Weights
Gross vehicle weight
in kg
2094
Weight in working order (with driver)
in kg
1549
Gross axle weight, front
in kg
1068
Gross axle weight, rear
in kg
1043
Permitted roof load
in kg
75
Trailer weights
With no brakes, gradients up to 12%
750
With brakes, gradients up to 12%
1400
Engine oil capacity
Engine oil capacity with oil filter change.
4.6 litres

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
285
Petrol engine 2.0 110 kW (150 bhp)
General engine data
Power output in kW (bhp)
rpm
110 (150)/ 6000
Maximum torque
in Nm at rpm
200/ 3500
No. of cylinders, capacity
in cm 3
4/ 1984
Compression ratio
11,5-0,5
Fuel
Super Plus unleaded 98 RON or Premium unleaded 95 RONa)
a) With a slight power loss
Performance figures
Maximum speed
in km/h
206
Acceleration from 0-80 km/h
in sec.
6,6
Acceleration from 0-100 km/h
in sec.
9,8
Weights
Gross vehicle weight
in kg
2034
Weight in working order (with driver)
in kg
1489
Gross axle weight, front
in kg
1022
Gross axle weight, rear
in kg
1029
Permitted roof load
in kg
75
Trailer weights
With no brakes, gradients up to 12%
740
With brakes, gradients up to 12%
1400
Safety First
Operating instructions
Tips and Maintenance
Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

286
Technical data
Engine oil capacity
Approximate engine oil capacity with oil filter change
4.6 litres
Petrol engine 2.0 litre 110 kW (150 bhp). Automatic
General engine data
Power output in kW (bhp)
rpm
110 (150)/ 6000
Maximum torque
in Nm at rpm
200/ 3500
No. of cylinders, capacity
in cm 3
4/ 1984
Compression ratio
11,5-0,5
Fuel
Super Plus unleaded 98 RON or Premium unleaded 95 RONa)
a) With a slight power loss
Performance figures
Maximum speed
in km/h
203
Acceleration from 0-80 km/h
in sec.
7,0
Acceleration from 0-100 km/h
in sec.
10,2
Weights
Gross vehicle weight
in kg
2074
Weight in working order (with driver)
in kg
1529
Gross axle weight, front
in kg
1057
Gross axle weight, rear
in kg
1034
Permitted roof load
in kg
75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
287
Trailer weights
With no brakes, gradients up to 12%
750
With brakes, gradients up to 12%
1400
Engine oil capacity
Approximate engine oil capacity with oil filter change
4.6 litres
Petrol engine 2.0 litre 147 kW (200 bhp)
General engine data
Power output in kW (bhp)
rpm
147 (200)/ 5100 - 6000
Maximum torque
in Nm at rpm
280/ 1800-5000
No. of cylinders, capacity
in cm 3
4/ 1984
Compression ratio
10,3-0,5
Fuel
Super Plus unleaded 98 RON or Premium unleaded 95 RONa)
a) With a slight power loss
Performance figures
Maximum speed
in km/h
220
Acceleration from 0-80 km/h
in sec.
5,4
Acceleration from 0-100 km/h
in sec.
7,7
Safety First
Operating instructions
Tips and Maintenance
Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

288
Technical data
Weights
Gross vehicle weight
in kg
1960
Weight in working order (with driver)
in kg
1507
Gross axle weight, front
in kg
1082
Gross axle weight, rear
in kg
1014
Permitted roof load
in kg
75
Trailer weights
With no brakes, gradients up to 12%
750
With brakes, gradients up to 12%
1400
Engine oil capacity
Approximate engine oil capacity with oil filter change
4.8 litres
Petrol engine 2.0 litre 147 kW (200 bhp). Automatic
General engine data
Power output in kW (bhp)
rpm
147 (200)/ 5100 - 6000
Maximum torque
in Nm at rpm
280/ 1800-5000
No. of cylinders, capacity
in cm 3
4/ 1984
Compression ratio
10,3-0,5
Fuel
Super Plus unleaded 98 RON or Premium unleaded 95 RONa)
a) With a slight power loss

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
289
Performance figures
Maximum speed
in km/h
220
Acceleration from 0-80 km/h
in sec.
5,4
Acceleration from 0-100 km/h
in sec.
7,7
Weights
Gross vehicle weight
in kg
2124
Weight in working order (with driver)
in kg
1579
Gross axle weight, front
in kg
1112
Gross axle weight, rear
in kg
1036
Permitted roof load
in kg
75
Trailer weights
With no brakes, gradients up to 12%
750
With brakes, gradients up to 12%
1400
Engine oil capacity
Approximate engine oil capacity with oil filter change
4.8 litres
Safety First
Operating instructions
Tips and Maintenance
Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

290
Technical data
Petrol engine 2.0 litre 147 kW (200 bhp). Freetrack
General engine data
Power output in kW (bhp)
rpm
147 (200)/ 5100 - 6000
Maximum torque
in Nm at rpm
280/ 1800-5000
No. of cylinders, capacity
in cm 3
4/ 1984
Compression ratio
10,3-0,5
Fuel
Super Plus unleaded 98 RON or Premium unleaded 95 RONa)
a) With a slight power loss
Performance figures
Front-wheel drive
Four-wheel drive
Maximum speed
in km/h
216
214
Acceleration from 0-80 km/h
in sec.
5,4
5,1
Acceleration from 0-100 km/h
in sec.
7,7
7,5
Weights
Front-wheel drive
Four-wheel drive
Gross vehicle weight
in kg
1960
2191
Weight in working order (with driver)
in kg
1525
1646
Gross axle weight, front
in kg
928
1108
Gross axle weight, rear
in kg
665
1096
Permitted roof load
in kg
75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
291
Trailer weights
With no brakes, gradients up to 12%
750
With brakes, gradients up to 12%
1400
Engine oil capacity
Approximate engine oil capacity with oil filter change
4.8 litres
Diesel engine 1.9 TDI 77 kW (105 bhp)
General engine data
Power output in kW (bhp)
rpm
77 (105) 4000
Maximum torque
in Nm at rpm
250/1900
No. of cylinders, capacity
in cm 3
4/1896
Compression ratio
19 ± 0,5
Fuel
Min. 51 CZ
Performance figures
Maximum speed
in km/h
183
Acceleration from 0-80 km/h
in sec.
8,4
Acceleration from 0-100 km/h
in sec.
12,6
Safety First
Operating instructions
Tips and Maintenance
Technical Data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

292
Technical data
Weights
Gross vehicle weight
in kg
2064
Weight in working order (with driver)
in kg
1519
Gross axle weight, front
in kg
1050
Gross axle weight, rear
in kg
1031
Permitted roof load
in kg
75
Trailer weights
With no brakes, gradients up to 12%
750
With brakes, gradients up to 12%
1400
Engine oil capacity
Approximate engine oil capacity with oil filter change
4,3
Diesel engine 1.9 TDI 77 kW (105 bhp). Automatic
General engine data
Power output in kW (bhp)
rpm
77 (105) 4000
Maximum torque
in Nm at rpm
250/1900
No. of cylinders, capacity
in cm 3
4/1896
Compression ratio
19 ± 0,5
Fuel
Min. 51 CZ

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
293
Performance figures
Maximum speed
in km/h
183
Acceleration from 0-80 km/h
in sec.
8,2
Acceleration from 0-100 km/h
in sec.
12,7
Weights
Gross vehicle weight
in kg
2094
Weight in working order (with driver)
in kg
1549
Gross axle weight, front
in kg
1080
Gross axle weight, rear
in kg
1031
Permitted roof load
in kg
75
Trailer weights
With no brakes, gradients up to 12%
750
With brakes, gradients up to 12%
1400
Engine oil capacity
Approximate engine oil capacity with oil filter change
4,3
Safety First
Operating instructions
Tips and Maintenance
Technical Data















Content      ..     16      17      18      19     ..
