Haima S5. A/C, Restraint System, Body Accessories, Electrical System. Manual - part 6



Body and Accessories 3C-26



Disassembly/Assembly of Auxiliary
Fascia Console Assembly

1. Perform the disassembly in the order shown in

the following table.

2. Perform the installation in reverse order of the

removal.



1

Armrest box upper cover

2

Armrest box under cover

3

Side trim strips assembly (right)

4

Side trim strips assembly (left)

5

Vice dashboard body front fixing

bracket

6

Central fixing bracket

7

Vice dashboard mounting rear bracket

8

Vice dashboard panel assembly (left)

9

Vice dashboard panel assembly (right)

10  Armrest box body

11  Armrest box lock assembly

12  Absorbing cotton (left)

13  Absorbing cotton (right)



Sliding Sunroof



Removal/Installation of Deflector

1.  Fully open the glass plate.

2.  The introduction of the card spoiler direction

of the arrow.

3.  Perform the installation in reverse order of that

shown in the table.





Removal/Installation of Glass Plate

1.  Fully close the glass plate.

2.  Fully open the sun visor.

3.  Remove the screws and remove the glass

plate.



4.  Remove the weatherstrip of the glass plate.





5.  Perform the installation in reverse order of the

removal.

6.  Adjust the position of the glass plate. (Refer

to Adjusting the Glass Plate)

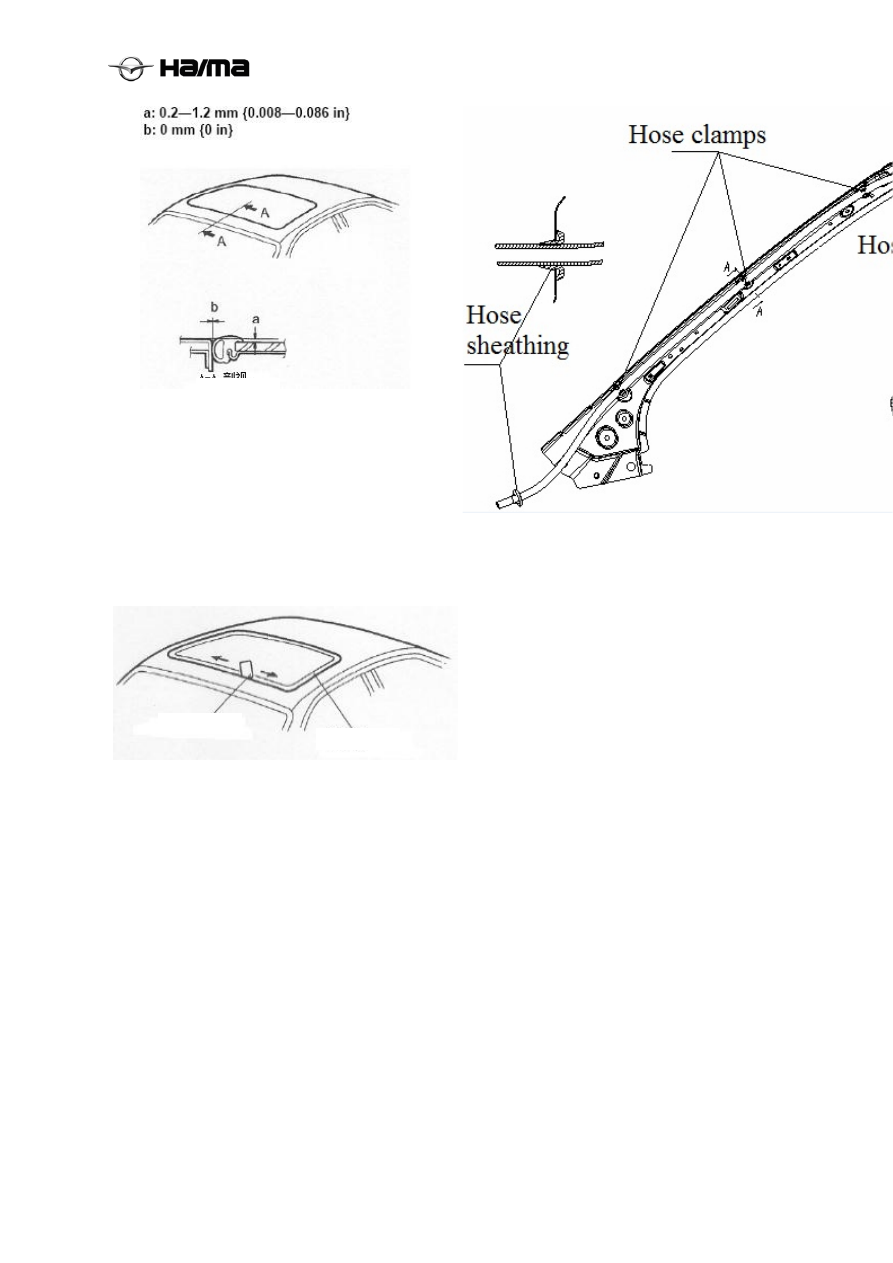

Adjusting the Glass Plate



1.  Fully close the glass plate.

2.  Measure the clearance and height between the

glass plate and the body.

Clearance

Screw

Glass plate



Weatherstrip



Body and Accessories 3C-27





3.  If incorrect, loosen the mounting screw of the

glass plate and relocate the glass plate.

4.  Tighten the mounting screw of the glass plate.

5.  Insert a preset card between the weatherstrip

and the body. Ensure the sunroof is fully
closed (some resistance can be felt when
moving the preset card). If it not fully closed,
repeat the steps 3 and 4 and readjust the
position of the glass plate.





Removing the front drain hose

1.  Remove the A-pillar trim plate.

2. Remove the ceiling. (Refer to the

Removal/Installation of Ceiling, Ceiling)

3.  Remove the front wall grille. (Refer to the

Removal/Installation of Front Wall Grille)

4.  Remove the front drain hose from the sunroof

outer frame.

5.  Remove the front drain hose from the clip.

6.  Pull the front drain hose into the carriage.

7.  Remove the front drain hose.



Installing the front drain hose

Caution:

●  If certain part of the front drain hose is

clamped or bent, the water inside the hose
may not be drained, thus entering the carriage.
During and after the installation of the trim
plate and the ceiling, be sure to keep the front
drain hose unobstructed. In case of any
problem, deal with it immediately.

1.  Apply some soapy water on the mounting

position of the front drain hose.

2.  Insert one end of the front drain hose into the

sunroof frame.

3.  Install the front drain hose into the clip along

the pillar.

4.  Insert the front drain hose plug into the

hinged pillar hole. Install the front drain hose
head into the clip. (Only for the right drain
hose). It is located at the front drain basin.

5. Install the ceiling. (Refer to the

Removal/Installation of Ceiling, Ceiling)

6.  Install the front wall grille. (Refer to the

Removal/Installation of Front Wall Grille,
Front Wall Grille)

7.  Nstall the A-pillar trim plate.

Removing the rear drain hose

1.  Remove the C-pillar trim plate.

2. Remove the ceiling. (Refer to the

A-A section



Preset card



Weatherstrip



Body and Accessories 3C-28



Removal/Installation of Ceiling, Ceiling)

3.  Remove the side trim plates of the trunk.

(Refer to the Removal/Installation of Trunk
Side Trim Plate, Trim Plates)

4.  Remove the rear drain hose from the sunroof

outer frame.

5.  Remove the rear drain hose from the clip.

6.  Pull the front drain hose into the carriage.

7.  Remove the rear drain hose.



Installing the rear drain hose

Caution:

●  If certain part of the rear drain hose is

clamped or bent, the water inside the hose
may not be drained, thus entering the carriage.
During and after the installation of the trim
plate and the ceiling, be sure to keep the rear
drain hose unobstructed. In case of any
problem, deal with it immediately.

1.  Apply some soapy water on the mounting

position of the rear drain hose.

2.  Insert one end of the rear drain hose into the

sunroof frame.

3.  Install the front drain hose into the clip along

the pillar. The hose should be straightened.

4.  Insert the rear drain hose plug into the rear

pillar hole.

5. Install the ceiling. (Refer to the

Removal/Installation of Ceiling, Ceiling)

6.  Install the side trim plates of the trunk. (Refer

to the Removal/Installation of Trunk Side
Trim Plate, Trim Plates)

7.  Install the C-pillar trim plate.

Removal/Installation of Sliding Sunroof
Unit

1.   Disconnect the negative cable of the battery.

2. Remove the ceiling. (Refer to the

Removal/Installation of Ceiling, Ceiling)

3.  Remove the front and rear drain hoses from

the sliding sunroof frame.

4.  Remove the ceiling harness from the sliding

sunroof frame.



5.  Remove the bolts and nuts and remove the

sunroof.



6.  Perform the installation in reverse order of the

removal.

7.  Adjust the position of the glass plate. (Refer

to Adjusting the Glass Plate)

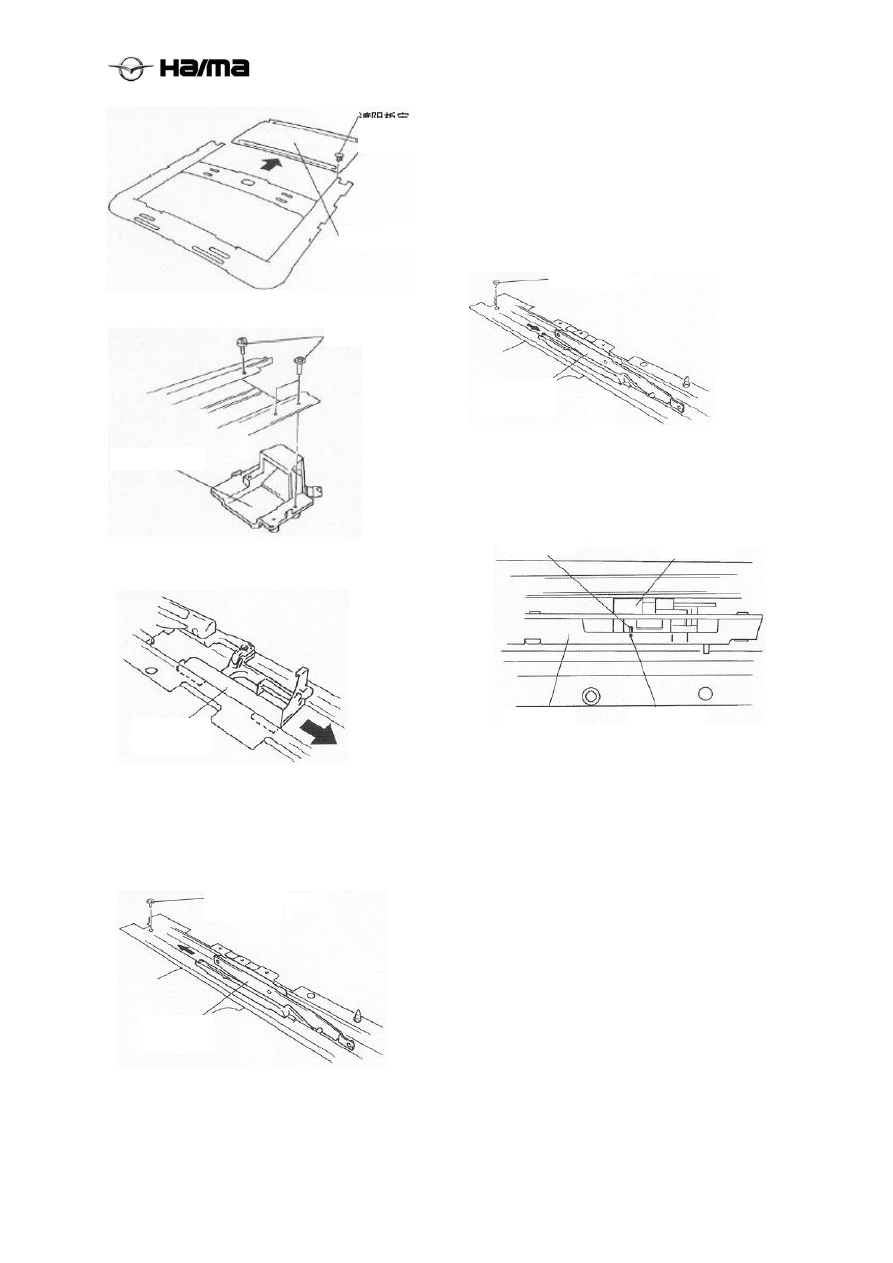

Disassembly of Sliding Sunroof Unit

1.  Remove the screw and then the rain gutter.



2.  Remove the sun visor fixator.

3.  Slide the sun visor backward and remove it

from the sunroof outer frame.

Clip

Ceiling harness

Bolt

Nuts

Nuts

Screw

Rain gutter

Sunroof Unit



Body and Accessories 3C-29





4.  Remove the bolts and then the rear rain gutter.



5.  Slide the rain gutter support backward and

remove it from the sunroof outer frame.



6.  Remove the sunroof motor. (Refer to

Removing the Sunroof Motor)

7.  Remove the set screw.

8.  Slide the guide rail backward and remove it

from the sunroof outer frame.



9. Remove the deflector. (Refer to the

Removal/Installation of Deflector)

Assembly of Sliding Sunroof Unit

1. Install the deflector. (Refer to the

Removal/Installation of Deflector)

2.  Slide the guide rail forward and install it into

the sunroof outer frame.

3.  Install the set screw.





4.  Move the guide rail by hand until it is tilted

up.

5.  Move the linkage inside the guide rail by

hand until the mark A is aligned with the mark
B.







Sun visor
fixator

Sun visor

Bolt

Rear rain gutter

Rain gutter
support

Set screw

Guide rail

Set screw

Guide rail

Guide rail

Mark A

Mark B

Linkage



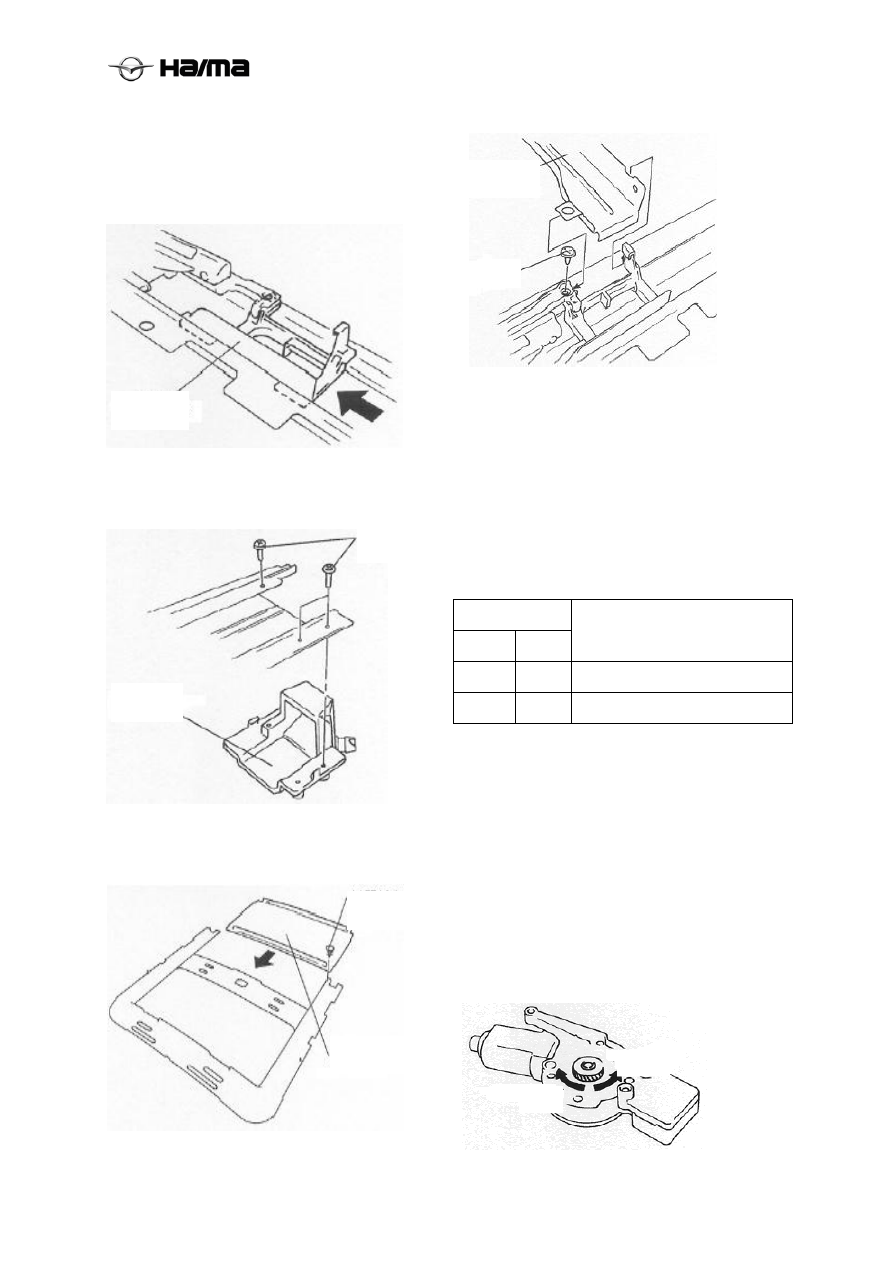

Body and Accessories 3C-30



6.   Install the sunroof motor. (Refer to Installing

the Sunroof Motor)

7.  Slide the rain gutter support forward and

insert it into the sunroof outer frame.





8.  Clean the residual repair sealant with the

unleaded gasoline. .

9.  Install the screws and then the rear rain gutter.



10.  Slide the sun visor forward and install it into

the outer frame.

11.  Install the sun visor fixator.





12.  Install the screw and then the rain gutter.



Checking the Sunroof Motor

Motor

1.  Remove the sunroof motor. (Refer to Removing

the Sunroof Motor)

2.  On the battery positive cable is connected to the

positive electrode shading sunroof motor (6)
and the signal line (3); on the negative
electrode connected to the battery (2) line. Pin
injuries Check motor is working.

B+: Battery positive voltage



Pin

6\3 2

Operating condition of motor

B+

GND

Turn left (closed/tilted down)

GND

B+

Turn right (open/tilted up)



3.

 Respectively (10) line to trigger positive (6/3)

when the sunroof closed; with (5) Line to
trigger positive (6/3) when the sunroof is open.
If not, replace the shade sunroof motor.

Limit Switch

1. Remove the ceiling. (Refer to the

Removal/Installation of Ceiling, Ceiling)

2.  Disconnect the connector.

3.  Use an ohmmeter to check the continuity

between the pins of the sunroof motor.

4.  If incorrect, replace the sunroof motor.



Rain gutter
support

Sun visor
fixator

Sun visor

Bolt

Rear rain
gutter

Screw

Rain gutter

Turn right

Turn left



Body and Accessories 3C-31







Sunroof relay

1. Remove the ceiling. (Refer to the

Removal/Installation of Ceiling, Ceiling)

2.   Connect the sunroof switch connector.

3.  Connect the negative cable of the battery.

4.  Refer to the following indicators to check the

voltage of the relay pins.

5. Please

disconnect

the

sunroof relay connector

before checking the Pin 1F.

6.  If incorrect, check the parts and relevant

harness listed under the “Inspection Section”.

7.  If the parts and relevant harness are normal

but the system still cannot operate normally,
replace the sunroof relay.

Removal/Installation of Sliding Sunroof
Switch

Notice:

●  Battery positive positive electrode and to the

motor (6) and the signal line (3).

1.  Disconnect the negative cable of the battery.

2.

Remove the reading lamp.
(Removal/Installation of Reading Lamp,
Interior Lighting System, Section T)

3.  Perform the installation in reverse order of the

removal.



Notice:

●  The sunroof switch is located together with

the reading lamp.

Checking the sliding sunroof switch

1. Remove the sliding sunroof switch.

(Removal/ Installation of Reading Lamp,
Interior Lighting System, Section T)

2.  Use an ohmmeter to check the continuity

between the pins of the sliding sunroof switch.





3.  If incorrect, replace the sliding sunroof switch.





Body and Accessories 3C-32

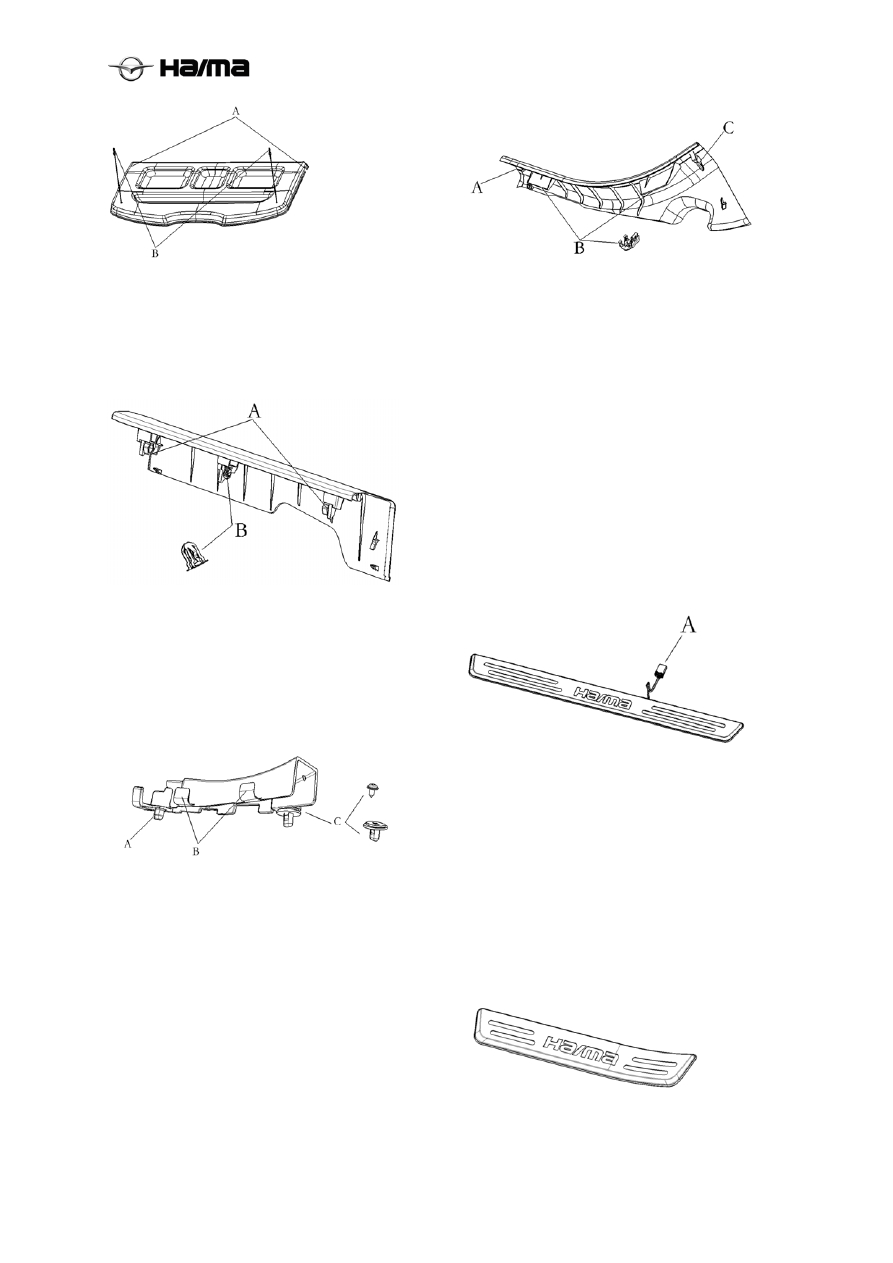

Interior Trimming

Removal/Installation of A-Pillar Trim
Plate

1. Turn over the joint panel.

2. Use a fastening screw puller to loosen the bolt A

and clips B.

3. Pull up the A-pillar trim plate.





4.  Perform the installation in reverse order of the

removal.

Note: When you install the A-pillar trim, must let
air curtain pulled from beneath the A-pillar trim
with screws through the base, convenient air
curtain effectively carried out.





Removal/Installation of A-Pillar Lower
Trim Plate

1. Remove the front threshold pedal. (See previous

threshold pedal removal / installation)
Flip inlay strip joints.

2. Loosen the plastic nut by hand A, B from the

body release snap, snap C.

3. Perform the installation in reverse order of the

removal.



Removal of B-Pillar Upper Trim Plate

1. Remove the B-pillar lower trim plate. (Refer to

the Removal/Installation of B-Pillar Lower Trim
Plate)

 2. Hand release buckle C, opened the B-pillar trim

on both sides of the sealing strip buckle, release
buckle B from the body, pulling down the
release B-pillar trim.



Installation of B-Pillar Upper Trim Plate

1. The B-pillar trim belt slide bolt alignment belt

height adjustment slot E F.



2.   Pull the plug inserted into the body A, and then

the bolt B, C snap shot into the body, the B-
pillar trim on both sides snap into sealing strip.



Body and Accessories 3C-33





Removing the B-pillar Lower Trim Plate

1. Remove the front and front doorsill footboards.

2. Remove the front and rear doorsill footboards.

3. Remove the decorative cover lockable front

security. (See the front cover of the safety
interlocking decorative removal / installation)

4. The lower B-pillar trim mark B, C mark position

from the B-pillar trim square hole loosened, pull
flag A, and remove the side of the lower B-pillar
trim panel.



Installing the B-pillar Lower Trim Plate

1. The end-point seat belts fixed B-pillar trim piece

from the opening slot penetration.

2. The body bore alignment A plaque buckle under

the B-pillar, and shoot into.

3. The lower B-pillar trim mark B, C position of

the insertion mark B-pillar trim square hole.

4. B-pillar trim on both sides snap into sealing strip.

Removal/Installation of c-Pillar Trim
Plate

1. Remove the trunk light. (See trunk lamp

removal / installation)

2. Remove the wheel trim. (See wheel trim

removal / installation)

3. Turn over the joint panel.

4. Use release buckle fastening screw removal tool

A and B. buckle Pull up on the C-pillar trim.



5. Perform the installation in reverse order of the

removal.

Removal/Installation of Back Door Upper
Trim Plate

1. pull the clip A, on both sides of the back door

trim from the back door and left the right side
trim release.

2. Pull the clips B, loosen the rear door trim from

the body.

3. Perform the installation in reverse order of the

removal.



Removal/Installation of Back Door Left
And Right Side Trim Plate

1. Remove the rear door trim. (See the back door

trim removal / installation)

2. Remove the rear door trim. (See the back door

trim removal / installation)

3. Place the strap from the back door compartment

plate left, Panasonic trim on the right side.



4. Use release buckle fastening screw removal tool

A and B. snaps from the body.



Body and Accessories 3C-34



5. Pull the back door to the car left and right trim.

6. Perform the installation in reverse order of the

removal.

Removal/Installation of Back Door  Trim
Plate

1. Remove the back door clasp hands. (See the

back door clasp the hand removal / installation)

2. Pull the clip A, will be released from both sides

of the rear door trim panel on the back door left
and right trim.

3. Loosen the snap fastening screw removal tool

from the body B.

4. Pull the car back to the direction of the door trim.

5. Perform the installation in reverse order of the

removal.



Removal/Installation of Back Door  Clasp
Hands

1. Loosen the clamp fastening screw removal tool

from the body A.

2. Loosen the clamp is released from the hand to

the body B.

3. Pull down the rear door clasp hands.

4. Perform the installation in reverse order of the

removal.



Removal/Installation of Secure Lockable
Front Decorative Cover

 (1) single pretensioners secure lockable front
cover decoration

1.  Place  the  front  security  cover  decorated  with
lock release from the B-pillar trim openings.

2. The fixed-point seat belt end piece from the
front cover opening slot piercing safety

interlocking decoration.



3. Perform the installation in reverse order of the
removal.

(2) double pretensioners secure lockable front
cover decoration

1. Remove the double seat belt pretensioners. (See
double seatbelt pretensioners removal / installation)

2. The front safety interlocking decorative cover
release from the B-pillar trim panel opening.

3. The fixed-point safety belt from the front end
piece decorative cover opening safety interlocking
slots piercing.



4. Perform the installation in reverse order of the

removal.

Removal/Installation of Secure Lockable
Rear Decorative Cover

1. The security lockable rear decorative cover Kazi
A, B release clips from C-pillar trim openings.

2. Place the seat belt from the back cover opening
slot piercing safety interlocking decoration.



3. Perform the installation in reverse order of the
removal.

Removal/Installation of Compartment
Plate

1. The lanyard B removed from the back door left
and right side trim.

2. The parcel shelf A semicircular opening rotation
axis from the Stands plaque removed.



Body and Accessories 3C-35





3. Perform the installation in reverse order of the
removal.

Removal/Installation of Inner Footboard
of Front Doorsill

1. Pull the front doorsill footboard assembly to

separate the clips A and B from the body.



2.  Perform the installation in reverse order of the

removal.

Removal/Installation of Rear Doorsill
Footboard Bracket

1. Remove the rear sill pedal. (See threshold pedal

after removal / installation)

2. Remove the doorway seal. (See the doorway

after sealing strip removal / installation)



3. Loosen the screw fastening screw removal tool

C, followed by A release clips from the body,
clamp B.

4.  Perform the installation in reverse order of the

removal.

Removal of Rear Doorsill Footboard

1. Pull the threshold pedal, followed by release

from the lower B-pillar trim clips A, B release
clips from the body, release the clips from the
wheel arch trim C.



Installation of Rear Doorsill Footboard

1. Place the clips B slotted identity card in the

vehicle at the sealing strip on the card.

2. turn to shoot the clip C, shot into the clip B, take

into Kazi A.




Removal/Installation of Front Doorsill
Footboard

1. Remove the front threshold pedal. (See previous

threshold pedal removal / installation)

2. Remove the front doorway seal. (See previous

article seal openings removal / installation)

3. Panasonic terminals A, fastening screw removal

tool to use to get from the open back of the 3M
tape on the body, stimulating the front pedal.



4.Perform the installation in reverse order of the
removal.

Removal/Installation of Rear Doorsill
Footboard

1. Remove the rear sill pedal. (See threshold pedal

after removal / installation)

2. Remove the doorway seal. (See the doorway

after sealing strip removal / installation)

3. Use the fastening screw removal tool from the

3M tape on the back of the body to get open,
pull the pedal back door.



4.Perform the installation in reverse order of the
removal.



Body and Accessories 3C-36





Removal/Installation of Front Door Trim
Plate

















1.  Disconnect the negative cable of the battery.

2. Remove the coin box cotton pad A.

3. Remove the screws B.

4. Remove the switch panel C

.





5. Remove the triangular trim D. (High with a note
speaker)

6. Remove the lid handle decorated E.

7. Remove the self-tapping screw F.



8.  Remove the inner handle cover G.

9.  In order to release the 10 clips H need to trim

inside and out sliding door map pocket hand
into the opening of the door trim. (This trip not
too much, be careful length ceremonial lamp
cord)

10. Remove the door light I.

11. Remove the plastic nut J.

12. Disconnect the speaker connections triangular

window. (This is only for the speaker
configuration with a triangular window)

13.  Perform the installation in reverse order of the

removal.



Removal/Installation of Rear Door Trim
Plate



1.  Disconnect the negative cable of the battery.

2.  Remove the coin box pad A.

3.  Remove the screw B.

4.  Remove the switch panel C.



5.

Disconnect the power window switch plug.

6.     Remove the inner handle cover D.

7.     Remove the lid handle decorated E.



Body and Accessories 3C-37





8.   Remove the self-tapping screws F.

9.   In order to release the 8 clips G required the

opening slot at the bottom of the door trim
hand into and out sliding door trim.

10. Remove the plastic nut H.



11.  Perform the installation in reverse order of the

removal.





Seats

Note:  Before disassembling or assembling any
electrical equipment must be removed or the
battery negative cable, cut the wires to help
prevent damage to persons and vehicles, unless
otherwise instructed.

Removal/Installation of Front Seats (with
side airbags)

Warning:

  Improperly handling the front seat may

trigger the side airbag unexpectedly, resulting
in personal injury; therefore, please read the
maintenance warning carefully before
handling it. (Refer to  the Maintenance
Warning, Airbag System, Section T)

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative cable of the battery and

wait for over 1min to have the standby power
exhausted.

3. Perform the removal in the order shown in the

following table.

4.  Perform the installation in reverse order of the

removal.





1

Side airbag module connector
(Refer to the Removal Instruction)
(Refer to the Installation Instruction)

2

Seat belt buckle switch connector
(Refer to the Installation Instruction)

3

SBR switch connector (only for the front
passenger seat)

4 Front

seat

Removal instruction for side airbag
module connector

1. First find the yellow color of the plug

connection line in the bottom side airbag
cushion.





Side airbag module
harness connector

Mobile cable

Side airbag module
connector



Body and Accessories 3C-38



2.  Then the harness buckle removed from the seat

frame, and then disconnect the side airbag
module connector.

Installation instruction for side airbag
module connector

1.  Before connecting the side airbag harness

connector, please confirm the side airbag
module harness connector at the vehicle side
passes below the mobile cable. No other plug
wire connections.

2.  Fix them on the cushion frame after the

connectors are connected.

Removal instruction for seat belt buckle
switch connector

1. First find a plug for cable white color belt

buckle beneath the seat switch.

2. Then the harness buckle removed from the seat

frame, and then disconnect the side airbag
module connector.



Installation instruction for seat belt
buckle switch connector

1. Before connecting with the seat belt buckle

switch connector (the vehicle harness
connector), please confirm the seat belt buckle
switch harness connector do pass below the
mobile cable. No other plug wire connections.

2. Fix them on the cushion frame after the

connectors are connected.

Removal instruction for SBR switch
connector

1. First find a plug for cable gray color SBR switch

at the bottom of the seat cushion.



2. And then remove the harness from the seat

frame, and then disconnect the SBR switch
connector.

Installation instruction for SBR switch
connector

1.    Before connecting with the SBR buckle switch

connector (the vehicle harness connector),
please confirm the SBR switch harness
connector do pass below the mobile cable. No
other plug wire connections.



2. Fix them on the cushion frame after the

connectors are connected.





1

Seat belt buckle switch connector (only for the
driver side)

(Refer to the Installation Instruction)



2

SBR switch connector (only for the driver side)
(Refer to the Installation Instruction)

3

Front seat























Seat belt buckle switch connector

Mobile cable

Mobile cable

SBR switch connector



Body and Accessories 3C-39



Disassembly/Assembly of Seat

1.  Disconnect the negative cable of the battery.

2.  Perform the disassembly in the order shown in the table.

3.  Perform the assembly in reverse order of the disassembly.

Disassembly/Assembly of Driver Seat (Without Side Airbag)

1.  Perform the disassembly in the order shown in the table.

2.  Perform the assembly in reverse order of the disassembly.







1



Headrest



10



Seat back



2



1# guide rod (FR)



 11



Seat back frame (bolt torque 40N.M-
45N.M)



3



2# guide rod (FR)



 12



The driver's seat in the cover (left)



4



Height adjustment handle
decorative cover



 13



The driver's seat in the cover (right)



5



Height adjustment handle (bolt
torque 45N.M-50N.M)



 14



Front seat cushion



6



Recliner handle



 15



Seat  frame (bolt torque 45N.M-50N.M)

7



Recliners outer cover (left) (self-
tapping screw torque 20N.M-
25N.M)



 16



Slide the cover (back-end)



8



Front seat belt buckle  (bolt torque
60N.M-70N.M)





17

Slide the cover (front)



9

Outside the driver's seat cover
(right) (self-tapping screw torque
20N.M-25N.M)

 18





Body and Accessories 3C-40



Disassembly/Assembly of Driver Seat (With Side Airbag)

Warning:

  Improperly handling the front seat may trigger the side airbag unexpectedly, resulting in

personal injury; therefore, please read the maintenance warning carefully before handling it.
(Refer to  the Maintenance Warning, Airbag System, Section T)



1



Headrest



10



Seat back



2



1# guide rod (FR)



 11



Seat back frame (bolt torque 40N.M-
45N.M)



3



2# guide rod (FR)



 12



Side airbags (nut torque 45N.M-50N.M)

4



Height adjustment handle
decorative cover



 13



The driver's seat in the cover (left)



5



Height adjustment handle (bolt
torque 45N.M-50N.M)



 14



The driver's seat in the cover (right)



6



Recliner handle



 15



Front seat cushion



7



Recliners outer cover (left) (self-
tapping screw torque 20N.M-
25N.M)



 16



Seat  frame (bolt torque 45N.M-50N.M)

8



Front seat belt buckle  (bolt torque
60N.M-70N.M)





17

Slide the cover (back-end)



9

Outside the driver's seat cover
(right) (self-tapping screw torque
20N.M-25N.M)



18  Slide the cover (front)







Body and Accessories 3C-35



Removal/Installation of Rear Seat

Perform the removal in the order shown in the
table.

Perform the installation in reverse order of the
removal.



1



Rear seat cushion



2

Rear seat back (right)

3



Rear seat back (left)
