Airbags and Restraint System 3B-29

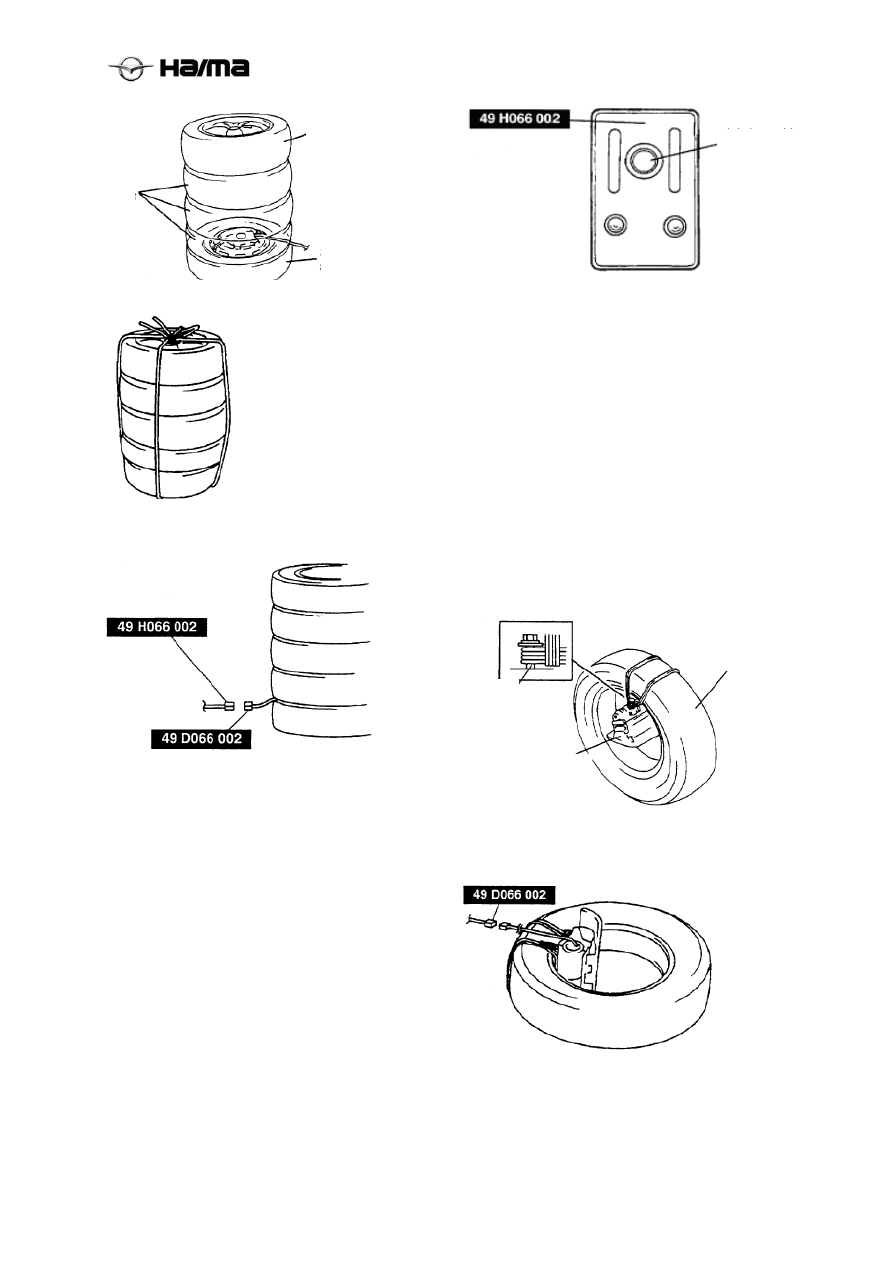

Checking the SST release tool). 2. Park the vehicle in an open capacious area and prevent the doors and windows from being 3. Turn the ignition switch to the LOCK position. 4. Remove the negative cable of the battery and wait for at least 1min. 5. Release the driver side airbag module, the front passenger side airbag module, the side airbag Driver side airbag module 1. Remove the steering column cover plate. 2. Disconnect the clock spring connector. 3. Connect the SST wiring harness with the clock spring, as shown in the figure.
4. Connect the SST release tool with the SST wiring harness.
5. Connect the red and black clips of the SST release tool respectively with the positive and 6. Ensure the red lamp on the SST release tool comes on. 7. Ensure all persons are at least 6m {20 ft } away from the vehicle. 8. Press the trigger switch on the SST release tool to make the driver side airbag module released.
Front passenger side airbag module 1. Remove the glove box. 2. Disconnect the front passenger side airbag module connector. 3. Connect the SST wiring harness with the front passenger side airbag module, as shown in the
4. Connect the SST release tool with the SST wiring harness.
5. Connect the red and black clips of the SST release tool respectively with the positive and 6. Ensure the red lamp on the SST release tool comes on. 7. Ensure all persons are at least 6m {20 ft } away from the vehicle. 8. Press the trigger switch on the SST release tool to make the front passenger side airbag module Trigger switch Front passenger side airbag Clock spring connector |
