Haima S5. A/C, Restraint System, Body Accessories, Electrical System. Manual - part 3



Airbags and Restraint System 3B-3



Relevant Airbag Components





Fault indicator lamp, red, located in the combination instrument, for indicating
the SRS airbag system status.





PAB front passenger airbag module, located under the instrument panel in front
of the front passenger, for protecting the front passenger by popping in case of
front impact





DAB driver airbag module, located in the middle of the instrument panel, for
protecting the driver by popping in case of front impact



SAB front side airbag modules, located inside the driver seat and the front
passenger seat, for protecting the driver and the front passenger by popping in
case of side impact





CAB side air curtain modules, located below the ceiling above the left and right
side wall, for protecting the front and rear occupants’ heads by popping out the
airbag in case of side impact









CLOCK SPRING, located below the steering wheel, for connecting the DFAB,
horn, steering wheel button and so on to the main harness









Airbag ECU, located at the central passage below the instrument panel, for
controlling the ignition of the airbag system and testing the entire system status



Front Impact Sensor. Vehicle body front portion in the middle part, for acquiring
X-direction acceleration signal.

Side Impact Sensor. Located in the lower B-pillar body, so each one for
collecting Y direction of the acceleration signal.

Airbag Fault Check

After the ignition switch is turned from OFF to ON (hereinafter referred to as turning on the
power switch), the airbag fault indicator lamp flickers 6 times and then goes out without
coming on again, indicating the airbag system is normal, which requires no maintenance to
the airbag system.

If the airbag status indicator lamp does not come on, or is always on or is flashing, after the
power switch is turned on, it is indicated there is fault in the airbag system, which requires
maintenance to the airbag system.





Airbags and Restraint System 3B-4



Airbag Fault Diagnosis

Read out the airbag system fault record by using the diagnostic instrument. Please refer to
the Operation Instruction for Diagnostic Instrument for its usage.

Note: the airbag control unit with integrated airbag control system and ESC control system,
in which only describes the airbag system fault repair, ESC ESC Sees Troubleshooting
section.

List of Airbag System Faults



U0064-88

The whole CAN disabled

U0065-88

Unavailability for CAN communication

U0064-81 Invalid

signal

received

U0064-87

CAN start request failed

C0032-11

Left front wheel speed sensor shorted to ground

C0032-15

Left front wheel speed sensor shorted or opened to power supply

C0031-13

Left front wheel speed sensor opened

C0031-02

Failure in normal signal of left front wheel speed sensor

C0031-F1

No wheel speed output from left front wheel speed sensor

C0035-11

Right front wheel speed sensor shorted to ground

C0035-15

Right front wheel speed sensor shorted or opened to power supply

C0034-13

Right front wheel speed sensor opened

C0034-02

Failure in normal signal of right front wheel speed sensor

C0034-F1

No wheel speed output from right front wheel speed sensor

C0038-11

Left rear wheel speed sensor shorted to ground

C0038-15

Left rear wheel speed sensor shorted or opened to power supply

C0037-13

Left rear wheel speed sensor opened

C0037-02

Failure in normal signal of left rear wheel speed sensor

C0037-F1

No wheel speed output from left rear wheel speed sensor

C003B-11

Right rear wheel speed sensor shorted to ground

C003B-15

Right rear wheel speed sensor shorted or opened to power supply

C003A-13

Right rear wheel speed sensor opened

C003A-02

Failure in normal signal of right rear wheel speed sensor

C003A-F1

No wheel speed output from right rear wheel speed sensor

C0051-54 Angle

sensor

uncalibrated

C0051-F0

Failure in angle sensor

C0089-11

ESP switch shorted to ground

C0089-12

ESP switch shorted to power supply

C0089-13

ESP switch opened

C0089-02

Failure in normal signal of ESP switch

C0089-4A

Installation error of ESP switch

C0089-2B

Failure in internal circuit of ESP switch

C008A-11

Reverse switch shorted to ground

C008A-12

Reverse switch shorted to power supply

C008A-13

Reverse switch opened

C008A-02

Failure in reverse switch signal

C008A-4A Installation

error in reverse switch

C0046-F0

Invalid pressure signal feedback from left front SHA

C0046-F1

Invalid pressure signal feedback from left rear SHA

C0046-F2

Invalid pressure signal feedback from right front SHA

C0046-F3

Invalid pressure signal feedback from right rear SHA

C0010-F0

Brake channel capacity increase fault of left front SHA

C0014-F0

Brake channel capacity increase fault of right front SHA

C0018-F0

Brake channel capacity increase fault of left rear SHA



Airbags and Restraint System 3B-5



C001C-F0

Brake channel capacity increase fault of right rear SHA

C0011-F0

Brake channel capacity decrease fault of left front SHA

C0015-F0

Brake channel capacity decrease fault of right front SHA

C0019-F0

Brake channel capacity decrease fault of left rear SHA

C001D-F0

Brake channel capacity decrease fault of right rear SHA

C1000-0B

SHA enable signal shorted to ground

C1000-0C

SHA enable signal shorted to power supply

C1000-0D

High SHA power supply voltage

C0044-F0

Invalid MC pressure signal feedback

C1000-F1

SHA logic fault

C006C-16

Low power supply voltage of wheel speed sensor

C006C-17

High power supply voltage of wheel speed sensor

C006C-46

Failure in calibration parameter storage

C006C-47

Watchdog software failure

B0050-11

Driver seat belt buckle switch shorted to ground.

B0050-12

Driver seat belt buckle switch shorted to power supply.

B0050-13

Driver seat belt buckle switch opened

B0050-02

Failure in normal signal of driver seat belt buckle switch

B0050-4A

Configuration error in driver seat belt buckle switch

B0050-2B

Failure in internal circuit of driver seat belt buckle switch

B0052-11

Passenger seat belt buckle switch shorted to ground.

B0052-12

Passenger seat belt buckle switch shorted to power supply.

B0052-13

Passenger seat belt buckle switch opened

B0052-02

Failure in normal signal of passenger seat belt buckle switch

B0052-4A

Configuration error in passenger seat belt buckle switch

B0052-2B

Failure in internal circuit of passenger seat belt buckle switch

B00A0-11

Passenger detection sensor shorted to ground

B00A0-12

Passenger detection sensor shorted to power supply

B00A0-13

Passenger detection sensor opened

B00A0-02

Failure in normal signal of passenger detection sensor

B00A0-4A

Configuration error in passenger detection sensor

B00A0-2B

Failure in internal signal of passenger detection sensor

B0001-11

Driver air bag shorted to ground

B0001-12

Driver air bag shorted to power supply

B0001-13

Driver air bag opened

B0001-1A

Low resistance of driver air bag

B0001-1B

High resistance of driver air bag

B0001-2B

Fault in internal circuit of driver air bag

B0001-4A

Configuration error in driver air bag

B0010-11

Passenger air bag shorted to ground

B0010-12

Passenger air bag shorted to power supply

B0010-13

Passenger air bag opened

B0010-1A

Low resistance of passenger air bag

B0010-1B

High resistance of passenger air bag

B0010-2B

Fault in internal circuit of passenger air bag

B0010-4A

Configuration error in passenger air bag

B0070-11

Driver seat belt pretensioner shorted to ground

B0070-12

Driver seat belt pretensioner shorted to power supply

B0070-13

Driver seat belt pretensioner opened

B0070-1A

Low resistance of driver seat belt pretensioner

B0070-1B

High resistance of driver seat belt pretensioner

B0070-2B

Failure in internal circuit of driver seat belt pretensioner

B0070-4A

Configuration error in driver seat belt pretensioner

B0072-11

Passenger seat belt pretensioner shorted to ground



Airbags and Restraint System 3B-6



B0072-12

Passenger seat belt pretensioner shorted to power supply

B0072-13

Passenger seat belt pretensioner opened

B0072-1A

Low resistance of passenger seat belt pretensioner

B0072-1B

High resistance of passenger seat belt pretensioner

B0072-2B

Failure in internal circuit of passenger seat belt pretensioner

B0072-4A

Configuration error in passenger seat belt pretensioner

B0020-11

Driver side air bag shorted to ground

B0020-12

Driver side air bag shorted to power supply

B0020-13

Driver side air bag opened

B0020-1A

Low resistance of driver side air bag

B0020-1B

High resistance of driver side air bag

B0020-2B

Fault in internal circuit of driver side air bag

B0020-4A

Configuration error in driver side air bag

B0028-11

Passenger side air bag shorted to ground

B0028-12

Passenger side air bag shorted to power supply

B0028-13

Passenger side air bag opened

B0028-1A

Low resistance of passenger side air bag

B0028-1B

High resistance of passenger side air bag

B0028-2B

Fault in internal circuit of passenger side air bag

B0028-4A

Configuration error in passenger side air bag

B0021-11

Driver side air curtain shorted to ground

B0021-12

Driver side air curtain shorted to power supply

B0021-13

Driver side air curtain opened

B0021-1A

Low resistance of driver side air curtain

B0021-1B

High resistance of driver side air curtain

B0021-2B

Fault in internal circuit of driver side air curtain

B0021-4A

Configuration error in driver side air curtain

B0029-11

Passenger side air curtain shorted to ground

B0029-12

Passenger side air curtain shorted to power supply

B0029-13

Passenger side air curtain opened

B0029-1A

Low resistance of passenger side air curtain

B0029-1B

High resistance of passenger side air curtain

B0029-2B

Fault in internal circuit of passenger side air curtain

B0029-4A

Configuration error in passenger side air curtain

B0079-11

Driver seat belt pretensioner 2 shorted to ground

B0079-12

Driver seat belt pretensioner 2 shorted to power supply

B0079-13

Driver seat belt pretensioner 2 opened

B0079-1A

Low resistance of driver seat belt pretensioner 2

B0079-1B

High resistance of driver seat belt pretensioner 2

B0079-2B

Failure in internal circuit of driver seat belt pretensioner 2

B0079-4A

Configuration error in driver seat belt pretensioner 2

B0091-11

Driver side collision sensor shorted to ground

B0091-12

Driver side collision sensor shorted to power supply

B0091-13

Driver side collision sensor opened

B0091-29

Invalid signal from driver side collision sensor

B0091-49

Failure in internal circuit of driver side collision sensor

B0091-4A

Configuration error in driver side collision sensor

B0096-11

Passenger side collision sensor shorted to ground

B0096-12

Passenger side collision sensor shorted to power supply

B0096-13

Passenger side collision sensor opened

B0096-29

Invalid signal from passenger side collision sensor

B0096-49

Failure in internal circuit of passenger side collision sensor

B0096-4A

Configuration error in passenger side collision sensor

B0094-11

Front collision sensor shorted to ground

B0094-12

Front collision sensor shorted to power supply



Airbags and Restraint System 3B-7



B0094-13

Front collision sensor opened

B0094-29

Invalid signal from front collision sensor

B0094-49

Failure in internal circuit of front collision sensor

B0094-4A

Configuration error in front collision sensor

B101C-11

Collision output signal shorted to ground

B101C-12

Collision output signal shorted to power supply

B101C-13

Collision output signal opened

B101D-47

Watchdog software failure

B101D-48 Management

software

failure

B101D-49 Common

failure

B101D-F7

Low IGN voltage

B101D-F8

High IGN voltage

B1001-56 Configuration

error






Airbags and Restraint System 3B-18



Maintenance of Airbags

Maintenance Procedures for Airbags

1. SRS fault indicator lamp does not come
on after the power supply is turned on.



1) Is any fault record read out by the diagnostic
instrument?

Yes: go to the step 3

No: go to the step 2

2) After the front passenger airbag indicator lamp
switch is turned on and the power supply is turned
on, check whether the front passenger airbag
indicator lamp comes on and then goes out in 4s.

Yes: check the diagnostic interface and the
relevant harness.

No: replace the airbag controller.

Deal with the fault according to the following fault
record.

2. SRS fault indicator lamp is always on

1) Is there any fault record read out by the
diagnostic instrument?

Yes: go to the step 2.

No: go to the step 3.

2) Read out the fault cause and deal with the fault
according to the following fault record.

3) Check whether the airbag fuse and relevant
power line are normal.

4) Check whether the airbag controller’s connector
is properly connected.

3. SRS fault indicator lamp flickers

Read out the fault record by the airbag fault
diagnostic instrument and deal with the fault
according to the following method.

4. If there is ECU internal fault in the failure
logging .

Replace the airbag controller.

5. If the power voltage is too low or too high
from the fault record, detect the vehicle’s power
system.

6. There is a driver airbag fault (resistance low,
resistance high, short to ground, short to power
supply) in the failure logging.

1) Resistance low

(1) Unplug the driver airbag module to check
whether the fault disappears.

Yes: replace the driver airbag module.

No: go to the step (2).

(2) Remove the connector with the yellow

harness in the middle below the clock spring
to check whether the fault disappears.

Yes: replace the clock spring.

No: go to the step (3).

(3) Replace the airbag controller to check

whether the fault disappears.

(4)  Check the harness for any short circuit and

pay attention to the short circuit ring in the
plug connected with the controller.

2)  Resistance high

Check whether the connectors between the driver
airbag module and the clock spring, between the
clock spring and the harness, between the harness
and the airbag controller are properly connected.

Check whether the resistance between the upper
and lower cables of the clock spring is below 2Ω.

Yes: go to the step (2)

No: replace the clock spring.

Replace the driver airbag module to check whether
the fault disappears.

Replace the airbag controller to check whether the
fault disappears. Check the harness for any open
circuit.

3)  Short to ground or short to power supply

Replace the clock spring to check whether the fault
disappears.

Replace  the driver airbag module to check
whether the fault disappears.

Replace the airbag controller to check whether the
fault disappears.

Check the harness for any short circuit.

7. There is a front passenger airbag fault
(resistance low, resistance high, short to ground,
short to power supply) in the failure logging.

1) Resistance low

(1) Unplug the front passenger airbag module to
check whether the fault disappears.

Yes: Replace the front passenger airbag module

No: go to the step (2)

(2) Replace the airbag controller to check

whether the fault disappears.

(3)  Check the harness for any short circuit and



Airbags and Restraint System 3B-19



pay attention to the short circuit ring in the
plug connected with the controller.

2) Resistance

high

(1)  Check whether the connectors between the

front passenger airbag module and the clock
spring, between the clock spring and the
harness, between the harness and the airbag
controller are properly connected.

(2) Replace the front passenger airbag module to

check whether the fault disappears.

(3) Replace the airbag controller to check whether

the fault disappears.

(4) Check the harness for any open circuit.

3)  Short to ground or short to power supply

 (1)  Replace the front passenger airbag module to

check whether the fault disappears.



(2) Replace the airbag controller to check

whether the fault disappears.

 (3)  Check the harness for any short circuit.

8. There is driver side airbag fault (resistance
low, resistance high, short to ground, short to
power supply) in the failure logging.

1) Resistance low

 (1)  Unplug the driver side airbag module to check

whether the fault disappears.

Yes: replace the driver side airbag module.

No: go to the step (2)



(2) Replace the airbag controller to check

whether the fault disappears.

 (3)  Check the harness for any short circuit and

pay attention to the short circuit ring in the
plug connected with the controller.

2)  Resistance high

(1) Check whether the connectors between the

driver airbag module and the and the harness,
between the harness and the airbag controller
are properly connected.

(2) Replace the driver airbag module to check

whether the fault disappears.

(3) Replace the airbag controller to check whether

the fault disappears.

(4)Check the harness for any open circuit.

3) Short to ground or short to power supply

(1) Replace the driver airbag module to check

whether the fault disappears.

(2) Replace the airbag controller to check whether

the fault disappears.

(3) Check the harness for any short circuit.

9. There is passenger side airbag fault
(resistance low, resistance high, short to ground,
short to power supply) in the failure logging.

1) Resistance low

 (1)  Unplug the passenger side airbag module to

check whether the fault disappears.

Yes: replace the passenger side airbag module.

No: go to the step (2)



(2) Replace the airbag controller to check

whether the fault disappears.

 (3)  Check the harness for any short circuit and

pay attention to the short circuit ring in the
plug connected with the controller.

2)  Resistance high

(1) Check whether the connectors between the

passenger airbag module and the and the
harness, between the harness and the airbag
controller are properly connected.

(2) Replace the passenger airbag module to check

whether the fault disappears.

(3) Replace the airbag controller to check whether

the fault disappears.

(4)Check the harness for any open circuit.

3) Short to ground or short to power supply

(1) Replace the passenger airbag module to check

whether the fault disappears.

(2) Replace the airbag controller to check whether

the fault disappears.

(3) Check the harness for any short circuit.

10.There is driver side air curtain fault
(resistance low, resistance high, short to ground,
short to power supply) in the failure logging.

1) Resistance

low

(1)  Unplug the driver side air curtain module to

check whether the fault disappears.

Yes: replace the driver side air curtain module .

No: go to the step (2).

(2) Replace the airbag controller to check

whether the fault disappears.

(3)  Check the harness for any short circuit and

pay attention to the short circuit ring in the
plug connected with the controller.

2)  Resistance high



Airbags and Restraint System 3B-20



(1) Check whether the connectors between the

driver side air curtain module  and the harness,
between the harness and the airbag controller
are properly connected.

(2) Replace the driver side air curtain module to

check whether the fault disappears.

(3) Replace the airbag controller to check whether

the fault disappears.

(4)  Check the harness for any open circuit.

3)  Short to ground or short to power supply

(1) Replace the driver air curtain module to check

whether the fault disappears.

(2) Replace the airbag controller to check whether

the fault disappears.

(3) Check the harness for any short circuit.

11.There is passenger side air curtain fault
(resistance low, resistance high, short to ground,
short to power supply) in the failure logging.

1) Resistance

low

(1)  Unplug the passenger side air curtain module

to check whether the fault disappears.

Yes: replace the passenger side air curtain

module .

No: go to the step (2).

(2) Replace the airbag controller to check

whether the fault disappears.

(3)  Check the harness for any short circuit and

pay attention to the short circuit ring in the
plug connected with the controller.

2)  Resistance high

(1) Check whether the connectors between the

passenger side air curtain module  and the
harness, between the harness and the airbag
controller are properly connected.

(2) Replace the passenger side air curtain module

to check whether the fault disappears.

(3) Replace the airbag controller to check whether

the fault disappears.

(4)  Check the harness for any open circuit.

3)  Short to ground or short to power supply

(1) Replace the passenger air curtain module to

check whether the fault disappears.

(2) Replace the airbag controller to check whether

the fault disappears.

(3) Check the harness for any short circuit.



12.  There is driver seat belt pretensioner fault

(resistance low, resistance high, short to
ground, short to power supply) in the
failure logging.

1) Resistance

low

(1)  Unplug the driver seat belt pretensioner to

check whether the fault disappears.

Yes: replace the driver seat belt pretensioner



No: go to the step (2)

(2) Replace the airbag controller to check

whether the fault disappears.

(3)  Check the harness for any short circuit and

pay attention to the short circuit ring in the
plug connected with the controller.

2)  Resistance high

(1) Check whether the connectors between the

driver seat belt pretensioner and the harness,
between the harness and the airbag controller
are properly connected.

(2) Replace the pretensioner seat belt to check

whether the fault disappears.

(3) Replace the airbag controller to check whether

the fault disappears.

(4) Check the harness for any open circuit.

3)  Short to ground or short to power supply

(1) Replace the driver seat belt pretensioner to

check whether the fault disappears.

(2) Replace the airbag controller to check whether

the fault disappears.

(3) Check the harness for any short circuit.

13.  There is passenger seat belt pretensioner

fault (resistance low, resistance high, short
to ground, short to power supply) in the
failure logging.

1) Resistance

low

(1)  Unplug the passenger seat belt pretensioner to

check whether the fault disappears.

Yes: replace the passenger seat belt pretensioner

No: go to the step (2)

(2) Replace the airbag controller to check

whether the fault disappears.

(3)  Check the harness for any short circuit and

pay attention to the short circuit ring in the
plug connected with the controller.

2)  Resistance high

(1) Check whether the connectors between the



Airbags and Restraint System 3B-21



passenger seat belt pretensioner and the
harness, between the harness and the airbag
controller are properly connected.

(2) Replace the pretensioner seat belt to check

whether the fault disappears.

(3) Replace the airbag controller to check whether

the fault disappears.

(4) Check the harness for any open circuit.

3)  Short to ground or short to power supply

(1) Replace the passenger seat belt pretensioner to

check whether the fault disappears.

(2) Replace the airbag controller to check whether

the fault disappears.

(3) Check the harness for any short circuit.

14. Fault records related collision sensor fault

(power failure, short or open circuit to the
power supply, communication failures, chip
failure)

1) power failure

(1) Check the collision between the sensor and

wiring harness, plug-in wiring harness
between the controller and the airbag is
enough to plug in place.

(2) Check whether the collision sensor connector

pin plug in place.

(3) Check whether the airbag controller connector

pin plug in place.

2) short or open circuit to the power

(1) Replace the airbag controller detects the fault

disappears?

(2) replacement of crash sensors detect the fault
disappears?

(3) whether there is a short circuit detection
harness.

3) communication failure

(1) Check the collision between the sensor and

wiring harness, plug-in wiring harness
between the controller and the airbag is
enough to plug in place.

(2) Check whether the collision sensor

connector pin plug in place.

(3) Check whether the airbag controller

connector pin plug in place.

(4) Replace the airbag controller detects the fault

disappears?

(5) Replace the crash sensors detect the fault

disappears?

4) chip failure

(1) Replace the crash sensors detect the fault

disappears?

15.  There is a fault of SRS fault indicator lamp

(short to ground or not connected, short to
power supply) in the failure logging.

1)  Short to ground or not connected

Check whether the connectors between the
combination instrument and the harness and
between the airbag controller and the harness are
properly connected.

Replace the combination instrument to check
whether the fault disappears.

Replace the airbag controller to check whether the
fault disappears.

Check the harness of the fault indicator lamp for
open circuit.

2)  Short to power supply

Replace the combination instrument to check
whether the fault disappears.

Replace the airbag controller to check whether the
fault disappears.

Check the harness of the SRS fault indicator lamp
for short circuit.

16. There is “setting error” in the failure

logging.

Check whether the ECU model is correct or not.

17.  There is a fault (short to ground or open

circuit, short to power supply) relevant to
the indicator lamp of the front passenger
airbag in the failure logging.

1)  Short to ground or open circuit

Replace the combination instrument to check
whether the fault disappears.

Replace the airbag controller to check whether the
fault disappears.

Check whether the harness/circuit relevant to the
front passenger airbag indicator lamp is short or is
grounded properly with the body.

2)  Short to power supply

Replace the combination instrument to check
whether the fault disappears.

Replace the airbag controller to check whether the
fault disappears.

Check whether the circuit of the front passenger
airbag indicator lamp is properly connected with
the power supply.



Airbags and Restraint System 3B-22



18. Other

faults

Replace the airbag controller, and contact with the
vehicle manufacturer or the airbag manufacturer.

Procedures for Handling the Vehicle with
the Inflated Airbag

Please follow the steps below for the vehicle with
the airbags already inflated in a crash.

Record the VIN, the license plate number, the time
and location of accident, contact information of the
persons in the vehicle, the actual situation and so on.

If possible, take photos of the airbags, the vehicle
impact situation, the vehicle bottom and the site of
accident.

Give the record back to the vehicle manufacturer or
the airbag manufacturer.

Perform the maintenance only after being agreed by
the owner.

1)  The following parts must be replaced:

Driver airbag module

Front passenger airbag module

Driver seat belt

Front passenger seat belt

Airbag controller

Clock spring

2)  The following parts may require to be

replaced:

Harness

Instrument panel

The used module should be treated according to
the “Procedures for Handling the Discarded
Airbag Module”.

Removal/Installation for Airbag Parts

Warning:

The wiring connector of the airbag controller (ECU)
can only be removed in 15min after the negative
cable of the battery is disconnected; for other parts,
you should wait for at least 2min; otherwise, the
airbag may be detonated by mistake.

Warning:

The removed airbag module can only be discarded
after being destroyed. For the method, please refer
to “Procedures for Handling the Discarded Airbag
Module”.

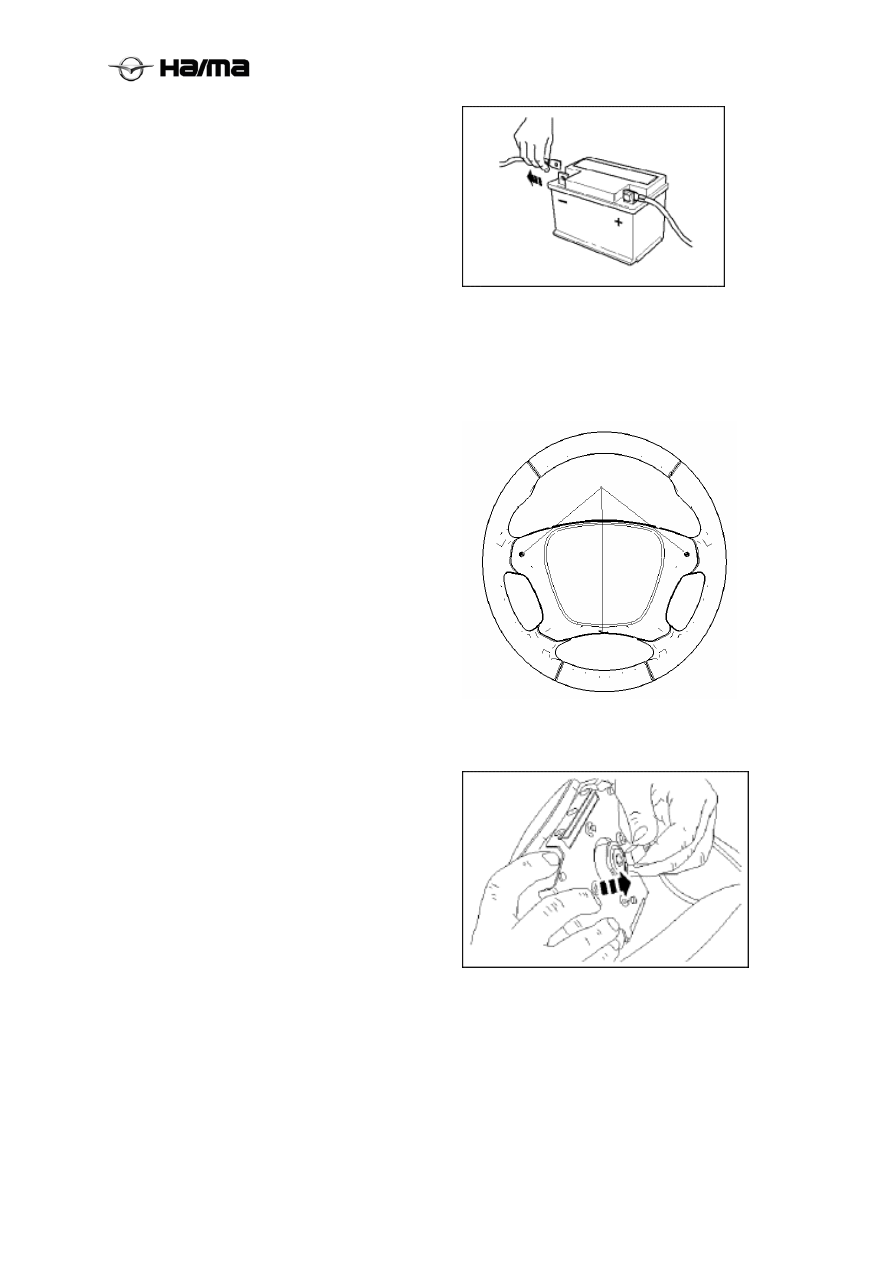

Removal/Installation for Driver Airbag
Module

1.  Remove the negative cable of the battery.



2.  Remove the main airbag module.

Followed with a thin wooden stick inserted into
the slot of the three holes on the steering wheel, so
that Ω spring balloon release on positioning, you
can pull out the thin wooden sticks found the
balloon pops up from that direction.



3.  Remove the main airbag module from the

steering wheel and remove the harness
connector behind the airbag module.



Warning:

The front of the airbag module should always be
kept up. Don’t place any object on the airbag
module. The place where the airbag module is
stored should be kept away from high temperature,
thermal radiation and vibration. Do not attempt to
open or repair the airbag module. Do not use a
multimeter to measure the current or let the
current flow into the airbag module.



Airbags and Restraint System 3B-23



4.  Install each part in reverse order of the

removal.

Removal/Installation for Front Passenger
Airbag Module

Warning:

The wiring connector of the airbag controller
(ECU) can only be removed in 15min after the
negative cable of the battery is disconnected; for
other parts, you should wait for at least 2min;
otherwise, the airbag may be detonated by mistake.

The removed airbag module can only be discarded
after being destroyed. For the method, please refer
to “Procedures for Handling the Discarded Airbag
Module”.

Remove the negative cable of the battery.



Remove the instrument panel and the front
passenger airbag cover plate (Refer to the Removal
of Instrument Panel).

Remove the connector with the yellow harness
behind the front passenger airbag module.

Remove M8 lock bolt for fixing the front
passenger airbag module. The tightening torque for
installing the nuts: (14-16)N.m.



Remove the retaining Vice airbag module two self-
tapping screws B (M6). Re-install the screw
tightening torque when: (8-10) Nm.



5.  Remove the front passenger airbag module.

Warning:

The front of the airbag module should always be
kept up. Don’t place any object on the airbag
module. The place where the airbag module is
stored should be kept away from high temperature,
thermal radiation and vibration. Do not attempt to
open or repair the airbag module. Do not use a
multimeter to measure the current or let the current
flow into the airbag module.

6.  Install each part in reverse order of the

removal.

Removal/Installation for Front Side
Airbag

Warning:

The wiring connector of the airbag controller
(ECU) can only be removed in 15min after the
negative cable of the battery is disconnected; for
other parts, you should wait for at least 2min;
otherwise, the airbag may be detonated by mistake.

Two front side airbags, located in the front seats,
cannot be removed or replaced at will and should
be replaced with new parts together with the seat
assembly.

Removal/Installation for Side Air Curtain
Module

Warning:

The wiring connector of the airbag controller
(ECU) can only be removed in 15min after the
negative cable of the battery is disconnected; for
other parts, you should wait for at least 2min;
otherwise, the airbag may be detonated by mistake.

1.  Remove the negative cable of the battery.



Airbags and Restraint System 3B-24





Remove the ceiling (Refer to the Removal of
Ceiling for details)

Remove the side air curtain connector.

Remove three M6 bolts A fixed on the side wall.
The tightening torque for installing the bolts: (8-
10)N.m.

Remove the clip B fixed on the side wall.





Remove the side air curtain module.

Install each part in reverse order of the removal.

Warning for Maintenance

About the component disassembly

The disassembly and re-assembly of the airbag
system parts may result in the system failure and
possibly cause serious injury or even death in case
of an accident; therefore, do not disassemble any
part of the airbag system.



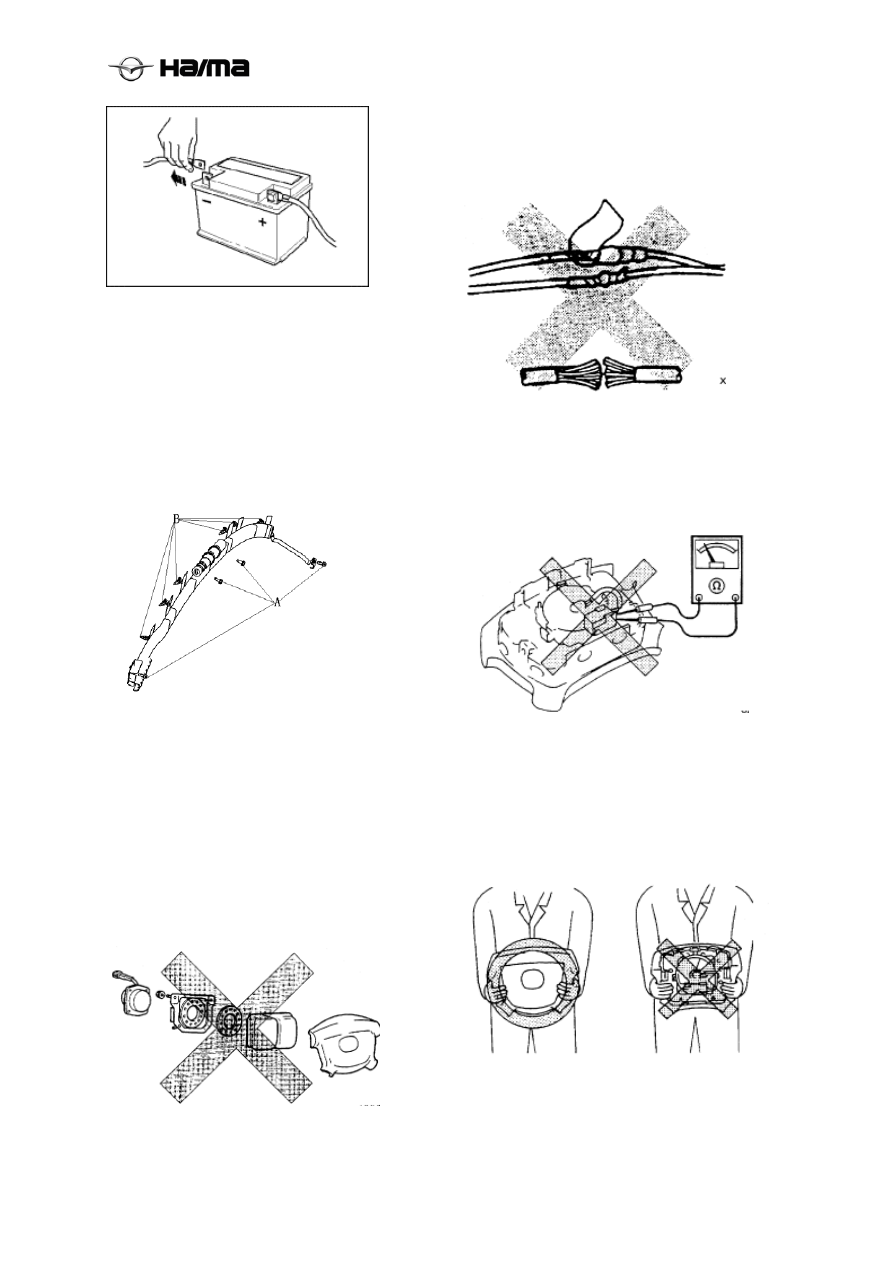

About the harness maintenance

The incorrect maintenance to the wiring harness of

the airbag system may accidentally release the
airbags or the seat belt pretensioners, causing
serious injury. If there is system harness fault, you
should replace the harness instead of repairing it.



About checking the airbag module

Checking the airbag module with ohmmeter may
make the airbag release, causing serious personal
injury; therefore, do not use an ohmmeter to check
the airbag module and you should use the OBD
system to diagnose the airbag system failure.



About operating the airbag module

Handling the unreleased airbag in operating
condition may make the airbag released
unexpectedly, causing serious injury. When
handling the unreleased airbag in operating
condition, be sure to make its front surface towards
outside, so as to reduce the possibility of injury
when the airbag is released.



It is dangerous to place the unreleased airbag
module facing downward. If the airbag module is
released, the airbag movement may result in
serious personal injury; therefore, you should place



Airbags and Restraint System 3B-25



the front surface facing upward, so as to reduce the
range of motion in case of the unexpected release
of the airbag.



About operating the side airbag module

When the side airbag module is released against
impact, the interior backing and skeleton of the
seat back may be damaged. If the seat back is to be
reused, the side airbag module is properly not able
to be released normally, resulting in a serious
accident; therefore, if the side airbag module is
released, the side airbag module and also the
backing, skeleton and trim plate of the seat back
must be replaced with new parts. After
maintenance, please make sure the seat is correctly
installed and fixed.

About operating the SAS unit

With the ignition switch not turned off,
disconnecting the SAS unit connector or removing
the SAS unit may make the airbag module released,
causing serious personal injury. Before the SAS
unit connector is disconnected or the SAS unit is
removed, turn the ignition switch to the LOCK
position, and then remove the negative cable of the
battery and wait for over 1min. to have the SAS
unit standby power exhausted.

It is very dangerous to connect the SAS unit
connector if the SAS unit is insecurely installed on
the vehicle, because the crash sensor in the control
module may deliver the electrical signal to the
airbag module to make the airbag module released,
resulting in serious personal injury; therefore,
please have the control module securely installed
on the vehicle before connecting the connector.

For the vehicle equipped with a single-point sensor,
once the airbag module is released due to an
accident or other reasons, the SAS unit must be
replaced with a new one, even if the surface of the
used SAS is without damage. The used SAS unit
may have internal damage that may cause
abnormal operation, resulting in serious injury or
even death. The used single-point SAS unit should
not be subject to the bench test. Self-check the
operation of the airbag sensor.

With the ignition switch not turned off,
disconnecting the side airbag sensor connector or
removing the side airbag sensor may make the side

airbag sensor operating and then the side airbag
module released, causing serious personal injury.
Before the side airbag sensor connector is
disconnected or the side airbag sensor is removed,
turn the ignition switch to the LOCK position, and
then remove the negative cable of the battery and
wait for over 1min to have the SAS control module
standby power exhausted.

Don’t make the side airbag sensor subject to
vibration or have the sensor disassembled, for that
may make the side airbag module released
unexpectedly, causing personal injury or serious
accident due to abnormal operation. The sensor is
integrated in the side airbag module; the module
may have problem, such as internal fault, after the
side airbag module is released. Even though there
is no outside damage or distortion, adopting the
used side airbag sensor shall make the side airbag
module unable to operate normally, causing
serious personal injury; therefore, please replace
the used sensor with a new one. The side airbag
sensor should be not subject to bench test. Self-
check the pretensioner seat belt.

Checking the pretensioner seat belt with ohmmeter
may make the airbag release, causing serious
personal injury; therefore, do not use an ohmmeter
to check the pretensioner seat belt and you should
use the OBD system to diagnose the pretensioner
seat belt failure.





About operating the parts

Prevent the parts from being contaminated with
water, oil or grease, or else the airbag module and
the pretensioner seat belt cannot be released and
expanded, causing serious personal injury. Using a
screwdriver, etc. into the airbag module connector
or the pretensioner seat belt may make the
connector damaged and the airbag module or the
seat belt pretensioner released abnormally, causing
serious injury; therefore, don’t insert any foreign
object into the connector.



Airbags and Restraint System 3B-26





About reusing parts

Even if the airbag module or pretensioner seat belt
is not released in the collision, and its surface is
not damaged, the interior may have been damaged,
causing incorrect operation that may result in
serious personal injury. Therefore, self-check the
undamaged airbag module or pretensioner seat belt
to determine whether it is reusable or not.

Seat Belts

Removal / Installation of Single
Pretensioner Seat Belt

1. Remove the decorative front lockable safety

cover (see Removing the front part of the safety
interlocking decorative cover).

2. Remove the B-pillar, remove the B-pillar under

trim plate (Refer to the Removal of B-pillar).

3. Remove the lower bolt A from the B-pillar of

the seat belt. The tightening torque for
reassembly: 55N.m.



4.  Remove the B-pillar upper trim plate (Refer to

the Removal of B-pillar).

5.  Remove the upper bolt B from the B-pillar of

the seat belt. The tightening torque for
reassembly:30N.m.



6.  Remove the lower bolt C from the seat belt
retractor. The tightening torque for reassembly:
55N.m.



7.  Remove the pretensioner seat belt connector.

8.  Install each part in reverse order of the removal.

Removal / Installation of Driver Side
double Pretensioner Seat Belt

(Divided into two parts belts and brackets)
1. The dual seatbelt pretensioners and seat belt

pretensioners double mounting bracket
separately, with two hexagonal, starting with
the insertion direction Ⅰ,  Ⅱ inserted from
another direction.





2. Remove the decorative front lockable safety

cover (see Removing the front part of the safety
interlocking decorative cover).



Airbags and Restraint System 3B-27



3. Remove the B-pillar under trim plate (Refer to

the Removal of B-pillar).

4. Remove the lower bolt A from the B-pillar of

the seat belt. The tightening torque for
reassembly: 55N.m.



5.  Remove the B-pillar upper trim plate (Refer to

the Removal of B-pillar).

6.  Remove the upper bolt B from the B-pillar of
the seat belt. The tightening torque for
reassembly:30N.m.



7.  Remove the lower bolt C from the seat belt
retractor. The tightening torque for reassembly:
55N.m.



8.  Remove the pretensioner seat belt connector.
9.  Install each part in reverse order of the removal.

Removal/Installation of Height Adjuster

1.  Remove the tightening belts (see Removing

tightening belts section).

2. Remove the upper part of the high-profile

mounting bolts D, re-loaded bolt tightening
torque: 30N.m.



3.  Install each part in reverse order of the removal.

Removal/Installation of Rear Row Left
and Right Seat Belts

1

.  Remove the rear seat cushion, refer to the

specific method disassemble the seat section.

2. Remove the rear sill trim and rear cover, see

Removing pillar trim specific methods section.

3. Remove the rear seat back. Refer to the

Removal of Seats for details.

4  Remove the rear parcel shelf. Refer to the

Removal of Rear Parcel Shelf for details.

5.  Removing the C-pillar trim, refer to the specific

method demolition column trim parts.

6.  Remove the bolt A for fixing the rear seat back

on the floor. The tightening torque for
reassembly: 55N.m.

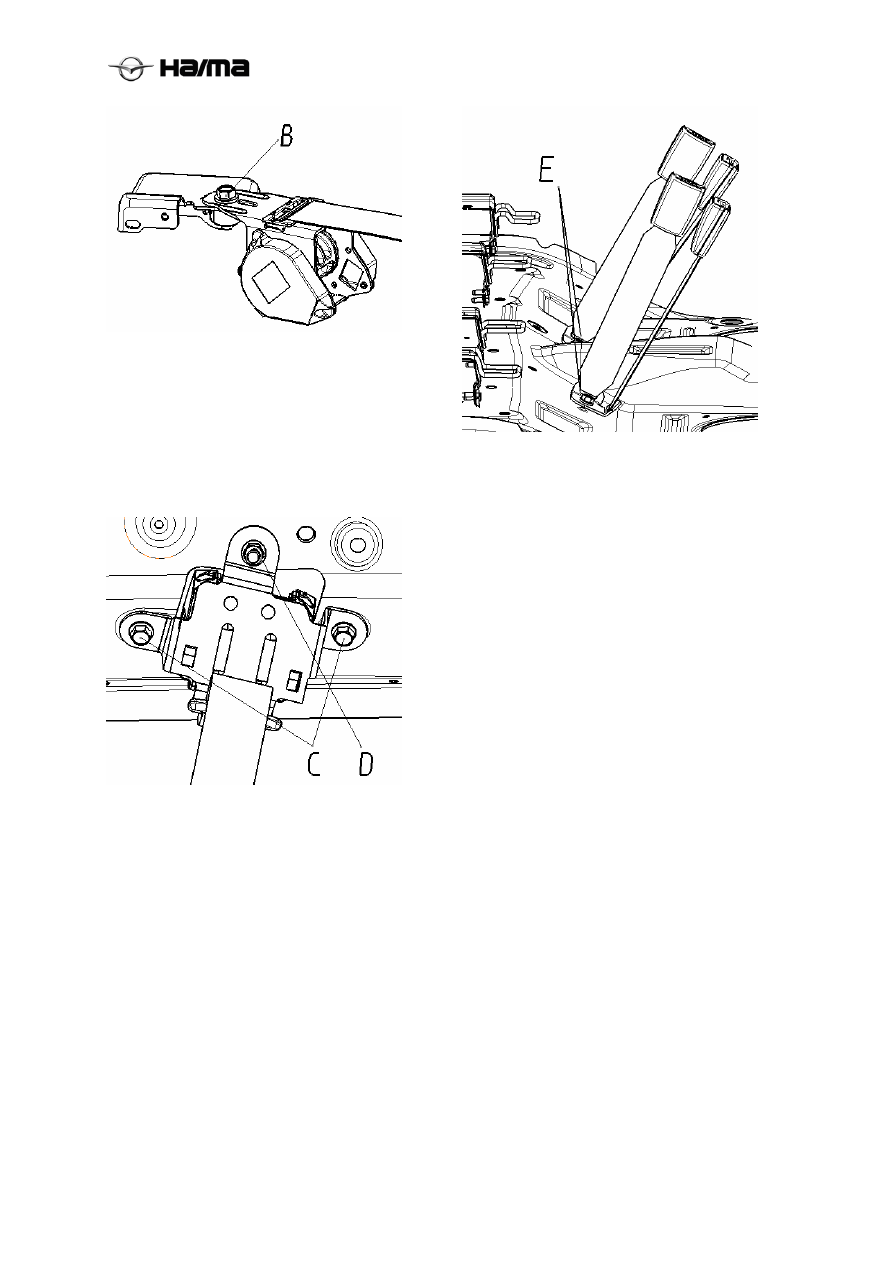

7.  Remove the bolt B of the seat belt retractor. The

tightening torque for reassembly: 55N.m.



Airbags and Restraint System 3B-28





8.  Remove the rear row left or right seat belt.

9.  Install each part in reverse order of the removal.

Removal/Installation of Rear Row Middle
Seat Belts

1.  Removal ceiling, refer to the specific methods

disassemble the roof part.

2. Removing the middle rear seat belt anchor bolts

on sideways C and nuts D, re-install the bolt
tightening torque when for: 55N.m.



3.  Remove the rear row middle seat belt.
4.  Install each part in reverse order of the removal.

Removal/Installation of Rear Row Seat
Belt Buckle

1.  Remove the rear seat cushion. Refer to the

Removal of Seats for details.

2.  Remove the bolt E for fixing the rear seat belt

buckle on the floor. The tightening torque for
reassembly: 55N.m.



3.  Remove the rear seat belt buckle.

4.  Install each part in reverse order of the

removal.

Release Procedure of Airbag Modules and
Pretensioner Seat Belts

Warning

Handling the unreleased airbag module and the
pretensioner seat belt in operating condition may
make the airbag released unexpectedly, causing
serious injury. Don’t discard and handle the
unreleased airbag module and the pretensioner seat
belt in operating condition. If you have no special
release tool and wiring harness, please consult the
nearby Haima Automobile Dealer.

Notice

Making the airbag module and the pretensioner
seat belt released in the vehicle may cause the
inner damage of the vehicle; therefore, don’t do
that only if the vehicle is about to be discarded.

If the vehicle is about to be discarded, the release
of the airbag module and the pretensioner seat belt
should be conducted inside the vehicle (please
refer to the Inside Release Procedure for details).

If the vehicle is not to be discarded, the release of
the airbag module and the pretensioner seat belt
should be conducted outside the vehicle (please
refer to the Outside Release Procedure for details).

Notice

When handling the released the airbag module or
pretensioner seat belt, please refer to the Procedure
for Handling the Discarded. (the release inside the
vehicle can only be conducted for the vehicle
about to be discarded).

1. Check the SST release tool (Refer to T-96
