211

4-2. Maintenance

4

Mai

n

tenan

ce and care

Scion_xB_OM_OM12F03U_(U)

■

Resetting the maintenance required reminder light (U.S.A. only)

After the required maintenance is performed according to the maintenance
schedule, please reset the reminder light.
To reset the reminder light, follow the procedures described below:

Switch the display to the trip meter A when the engine is running.
(

P. 129)

Turn the engine switch to the “LOCK” position.

While pressing the trip meter reset button (

P. 129), turn the

engine switch to the “ON” position (but do not start the engine
because otherwise the reset mode will be canceled). Continue to
press and hold the button until the trip meter displays “000000”.

■

Allow inspection and repairs to be performed by a Scion dealer

●

Scion technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the opera-
tions of all systems on your vehicle.

●

Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Scion dealer will promptly take
care of it.

CAUTION

■

If your vehicle is not properly maintained

Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.

■

Handling of the battery

●

Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.

●

Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Avoid exposure and wash any affected area immediately.

●

Battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands
after handling. (

P. 234)

STEP

1

STEP

2

STEP

3

212

4-2. Maintenance

Scion_xB_OM_OM12F03U_(U)

General maintenance

Engine compartment

Items

Check points

Battery

Check the connections.

(

P. 234)

Brake fluid

Is the brake fluid at the correct
level? (

P. 231)

Engine coolant

Is the engine coolant at the cor-
rect level?

(

P. 229)

Engine oil

Is the engine oil at the correct
level?

(

P. 225)

Exhaust system

There should not be any fumes or
strange sounds.

Radiator/condenser

The radiator and condenser
should be free from foreign
objects.

(

P. 231)

Washer fluid

Is there sufficient washer fluid?

(

P. 236)

Listed below are the general maintenance items that should be per-

formed at the intervals specified in the “Owner’s Warranty Informa-

tion Booklet” or “Owner’s Manual Supplement/Scheduled

Maintenance Guide”. It is recommended that any problem you notice

should be brought to the attention of your Scion dealer or qualified

service shop for advice.

213

4-2. Maintenance

4

Mai

n

tenan

ce and care

Scion_xB_OM_OM12F03U_(U)

Vehicle interior

Items

Check points

Accelerator pedal

• The accelerator pedal should

move smoothly (without uneven
pedal effort or catching).

Automatic transmission “Park”
mechanism

• When parked on a slope and the

shift lever is in P, is the vehicle
securely stopped?

Brake pedal

• Does the brake pedal move

smoothly?

• Does the brake pedal have appro-

priate clearance from the floor?

• Does the brake pedal have the

correct amount of free play?

Clutch pedal

• Does the clutch pedal move

smoothly?

• Does the clutch pedal have

appropriate clearance from the
floor?

• Does the clutch pedal have the

correct amount of free play?

Brakes

• The vehicle should not pull to one

side when the brakes are applied.

• The brakes should work effec-

tively.

• The brake pedal should not feel

spongy.

• The brake pedal should not get

too close to the floor when the
brakes are applied.

Head restraints

• Do the head restraints move

smoothly and lock securely?

214

4-2. Maintenance

Scion_xB_OM_OM12F03U_(U)

Indicators/buzzers

• Do the indicators and buzzers

function properly?

Lights

• Do all the lights come on?

Parking brake

• Does the parking brake lever or

pedal move smoothly?

• When parked on a slope and the

parking brake is on, is the vehicle
securely stopped?

Seat belts

• Do the seat belts operate

smoothly?

• The seat belts should not be dam-

aged.

Seats

• Do the seat controls operate

properly?

Steering wheel

• Does the steering wheel rotate

smoothly?

• Does the steering wheel have the

correct amount of free play?

• There should not be any strange

sounds coming from the steering
wheel.

Items

Check points

215

4-2. Maintenance

4

Mai

n

tenan

ce and care

Scion_xB_OM_OM12F03U_(U)

Vehicle exterior

Items

Check points

Doors

• Do the doors operate smoothly?

Engine hood

• Does the engine hood lock sys-

tem work properly?

Fluid leaks

• There should not be any signs of

fluid leakage after the vehicle has
been parked.

Tires

• Is the tire inflation pressure cor-

rect?

• The tires should not be dam-

aged or excessively worn.

• Have the tires been rotated

according to the maintenance
schedule?

• The wheel nuts should not be

loose.

Windshield wipers/rear window
wiper

• The wiper blades should not show

any signs of cracking, splitting,
wear, contamination or deforma-
tion.

• The wiper blades should clear the

windshield/rear window without
streaking or skipping.

CAUTION

■

If the engine is running

Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.

216

4-2. Maintenance

Scion_xB_OM_OM12F03U_(U)

Emission inspection and maintenance (I/M) programs

Some states have vehicle emission inspection programs which

include OBD (On Board Diagnostics) checks. The OBD system moni-

tors the operation of the emission control system.

■

If the malfunction indicator lamp comes on

The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Scion dealer
to service the vehicle.

■

Your vehicle may not pass the I/M test in the following situa-
tions:
● When the battery is disconnected or discharged

Readiness codes that are set during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.

● When the fuel tank cap is loose

The malfunction indicator lamp comes on indicating a tempo-
rary malfunction and your vehicle may not pass the I/M test.

■

When the malfunction indicator lamp still remains on after
several driving trips

The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.

■

If your vehicle does not pass the I/M test

Contact your Scion dealer to prepare the vehicle for re-testing.

217

4

Mai

n

tenan

ce and care

Scion_xB_OM_OM12F03U_(U)

4-3. Do-it-yourself maintenance

Do-it-yourself service precautions

If you perform maintenance yourself, be sure to follow the correct

procedures as given in these sections.

Items

Parts and tools

Battery condition

(

P. 234)

• Warm  water
• Baking soda
• Grease
• Conventional wrench

(for terminal clamp bolts)

Brake fluid level

(

P. 231)

• FMVSS No.116 DOT 3 or SAE

J1703 brake fluid

• Rag or paper towel
• Funnel (used only for adding

brake fluid)

Engine coolant level

(

P. 229)

• “Toyota Super Long Life Coolant”

or a similar high quality ethylene
glycol-based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology
For the U.S.A.:
“Toyota Super Long Life
Coolant” is pre-mixed with 50%
coolant and 50% deionized
water.
For Canada:
“Toyota Super Long Life
Coolant” is pre-mixed with 55%
coolant and 45% deionized
water.

• Funnel (used only for adding

engine coolant)

218

4-3. Do-it-yourself maintenance

Scion_xB_OM_OM12F03U_(U)

Items

Parts and tools

Engine oil level

P. 225)

• “Toyota Genuine Motor Oil” or

equivalent

• Rag or paper towel
• Funnel (used only for adding

engine oil)

Fuses

(

P. 258)

• Fuse with same amperage rating

as original

Light bulbs

 (

P. 268)

• Bulb with same number and watt-

age rating as original

• Flathead screwdriver

Radiator and condenser

(

P. 231)



Tire inflation pressure (

P. 246)

• Tire pressure gauge
• Compressed air source

Washer fluid

(

P. 236)

• Water or washer fluid containing

antifreeze (for winter use)

• Funnel (used only for adding

water or washer fluid)

219

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xB_OM_OM12F03U_(U)

CAUTION

The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions:

■

When working on the engine compartment

●

Keep hands, clothing, and tools away from the moving fan and engine
drive belt.

●

Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.

●

Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.

●

Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.

●

Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.

■

When working near the electric cooling fans or radiator grille

Be sure the engine switch is off.
With the ignition on, the electric cooling fans may automatically start to run if
the air conditioning is on and/or the coolant temperature is high. (

P. 231)

■

Safety glasses

Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

220

4-3. Do-it-yourself maintenance

Scion_xB_OM_OM12F03U_(U)

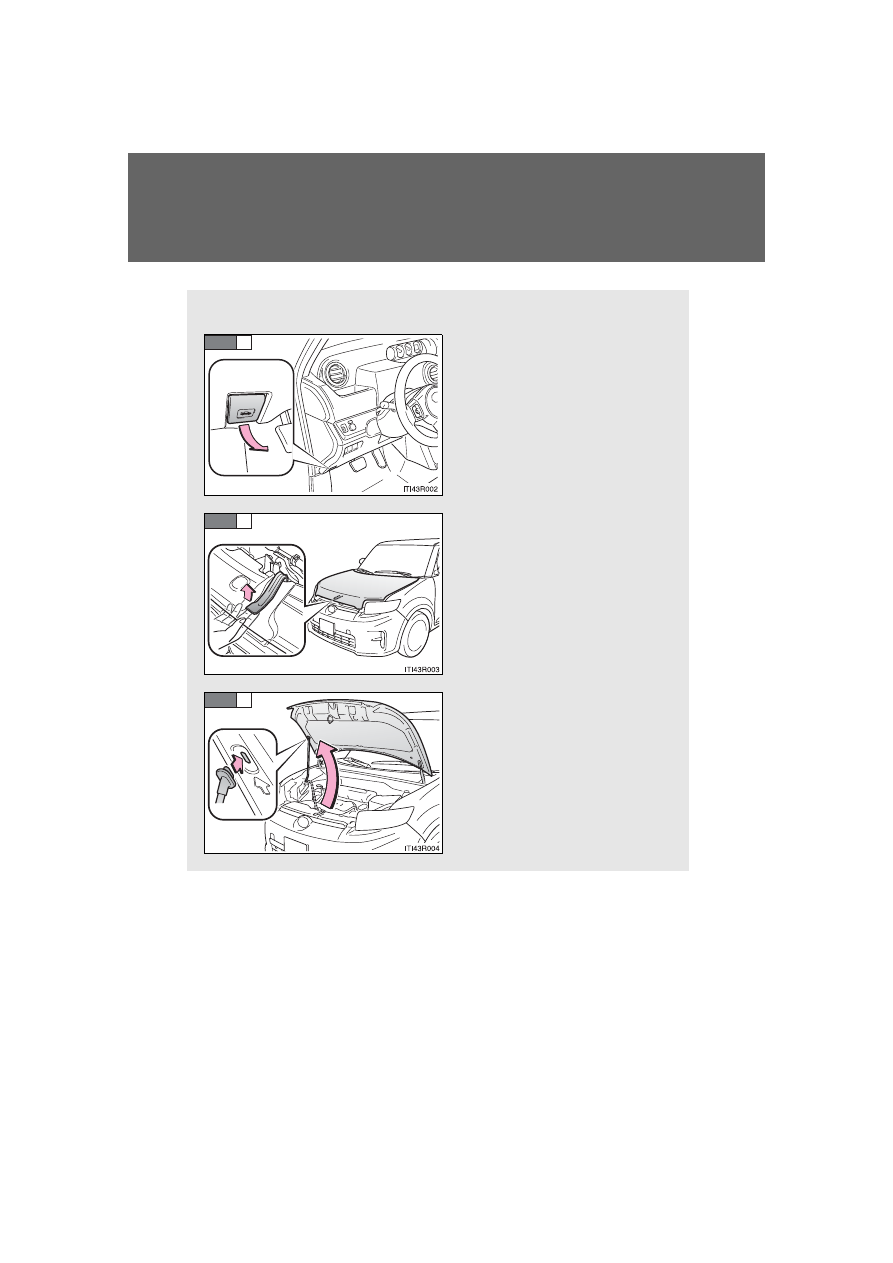

Hood

Release the lock from the inside of the vehicle to open the hood.

Pull the hood release lever.

The hood will pop up slightly.

Lift the auxiliary catch lever
and lift the hood.

Hold the hood open by insert-
ing the supporting rod into the
slot.

STEP

1

STEP

2

STEP

3

221

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xB_OM_OM12F03U_(U)

CAUTION

■

Pre-driving check

Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.

■

After installing the support rod into the slot

Make sure the rod supports the hood securely from falling down on to your
head or body.

NOTICE

■

When closing the hood

Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

222

4-3. Do-it-yourself maintenance

Scion_xB_OM_OM12F03U_(U)

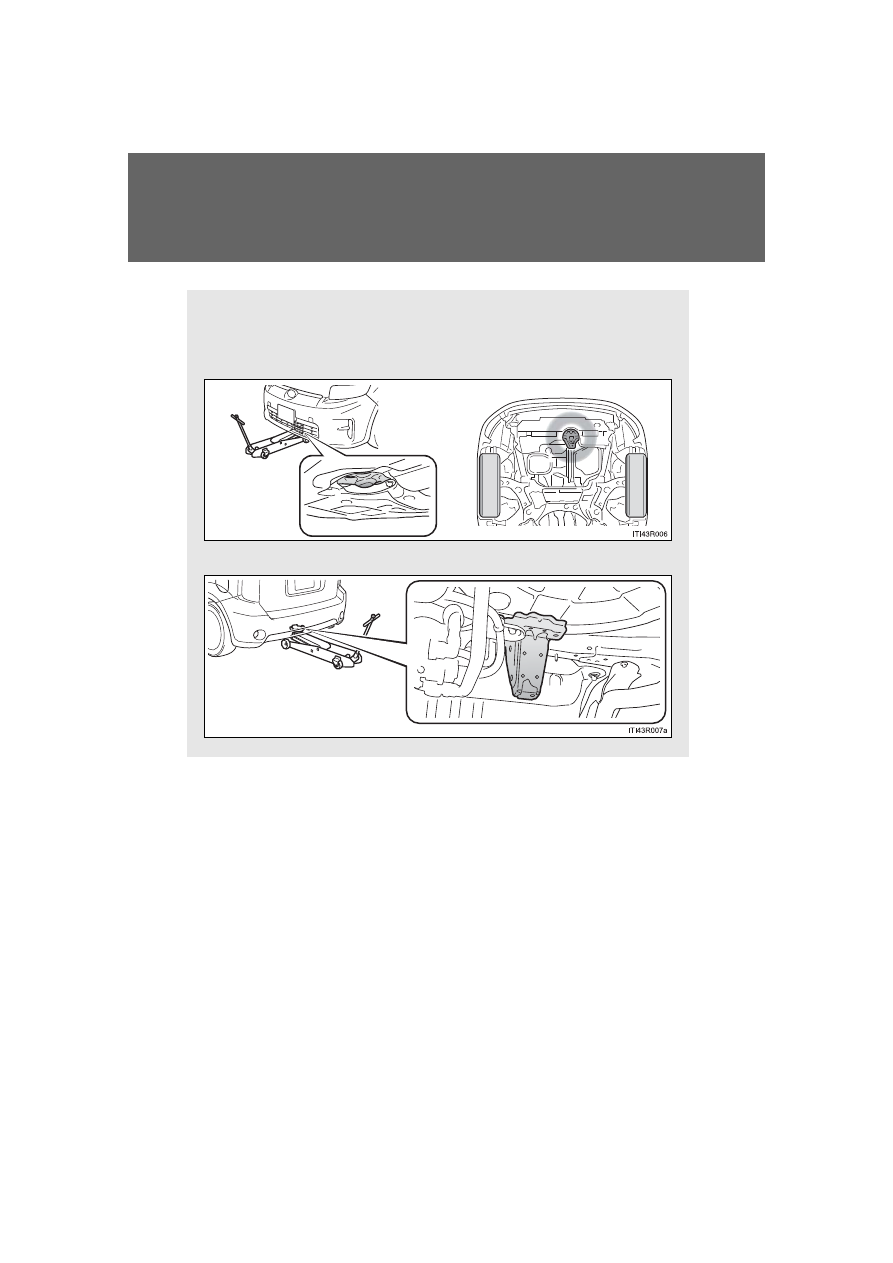

Positioning a floor jack

When raising your vehicle with a floor jack, position the jack cor-

rectly. Improper placement may damage your vehicle or cause injury.

Front

Rear

223

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xB_OM_OM12F03U_(U)

CAUTION

■

When raising your vehicle

Make sure to observe the following precautions to reduce the possibility of
death or serious injury.

●

When using a floor jack, follow the instructions of the manual provided with
the jack.

●

Do not use the jack that was supplied with your vehicle.

●

Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.

●

Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.

●

Do not start the engine while the vehicle is supported by the floor jack.

●

Stop the vehicle on level, firm ground, firmly set the parking brake and shift
the shift lever in P (automatic transmission) or R (manual transmission).

●

Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.

●

Do not raise the vehicle while someone is in the vehicle.

●

When raising the vehicle, do not place any objects on top of or underneath
the floor jack.

●

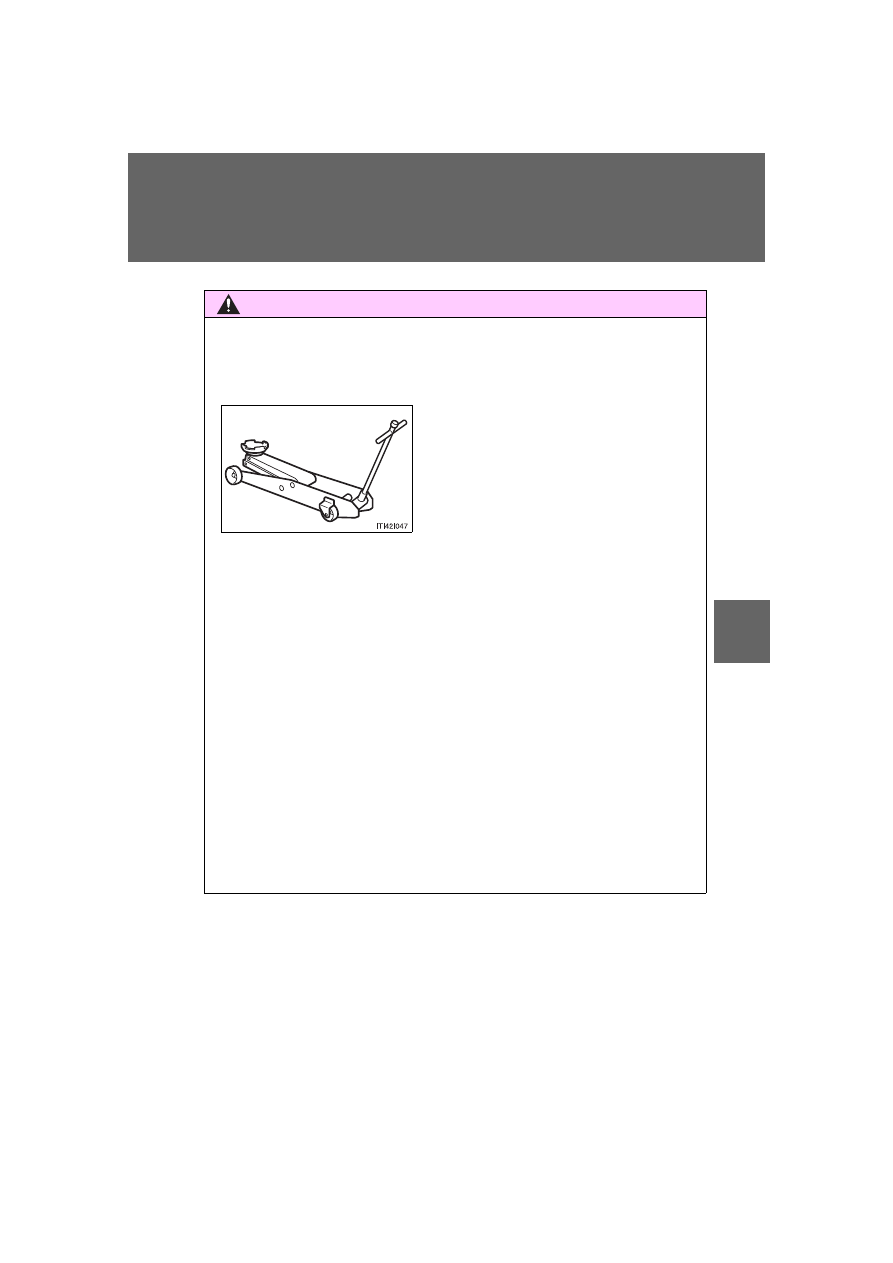

Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

224

4-3. Do-it-yourself maintenance

Scion_xB_OM_OM12F03U_(U)

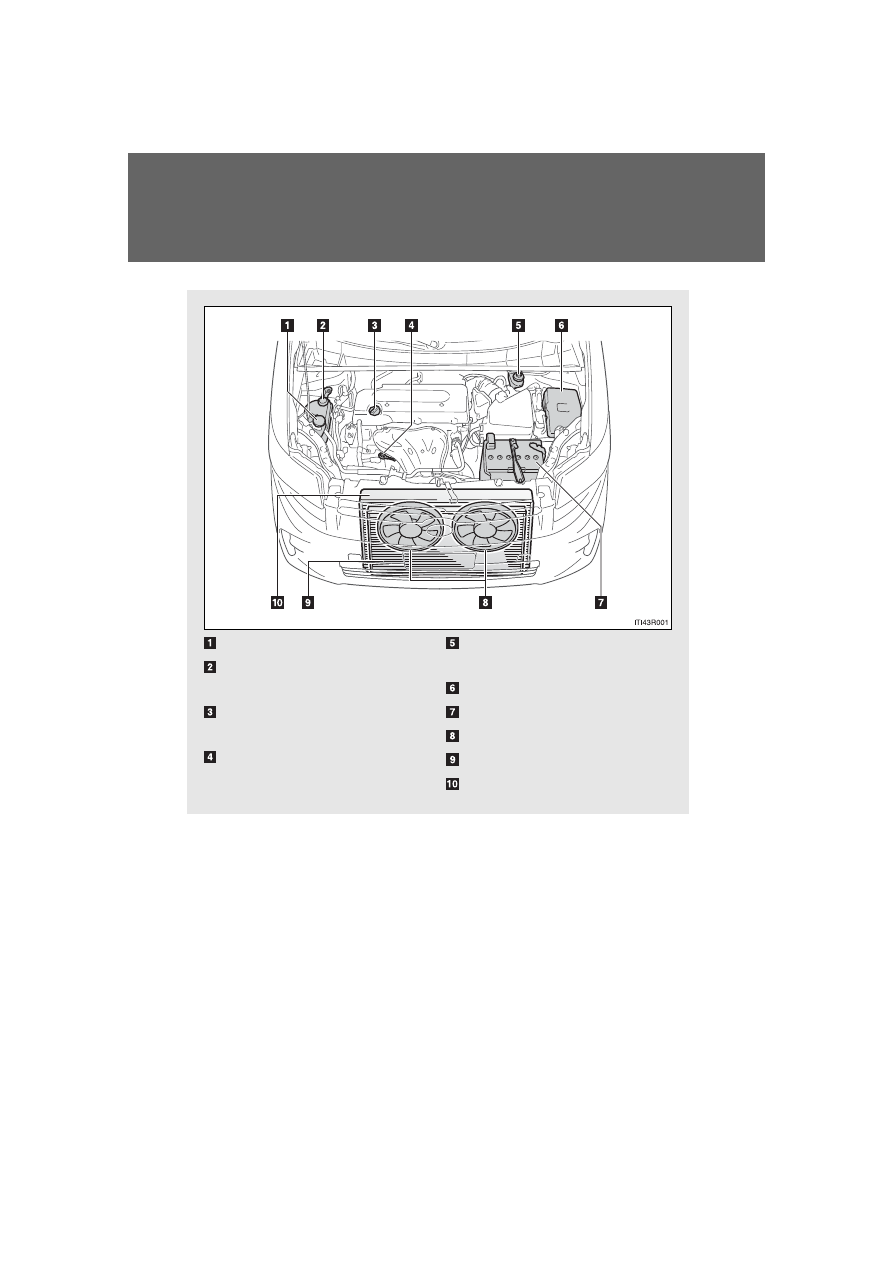

Engine compartment

Washer fluid tank (

P. 236)

Engine coolant reservoir

(

P. 229)

Engine oil filler cap

(

P. 226)

Engine oil level dipstick

(

P. 225)

Brake fluid reservoir

(

P. 231)

Fuse box

(

P. 258)

Battery

(

P. 234)

Electric cooling fans

Condenser

(

P. 231)

Radiator

(

P. 231)

225

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xB_OM_OM12F03U_(U)

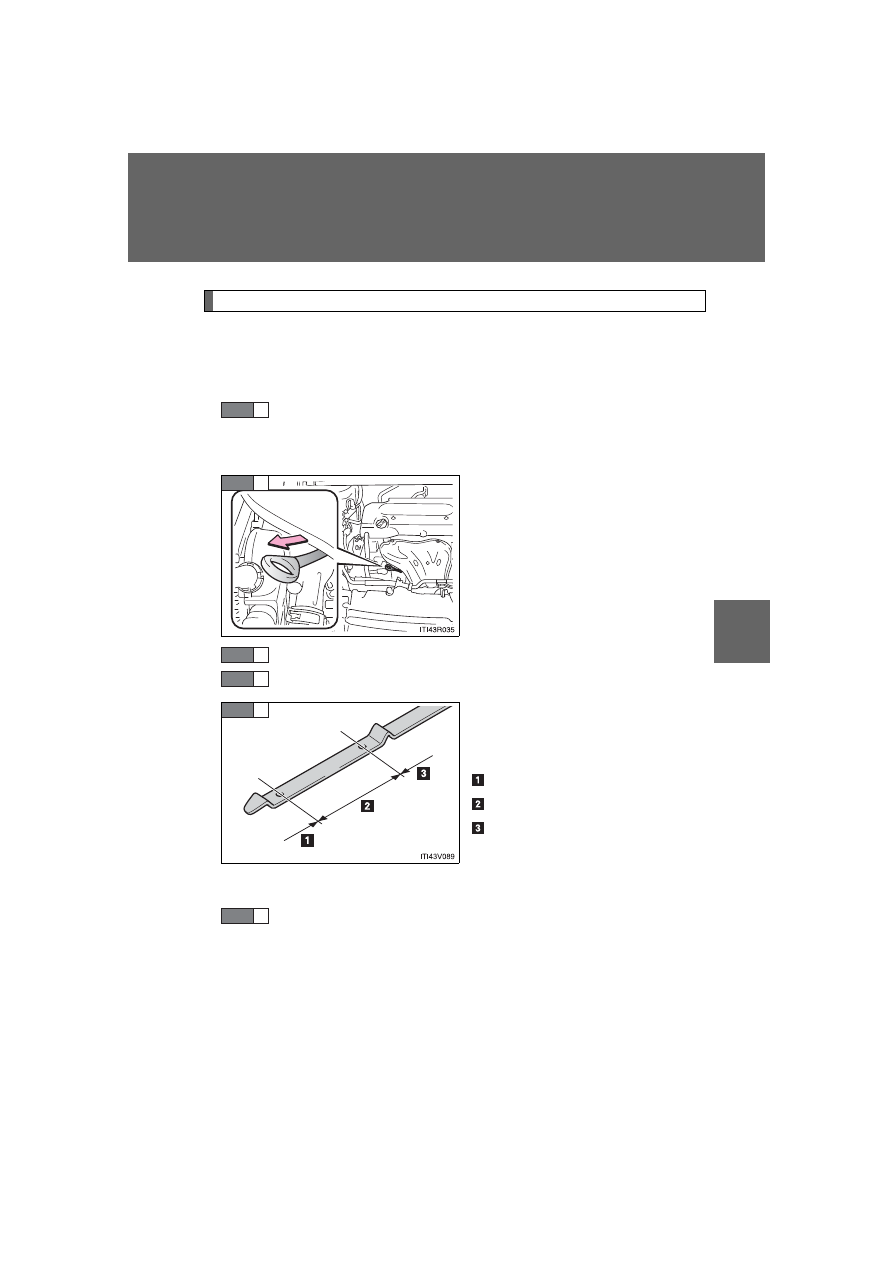

Engine oil

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

Checking the engine oil

Park the vehicle on level ground. After turning off the engine,
wait more than 5 minutes for the oil to drain back into the bot-
tom of the engine.

Holding a rag under the end, pull
the dipstick out.

Wipe the dipstick clean.

Reinsert the dipstick fully.

Holding a rag under the end, pull
the dipstick out and check the oil
level.

Low

Normal

Excessive

The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.

Wipe the dipstick and reinsert it fully.

STEP

1

STEP

2

STEP

3

STEP

4

STEP

5

STEP

6

226

4-3. Do-it-yourself maintenance

Scion_xB_OM_OM12F03U_(U)

■

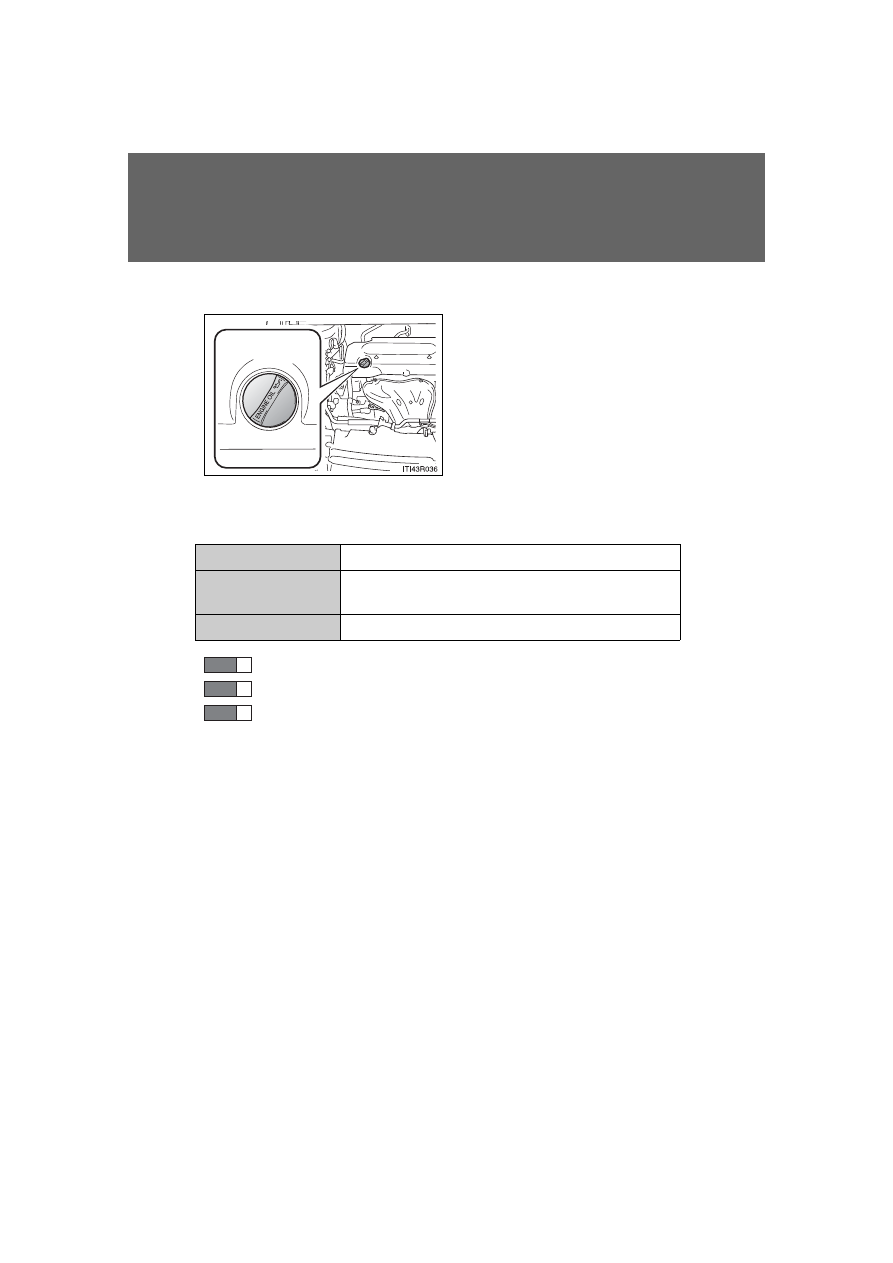

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

Make sure to check the oil type and prepare the items needed before
adding oil.

Remove the oil filler cap by turning it counterclockwise.

Add engine oil slowly, checking the dipstick.

Install the oil filler cap by turning it clockwise.

Engine oil selection

P. 335

Oil quantity

(Low

 Full)

1.2 qt. (1.1 L, 1.0 Imp. qt.)

Items

Clean funnel

STEP

1

STEP

2

STEP

3
