Scion iA. Service Manual - part 20

318

iA_OM_OM99M17z_(U)

4-2. Audio System

● Category list

Select the

 icon and display the following category list.

Select a desired category and item.

● Example of use (to play all tracks in USB device)



Method 1

Select

 to display the category list.

Select .
All the tracks in the USB device are displayed.

Select a desired track.
The selected track is played. All the tracks in the USB device
can be played by continuing playback.

Category

Function

Playlist

Displays playlists on the device.

Artist

Displays the artist name list.
All the tracks or tracks for each album of the
selected artist can be played.

Album

Displays the album name list.

Song

All the tracks in the device are displayed.

Genre

Displays the genre list.
All the tracks or tracks per album or artist in the
selected genre can be played.

Audiobook

Displays the audiobook list.
Chapters can be selected and played.

Podcast

Displays the podcast list.
Episode can be selected and played.
(Special service for some Apple devices.)

Folder

Displays the folder/file list.

1

2

3

iA_OM_OM99M17z_(U)

319

4-2. Audio System

4

In

te

rior Fea

tu

res



Method 2

*

1

Select

 to display the category list.

Select .
All the folders in the USB device are displayed.

Select .
All the tracks in the USB device are displayed.

Select a desired track.
The selected track is played. All the tracks in the USB device
can be played by continuing playback.

*

1

Can be operated using an Android

 device or USB flash memory.

■

How to use USB mode (Type B)

●

To move to the desired location on the track, move the slider indicating the
playback time.

●

The appearance of the repeat and shuffle icons changes depending on the
type of operation in which the function is used.

●

Only the tracks in the desired category selected in Step 2 are played.

●

Only the tracks in the desired folder selected in Step 3 are played.

When a USB device is connected to this unit and the audio is played,
the album name, artist name, genre and title information are automat-
ically displayed if there is a match in the vehicle’s database compila-
tion to the music being played. The information stored in this device
uses database information in the Gracenote music recognition ser-
vice.

Gracenote Database (Type B)

NOTICE

For information related to the most recent Gracenote database which can
be used and how to install it, go to the Scion Hands Free Website:
http://www.scion.com/BeSpoke

1

2

3

4

320

iA_OM_OM99M17z_(U)

4-2. Audio System

■

Introduction

Music recognition technology and related data are provided by
Gracenote

®

. Gracenote is the industry standard in music recogni-

tion technology and related content delivery. For more information
visit www.gracenote.com.

CD and music-related data from Gracenote, Inc., copyright © 2000
to present Gracenote. Gracenote Software, copyright © 2000 to
present Gracenote. One or more patents owned by Gracenote
apply to this product and service. See the Gracenote website for a
non-exhaustive list of applicable Gracenote patents. Gracenote,
CDDB, MusicID, MediaVOCS, the Gracenote logo and logotype,
and the “Powered by Gracenote” logo are either registered trade-
marks or trademarks of Gracenote in the United States and/or other
countries.

Gracenote

®

 End User License Agreement

This application or device contains software from Gracenote, Inc. of
Emeryville, California (“Gracenote”). The software from Gracenote
(the “Gracenote Software”) enables this application to perform disc
and/or file identification and obtain music-related information, includ-
ing name, artist, track, and title information (“Gracenote Data”) from
online servers or embedded databases (collectively, “Gracenote Serv-
ers”) and to perform other functions. You may use Gracenote Data
only by means of the intended End-User functions of this application
or device.

iA_OM_OM99M17z_(U)

321

4-2. Audio System

4

In

te

rior Fea

tu

res

You agree that you will use Gracenote Data, the Gracenote Software,
and Gracenote Servers for your own personal non-commercial use
only. You agree not to assign, copy, transfer or transmit the Gracenote
Software or any Gracenote Data to any third party. YOU AGREE NOT
TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS
EXPRESSLY PERMITTED HEREIN.

322

iA_OM_OM99M17z_(U)

4-2. Audio System

You agree that your non-exclusive license to use the Gracenote Data,
the Gracenote Software, and Gracenote Servers will terminate if you
violate these restrictions. If your license terminates, you agree to
cease any and all use of the Gracenote Data, the Gracenote Soft-
ware, and Gracenote Servers. Gracenote reserves all rights in
Gracenote Data, the Gracenote Software, and the Gracenote Servers,
including all ownership rights. Under no circumstances will Gracenote
become liable for any payment to you for any information that you pro-
vide. You agree that Gracenote, Inc. may enforce its rights under this
Agreement against you directly in its own name.

The Gracenote service uses a unique identifier to track queries for
statistical purposes. The purpose of a randomly assigned numeric
identifier is to allow the Gracenote service to count queries without
knowing anything about who you are. For more information, see the
web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of Gracenote Data are
licensed to you “AS IS.” Gracenote makes no representations or war-
ranties, express or implied, regarding the accuracy of any Gracenote
Data from in the Gracenote Servers. Gracenote reserves the right to
delete data from the Gracenote Servers or to change data categories
for any cause that Gracenote deems sufficient. No warranty is made
that the Gracenote Software or Gracenote Servers are error-free or
that functioning of Gracenote Software or Gracenote Servers will be
uninterrupted. Gracenote is not obligated to provide you with new
enhanced or additional data types or categories that Gracenote may
provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRAN-
TIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PUR-
POSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES
NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY
YOUR USE OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIA-
BLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR
FOR ANY LOST PROFITS OR LOST REVENUES.

iA_OM_OM99M17z_(U)

323

4-2. Audio System

4

In

te

rior Fea

tu

res

■

Updating the database

The Gracenote media database can be updated using USB device.

Connect a USB device containing the software for updating
Gracenote.

Select the

 icon on the home screen and display the Set-

tings screen.

Select the

 tab and select

.

Select

. The list of the update package stored in the USB

device and the version are displayed.

Select the package to use the update.

Select .

Gracenote can be downloaded from the Scion Hands-free Website.

1

2

3

4

5

6

324

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

Bluetooth

®

■

Bluetooth

®

 Hands-Free outline

When a Bluetooth

®

 device (mobile phone) is connected to the vehi-

cle’s Bluetooth

®

 unit via radio wave transmission, a call can be

made or received by pressing the talk button, pickup button, or
hang-up button on the audio remote control switch, or by operating
the center display. For example, even if a device (mobile phone) is
in your coat pocket, a call can be made without taking the device
(mobile phone) out and operating it directly.

■

Bluetooth

®

 audio outline

When a portable audio unit equipped with the Bluetooth

®

 communi-

cation function is paired to the vehicle, you can listen to music
stored on the paired portable audio device from the vehicle’s speak-
ers. It is not necessary to connect the portable audio device to the
vehicle’s external input terminal. After programming, operate the
vehicle audio control panel to play/ stop the audio.

■

Applicable Bluetooth

®

 specification (Recommended)

Type A: Ver. 2.0

Type B: Ver. 1.1/1.2/2.0 + EDR/2.1 + EDR/3.0 (conformity)

■

Bluetooth

®

 audio outline

●

For your safety, a device can be paired only when the vehicle is parked. If
the vehicle starts to move, the pairing procedure will end. Park the vehicle in
a safe place before pairing.

●

The communication range of a Bluetooth

®

 equipped device is about 32 ft.

(10 m) or less.

●

Basic audio operation is available using voice commands even if Bluetooth

®

is not connected.

iA_OM_OM99M17z_(U)

325

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

NOTICE

Some Bluetooth

®

 mobile devices are not compatible with the vehicle. Con-

sult your Scion dealer, Scion Customer Experience (U.S.A. Only), Toyota
Canada Customer Interaction Centre (Canada Only) or Web support center
for information regarding Bluetooth

®

 mobile device compatibility:

●

U.S.A.
Phone: 1-866-70-SCION or 1-866-707-2466 (Toll-free)
Web: http://www.scion.com/BeSpoke

●

Canada
Phone: 1-888-TOYOTA-8 or 1-888-869-6828 (Toll-free)
Web: www.toyota.ca

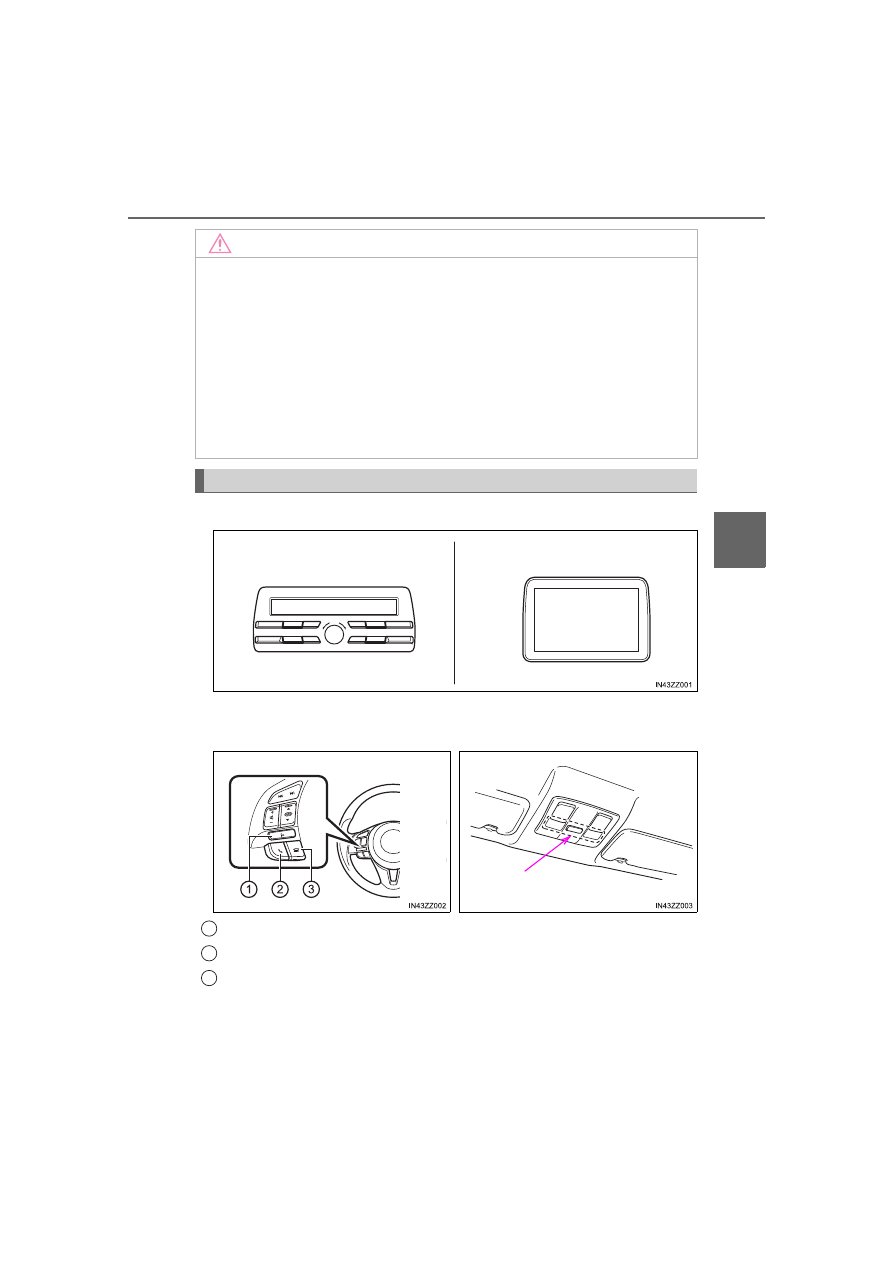

Component Parts



Audio unit



Talk button, Pick-up button and
Hang-up button



Microphone

Talk button

Pick-up button

Hang-up button

Type A

Type B

Microphone

1
2
3

326

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

■

Microphone (hands-free)

The microphone is used for speaking voice commands or when
making a Hands-free call.

■

Talk button, Pick-Up button and Hang-Up button (hands-free)

The basic functions of Bluetooth

®

 Hands-Free can be used for such

things as making calls or hanging up using the talk, pick-up and
hang-up buttons on the steering wheel.

■

Commander switch (Type B)

The commander switch is used for volume adjustment and display
operation. Tilt or turn the commander knob to move the cursor.
Press the commander knob to select the icon.

■

Volume adjustment

The power/volume dial of the audio unit

*

1

 or the volume dial of the

commander switch

*

2

 is used to adjust the volume. Turn the dial to

the right to increase volume, to the left to decrease it.

The volume can also be adjusted using the volume button on the
steering wheel.

*

1

Type A

*

2

Type B

Type B only:
Conversation volume and the volume of the voice guidance and ring-
tone can each be set in advance.

Select the

 icon on the home screen and display the Com-

munication screen.

Select .

Adjust the

 and the

 using the slider.

■

Volume adjustment
If the volume is lower compared to other audio modes, increase the volume
from the device side.

1

2

3

iA_OM_OM99M17z_(U)

327

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

■

Bluetooth

®

 Hands-Free Preparation

● Pairing code setting

The 4-digit pairing code setting for registration of your cell phone
(pairing) can be set beforehand.

The initial setting value is “0000”.

Press the pick-up button or talk button with a short press.

Say: [Beep] “Setup”

Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select
music player.”

Say: [Beep] “Pairing options”

Prompt: “Select one of the following: Pair, Edit, Delete, List, or
Set Pairing Code.”

Say: [Beep] “Set pairing code”

Prompt: “Your current pairing code is XXXX. Do you want to
change it to a different pairing code?”

Say: [Beep] “Yes”

Prompt: “Please say a 4-digit pairing code.”

Say: [Beep] “YYYY”

Prompt: “YYYY is this correct?”

Say: [Beep] “Yes” or “No”

If “Yes”, go to Step 14. If “No”, the procedure returns to Step 9.

Prompt: “Your new pairing code is YYYY. Use this pairing code
when pairing devices to the Hands free system. Do you want
to pair a device now?”

Say: [Beep] “Yes” or “No”

If “Yes”, the system switches to the device registration mode. If
“No”, the system returns to standby status.

Bluetooth

®

 Preparation (Type A)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

328

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

● Device pairing

To use Bluetooth

®

 Hands-Free, the device equipped with Blue-

tooth

®

 has to be paired to the Bluetooth

®

 unit using the following

procedure.

A maximum of seven devices including hands-free mobile
phones and Bluetooth

®

 audio devices can be paired to one vehi-

cle.

Activate the Bluetooth

®

 application of the device.

For the operation of the device, refer to its instruction manual.

Press the pick-up button or talk button with a short press.

Say: [Beep] “Setup”

Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select
music player.”

Say: [Beep] “Pairing options”

Prompt: “Select one of the following: Pair, Edit, Delete, List, or
Set Pairing Code.”

Say: [Beep] “Pair”

Prompt: “Start the pairing process on your Bluetooth

®

 device.

Your pairing code is 0000 (XXXX). Input this on your Blue-
tooth

®

 device when prompted on the device. See device man-

ual for instructions.”

Using the device, perform a search for the Bluetooth

®

 device

(Peripheral device).

For the operation of the device, refer to its instruction manual.

1

2

3

4

5

6

7

8

9

iA_OM_OM99M17z_(U)

329

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

Select “Scion” from the device list searched by the device.

Input the 4-digit pairing code to the device.

Prompt: “Please say the name of the device after the beep.”

Say: [Beep] “XXXX - - -” (Say a “device tag”, an arbitrary name
for the device.) Example: “Stan’s device.”

Say a paired “device tag” within 10 seconds.

If more than two devices are to be paired, they cannot be paired with
the same or similar “device tag”.

Prompt: “XXXXXX - - - (Ex. “Stan’s device”) (Device tag). Is
this correct?”

Say: [Beep] “Yes”

Prompt: “Pairing complete”

After a device is registered, the system automatically identifies
the device. By activating Bluetooth

®

 Hands-Free again, or by

activating Bluetooth

®

 Hands-Free first after switching the ignition

from OFF to ACC, the system reads out a voice guidance,
“XXXXXX - - - (Ex. “Stan’s device”) (Device tag) is connected”.

10

11

12

13

14

15

16

330

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

● Registered device read-out

Bluetooth

®

 Hands-Free can read-out the devices registered to its

system.

Do this function only when parked. It is too distracting to attempt while
driving and you may make too many errors to be effective.

Press the pick-up button or talk button with a short press.

Say: [Beep] “Setup”

Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select
music player.”

Say: [Beep] “Pairing options”

Prompt: “Select one of the following: Pair, Edit, Delete, List, or
Set Pairing Code”

Say: [Beep] “List”

Prompt: “XXXXX..., XXXXX..., XXXXX... (Ex. Device A, device
B, device C)” (The voice guidance reads out the device tags
registered to the hands-free system.)
Press the talk button with a short press during the read-out at
the desired device, and then say one of the following voice
commands to execute it.

• “Select phone”: Selects device (Mobile phone) when the talk

button is short- pressed.

• “Select music player”: Selects device (Music player) when

the talk button is short-pressed.

• “Edit”: Edits device when the talk button is short-pressed.
• “Continue”: Continues the list readout.
• “Delete”: Deletes the registered device when the talk button

is short-pressed.

• “Previous”: Returns to the previous device in read-out when

the talk button is short-pressed.

Prompt: “End of list, would you like to start from the begin-
ning?”

Say: [Beep] “No”

Prompt: “Returning to main menu.”

1

2

3

4

5

6

7

8

9

10

iA_OM_OM99M17z_(U)

331

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

● Device selection

If several devices have been paired, the Bluetooth

®

 unit links the

device last paired. If you would like to link a different paired
device, it is necessary to change the link. The order of device pri-
ority after the link has been changed is maintained even when
the ignition is switched off.

Hands-free phone:

Press the pick-up button or talk button with a short press.

Say: [Beep] “Setup”

Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select
music player.”

Say: [Beep] “Select phone”

Prompt: “Please say the name of the device you would like to
select.
Available devices are XXXXX... (Ex. device A), XXXXX... (Ex.
device B), XXXXX... (Ex. device C). Which device please?”

Say: [Beep] “XXXXX... (Ex. Device B)”

Prompt: “XXXXX... (Ex. Device B). Is this correct?”

Say: [Beep] “Yes” or “No”

If “Yes”, go to Step 10. If “No”, the procedure returns to Step 5.

Prompt: “XXXXX... (Ex. Device B) selected.”

Music player:

Press the pick-up button or talk button with a short press.

Say: [Beep] “Setup”

Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select
music player.”

Say: [Beep] “Select music player”

Prompt: “Please say the name of the device you would like to
select.
Available devices are XXXXX... (Ex. device A), XXXXX... (Ex.
device B), XXXXX... (Ex. device C). Which device please?”

Say: [Beep] “XXXXX... (Ex. Device B)”

Prompt: “XXXXX... (Ex. Device B). Is this correct?”

1

2

3

4

5

6

7

8

9

10

1

2

3

4

5

6

7

332

iA_OM_OM99M17z_(U)

4-3. Bluetooth

®

Say: [Beep] “Yes” or “No”

If “Yes”, go to Step 10. If “No”, the procedure returns to Step 5.

Prompt: “XXXXX... (Ex. Device B) selected.”

● Deleting a device

Registered devices (Mobile phone) can be deleted individually or
collectively.

Do this function only when parked. It is too distracting to attempt while
driving and you may make too many errors to be effective.

Press the pick-up button or talk button with a short press.

Say: [Beep] “Setup”

Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select
music player.”

Say: [Beep] “Pairing options”

Prompt: “Select one of the following: Pair, Edit, Delete, List, or
Set Pairing Code.”

A registered device (Mobile phone) can be deleted using the registra-
tion list.

Say: [Beep] “Delete”

Prompt: “Please say the name of the device you would like to
delete.
Available devices are XXXXX... (Ex. device A), XXXXX... (Ex.
device B), XXXXX... (Ex. device C), or all. Which device
please?”

Say: [Beep] “X” (Say the number of the device to be deleted.)

Say “All” to delete all devices (Mobile phone).

Prompt: “Deleting XXXXX... (Ex. device B...) (Registered
device tag). Is this correct?”

Say: [Beep] “Yes”

Prompt: “Deleted”

8

9

10

1

2

3

4

5

6

7

8

9

10

11

iA_OM_OM99M17z_(U)

333

4-3. Bluetooth

®

4

In

te

rior Fea

tu

res

● Registered device editing

Press the pick-up button or talk button with a short press.

Say: [Beep] “Setup”

Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select
music player.”

Say: [Beep] “Pairing options”

Prompt: “Select one of the following: Pair, Edit, Delete, List, or
Set Pairing Code.”

Say: [Beep] “Edit”

Prompt: “Please say the name of the device you would like to
edit. Available devices are XXXXX... (Ex. device A), XXXXX...
(Ex. device B), XXXXX... (Ex. device C). Which device
please?”

Say: [Beep] “X” (Say the number of the device to be edited.)

Prompt: “New name please?”

Say: [Beep] “XXXXX... (Ex. Device C)” (Speak a “device tag”
an arbitrary name for the device.)

Prompt: “XXXXX... (Ex. device C) (Device tag), is this cor-
rect?”

Say: [Beep] “Yes”

Prompt: “New name saved.”

1

2

3

4

5

6

7

8

9

10

11

12

13
