IMPORTANT Bird droppings must be

washed off immediately and thor-

oughly as the acid they contain is par-

ticularly aggressive.

Detergents cause water pol-
lution. Therefore the engine
compartment should be
washed in areas equipped

for collecting and purifying the liq-
uid used in the washing process.

ADVICE FOR PRESERVING THE
BODYWORK

Paint

Paintwork does not only serve an

aestethic purpose, but also protects

the underlying sheet metal.

In the case of deep scrapes or scores,

you are advised to have the necessary

touching up carried out immediately

to avoid the formation of rust. Use

only original paint products for touch-

ing up (see “Bodywork paint identifi-

cation plate” in “Technical specifica-

tion” section). Normal paint mainte-

nance consists in washing at intervals

depending on the conditions and en-

vironment of use. For example, in

highly polluted areas, or if the roads

are sprayed with salt, it is wise to

wash the car more frequently.

To correctly wash the car:
❒ remove the aerial from the roof to

prevent damage to it if the car is

washed in an automatic system;

❒ wash the body using a low pressure

jet of water;

❒ wipe a sponge with a slightly soapy

solution over the bodywork, fre-

quently rinsing with the sponge;

❒ rinse well with water and dry with

a jet of air or a chamois leather.

When drying, take particular care

with the less visible parts like door

surrounds, bonnet and around the

headlights where water may stagnate.

The car should not be taken to a

closed area immediately, but left in

the open so that residual water can

evaporate. Do not wash the car after

it has been left in the sun or with the

bonnet hot: this may alter the shine of

the paintwork. Exterior plastic parts

must be cleaned in the same way as

the rest of the vehicle. Where possi-

ble, do not park under trees; the

resinous substance many species re-

lease give the paint a dull appearance

and increase the possibility of trigger-

ing rust processes.

To keep intact the aesthetic
properties of the paintwork
do not use abrasive and/or
polish products for cleaning

the car bodywork.

185

WARNING

LIGHTS AND

MESSAGES

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

Windows

Use specific window cleaner products.

Use also clean cloths to avoid scratch-

ing the glass or damaging the trans-

parency.

IMPORTANT The inside of the

rearscreen should be wiped gently

with a cloth in the direction of the fil-

aments to avoid damaging the heat-

ing device.

Engine compartment

At the end of the winter the engine

compartment should be carefully

washed, without directing the jet

against electronic control units. Con-

tact a specialised workshop to have

this done.

IMPORTANT The car should be

washed with the engine cold and the

ignition key at STOP. After washing

make sure that the various protections

(e.g.: rubber caps and various covers)

have not been damaged or removed.

INTERIORS

Periodically check that water is not

trapped under the mats (due to water

dripping off shoes, umbrellas, etc.)

which could cause oxidisation of the

sheet metal.

CLEANING SEATS AND FABRIC
AND VELVET PARTS

Use a soft brush or vacuum cleaner to

remove dust. Velvet is cleaned better

if the brush is moistened.

Rub the seats with a sponge moist-

ened with a solution of water and

neutral detergent.

Never use inflammable
products like fuel oil ether

or rectified petrol for cleaning in-
side the car. The electrostatic dis-
charges generated when rubbing to
clean may cause fire.

WARNING

186

WARNING

LIGHTS AND

MESSAGES

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

CLEANING LEATHER SEATS

Remove dried on dirt with lightly

moistened chamois leather or cloth

without pressing too hard.

Remove liquid or grease stains with a

dry absorbent cloth without rubbing.

Then wipe with a soft cloth or chamois

leather with water and neutral soap.

If the stain persists, use specific prod-

ucts, carefully following the instruc-

tions for use.

IMPORTANT Never use alcohol or al-

cohol-based products.

INTERIOR PLASTIC PARTS

Use appropriate products designed to

preserve the appearance of compo-

nents.

IMPORTANT Never use spirit or pe-

troleum to clean the instrument panel.

Do not keep aerosol cans
in the car: they might ex-

plode. Aerosol cans must never be
exposed to a temperature above
50°C. The temperature inside the
car exposed to the sun may go well
beyond that figure.

WARNING

187

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

TECHNICAL SPECIFICATIONS

IDENTIFICATION DATA  ................................. 188

ENGINE CODES - BODYWORK VERSIONS .... 190

ENGINE ........................................................... 191

FUEL FEED  ..................................................... 193

TRANSMISSION ............................................... 193

BRAKES ........................................................... 194

SUSPENSIONS  ................................................. 194

STEERING ....................................................... 194

WHEELS .......................................................... 195

DIMENSIONS  ................................................... 198

PERFORMANCE .............................................. 199

WEIGHTS ........................................................ 200

CAPACITIES  .................................................... 201

FLUIDS AND LUBRICANTS  ............................ 203

FUEL CONSUMPTION .................................... 205

CO

2

EMISSIONS ............................................... 206

RADIO FREQUENCY REMOTE CONTROL:

MINISTERIAL CERTIFICATIONS ................... 207

188

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

IDENTIFICATION
DATA

You are advised to note the identifi-

cation codes. The identification data

stamped and given on the plates are

the following:
❒ Model plate
❒ Chassis marking
❒ Bodywork paint identification plate
❒ Engine marking.

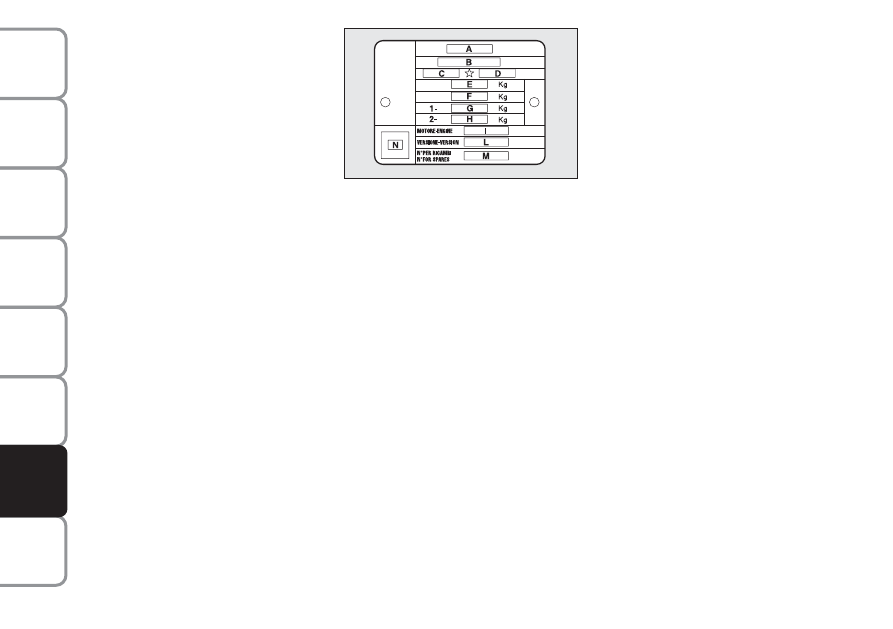

MODEL PLATE fig. 1

The plate is to be found on the front

crossmember of the engine compart-

ment and bears the following identi-

fication data:

A Manufacturer’s name.

B Homologation number.

C Vehicle type code.

D Chassis number.

E Maximum vehicle weight fully

loaded.

F Maximum vehicle weight fully

loaded with trailer.

G Maximum vehicle weight on front

axle.

H Maximum vehicle weight on rear

axle.

I

Engine type.

L Body version code.

M Spare part code.

N Smoke opacity index (for diesel

engines).

fig. 1

L0C0273m

189

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

fig. 3

L0C0130m

BODYWORK PAINT
IDENTIFICATION PLATE fig. 3

The plate is applied on the inner side

of the bonnet and it bears the follow-

ing data:

A Paint manufacturer.

B Colour name.

C Lancia colour code.

D Respray and touch up code.

ENGINE MARKING

Engine marking is stamped on the

cylinder block and includes the model

and the chassis number.

CHASSIS MARKING fig. 2

It is printed on the passenger com-

partment floor, near the right-hand

front seat.

It can be reached by lifting the special

flap in the carpeting and includes the

following data:
❒ car model;
❒ chassis number.

fig. 2

L0C0131m

190

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

169A5000

199A9000

843AXL1A 13 (*)

843AXL1A 13B (

▲)

843AXM1A 14 (*)

843AXM1A 14B (

▲)

ENGINE CODES - BODYWORK VERSIONS

Engine code

Body version

1.2

8V

1.3 Multijet 75 HP

(*) 4-seat versions
(

▲) 5-seat versions

191

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

1.2

8V

169A5000

Otto

4 in line

70.8 x 78.86

1242

11.1 ± 0.2

51
69

5500

102

–

3000

NGK ZKR7A-10

Unleaded petrol 95 RON

ENGINE

GENERAL FEATURES

Engine code

Cycle

Number and layout of cylinders

Piston bore and stroke

mm

Total displacement

cm

3

Compression ratio

Maximum power (EEC)

kW

HP

corresponding ratio

rpm

Maximum torque (EEC)

Nm

kgm

corresponding ratio

rpm

Spark plugs

Fuel

192

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

1.3 Multijet 75 HP

199A9000

Diesel

4 in line

69.6 x 82

1248

17.6 ± 0.4

55
75

4000

190

19.4

1500

Diesel fuel for motor vehicles

(Specification EN590)

GENERAL FEATURES

Engine code

Cycle

Number and layout of cylinders

Piston bore and stroke

mm

Total displacement

cm

3

Compression ratio

Maximum power (EEC)

kW

HP

corresponding ratio

rpm

Maximum torque (EEC)

Nm

kgm

corresponding ratio

rpm

Fuel

193

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

FUEL FEED

Fuel feed

TRANSMISSION

Gearbox

Clutch

Drive

Modifications or repairs to the fuel system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.

1.2

8V

Multipoint sequential phased electronic

injection, returnless system

1.3 Multijet

Multijet direct injection

“Common Rail” with electronic control,

exhaust gas turbocharger

Five forward gears and reverse with synchromesh

for forward gear engagement

Self-adjusting pedal without idle stroke

Front

194

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

BRAKES

Service brakes:

– front

– rear

Parking brake

IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency

at first braking.

SUSPENSIONS

Front

Rear

STEERING

Type

Minimum steering cycle

m

Disc, floating caliper type with operating cylinder for each wheel

Drum type

Controlled by lever, it works mechanically on the rear brakes

Mc Pherson independent wheels

Interconnected wheels with twisting axle

Rack and pinion with electric power steering

10.49

195

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

WHEELS

RIMS AND TYRES

Pressed steel or alloy rims. Tubeless

tyres with radial carcass. The ho-

mologated tyres are listed in the Log

book.

IMPORTANT In the event of discrep-

ancies between the information pro-

vided on this “Owner handbook” and

the “Log book”, consider the specifi-

cations shown in the log book only.

Attaining to the prescribed size, to en-

sure safety of the car in movement, it

must be fitted with tyres of the same

make and type on all wheels.

IMPORTANT Do not use inner tubes

with Tubeless tyres.

SPACE-SAVER SPARE WHEEL

Pressed steel rim. Tubeless tyre.

WHEEL GEOMETRY

Front wheel toe-in measured from rim

to rim: 0±1 mm.

The values refer to the car in running

order.

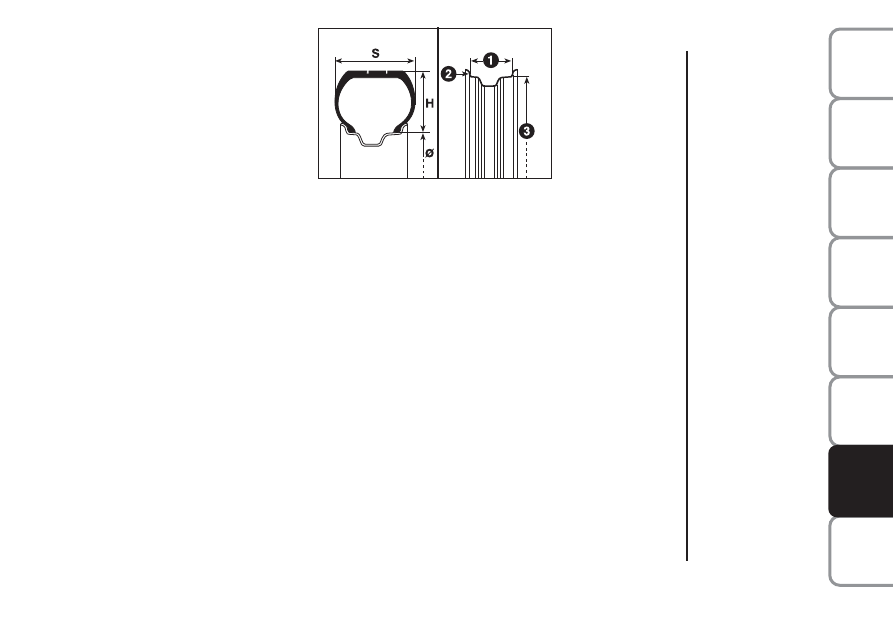

UNDERSTANDING TYRE
MARKING fig. 4

Example: 185/65 R 14 86 T

185 = Nominal width (S, distance

between sidewalls in mm).

65 = Percentage height/width ratio

(H/ S).

R

= Radial tyre.

14 = Rim diameter in inches (Ø).

86 = Load rating.

T

= Maximum speed rating.

fig. 4

L0C0132m

Load rating

60 = 250 kg

84 = 500 kg

61 = 257 kg

85 = 515 kg

62 = 265 kg

86 = 530 kg

63 = 272 kg

87 = 545 kg

64 = 280 kg

88 = 560 kg

65 = 290 kg

89 = 580 kg

66 = 300 kg

90 = 600 kg

67 = 307 kg

91 = 615 kg

68 = 315 kg

92 = 630 kg

69 = 325 kg

93 = 650 kg

70 = 335 kg

94 = 670 kg

71 = 345 kg

95 = 690 kg

72 = 355 kg

96 = 710 kg

73 = 365 kg

97 = 730 kg

74 = 375 kg

98 = 750 kg

75 = 387 kg

99 = 775 kg

76 = 400 kg

100 = 800 kg

77 = 412 kg

101 = 825 kg

78 = 425 kg

102 = 850 kg

79 = 437 kg

103 = 875 kg

80 = 450 kg

104 = 900 kg

81 = 462 kg

105 = 925 kg

82 = 475 kg

106 = 950 kg

83 = 487 kg

196

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

Q =  up to 160 km/h.
R =  up to 170 km/h.

S =  up to 180 km/h.

T =  up to 190 km/h.
U =  up to 200 km/h.

H =  up to 210 km/h.

V = up to 240 km/h.

W =  up to 270 km/h.

Y =  up to 300 km/h.

QM + S = up to 160 km/h.
TM + S = up to 190 km/h.

HM + S = up to 210 km/h.

Maximum speed index

Maximum speed index for snow tyres

CORRECT READING OF THE WHEEL RIM

Example: 6J x 15 ET43
6 =

rim width in inches 1.

J =

rim drop centre outline (side projection where the tyre

bead rests) 2.

15 = rim nominal diameter in inches (corresponds to diame-

ter of the tyre to be fitted) 3 = Ø.

ET43 = wheel camber (distance between the disc/rim sup-

port plane and the wheel rim centre line).

If after-sale tyres with rim protector are used
(fig. 5) and the car has integral cups fixed (by

springs) to the sheet wheel, DO NOT fit wheel cups. The
use of unsuitable tyres and wheel cups could cause a sud-
den pressure loss of the tyre.

WARNING

TYRES RIM PROTECTOR fig. 5

L0C0296m

fig. 5

70 = 335 kg

81 = 462 kg

71 = 345 kg

82 = 475 kg

72 = 355 kg

83 = 487 kg

73 = 365 kg

84 = 500 kg

74 = 375 kg

85 = 515 kg

75 = 387 kg

86 = 530 kg

76 = 400 kg

87 = 545 kg

77 = 412 kg

88 = 560 kg

78 = 425 kg

89 = 580 kg

79 = 437 kg

90 = 600 kg

80 = 450 kg

91 = 615 kg

Load index

197

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

Tyres equipped with sidewall guard/drop-center guard rims must not be fitted to the vehicles equipped
with 15” steel rims and wheel hubcaps: this could cause hubcap/tyre mismatch, with resulting damage

to the tyre inflating valve.

WARNING

STANDARD TYRES

SPACE-SAVER

Size

Unload

Full load

SPARE WHEEL

Front

Rear

Front

Rear

1.2

8V

1.3 Multijet

Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.

With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.

COLD TYRE INFLATION PRESSURE (bar)

185/65 R14 86T

195/55 R15 85H

185/55 R15 82H

195/45 R16 80V

185/65 R14 86T

195/55 R15 85H

185/55 R15 82H

195/45 R16 84V

185/65 R14 86Q M+S

185/55 R15 82Q M+S

195/55 R15 85T M+S

185/65 R14 86Q M+S

185/55 R15 82Q M+S

195/55 R15 85T M+S

4,00x14”-H-43

4,00x14”-H-43

135/80 B14 84M

135/80 B14 84M

6J x 14H2-ET 40

6J x 15H2-ET 40

6J x 15H2-ET 40

6,5J x 16H2-ET 40

6J x 14H2-ET 40

6J x 15H2-ET 40

6J x 15H2-ET 40

6,5J x 16H2-ET 40

VERSIONS

RIMS

TYRES

SPACE-SAVER SPARE WHEEL

Standard tyres

Snow tyres

Rim

Tyre

1.2

8V

1.3 Multijet

185/65 R14 86T

185/55 R15 82H
195/55 R15 85H
195/45 R16 80V

185/65 R14 86T

185/55 R15 82H
195/55 R15 85H
195/45 R16 84V

2,0
2,3
2,1
2,2
2,0
2,3
2,1
2,2

2,0
2,1
2,1
2,2
2,0
2,1
2,1
2,2

2,2
2,4
2,3
2,4
2,2
2,4
2,3
2,4

2,2
2,3
2,3
2,4
2,2
2,3
2,3
2,4

2,8

2,8

198

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

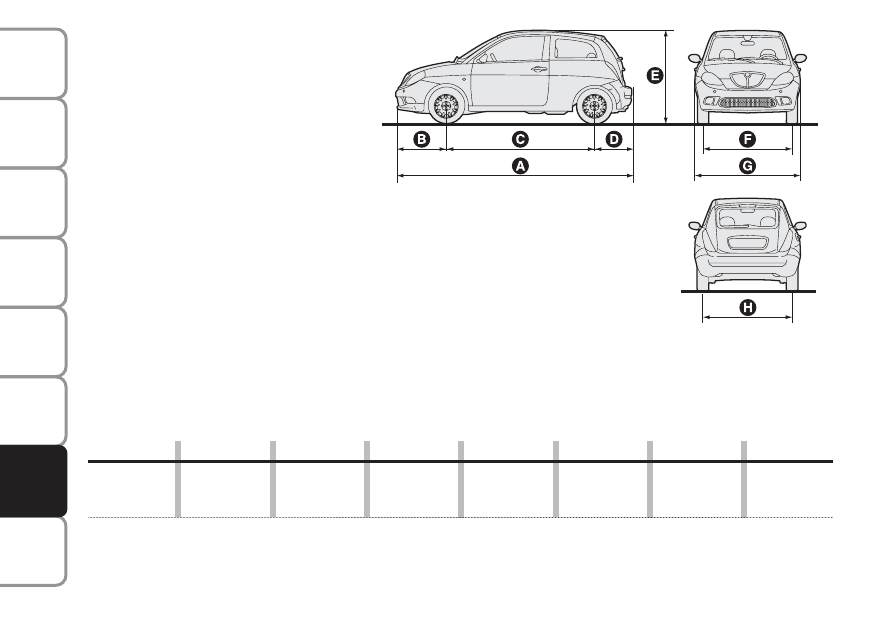

DIMENSIONS

Dimensions are expressed in mm and refer

to the vehicle fitted with standard tyres.

The height refers to the vehicle unladen.

Boot volume

Unladen boot volume

(V.D.A. standards)     215(*)/290(

▼) dm

3

(*)  with rear seat fully backward

(

▼) with rear seat fully forward

(*) According to rim size, slight size variations are possible.

L0C0247m

A

B

C

D

E

F

G

H

3810

819

2388

603

1530

1450

1704

1440(*)

199

WARNING

LIGHTS AND

MESSAGES

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

PERFORMANCE

Top admitted speed after initial car use in km/h.

1.2

8V

1.3 Multijet 75 HP

160

167
