Lancia YPSILON. Service Manual - part 10

152

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

fig. 23

L0C0140m

DIRECTION INDICATORS

Front fig. 23

To change the bulb, proceed as fol-

lows:
❒ turn the bulb holder A counterclock-

wise and remove it;

❒ remove the bulb B pushing it gently

and turning counterclockwise (“bay-

onet”);

❒ replace the bulb;
❒ refit the bulb holder turning it clock-

wise, checking that it is secured cor-

rectly.

Side fig. 24

To change the bulb, proceed as fol-

lows:
❒ lever in the point shown by the ar-

row to compress the catch and to

remove unit A;

❒ turn the bulb holder B counter-

clockwise, remove the snap-fitted

bulb and replace it;

❒ refit the bulb holder B in the trans-

parent cover, then position the unit

making sure the catch clicks into

place.

FRONT SIDELIGHTS fig. 25

To change the bulb, proceed as fol-

lows:
❒ remove the protective cover releas-

ing the relevant catch;

❒ remove the snap-fitted bulb holder

A, remove the bulb B and replace it;

❒ refit the snap-fitted bulb holder A;
❒ once replacement is over, refit the

cover pressing it in the middle un-

til hearing the locking click. Then,

check for proper locking into place.

fig. 24

L0C0156m

fig. 25

L0C0141m

153

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

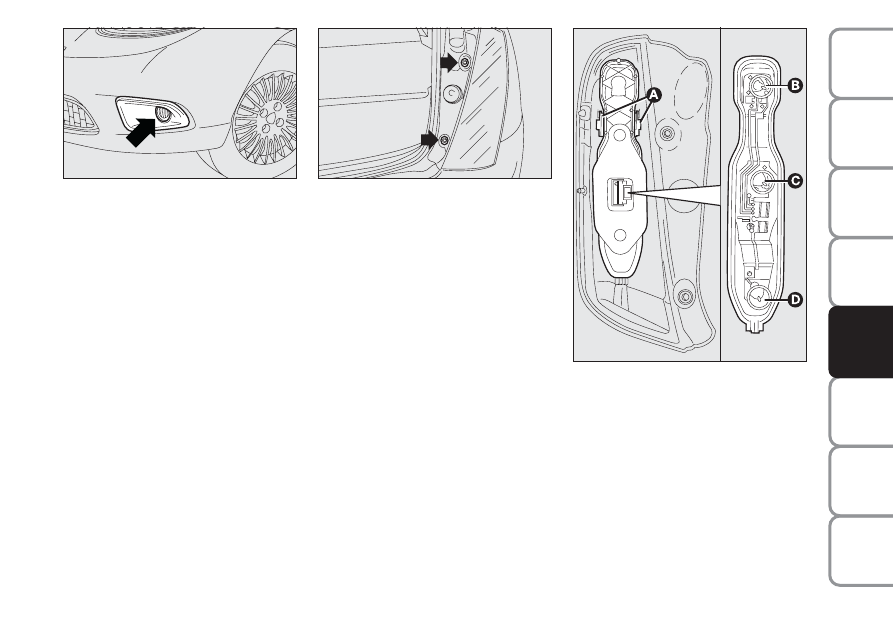

FRONT FOG LIGHTS fig. 26
(for versions/markets,
where provided)

To replace the bulbs in the front fog
lights you must contact a Lancia Deal-
ership.

REAR LIGHT UNITS
To change the bulb, proceed as fol-

lows:
❒ open the tailgate;
❒ loosen the two fastening screws and

remove the light unit fig. 27;

❒ press the bulb holder fastening tabs

A-fig. 28 and remove the bulb

holder;

❒ remove bulbs B-C-D-fig. 28 slight-

ly pushing them and turning coun-

terclockwise.

fig. 27

L0C0157m

fig. 26

L0C0285m

fig. 28

L0C0144m

The bulbs are arranged inside the

light unit as follows

B side/taillights / brake lights;

C direction indicators;

D rear fog lights (left-hand light) /

reversing lights (right-hand light).

154

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

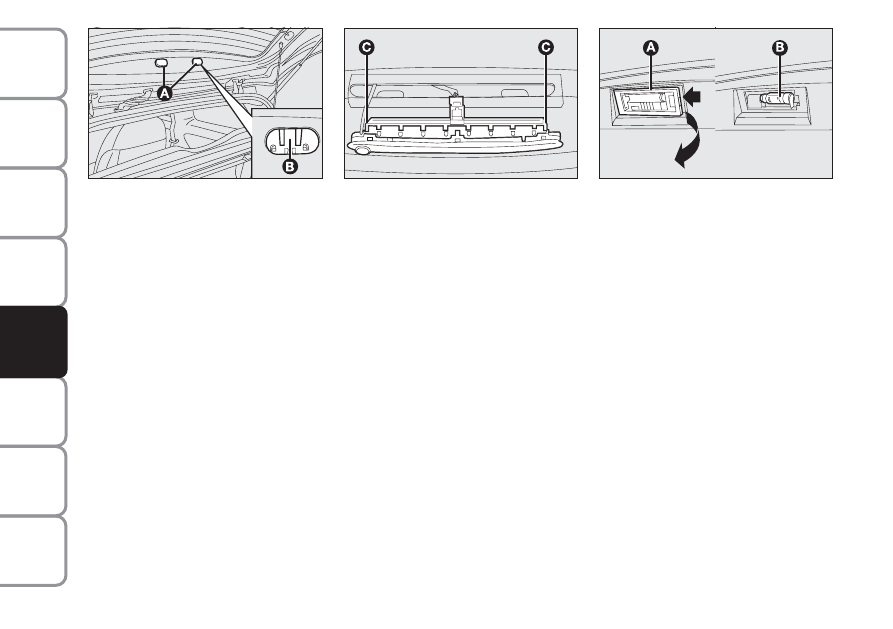

NUMBER PLATE LIGHT fig. 32

To change the bulb, proceed as fol-

lows:
❒ work in the point shown by the ar-

row and  remove lens A;

❒ replace the bulb B releasing the

side contacts, making sure that the

new bulb is properly locked be-

tween contacts;

❒ refit the lens.

fig. 32

L0C0160m

ADDITIONAL BRAKING LIGHT
(THIRD STOP) fig. 30-31

To change the bulb, proceed as fol-

lows:
❒ open the tailgate and remove the

two rubber plugs A;

❒ press the two fastening tabs B set

inside the two holes to release the

light unit;

❒ close the tailgate and remove the

light unit;

❒ press the two fastening tabs C and re-

move the bulb holder;

❒ remove the snap-fitted bulbs and re-

place them.

fig. 30

L0C0158m

fig. 31

L0C0159m

155

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

IF AN INTERIOR
LIGHT BURNS OUT

For the type of bulb and power rat-

ing, see “When needing to change a

bulb”.

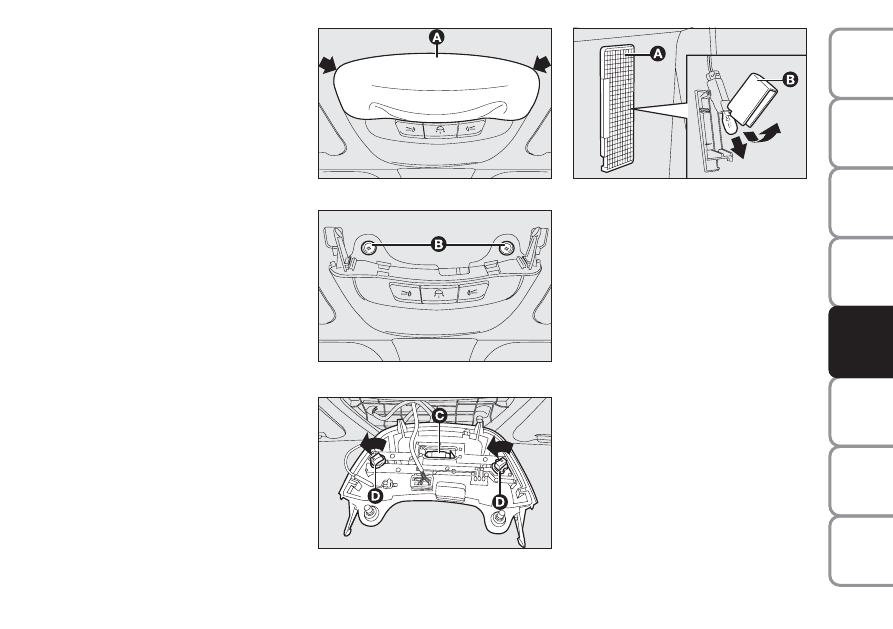

CEILING LIGHT

To change the bulb, proceed as fol-

lows:
❒ work in the points shown by the ar-

rows and remove the plastic shape

A-fig. 33;

❒ loosen the two fastening screws B-

fig. 34 to disassemble the unit;

❒ replace the central bulb C-fig. 35

releasing it from the side contacts

making sure that the new bulb is

correctly clamped between the con-

tacts; replace side bulbs D-fig. 35

turning both bulb holders counter-

clockwise then, remove the snap-

fitted bulbs.

fig. 33

L0C0161m

fig. 34

L0C0162m

fig. 35

L0C0163m

fig. 36

L0C0165m

BOOT LIGHT fig. 36

To change the bulb, proceed as fol-

lows:
❒ open the tailgate;
❒ remove the light unit A levering in

the point shown by the arrow.

❒ open the protective cover B and re-

place the snap-fitted bulb;

❒ reclose the protective cover B on

the lens;

❒ refit the light unit A inserting it in

its correct position firstly on one

end and then on the other until it

clicks into place.

156

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

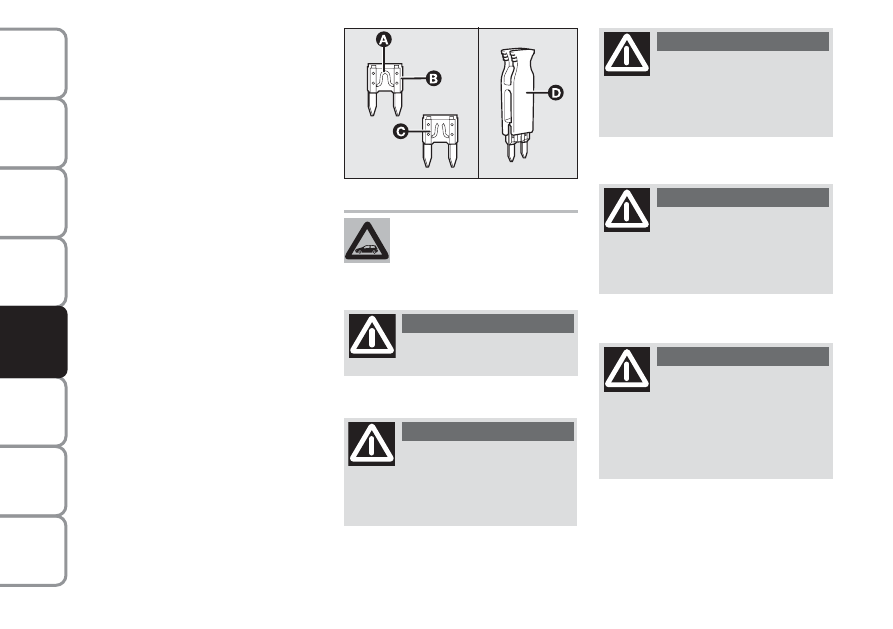

IF A FUSE BLOWS

GENERAL fig. 37

The fuse is a protective device for the

electric system: it comes into action

(i.e. it cuts off) mainly due to a fault

or improper action on the system.

When a device does not work, check

the efficiency of its fuse. The conduc-

tor element A must be intact. If not,

replace the fuse with one of the same

amp rating (same colour).

B undamaged fuse

C fuse with damaged filament.

To facilitate fuse replacement, use the

pliers D hooked to the fusebox on the

instrument panel.

fig. 37

L0C0122m

Never replace a fuse with
metal wires or anything
else.

Never replace a fuse with
metal wires or anything

else. Never replace a fuse with an-
other with a higher amp rating,
DANGER OF FIRE.

WARNING

If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-

FUSE) cuts in, do not attempt any
repair and contact a Lancia Dealer-
ship.

WARNING

If fuse blows again, con-
tact a Lancia Dealership.

WARNING

Before replacing a fuse,
make sure the ignition key

has been removed and that all the
other services are switched off
and/or disengaged.

WARNING

If a general protection fuse
for safety systems (air bag

system, braking system), power
unit systems (engine system, trans-
mission system) or steering system
is triggered, contact a Lancia
Dealership.

WARNING

157

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

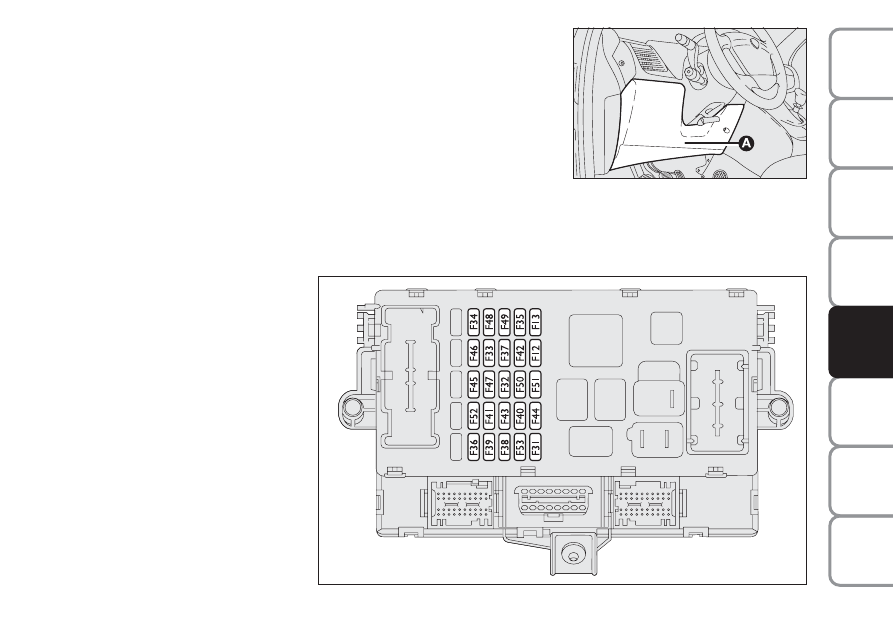

FUSE LOCATION

Fuses are grouped into two fuse boxes to be found respectively on the dash-

board on the left side of the steering column and in the engine compartment

near the battery.

Fuse box on the dashboard fig. 39

To gain access to the fuses in the fuse box on the dashboard, remove the plas-

tic protection A-fig. 38.

fig. 39

L0C0123m

fig. 38

L0C0121m

158

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

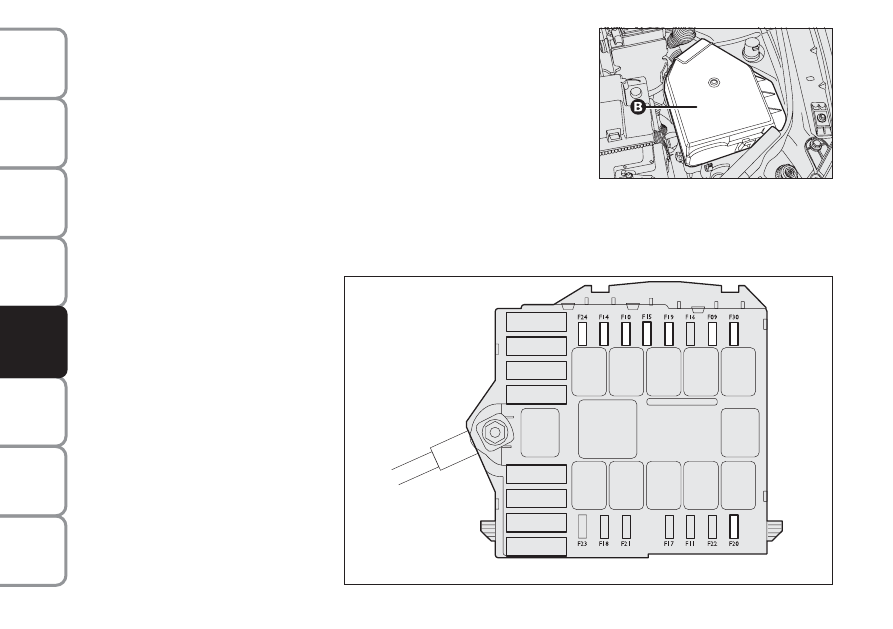

Fuse box near the battery fig. 41

To gain access to the fuses in the fuse box near the battery, remove the plastic

protection B-fig. 40.

fig. 40

L0C0125m

fig. 41

L0C4009m

159

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

FUSE SUMMARY TABLE

Fuse box on the dashboard

SERVICES

Right dipped-beam headlight
Left dipped-beam headlight / Headlight aiming device
Int/a for engine compartment control units coils and relays, body computer
+30 front ceiling light
Free
Free
+15 reversing lights, Multijet fuel meter, water in diesel fuel sensor
+30 boot unlocking
+15 brake lights, third brake light, instrument panel
Door lock (relays inside the body computer)
+30 navigator / sound system presetting / sound system, Blue&Me control unit,
heating and ventilation system, eobd diagnostic socket
Heated rear window
Free
+15 abs control unit / vdc, yaw sensor (vdc)
Windscreen wiper, windscreen washer pump / rear window washer
Current outlet / cigar lighter
Free
Free
Driver's power window
Passenger's power window
+15 for heating and ventilation system, dashboard central control panel, driver's door
control panel, mirror control, driver's power window control unit, sunroof,
twilight/rain sensor
Air bag system
+15 for navigator / sound system presetting / sound system (low), controls on steering
wheel, Blue&Me control unit, cruise control
Heated rear window
+30 instrument panel, rear fog light

FUSE

F12
F13
F31
F32
F33
F34
F35
F36
F37
F38

F39
F40
F41
F42
F43
F44
F45
F46
F47
F48

F49
F50

F51
F52
F53

AMPERE

7,5
7,5

5
5
–
–
5

10

5

15

10
30

–
5

30
15

–
–

20
20

5

7,5

5

15

7,5

160

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

Fuse box in engine compartment

SERVICES

Free

Horn

Right main-beam headlight

Left main-beam headlight

Compressor

Free

15/54 electric power steering control unit

Front fog lights

External fuses
❒ 20A fuse for external amplifier (Bose Hi-Fi sound system), installed near the dashboard fusebox (accessible by re-

moving the protective plastic A-fig. 38);

❒ 20A fuse for sunroof, installed near the dashboard fusebox (accessible by removing the protective plastic A-fig. 38);
❒ 30A fuse for robotized transmission pump, installed in the engine compartment near the battery;

FUSE

F9

F10

F14

F15

F19

F20

F24

F30

AMPERE

–

15

7,5

7,5

7,5

–

7,5

15

161

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

IF THE BATTERY
IS FLAT

IMPORTANT Battery recharging pro-

cedure is given as information only

since this operation shall be only per-

formed at a Lancia Dealership.

Charging should be slow at a low amp

rating for 24 hours. Charging for a

longer time may damage the battery.

Charge the battery as follows:
❒ disconnect battery negative termi-

nal;

❒ connect the charger cables to the

battery terminals, observing the

poles;

❒ turn on the charger;
❒ when you have finished, turn the

charger off before disconnecting the

battery;

❒ reconnect battery negative termi-

nal.

The liquid contained in the
battery is poisonous and

corrosive. Avoid contact with the
skin or eyes. The battery should be
charged in a well ventilated place,
away from naked flames or possi-
ble sources of sparks: danger of ex-
plosion and fire.

WARNING

Do not attempt to charge a
frozen battery: it must

firstly be thawed, otherwise it may
burst. If freezing has occurred, the
battery should be checked by
skilled personnel to make sure that
the internal elements are not dam-
aged and that the body is not
cracked, with the risk of leaking
poisonous and corrosive acid.

WARNING

162

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

TOWING THE CAR

The tow rings provided with the car

are housed in the tool box under the

boot mat.

The two tow rings have different

length: the short one shall be fitted on

the front side whereas the long one

shall be fitted on the rear side.

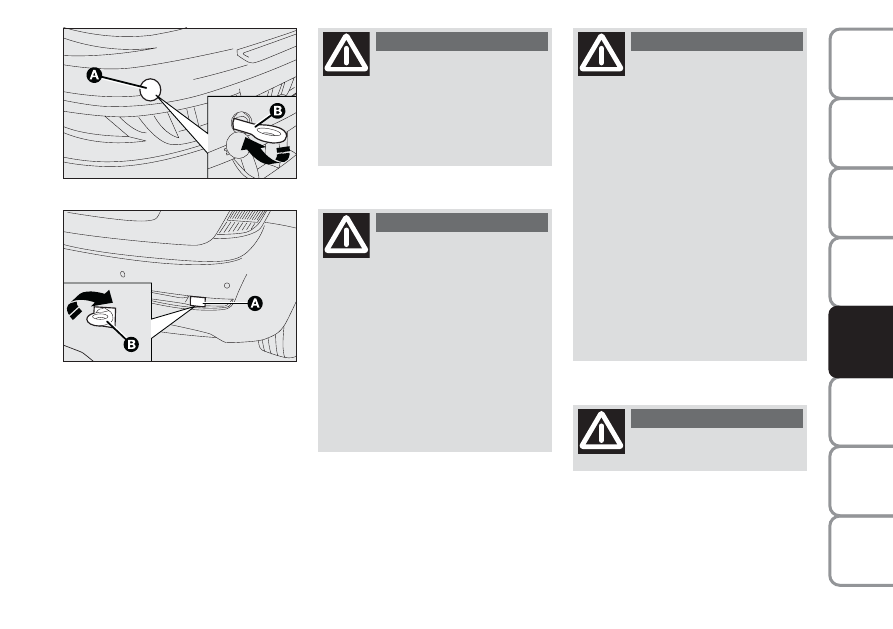

TOW RING HOOKING fig. 43-44

Proceed as follows:
❒ release plug A fitting the screwdriver

into the proper slot and remove it by

levering outwards;

❒ take the tow hook B from its support;
❒ tighten the ring on the rear or front

threaded pin.

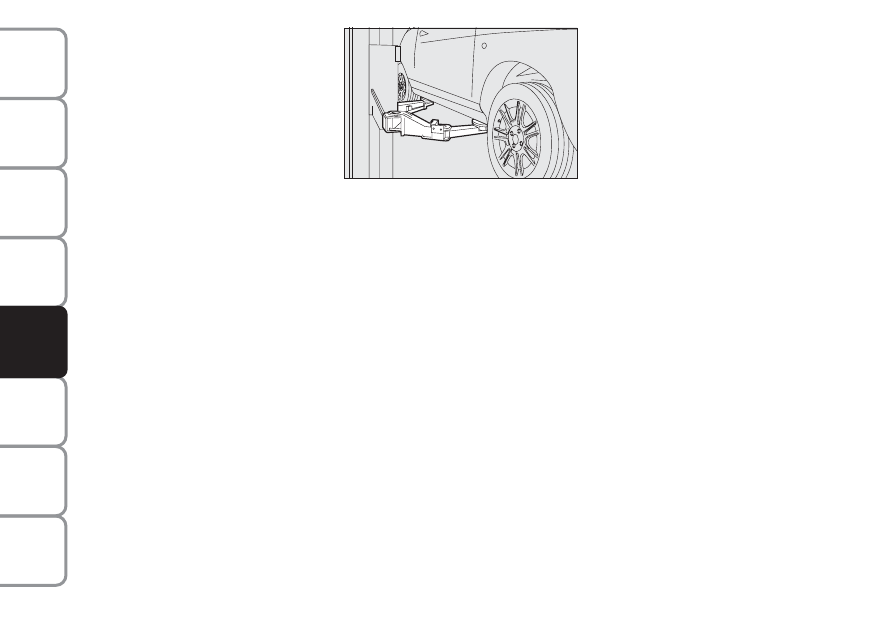

JACKING THE CAR

If the car needs to be jacked up, go to

a Lancia Dealership which is equipped

with shop jacks and jack arms fig. 42.

Jack up the car only by positioning

the jack arms or the shop jack in the

points shown in the figures.

fig. 42

L0C0244m

163

WARNING

LIGHTS AND

MESSAGES

CAR

MAINTENANCE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

Before starting to tow, turn
the ignition key to MAR

and then to STOP. Do not remove
the key. If the key is removed, the
steering lock engages automati-
cally resulting in the impossibility
to steer the wheels.

WARNING

When towing, remember
that without the help of the

servobrake and power steering, a
greater effort is required on the
pedal and steering wheel. Do not
use flexible cables for towing and
avoid jerks. During towing opera-
tions make sure that fastening the
joint to the car does not damage the
components in contact with it.
When towing the car, you must
comply with the specific traffic
regulations regarding the tow ring
and how to tow on the road.

WARNING

Do not start the engine
when towing the vehicle.

WARNING

fig. 43

L0C0098m

fig. 44

L0C0272m

The front and rear tow
hooks should only be used

on the roads for emergency opera-
tions. Towing is permitted for short
journies using the special device that
conforms to the highway code (rigid
bar) to move the vehicle onto the
road in preparation for towing or
transportation on a special vehicle.
The hooks should NOT be used for
recovering the vehicle away from the
road or where there are obstacles
and/or for towing using cables or
other non rigid devices. With regard
to the above conditions, towing
should take place with the two ve-
hicles (the one towing and the one
being towed) aligned as closely as
possible along the same centre line
axis.

WARNING

blank page

165

WARNING

LIGHTS AND

MESSAGES

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

CAR MAINTENANCE

SCHEDULED SERVICING ............................... 166

SERVICE SCHEDULE  ..................................... 167

PERIODICAL CHECKS  .................................... 169

USE OF THE CAR UNDER

HEAVY CONDITIONS ...................................... 169

CHECKING FLUID LEVELS ........................... 170

AIR CLEANER/POLLEN FILTER ................... 177

DIESEL FUEL FILTER .................................... 177

BATTERY ......................................................... 178

WHEELS AND TYRES ..................................... 180

RUBBER HOSES  .............................................. 181

WINDSCREEN/REAR WINDOW WIPERS ....... 181

BODYWORK .................................................... 183

INTERIORS  ...................................................... 185

166

WARNING

LIGHTS AND

MESSAGES

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

SCHEDULED
SERVICING

Correct maintenance is essential for

ensuring long car life under the best

conditions.

This is why Lancia has programmed

a series of checks and maintenance

operations every 30,000 km.

It is however important to remember

that scheduled servicing does not

completely cover all the car’s require-

ments: also in the initial period before

30,000 km service coupon and later,

between one coupon and another, or-

dinary care is still required such as for

example routine check and topping

up the level of fluids, tyre pressure

check, etc...

IMPORTANT The Programmed Main-

tenance coupons are specified by the

Manufacturer. The failure to have

them carried out may invalidate the

warranty.

Scheduled Servicing is performed by

all Lancia Dealership, at pre-estab-

lished times.

If during each operation, in addition

to the ones programmed, the need

arises for further replacements or re-

pairs, these may be carried out only

with the explicit agreement of the

Customer.

IMPORTANT You are advised to con-

tact Lancia Dealership in the event of

any minor operating faults, without

waiting for the next service coupon.

If your car is used frequently for tow-

ing, the interval between one service

coupon and the other must be re-

duced.

167

WARNING

LIGHTS AND

MESSAGES

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD

AND CONTROLS

SAFETY

DEVICES

CORRECT

USE OF

THE CAR

IN AN

EMERGENCY

CAR

MAINTENANCE

30

60

90

120

150

180

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

SERVICE SCHEDULE

Thousands of km

Check tyre conditions/wear and adjust pressure if required

Check lighting system operation (headlights, direction indicators,

hazard lights, boot lights, passenger compartment lights, glovebox lights,

warning lights, etc.)

Check windscreen wiper/washer operation

Check windscreen/rear window blade position/wear

Check front disk brake pad conditions and wear

Check rear drum brake lining conditions and wear

Sight inspect the conditions of: body exterior, underbody protection, pipes

and hoses (exhaust - fuel - brakes), rubber parts (boots, sleeves, bushes, etc.)

Check for bonnet and boot lock cleanness, lever cleanness and lubrication

Check tension and adjust accessory drive belts

(excluding engines with automatic belt tighteners)

Check tension and adjust accessory drive belts

Check and adjust tappet clearance (1.2

8V

versions)

Check and adjust handbrake lever stroke

Check exhaust emissions/smoke

Check antievaporation system (1.2

8V

versions)

Change fuel filter (Green-filter) (1.3 Multijet)

Change air cleaner cartridge
