Lancia MUSA. Service Manual - part 4





56

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

˙

Air flow between foot well vents

(hotter air) and central and side

dashboard vents (cooler air). This

distribution is particularly useful

in spring and autumn on a sunny

day.

Air flow distributed between foot

well vents and windscreen and front

side window defrosting/demisting

vents. This allows an adequate

warming of the passenger com-

partment and prevents the win-

dows from misting up.

This function may be used to cool

down the passenger compartment as

fast as possible and exploit the system

potential to the maximum. The func-

tion activates air recirculation and the

climate control compressor, air distri-

bution and fan speed are managed  by

the system according to environmen-

tal conditions. All manual settings will

be allowed when this function is on.

To switch the function off, simply turn

the temperature knob anticlockwise

and set the required temperature.

I-M air
distribution
buttons

Press these buttons

to manually set one

of the five possible

air distribution pat-

terns on the left and

on the right side of

the passenger com-

partment:

Air flow to the windscreen and

front side window vents to demist

or defrost them.

˙

Air flow at central and side dash-

board vents to ventilate the chest

and the face during the hot season.

Air flow to the front and rear foot

well vents. Thanks to the natural

tendency of hot air to spread up-

wards, this distribution pattern al-

lows to warm the passenger com-

partment up as quickly as possi-

ble, providing an immediate feel-

ing of warmth.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

57

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

The set distribution is shown by the

corresponding LEDs on the selected

buttons. When the combined function

is on, press a button to activate the

corresponding functions along with

the settings. If the button correspond-

ing to a previously active button is

pressed, the function is turned off and

the corresponding LED will go out.

To restore automatic air distribution

control after a manual adjustment,

press button AUTO.

Air distribution is automatically

aligned on driver and passenger side

when the driver selects air distribu-

tion towards the windscreen. The pas-

senger can select a different distribu-

tion by pressing the corresponding

buttons afterwards.

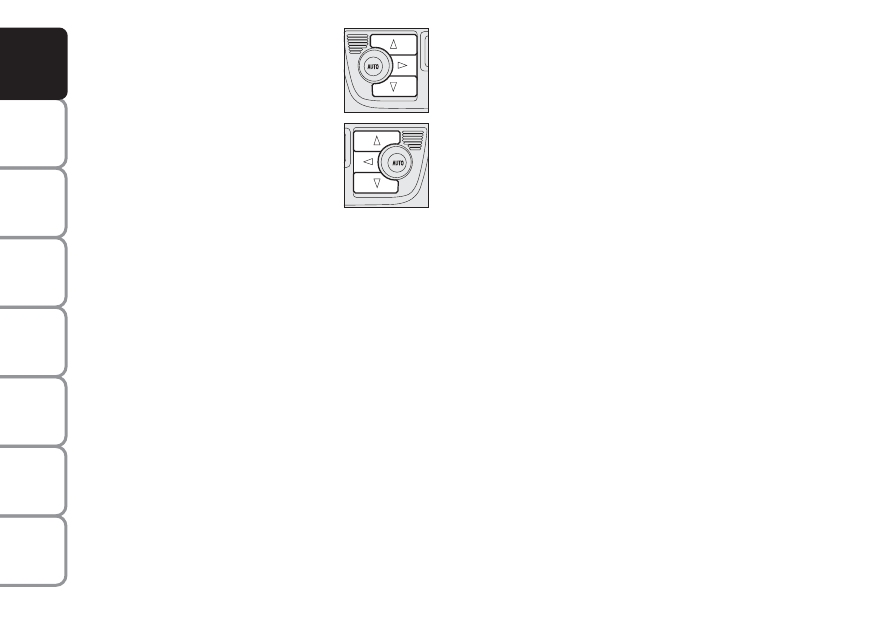

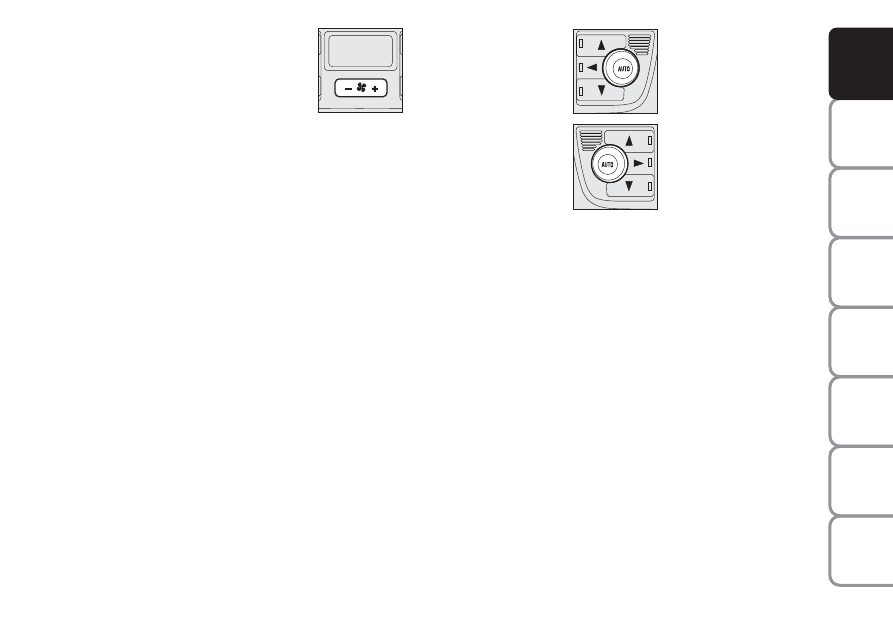

AUTO H-N

buttons (automatic

operation)

Press  AUTO driver’s

side and/or passenger’s

side to automatically

adjust the air speed

and air distribution in

the corresponding

zones cancelling al pre-

vious manual settings.

The message FULL AUTO will ap-

pear on the front display in this con-

dition.

By manually intervening on at least of

the functions automatically managed

by the system (air recirculation, fan

speed or compressor on/off), the word

FULL will disappear from the display

indicating that the system is no longer

automatically controlling all the func-

tions (the temperature will still be

controlled automatically by the sys-

tem).

Fan speed
adjustment
buttons L

Press button

p

to in-

crease or to decrease

the fan speed and therefore the

amount of air admitted into the pas-

senger compartment, although keep-

ing the required temperature set.

The fan speed is shown by the lit bars

on the display:
❒ Maximum fan speed = all bars lit
❒ Minimum fan speed = one bar lit.
The fan can be cut off only if the cli-

mate control compressor has been

switched off pressing button B.

IMPORTANT To restore automatic

fan speed control after a manual ad-

justment, press button AUTO.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

58

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Air recirculation
on/off button C

Air recirculation

works according to

the following operat-

ing logics:

❒ forced switching on (inside air re-

circulation always on), indicated by

the turning off of the button led C

and symbol

í

on the display;

❒ function off (air recirculation al-

ways off and introduction of ex-

ternal air), indicated by the fact

that the LED on the button will go

off and symbol

ê

will appear on

the display.

These operating conditions are ob-

tained by pressing in sequence.

For safety reasons, the system will au-

tomatically turn the recycle function

off to allow the introduction of fresh

air after a certain time.

MONO A button
(for aligning
temperature and
air distribution
settings)

Press MONO to automatically align

air temperature and distribution set-

tings in the front passenger area to

those of in the driver’s area and to

therefore set both zones by turning

the knob on driver’s side only. This

function is used to adjust the temper-

ature in the entire passenger com-

partment in presence of the driver

only. To go back to separate air and

temperature distribution in the two

zones of the passenger compartment,

simply turn the knobs or press

A-MONO when the LED on the but-

ton is on.

IMPORTANT Should the system (af-

ter manual settings) be no longer able

to guarantee the required temperature

set in the passenger compartment, the

set temperature value will start flash-

ing to indicate this condition, after

one minute the AUTO message will go

out.

To restore system automatic control at

any time, after one or more manual

adjustments, press button AUTO.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

59

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

IMPORTANT The air recirculation

function makes it possible to reach the

required heating or cooling conditions

faster. It is however inadvisable to use

it on rainy/cold days as it would con-

siderably increase the possibility of

the windows misting inside, especially

if the climate control compressor is

off.

Recirculation is forced off (i.e. air is

introduced from the outside) when

the the outside temperature is colder

than 5-7°C  to prevent misting up.

Climate control
compressor on/off
button B

Press button

when

the LED on the but-

ton is on, to turn the climate control

compressor off. The LED will go out.

Press the button when the LED is off

to restore automatically system con-

trol and use of the compressor. The

LED will light up on the button in

this case.

The system will switch recirculation

off when the compressor is switched

off to prevent misting up. Although

the system is capable of maintaining

the required temperature, the word

FULL will disappear from the display.

If on the other hand the system can-

not maintain the required tempera-

ture, the digits will blink and the word

AUTO will disappear.

IMPORTANT With the compressor

off, it is not possible to introduced air

cooler than ambient temperature into

the passenger compartment. Further-

more, in certain conditions, the win-

dows could mist up rapidly because

the air is not dehumidified.

It is advisable not to use
the air recirculation func-

tion when the outside temperature
is low to prevent the windows from
rapidly misting up.

WARNING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

60

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

IMPORTANT The fast demist/defrost

function will remain on for approxi-

mately 3 minutes, from when the en-

gine coolant reaches a temperature of

50°C (petrol versions) or 35°C (Mul-

tijet versions).

When this function is on, the LED of

the corresponding button switches on

and that of the rear window demister.

The message FULL AUTO goes off on

the display.

You can only adjust the fan speed and

switch the rear window demister off

manually when this function is active.

To restore running operations before

this function was activated, press ei-

ther button F, air recirculation button

C, compressor button or button

AUTO N or H.

Fast window
demisting/
defrosting
button F

Press this button: the

climate control system will automati-

cally switch on all the functions re-

quired for fast windscreen and front

side window demisting/defrosting,

that is:
❒ climate control compressor  on

when weather conditions are suit-

able;

❒ air recycle off;
❒ maximum air temperature HI on

both areas;

❒ proper fan speed according to en-

gine coolant temperature to limit

the flow of not sufficiently warm air

to demist the windows into the pas-

senger compartment;

❒ air flow to the windscreen and

front side windows vents;

❒ the heated rear window on

The switching off of the climate con-

trol compressor remains in storage

even when the engine has been

stopped.

To restore automatic compressor con-

trol, press

again (in this case, the

system will only work as a heater) or

press AUTO.

When the compressor is off, if the ex-

ternal temperature is hotter than the

set temperature and the system can-

not satisfy the request, the digits of

the set temperature will blink for a

few seconds and the message AUTO

will go out.

With climate control compressor off,

the fan speed can be set to zero man-

ually (no bar shown).

With the compressor on and the en-

gine started, the fan speed may be re-

duced to the minimum setting (only

one bar shown).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

61

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Switching the
system off E

Press to switch the

climate control system

off. The display will

go out as a conse-

quence.

The following climate control condi-

tions will be established when the sys-

tem is off:
❒ LEDs off;
❒ set temperature not shown;
❒ air recirculation on, passenger com-

partment isolated from the outside;

❒ air conditioner compressor off;
❒ fan off.

The rear window heater can be turned

on and off manually by pressing G

when the system is off.

IMPORTANT The climate control sys-

tem control unit stores the settings be-

fore the system is turned off and rep-

resents the same settings when it

turned back on by pressing any but-

ton (except for the heated rear win-

dow). If the function corresponding to

the pressed button was off, it will be

turned on; if it was on, it will be kept

on.

Press AUTO to turn the climate con-

trol system in fully automatic mode.

Rear window
heater and external
rearview mirror
heater on/off
button G

Press this button to turn the rear win-

dow demister/defroster on. The LED

in the button will light up when the

function is on.

The heater will go out automatically

after a certain time or by pressing the

button again. It will also go out when

the engine is stopped until it is started

again.

IMPORTANT Do not apply stickers

over the electric filaments on the in-

side of the rear window to prevent

damage and ensure perfect operation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

62

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

PARKING LIGHTS fig. 65

With the key at STOP or extracted,

turn the ring to position

6

. Warning

light

3

on the instrument panel will

go on with the side/taillights and the

number plate lights. Move the stalk

upwards

a to turn on the right side

lights only; move it downwards

b to

turn on the left side lights only. In ei-

ther case, warning light

3

will not

light up on the instrument cluster.

FLASHING THE HEADLIGHTS

Pull the stalk towards the steering

wheel (unstable position) regardless

of the position of the ring. The warn-

ing light

1

on the instrument cluster

will come on at the same time.

fig. 61

L0D0066m

fig. 64

L0D0069m

fig. 63

L0D0068m

fig. 62

L0D0067m

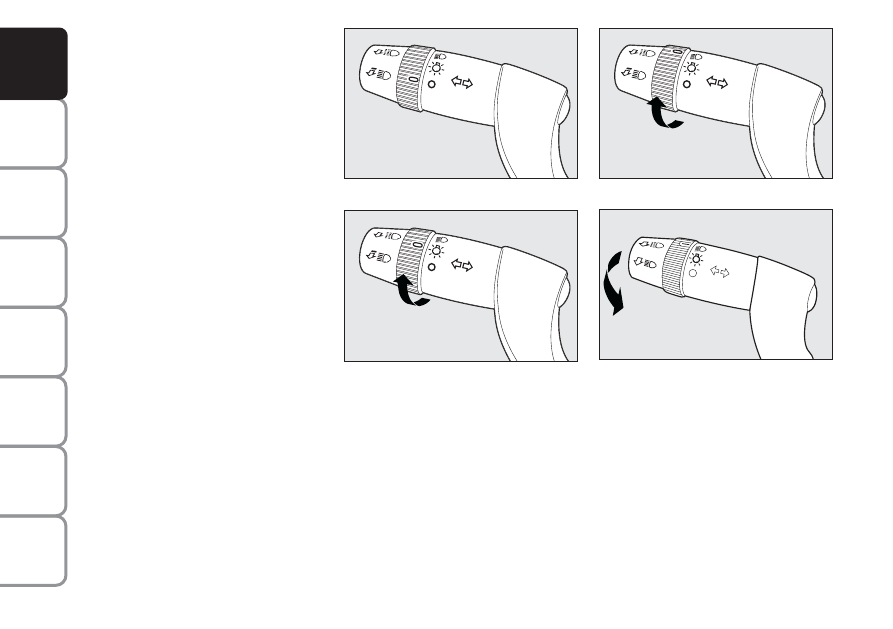

EXTERNAL LIGHTS

The left-hand lever includes the con-

trols for the external lights.
The external lights can only be

switched on when the ignition key is

at MAR.

LIGHTS OFF Fig. 61
Turn the ring to position

å.

SIDE/TAIL LIGHTS Fig. 62
Turn the ring to

6

.

The warning light 3 on the instru-

ment cluster will come on at the same

time.

DIPPED BEAM HEADLIGHTS
fig. 63
Turn the ring to

2.

The warning light 3on the instru-

ment cluster will come on at the same

time.

BEAM HEADLIGHTS Fig. 64
With the ring at

2, pull the lever to-

wards the steering wheel (permanent

position).
The warning light 1on the instru-

ment cluster will come on at the same

time.
To turn the beam headlights off, pull

again the lever towards the steering

wheel (dipped beams will turn on

again).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

63

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

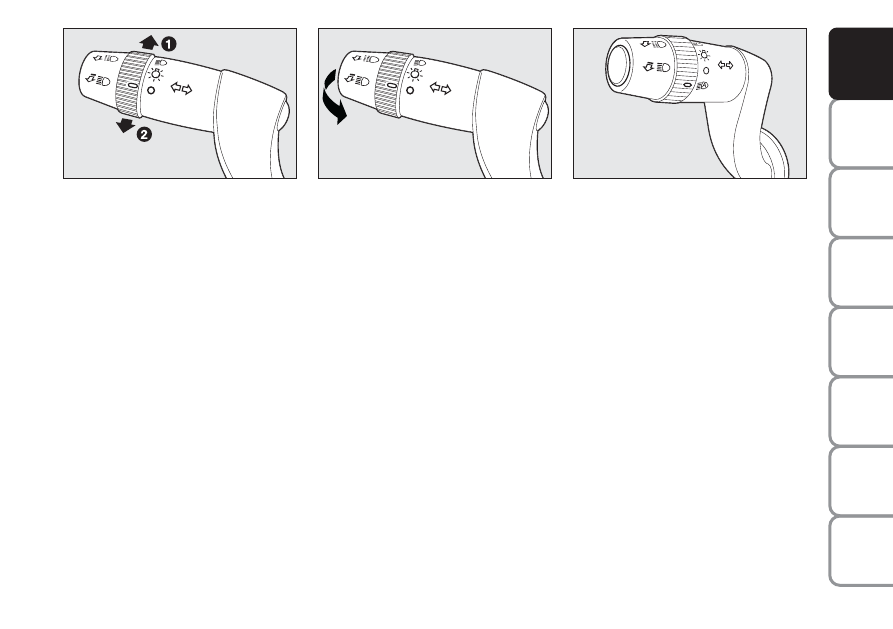

DIRECTION INDICATORS
Fig. 65

Push the stalk to (stable) position:
❒ upwards (position 1): right-hand

indicator;

❒ downwards (position 2): left-hand

indicator;

Warning light

F

or

D

comes on in-

termittently on the instrument panel.

Indicators are switched off automati-

cally when the steering wheel is

straightened.

If you want the indicator to flash

briefly to show that you are about to

change lane, move the stalk up or

down without clicking into position

(unstable position).  When released

the stalk will return to its home posi-

tion.

AUTOMATIC LIGHT SENSORS
(dusk sensor)
(for versions/markets, where provided)

This sensor detects changes of exter-

nal lights according to the sensitivity

of the setting: the higher the sensitiv-

ity, the lower the amount of external

light needed to switch the lights on.

The sensitivity of the dusk sensor is

adjusted by means of the “Setup

menu” on the “Multifunctional dis-

play”.

Activation

Turn the ring to

2

A

fig. 67 to light up

the side/tail lights and dipped beam

headlights according to the external

brightness.

“FOLLOW ME HOME”
DEVICE fig. 66

This function allows the illumination

of the space in front of the car for a

preset period of time.

Activation

With the ignition key on STOP or re-

moved, pull the stalk towards the

steering wheel within 2 minutes from

when the engine is turned off.

At each single movement of the stalk,

the lights will remain on for an extra

30 seconds up to a maximum of 210

seconds; then the lights are switched

off automatically.

fig. 65

L0D0071m

fig. 66

L0D0070m

fig. 67

L0D0072m

-------------------------------------------------------------------------------------------------------------------------------------------------------------

64

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

CLEANING THE
WINDOWS

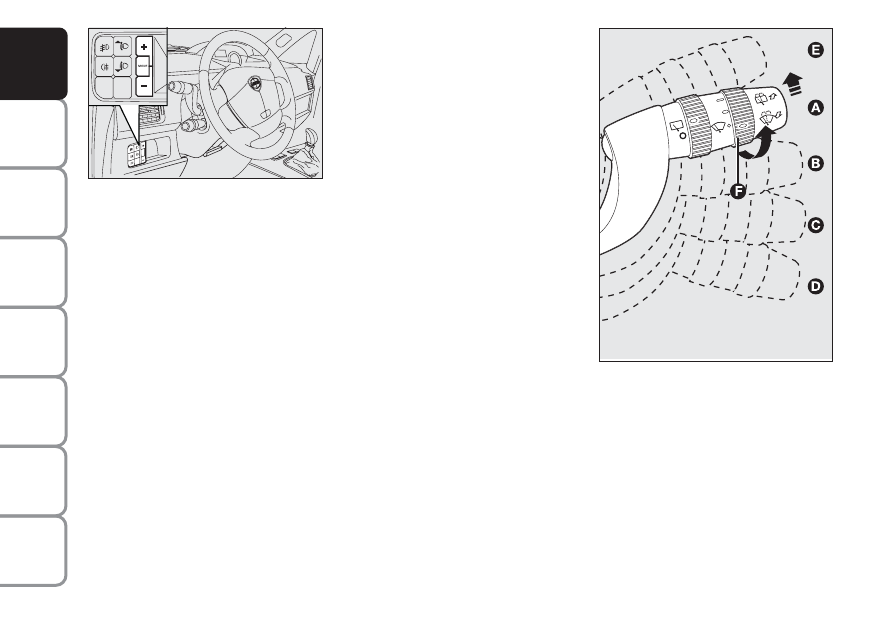

WINDSCREEN WASHER/
WIPER

The device can only work when the

ignition key is at MAR.

The right hand stalk can take up five

different positions:

windscreen wiper off

flick operation.

With the lever in position B, turn the

knurled ring to select one of four

different speeds for the intermittent

operation mode:

,

= very slow flick

--

= slow flick

---

= medium flick

----

= fast flick

The set sensitivity level of the sensor

will appear on the multifunctional

display when the automatic headlight

sensor is on. Adjust sensitivity by

pressing

and

(see fig. 68) while

the setting appears on the display.

Deactivation

When the command to switch off is

given by the sensor, the dipped head-

lamps are deactivated and then the

side lights about 10 seconds later.

If the main beam heads are turned on

(manually by the driver) while the au-

tomatic headlight function is on, the

main beam headlights will be turned

off when the lights are automatically

turned off.

IMPORTANT The sensor cannot de-

tect the presence of fog: switch the

lights on manually in this case.

fig. 68

L0D0384m

fig. 69

L0C0073m

continuous slow

continuous fast

temporary fast operation (unstable

position).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

65

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Operation in position is limited to

the time during which the lever is

kept in that position manually. When

released, the stalk will return to posi-

tion and the wiper will be automat-

ically stopped.

IMPORTANT Replace wiper blades as

specified in the “Maintenance and

care” chapter.

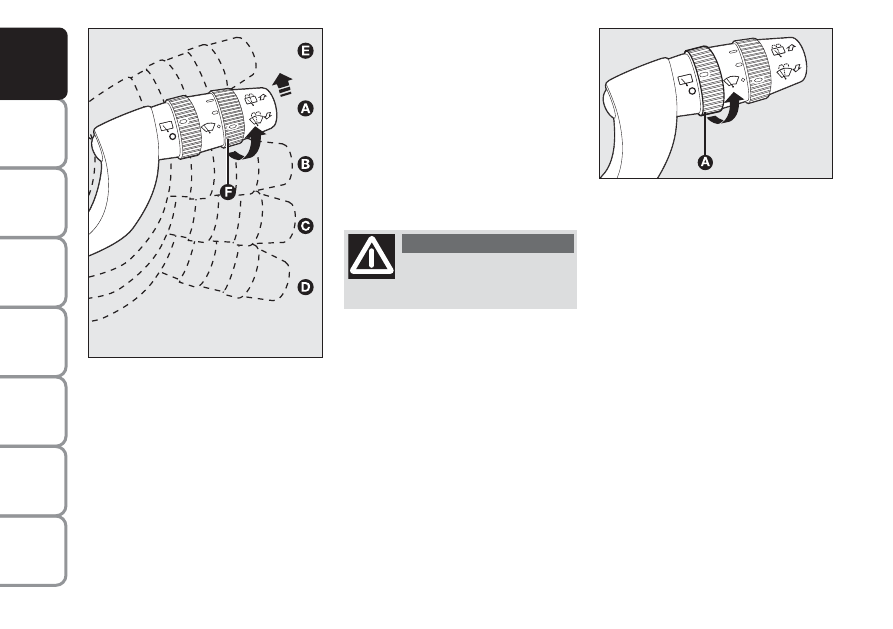

RAIN SENSOR
(for versions/markets, where provided)

The rain sensor is located behind the

driving mirror in contact with the

windscreen and has the purpose of

automatically adjusting the frequency

of the windscreen wiper strokes as to

the rain intensity.

IMPORTANT Keep clean the glass in

the sensor area.

Activation

Move the right stalk down by one

click.

The activation of the rain sensor is

signalled by a control acquisition

flick.

Turn the ring F-fig. 71 to increase the

rain sensor sensitivity.

The increase of the sensitivity of the

rain sensor is signalled by a control

and acquisition flick.

The smart cycle is started when the

windscreen wiper is turned on while

the rain sensor is active without sup-

plementary flick after 5 seconds. The

sensor will resume normal automatic

operation.

“Smart washing” function

Pull the stalk towards the steering

wheel (unstable position) to operate

the windscreen washer.

Keeping the stalk pulled for more

than half a second, with just one

movement it is possible to operate the

washer jet and the wiper at the same

time.

The jet will be released immediately

when the wiper stops after four flicks.

A further stroke after 5 seconds com-

pletes the wiping operation.

Do not use the windscreen
wiper to remove layers of
snow or ice from the wind-
screen. In such conditions,

the windscreen wiper may be sub-
jected to excessive stress and the
motor protection which prevents op-
eration for a few seconds may trip.
If rear window wiper operation is
not reset, contact a Lancia Dealer-
ship.

fig. 70

L0D0074m

-------------------------------------------------------------------------------------------------------------------------------------------------------------

66

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

❒ in synchronous mode (at half the

frequency of the windscreen

wiper) when the windscreen wiper

is running.

The rear window wiper will run in

continuous mode when the wind-

screen wiper is running and reverse

gear is engaged.

Pull the stalk towards the dashboard

(unstable position) to operate the rear

window washer.

Hold the stalk pushed for longer than

half a second to operate the rear win-

dow wiper as well.

Smart wash function is activated as

for the windscreen wiper when the

stalk is released.

The wiper will flick once to indicate

that the sensor has been reactivated.

The rain sensor is able to recognize

and automatically adjust itself in the

presence of the following particular

conditions:
❒ dirt on the controlled surface (salt,

dirt, etc.);

❒ difference between day and night.

Deactivation

Move the lever from position or turn

the ignition key to STOP.

At the next start-up (key at MAR),

the sensor will not be reactivated even

if the stalk is at B. To activate the sen-

sor, move the stalk to position or C

and then to position or turn the sen-

sitivity adjustment knurled ring.

fig. 71

L0C0073m

Streaks of water may
cause undesired blade

moving.

WARNING

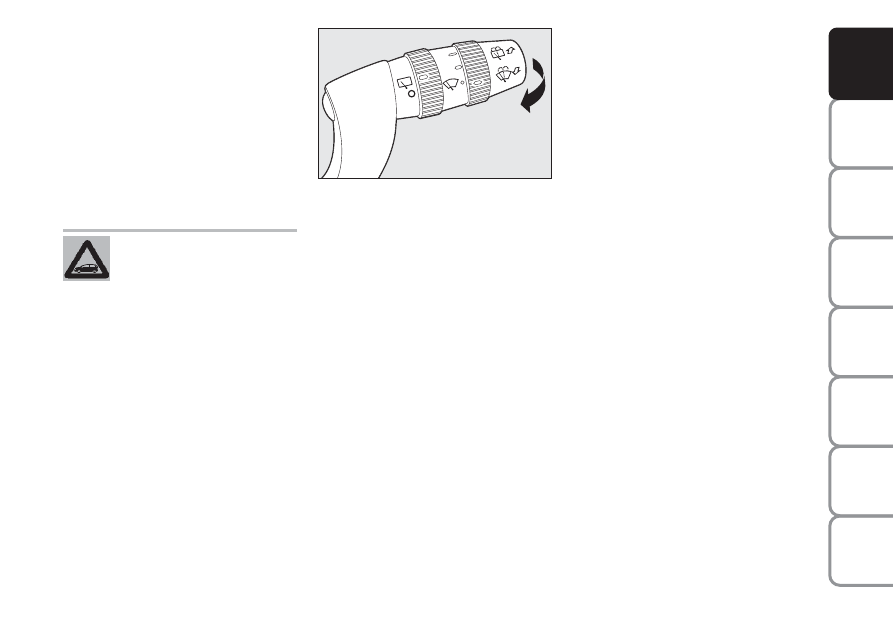

REAR WINDOW WIPER/
WASHER fig. 72

The device can only work when the

ignition key is at MAR.

Turn ring from position

å

to posi-

tion

' to open the rear window wiper

as follows:
❒ in flick mode when the windscreen

wiper is not running

fig. 72

L0D0075m

-------------------------------------------------------------------------------------------------------------------------------------------------------------

67

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

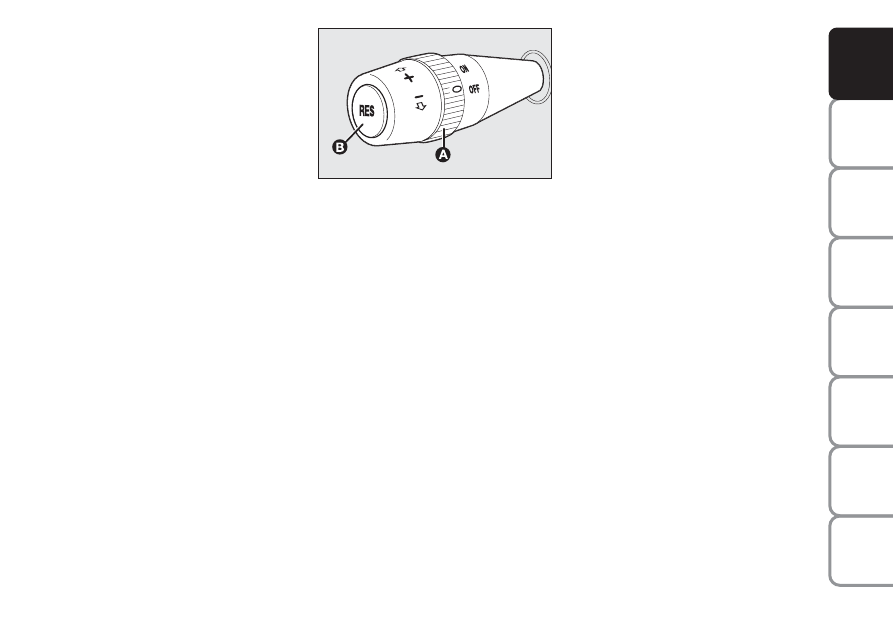

CRUISE CONTROL

(for versions/markets, where provided)

It is a device able to support the dri-

ver, with electronic control, which al-

lows driving at speed over 30 km/h

on long and straight dry roads (e.g.:

motorways), at a desired speed, with-

out pressing the accelerator pedal.

Therefore it is not suggested to use

this device on extra-urban roads with

traffic. Do not use it in towns.

STORING THE SPEED

Proceed as follows:
❒ turn ring A-fig. 73 to ON and press

the accelerator pedal to the re-

quired speed;

❒ push the lever upwards (+) for at

least 3 seconds, then release it: the

car speed will be stored. The ac-

celerator pedal may be released.

If needed (e.g. for overtaking), press

the accelerator pedal to accelerate: the

car will return to the previously set

speed when the pedal is released.

TURING THE DEVICE ON

Turn the ring A-fig. 73 to ON.

The device can only be turned on in

4th or 5th gear. Travelling downhill

with the device engaged, the car speed

may increase more than the memo-

rised one. When the device is acti-

vated the warning light  turns on to-

gether with the relevant message on

the instrument panel (for versions/

markets, where provided).

fig. 73

L0D0076m

-------------------------------------------------------------------------------------------------------------------------------------------------------------

68

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

TURNING THE DEVICE OFF

Turn ring A-fig. 73 to OFF or the ig-

nition key to STOP. The device is au-

tomatically turned off in one of the

following cases:
❒ when the brake pedal or clutch is

pressed.

REDUCING THE STORED
SPEED

This can be carried out in two ways:
❒ by turning the device off and then

storing a new speed;

or
❒ by moving the stalk downwards

(

) until reaching the new speed

which will be stored automatically.

Each operation of the stalk will cor-

respond to a slight reduction in speed

(about 1 km/h), while keeping the

stalk downwards will correspond to a

continuous speed reduction.

RESTORING THE STORED
SPEED

If the device has been disengaged, for

example by pressing the brake or

clutch pedal, the memorized speed

can be reset as follows:
❒ accelerate gradually until reaching

a speed approaching the stored

speed;

❒ engage the gear selected when the

speed was stored (4th or 5th gear);

❒ press RES B.

INCREASING THE STORED
SPEED

The stored speed can be increased

in two ways:

❒ by pressing the accelerator and

then storing the new speed

reached;

or
❒ by moving the stalk upwards (

+

).

Each operation of the stalk will cor-

respond to a slight increase in speed

(about 1 km/h), while keeping the

stalk upwards will correspond to a

continuous speed increase.

When travelling with the
device on, never set the

gearshift lever to neutral.

WARNING

If the device is faulty, turn
ring A to OFF, check the

fuse and contact a Lancia Dealer-
ship.

WARNING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

69

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

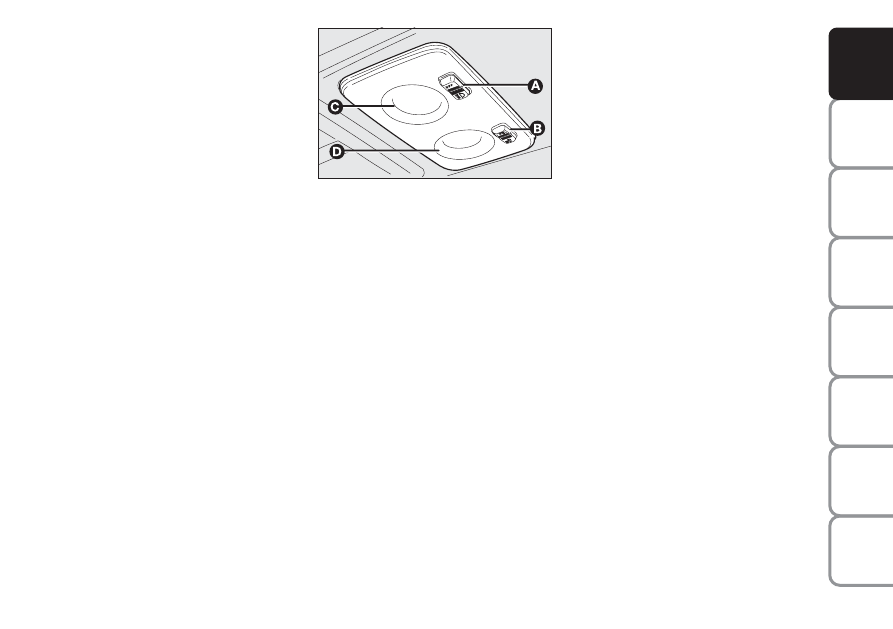

CEILING LIGHTS

FRONT CEILING LIGHT
fig. 74

Switch A- turns these lights  on/off .

With switch in central position,

lights and will turn on/off when

opening/closing the front doors.

With switch pressed on the left side,

lights and will always stay off.

With switch A- pressed on the right

side, lights and will always stay

on.

The lights will be turned on/off grad-

ually.

Switch is used for operating the

spot light function; it works as follows

(light off):
❒ light if the left side is pressed;
❒ light if pressed on the right side.

Lights when getting into the car

Lights will be turned on as follows:
❒ for about 10 seconds when the door

is unlocked;

❒ for about 3 minutes when a door is

opened;

❒ for about 10 seconds when the

doors are closed (within the three

minutes).

Timing will stop when turning the ig-

nition key to MAR.

Light when getting out of the car

After removing the key from the igni-

tion switch, the lights will turn on as

follows:
❒ within 2 minutes from turning the

engine off for about 10 seconds;

❒ when a door is opened for about 3

minutes;

❒ for about 10 seconds when the

doors are closed (within the three

minutes).

Timing will stop automatically when

locking the doors.

IMPORTANT Before getting out of

the vehicle, make sure the switch is at

central position: lights off with doors

closed in order to avoid draining the

battery.

In any case, if the switch is left inad-

vertently to the on position, the lights

will turn off automatically 15 minutes

after turning the engine off.

Courtesy light timing

On certain versions to facilitate get-

ting in/out of the car at night or with

poor lighting, 2 different timed

switching on modes have been pro-

vided.

fig. 74

L0D0077m

-------------------------------------------------------------------------------------------------------------------------------------------------------------

70

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Light when getting out of the car

After removing the key from the igni-

tion switch, the lights will turn on as

follows:
❒ within 2 minutes from turning the

engine off for about 10 seconds;

❒ when a door is opened for about 3

minutes;

❒ for about 10 seconds when the

doors are closed (within the three

minutes).

Timing will stop automatically when

locking the doors.

Ceiling light timer
(for versions/markets, where provided)

On certain versions to facilitate get-

ting in/out of the car at night or with

poor lighting, 2 different timed

switching on modes have been pro-

vided.

Lights when getting into the car

Lights will be turned on as follows:
❒ for about 10 seconds when the door

is unlocked;

❒ for about 3 minutes when a door is

opened;

❒ for about 10 seconds when the

doors are closed (within the three

minutes).

Timing will stop when turning the ig-

nition key to MAR.

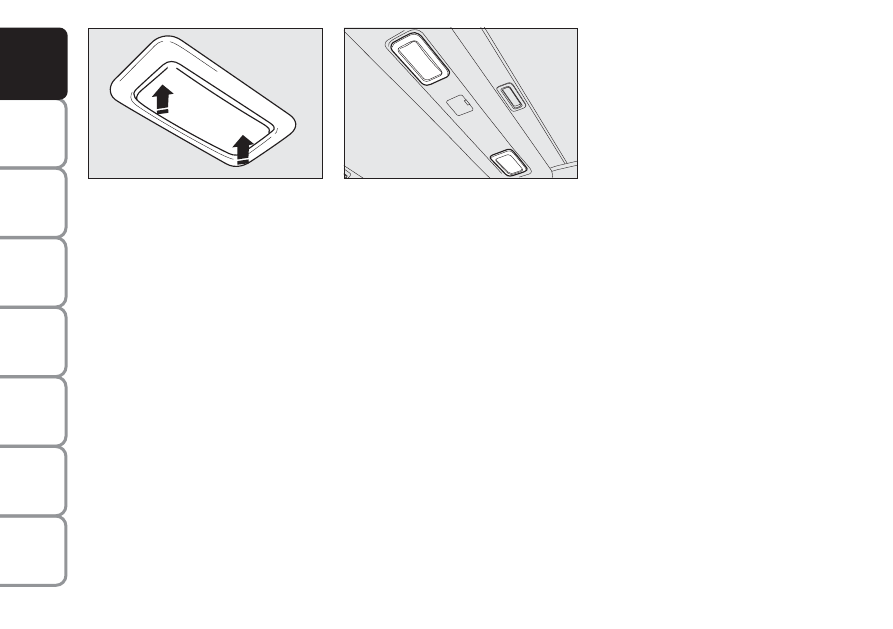

REAR COURTESY LIGHT

The light will turn on/off by pressing

the lens rightwards or leftwards

as shown in fig. 75.

The light may be integrated in the

ceiling unit, where provided.

Two 5W ceiling lights fig. 76 are pre-

sent if a sunroof is fitted.

fig. 75

L0D0078m

fig. 76

L0D0254m

-------------------------------------------------------------------------------------------------------------------------------------------------------------

71

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

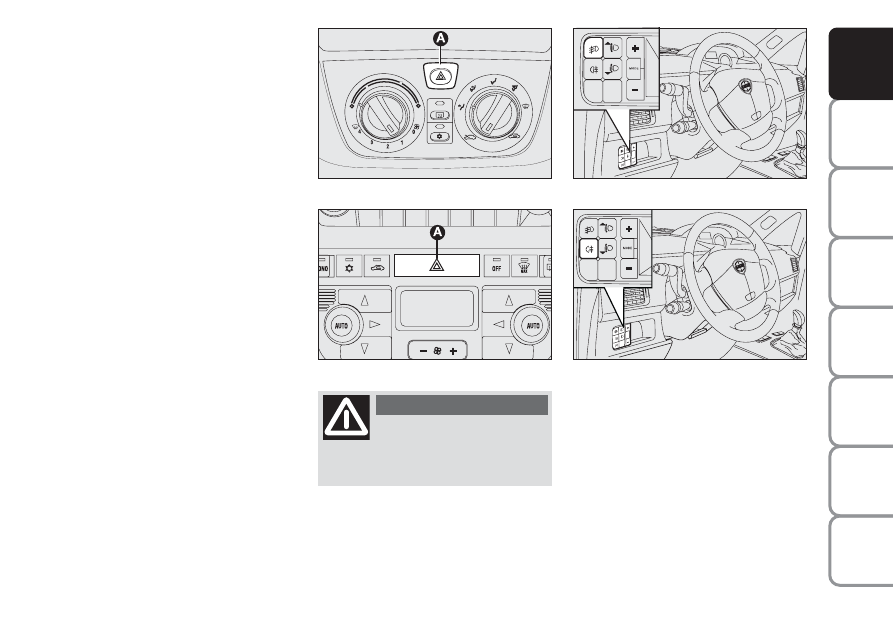

HAZARD LIGHTS

EMERGENCY LIGHTS fig. 77-78

Press the toggle switch in any posi-

tion of the ignition switch to turn the

lights on.

When the device is on, the switch is

flashing and warning lights

Πand ¥

on the cluster come on.

Press the switch again to turn the

lights off.

FRONT FOG LIGHTS fig. 79
(for versions/markets, where provided)

To turn front fog lights on, press but-

ton

5

, to activate these lights it is

necessary to have the side/tail lights

switched on.

Press the button again or turn off the

side/tail lights to turn the lights off.

fig. 77

L0D0080m

fig. 78

L0D0081m

fig. 79

L0D0385m

The use of hazard lights is
governed by the Highway

Code of the country you are in.
Keep to the rules.

WARNING

REAR FOG LIGHTS fig. 80

Press button

4

to turn on with the

dipped beam or fog lights on.

Press the button again or turn off the

dipped beam headlights or the fog

lights to turn the lights off.

fig. 80

L0D0386m

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     2      3      4      5     ..
