Setting the unit of measurement

Proceed as follows to set the required

unit of measurement (kilometres or

miles):
❒ repeatedly press MODE to display

Unit”;

❒ press button + or – to change the

unit of measurement;

❒ to confirm the setting, hold button

MODE pressed for longer than

two seconds.

Fuel inertia
switch tripped indication

The indication appears automatically

if the fuel inertia switch trips follow a

collision of considerable severity.

The switch cuts off fuel feed.

See the “Fuel inertia switch” chapter

for more information.

Proceed as follows to select:
❒ repeatedly press  MODE until

“SPEEd” appears;

❒ press  + to increase the value cor-

responding to speed (the maxi-

mum limit is 250 km/h);

❒ press – to decrease the value cor-

responding to speed  (the limit is

30 km/h under which it switches

to “OFF”);

❒ to confirm the setting, hold button

MODE pressed for longer than

two seconds.

If after the “FPSon” mes-
sage appears, you smell

fuel or see leaks from the fuel sys-
tem, do not reset the switch to
avoid fine risk.

WARNING

25

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

fig. 26

L0D0496m

MULTIFUNCTIONAL
DISPLAY
(on three-line
comfort panel)

The car can be equipped with the

multifunction display for showing

useful information necessary when

driving according to settings.

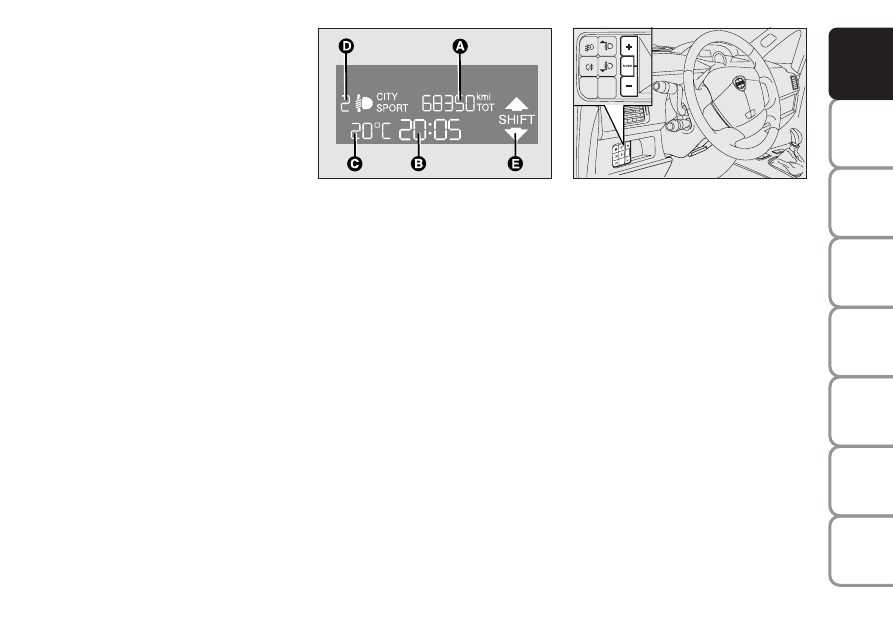

“STANDARD” SCREEN  fig. 26

The standard screen shows the fol-

lowing information:

A Date / Odometer (covered km or

miles).

B Clock (always displayed, even

with ignition key removed and

front doors closed).

C External temperature.

CONTROL BUTTONS fig. 27

+

To scroll the menu and the next

options or to increase the dis-

played value.

MODE

Press briefly to access the

menu and/or go to next

screen or to confirm the re-

quired menu option.

Hold pressed to go back to

the standard screen.

–

To scroll the menu and the previ-

ous options or to decrease the dis-

played value.

NOTE Buttons

+

and

–

activate dif-

ferent functions according to the fol-

lowing situations.

D Headlight adjustment (only with

dipped beam headlights on).

E Gear shift suggestion.

NOTE When opening one of the front

doors, the display will turn on and

show for a few seconds the clock and

the kilometres or miles covered.

fig. 27

L0C0384m

26

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Headlight adjustment (only
with dipped beam headlights on).

– when the standard page is dis-

played, this is used to adjust the head-

lights (see the “Headlights” para-

graph in this chapter).

Set-up menu

– for scrolling the menu up and down;

–to increase or decrease values during

settings.

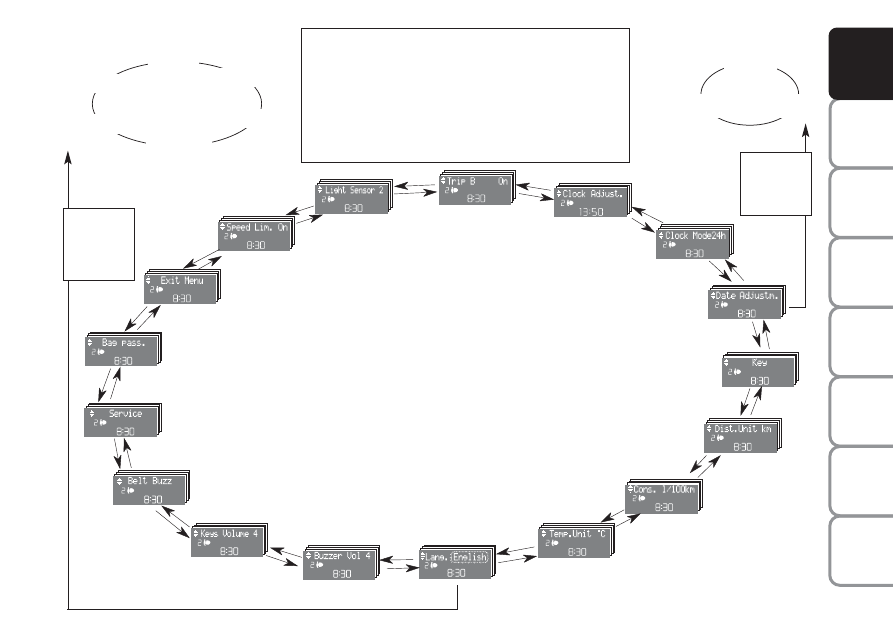

SET-UP MENU Fig. 28

The menu comprises a series of func-

tions arranged in a “circular fashion”

which can be selected through buttons

+

and

–

to access the different select

operations and settings (setup) given

in the following paragraphs.

The setup menu is activated by press-

ing briefly button MODE.

Single presses on buttons

+

and

–

will scroll the setup menu options.

Handling modes are different accord-

ing to the characteristic of the option

selected.

Selecting  “Date” and “Clock”:

– briefly press button MODE to select

the first value to be changed (e.g.

hours /minutes or year / month /

day).

– press buttons

+

and

–

(by single

presses) to select the new setting;

– briefly press button MODE to store

the new setting and go to the next

setup menu option: if this is the last

one you will go back to the previously

selected option of the main menu.

Hold the
button MODE pressed to:

– quit set-up and to save only the

changes stored by the user (and con-

firmed by pressing button MODE).

The setup menu environment is

timed. Only the changes saved by the

user by briefly pressing MODE).ill be

saved when the menu is automatically

closed.

NOTE Only the following functions

can be adjusted/set on the Instrument

Panel display if the Connect Nav+

system is present: “Lights”, “Speed

limit”, “Light sensor” (for versions/

markets, where provided), “Belt

buzzer” and “Passenger airbag”. The

other functions are shown on the

Connect Nav+ system display. Set and

adjustment them there.

Selecting a menu option

– briefly press button MODE to se-

lect the menu option that needs to be

changed.

– press buttons

+

and

–

(by single

presses) to select the new setting;

– briefly press button MODE to store

the new setting and at the same time

go back to the previously selected

menu option.

27

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Day

Year

Month

Example:

CONSUMPTION

QUIT MENU

SPEED LIMIT

SET CLOCK

LIGHT SENSOR

TRIP B

CLOCK MODE

SET DATE

KEY

UNIT DIST.

BUTTON VOLUME

BUZZER VOLUME

SERVICE

LANGUAGE

TEMP. UNIT

Example:

–

+

+

–

–

–

+

+

–

–

+

+

+

+

–

–

–

+

+

–

MODE

button

pressed

briefly

On the standard screen, briefly press MODE to start

browsing. Press + or – browse within the menu.

NOTE  Only the short menu may be accessed for rea-

sons of safety while the car is moving (“Brightness” and

“Speed Limit”). Stop the car to access the full menu.

On car equipped with  Connect Nav+, many functions

are displayed on the navigator readout.

–

+

+

–

MODE

button

pressed

briefly

Deutsch

English

Español

Italiano

Português

Français

(*) This function may only

be displayed after the SBR

system is deactivated by a

Lancia Dealership.

fig. 28

+

–

+

–

+

–

+

–

+

–

BELT BUZZER

(*) (for versions/markets, where provided)

PASSENGER AIRBAG

28

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Speed limit
This function is used to set the car

speed limit (km/h or mph); the driver

is immediately alerted when this limit

is exceeded (see section “Warning

lights and messages”).
To set the desired speed limit, proceed

as follows:
– briefly press  MODE, the message

(speed limit) will appear on the dis-

play.
– press button + or – to select speed

limit activation (On) or deactivation

(Off);

To cancel the setting, proceed as fol-

lows:
– briefly press button MODE: (On)

will flash on the display;

– press button +: (Off) will flash on

the display;

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the settings.

– if the function has been activated

(On), press buttons + or – to select the

required speed limit and then press

MODE to confirm.
NOTE The speed may be set in the

range from 30 to 250 km/h, or from

20 to 155 mph according to the pre-

viously chosen unit (see “Setting the

distance unit”) described below. The

setting will increase/decrease by five

units each time button + / –

is

pressed. Hold button + / – pressed to

increase/decrease the setting rapidly.

Complete the setting by briefly press-

ing the button when you approach the

required setting.
– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

29

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Adjusting the automatic
headlight sensor sensitivity
(light sensor)
(for versions/markets, where provided)

This function is used to adjust the

dusk sensor sensitivity to three levels

(level 1 = minimum, level 2 =

medium, level 3 = maximum); higher

the sensitivity, lower the quantity of

external light needed to switch the

headlights on. The device is set to

level “2”  when the car is delivered.

Proceed as follows to set:

– briefly press button MODE, the pre-

viously set level will flash on the dis-

play;

– press button + or – for setting;

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

Turning Trip B on/off (Trip B)

This function may be used to activate

(On) or deactivate (Off) the Trip B

(partial trip).

For further information see “Trip

computer”.

Proceed as follows to turn on and off:

– briefly pressMODE ON or OFF

flashes on the display (according to

the previous setting);

– press button + or – for setting;

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

Setting the clock
(Set clock)

This function is used to set the clock.

To carry out the adjustment, proceed

as follows:

– briefly press button MODE: the

“hours” will flash on the display;

– press button + or – to set;

– briefly press button MODE: “min-

utes” will start flashing on the display;

– press button + or – to set;

NOTE The setting will increase or de-

crease by one unit each time + or – is

pressed. Hold the button pressed to

increase/decrease the setting rapidly.

Complete the setting by briefly press-

ing the button when you approach the

required setting.

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

30

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Unlocking the doors and the
tailgate (key)

This function is used to: unlock the

front and rear doors, unlock the dri-

ver’s side door or all the doors includ-

ing the tailgate.

Proceed as follows to set:

– briefly press button MODE: “Open

doors”, “Open driver”, “Open all”;

– press button + or – to select. The se-

lected item will blink.

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

– briefly press MODE: “month” will

start flashing on the display;

– press button + or – to set;

– briefly press button MODE: “day”

will start flashing on the display;

– press button + or – to set.

Note The setting will increase or de-

crease by one unit each time + or – is

pressed. Hold the button pressed to in-

crease/decrease the setting rapidly.

Complete the setting by briefly press-

ing the button when you approach the

required setting.

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

12h/24h clock mode
This function is used to select 12h or

24 h display.
To carry out the adjustment, proceed

as follows:
–briefly pressMODE: either 12h or

24h will start flashing on the display

(according to the previous setting);
– press button + or – for setting;
–  briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

Set date

This function is used to set the date

(year – month – day).

Proceed as follows to update:

– briefly press button MODE: “year”

will start flashing on the display;

– press + or – to adjust;

31

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

“Distance” unit of measure

This function is used to set the unit of

measure for distance (kilometres or

miles)

Proceed as follows to set the required

unit:

– briefly press  MODE: (km) or (mi)

will start blinking on the display (ac-

cording to the previous setting);

– press button + or – for setting;

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

Proceed as follows to set:

– briefly press MODE: (km/l) or

(l/100km) will start flashing on the

display (according to the previous set-

ting);

– press button + or – for setting;

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

“Consumption” unit of measure

This function is used to set the unit of

measure for fuel consumption (km/l,

l/100 km or mpg) according to the

unit of measure selected in the previ-

ous paragraph (“Distance” unit of

measure).

If the distance unit set is “km” the

fuel consumption unit will be dis-

played in km/l or l/100km. If the dis-

tance unit set is “mi” the fuel con-

sumption unit will be displayed in

“mpg”.

32

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Adjusting the failure/warning
buzzer volume (Buzzer Volume)
This function allows the volume of the

buzzer which accompanies the display

of failures / warnings to be adjusted

(8 levels). To set the desired volume,

proceed as follows:
– briefly press button MODE: the pre-

viously set volume “level” starts flash-

ing on the display;
– press button + or – to set;
– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

Selecting the language

The messages may be displayed in the

following languages: Italian, German,

English, Spanish, French, Portuguese.

To set the required language proceed

as follows:

– briefly press button MODE: the pre-

viously set “language” starts flashing

on the display;

– press button + or – for setting;

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the settings.

“Temperature” unit of measure

This function is used to set the unit of

measure for temperature (°C or °F).

Proceed as follows to set the required

unit:

– briefly press MODE (°C) or (°F)

will flash on the display (according to

the previous setting);

– press button + or – for setting;

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

33

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Adjusting the button volume
(Button Vol.)
This function is used to set the volume

of the roger-beep accompanying the

activation of buttons MODE, + e –

through 8 levels.
To set the desired volume, proceed as

follows:
– briefly press button MODE: the pre-

viously set volume “level” starts flash-

ing on the display;

– press button + or – to set;

– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen without storing the set-

tings.

S.B.R. buzzer reactivation
(Belt Buzzer)
(for versions/markets, where provided)

This function can be only displayed

after Lancia Dealership has deacti-

vated the S.B.R. system (see para-

graph “S.B.R. system” in section

“Safety devices”).

The indications will appear more fre-

quently where there are 200 km left.

For 1.3 Multijet versions, refer to the

“Service Schedule” in the “Mainte-

nance and care” chapter for replacing

the air cleaner, the engine oil and the

engine oil filter.  The indication will ap-

pear in kilometres or miles according

to the settings. When the next sched-

uled service operation is approaching,

the message “Service” will appear on

the display followed by the number of

kilometres or miles left when the key is

turned to MAR. The “Service Sched-

ule” information is provided with kilo-

metres (km)/miles (mi) or days (dd),

according to the deadline which ap-

pears first. Go to a Lancia Dealership

where the “Scheduled Service” opera-

tions will be performed and the mes-

sage will be reset.

Scheduled Servicing (Service)
This function may be used to display

information connected to proper car

servicing in terms of kilometres or

days.
This information can be consulted as

follows:
–briefly press button MODE: service

in km or mi, according to previous

setting, will be displayed (see para-

graph “Units”);
– press button + or – to set deadline

in days;
– briefly press button MODE to go

back to the menu screen or hold the

button pressed to go back to the stan-

dard screen.
NOTE The “Service Schedule” re-

quires the car to be services every

20,000 km (or equivalent distance in

miles) or once a year. This message

will appear automatically with key at

MAR after  2,000 km (or equivalent

distance in miles) or  30 before the

deadline and will appear every  200

km (or equivalent distance in miles)

or 3 days.

34

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

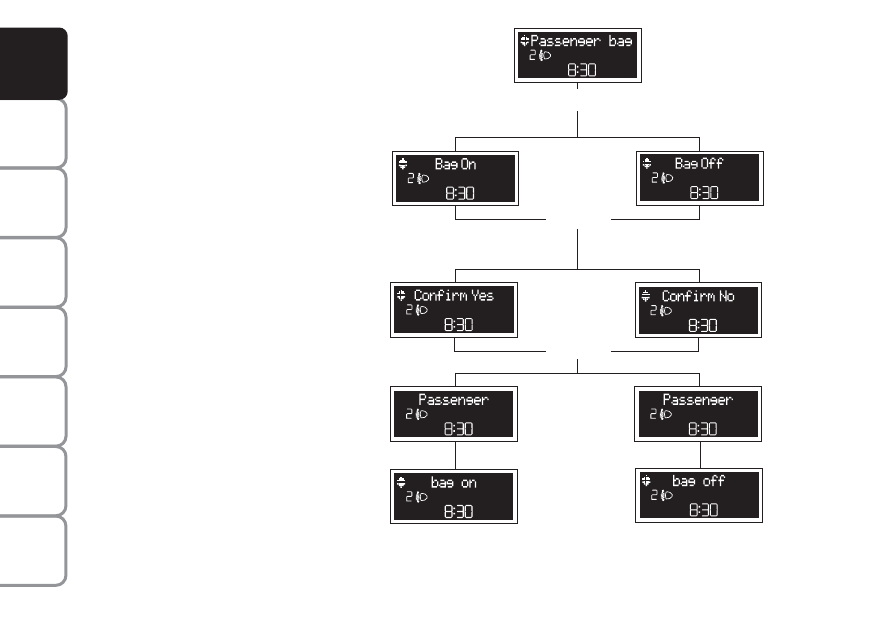

Activating/deactivating the
passenger front and side airbag
on/off (passenger bag)
(for versions/markets, where provided)

This function shall be used to acti-

vate/deactivate the passenger’s airbag.

Proceed as follows:
❒ press MODE and after the message

(Bag pass Off) (deactivate) or  (Bag

pass On) (activate) appears by

pressing buttons  + and –, press the

MODE button again;

❒ the confirmation request message

will be displayed;

❒ press buttons + o – to select (Yes)

(to confirm activation/deactivation)

or (No) (to abort);

❒ briefly press button MODE: the

display shows a message confirm-

ing the selected value. Now, go

back to the menu screen or press

the button for a prolonged time to

go back to the standard screen

without storing the settings.

MODE

MODE

MODE

–

+

L0D2169g

L0D2170g

L0D2171g

L0D2172g

L0D2173g

L0D2174g

L0D2174g

L0D2175g

L0D2176g

–

+

–

+

–

+

35

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Quitting the menu

This function closes the cycle of set-

tings listed in the menu screen.

Briefly press button MODE to go

back to the standard screen without

storing the settings.

Press button + to return to the first

menu option (Speed Limit).

Both functions can be reset (to start a

new trip). The following data can be

displayed for “General Trip”:

– Range

– Distance travelled

– Average consumption

– Instant consumption

– Average speed

– Travel time (driving time).

“Trip B” may be used to display the

figures relating to:

– Distance travelled B

– Average consumption B

– Average speed B

– Travel time B (driving time).

NOTE “Trip B” functions may be ex-

cluded (see “Trip B on”). “Range”

and  “Instantaneous consumption”

cannot be reset.

TRIP COMPUTER
(for versions/markets, where provided)

General features

The “Trip computer” is used to dis-

play information on car operation

when the key is turned to MAR. This

function consists of “General trip” for

displaying the complete mission of the

car and by  “Trip B”, for trips; this

function is included in the general trip

information  (as shown in fig. 30).

36

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

New mission

The new mission begins after:

– “manual” resetting by the user, by

pressing the relevant button;

– “automatic” resetting, when the

“Trip distance” reaches 9999.9 km or

when the “Travel time” reaches 99.59

(99 hours and 59 minutes);

– after disconnecting/reconnecting the

battery.

IMPORTANT “General Trip” resets

will reset “Trip B” at the same time,

while resetting “Trip B” will only re-

set the values of the trip B function.

Average speed
This shows the car average speed as a

function of the overall time elapsed

since the start of the new mission.

Journey time

This value shows the time elapsed

since the start of the new mission.

IMPORTANT If information is not

available, the message “----” will ap-

pear instead of the Trip Computer

values. Displaying of the values will

be resumed when normal operation is

restored without resetting the values

displayed before the problem nor

starting a new mission.

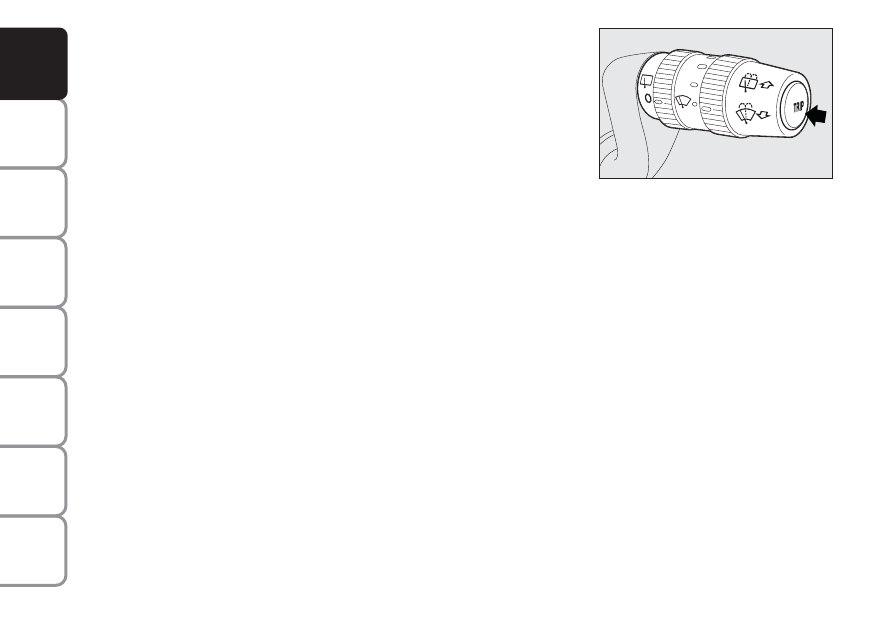

TRIP button fig. 29

Button TRIP located on the top of the

right steering column stalk is used

(with ignition key at MAR) to display

and reset the previously described val-

ues to start a new mission:

– short push to display the different

values

– long push to reset and then start a

new mission.

Values displayed

Range

This indicates the indicative distance

which may be travelled with the fuel in

the tank assuming that driving condi-

tions do not change. The display will

show the reading “----“ when the fol-

lowing events take place:
– range lower than  50 km (or 30

miles) or fuel level less than 4 litres in

the tank;
– car left parked with engine running

for a long time.

Distance travelled
This value shows the distance covered

from the start of the new mission.

Average consumption
This indicates the indicative average

consumption from the start of the new

mission.

Instantaneous fuel consumption
This indicates the fuel consumption.

The value is constantly updated. The

message “----” will appear on the dis-

play if the car is parked with the en-

gine running.

fig. 29

L0D0026m

37

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Start trip procedure

With ignition key on MAR, press and hold button TRIP pressed for over 2 seconds to reset.

Quitting TRIP

The TRIP function shuts down automatically after displaying all the data. Alternatively, hold  MODE pressed for longer

than two seconds.

Reset TRIP B

End of partial mission

Start of new partial mission

End of partial mission

Start of new

partial mission

Reset TRIP B

End of partial mission

Start of new

partial mission

GENERAL TRIP reset

End of complete mission

Start of new mission

GENERAL TRIP reset

End of complete mission

Start of new mission

End of partial mission

Start of new

partial mission

Reset TRIP B

Reset TRIP B

TRIP B

TRIP B

TRIP B

GENERAL TRIP

˙

˙

˙

˙

˙

˙

˙

˙

fig. 30

38

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Adjusting backrest inclination

Operate the lever D-fig. 32 in the di-

rection of the arrow, take the backrest

to the required position and then re-

lease it.

Lumbar adjustment
(for versions/markets, where provided)

To adjust the support between back

and backrest, turn knob  C-fig. 32

clockwise to increase the lumbar sup-

port or anticlockwise to decrease it.

ADJUSTING THE
SEATS

FRONT SEATS

Fore/aft adjustment

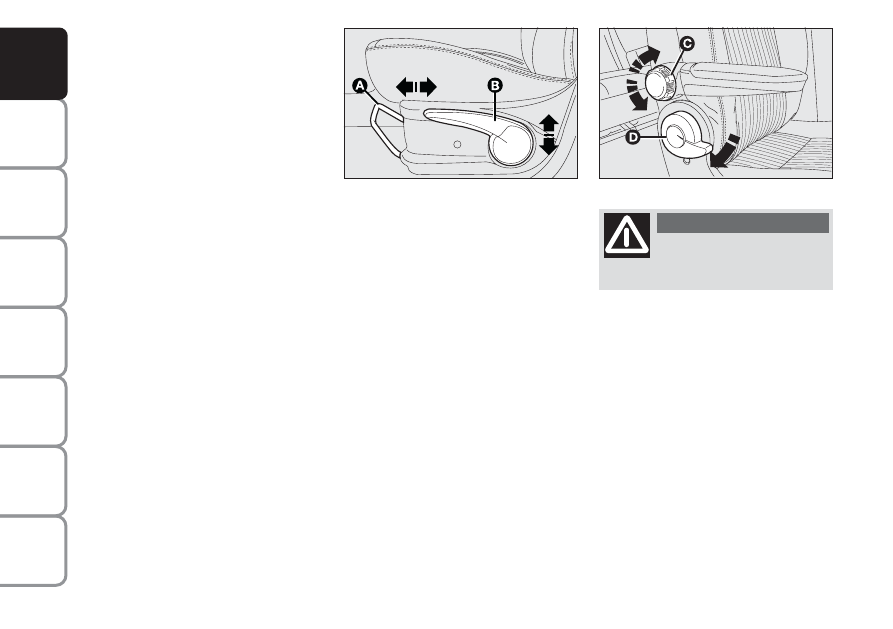

Lift lever A-fig. 31 and push the seat

forwards and backwards to reach the

required position: your arms should

rest on the steering wheel rim while

you are driving.

Check that the seat is locked well on

the guides by trying to push it for-

wards and backwards.

Adjusting the height
(driver’s seat)

(for versions/markets, where provided)

Move lever B-fig. 31 upwards or

downwards to achieve the required

height.

IMPORTANT Sit in the driver’s seat

with the car not moving to adjust.

fig. 31

L0D0041m

fig. 32

L0D0042m

Make sure that the seats
are correctly secured after

making the adjustments.

WARNING

39

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

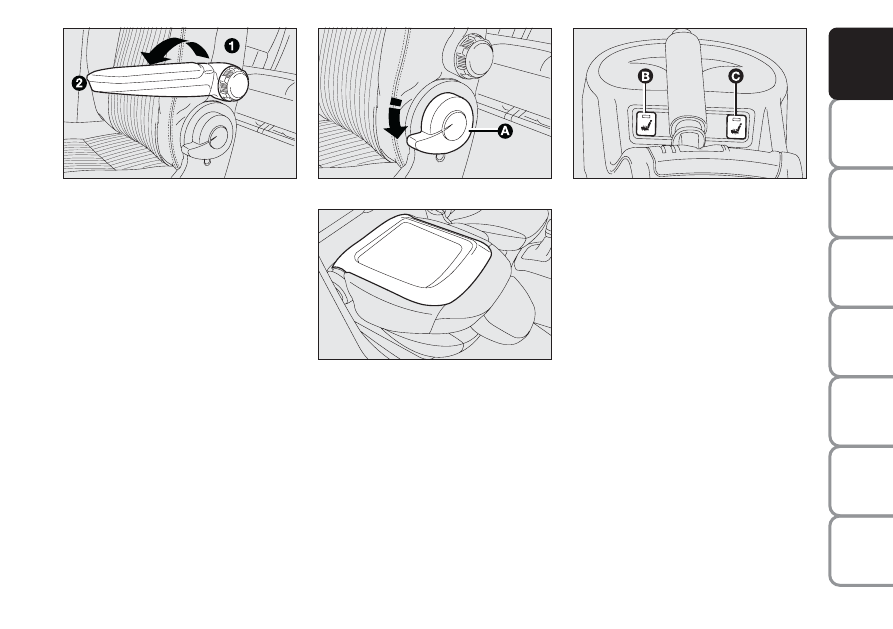

Armrest adjustment fig. 33
(for versions/markets, where provided)

To use the armrest, move it from po-

sition 1 to position 2.

Arranging the passenger seat in
table position

Move the armrest (for versions/

markets, where provided) to vertical

position.

From the driver’s seat or from the rear

seats, operate the lever  A-fig. 34 in

the direction of the arrow, fold the

backrest  fig. 35 onto the cushion and

then release it. In this position, the

backrest may be used as a table.

Heated seats
(for versions/markets, where provided)

Press buttons  B-fig. 36 to heat the

driver’s seat  C-fig. 36 and to heat the

passenger’s seat.

The LED in the button will light up

when heating is on.

Arranging the driver’s seat
in table position

To arrange the driver’s seat in table

position, remove the head restraint

(see “Extracting the head restraint”

in the “Head restraint” chapter) and

proceed as shown above.

fig. 33

L0D0043m

fig. 34

L0D0044m

fig. 35

L0D0045m

fig. 36

L0D0046m
