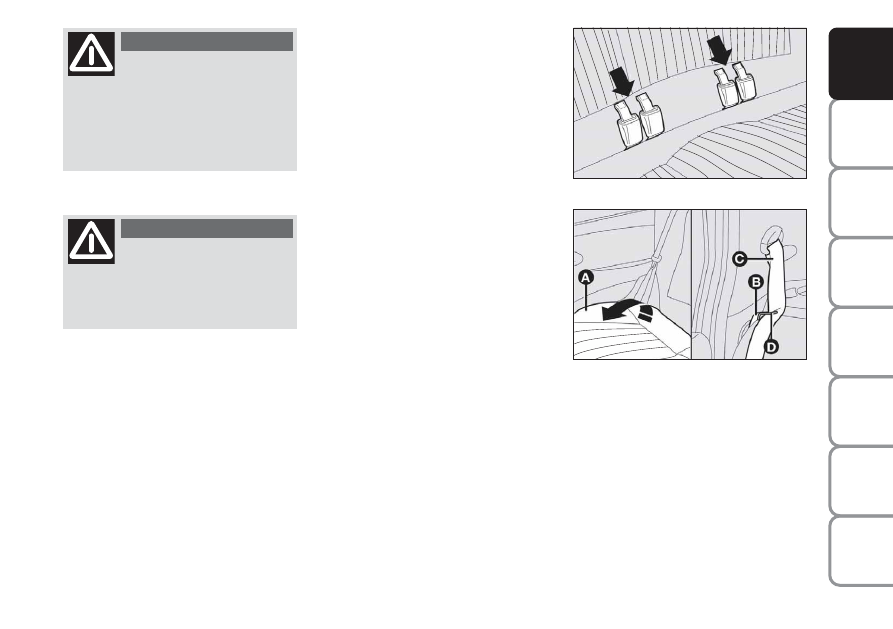

FUEL CUT OFF
SWITCH

The switch is located on the bottom of

the car, near the pillar on passenger

side. Move the carpet aside to reach

the switch. It is tipped by a crash and

cuts off the fuel feed, thus stopping

the engine.

When the device is activated the

warning light

è

turns on together

with the relevant message on the re-

configurable multifunctional display

(for versions/markets, where pro-

vided).

Inspect the car carefully for fuel leak-

ages (e.g. in the engine compart-

ment), under the car or near the fuel

tank.

If, after a crash, you smell
fuel or see leaks from the

fuel system, do not reset the switch
to avoid fine risk.

WARNING

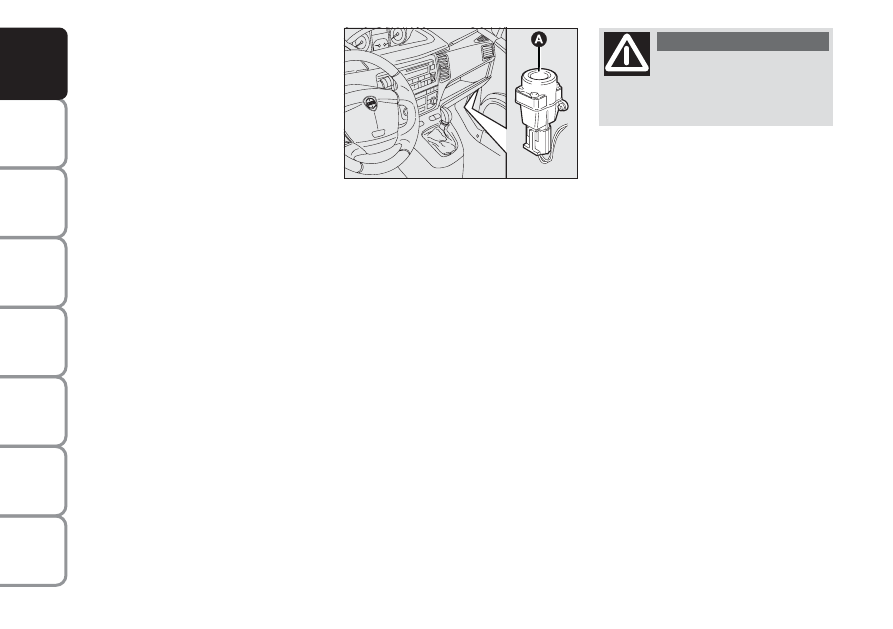

fig. 81

L0D0388m

Press button A-fig. 81 to reactivate

the fuel feed system if no leakage is

found and the car is worthy of re-

suming travel.

After the accident, remember to turn

the ignition key to  STOP to prevent

draining the battery.

73

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

INTERIOR
EQUIPMENT

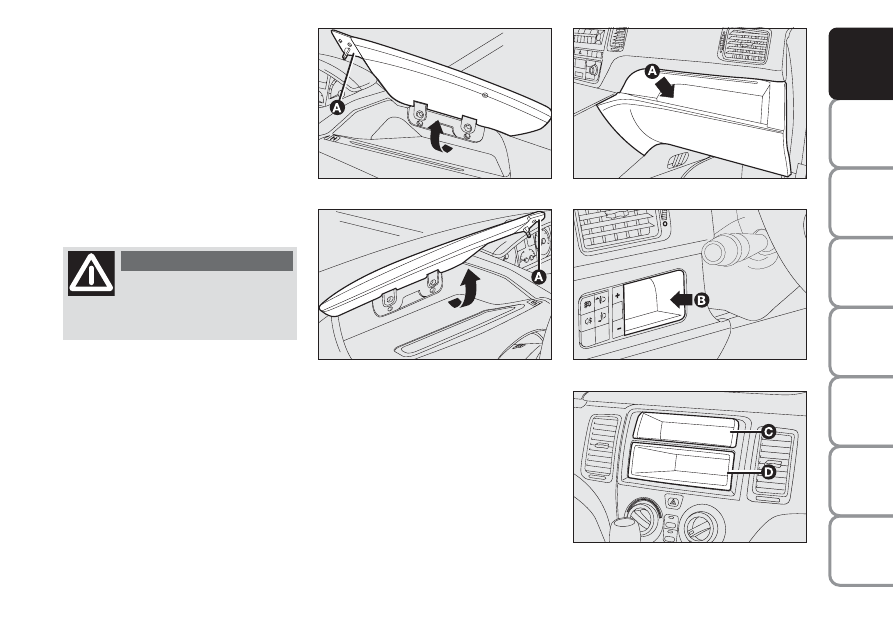

UPPER ODDMENT
COMPARTMENTS fig. 82-83

To open the compartments, release

the lid using device  A and lift to the

stable opening position.

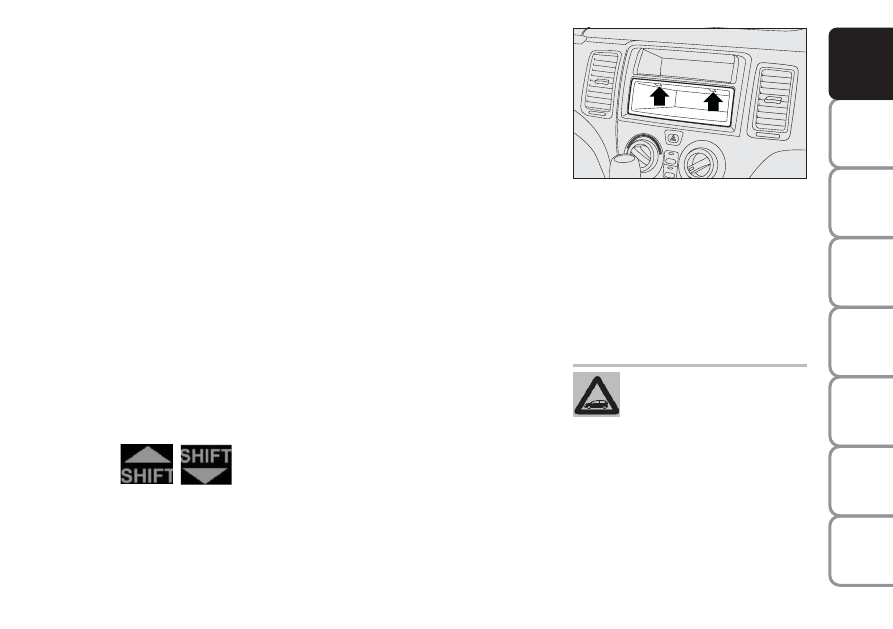

Compartment C-fig. 86 and the DIN

compartment D-fig. 86, in the dash-

board, are located in central position.

The  DIN compartment D can be ex-

tracted to fit a  Lineaccessori Lancia

sound system.

fig. 82

L0D0389m

fig. 83

L0D0087m

Do not travel with the
compartments open: they

could cause injury in case of an ac-
cident.

WARNING

fig. 84

L0D0088m

fig. 85

L0D0418m

fig. 86

L0D0090m

ODDMENT COMPARTMENTS

Compartment A-fig. 84 is located on

the dashboard facing the front pas-

senger.

Compartment A may contain an ex-

tractable oddment bag E-fig. 87

which can be ordered from Lineac-

cessori Lancia.

Compartment B-fig. 85 is located on

the dashboard on the left of the steer-

ing wheel.

74

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

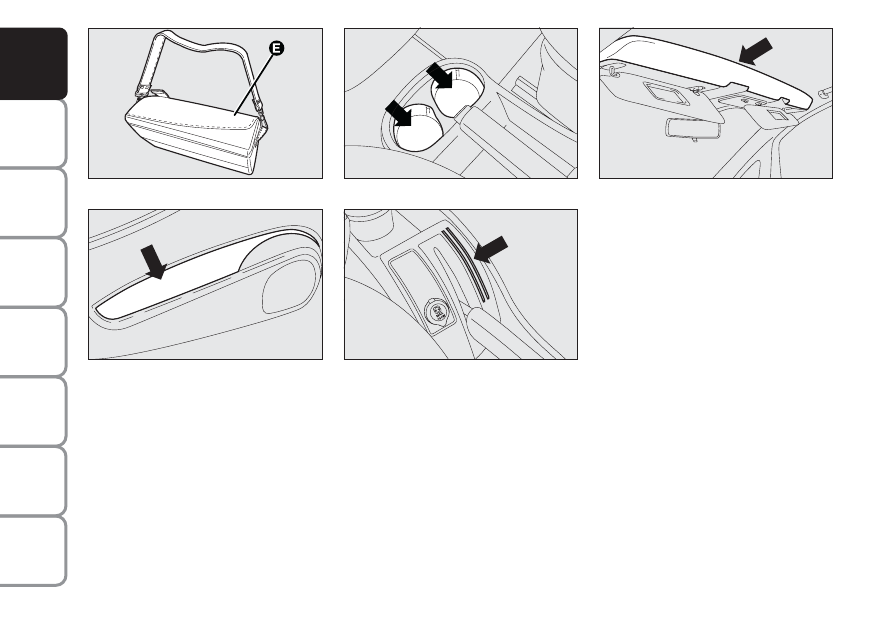

ODDMENT SHELF
ON ROOF fig. 91

The shelf is designed to contain eas-

ily retrievable light items (e.g. papers,

maps, etc.).

IMPORTANT Do not place heavy ob-

jects on the shelf. Do not use it as a

grip.

The shelf is alternative to the sunroof.

CUP HOLDER –

CAN HOLDER fig. 89

The cup/can holders  – are located on

the central tunnel near the hand-

brake.

CARD HOLDER fig. 90

The central tunnel has recesses to

keep telephone cards, magnetic cards

and tickets.

DOOR POCKETS fig. 88

Paper/map pockets are located in

door panels.

fig. 87

L0D0343m

fig. 88

L0D0153m

fig. 89

L0D0091m

fig. 90

L0D0092m

fig. 91

L0D0093m

75

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

REAR COMPARTMENT
CD HOLDER WITH
CAN HOLDER fig. 92

There is a CD holder and cup holder

on the central tunnel behind the

handbrake.

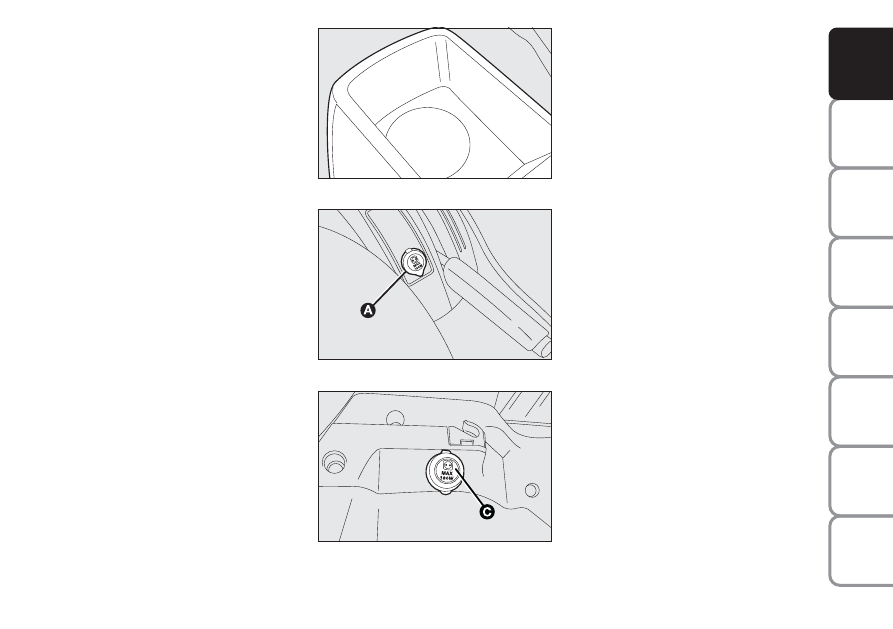

POWER SOCKETS (12V)

They only work with the ignition key

at MAR.

Socket A-fig. 93 is located in front

position. Socket  A is replaced by a

cigar lighter in cars with smoker’s kit.

For versions/markets, where pro-

vided, the car may be equipped with

power socket  C-fig. 94 also on the

left of the boot.

fig. 92

L0D0236m

fig. 93

L0D0236m

fig. 94

L0D0095m

SMOKER’S KIT

(for versions/markets, where provided)

Cigar lighter fig. 95

It is located on the central console

by the side of the handbrake.

Press the button with the ignition

switch at MAR. The button will auto-

matically return to the initial position

after approximately  15 seconds and

the cigar lighter is ready for use.

IMPORTANT Always check that the

cigar lighter has turned itself off.

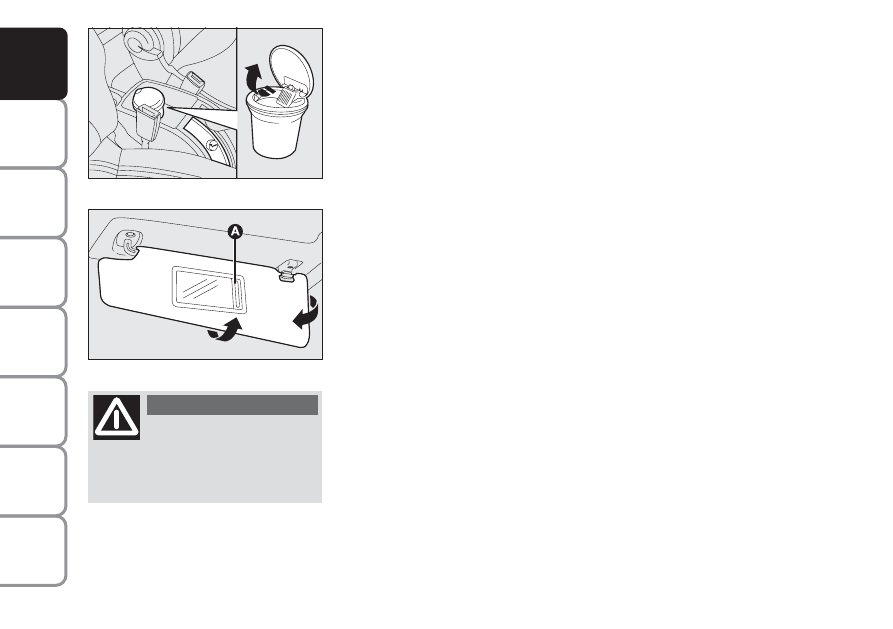

Ashtray fig. 96

The ashtray is a removable plastic box

that can be fitted into the glass/can

recesses on the central tunnel.

IMPORTANT Do not use the box as

an ashtray and a waste paper basket

at the same time: it might set on fire

in contact with cigarette stubs.

SUN VISORS

These are arranged at the sides of the

internal rearview mirror. They may be

oriented frontally and to the side.

A courtesy mirror can be applied to

the back of sun visors, according to

the version.

To use the mirror, open the sliding

flap A-fig. 96 (for versions/markets,

where provided).

SUNROOF

(for versions/markets, where provided)

The sun roof has an anti-pinch safety

system capable of detecting the pres-

ence of an object whilst the roof is

closing; when this happens the system

stops and the glass travel is immedi-

ately reversed. The large “Skydome”

sunroof consists of two glass panels,

one fixed and one mobile, with sun

curtains which can be opened and

closed manually. The sun roof can

only be operated with the ignition key

in the  MARposition. The button near

the front ceiling lights is used to open

and close the roof.

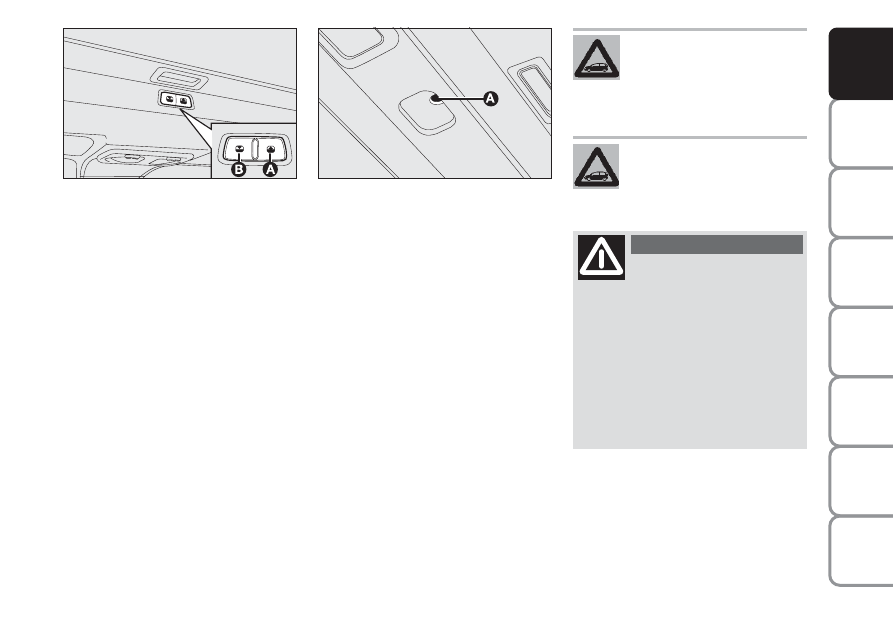

To open

Hold button B-fig. 97 pressed: the

front glass panel will go to spoiler po-

sition. Hold B pressed again for longer

than half a second to move the roof

automatically to end of travel posi-

tion. Press the button again to stop

the roof in an intermediate position.

76

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

fig. 95

L0D0096m

fig. 96

L0D0097m

The cigar lighter becomes
very hot. Handle with

care. The device must not be used
by children: risk of fire and/or
burns.

WARNING

EMERGENCY OPERATION

If the switch fails, the sunroof can be

moved manually proceeding as de-

scribed below:
❒ remove the protective cap on the

internal upholstery between the

two sun curtains.

❒ take the socket wrench provided
❒ introduce the socket in A-fig. 98

and turn it:

– clockwise, to open the roof

– anticlockwise, to close the roof.

To close

From the all open position, hold A-

fig. 101 pressed for longer than half

a second to take the roof automati-

cally to spoiler position. Press the but-

ton again to stop the roof in an inter-

mediate position. Hold A pressed un-

til the panel closes completely.

77

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

fig. 97

L0D0098m

fig. 98

L0D0099m

It is advisable to use the
sunroof in the spoiler posi-
tion only if a crosswise roof
rack is used.

Do not open the sun roof in
the presence of snow or ice:
it may be damaged.

When leaving the car, al-

ways remove the key from

the ignition device to avoid the risk
of injury due to accidental opera-
tion of the sun roof; it presents a
risk to those left on board: im-
proper use of the roof can be dan-
gerous. Before operation, always
check that no-one is at risk of be-
ing injured by the moving sun roof
or by objects getting caught and
dragged by it.

WARNING

78

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

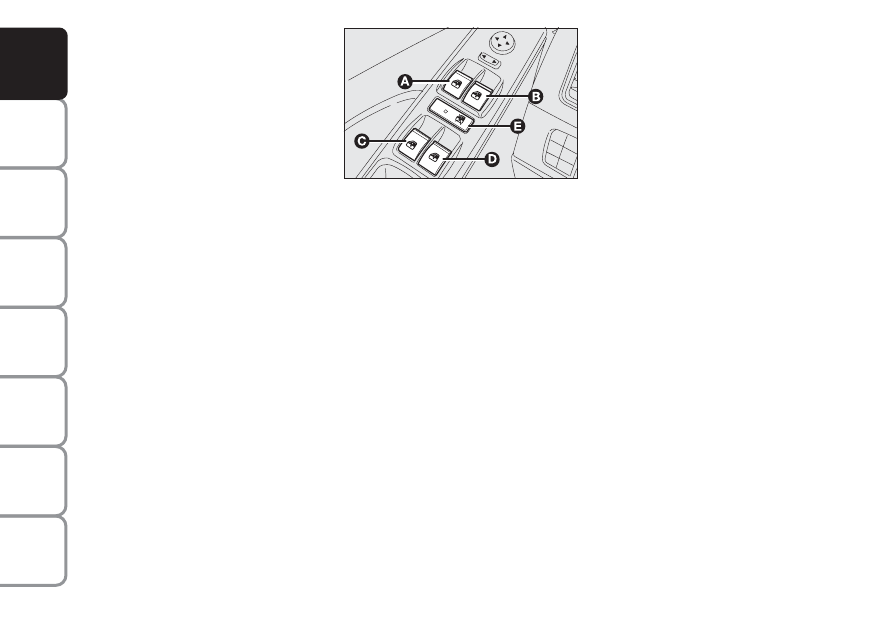

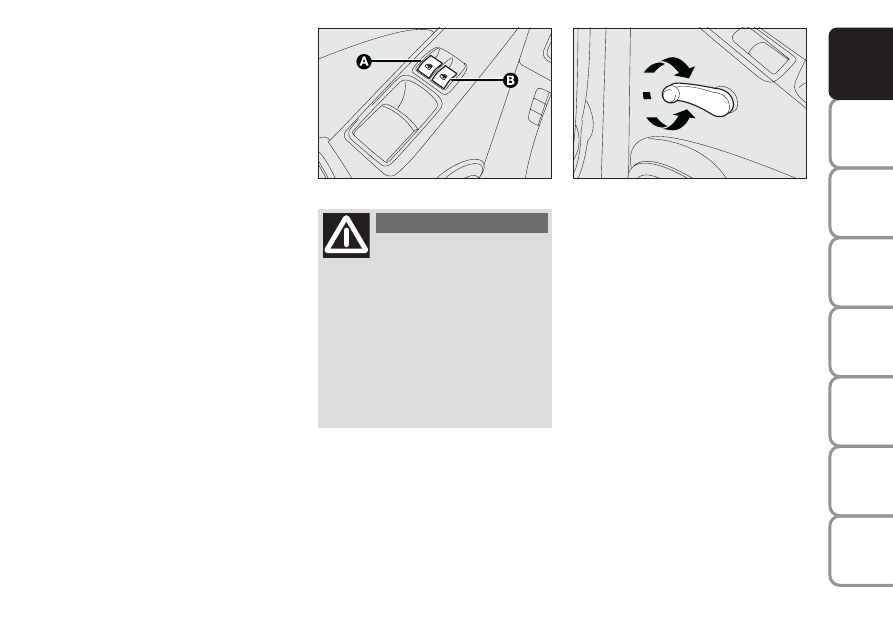

DRIVER’S DOOR fig. 99

There are two or five switches (the

latter for versions/markets, where

provided) on the arm rest for operat-

ing the following with the key at

MAR:

A opening/closing the left front win-

dow

B opening/closing the right front

window

POWER

WINDOWS

The two-button version (front win-

dows only) is not automatic. The

four-button version (front and rear

windows) has an automatic opening

and closing feature: the passenger

window will open automatically (and

close automatically, for versions/

markets, where provided); the rear

windows may open automatically.

IMPORTANT With ignition key at

STOP or removed, the power win-

dows remain activated for about 2

minutes and are deactivated immedi-

ately the moment a door is opened.

fig. 99

L0D0103m

C opening/closing the left rear win-

dow (for versions/markets, where

provided)

D opening/closing the right rear win-

dow (for versions/markets, where

provided)

E turn off the rear door switches (for

versions/markets, where pro-

vided). The button in the LED

will light up when the device is on.

79

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Automatic continuous operation
(for versions/markets, where provided)

For some versions with four power

windows, the front window (driver’s

side) can be opened and closed auto-

matically while the other windows can

be opened automatically.

A

Button for automatically

opening and closing

B-C-D Buttons for automatic open-

ing only.

Hold one of the buttons pressed for a

short time to open the window in

steps. The window will stop when the

button is released.

PASSENGER AND REAR DOORS
fig. 100
(for versions/markets, where provided)

The switch operating the correspond-

ing window is located on the internal

armrest of each door.

fig. 100

L0D0103m

Incorrect use of the power
windows may be danger-

ous. Before operation, always
check that no-one is exposed to the
risk of being injured by directly by
the moving window or objects get-
ting caught and dragged. When
leaving the car, always remove the
key from the ignition device to
avoid the risk of injury due to ac-
cidental operation of the power
windows.

WARNING

fig. 101

L0D0156m

MANUAL
(for versions/markets, where provided)

Operate the corresponding handle

fig. 101 to open/close the window.

80

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

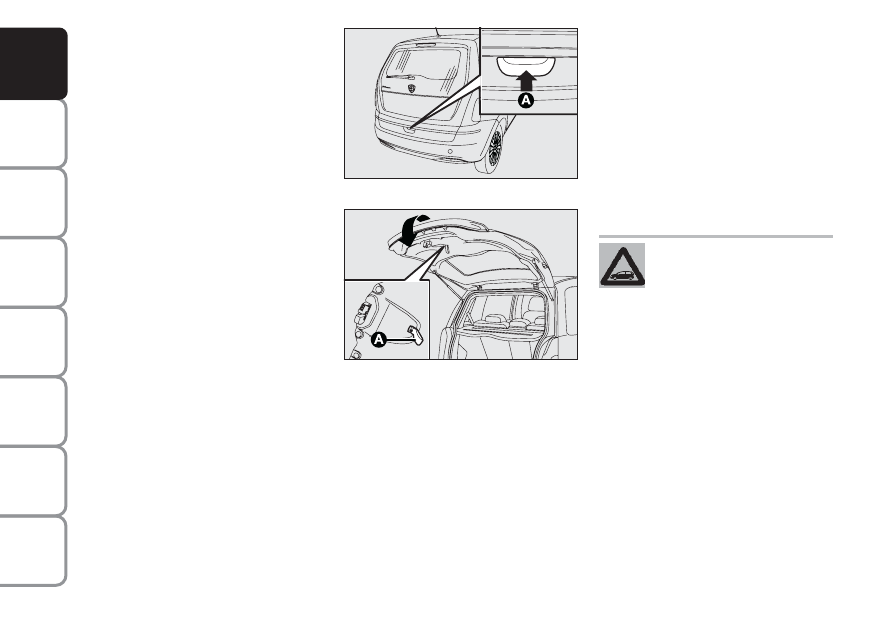

CLOSING TAILGATE

Lower the tailgate using handle A-

fig. 103 as shown in the figure and

then press the tailgate until you hear

it click.

IMPORTANT If the “Key” option is

selected, make sure that you have the

ignition key before closing the tailgate

because it will be automatically

locked.

BOOT

The tailgate can only be opened from

the outside using the electric handle

A-fig. 102.

The tailgate can be opened at any

time, even if the doors are locked.

The “Key” option can be activated in

the instrument panel display setup

menu (see “Reconfigurable multi-

functional display” in this chapter):

the tailgate will not be unlocked with

the doors in this case. Press button

R

on the remote control.

The direction indicators will blink

twice when the tailgate is opened.

fig. 102

L0D0390m

fig. 103

L0D0391m

Do not fit additional objects
onto the rear window shelf
or tailgate (speakers, spoil-
ers, etc.) except when con-

templated by the manufacturer to
ensure the correct operation of the
side gas shock absorbers of the tail-
gate itself.

81

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Never exceed the maxi-
mum allowed load in the

boot (see “Technical Specifica-
tions”). Make sure that the objects
are well arranged in the boot so
that they will not be projected for-
wards following sudden braking.

WARNING

Never travel with objects
on the rear window shelf:

they cause cause injury to passen-
gers in the event of an accident or
sudden braking.

WARNING

EXTENDING THE BOOT WITH
FIXED SEAT

Proceed as follows:
❒ fasten the buckles to the tabs

(shown by the arrows) on the

backrest fig. 104;

❒ check that each of the two side

seat belts C-fig. 105 is inserted in

the corresponding seat belt guide

D;

❒ raise the cushion A as shown in

the figure ;

❒ release the backrest, by moving

the levers B then fold it forward to

obtain a flat loading surface.

fig. 104

L0D0428m

fig. 105

L0D0429m

82

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

BONNET

OPENING

Proceed as follows:

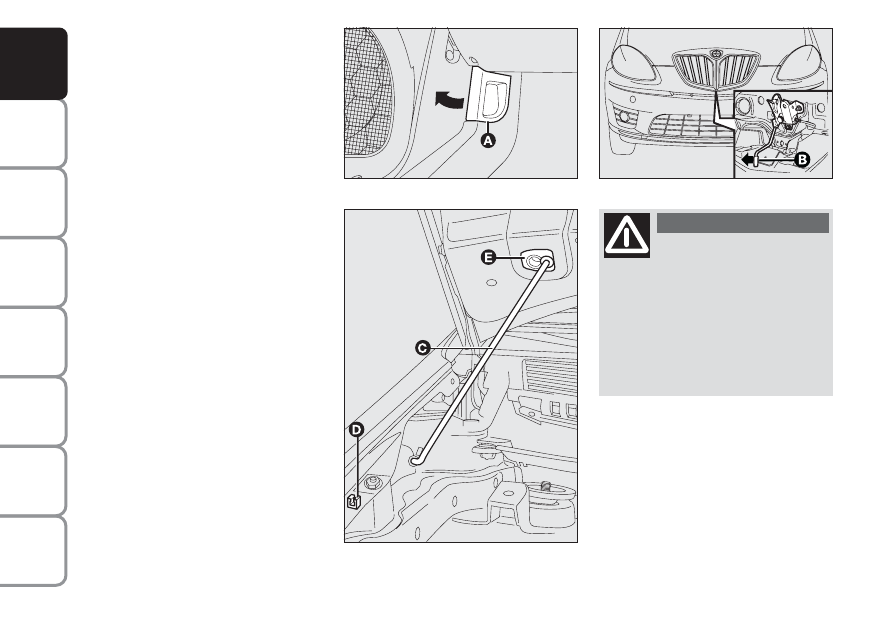

❒ pull lever  A-fig. 106 in the direc-

tion of the arrow;

❒ move lever  B-fig. 108 in the di-

rection of the arrow;

❒ lift the bonnet and at the same

time release the rod C-fig. 107

from the catch, then fit end D of

the rod into the bonnet recess E.

IMPORTANT Before opening the

bonnet, check that windscreen wiper

arms are not lifted from the wind-

screen.

fig. 106

L0D0113m

fig. 107

L0C0115m

fig. 108

L0D0392m

The bonnet must always
be perfectly closed while

travelling for reasons of safety.
Make sure that the bonnet is per-
fectly closed and that the lock is
engaged. If you discover that the
bonnet is not perfectly closed while
travelling, stop immediately and
close the bonnet in the correct
manner.

WARNING

83

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

CLOSING fig. 107

Proceed as follows:
❒ hold the bonnet up with one hand

and with the other remove rod

Cfrom recess  and fit it back into

its catch D;

❒ lower the bonnet to approximately

20 centimetres from the engine

compartment and let it come down.

Make sure that the bonnet is com-

pletely closed and not only fastened

by the safety catch by trying to

open it. If it is not perfectly closed,

open the bonnet and repeat the

procedure. No not simply press it.

IMPORTANT Always check that the

bonnet is closed properly to avoid its

opening while the car is travelling.

ROOF BARS

(for versions/markets, where provided)

IMPORTANT Use of Lineaccessori

Lancia roof bars is recommended.

Follow the instructions contained in

the assembly kit to the letter. Assem-

bly must be performed by qualified

personnel.

The bonnet may drop sud-
denly if the supporting rod

is not in correct position.

WARNING

Perform these operations
when the car is stationary

only.

WARNING

fig. 109

L0D0248m

IMPORTANT Never exceed the per-

mitted weight (see section  “Technical

specifications”).

Check that the attachment fastening

screws are correctly positioned after a

few kilometres.

84

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

When travelling in countries on the

other side of the road, cover the head-

light as shown in the figure. Use non-

transparent adhesive for this purpose.

The figures show how to change from

left-hand drive to right-hand drive.

Adjusting headlight alignment
fig. 110

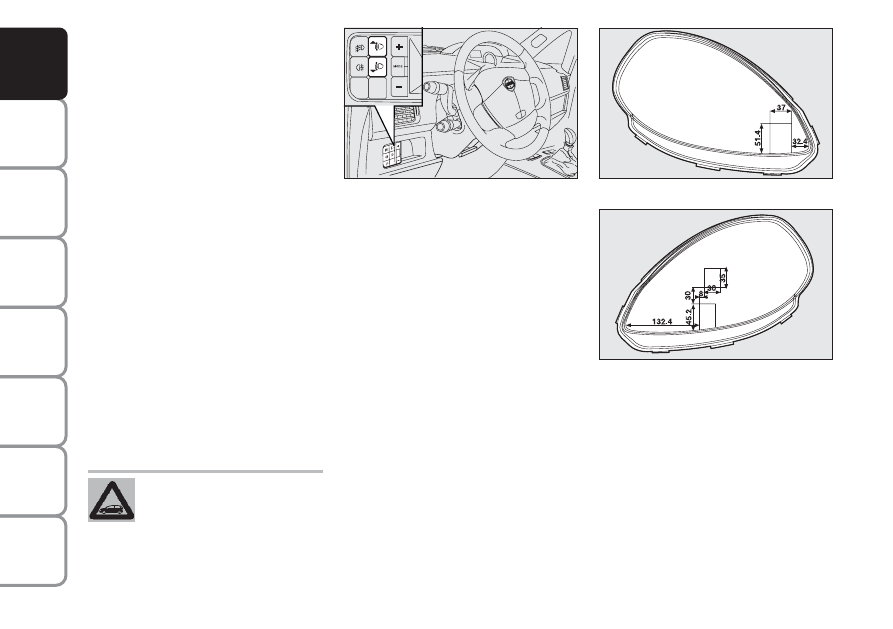

To adjust, press buttons



e

Ò

on the

control panel. The display shows the

positions during the adjustment oper-

ation.

Position 0 - one or two occupants on

front seats. – Position 1 - five occu-

pants – Position 2 - five people + load

in the boot – Position 3 - driver  +

maximum permitted load all in boot.

IMPORTANT Check beam alignment

every time the load carried changes.

HEADLIGHT ADJUSTMENT
WHEN TRAVELLING ABROAD
fig. 111-112

The dipped headlamps are adjusted

for service in the country where the

car was originally purchased.

HEADLIGHTS

BEAM DIRECTION

Correction direction of the headlights

is essentially for the comfort and

safety of the driver and the other road

users. The headlights must be cor-

rectly directed to ensure the best vis-

ibility conditions when the headlights

are on. Contact Lancia Dealership to

have the headlights properly adjusted.

HEADLIGHT CORRECTOR

This device works with the key at

MAR and the dipped beam headlights

on. The car will slant backwards

when it is loaded, raising the light

beam. The beams must therefore be

directed again in this case.

Never operate the sunroof
when roof bars are fitted.

fig. 110

L0D0393m

fig. 111

L0D0118m

fig. 112

L0D0119m

85

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

ABS SYSTEM

The car is fitted with an ABS braking

system, which prevents the wheels

from locking when braking, makes

the most of road grip and gives the

best control when emergency braking

under difficulty road conditions.

System is completed by EBD (Elec-

tronic Braking force Distribution),

which distributes the braking action

between front and rear wheels.

IMPORTANT The braking system

needs to settle for approximately 500

km:  during this time, avoid sudden,

repeated and prolonged braking.

SYSTEM INTERVENTION

Intervention of the ABS is detected by

a slight pulsing of the brake pedal ac-

companied by noise: such an event in-

dicates that you need to adjust your

speed to the type of road on which

you are travelling.

MECHANICAL BRAKE ASSIST
(emergency braking assistance)
(for versions/markets, where
provided)

This system (which cannot be deacti-

vated) recognises emergency braking

conditions according to the speed of

operation of the brake pedal and pro-

vides an additional hydraulic braking

pressure to support that provided by

the driver. This allows faster and

more powerful operation of the

braking system.

IMPORTANT When the Mechanical

Brake Assist is activated noises can be

heard from the system. This is nor-

mal. Anyway, while braking keep the

brake pedal depressed.

When the ABS intervenes
it means that you are ap-

proaching the grip limit between
tyres and road: slow down to ex-
ploit all the available grip.

WARNING

The ABS exploits the tyre-
road grip at the best, but it

cannot improve it; you should
therefore take every care when dri-
ving on slippery surfaces without
taking unnecessary risks.

WARNING

FAILURE INDICATIONS

ABS failure

ABS failure is indicated by the turn-

ing on of warning light > on the in-

strument panel together with the ded-

icated message on the multifunctional

display (for versions/markets, where

provided), (see section “Warning

lights and messages”).

In the case, the braking system will

work as normal without the extra po-

tentials offered by the ABS system.

Drive carefully to the nearest Lancia

Dealership to have the system

checked.

EBD failure

ABS failure is indicated by the

turning on warning lights > and

x

on the instrument panel together with

a message on the multifunctional

display (for versions/markets, where

provided), (see section “Warning

lights and messages”).

86

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

EOBD SYSTEM

The EOBD system (European On

Board Diagnosis) allows continuous

diagnosis of the components of the car

correlated with emissions.

It also alerts the driver, by turning on

the warning light

U

on the instru-

ment panel (together with relevant

message on the multifunctional dis-

play, for versions/markets, where pro-

vided) (see section “Warning lights

and messages”), when these condi-

tions are no longer in peak conditions.

The objective is:
❒ to keep the system efficiency under

control;

❒ warn when a fault causes emissions

levels to increase;

❒ to signal the need to replace deteri-

orated components.

In this case, the rear wheels may sud-

denly lock and the car may swerve.

Drive carefully to the nearest Lancia

Dealership to have the system

checked.

The system also has a diagnostic con-

nector that can be interfaced with ap-

propriate tools, which makes it possi-

ble to read the error codes stored in

the control unit, together with a series

of specific parameters for engine op-

eration and diagnosis. This check can

also be carried out by the traffic po-

lice.

IMPORTANT After eliminating the

inconvenience, to check the system

completely, Lancia Dealerships are

obliged to run a bench test and, if

necessary, road tests which may also

call for a long journey.

When the ABS cuts in, and
you feel the brake pedal

pulsating, do not remove your foot,
but keep it pressed; in doing so you
will stop in the shortest amount of
space possible under the current
road conditions.

WARNING

If warning light

xonly

lights up on the instrument

panel (with a message on the mul-
tifunctional display, for ver-
sions/markets, where provided),
stop the car immediately and go to
the nearest Lancia Dealership.
Leakage of hydraulic fluid from
the braking system will compro-
mise functionality of the braking
system, either of the conventional
type or with ABS.

WARNING

Go to a Lancia Dealership
as soon as possible if warn-
ing light Ueither does not
light up when the key is

turned to MAR to if while travelling
the warning lights comes on either
steady or blinking (along with a
message on the multifunctional dis-
play, where provided). The opera-
tion of warning light U may be
checked by the traffic police using
specific devices. Follow the laws in
force in the country where you are
driving.

87

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Sound system installation

The sound system must be installed

in the space occupied by the central

oddment compartment where the

wiring leads. To extract the compart-

ment, press in the points shown at the

retainer systems.

SOUND SYSTEM

(for versions/markets, where provided)

Refer to the supplement to this

Owner’s Handbook for operating the

sound system with CD or with CD

MP3.

SOUND SYSTEM SETUP
(for versions/markets, where provided)

The system consists of:
❒ sound system power wires
❒ front and rear speaker power wires
❒ aerial power wire
❒ 2 tweeters on front pillars (30W

max power each);

❒ 2 mid-woofers on front doors (165

mm diameter, 30W max power

each);

❒ 2 full-range speaker on front doors

(165 mm diameter, 30W max

power each).

fig. 113

L0D0120m

It is advisable to have the
sound system and interfer-
ence filter installed by a
Lancia Dealership.

GSI SYSTEM
(for versions with
mechanical
gearbox only)

(for versions/markets, where provided)

The gear shift indication makes it

possible, on cars with a manual gear-

box, to suggest the driver should

change gear (higher gear: shift up, see

Fig. a or lower gear: shift down, see

Fig. b), through a dedicated indica-

tion in the control panel. This sug-

gestion to change gear is designed to

improve consumption and ensure the

best driving style.

NOTE: the indication in the instru-

ment panel remains on until the dri-

ver makes a gear change or until the

driving conditions return to a situa-

tion where a gear change is not re-

quired to improve consumption.

fig. a

fig. b
