Rover 75. Service Manual - part 9

CD32 - Radio

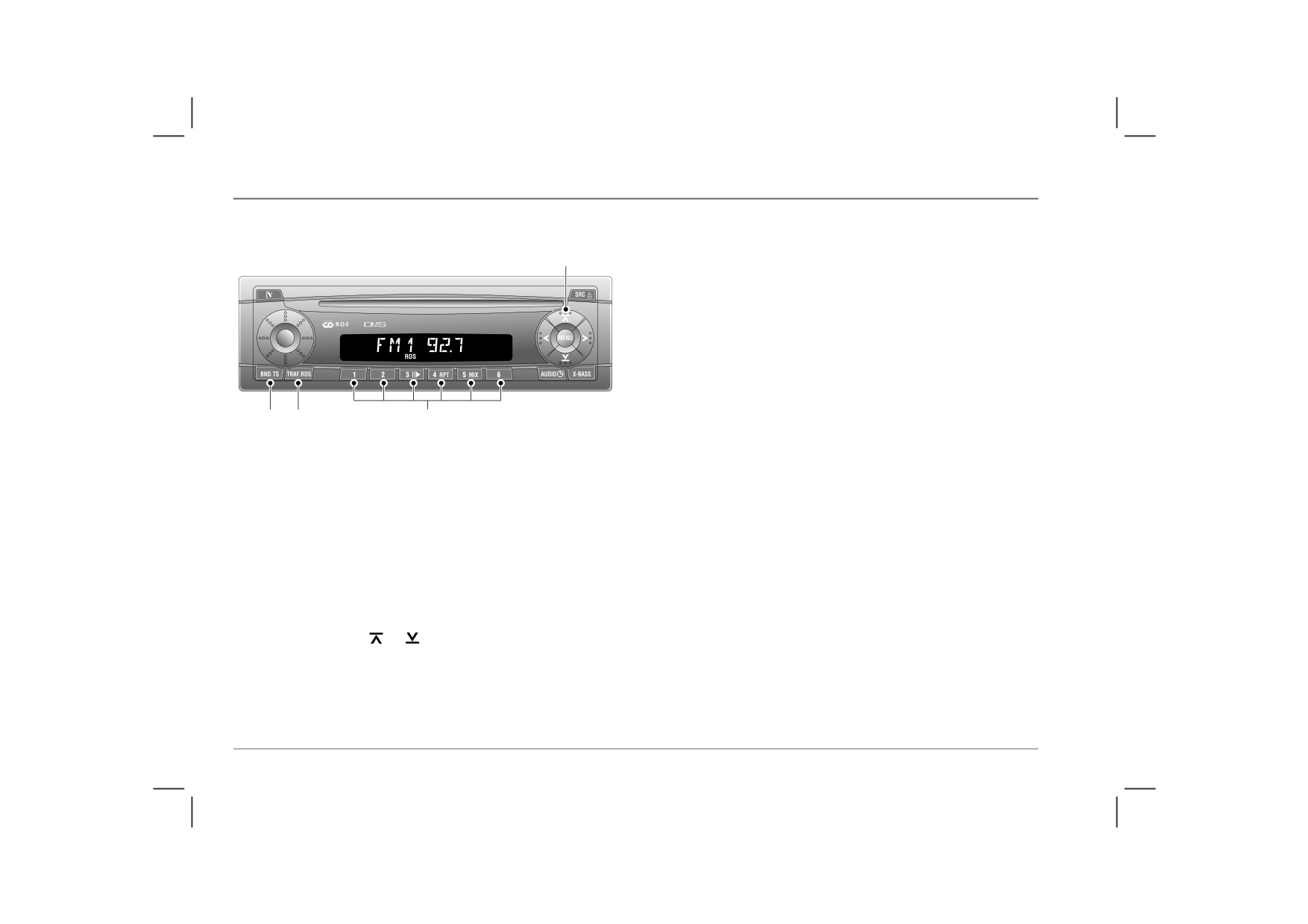

RADIO CONTROLS

3. Pre-set buttons

Use to store up to 6 radio stations on each waveband or memory

bank (see ‘Programming the pre-sets’, page 135).

2

Press briefly to select a stored frequency.

Press and hold to store a frequency.

4. Traffic information/RDS control

Traffic information: Press briefly to switch on (or switch off) traffic

information mode (see ‘Selecting traffic information’, page 138). Press

briefly to return to normal radio or CD reception during a traffic

information broadcast.

1

4

3

Radio Data System (RDS): Press and hold for two seconds or more

AS0036a

to select or inhibit RDS - the ‘RDS’ indicator illuminates when

RDS has been activated (see ‘RADIO DATA SYSTEM (RDS)’,

1. Waveband/Travelstore selector (BND.TS)

page 124).

Press briefly to select the required waveband. There are three

memory banks for the FM waveband (FM1, FM2 and FMT - each

has the same tuning range) and two AM wavebands, MW and LW.

Press and hold to activate Travelstore (see ‘TRAVELSTORE’,

page 136).

NOTE: Pressing the waveband selector briefly during CD play will

change the audio mode to radio tuner operation.

2. Tuning controls

Briefly press either the

or

controls. The unit automatically

searches up or down the frequency range and tunes to the next

receivable station (see ‘RADIO TUNING’, page 133).

Radio frequencies can also be selected using the remote switches

on the steering wheel (see ‘REMOTE AUDIO CONTROLS’,

page 125).

130

CD32 - Single Play CD

CD32 - Single Play CD

SINGLE PLAY CD CONTROLS

2. Track selection/search

Track Selection: Press one of the

or

controls to select the

next, or previous track. Press the control repeatedly to move

1

2

7

forward or back through the tracks on the disc.

Fast track selection: Press and hold either the

or

control. The

CD player skips tracks (forward or back) until the control is

released.

Fast search: With a CD playing, press and hold the appropriate

or control to play forward or back through the current track at

a greatly increased speed (volume reduces).

3. Pausing playback

3

AS0029a

3

4

5

6

To pause playback, press pre-set button 3 (‘PAUSE’ appears in the

display). Press again to cancel pause.

1. CD compartment

With the starter switched on, partially insert a disc, with the label

4. Repeat play

side uppermost, until resistance is felt, at which point the disc will

Press pre-set button 4 (RPT) to repeat the current track (‘RPT

be drawn into the player and playback starts automatically.

TRCK’ is displayed and the RPT indicator illuminates in the

If a disc is already loaded, press the SRC button (7) until ‘CD’

lower part of the display). Press again to cancel the repeat function

appears in the display. Playback starts from the point on the disc at

(‘RPT OFF’ is displayed and the RPT indicator extinguishes).

which play last stopped.

5. Random play (MIX)

To remove a disc, press and hold the SRC button (7).

Press pre-set button 5 (MIX) to play each track in a random order

NOTE: Inserting a disc when the starter switch is turned off will switch

(‘MIX CD’ is displayed and the MIX indicator illuminates in the

on the audio in CD mode, but playback will be limited to one hour.

lower part of the display). Random play continues until the button

is pressed again (‘MIX OFF’ is displayed and the MIX indicator

extinguishes).

IMPORTANT

NOTE: With random play selected, the track selection controls (2) can be

• Use standard 12cm CDs only.

used to skip to the next randomly selected track, or to the start of the current

• DO NOT use 8 cm CD singles, or irregularly shaped or damaged

track.

CDs - these may damage the compact disc player.

131

CD32 - Radio Tuning

CD32 - Radio Tuning

RADIO TUNING

Fast manual tuning: By keeping either of the

tuning controls

depressed, the waveband is scanned rapidly down or up until the

control is released.

3

Automatic tuning

Select the required waveband, then briefly press the

or

tuning control (3).

The radio searches the frequency range (up or down depending

upon which tuning control was pressed) for a radio station of

acceptable strength. Once a suitable station is found, the search

stops. To continue searching, press one of the tuning controls

again.

3

2

1

4

AS0034

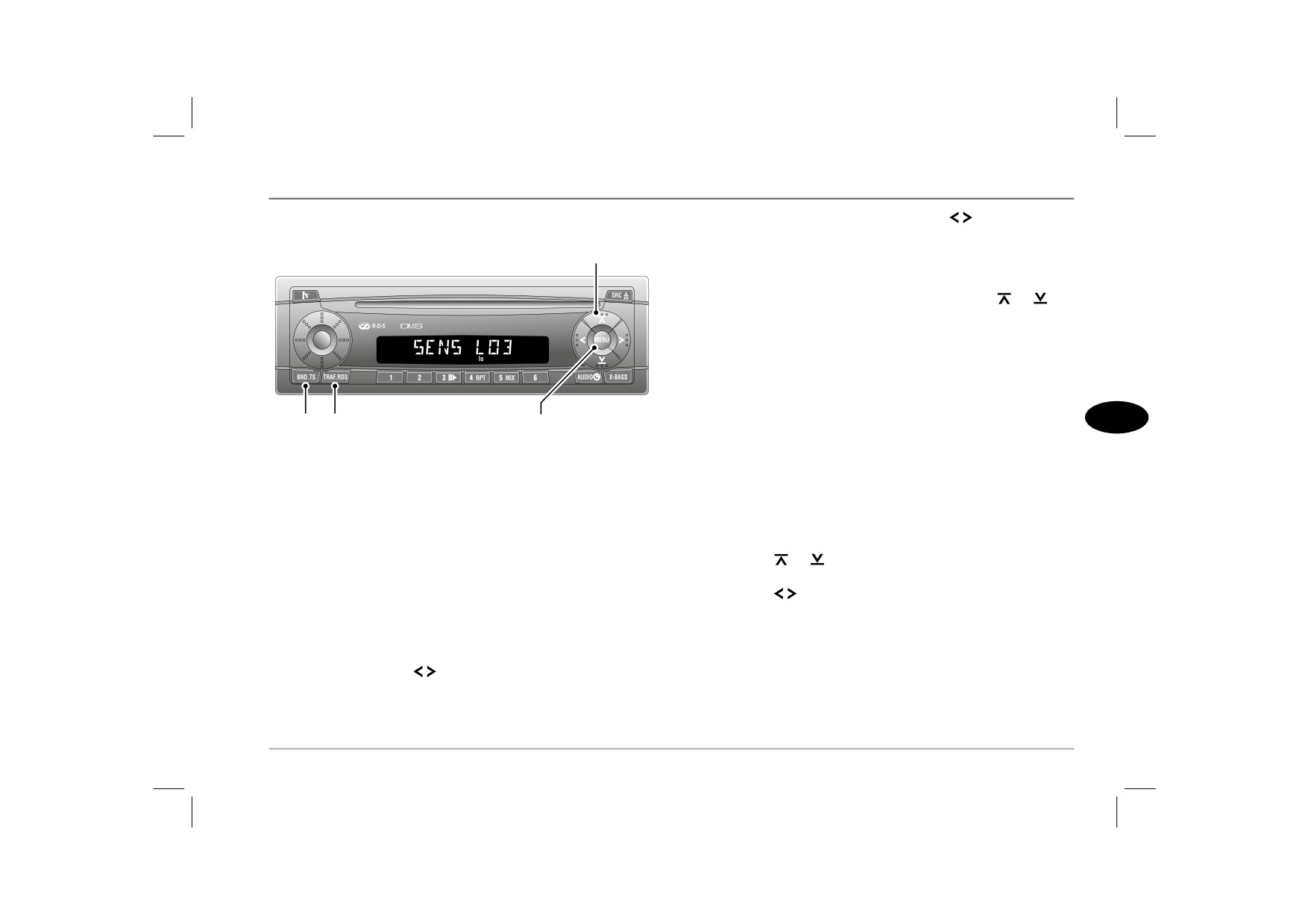

Tuning sensitivity

The sensitivity with which automatic tuning takes place can be

Manual tuning

adjusted. For example, the tuner can be configured to enable it to

NOTE: Manual tuning on the FM waveband can only be undertaken

respond only to those radio stations which provide strong

with RDS and PTY deactivated.

reception or, alternatively, to radio stations with weaker

transmissions as well.

If you know the frequency of the radio station you are seeking, or

1. Press the MENU control (4).

you need to select a radio station that is too weak to be found by

2. Press the

or

controls (3) until ‘SENS’ appears in the

automatic tuning, use manual tuning, as follows:

display.

1. Press the waveband selector (2) to select the desired waveband

3. Press the

controls (3) to set the required sensitivity

or memory bank.

(‘SENS LO1’ indicates that the tuner is at its lowest sensitivity

2. If necessary, press and hold the RDS button (1) until RDS is

setting and will tune to strong signals only, while ‘SENS HI6

deactivated (the RDS indicator disappears from the display)

indicates that the tuner is most sensitive). If ‘SENS LO’ has

and disable PTY (see ‘Switching PTY on and off’, page 137).

been selected, the ‘lo’ indicator illuminates in the display.

3. Operate one of the

tuning controls (3) until the desired

4. Press the MENU button to store your selection.

frequency has been reached.

NOTE: Different tuning sensitivities can be set for FM and MW/LW.

133

CD32 - Radio Tuning

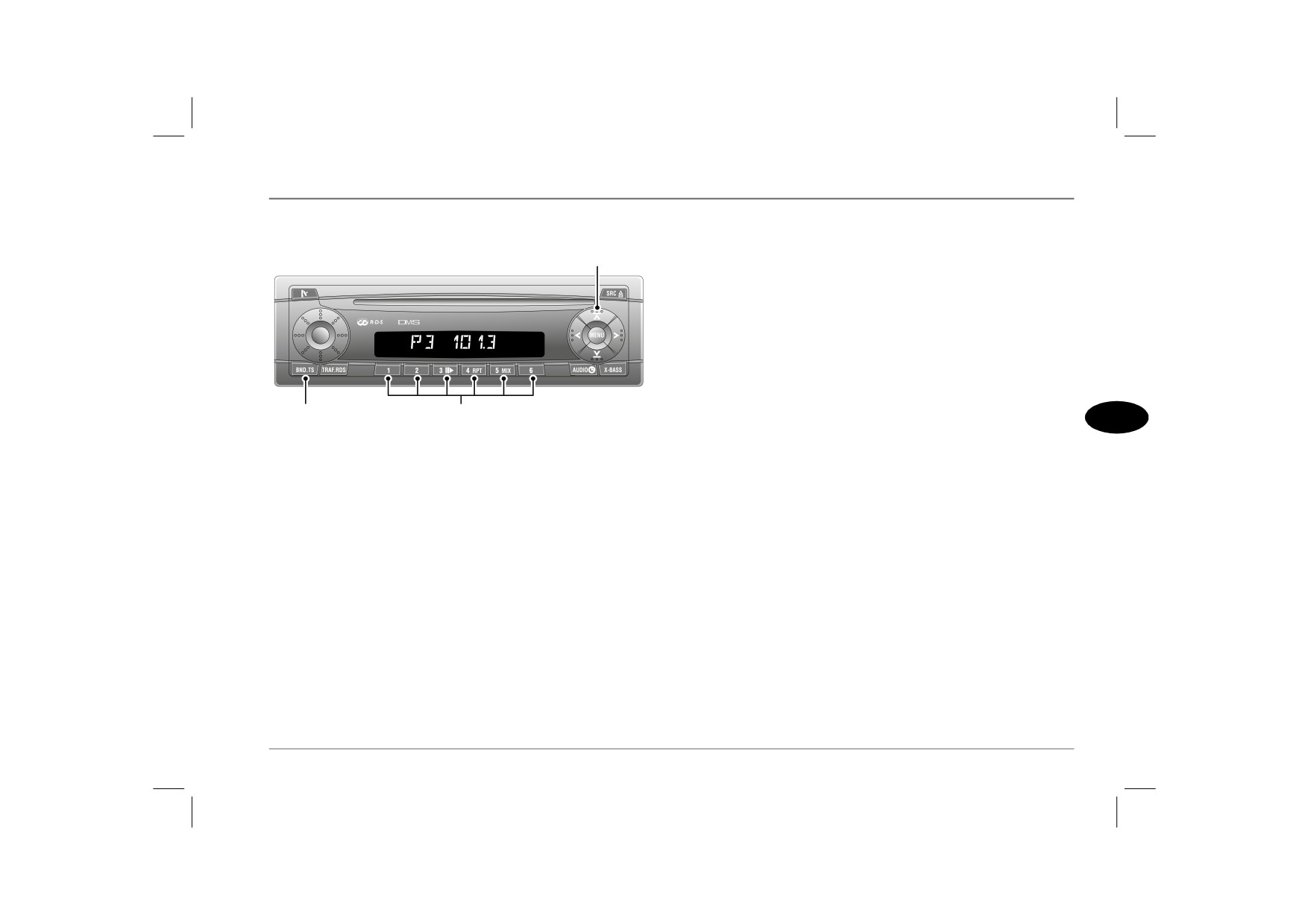

RADIO PRE-SET BUTTONS

Operating the pre-sets

Once the pre-set buttons have been programmed, select the

desired waveband, then press the pre-set button of your choice.

2

The display will initially show the pre-set number you have

selected and the station frequency e.g: ‘P3 101.3’. This is followed

by the waveband and station frequency (or station name).

1

3

3

AS0032

The six pre-set buttons (3) can be used to manually store up to

eighteen FM stations (six each on FM1, FM2 and FMT), six MW

stations and six LW stations.

Programming the pre-sets

• Press the waveband selector (1) to select the required waveband

or memory bank (FM1, FM2, FMT, MW or LW).

• Using the tuning buttons (2), select the desired frequency (see

‘RADIO TUNING’, page 133).

• Press and hold one of the pre-set buttons (3). The radio will

mute briefly while the frequency is being stored. If ‘BEEP ON’

has been selected (see ‘MENU CONTROL FUNCTIONS’,

page 140), an audible ‘beep’ will confirm that the frequency has

been stored.

• Release the pre-set as soon as radio sound is restored and the

new frequency details are displayed.

135

CD32 - Radio Tuning

TRAVELSTORE

Programming Travelstore

Press and hold the waveband selector (1) - the radio mutes and an

audible ‘beep’ will sound (if ‘BEEP ON’ has been selected - see

‘MENU CONTROL FUNCTIONS’, page 140) and the display

shows ‘T-STORE’.

Travelstore scans the FM waveband to find the six strongest

frequencies and then stores them in the FMT memory bank in

order of signal strength. Radio sound is restored once the

operation is complete.

If Travelstore is unable to locate and store six strong stations, the

1

2

display shows (‘-----’) for any unoccupied pre-sets, and the radio

AS0033

reverts to the last recalled pre-set frequency on the FM waveband.

Travelstore operates on the FM waveband only and enables you to

NOTE: Travelstore overwrites any stations already stored on the FMT

rapidly tune and store the six strongest FM radio signals in a single

memory bank.

operation. This facility is particularly useful if you are in an

unfamiliar area and have little knowledge of local transmitter

NOTE: If Travelstore is programmed with traffic information active, then

frequencies.

programming will be limited to those stations capable of providing traffic

information. In some areas this could severely limit the frequencies available

to Travelstore and, for this reason, it is recommended that traffic

information is switched off before Travelstore is programmed.

NOTE: Station frequencies can also be stored manually onto pre-sets in

the FMT memory bank (see ‘RADIO PRE-SET BUTTONS’,

page 135).

Operating Travelstore

To tune to a Travelstore frequency, select the FMT waveband

then press the pre-set button (2) of your choice. The display will

initially indicate the selected pre-set number and then display the

frequency (or station name) and FMT waveband e.g: ‘FMT 89.5’.

136

CD32 - Radio Tuning

PROGRAMME TYPE (PTY)

Selecting a programme type

Some radio stations broadcasting on the FM waveband provide

1. With PTY switched on, repeatedly press one of the

programme type (PTY) information that can be received by the

controls, or briefly press a pre-set button, until the desired

radio tuner. Using the PTY feature, radio broadcasts of a particular

programme type is displayed (see accompanying table).

programme type can be selected.

2. Press one of the

controls. The radio will search for (and

then tune to) the next radio station on the waveband

PTY Programme types

broadcasting the desired programme type. During the search,

NEWS

ROCK Music

PHONE IN

the display will alternately show ‘SEARCH’ and the

programme type.

AFFAIRS

MOR Music

TRAVEL

INFO

LIGHT Music

LEISURE

If no station of the desired programme type can be found, the

display will briefly show ‘NO PTY’ and then return to the

SPORT

CLASSICS

JAZZ

previously tuned station. However, if the tuned radio station, or

3

EDUCATE

OTHER Music

COUNTRY

another station on the same broadcasting network, later broadcasts

DRAMA

WEATHER

NATIONAL Music

a programme of the desired programme type, the radio will

CULTURE

FINANCE

OLDIES

automatically switch to this broadcast (even during CD play).

SCIENCE

CHILDREN

FOLK Music

Storing PTY programmes on the pre-set buttons

VARIED

SOCIAL

DOCUMENT

With the desired programme type selected, press and hold one of

POP Music

RELIGION

TEST

the pre-set buttons. The programme type is then stored on the

pre-set button.

Switching PTY on and off

To switch programme type on (‘PTY ON’) or off (‘PTY OFF’),

see ‘MENU CONTROL FUNCTIONS’, page 140. When ‘PTY’

is selected the ‘PTY’ indicator will illuminate in the lower part of

the display.

The language in which the programme type is displayed can

be set to either English, French or German by using the MENU

button, see ‘PTY LANG’ in ‘MENU CONTROL

FUNCTIONS’, page 140.

137

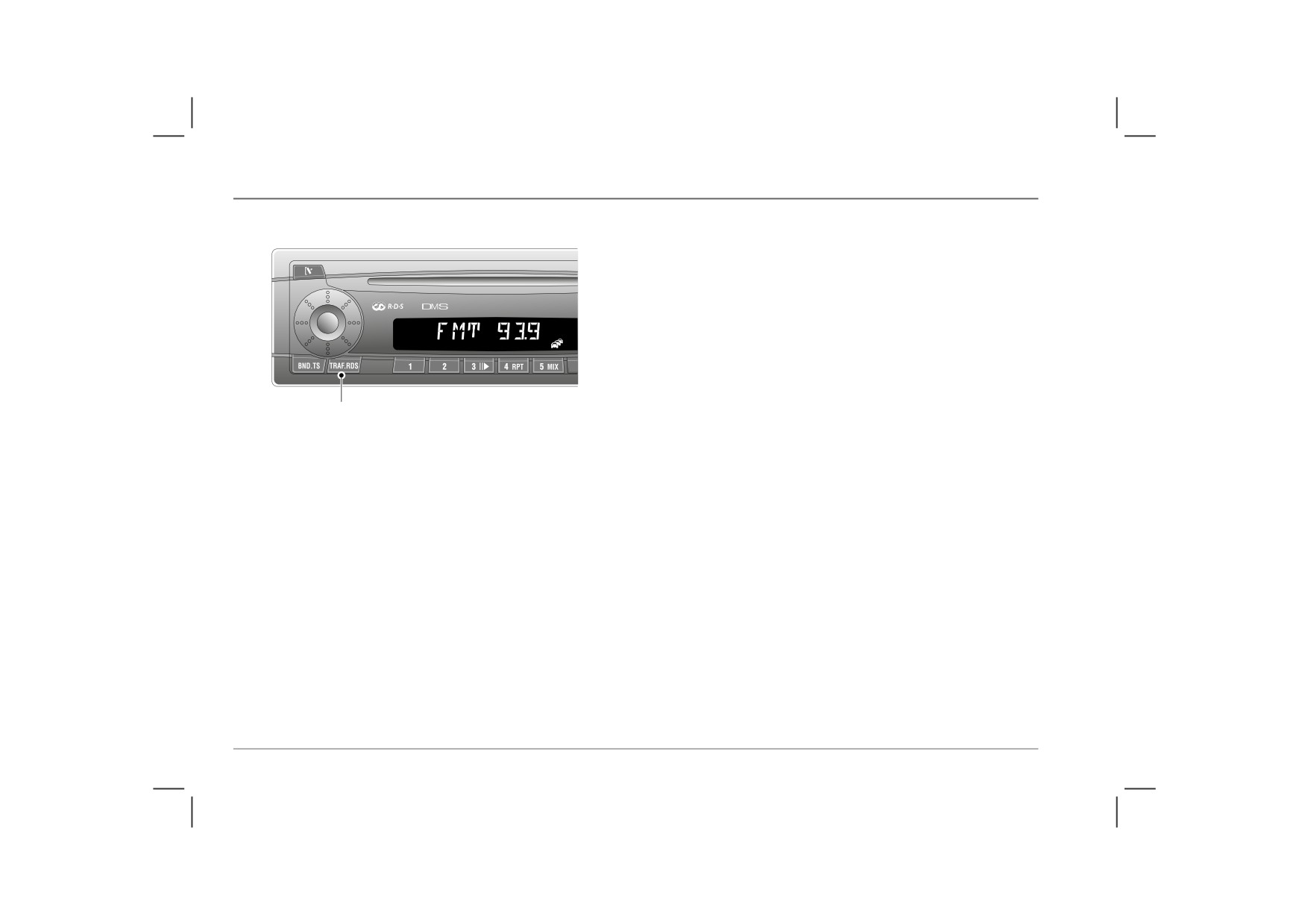

CD32 - Traffic Information

CD32 - Traffic Information

TRAFFIC INFORMATION BROADCASTS

A warning bleep will sound if:

• The car leaves the reception area of the traffic information

station being received.

• While listening to a CD the car leaves the reception area of the

traffic information station currently tuned and the subsequent

automatic search cannot find a new traffic information station.

• The radio is retuned from a traffic information station to a

station that does not broadcast traffic information.

In each case, either switch off the traffic information feature, or

tune to a station that broadcasts traffic information.

AS0035

1

Traffic information broadcasts during CD play

When the radio is in traffic information mode, CD play will be

On the FM waveband, your radio is able to receive traffic

interrupted by traffic information broadcasts automatically as and

information broadcasts automatically as and when they occur.

when they occur.

Selecting traffic information

Setting the volume for Traffic announcements

Briefly press the TRAF-RDS control (1) - the traffic jam symbol

The volume of traffic information broadcasts (‘TA VOLUME’)

illuminates in the display. To switch off the traffic information

can be set independently from the volume required for other audio

feature, briefly press the control again.

functions, see ‘MENU CONTROL FUNCTIONS’, page 140.

Unwanted traffic information broadcasts can be aborted by

NOTE: The volume level for traffic information broadcasts can also be

pressing the control. In this case, because the feature is being

adjusted by turning the volume control during traffic information

disabled DURING a traffic information broadcast, disablement is

announcements.

only temporary - the feature will return as soon as the next traffic

information bulletin is broadcast.

138

CD32 - Clock & Time

CD32 - Clock & Time

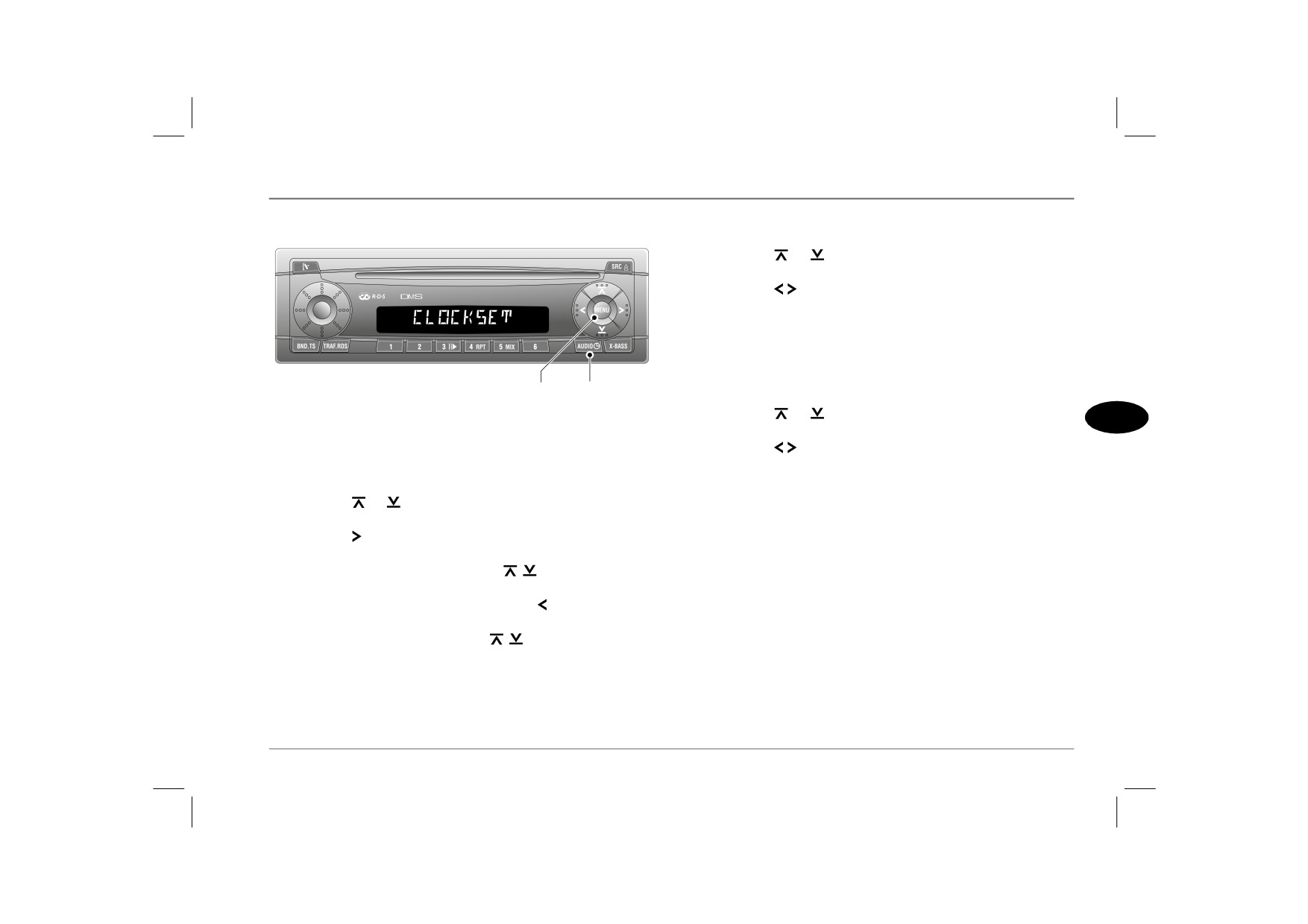

CLOCK

Changing between 12 and 24 hour displays

1. Press the MENU button (1).

2. Press the

or

control until ‘12H MODE’ or ‘24H

MODE’ appears in the display.

3. Press the

controls to switch between displays.

4. Press the MENU button to store your selection.

Clock displays when the audio is switched off

With the starter turned ON:

The audio unit can be programmed to display the time, as follows:

AS0037

1

2

1. With the audio switched on, press the MENU button (1).

2. Press the

or

control until either ‘CLOCK ON’ or

To display the time, press and hold the clock control (2). The

3

‘CLOCKOFF’ appears in the display.

display will be present for approximately two seconds.

3. Press the

controls to switch between displays (with

Setting the time

‘CLOCKOFF’ selected, the time display is prohibited).

1. Press the MENU button (1).

4. Press the MENU button to confirm your selection.

2. Press the

or

control until ‘CLOCKSET’ appears in the

With the starter turned OFF:

display.

The time can be displayed when both the audio unit AND starter

3. Press the control. The time shows in the display with the

switch are turned off, as follows:

minute figures flashing.

• Briefly press the clock button (2). The time is displayed for

4. Adjust the minutes by pressing the

controls (up to

approximately 8 seconds.

increase or down to reduce).

5. Once the minutes have been set, press the control. This will

NOTE: This feature is available in both ‘CLOCK ON’ and

cause the hour digits to flash.

‘CLOCKOFF’ modes.

6. Adjust the hours by pressing the

controls (up to

increase or down to reduce).

7. Once all changes are complete, press the MENU button

twice.

139

CD32 - Menu Functions

CD32 - Menu Functions

MENU CONTROL FUNCTIONS

PTY LANG

Select to change PTY language - press or to select

The following table identifies the full range of functions obtainable

English, French or German.

by pressing the menu button and then using the or controls.

CLOCK ON

Enables or prohibits time display when audio is switched

Once an adjustment has been completed, press the menu button

CLOCKOFF

off - press

controls to toggle between ‘CLOCK

once (or twice) to exit the menu and store the settings.

ON’ and ‘CLOCK OFF’.

CLOCKSET

Select to adjust time display - press

or to select

TAVOLUME

Select to adjust audio volume for traffic broadcasts -

minutes or hours, and

or

to adjust the time.

press

controls to increase or reduce volume.

12H MODE

Select to change clock display mode - press

controls

PEAK LVL

With PEAK ON selected, display shows graphic

24H MODE

to toggle between 12 & 24 hour modes.

representation of radio output level - press

controls

to select PEAK ON or PEAK OFF.

BEEP ON

An audible signal accompanies some operations where a

BEEP OFF

control is pressed for 2 seconds or more - press or

HICUT 1

HICUT enables or prohibits the automatic reduction of

to toggle between BEEP ON and BEEP OFF.

HICUT 0

treble response in poor reception areas. HICUT 1

enables, HICUT 0 prohibits - press the

controls to

REG ON

Reception of regional programme variations can be

REG OFF

enabled or prohibited - use the

controls to select

toggle between the two.

REG ON or REG OFF.

ON VOL

Default volume when audio is switched on - press

controls to increase or reduce volume.

NOTE: Some of the above features will not be available during CD play,

MUTE LVL

Audio volume when mute is activated - press

or MW/LW radio operation. The following additional feature is available

controls to increase or reduce volume.

during CD play:

AUX ON

This feature is not recommended for use with Rover 75

AUX OFF

and MGZT models. Set to AUX OFF.

CD DISP

Select to alter single play CD display - press

SENS

Adjusts sensitivity of radio tuning - press

or to

controls to select TIME (display shows track playing

increase or reduce tuning sensitivity.

time) or PLAY (display shows track number).

SCANTIME

Select to adjust scanning time for radio and CD play -

CDC DISP

This feature is not applicable.

press

or to adjust (between 5 and 30 seconds).

PTY ON

Select to enable or prohibit programme type (PTY)

PTY OFF

selection - press the

controls to toggle between

PTY ON and PTY OFF.

140

Harmony - Radio

Harmony - Radio

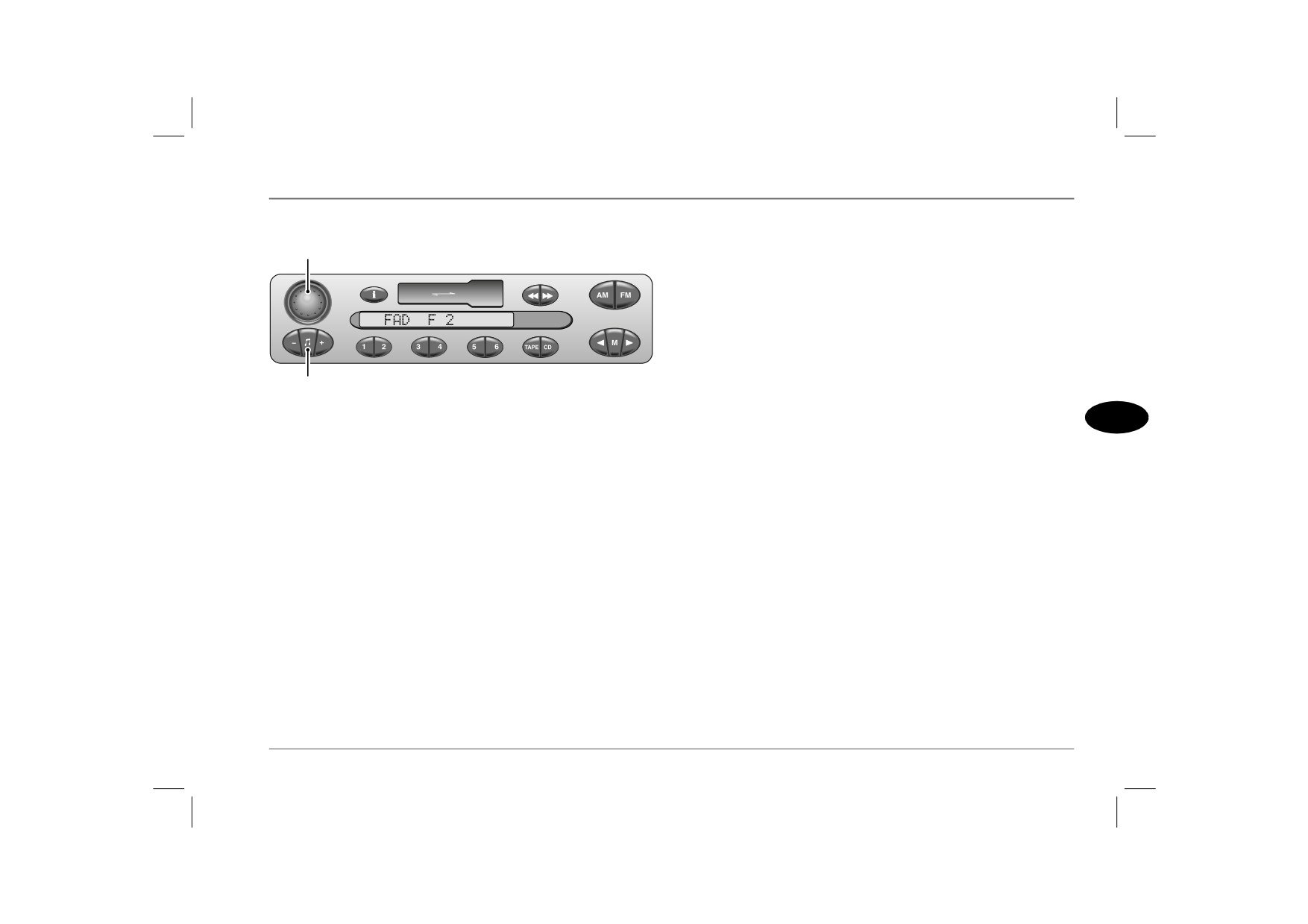

SOUND CONTROLS

Bass: Press once, then operate the ‘-’ or ‘+’ buttons to reduce or

increase bass response. The display shows:

1

•

‘BASS -6’ = minimum bass

•

‘BASS 0’ = normal bass

•

‘BASS +6’ = maximum bass

Treble: Press twice, then operate the ‘-’ or ‘+’ buttons to reduce or

increase treble response. The display shows:

•

‘TREB -6’ = minimum treble

•

‘TREB 0’ = normal treble

2

•

‘TREB +6’ = maximum treble

ICE0140

Fader: Press three times, then operate the ‘-’ or ‘+’ buttons to

3

1. On/off and volume control

adjust the balance between front and rear speakers. The display

Press to switch on (display briefly shows ‘CODE ENABLED’).

shows:

Press again to switch off.

•

‘FAD F 6’ = max sound from FRONT

Rotate steadily to right or left to adjust the volume.

•

‘FAD 0’ = equal balance

The volume can also be adjusted using the remote switches on the

•

‘FAD R 6’ = max sound from REAR

steering wheel (see ‘REMOTE AUDIO CONTROLS’,

Balance: Press four times, then operate the ‘-’ or ‘+’ buttons to

page 125).

adjust the balance between left and right speakers. The display

NOTE: If you have a car telephone with a mute signal output connected

shows:

to the stereo system, radio, tape or CD play automatically mutes when the

•

‘BAL R 6’ = max sound from RIGHT

telephone is in use.

•

‘BAL 0’= equal balance

•

‘BAL L 6’ = max sound from LEFT

2. Audio selection button

Press one or more times to select bass, treble, fader or balance

NOTE: After 8 seconds without further adjustment, the audio selection

(display confirms selection), as described below.

mode is cancelled automatically.

Press and hold for at least two seconds to zero all audio settings

(display shows ‘FLAT’).

141

Harmony - Radio

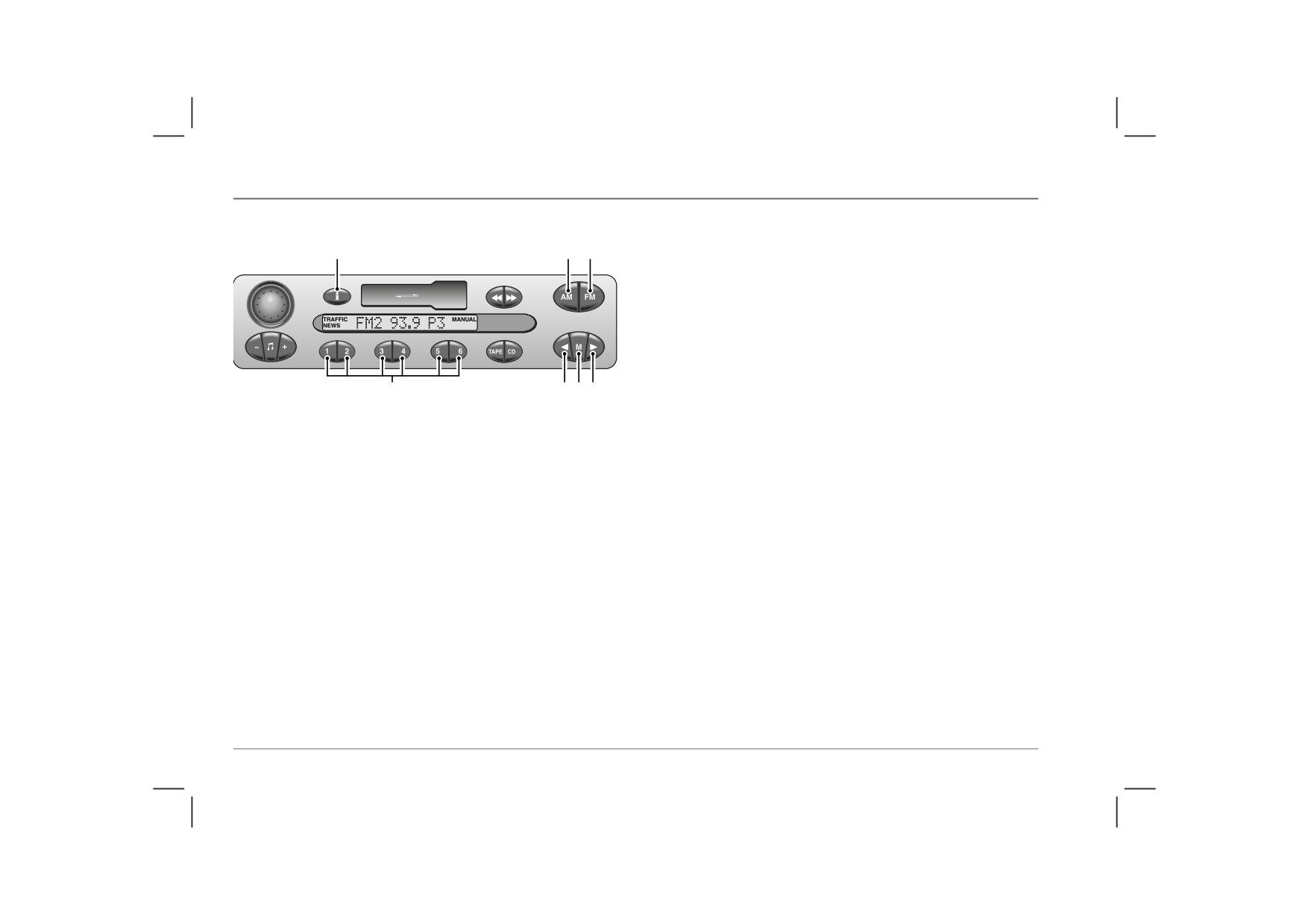

RADIO CONTROLS

6. Manual tuning selector

Press to select manual tuning mode (‘MANUAL’ is displayed) -

8

4

3

use in conjunction with the tuning buttons (see ‘Manual tuning’,

page 145). Press again to return to automatic tuning.

The frequency can also be selected using the remote switches on

the steering wheel (see ‘REMOTE AUDIO CONTROLS’,

page 125).

NOTE: Manual tuning defaults to automatic tuning if unused for more

than 8 seconds.

7

5 6 5

ICE0141

7. Pre-set buttons

Use to store up to 6 radio stations on each waveband.

3. FM waveband selector

Press briefly to select a stored frequency.

Press briefly once or twice to select FM frequencies. There are two

FM bands (FM1 and FM2). Both have the same tuning range, and

Press and hold to store a frequency on a pre-set (see ‘Programming

each one can be used to store six frequencies on the pre-set

the pre-sets’, page 146).

buttons.

8. Traffic and news information

Press and hold to activate auto-store (see ‘AUTO-STORE’,

Press briefly to switch on (or switch off) traffic information mode

page 147).

- FM waveband only (see ‘Selecting traffic information’, page 148).

4. AM waveband selector

Press and hold for 2 seconds to switch on (or switch off) news

Press briefly to select one of the three AM bands (MW1, MW2

mode - FM waveband only (see ‘Selecting news information’,

and LW). Each can be used to store six stations on the pre-set

page 148).

buttons.

Press briefly to return to normal radio, tape or CD reception

Press and hold to activate auto-store (on MW only - see ‘AUTO-

during a traffic or news announcement.

STORE’, page 147).

NOTE: Both traffic and news information can be operational at the same

time.

5. Tuning buttons

Briefly press either button to search up or down the frequency

range (see ‘RADIO TUNING’, page 145).

142

Harmony - Cassette Player

Harmony - Cassette Player

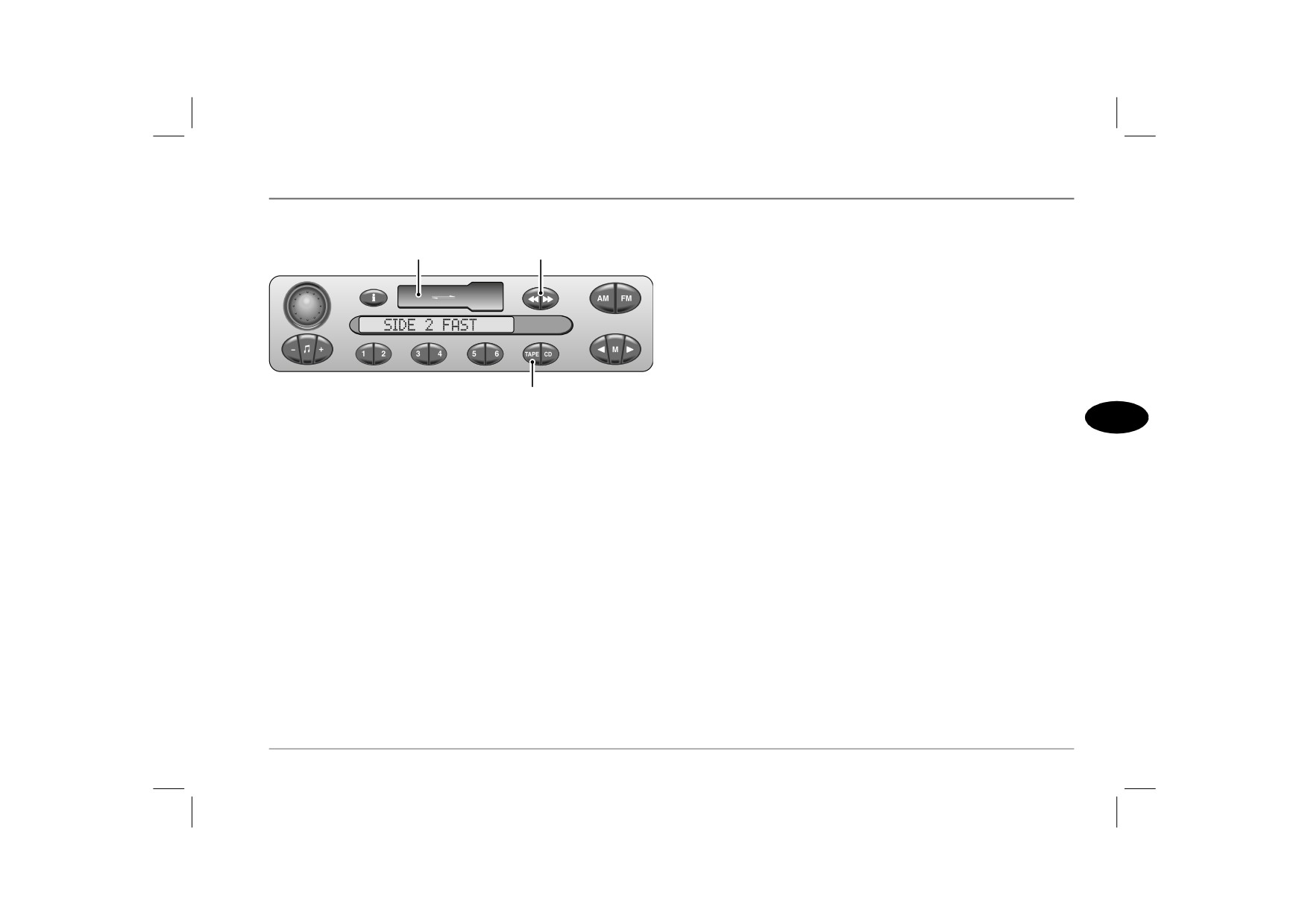

CASSETTE PLAYER CONTROLS

10. Fast forward/rewind/reverse and eject buttons

During tape winding, ‘FAST’ shows in the display.

9

10

• To forward or reverse wind, press either one of the two

buttons.

• To stop tape winding, half press the remaining (unlocked)

button. Tape play will automatically resume.

• To reverse the direction of tape play, half press both buttons

simultaneously.

• To eject the tape, FULLY press both buttons simultaneously.

The unit returns to radio mode, selecting the waveband and

ICE0147

11

frequency last in use.

3

9. Cassette compartment

11. Tape mode selector

Insert the tape with the open side to the right and push in carefully.

Press to select tape play (display shows ‘SIDE 1’ or ‘SIDE 2’).

The radio mutes and tape play starts immediately

To change to radio reception during tape play, press either of the

(display shows ‘SIDE 1’ or ‘SIDE 2’).

waveband selection buttons (FM or AM) - tape play will stop and

At the end of either side of the tape, play will automatically

the radio automatically selects the frequency last in use on

continue in the opposite direction.

whichever waveband was selected.

If the set is switched off during tape play, the cassette remains in

To return to tape play, press the tape mode button.

stand-by mode. Play resumes when the set is switched on again.

NOTE: The remote switches on the steering wheel can also be used to

change to or from radio or tape play (see ‘REMOTE AUDIO

CONTROLS’, page 125).

143

Harmony - Compact Disc Player

Harmony - Compact Disc Player

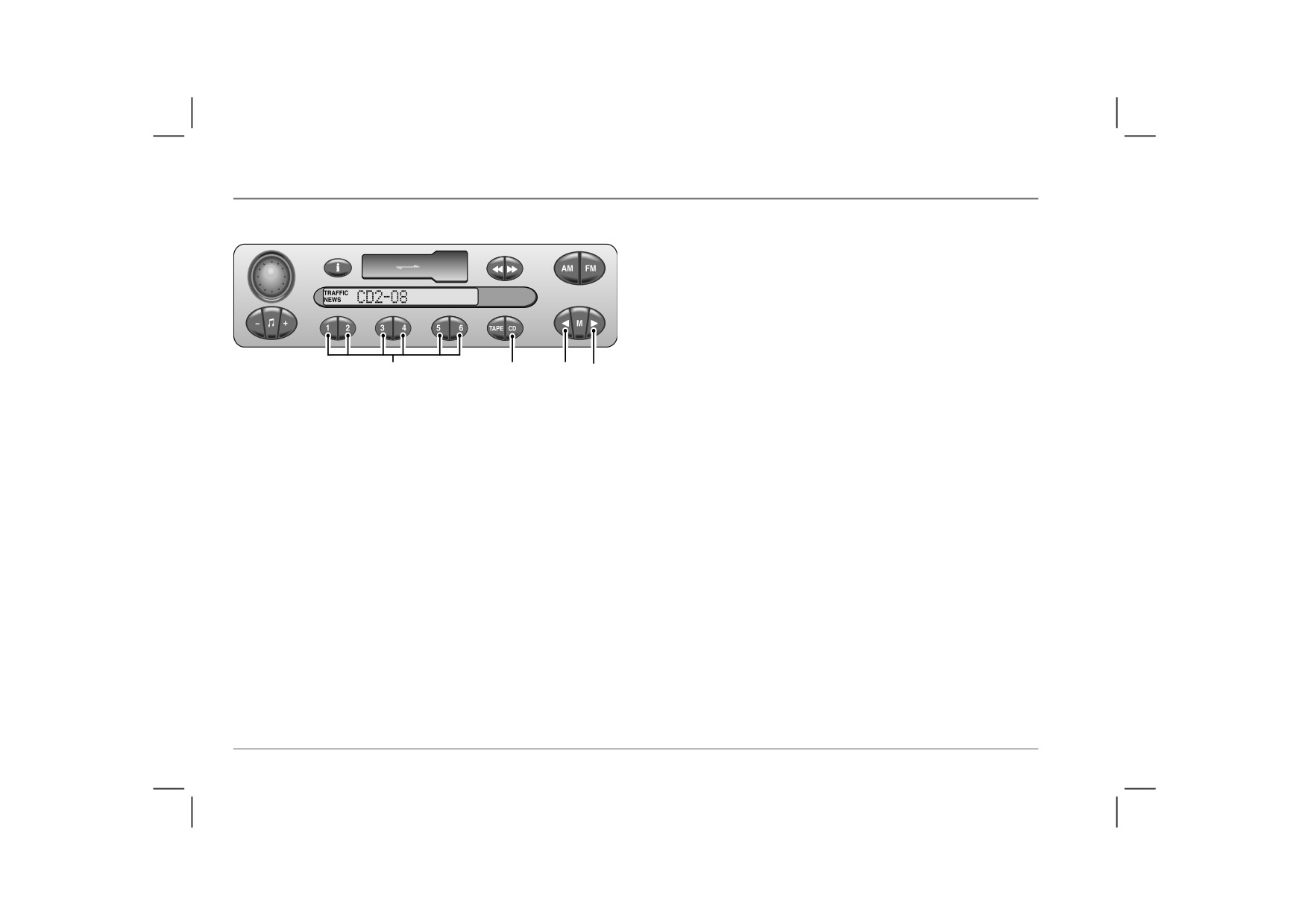

COMPACT DISC PLAYER CONTROLS

14. Track search buttons

Skip: Briefly press the appropriate button to skip to the beginning

of the next track, or return to the start of the current track (the

display shows disc and track numbers). Press the search buttons as

often as necessary to reach the desired track. If either button is

pressed and held, the CD player continues to skip tracks (forward

or back) until the button is released.

Fast search: Press the Manual mode button (‘M’), then press and

hold the appropriate search button; the audio unit will play the first

ICE0150

13

12

14

14

few seconds of every track on all the discs in the autochanger

magazine. When the search button is released, fast search ceases

12. CD mode selector

and normal playback resumes.

Press to select CD player mode. Playback starts from the point on

the disc at which play last stopped, or from the start of the first disc

NOTE: The compact disc player controls will operate only with the

if the magazine is newly inserted. The display shows the disc and

optional CD changer unit.

track number (i.e. ‘CD2 - 08’). If a magazine has not been inserted

NOTE: Skip, search and mode selection can be operated using the remote

into the autochanger, 'NO MAGAZINE' is displayed.

switches on the steering wheel (see ‘REMOTE AUDIO

At the end of each disc, playback automatically continues with the

CONTROLS’, page 125).

next disc (missing discs are skipped if less than six have been

loaded). Once the last track of the final disc has been played,

playback reverts to the first track of the first disc.

13. Disc selection buttons (1-6)

Each button is numerically allied to the equivalent compartment

in the CD magazine. By pressing one of the buttons, the CD from

the magazine compartment of the same number is loaded and the

first track commences playing.

If a disc has been inserted the wrong way up, or an empty

compartment is selected, the display shows ‘NO DISC’ and the

next available disc is selected instead.

144

Harmony - Radio Tuning

Harmony - Radio Tuning

RADIO TUNING

Automatic tuning

Select the required waveband (FM or AM), then briefly press one

of the tuning buttons (5).

The radio automatically searches the frequency range (either up or

down depending upon which of the tuning buttons is pressed)

looking for a radio station of acceptable strength. Once a suitable

station is found, the search stops unless you choose to continue by

pressing the tuning button again.

NOTE: If you have a car telephone with a mute signal output connected

5 6 5

to the radio, the radio automatically mutes when the telephone is in use.

ICE0142

MONO/STEREO

3

Manual tuning

If you know the frequency of the radio station you are seeking, or

Whenever the FM waveband is selected, the radio automatically

you need to select a radio station that is too weak to be found by

reproduces stereo sound, provided a suitable signal is available.

automatic tuning, use manual tuning, as follows:

However, if a signal becomes too weak for good stereo reception,

only mono sound is produced until the signal strengthens

Select the desired waveband (FM or AM), then press the manual

sufficiently for stereo sound reproduction.

tuning button (6) (‘MANUAL’ appears in the display). By pressing

either tuning button (5), the frequency changes (either up or

down) in steps of 0.1 MHz for FM, or 9 kHz for MW, or 1 kHz

for LW.

Fast manual tuning

By keeping either tuning button depressed, the waveband is

scanned rapidly up or down until the button is released.

145

Content      ..     7      8      9      10     ..
