Temperature

The temperature grades are “A” (the
highest), “B”, and “C”, representing
the tire resistance to the generation
of heat and its ability to dissipate
heat when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the tire to
deteriorate and can reduce tire life.
In addition, excessive temperature
can lead to sudden tire failure. The
grade “C” corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Safety Standard No.
109. Grades “B” and “A” represent
higher levels of performance on
the laboratory test wheel than the
minimum required by law.

The temperature grade for
this tire is established for a
tire that is properly inflated

and not overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.

Other tire markings

Manufacturer’s name.
Tire model.
Size information.
Example:
245 = nominal section width in mm.
35 = height of tire cross-section
expressed as percentage of width
R = radial construction
20 = rim diameter in inches.
ZR= speed rating indicating the speed
at which the tire can carry the load
corresponding to the load capacity
index.

Tire placard/label

The tire and loading Information label
stuck on the driver’s door jamb specifies
the correct size and pressure of tires
to be used on the GranTurismo. It also
specifies the total weight the car can
carry, called the car capacity weight.
This includes the weight of the driver,
passenger and luggage.
For tire pressure information, refer also
to the ‘Technical Data’ section of this
manual.
Also found on the driver’s door jamb is
the Certification label, which stipulates
the Gross Vehicle Weight Rating
(GVWR). The GVWR includes the weight
of the car, occupants, fuel and luggage.
Never exceed the GVWR or the Gross
Axle Weight Rating (GAWR) for either
the front or rear axle. The maximum
load which may be carried in the rear
luggage compartment is 66 lbs (30 kg).

Note That the GranTurismo SPORT is
not designed to tow a trailer, and no
such attempt should be made.

WARNING: Do not exceed the GVWR,
or front or rear GAWR. Exceeding
these limits may lead to poor
handling, vehicle instability or tire
damage which could cause a crash in
which you or others could be seriously
injured or killed.

5

169

Information on tire care, including
maintenance and safety practices can
also be found on page 221; tire and
wheel size information is reported
on page 205 and the information on
the tire pressure monitoring system
(TPMS) can be found on page 47.

WARNING: In order to achieve optimal
handling characteristics, the wheel
and tire sizes on the GranTurismo
are different at front and at the
rear. This means that interchanging
of wheels and tires between axles
is not permissible. Failure to respect
this requirement will adversely affect
vehicle handling and may result in an
accident in which you or others could
be killed or seriously injured.

Importance of proper inflation
pressure

-  Use a good quality tire pressure

gauge and always replace the
tire valve dust cap to prevent
the ingress of dirt and moisture
into the valve, which could cause
leakages. Many gas stations provide
tire inflation facilities.

-  The tires should be regularly

inspected for signs of cuts,
abrasions or other damage, and for
any uneven tread wear patterns.
Uneven treadwear may indicate
that the suspension geometry or
dampers require attention from
your Authorized Maserati Dealer.

-  Overloading your tires can cause

overheating as a result of too much
friction. You could have a blowout
and a serious accident in which you
could be killed or seriously injured.
See ‘Tire Placard Label’.

-  Underinflated tires pose the same

danger as overloaded tires. The
resulting accident could cause
serious injury, or death. Check
all tires frequently and maintain
the recommended pressure. Tire
pressures should be checked only
when the tires are cold.

-  Overinflated tires are more likely

to be cut, punctured or broken

by a sudden impact - such as
hitting a pothole. Keep tires at the
recommended pressure.

-  Installing improper tires on your

vehicle can affect handling and
stability. This can cause a crash in
which you can be killed or seriously
injured.

-  Always use the size and type of

tires recommended in this manual.

-  Using incorrect tires or tires which

are excessively worn or improperly
inflated can cause a crash in which
you can be killed or seriously
injured.

When driving on wet roads, surface
water is squeezed out from between
the tire and road. However, excessive
speed or water depth can overwhelm
the water clearing capability of the
tread and lead to a condition called
‘aquaplaning’ or ‘hydroplaning’,
where the tire rides on a film of water
and provides little or no grip on the
road surface, leading to a loss of
control. This condition is more likely
to occur with worn tires having little
depth of tread, or with incorrect
tire pressures. Drivers should always
check on tire wear and condition,
and moderate their speed in adverse
weather conditions.

5

170

Tire care

Wear indicators are molded into
the bottom of the tread grooves at
intervals around the tire, indicated
by small pointers on the outer tread
blocks. The tires should be replaced
before being worn to this minimum
legal tread depth.
The cold tire pressures should be
checked every week, or every 1000
miles (1700 km), whichever is the
sooner, and corrections made as
necessary. See ‘Technical Data’ at
the back of the handbook for tire
pressures. Underinflation will cause
excessive wear, rapid deterioration of
the tire sidewalls and heavy steering,
whereas overinflation results in a
hard ride and in creased susceptibility
to tire damage. Both conditions will
cause a degradation in the handling
qualities.

Vehicle load limits:

Federal regulations require the
following statement in this manual:
“Steps for Determining Correct Load
Limit“
1) Locate the statement “The

combined weight of occupants and
cargo should never exceed XXX
kg or XXX lbs.” on your vehicle’s
placard.

2) Determine the combined weight of

the driver and passengers that will
be riding in your vehicle.

3) Subtract the combined weight of

the driver and passengers from XXX
kg or XXX lbs.

4) The resulting figure equals the

available amount of cargo and
luggage load capacity. For example,
if the “XXX” amount equals 1400
lbs. and there will be five 150 lb
passengers in your vehicle, the
amount of available cargo and
luggage load capacity is 650 lbs.
(1400-750 (5 x 150) = 650 lbs.)

5) Determine the combined weight of

luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity
calculated in Step 4.

NOTE: The vehicle should not be used
to tow a trailer.

Winter tires

These tires are specially designed for
driving on snow and ice and should
be fitted to replace the ones supplied
with the vehicle.

Only use winter tires having
the same dimensions as
those provided with the

vehicle or as indicated on page 205.

Your Authorized Maserati Dealer is
available to provide suggestions as to
the types of tires most suited to the
use foreseen by the Customer.
For the type of tires to use, inflation
pressures and relative specifications
for winter tires, carefully follow
the indications found in the
section “Capacities and technical
specifications”.
The features of these winter tires are
strongly reduced if the tread depth
is less than 0.2 in (4 mm). In this case,
they should be replaced.

5

171

The specific features of the winter
tires lead to lower performance under
normal environmental conditions or
on long highway trips, compared to
the standard tires.
Therefore, they should only be fitted
for their intended use, for which they
have been approved.

Fit identical (manufacturer
and tread) tires on all four
wheels, in order to help

ensure safe driving, braking and good
handling.

Remember that the direction
of tire rotation should not be
reversed.

Snow chains

The use of snow chains is subject to
local regulations.
If the use as snow chians is allowed,
to use small-sized snow chains with a
maximum projection of 0,35 in (9 mm)
beyond the tire tread.
The chains should be fitted only on
the driving wheel tires (rear wheels).
Check chain tension after driving for
a distance of about 55 yd (50 m) with
the chains fitted.

Snow chains: brand/type

Konig/Supermagic



Rear tire

285/35 ZR20

285/40 ZR19 (°)

(°) Tire available on request

WARNING: Before purchasing or using
snow chains, we recommend that you
contact your Authorized Maserati
Dealer for information.

WARNING: Keep a moderate speed
when using snow chains. Do not
exceed 30 mph (50 km/h). Avoid holes
in the road, do not drive over steps
or sidewalks and do not drive on long
road stretches without snow. This will
help prevent damage to the vehicle
and the road surface.

5

172

Useful accessories to
keep in the vehicle

We recommend that you keep in the
vehicle:
-  first aid kit containing alcohol-free

disinfectant, sterile gauze pads,
gauze rolls, bandages, etc.;

- electric

flashlight;

- blunt-tipped

scissors;

- heavy-duty

gloves.

The objects described and other
essential objects can be obtained
locally.

6

173

In an emergency

Emergency starting

174

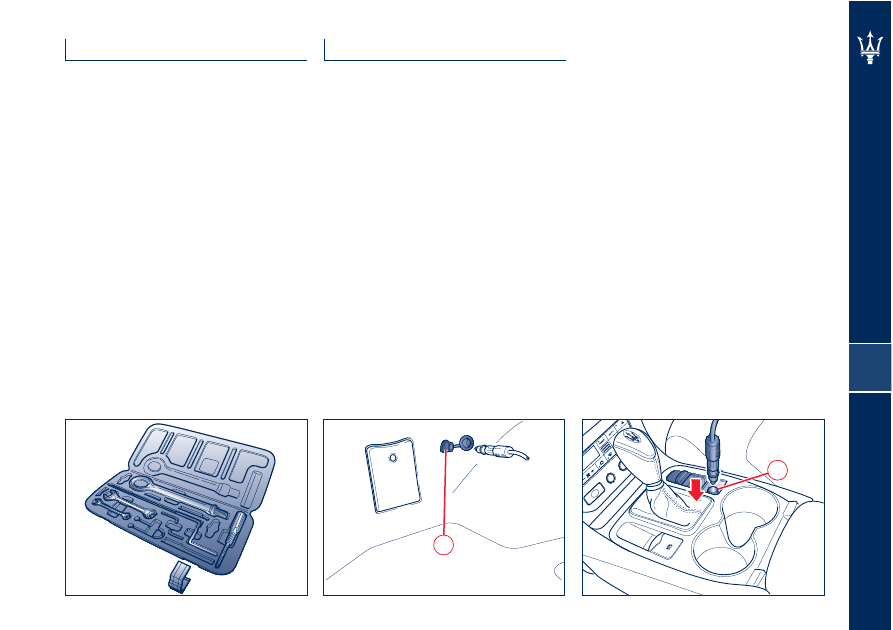

Toolkit 175
If a tire is punctured

175

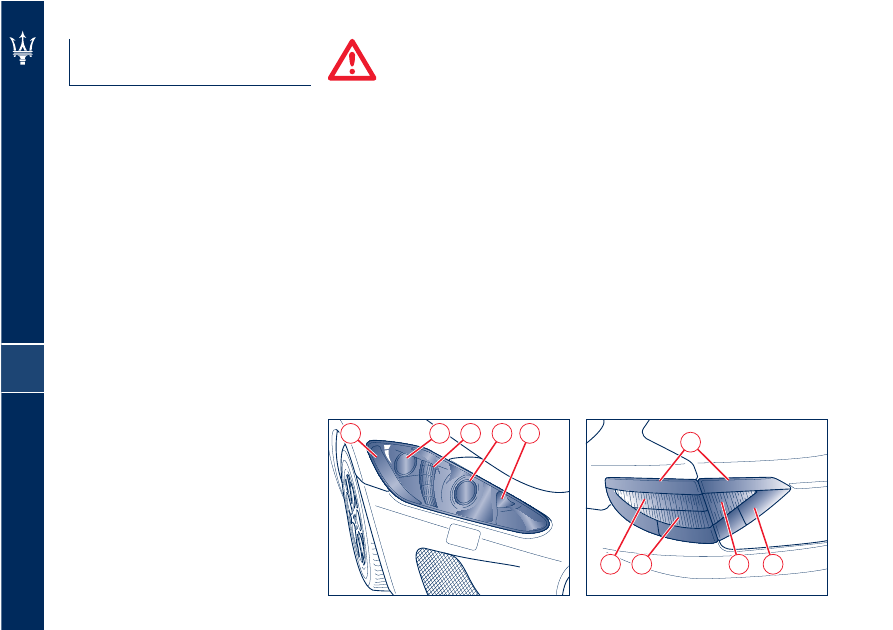

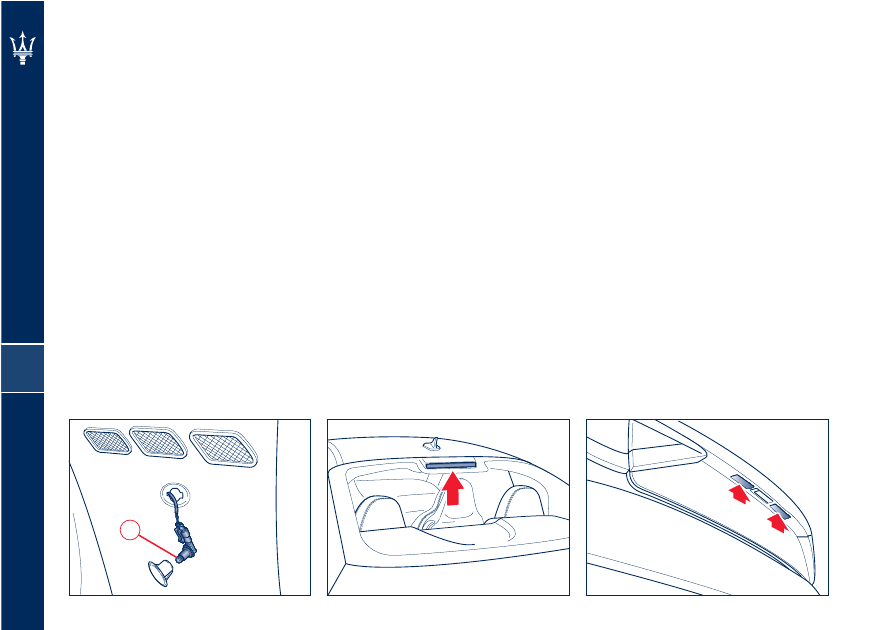

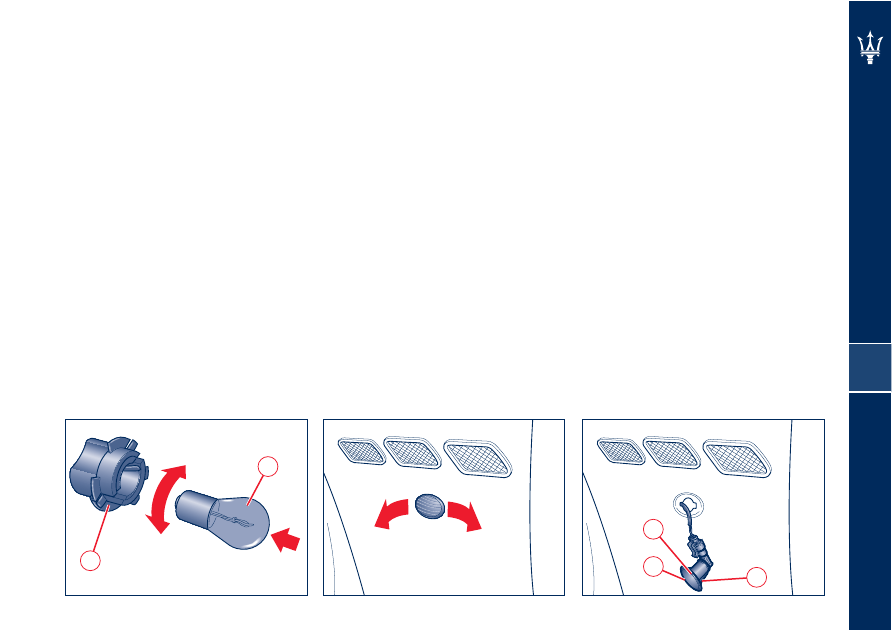

If an exterior light turns off

176

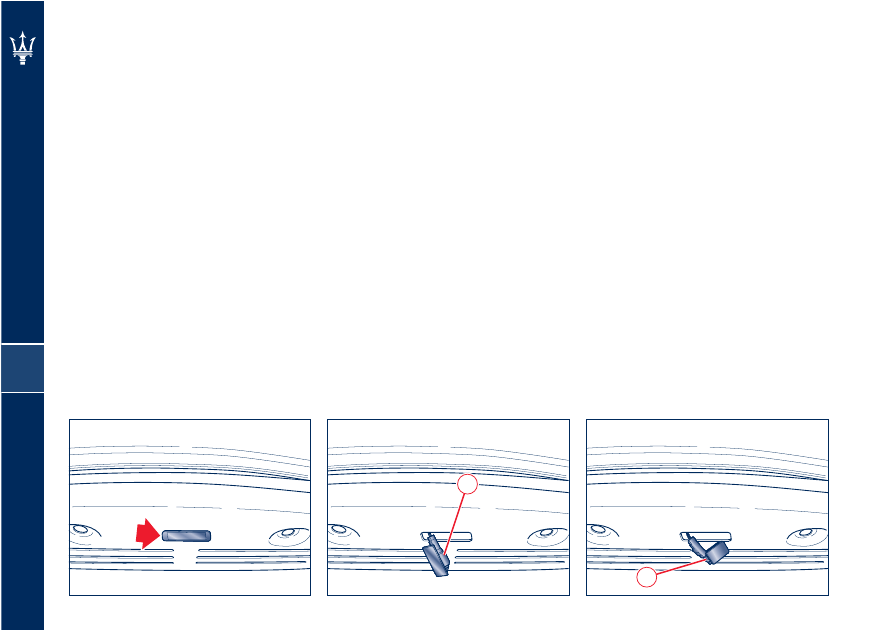

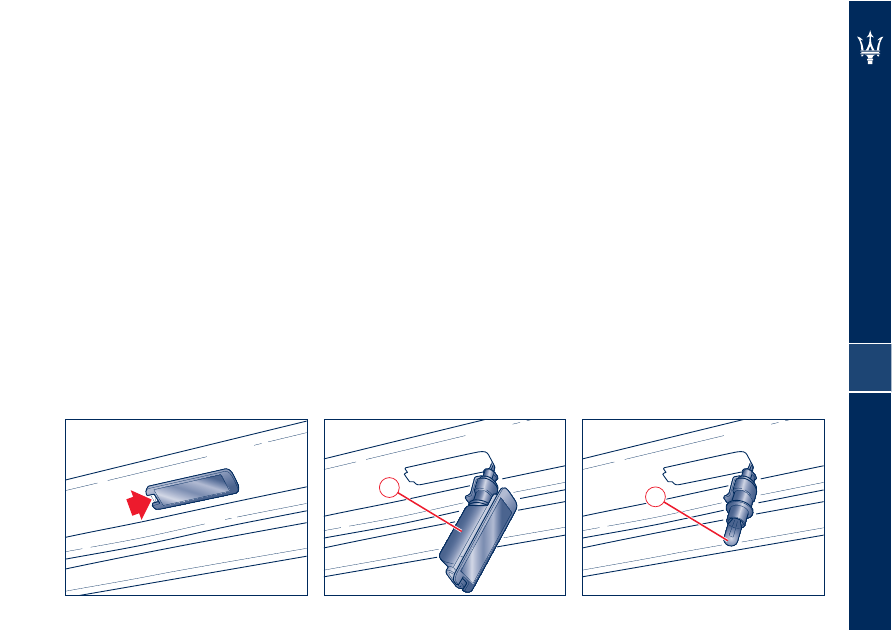

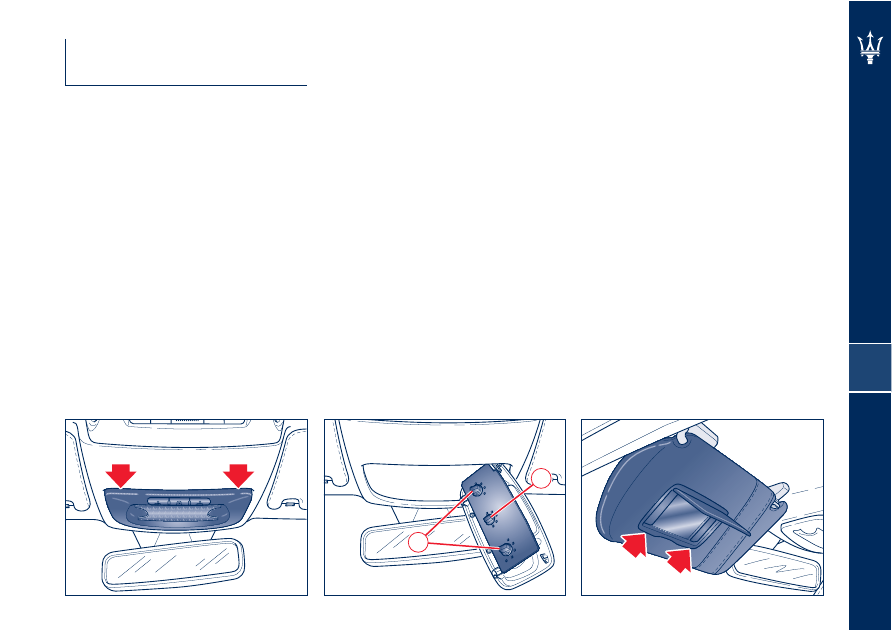

If an interior light goes out

179

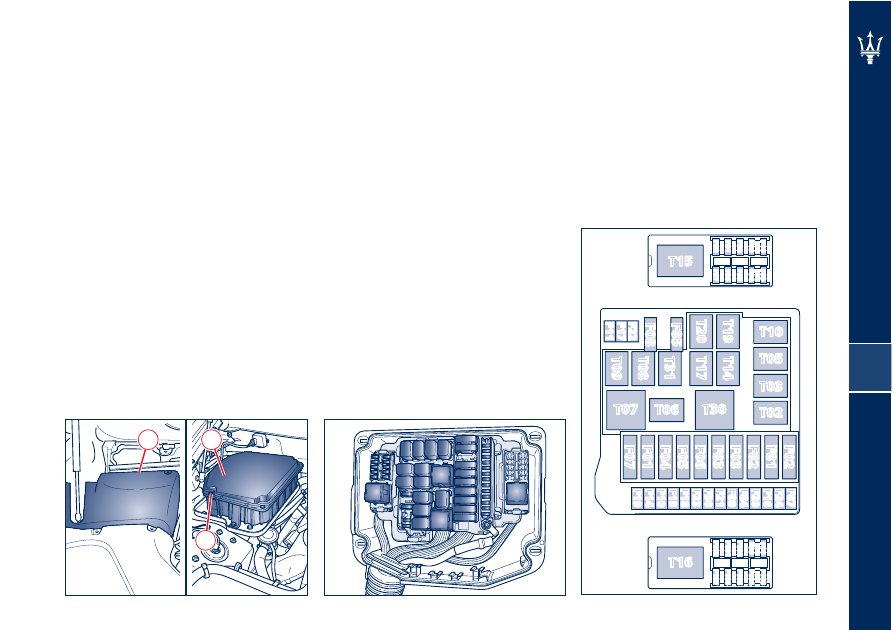

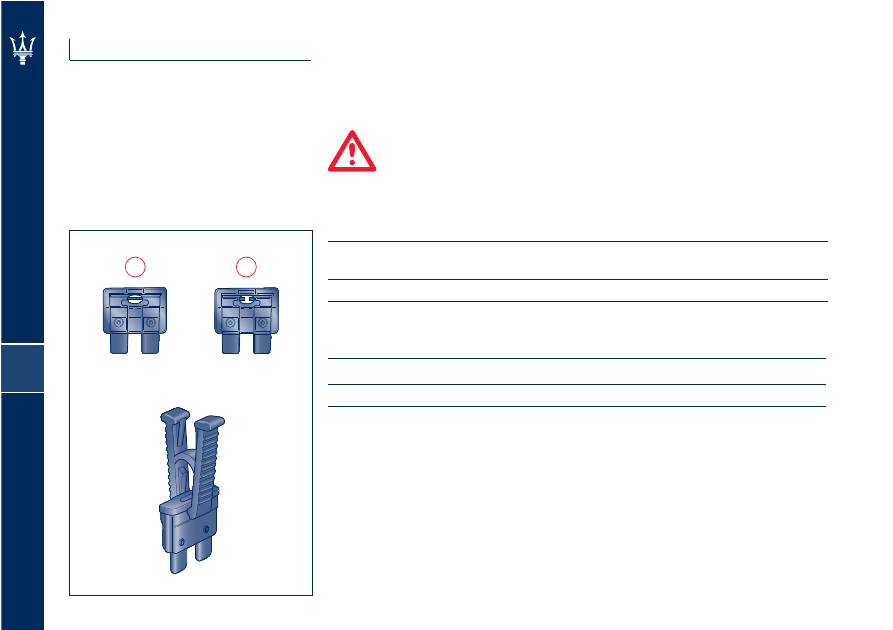

If a fuse blows

182

If the battery is dead

193

If you have to jack up the vehicle

194

If you have to tow the vehicle

195

In the event of an accident

196

6

174

Emergency starting

If the MASERATI CODE fails to
deactivate the engine immobilizer,
the warning light CODE

 will

illuminate permanently, the OBDII
warning light

 will go off after

18 seconds and then will come on
immediately and the engine will
not start. To start the engine, it is
necessary to follow the emergency
start procedure.

WARNING: We recommend that you
carefully read the entire procedure
before performing it. If you make a
mistake, you should turn the ignition
key to STOP (OFF) and repeat the
operations from the beginning (step
1).

1)  Read the 5-digit electronic code

found on the CODE CARD.

2)  Turn the ignition key to MAR

(ON): the CODE

 and OBDII

 warning lights are on.

3)  Press the accelerator pedal

fully down and keep it pressed.
Approximately 8 seconds later,
the OBDII warning light

 goes

off. Release the accelerator and
get ready to count the number
of times the OBDII warning light

 flashes.

4)  As soon as the displayed number

of flashing is equal to the first
digit of your CODE CARD, depress
the accelerator and hold it until
the OBDII warning light

 goes

off, after being illuminated for
approximately 4 seconds; You
can now release the accelerator
pedal.

5)  The OBDII warning

 light

starts flashing again. As soon as
the number of flashing is equal
to the second digit of your CODE
CARD, depress the accelerator
pedal and hold it down.

6)  Proceed in the same manner for

the remaining digits in the code
on the CODE CARD.

7)  When the last digit has been

entered, keep the accelerator
pedal pressed down. The OBDII
warning

 light illuminates for

4 seconds and then goes off; You
can now release the accelerator
pedal.

8)  A quick flashing of the OBDII

warning light

 (about 4

seconds) confirms that the
operation has been performed
correctly.

9)  Start the engine turning the key

from MAR (ON) to AVV (START).

If the OBDII warning light



remains illuminated, turn the key to
STOP (OFF) and repeat the procedure
from step 1.
This procedure can be repeated an
unlimited number of times.

WARNING: After an emergency start,
we recommend that you contact your
local Authorized Maserati Dealer,
otherwise you will have to perform
the emergency start procedure every
time the engine is started.

B

A

6

175

Toolkit

The vehicle is equipped with the
following tools:
-  toolkit, housed in the luggage

compartment;

-  tire repair kit;
- reflecting

triangle.

The toolkit, housed under the floor
panel, contains:
-  8 + 10 mm open end wrench;
-  13 + 17 mm open end wrench;
-  double slot + Phillips-head

screwdriver;

- tow

hook;

-  tool for electric parking brake

actuator release.

If a tire is punctured

For the tire repair procedures see the
instructions included in the tire repair
kit.

Note: The compressor power plug can
be inserted either in the 12V socket A
housed in the luggage compartment
or in the cigarette lighter socket B,
inside the passenger compartment.

A

D

E

C

B

B

A

C

D

E

6

176

If an exterior light turns
off

WARNING: Before replacing a
light bulb, make sure that the
corresponding fuse is in proper
working order. For replacement, use
only genuine new light bulbs having
the same characteristics as the bulb
being replaced.

Front light clusters

To access the front light clusters from
underneath the vehicle, you must first
remove the wheel housing covering.
The light bulbs of the front light
clusters are arranged as follows:
A  - Side marker bulb
B  - Direction indicator light bulb
C  - Position light and DRL (*) LED
D - Bi-xenon low-beam/high-beam

bulb

E  - FTP bulb, headlight flashing.

(*) On vehicles for the Canadian
market DRL are always enabled.

To replace the Xenon light
bulbs, the low and high
beam light bulbs and

to check the system, contact an
Authorized Maserati Dealer only:
RISK OF ELECTRICAL SHOCK!

It is advisable to contact your
Authorized Maserati Dealer also for
replacing the other lights.

Rear light clusters

The light bulbs of the rear light
clusters are arranged as follows:
A  - Position light LED
B  - Stop light LED
C  - Reverse light bulb
D  - Direction indicator LED
E  - Rear fog light bulb.

F

G

2

1

I

H

J

6

177

To replace a light bulb:
1)  Lift the engine compartment lid.
2)  Open the door on the covering

panel, in position with the light
cluster.

3)  Rotate the bulb holder F

counterclockwise and slide it out.

4)  Remove the bulb G by gently

pushing it and rotating it
counterclockwise.

5)  Insert the new bulb by slightly

pushing it and rotating it
clockwise.

6)  Insert the bulb holder and rotate

it clockwise.

7)  Close the door on the covering

panel.

Direction indicator lights

To replace the direction indicator light
bulb (5W):
1)  Push the direction indicator

forward to compress the spring
clip H.

2)  Take out the rear part of the

indicator by releasing the
retaining tab I and remove the
unit.

3)  Remove the bulb holder J turning

it counterclockwise.

K

6

178

4)  Remove and replace the bulb K.
5)  Refit the bulb holder turning it

clockwise.

6)  Refit the direction indicator

inserting first the retaining tab on
the rear part and then pressing
the front part until hearing the
spring clip click into position.

WARNING: Proceed with care when
removing the side direction indicator
light to avoid damage to the vehicle
body or to the indicator itself.

Third stop light

In order to replace the bulb, the
light cluster must be removed. It is
therefore recommended that you
contact your Authorized Maserati
Dealer.

License plate lights

To replace the license plate light bulb
(C 5W):
1)  Undo the fastening screws for the

lens/bulb holder unit.

2)  Remove the unit and replace the

bulb.

C

B

A

A

D

D

6

179

If an interior light goes
out

WARNING: Before replacing a
light bulb, make sure that the
corresponding fuse is in proper
working order. For replacement, use
only genuine new light bulbs having
the same rating as the bulb being
replaced.

Front and rear dome light

To replace the bulbs:
1)  Use a screwdriver to gently pry it

out at points A and remove the
dome light.

2)  Replace the bulb concerned by

rotating it:



- timed light B



- reading lights C.

3)  Refit the dome light inserting first

the front side and the pushing
the rear side into its seat.

WARNING: When refitting the dome
light, make sure that the electric wires
are correctly positioned and do not
interfere with the dome light edges
and with the retaining tabs.

Courtesy mirror light

To replace the bulb (12V - 5W
“torpedo” type):
1)  Remove the fixing frame by

prying it out gently at points D.

2)  Replace the bulb.
3)  Refit the fixing frame by pressing

it.

F

G

E

6

180

Glove compartment, pocket-
change compartment and
luggage compartment lights

To replace the bulb:
1)  Remove the transparent cover

by prying it out gently, using a
screwdriver, at point E.

2)  Raise the cover F.

3)  Replace the bulb G.
4)  Refit the cover, inserting first the

two-tab side and then pressing on
the other side.

H

L

M

6

181

Courtesy lights (below door)

To replace the bulb:
1)  Use a screwdriver positioned at

point H to pry out the light fixing
frame.

2)  Rotate the bulb holder L and

remove it.

3)  Replace the pressure-fitted bulb

M.

4)  Refit the bulb holder L inserting

first the electrical connector side
and then pressing on the other
side to hook the clip.

A

B

6

182

If a fuse blows

Replacing the fuses

When an electrical device is
not functioning, check that the
corresponding fuse is in proper
working order.
A  -  Fuse intact.
B  - Fuse blown.

Replace the faulty fuse with a new
one having the same rating (same
color).
If the fault recurs, consult your
Authorized Maserati Dealer.

Never replace a blown fuse
with anything other than a
sound fuse having the same

rating/color.

Position of fuses/relays

The fuses/relays are located in various
parts of the vehicle, namely:
-  On the right-hand side of the

luggage compartment.

-  Behind the glove compartment, to

the left of the steering wheel.

-  In the luggage compartment next

to the battery.

Fuse colors

dark
yellow

brown

red

light
blue

yellow

white

green

Ampere

A5

A7.5

A10

A15

A20

A25

A30

Maxi Fuse colors

yellow

green

orange

red

blue

Ampere

A20

A30

A40

A50

A60

T15

T19

T14

T20

F11

F19

F14

F10

F15

F18

F23

F30

F21

F09

F84

F20

F16

F24

F87

F17

F22

F92

F91

F90

F89

F88

F97

F96

F95

F94

F93

F102

F101

F100

F99

F98

F107

F106

F105

F104

F103

F08

F07

F01

F04

F05

F06

F83

F03

F82

F81

F02

F85

T17

T31

T08

T09

T30

T07

T06

T16

T10

T05

T03

T02

C

B

A

6

183

Fuses and relays inside the
engine compartment

To access the fuses/relays, lift the
engine compartment lid, remove the
covering panel A, then undo the 4
screws B to remove the cover C .

The fuses/relays are housed in 3
control boxes.

The list of fuses and relays is shown in
the following pages.

WARNING: If you need to wash the
engine compartment, do not direct
the jet of water for too long directly
on the engine compartment ECU.
