Obstacle signaling

The acoustic signals are emitted
by two buzzers, one under the
dashboard and one in proximity of
the luggage shelf.
When the obstacle is located at
a distance of less than 14 in (35
cm) from the bumper, the beep is
continuous. The warning beep stops
immediately if the distance between
the vehicle and the obstacle increases.
The tone cycle is constant if the
distance measured by the central
sensors remains unaltered, while if
this occurs with the lateral sensors,
the signal stops after approximately
7 seconds, to prevent for example
continuous beeps in the event of
manoeuvres alongside walls.

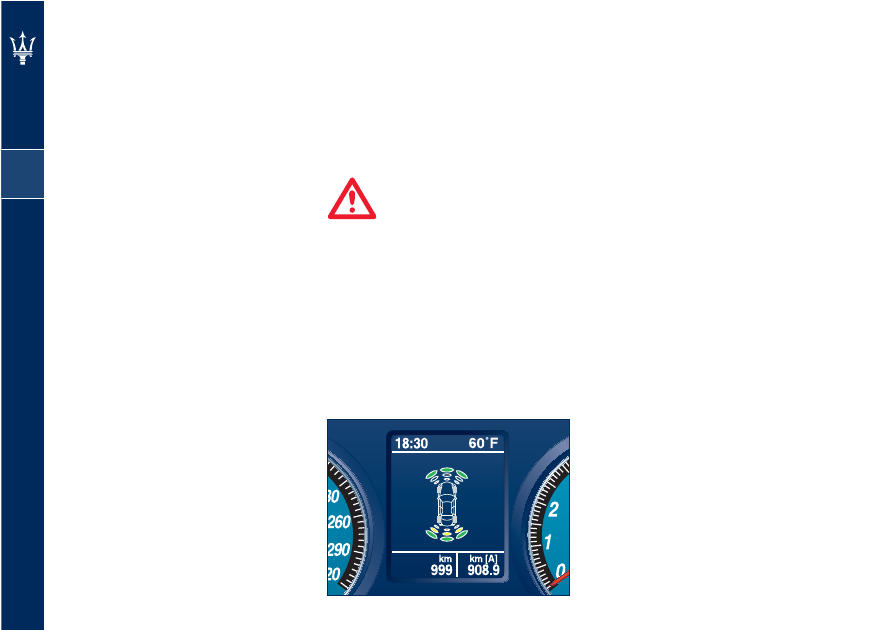

The distance from the obstacles can
also be graphically shown on the
instrument panel display by means
of an image that shows the vehicle
surrounded by explanatory symbols
of the distance (maximum/average/
minimum) and the position (front/
rear/central/side) of the obstacle
detected.
The colour represents the distance,
while the field represents the
position. The green color represents
the maximum distance detected, the
yellow colour the medium distance

and the red colour the minimum one.
If the vehicle is equipped only with
rear sensors, the front sensors are not
shown in the image.
If the vehicle is equipped with front
and rear sensors, the rear sensors are
not shown in the image if only the
front sensors are active.

For the system to operate
correctly the sensors
positioned on the bumper

must be kept clean (remove any mud,
dirt, snow or ice).

Cleaning the sensors

When cleaning the sensors, take
special care not to scratch or damage
them; therefore, do not use dry,
rough or hard cloth.
The sensors must be washed with
clean water, possibly with car
shampoo added.
Should you need to repaint the
bumper or in case of paint touch-ups
in the sensor area, please contact
exclusively the Authorized Maserati
Dealer. Incorrect paint application
could affect the parking sensor
operation.

2

55

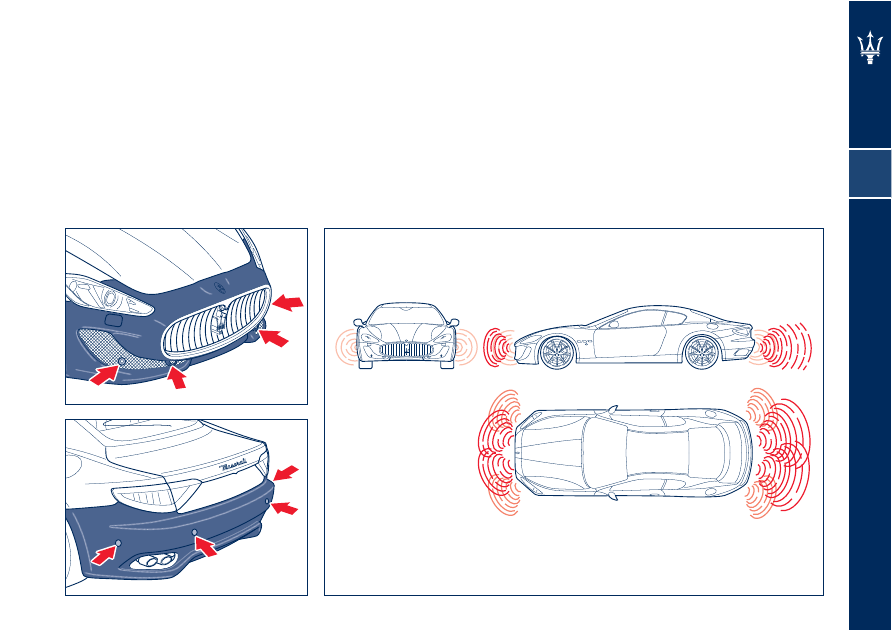

Sensor range

The sensors allow the system to
monitor the front and rear of the
vehicle; they are positioned so as to
monitor the central and lateral zones
at the front and at the rear of the
vehicle.
In the event of an obstacle located in
a central area, this will be detected
at distances of less than 1 yd (0,9 m)

at the front and 1.6 yd (1,50 m) at
the rear, depending on the type of
obstacle and its dimensions.
If the obstacle is located in a lateral
position, it will be detected at
distances of less than 0.9 yd (0,8 m).

2

56

Failure indicators

The system ECU is designed to check
all the components every time reverse
gear is engaged.

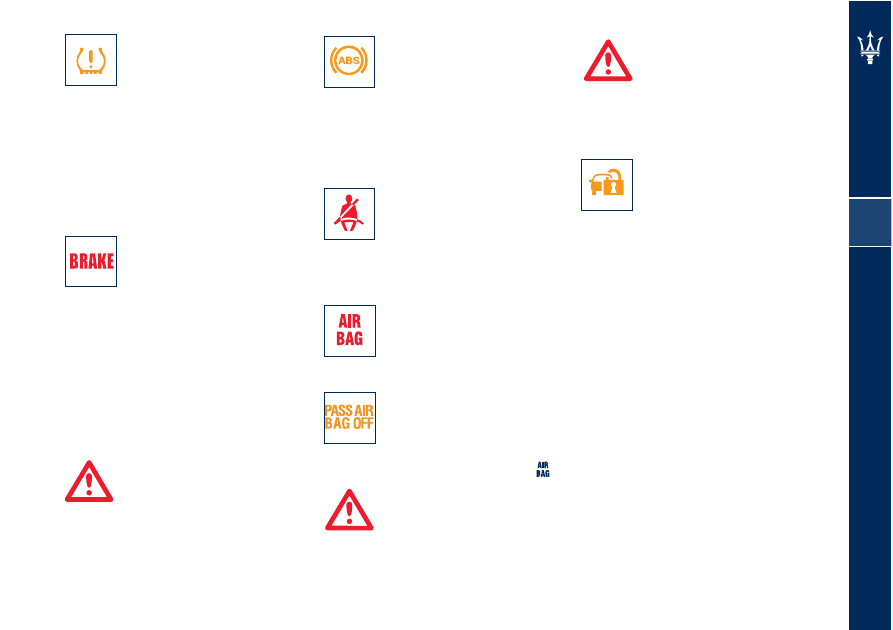

In the event that the parking
sensors fail, the relative warning
light

 illuminates on the display,

accompanied by the message
“Parking Sensor Failure”.
In the event of a failure signal, stop
the vehicle and turn the ignition key
to STOP (OFF). Then try cleaning the
sensors or moving the vehicle away
from any possible ultrasound sources
(e.g. pneumatic truck brakes or
pneumatic hammers) and rotate the
ignition key to the MAR (ON) position.
If the cause of the operating fault has
been eliminated, full operation of the
system will be recovered.
If however, the failure beep
continues, contact the Authorized
Maserati Dealer to have the system
checked.

During parking manoeuvres,
always be extremely careful
with obstacles that might be

located above or below the sensors.
In fact, in certain circumstances,
objects located near the rear of
the vehicle are not detected by
the system and therefore could
damage the vehicle or be damaged
themselves.

The signals transmitted
by the sensors can also be
altered by damage to the

sensors or by dirt, snow or ice on the
latter or even by mechanisms which
emit ultrasonic frequencies (e.g.
pneumatic truck brakes or pneumatic
hammers) in the vicinity of the
vehicle.

The driver is fully
responsible for parking
and other potentially

dangerous manoeuvres. During these
manoeuvres, always make sure there
are no people (especially children) or
animals in the manoeuvring area. The
parking sensors must be considered
an aid for the driver who, ultimately,
must always take care during
potentially dangerous manoeuvres,
even at low speeds.

A

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

2

57

Fuel cut-off inertia switch

The vehicle is equipped with a safety
switch which is designed to activate in
the event of a collision, cutting off the
fuel supply and consequently causing
the engine to stop. It also prevents
fuel spreading if the fuel lines are
damaged during the accident.
Activation of the safety switch is
signaled by the illumination of the
warning light

 on the display.

The switch is positioned underneath
the front left-hand seat.

After a collision, if you smell
fuel or note any leakage
from the fuel supply system,

do not reactivate the switch in order
to prevent any fire risks.

The activation of the inertia switch
causes all the doors and the luggage
compartment to unlock and in the
internal dome light and the four
direction indicators to turn on.

Resetting the switch

Turn the ignition key to position STOP
(OFF).
Check that there is no leakage from
the fuel system.
If no leaks are found, reset the inertia
switch which stops the fuel pump
operation, by pressing button A on
the switch.
Turn the ignition key to position MAR
(ON), wait a few seconds and move it
to ACC.
Check that the warning light

 on

the display is off.
Check once again that there are no
fuel leaks.

Note: Contact an Authorized Maserati
Dealer.

3

59

Instruments and controls

Dashboard

60

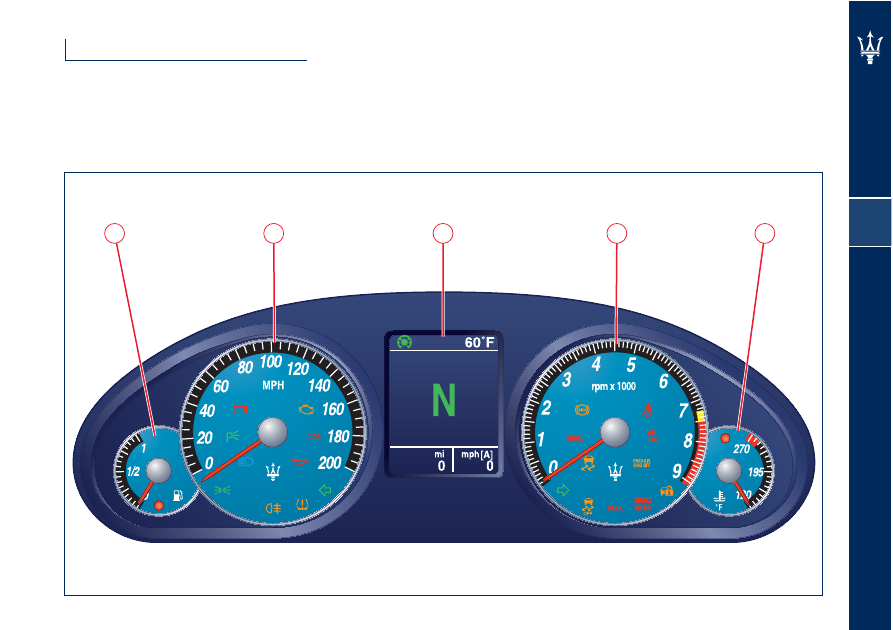

Instrument panel

65

Controls and warning lights

66

Instruments and gauges

72

Controls

77

Internal equipment

82

1

35 34 33 32

30

27

25

26

23 22

29

31

2

3

6

7

8

9 10 11

13 14

1

16

15

12

19

18 23

20

21

5

4

28

28

17

22 24

3

60

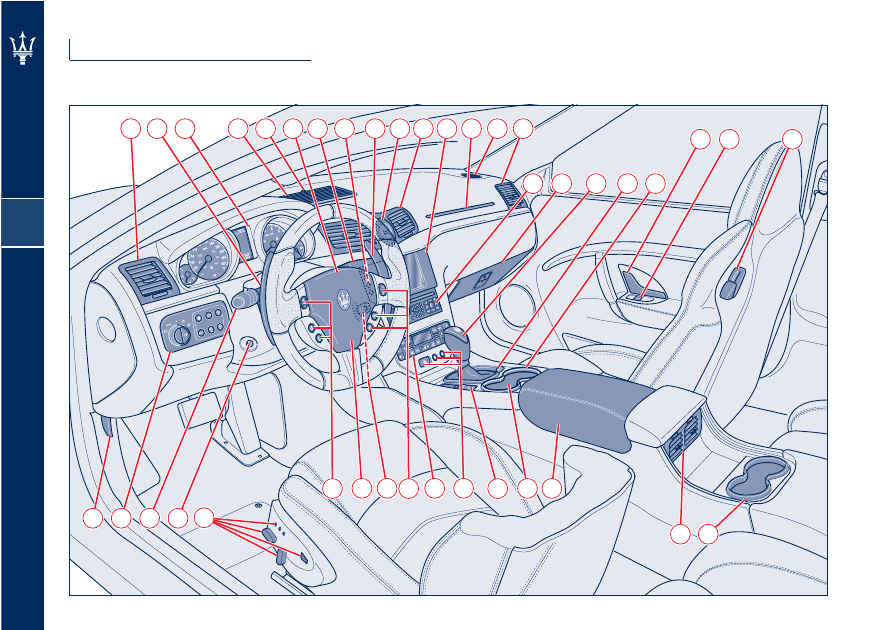

Dashboard

A

B

C

D

3

61

1)  Air conditioning side vents
2)  Lower gearshift paddle DOWN
3) Instrument

panel

4)  Air conditioning upper vent
5)  Sun radiation sensor
6) Driver’s

airbag

7) Windshield/headlight

wiper/

washer control lever

8)  Side buttons, to the left of the

Multi Media System Display

9)  Upper gearshift paddle UP
10) Clock
11)  Central air-conditioning vents
12)  Multi Media System display
13) Passenger’s airbag
14)  Side window vents
15)  Multi Media System controls
16) Glove compartment
17)  Automatic gearshift lever
18)  Ashtray and cigarette lighter
19)  Internal passenger’s door opening

handle

20)  Passenger’s door power window

control

21)  Passenger seatback tilting lever

22) Beverage holder
23)  Air conditioning rear vents
24) Pocket-change compartment
25)  Electric parking brake

engagement/disengagement
lever

26)  Buttons underneath air

conditioning controls

27)  Air conditioning controls
28)  Multi Media System controls

repeated on the steering wheel

29)  Starter/steering wheel lock switch
30) Horn control
31)  Seat adjustment controls
32)  Steering wheel height and depth

adjustment control

33)  Lever controlling cruise control,

direction indicators, high beams
and flashing headlights

34)  Controls to the left of the

steering wheel

35)  Engine compartment lid opening

lever

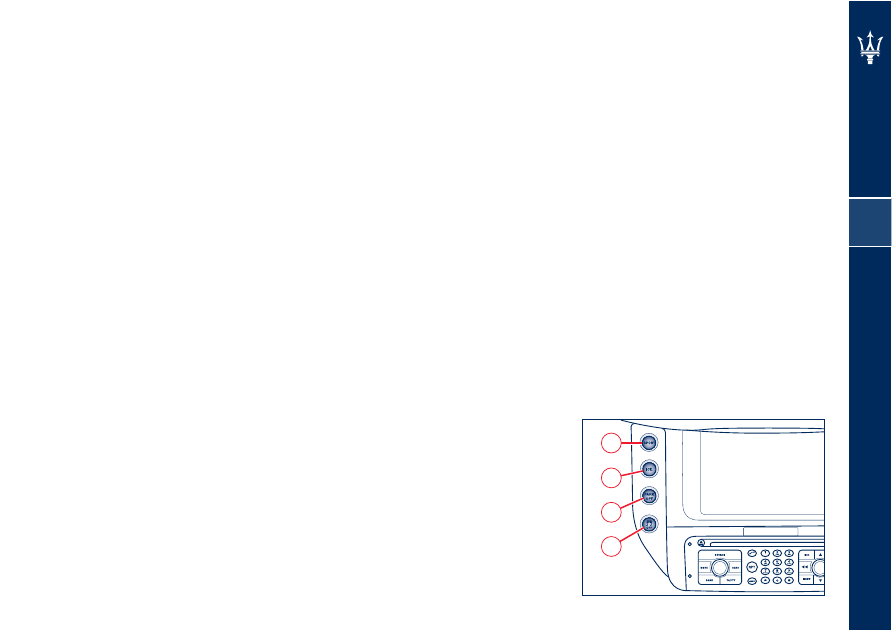

Ref. 8 Side buttons, to the left of the
Multi Media System Display

A  - SPORT mode button
B  - Low grip mode button (ICE)
C  - PARK OFF function button (see

page 163)

D  - ESC OFF system deactivation

button

A

B

B

A

C

D

E

F

G

H

3

62

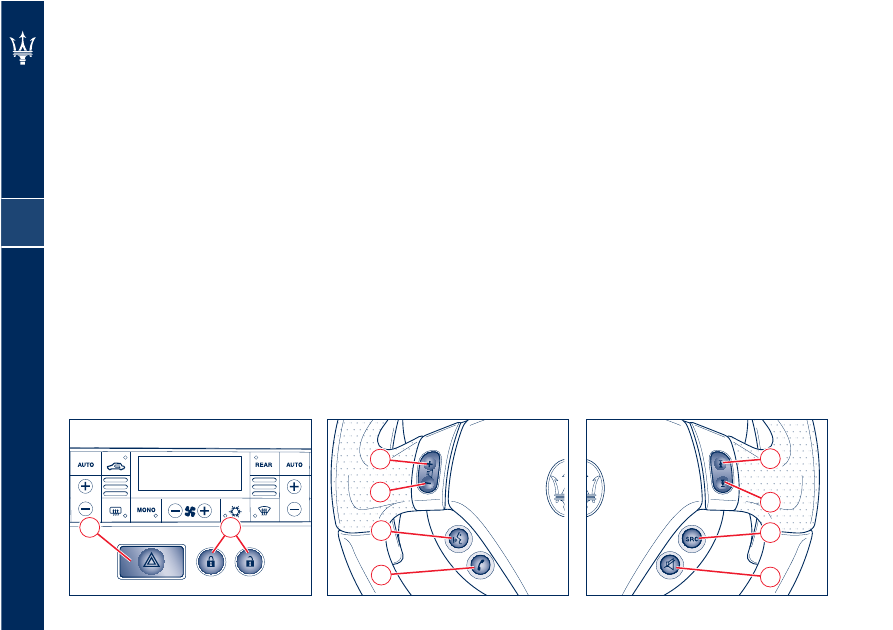

Ref. 29 Multi Media System controls
repeated on the steering wheel

A  - Increases the sound system

volume.

B  - Decreases the sound system

volume.

C  - Voice control function activation/

deactivation.

    Navigator Mode: Enables the

guiding voice during the trip
guidance and also displays
information pertaining to the
guidance session.

D - Button pressed briefly
    Telematic mode activation.
    Place call, paired telephone.
    Accept incoming call, paired

telephone.

    End call in progress, paired

telephone.



    Button pressed at length
    Reject incoming telephone call,

paired telephone.

E - Button pressed briefly
    Radio mode: Search for the first

tuneable station with higher
frequency.



SIRIUS satellite radio mode
(where available): goes to the
next category starting from the
one currently selected.



CD, Jukebox, USB and iPod Mode:
next track selection.

    Button pressed at length


CD, Jukebox, USB and iPod mode:
track fast forward.

Ref. 27 Buttons underneath air
conditioning controls

A  - Hazard light button
B  - Door lock/unlock button

I

K

J

A

B

C

G

E

D

F

3

63

F - Button pressed briefly


Radio mode: Searches for the
first tunable station with a lower
frequency.



SIRIUS satellite radio mode
(where available): goes to the
previous category starting from
the one currently selected.



CD, Jukebox, USB and iPod Mode:
goes to previous track if selected
within the first 3 seconds of track
playing, otherwise the track is
played again from the beginning.



Button pressed at length



CD, Jukebox, USB and iPod mode:
track fast rewind.

G  - Mode selection: radio, CD,

Jukebox or iPod.

H  - Mute function on/off.

I  - Radio mode: radio frequency shift

to the next station in preset steps,
starting from the station currently
tuned in.



SIRIUS satellite radio mode
(where available): shifts the radio
channel to the next station in
preset steps, starting from the
station currently tuned in.



CD, MP3, Jukebox, USB and iPod
Mode: selects the next folder.



Menu: scrolls through the menus.

J  -  Radio mode: shifts the radio

frequency to the previous station
in preset steps, starting from the
station currently tuned in.

    SIRIUS satellite radio mode

(where available): shifts the
previous radio channel starting
from the station currently tuned
in.

    CD, MP3, Jukebox, USB and iPod

Mode: selects the previous folder.

    Menu: scrolls through the menus.
K  - Confirms the function, item or

value selected.

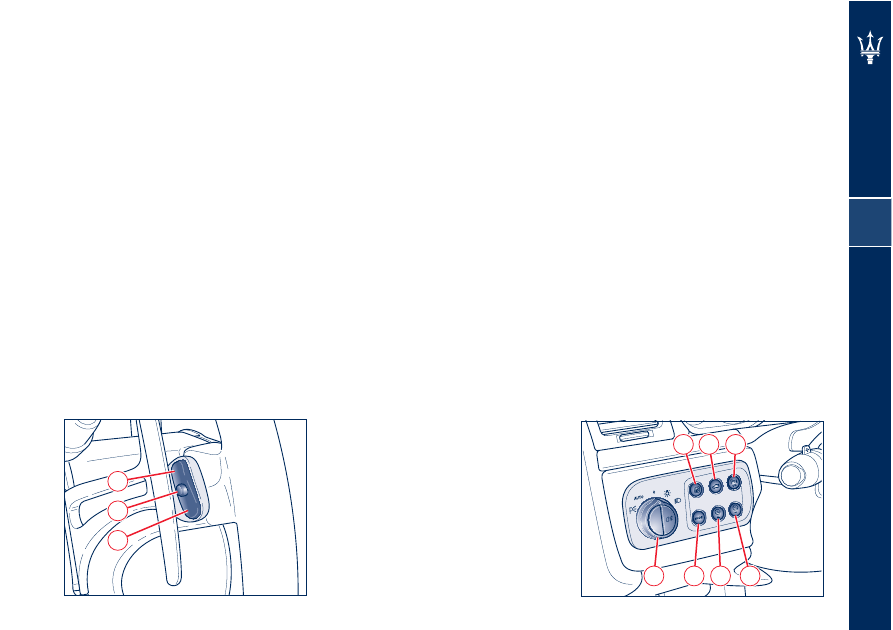

Ref. 35 Controls to the left of the
steering wheel

A - Light switch
B  - Fuel tank door opening button
C  - Luggage compartment lid

opening button

D - Mode button
E  - Instrument panel brightness

control (UP)

F  - Instrument panel brightness

control (DOWN)

G  -  Front parking sensors enable/

disable.

C

B

A

A

B

C

C

A

B

3

64

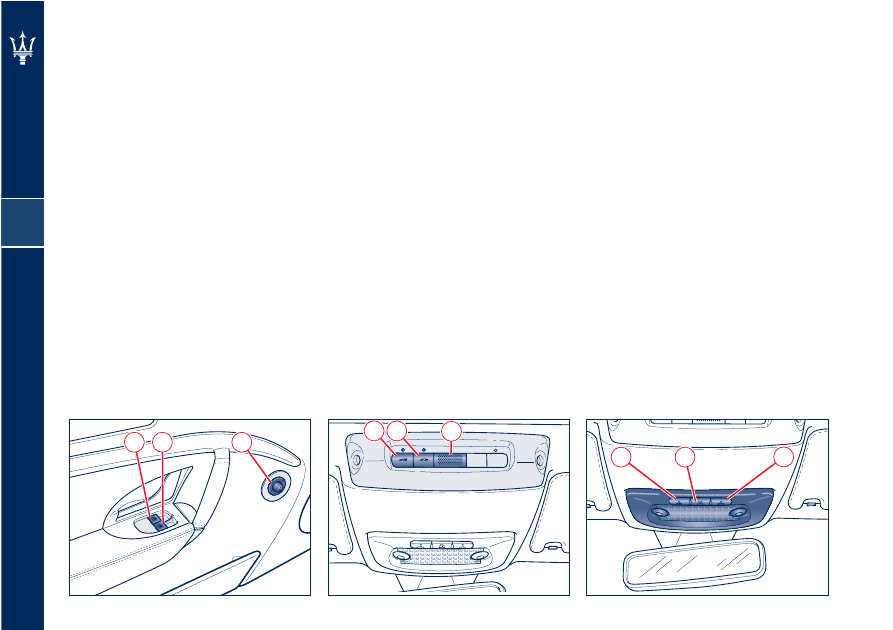

Controls on driver’s door

A  - Front left-hand power window

control

B  - Front right-hand power window

control

C  - External rear-view mirror controls

Controls on inside roof

A  - Anti-lift alarm system deactivation
B  - Alarm system motion sensor

deactivation

C  - Paired telephone hands-free

microphone

Controls on front dome light

A  - LH side light switch
B  - Central light switch
C  - RH side light switch

1

2

3

4

5

3

65

Instrument panel

1)  Fuel level gauge and low fuel

indicator

2) Speedometer
3) Display

4) Tachometer
5)  Coolant thermometer and high

temperature warning light

3

66

Controls and warning
lights

Rear fog lights

When the rear fog lights are
turned on.

Position lights/low beams

This warning light
illuminates when the

position lights, low beams or parking
lights are turned on.

High beams

When the high beams are
turned on or used to flash.

Parking lights

With the key removed, it
indicates that the parking

lights are on.

Alternator failure

This warning light
illuminates when there is a

fault in the charging system.
When the battery is insufficiently
charged or overcharged (flashing).

Engine failure control
system (OBDII) (*)

In normal conditions, this

warning light should illuminate when
the ignition key is turned to MAR
(ON) and should go off as soon as the
engine is started. This will show that ,
the warning light is working properly.
If the warning light remains on or
illuminates while driving, it indicates
that there is a failure in the fuel
supply/ignition and emission control
system. This failure could cause
high exhaust emissions, loss of
performance, poor vehicle handling
and high consumption levels.
In these conditions you can proceed
slowly without demanding engine
performance. Prolonged use of the
vehicle when this warning light is
illuminated may cause damage. For
this reason, you should contact your
Authorized Maserati Dealer as soon as
possible. The warning light will go off
if the problem is no longer present.
The error will be stored by the system
in any case.

WARNING: When the ignition key is
turned to MAR (ON), if the warning
light

 does not illuminate or if it

illuminates while driving, contact your
Authorized Maserati Dealer as soon as
possible.

Automatic gearbox
failure (*)

Depending on the message

displayed it signals:
-  a gearbox failure.
If the failure permits, slowly drive
to the nearest Authorized Maserati
Dealer.
-  a too high temperature of the

gearbox oil.

In this case, slow down until the
temperature goes down to the
normal values for use (the warning
light goes off), see page 144.

Low oil pressure (*)

Under normal conditions,
the warning light should

illuminate when the ignition key is
turned to MAR (ON) and should go
off as soon as the engine is started.
If the warning light remains on
or illuminates while driving, this
indicates a too low engine oil
pressure.
In this case, turn the engine off
immediately and carry out the
necessary checks.
If the problem persists, contact your
Authorized Maserati Dealer.

3

67

Tire pressure (TPMS) (*)

This warning light is
connected to the Tire

Pressure Monitoring System (TPMS). It
illuminates when the system detects
an insufficient tire pressure or a
sudden loss of pressure (punctured
tire) of one or more tires.
If the warning light flashes prior to
remain on, it indicates that the system
is temporarily unavailable.

Low brake fluid warning
light (*)

This warning light

illuminates when the brake fluid level
drops below the minimum level. If
accompanied by a specific message,
it indicates an EBD system failure.
In this case, do not apply the brakes
suddenly, since this may cause an early
locking of the rear wheels. Driving
extremely carefully, immediately go
to the nearest Authorized Maserati
Dealer to have the system checked.

If the warning light
illuminates while driving,
immediately check the

brake fluid level. If the fluid is below
the minimum level, there may be a
leakage in the circuit. Contact your
Authorized Maserati Dealer before
driving further.

Defective ABS system (*)

This warning light
illuminates when the

ABS system is not functioning. The
standard braking system remains
operational, but it is advisable to
contact your Authorized Maserati
Dealer as soon as possible.

Seat belts (*)

This warning light
illuminates when the driver’s

seat belt is not fastened or improperly
fastened. A buzzer is also activated
when the warning light is on.

Airbag/pretensioner
failure (*)

When the pretensioner and/

or airbag system are/is defective.

Air Bag warning light
malfunction (*)

The warning light flashes

to indicate a malfunction of the “air
bag/pretensioners warning light”  .

Turning the key to MAR
(ON), the warning light
illuminates but should go off

after a few seconds with the engine
running.

If the warning remains on
or stays on or if it does
not illuminate or if it

illuminates while driving, contact
your Authorized Maserati Dealer as
soon as possible.

Maserati CODE (*)

With the ignition key
in MAR (ON) position,

the amber warning lights on the
instrument panel and on the multi-
function display illuminate when the
system detects the following faults:
-  Alarm system not available.
-  Electronic key not detected.
-  Have the vehicle protection system

checked.

or when the user is informed of the
following events:
-  Vehicle break-in detected.
-  Electronic key not recognized.

3

68

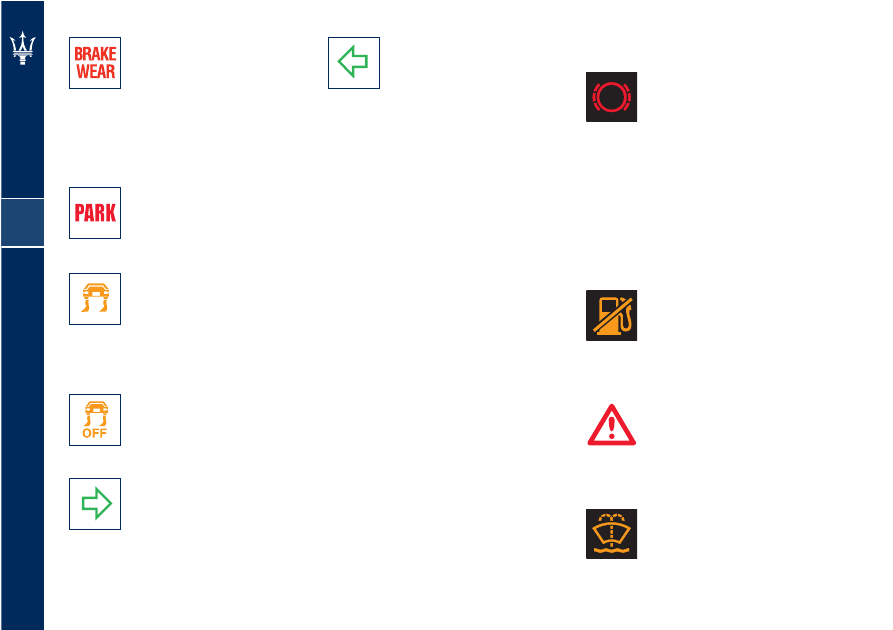

Brake pads worn (*)

This warning light
illuminates on the

instrument cluster (for versions/
markets, where provided) when the
brake pads have reached their wear
limit. Please contact the Authorized
Maserati Dealer.

Parking brake engaged

This warning light
illuminates when the

parking brake is applied.

ESC system
malfunction (*)

Indicates a malfunction in

the ESC system.
Please contact your Authorized
Maserati Dealer.

Overriding
the ESC system (*)

This lights up when the ESC

system is overridden.

Right-hand side
indicators

This warning light

illuminates when the right-hand
direction indicators or the hazard
lights are turned on.

Left-hand direction
indicators

This warning light

illuminates when the left-hand
direction indicators or the hazard
lights are turned on.

(*) Viewed on the display as well

Warning lights on the display

Brake Pads Wear Warning
Light

It turns on to indicate that

the brake pads have reached their
wear limit.
The display will show the warning
light and the message “Check Brake
Pads”.
The warning light and the message
will be displayed for 10 seconds.
Please contact an Authorized
Maserati Dealer.

Inertia switch, fuel cut-
out enabled

This warning light

illuminates when a collision activates
the inertia switch, thus cutting off the
fuel supply.

After a collision, if you
smell fuel or note leakages
from the fuel system, do

not reactivate the switch in order to
prevent the risk of fire.

Windshield washer fluid

This warning light signals a
low level of washer fluid in

the windshield washer tank.

3

69

Cruise Control

This warning light indicates
that the constant speed

regulator, Cruise Control, is active.

Lighting system failure

This warning light
illuminates in the case of a

system failure or burning-out of the
position, direction indicator, rear fog
and license plate light bulbs.

Stop light failure

This warning light
illuminates in the case of a

system failure or burning-out of the
stop light bulbs.

Twilight sensor failure

This warning light
illuminates in the case of a

failure of the twilight sensor.

Catalyst temperature too
high

This warning light

illuminates if the engine runs
irregularly with consequent high
temperature in the exhaust system.

IF THE WARNING LIGHT
IS ACCOMPANIED BY THE
MESSAGE “HIGH CATALYTIC

CONV. TEMPERATURE SLOW DOWN”:
the catalytic converter temperature is
too high. The driver must slow down
immediately until the warning light
turns off.

IF THE MESSAGE
“EXCESSIVE CATALYTIC
CONV. TEMPERATURE DO

NOT PROCEED” APPEARS AFTER
DECELERATING: the temperature in
the catalytic converters has reached
a dangerous level and the catalytic
converters could be damaged. Drive
slowly to the nearest workshop.

If the warning light
illuminates 3 times, the
engine will stops. The engine

can only be restarted turning the key
to off and then back to on. Go to the
nearest Authorized Maserati Dealer
driving at reduced speed.

Maserati declines all
responsibility for personal
injuries or property damage

deriving from non compliance with
the above mentioned warnings.

Power steering failure

This warning light indicates
that the power steering

system is malfunctioning.
Drive slowly to the nearest
Authorized Maserati Dealer , being
extremely careful as steering effort
may increase.

Low engine oil level

This warning light indicates
that the engine oil level is

low; to check it see page 214.

Low Automatic gearbox
oil level

The red symbol indicates

that the gearbox oil level is too low.
Stop the vehicle and contact your
Authorized Maserati Dealer to have
the system checked.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

3

70

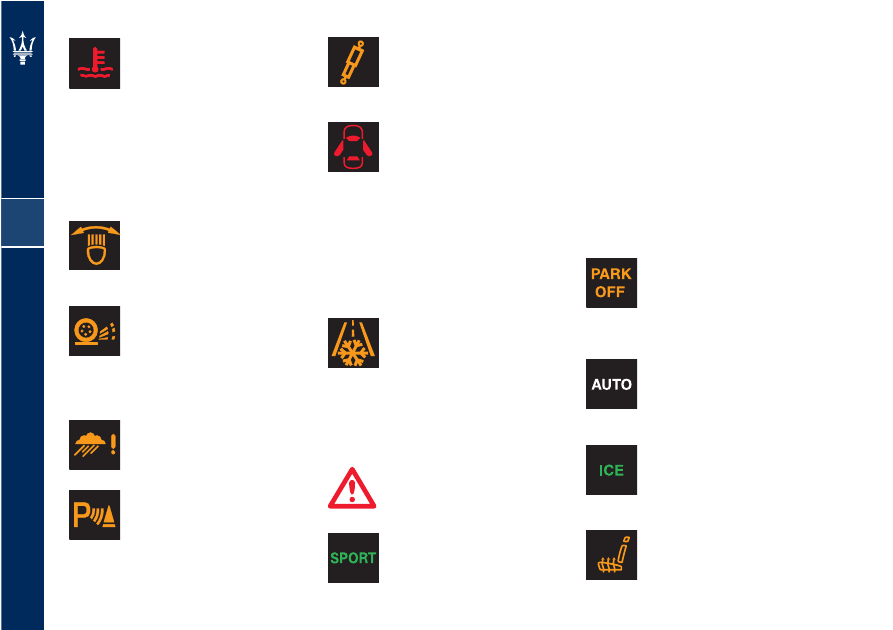

Excessive coolant
temperature

Coupled to the “Coolant

thermometer”, it comes on together
with the warning light on the
instrument panel and indicates an
excessive temperature of the coolant.
In this condition, stop the vehicle and
have the cooling system checked by
your Authorized Maserati Dealer.

ALC system failure

This warning light indicates
a failure of the automatic

headlight aiming system.

ASR system failure

This warning light indicates
the deactivation or failure

of the ASR system. In the event of
a failure, contact your Authorized
Maserati Dealer.

Rain sensor failure

This warning light indicates
that the rain sensor is faulty.

Parking sensor failure

This warning light indicates
that the parking sensor

system is faulty.

Shock absorber failure

While driving, it indicates
a malfunction in the

suspension system.

Doors and lids open

This warning light indicates
that the doors or lids are

open or not properly closed; the
display also shows an image of the
vehicle with the part not closed
highlighted in red.

WARNING: Before starting off, close
any doors and lids that are open or
not properly closed.

Ice hazard

This warning light
illuminates when the outside

temperature is 37.4 °F (3° C) or lower,
in order to indicate the risk of icy road
surfaces. Under such conditions, drive
carefully and slow down as the grip of
the tires could be markedly reduced.


Do not activate SPORT mode
in this situation.

Vehicle set to SPORT

When the button that sets
the vehicle to the SPORT

mode is pressed.

WARNING: SPORT mode changes the
vehicle driving features.

WARNING: SPORT mode should not be
activated if the road surface is in poor
conditions or or slippery.

WARNING: In low- and medium-grip
conditions (e.g., rain, snow, ice, sand,
etc.) it is advisable not to activate
SPORT mode, even with the ESC
enabled.

EPB automatic operation
disabled

This warning light indicates

that the EPB automatic activation/
deactivation function is disabled.

Automatic gearbox

This warning light indicates
that the automatic gearbox

feature is active.

“Low grip” function

This warning light indicates
that the low grip function is

active.

Seat heating

This warning light indicates
that the heating function is

activated on one or more seats.
